Antena Air Live WAI-102PA (v2)

39 posts in this topic
3 hours ago, bejonet said:

my mistake have  look at the picture,  nut not to  the center vibrator and director

,,,good, I do not think this problem influences too much....!!!
,,,what displacement has the nut...???

Share this post


Link to post
Share on other sites
On 9/26/2018 at 0:34 PM, Admin said:




i thinking if measurement 30mm from director and vibrator not from reflector :D  and i use reflector size is 80x100mm

Share this post


Link to post
Share on other sites

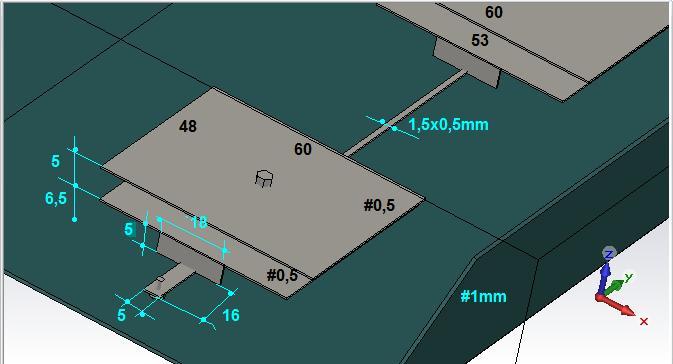

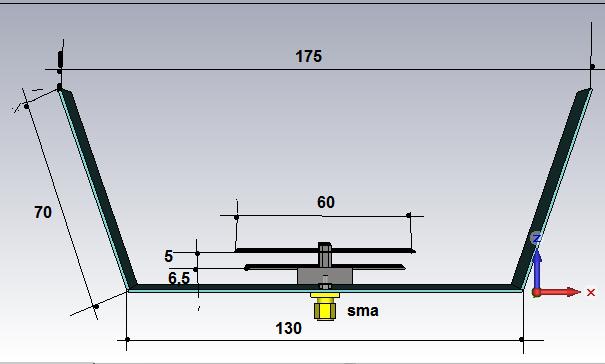

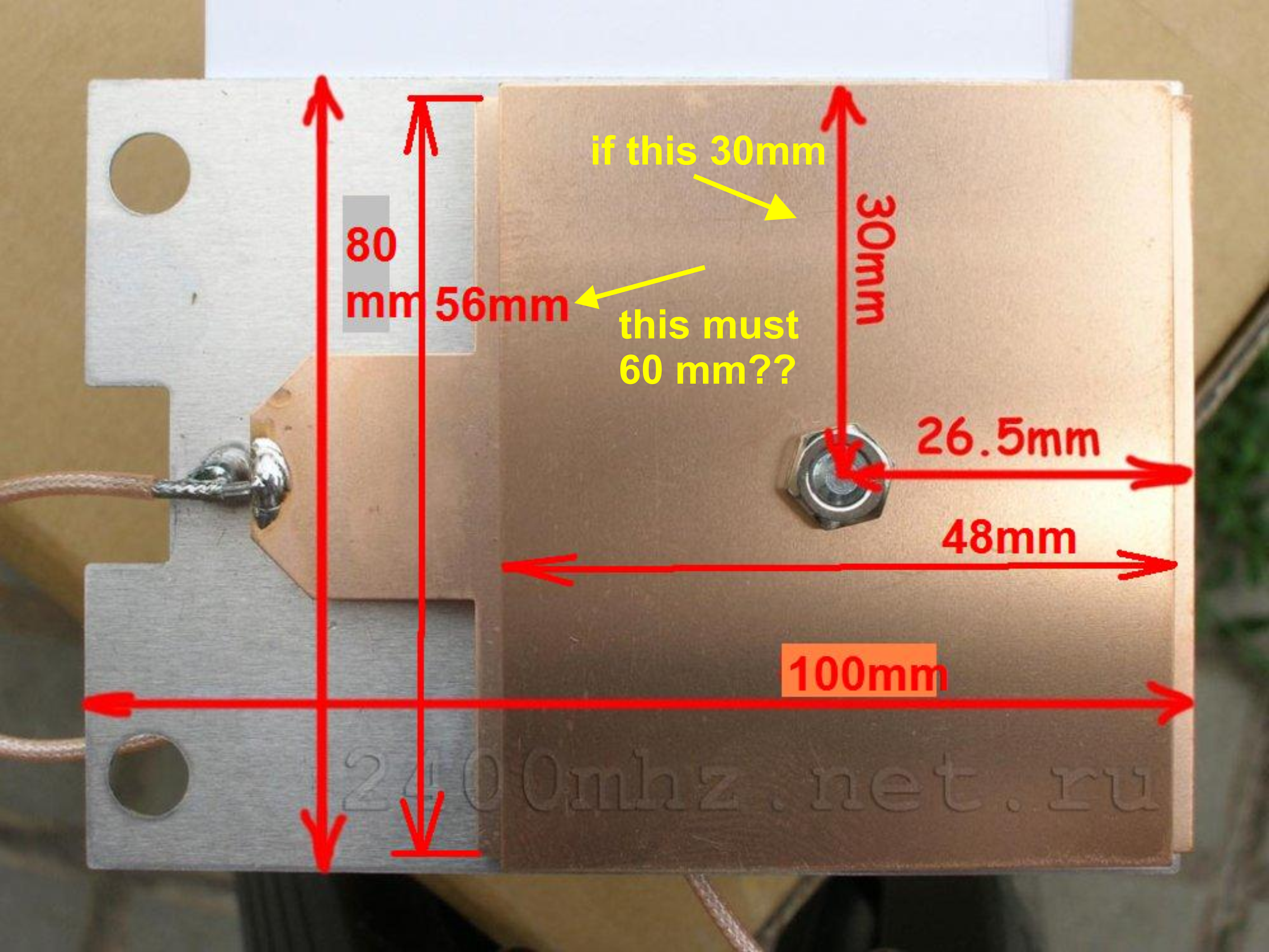

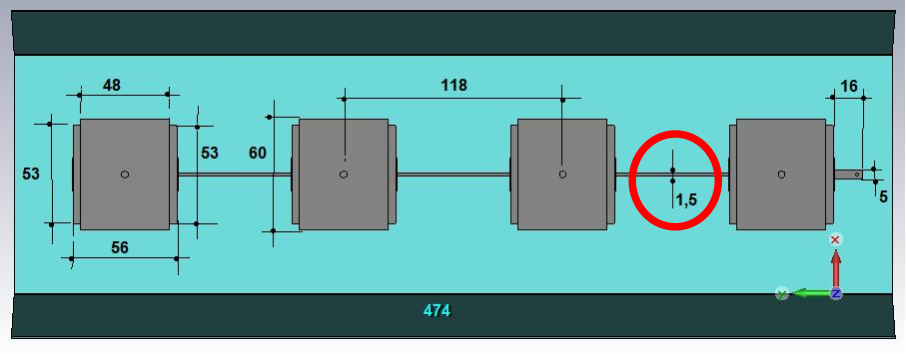

,,,these are the dimensions ... !!!


1 person likes this

Share this post


Link to post
Share on other sites

the length of the director and vibrator is 56mm, while the nut distance from the long side is 30mm, so the nut is not in the center ?? that's what I meant



I tried using a comparison of tplink wr-741nd with default  omni and this antenna, the result is still better using omni


Share this post


Link to post
Share on other sites

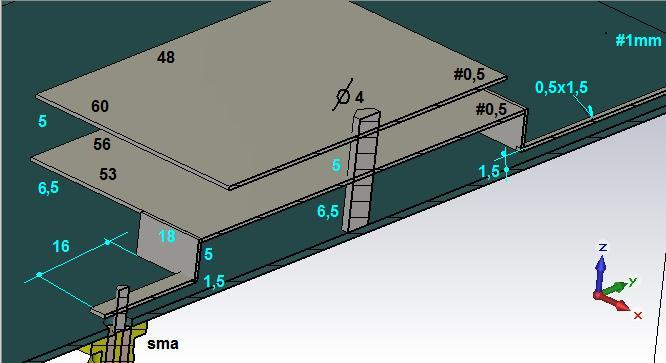

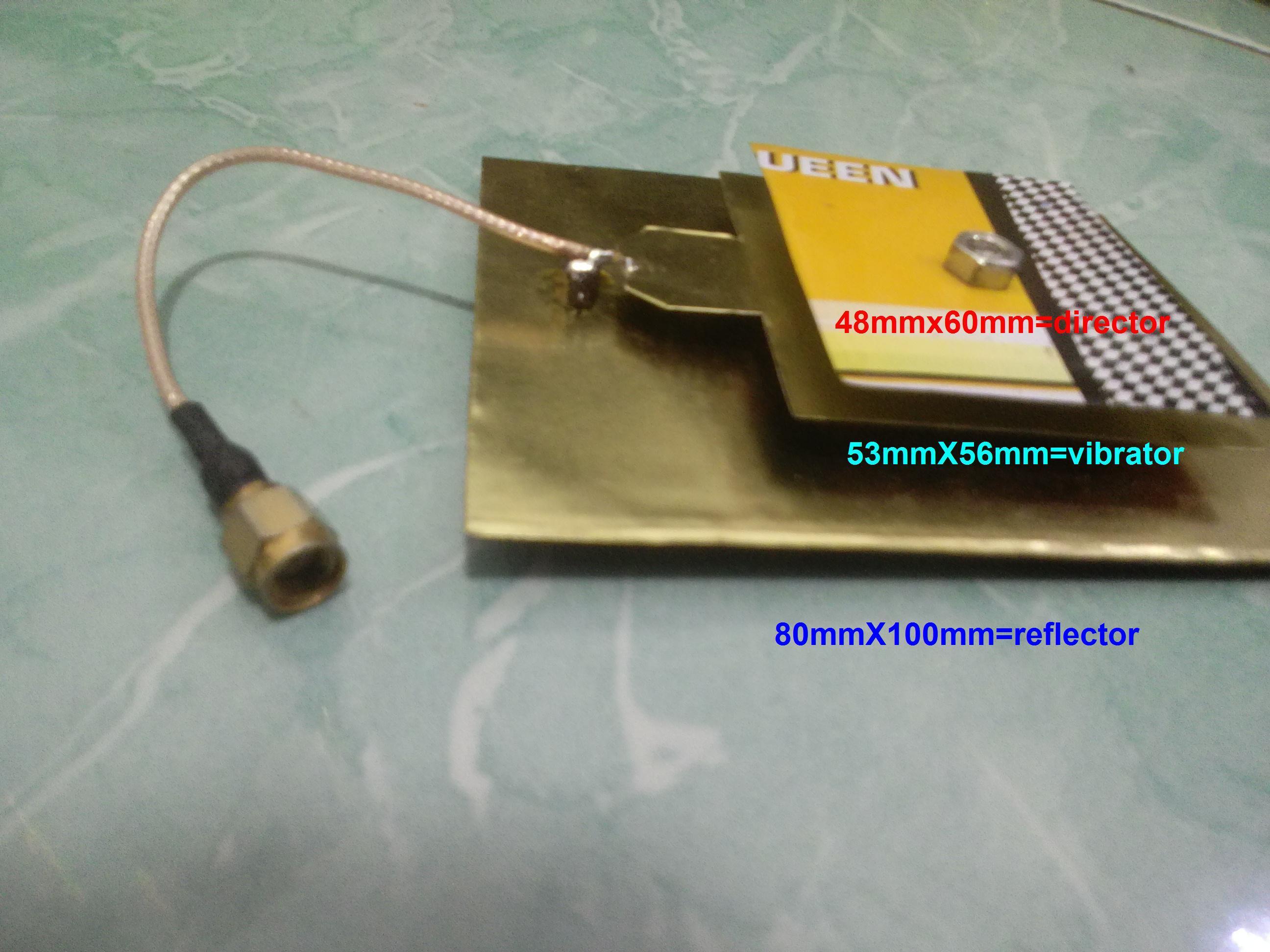

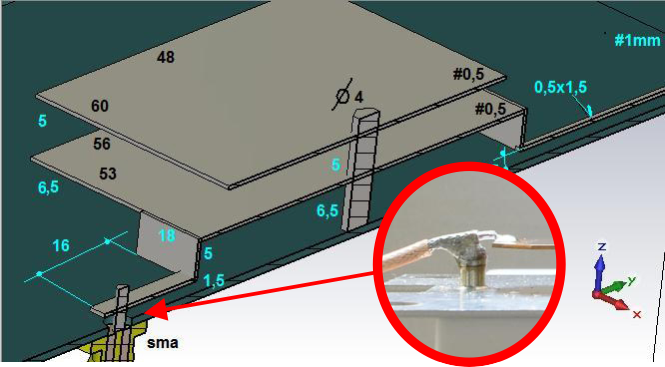

" be careful ... vibrator size = 53mmx56mm

                     directory size = 48mmx60mm






1 person likes this

Share this post


Link to post
Share on other sites

I thought the length of the director and vibrator were the same, meaning the director was longer than the vibrator right? :D  thanks brother..

another question ..

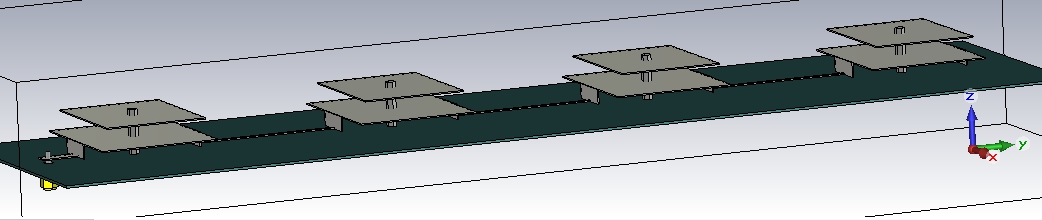

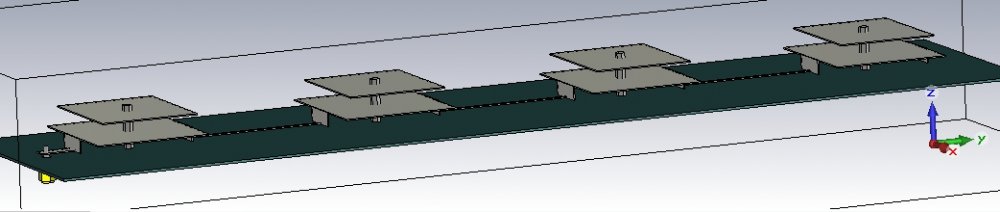

what about models like this, for the 2400mhz sectoral antenna, is it possible?

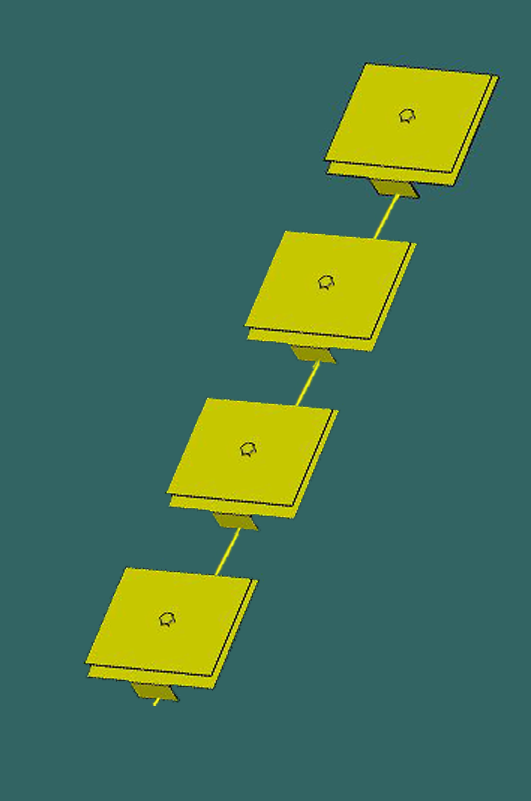

sectoral live antenna.png

Share this post


Link to post
Share on other sites

,,, you can not, how as crossing the adaptation line, the potential null point ... ??? !!!

,,,or something of that kind...


2 people like this

Share this post


Link to post
Share on other sites

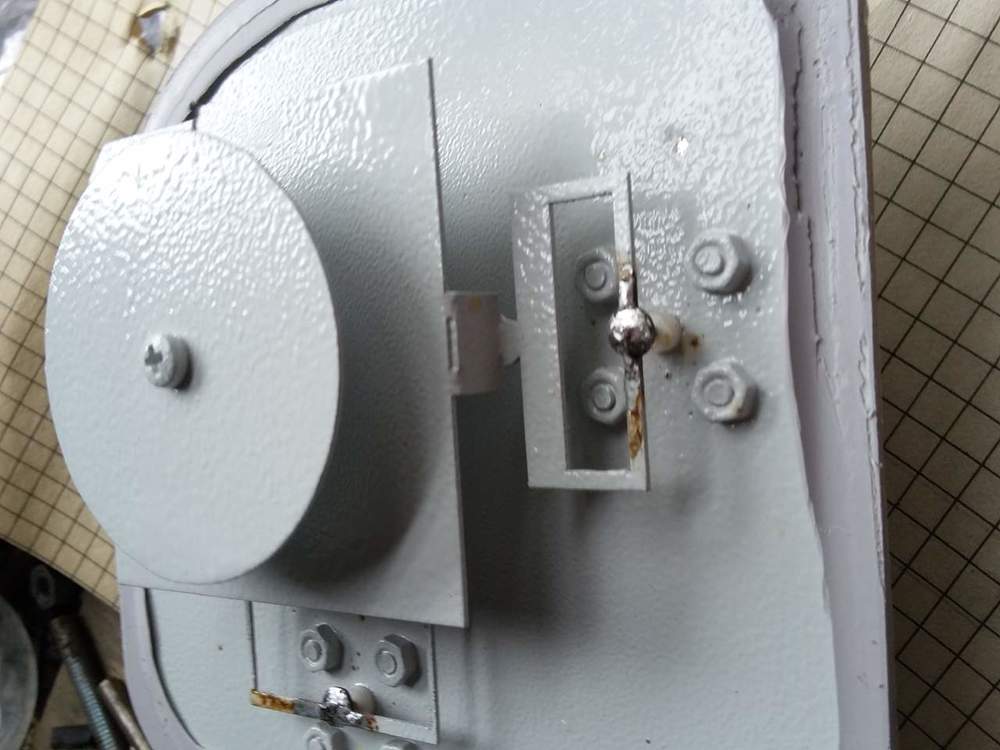

thanks for correction  and yes it work, this patch more signal strength than my omni antenna 10db..



2 people like this

Share this post


Link to post
Share on other sites
On 10/11/2018 at 10:35 PM, Admin said:

,,, you can not, how as crossing the adaptation line, the potential null point ... ??? !!!

,,,or something of that kind...


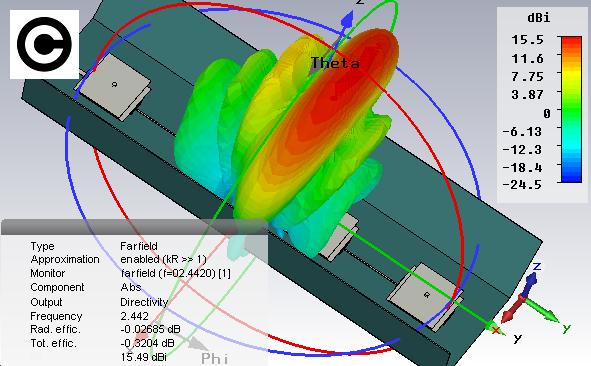

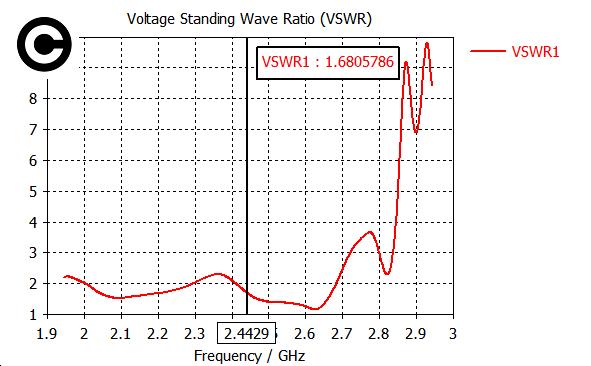

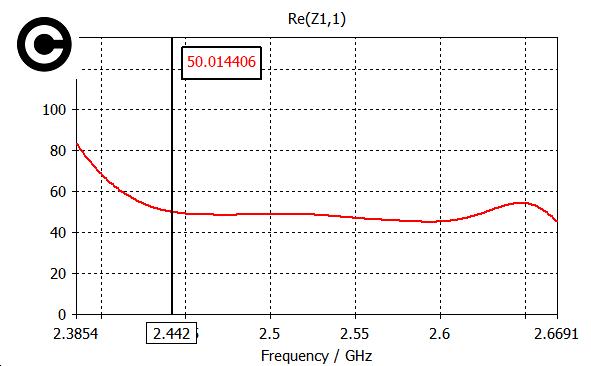

is it possible?

Share this post


Link to post
Share on other sites

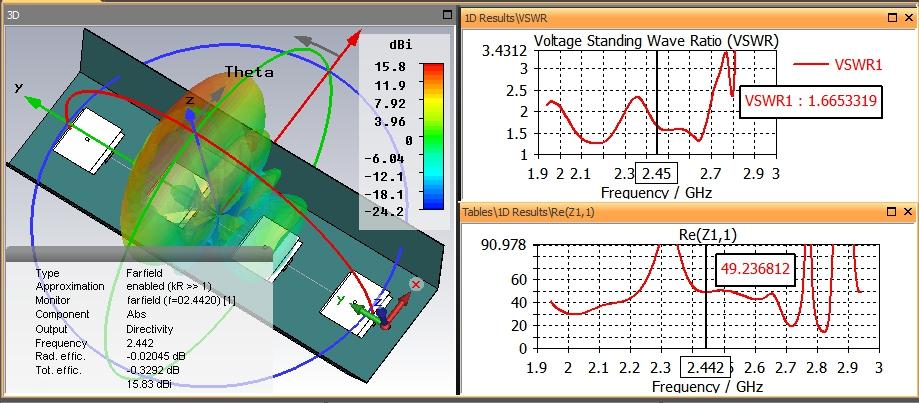

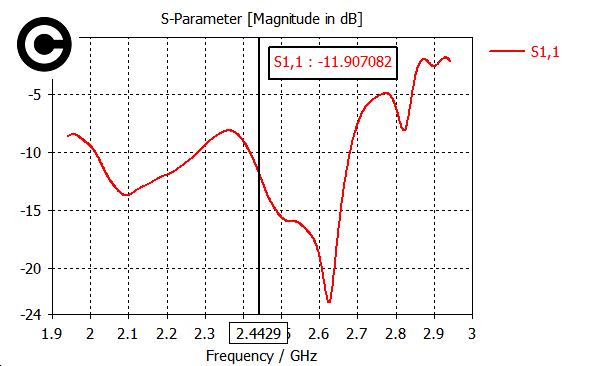

,,,,good, and yet it seems to be broadband...!!!







1 person likes this

Share this post


Link to post
Share on other sites

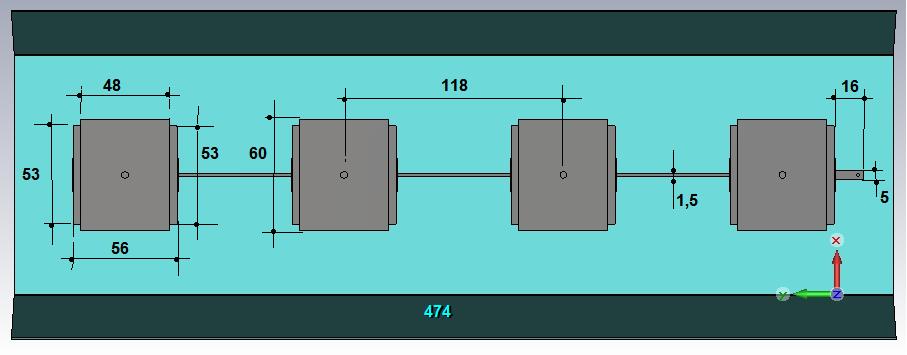

,,,and the required dimensions...





2 people like this

Share this post


Link to post
Share on other sites

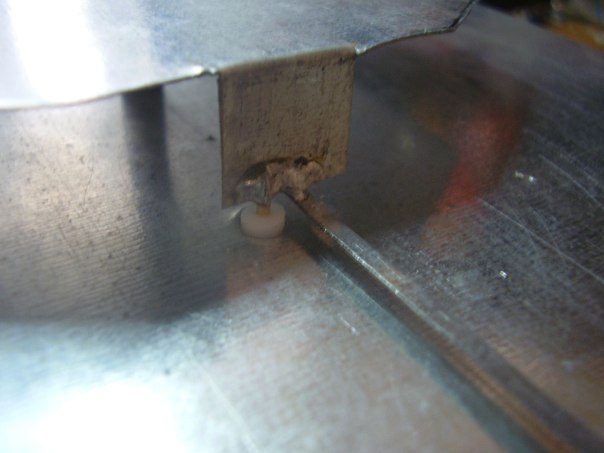

how about potential line replaced with 1.5mm copper wire..??

Share this post


Link to post
Share on other sites

What, is it hard to cut a sheet of wire ... ???

Share this post


Link to post
Share on other sites
