RomanWorkshop

TV DVB-T antenna 470-670 MHz

I want to build TV DVB-T antenna for 470-670 MHz band, so firstly I was think about double biquad because I have one biquad and it works. Signal strength is 100% at 14 km distance from 50 kW transmitter, but sometimes it drops and the picture is choppy. I simulated a dual biquad, but the results do not encourage to build this antenna. Specially I mean VSWR and real impedance, which are quite high and depend heavily on frequency. So I'm look only at gain reported by farfield monitors. Is this a good approach to simulating such antennas in CST Studio? Will my design TV-dbq.cst (I have only 275x685 mm reflector) work good as TV DVB-T receiving antenna in 470-670 MHz band?

Share this post


Link to post
Share on other sites
On 08.01.2022 at 7:59 PM, RomanWorkshop said:

 Will my design TV-dbq.cst (I have only 275x685 mm reflector) work good as TV DVB-T receiving antenna in 470-670 MHz band?

http://patlah.ru/etm/etm-10/tv-anten/tv anteni/a-koefficient/a-koefficient.htm

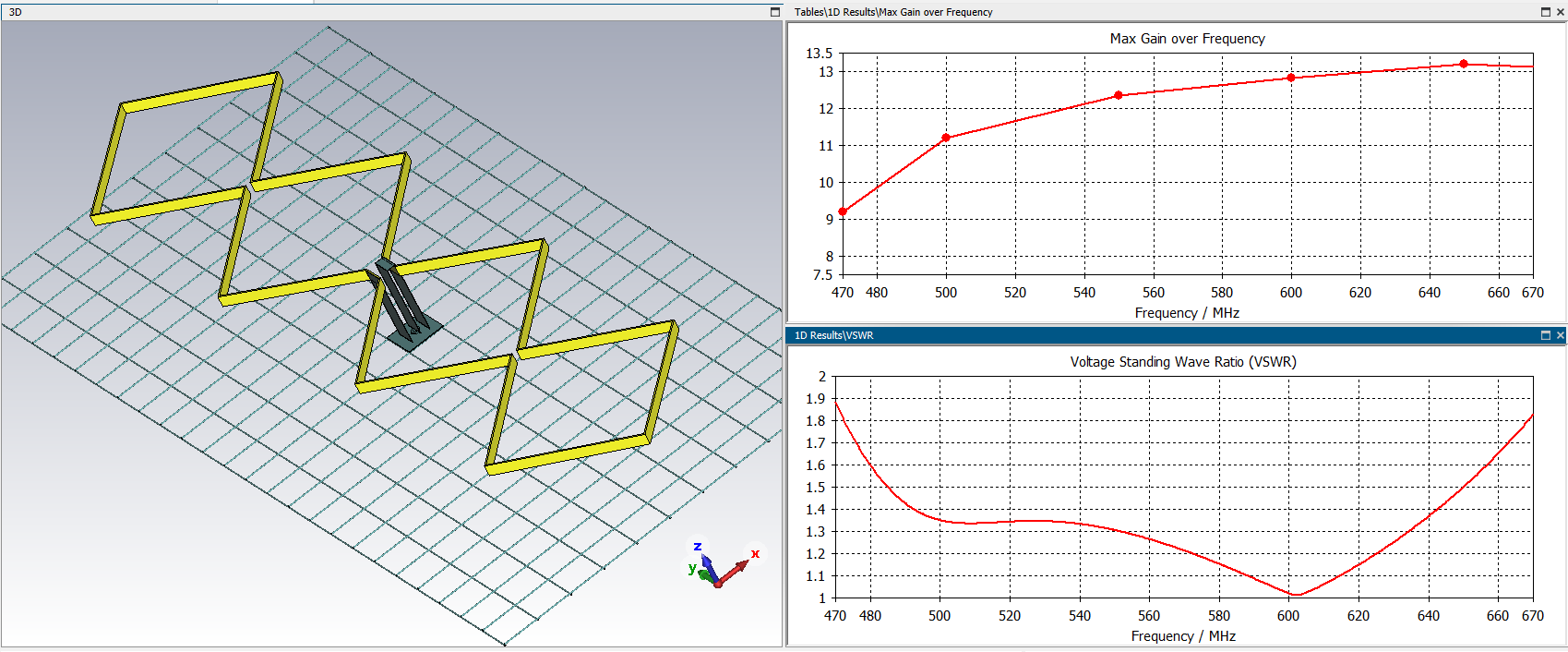

Try this option. Gain 13+ dBi.

Frame side = 0.375L

Antenna made of an aluminum strip 15x2 mm and a mesh with a diameter of 2 mm with a cell of 50x50 mm.

Balun stands made of 0.5 mm zinc coated steel.


dBqDVB_v1,0.cst

2 people like this

Share this post


Link to post
Share on other sites

,,, but variant 3 does not work .. ???


Share this post


Link to post
Share on other sites
31 minutes ago, Admin said:

,,, but variant 3 does not work .. ???

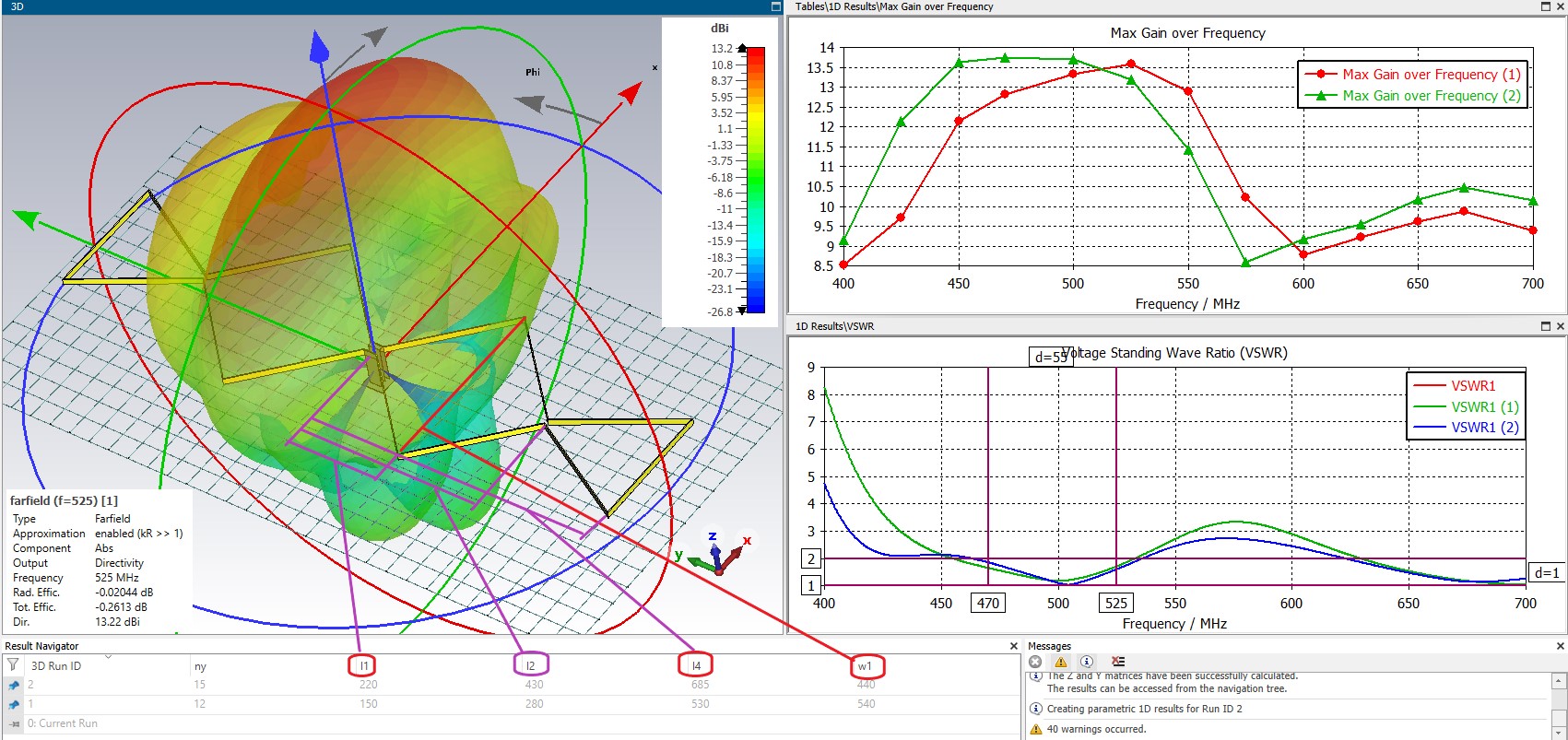

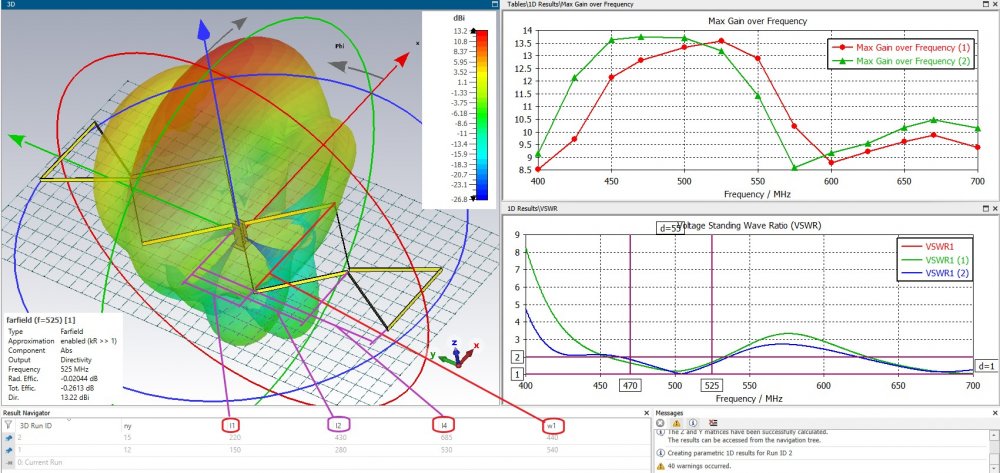

Narrower range, more gain.

There is a curve in the project.

You can change the coordinates with the variables w, w1, w2, l1 ... l4. You can get any shape of the antenna web consisting of straight segments

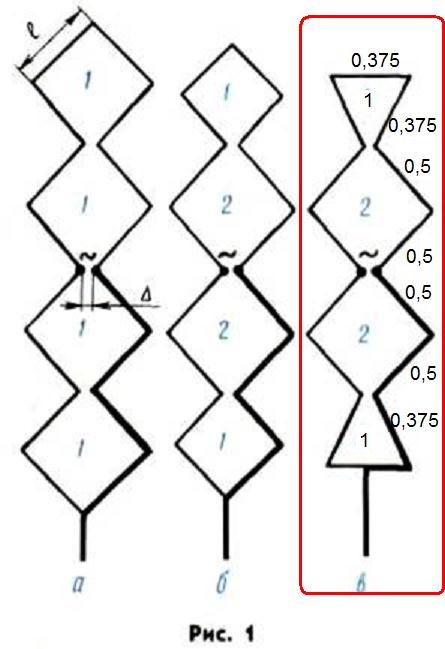

In Fig. 3, all sides are equal to L / 2 triangle too

Share this post


Link to post
Share on other sites
On 10.01.2022 at 3:46 PM, Harry36 said:

Narrower range, more gain.

There is a curve in the project.

You can change the coordinates with the variables w, w1, w2, l1 ... l4. You can get any shape of the antenna web consisting of straight segments

In Fig. 3, all sides are equal to L / 2 triangle too



dBqDVB_v3.0.cst


1 person likes this

Share this post


Link to post
Share on other sites

harry36, it turned out well. Can be made to your range. Al. Strip - easy to attach

Share this post


Link to post
Share on other sites

Harry36, can you make this antenna for my 690-770MHz band? And lay out the dimensions on the LIRA, especially on the matching device.

Share this post


Link to post
Share on other sites
