Shabra

What is the type of antenna?

41 posts in this topic
47 minutes ago, clanon said:

1:1 Pawsey stub...?


yes, but it should be so

надо так.jpg

1 person likes this

Share this post


Link to post
Share on other sites

Starting position like this, and surrounded by fox adhesive.


1 person likes this

Share this post


Link to post
Share on other sites

What about the PCB , ...?

FR4 or something better...?

Share this post


Link to post
Share on other sites
53 minutes ago, clanon said:

What about the PCB , ...?

FR4 or something better...?

in Chaina? fr4 only

2 people like this

Share this post


Link to post
Share on other sites

many dimensions of the structure are missing, but maybe a good result






3 people like this

Share this post


Link to post
Share on other sites

,,, good job Harry, you can also give the file * cst..!!!???

1 person likes this

Share this post


Link to post
Share on other sites

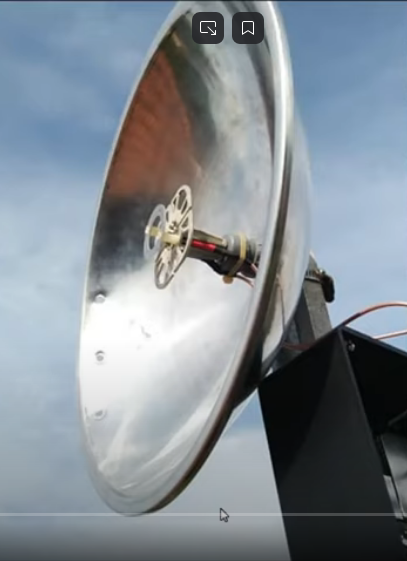

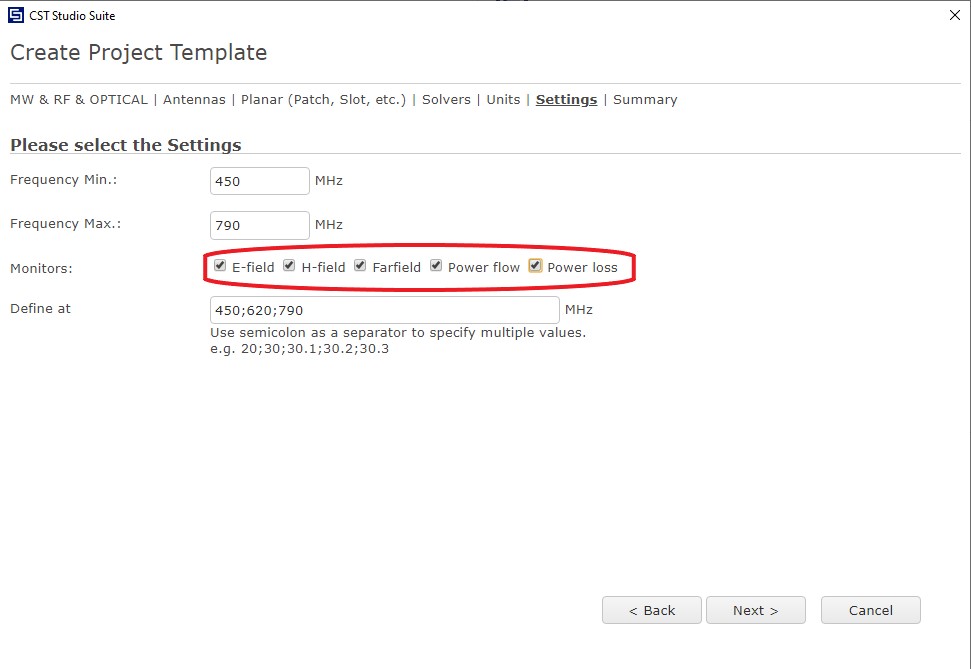

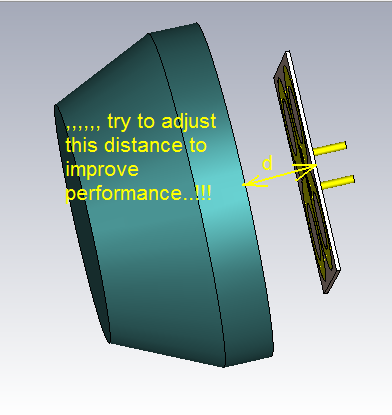

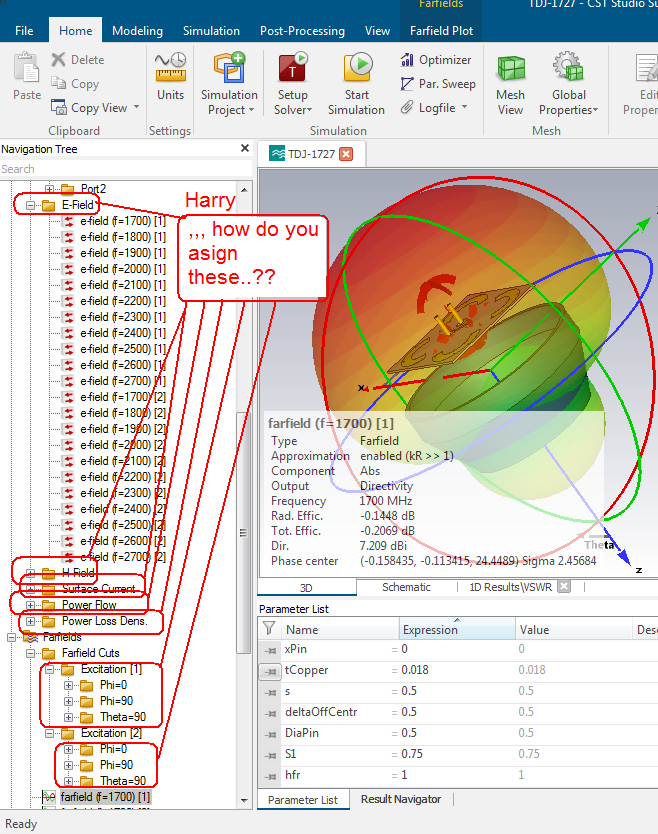

When creating a project (or project template), you need to set labels on the required monitors. I put everything by default.monitor.jpg

2 people like this

Share this post


Link to post
Share on other sites

,,, and this option would be preferable...

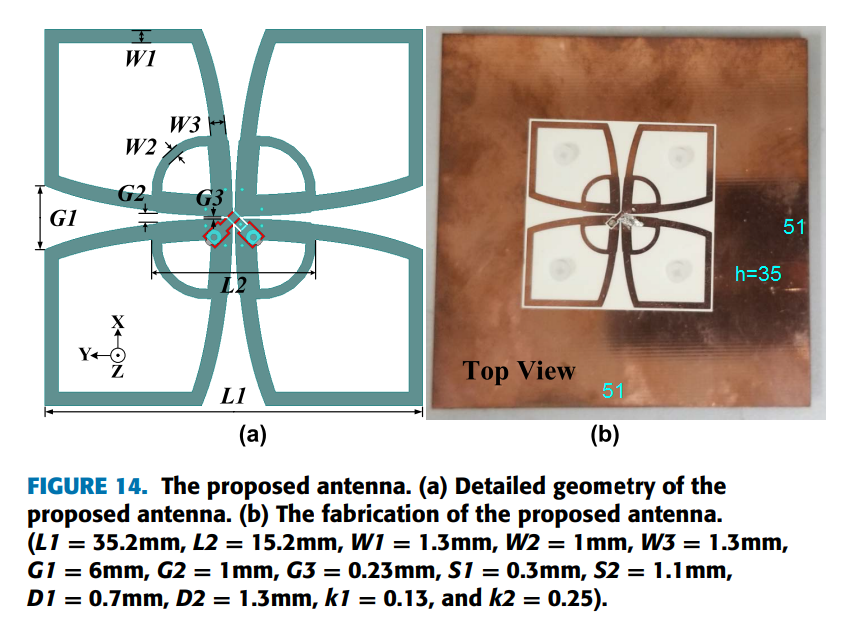

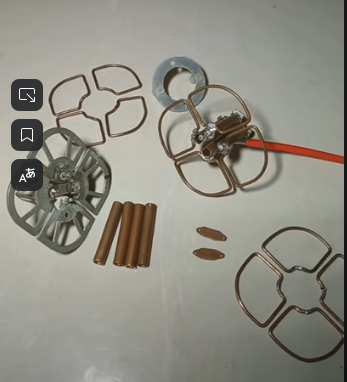

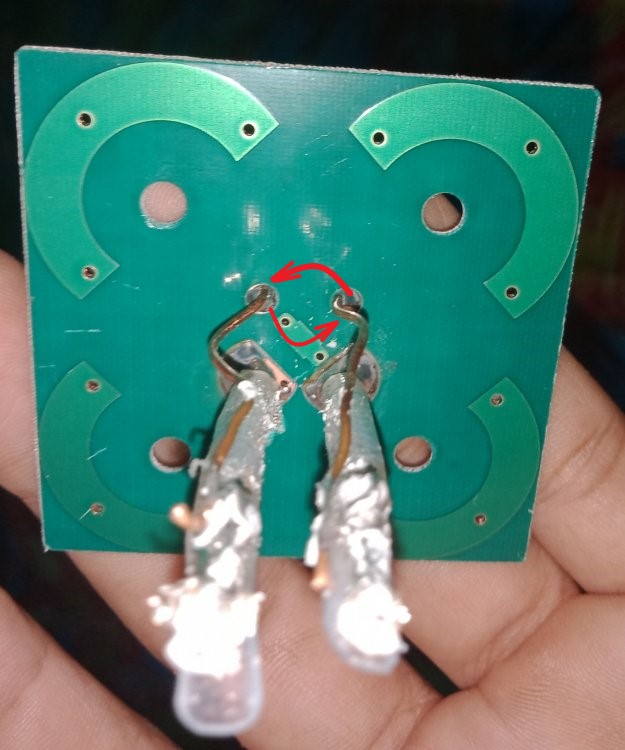

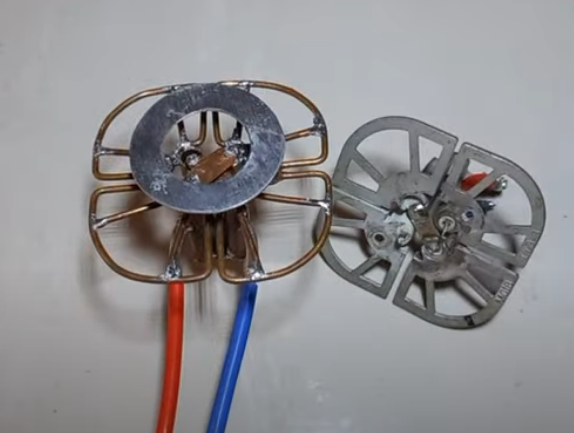

Harry, these dipole can be made of copper wire...







2 people like this

Share this post


Link to post
Share on other sites
On 15.10.2021 at 3:48 PM, Admin said:

,,, and this option would be preferable...



Harry, these dipole can be made of copper wire...

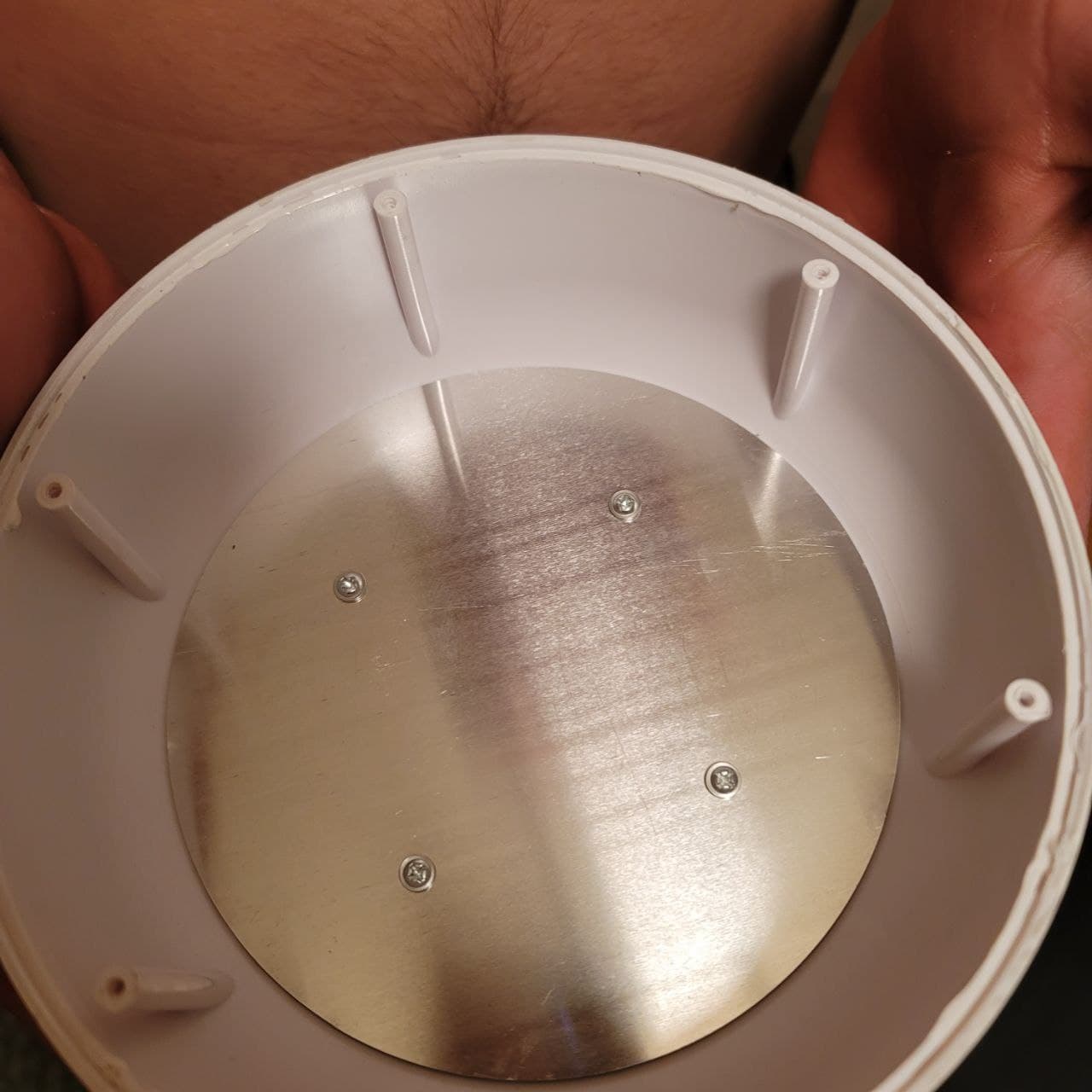

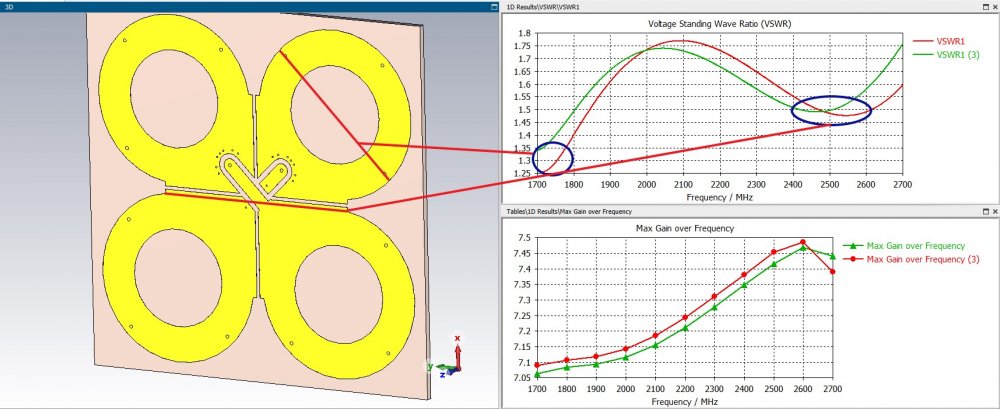

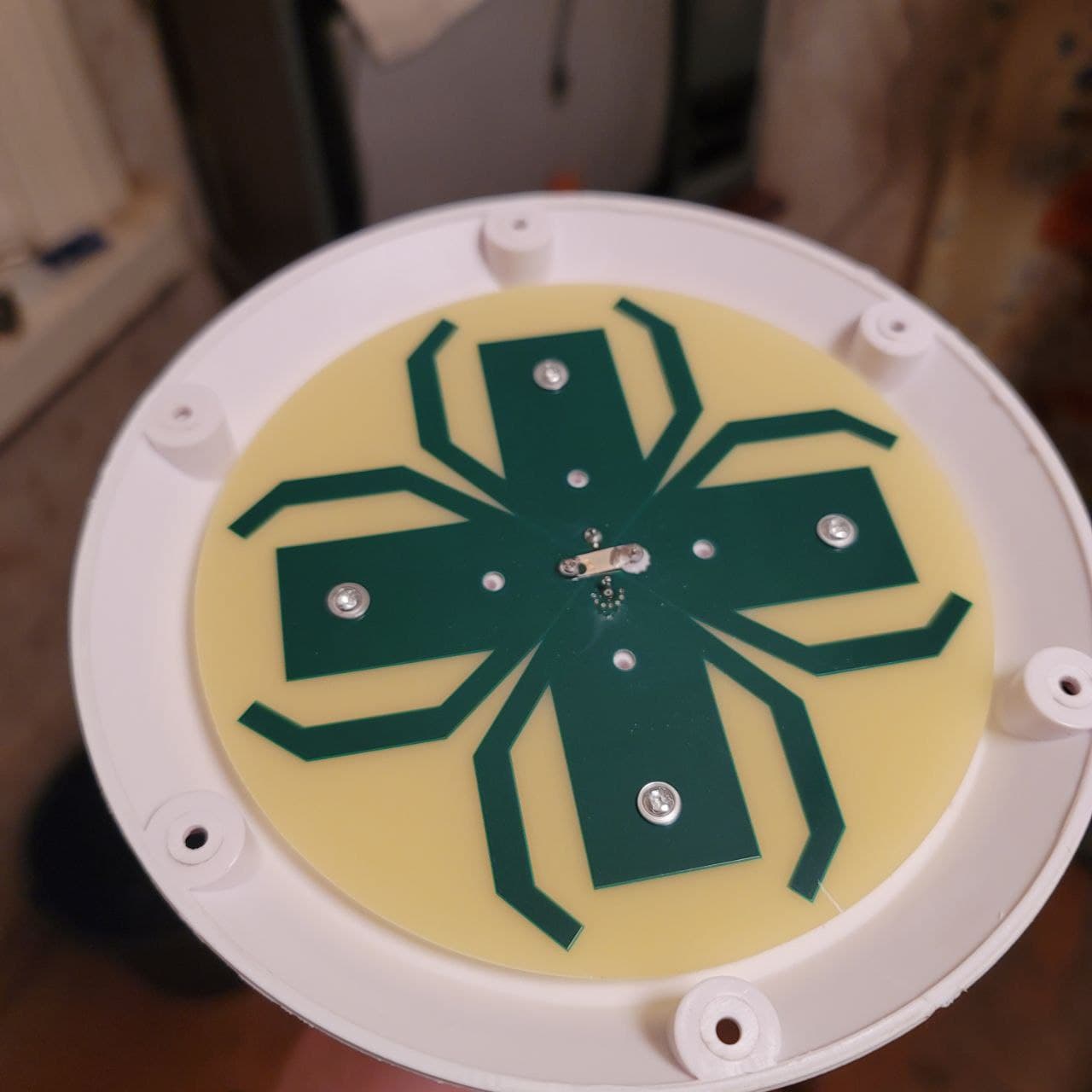

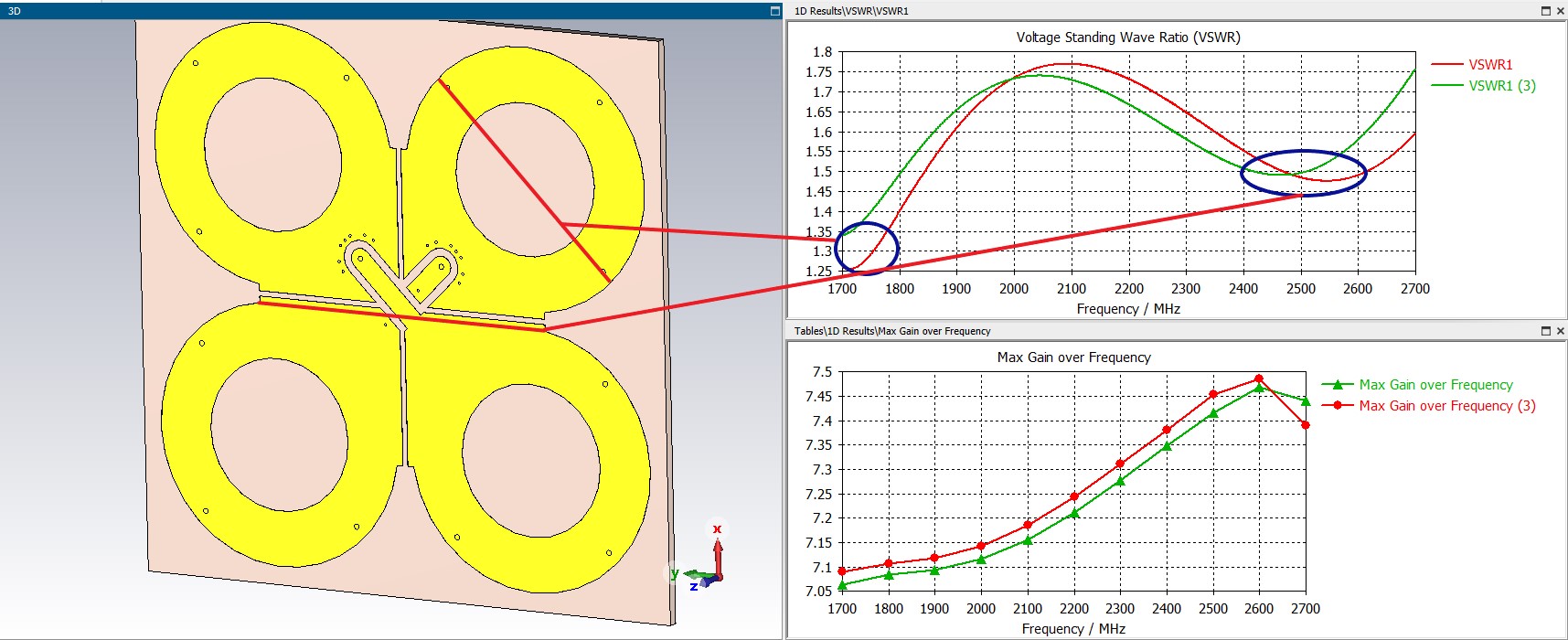

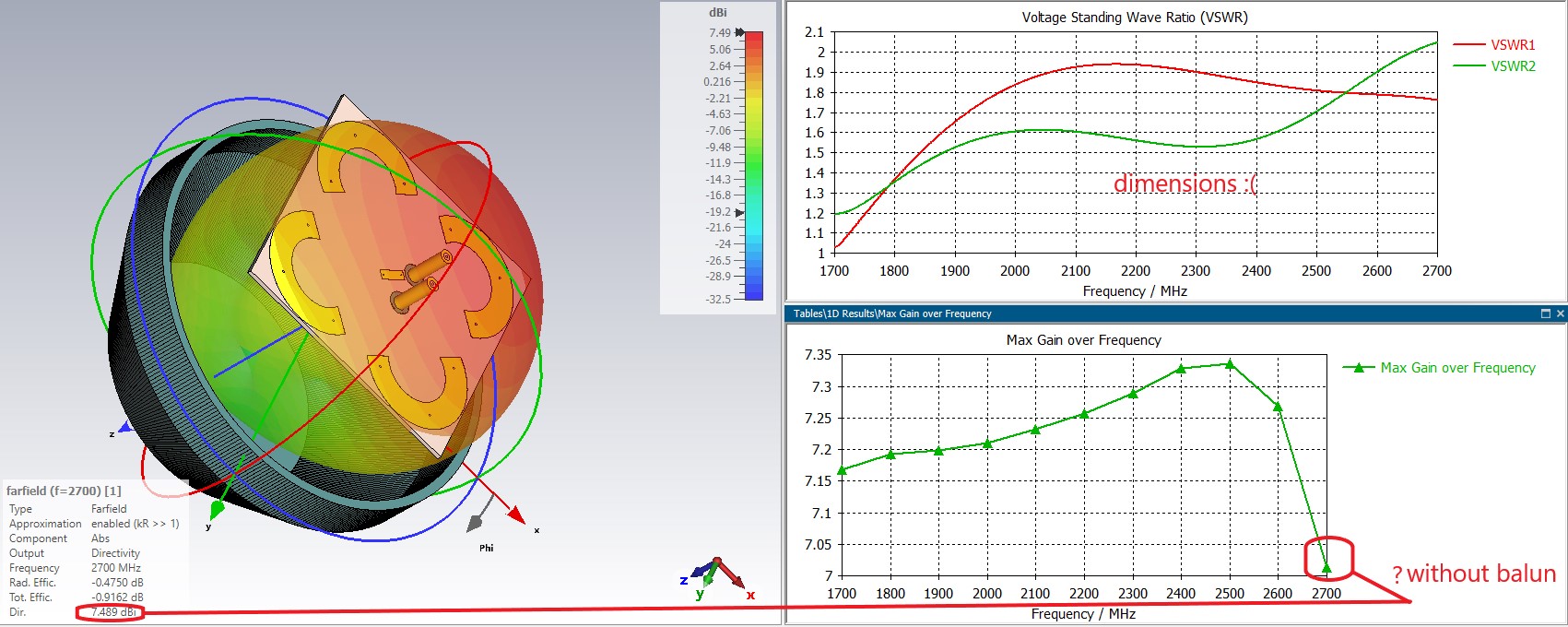

Hi Admin! All antennas are good, but someone is interested in the wi-fi range, someone is mobile. I have not seen any 1700-3800 antennas. in the minimum size and good radiation pattern. I am more interested in the variant of mobile frequencies, I simulated it. the antenna is not quite easy to configure and the developers hid it. It took a little work to get to the calculated results. Make a model for 2400-6000, you know what I'm talking about. Regarding the manufacture of TDJ from wire - yes, you can. on Lan, it was miscalculated in various ways. Initially, TDJ 2327 was intended for the ranges 2300-2700, the second version with a parasitic element (ring) began to overlap 1700-2700. It is very interesting to measure the resulting structure. What happened in the end?

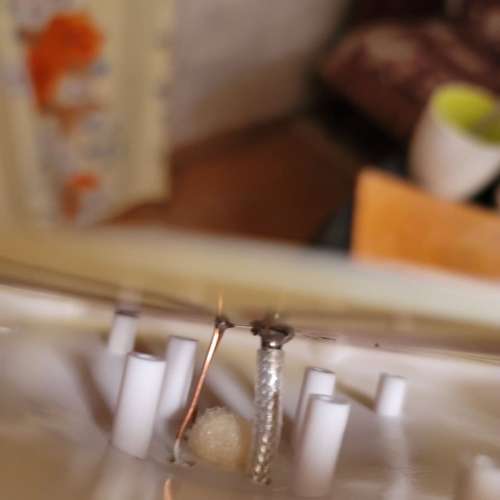

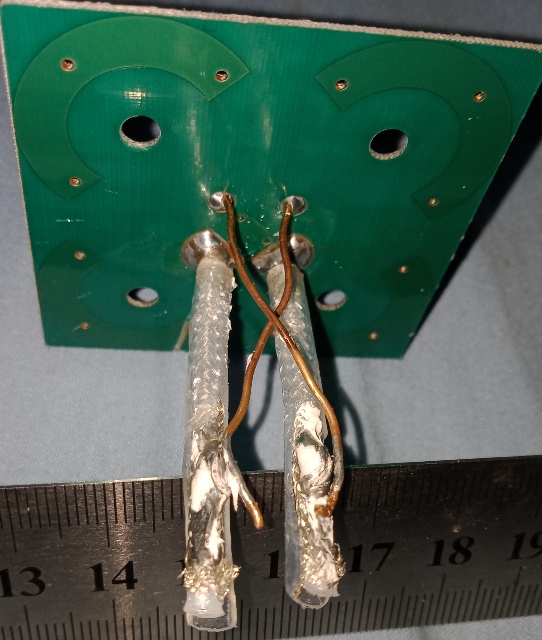

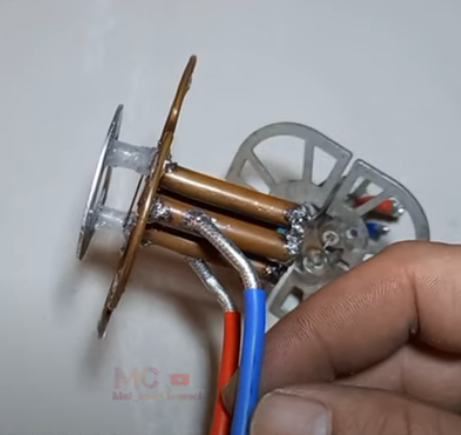

ps Judging by the photo, the person who made the antenna does not understand anything about this (

Edited by Harry36

Share this post


Link to post
Share on other sites
On 08.10.2021 at 8:27 PM, Harry36 said:

version6

image_2021-10-08_19-54-28.pngimage_2021-10-08_19-54-16.pngimage_2021-10-08_19-54-00.png

On 16.09.2021 at 4:58 PM, clanon said:
On 16.09.2021 at 4:58 PM, clanon said:






Share this post


Link to post
Share on other sites

Harry, I thought it was better to do a separate topic with this antenna, don't you think it's better that way...???!!!

,,,the frequency band of the antenna is 700-4000 MHz

,,, if you want I'll delete it ... !!!

1 person likes this

Share this post


Link to post
Share on other sites
