Antonius

Catherine antenna

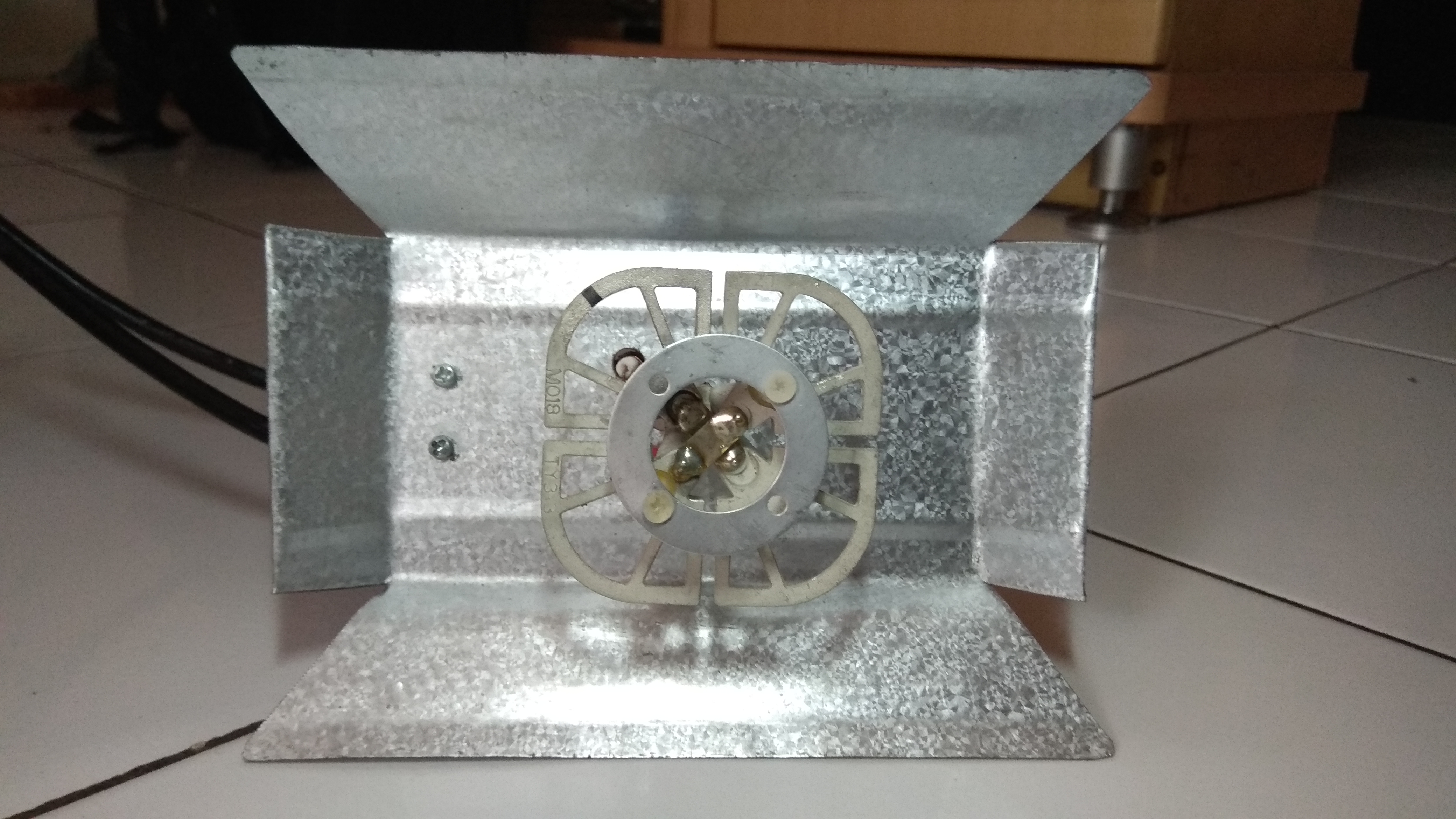

Hi admins. I'm trying to assemble a 4g antenna, for the frequencies 1800, 2100 and 2300, with this Catherine Antenna. Can you help me simulate it? Thank you.



1 person likes this

Share this post


Link to post
Share on other sites

,,, okay, but I need some dimensions...!!!

Share this post


Link to post
Share on other sites

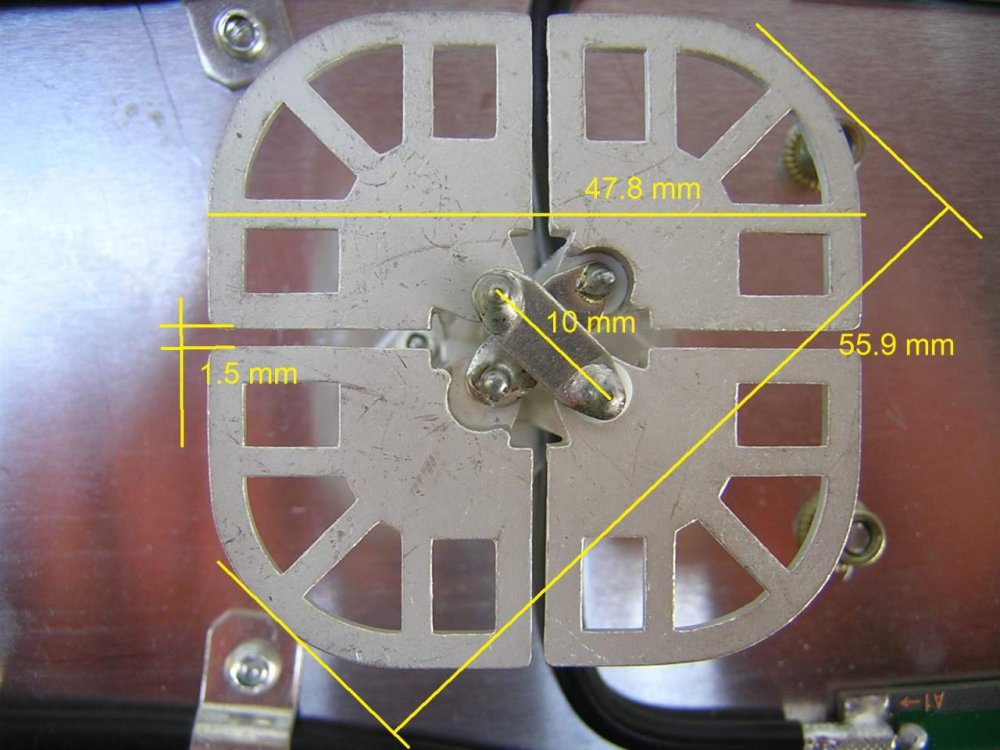

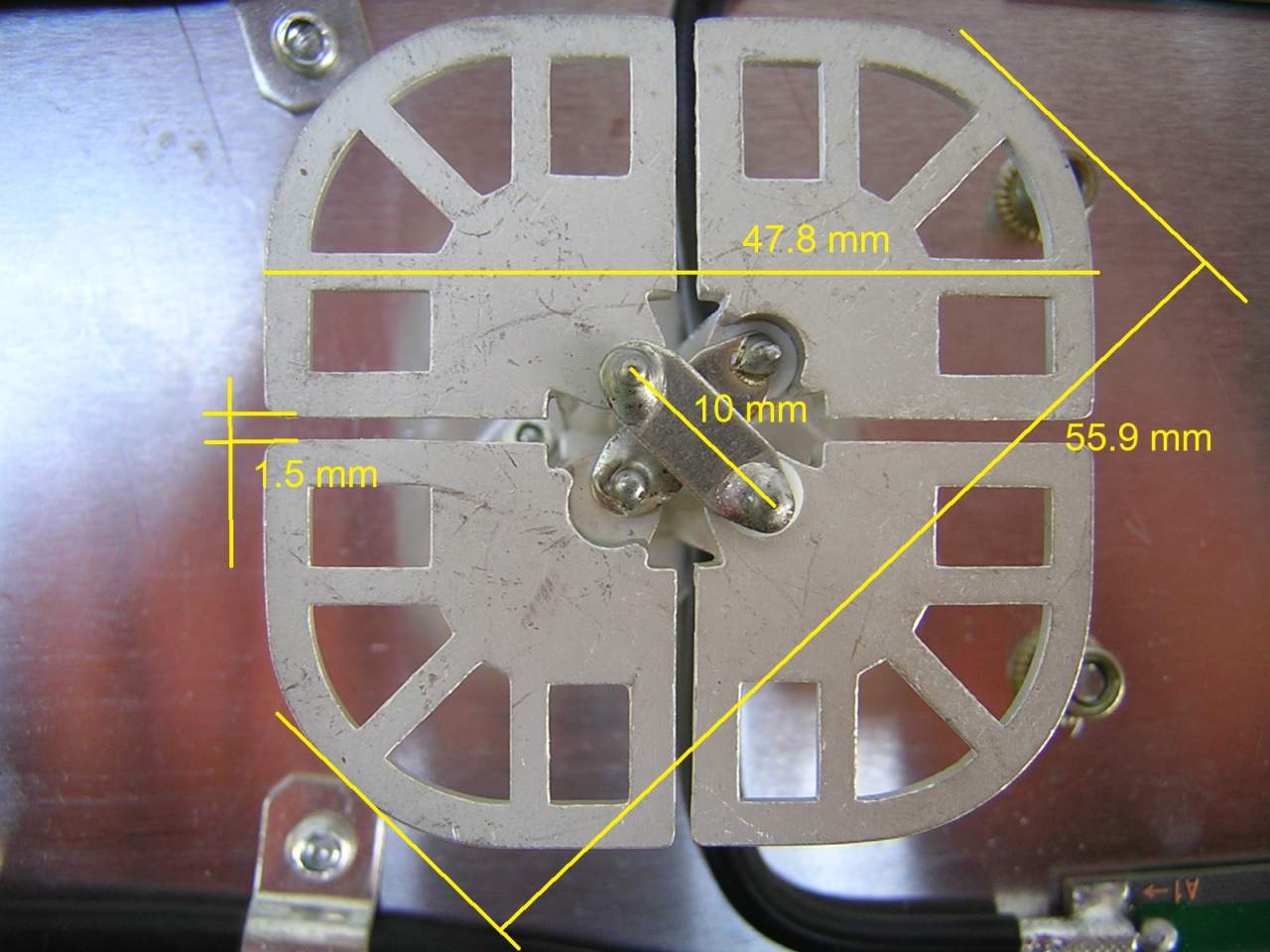

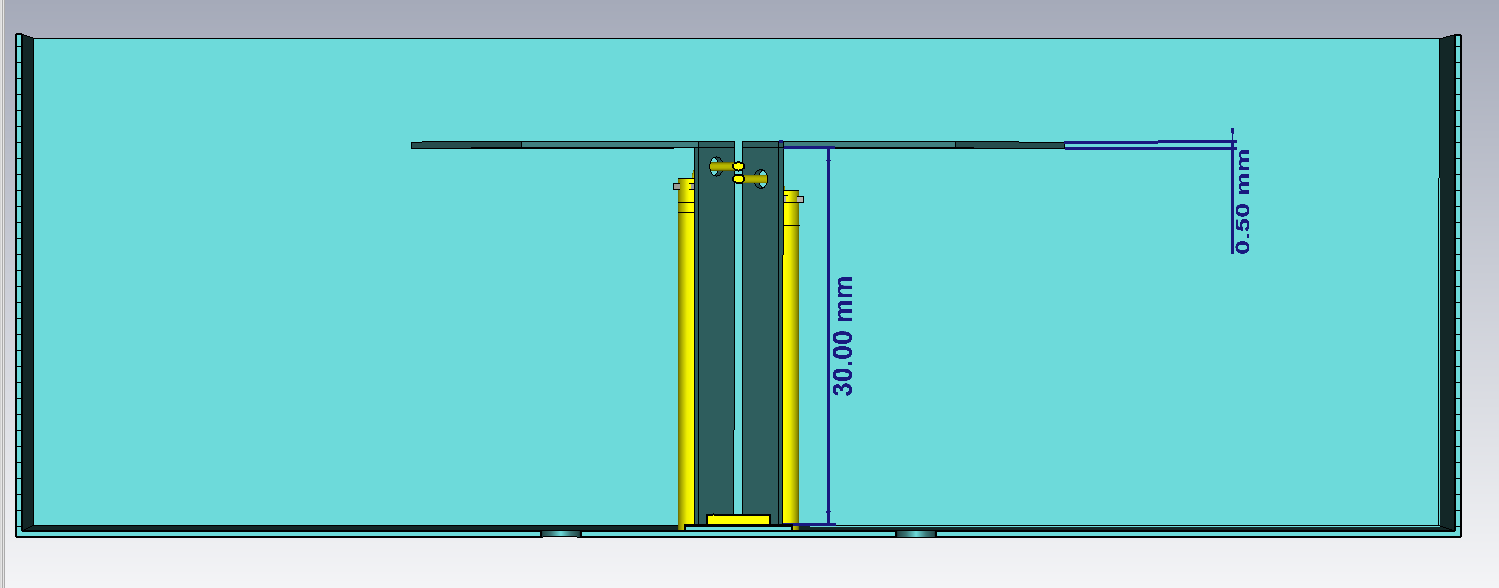

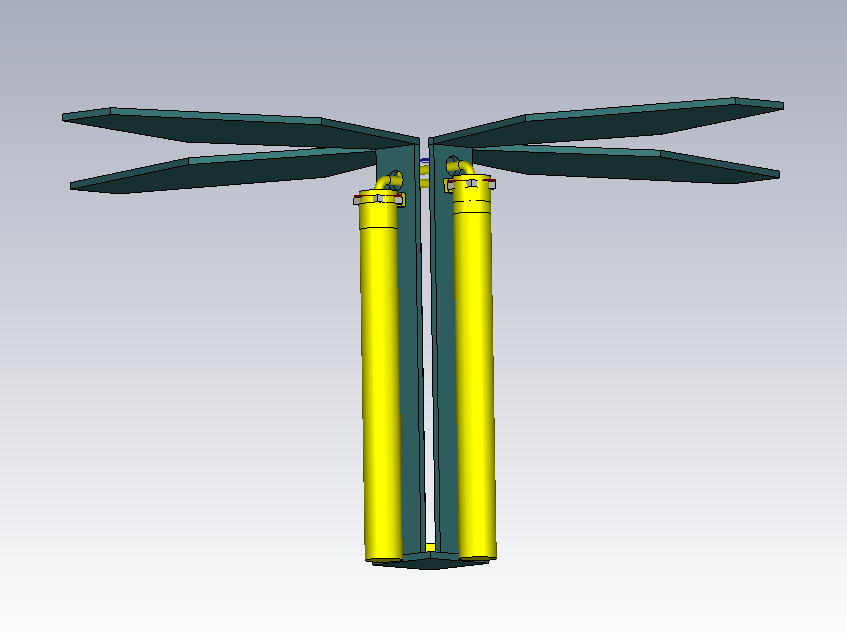

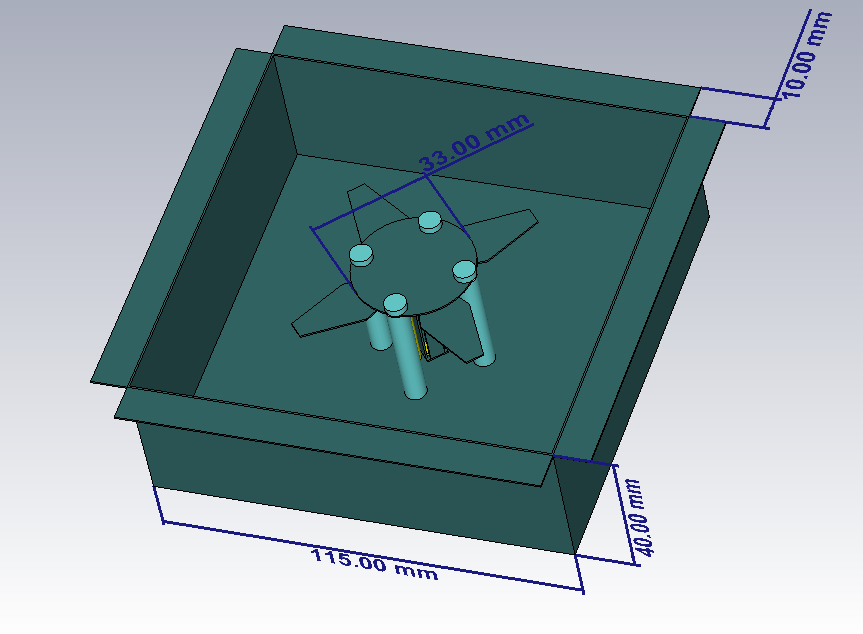

Kurang lebih seperti ini yang bisa saya buat.

 This is more or less what I can do.


Share this post


Link to post
Share on other sites

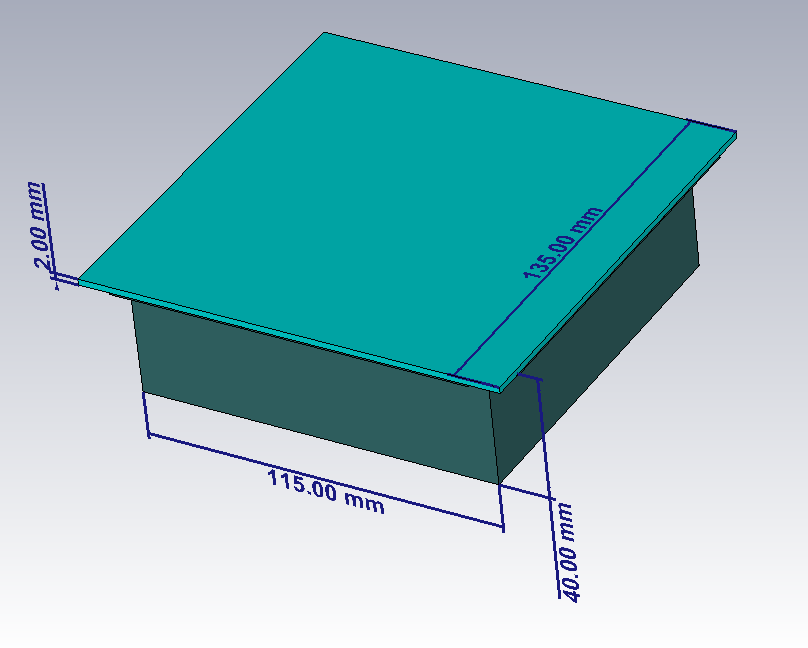

Sorry. Yes, the dimensions are the same. Right now in my country there is a lot of talk about the Catherine antenna. Looks very interesting in the attachment. To maximize the performance of this antenna is it enough to add a 120 mm reflector?

Share this post


Link to post
Share on other sites

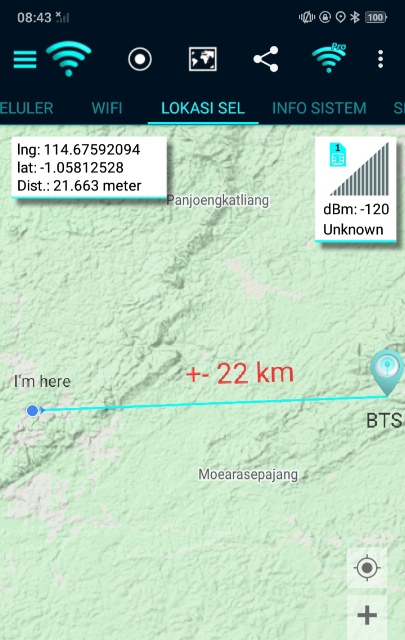

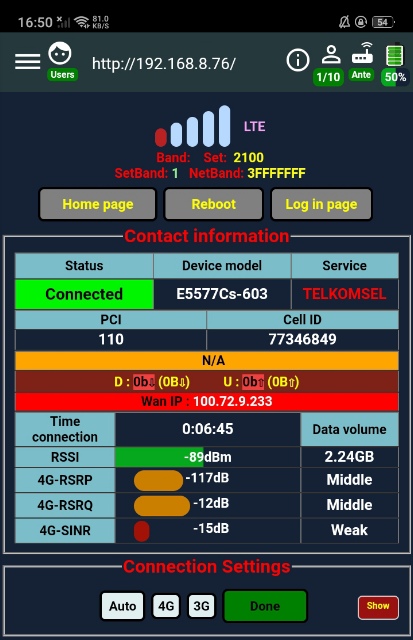

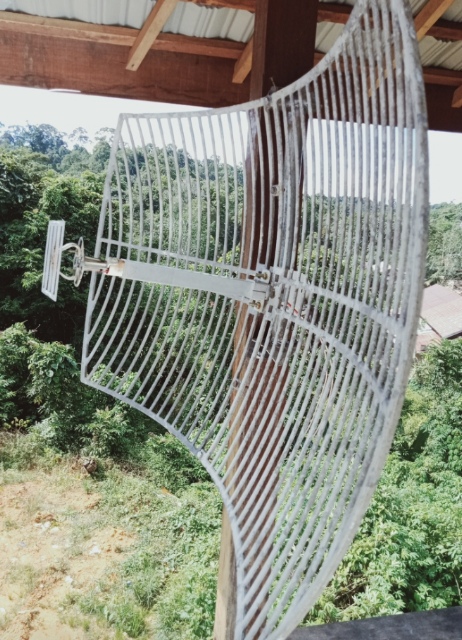

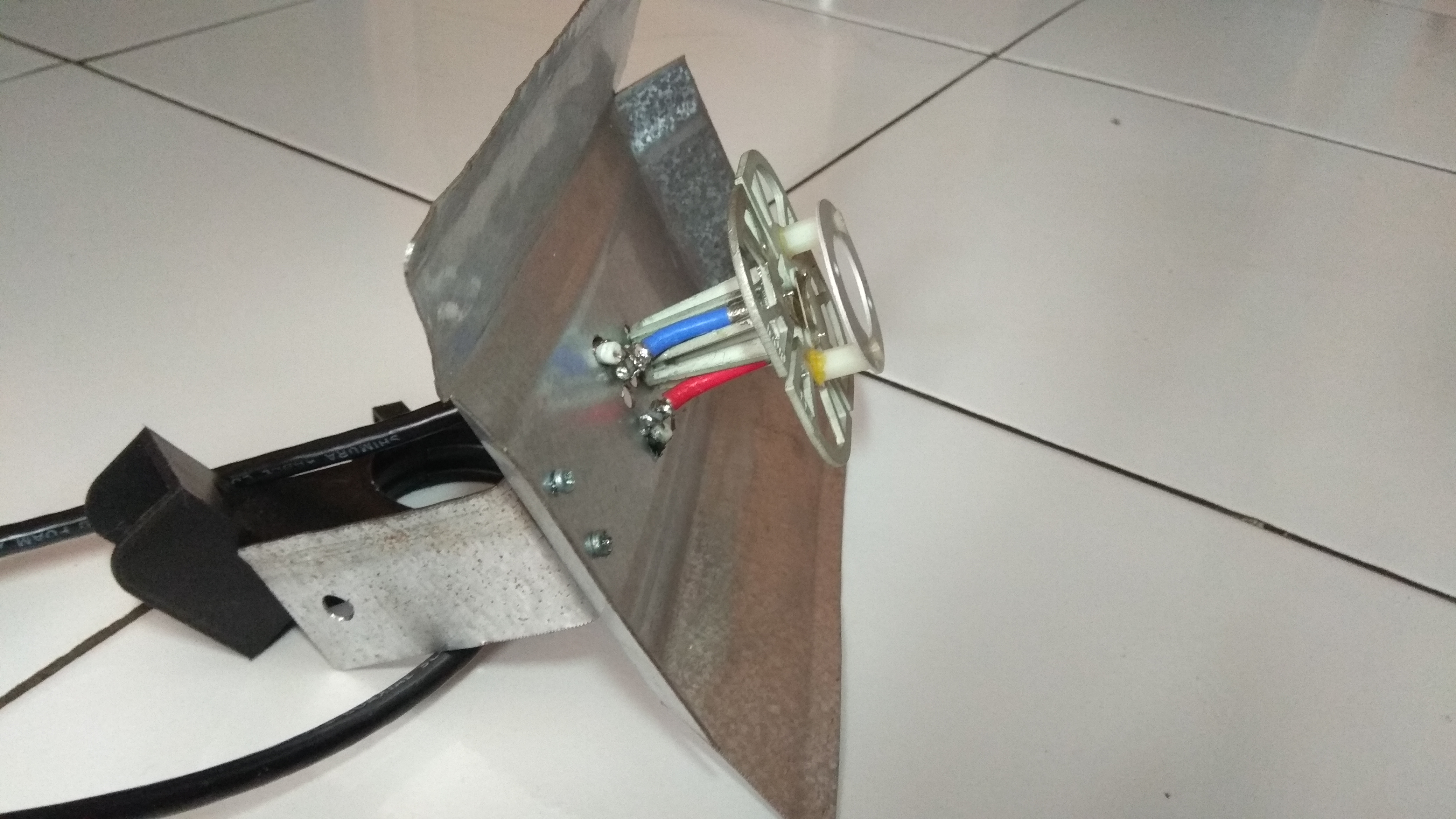

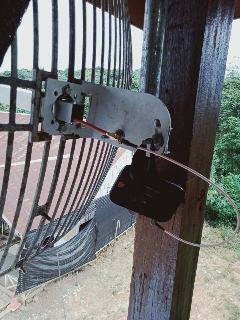

I have tried to connect this antenna to a 2.4 Ghz wifi router. Antenna works fine. Can master Joymi simulate this antenna for 2.4 Ghz frequency, and how many dbi gain is obtained? Thank you in advance.

Share this post


Link to post
Share on other sites
11 minutes ago, Antonius said:

I have tried to connect this antenna to a 2.4 Ghz wifi router. Antenna works fine. Can master Joymi simulate this antenna for 2.4 Ghz frequency, and how many dbi gain is obtained? Thank you in advance.

,,,only if you give me all the dimensions on the antenna....!!!

Share this post


Link to post
Share on other sites

the Blue and RED coax should be NEW CABLES straight to the card...(if possible to solder in there)

High losses


Edited by clanon

Share this post


Link to post
Share on other sites

,,, another situation would be if SMA connectors were attached to the REFLECT0R...!!!

1 person likes this

Share this post


Link to post
Share on other sites
On 11/09/2021 at 0:07 PM, Admin said:

,,,only if you give me all the dimensions on the antenna....!!!

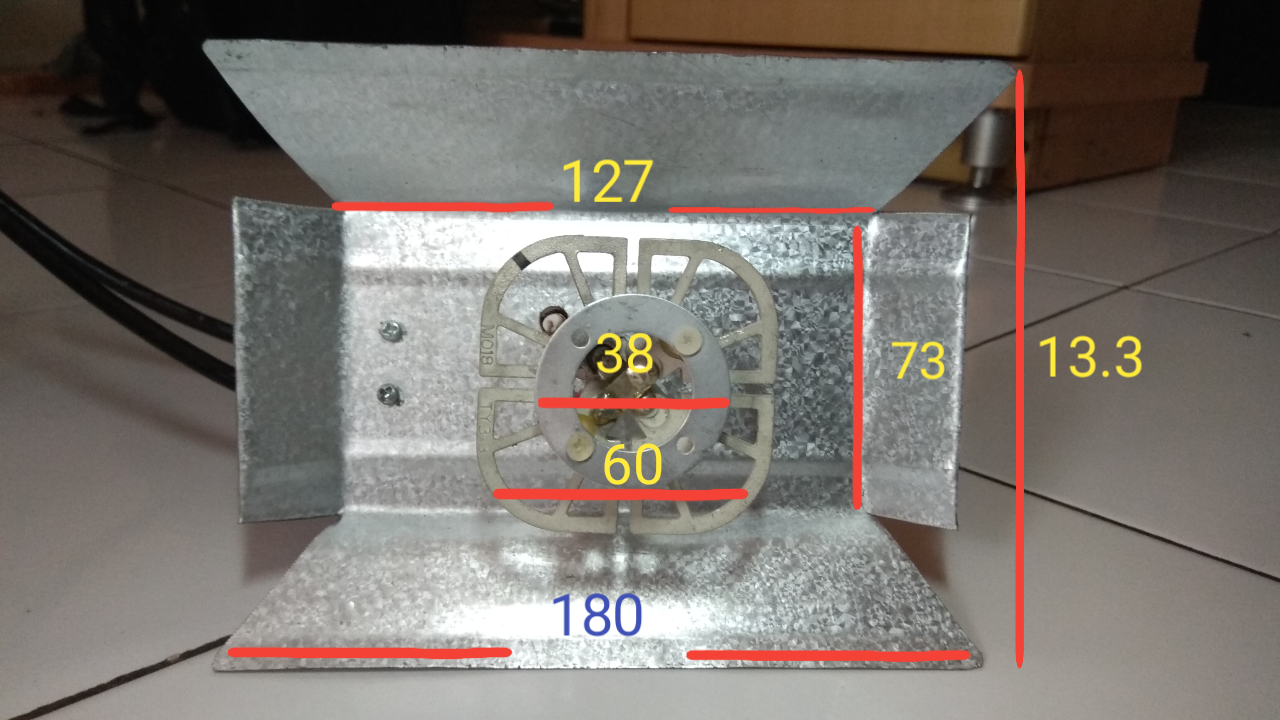

Okay. I will try to give the size in the picture. It might take some time.

1 person likes this

Share this post


Link to post
Share on other sites

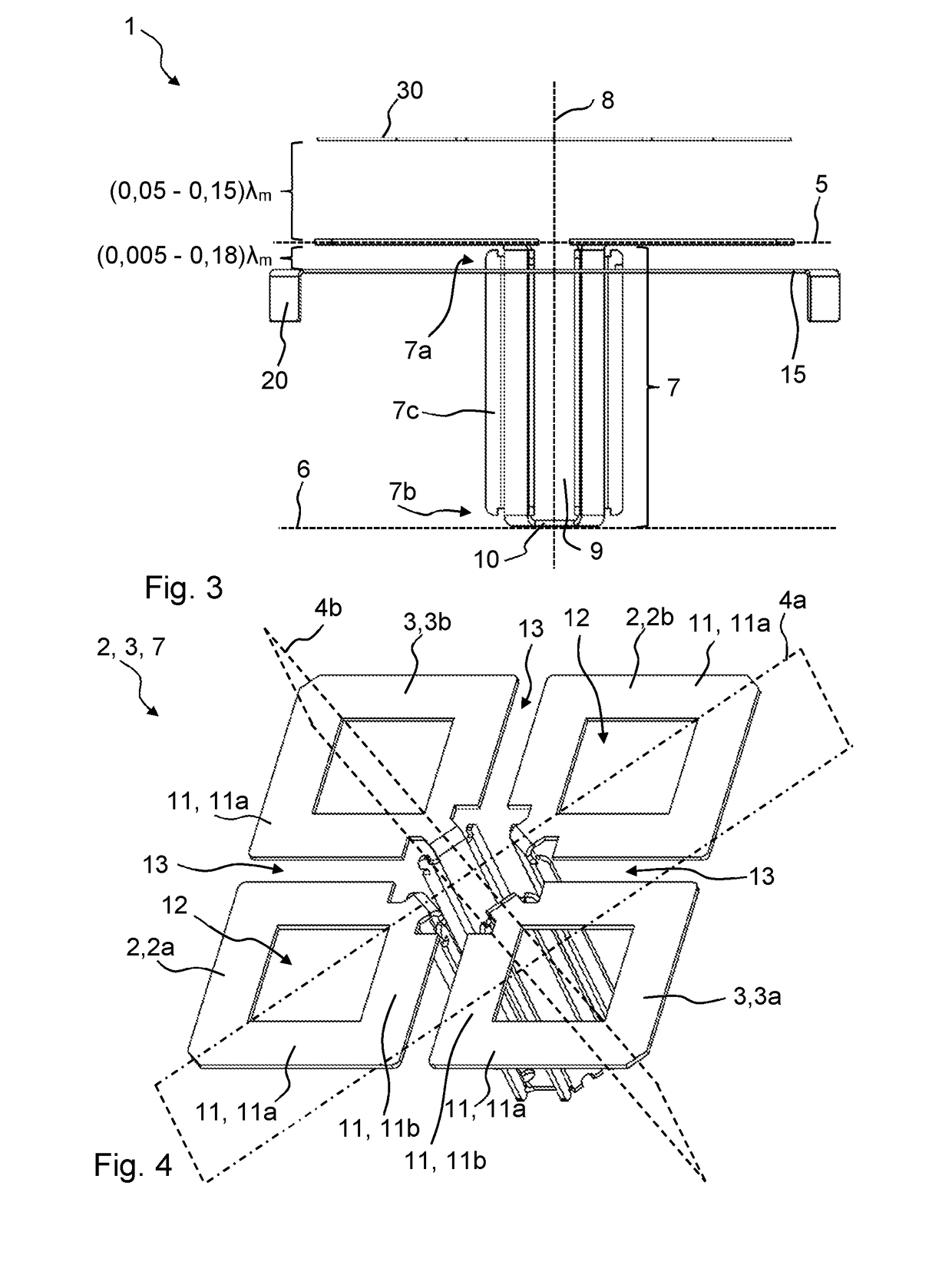

Fig 3- Fig 4.png

Edited by clanon
1 person likes this

Share this post


Link to post
Share on other sites
1 hour ago, clanon said:





Fig 3- Fig 4.png

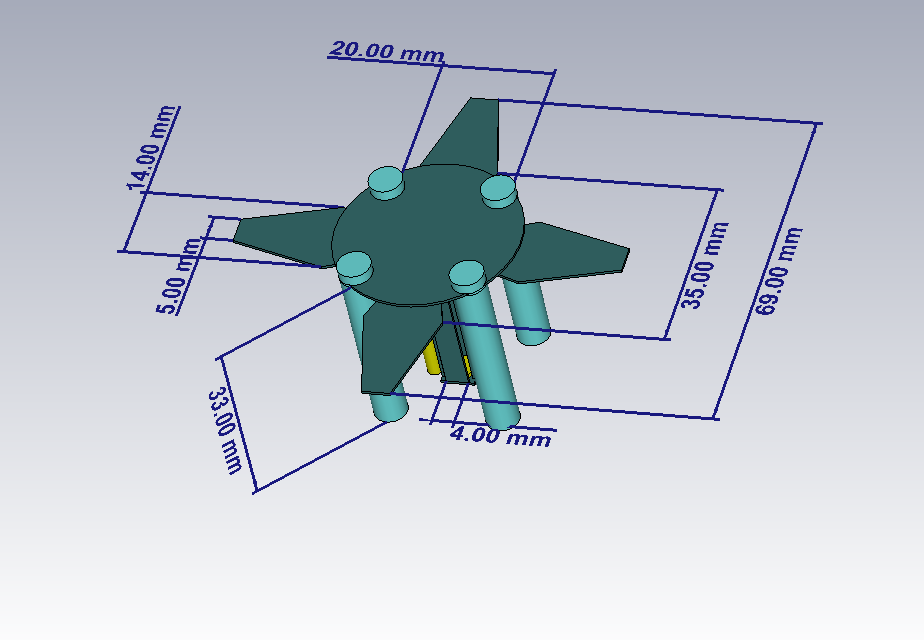

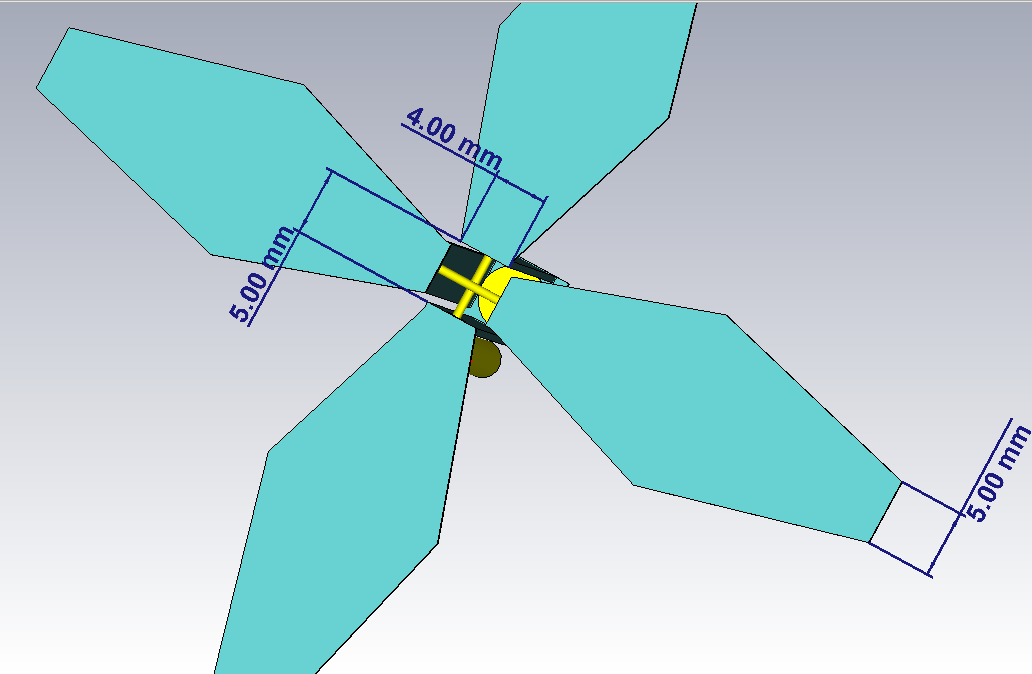

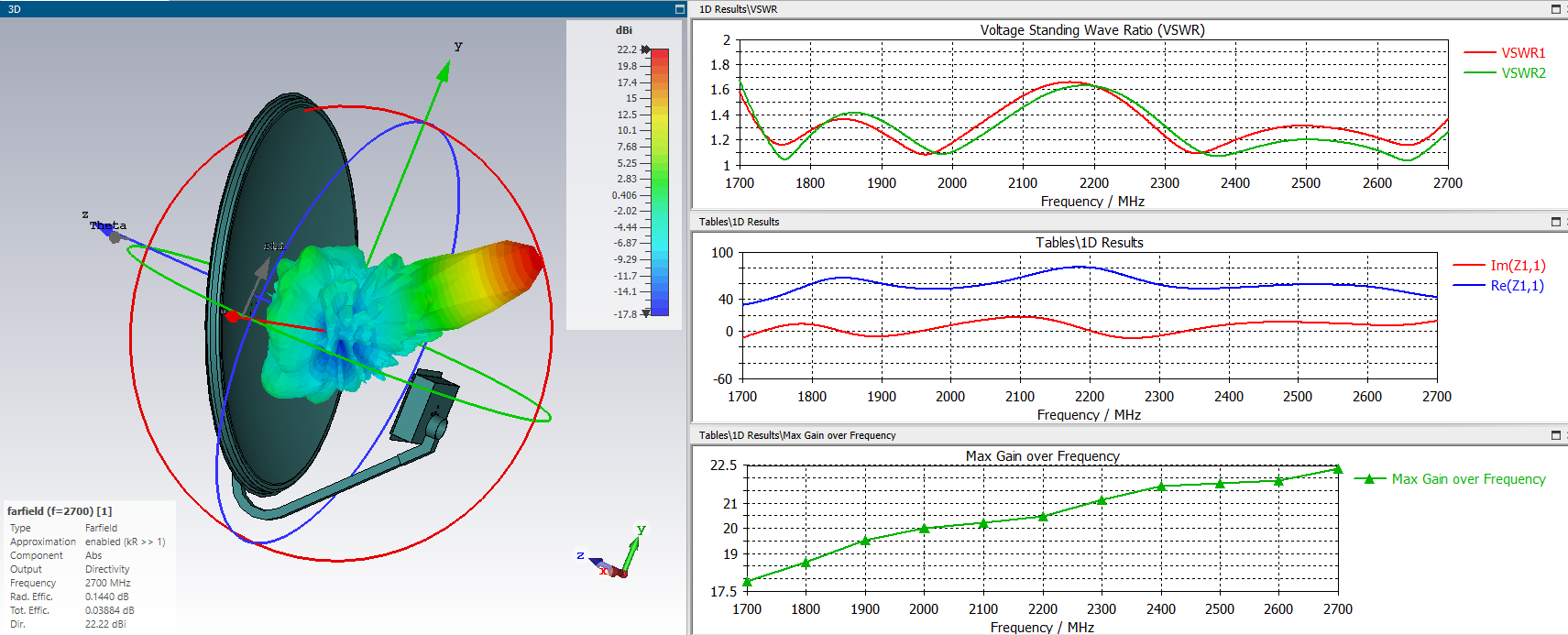

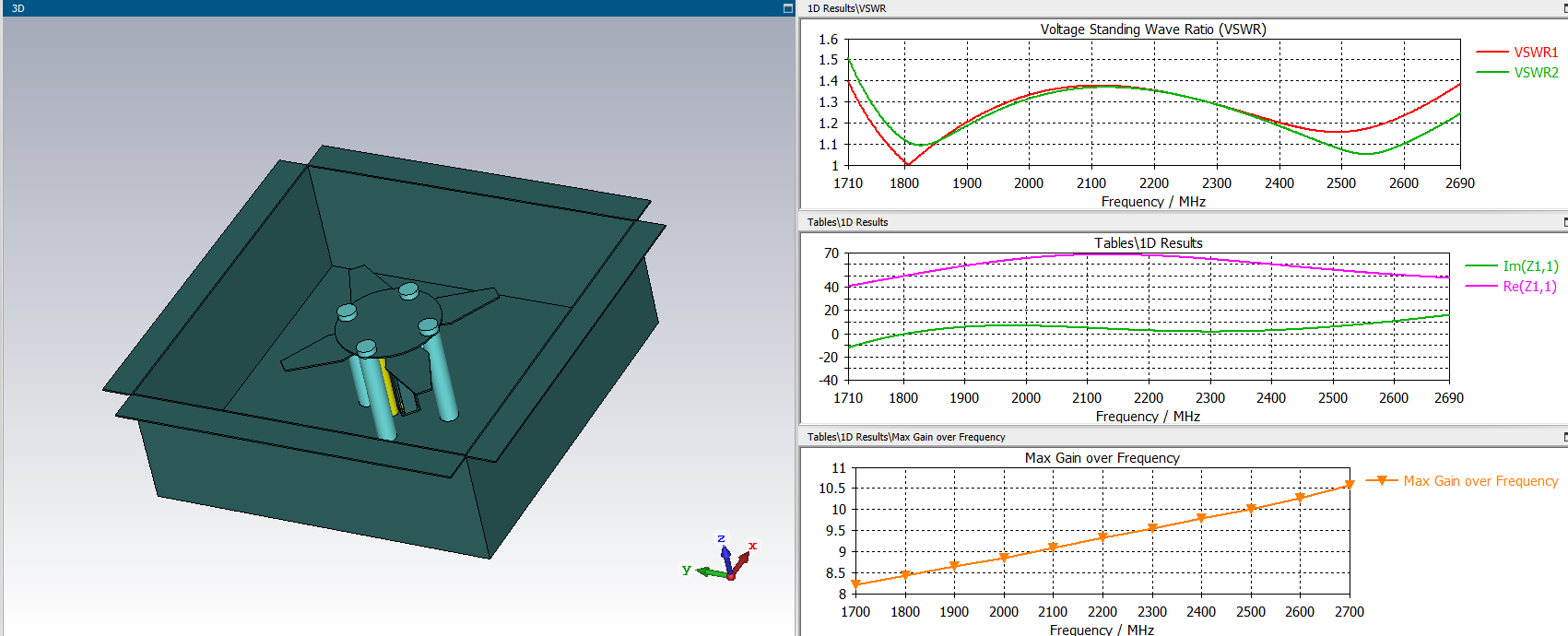

It is very difficult. I came up with a much simpler one. For making with your own hands. Simplicity of design and availability of materials.

Use it.

Newbie, from Russia with love. ;)


1 person likes this

Share this post


Link to post
Share on other sites
On 9/11/2021 at 0:07 PM, Admin said:

,,,only if you give me all the dimensions on the antenna....!!!

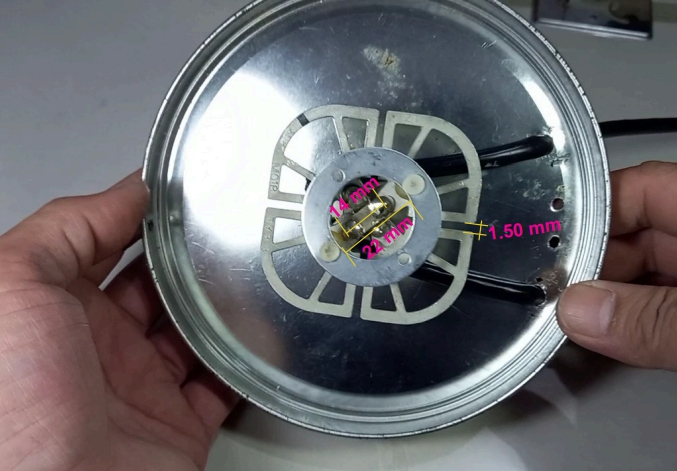

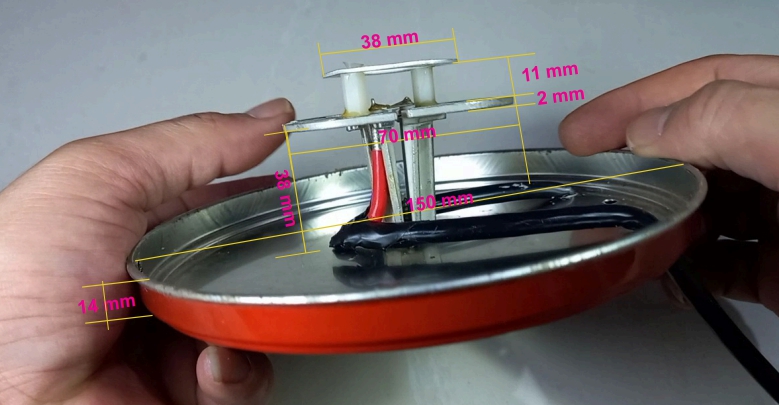

These are the measurements I got.

CATHREIN.pdf

2 people like this

Share this post


Link to post
Share on other sites

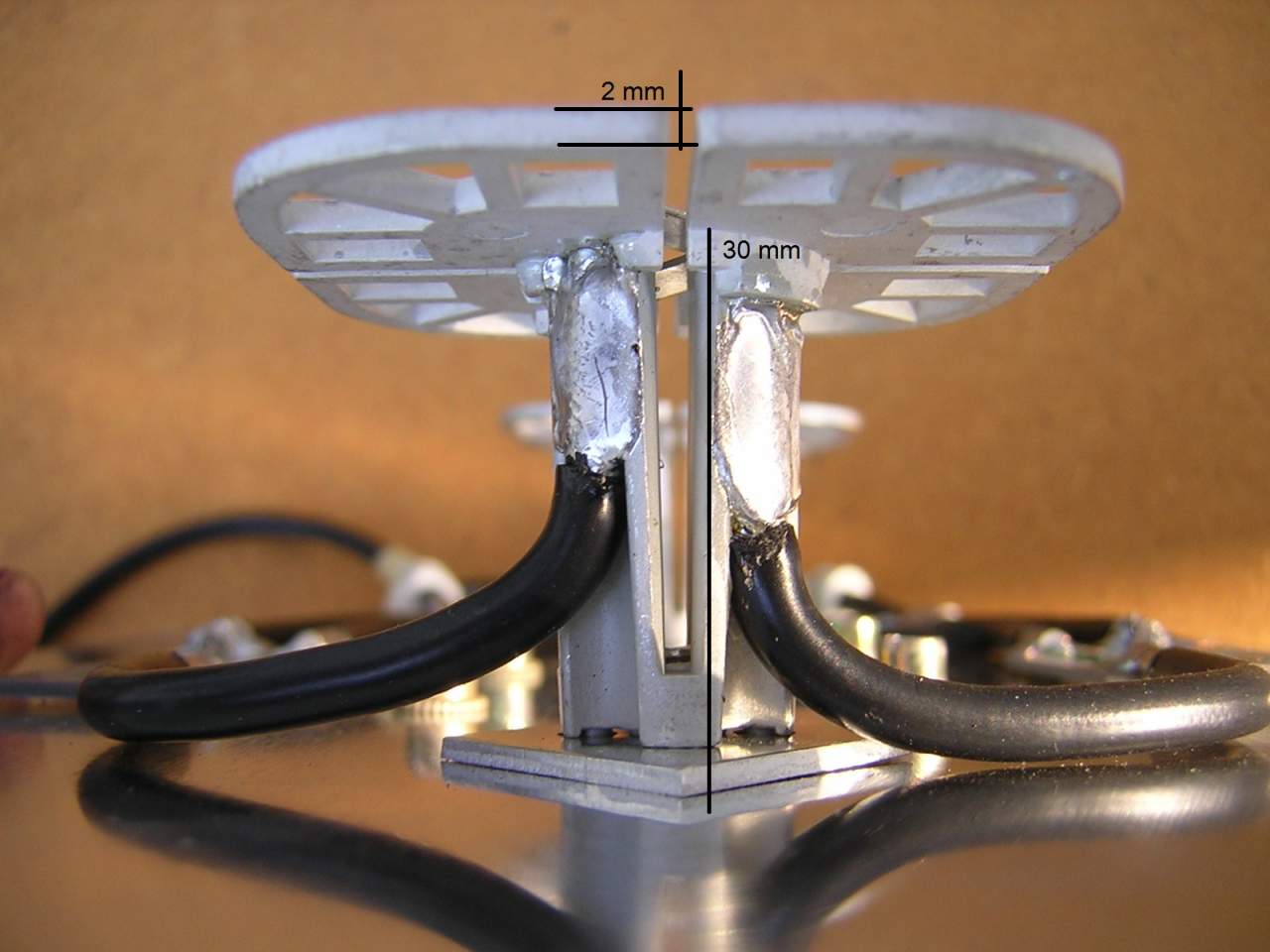

,,, and these dimensions are important...


Share this post


Link to post
Share on other sites

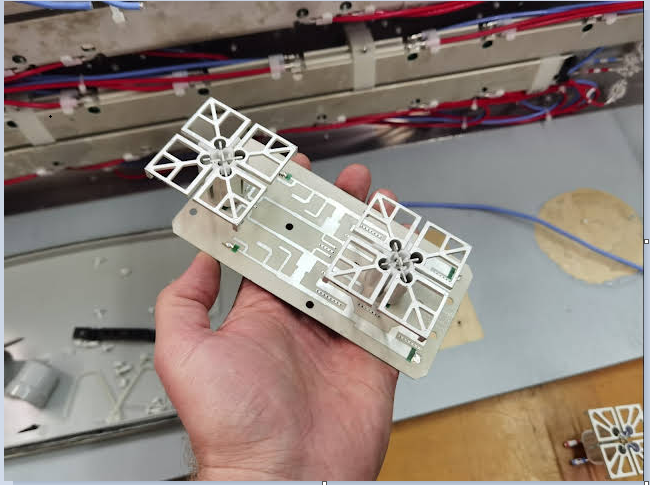

14 hours ago, Harry36 said:

I've been looking at this for a long time ;)





Pre made , wonderful...and all dimensions should be available before buying it , for trial and error ;)

Jomy the supports seems to be PTFE (teflon)

Edited by clanon

Share this post


Link to post
Share on other sites
45 minutes ago, clanon said:

 all dimensions should be available before buying it , for trial and error ;)

or all sizes are needed before modeling ;)

1 person likes this

Share this post


Link to post
Share on other sites
