jnkwqlqn

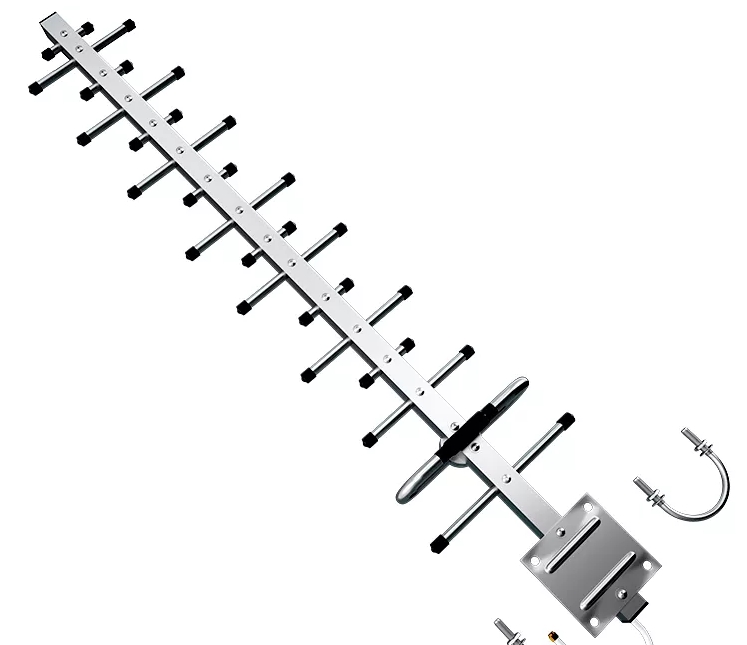

698-3800 Mhz Yagi

53 posts in this topic

,,, can you give some dimensions ... ??

,,, and what the vibrator looks like inside...???

Share this post


Link to post
Share on other sites

Soon. I need to recieve the sample first.

Maybe you can create a BESTER feed out of this.

Edited by jnkwqlqn

Share this post


Link to post
Share on other sites

,,, for testing this type of antenna, dimensions are required...!!!

,,,it can be the same....

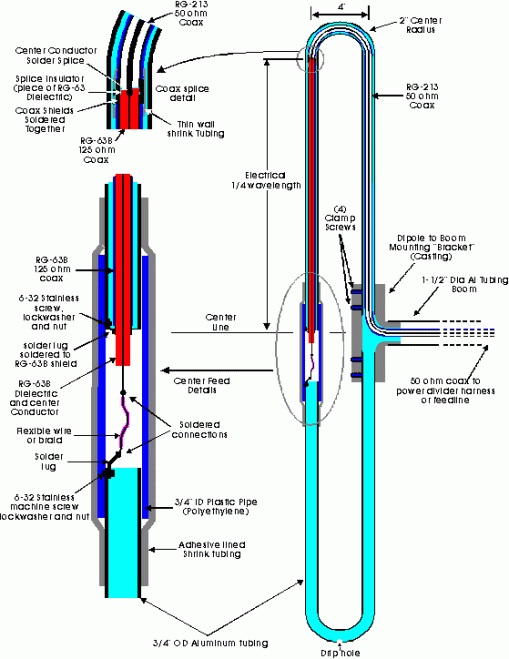

,,,, and the F-dipole looks like this ...


1 person likes this

Share this post


Link to post
Share on other sites

Is this the actual design and dimension of the F-dipole of this antenna? May I know why two different Coax (RG-638 and RG-213 Coax) is used? Is this for impedance matching purposes?

1 person likes this

Share this post


Link to post
Share on other sites

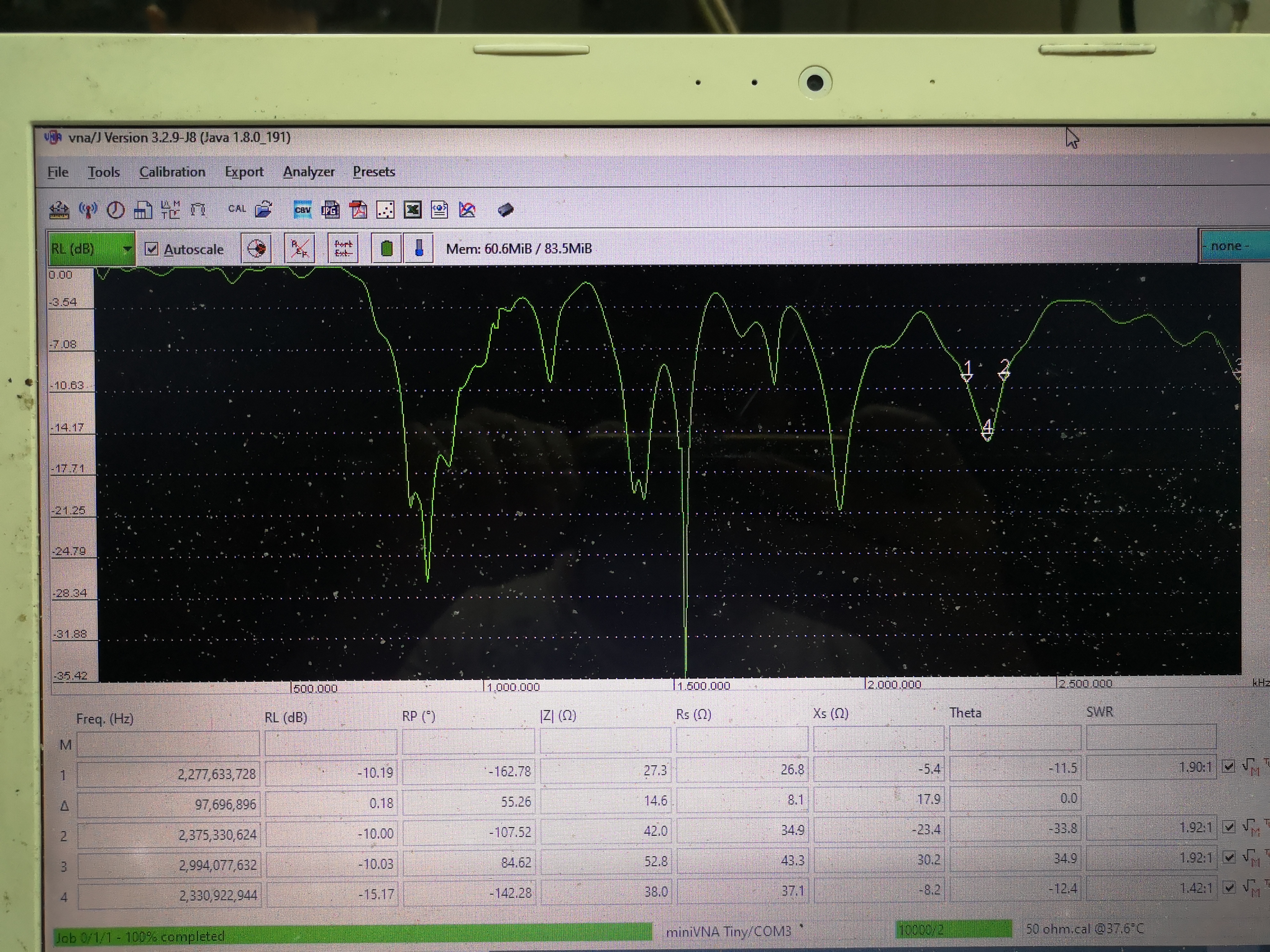

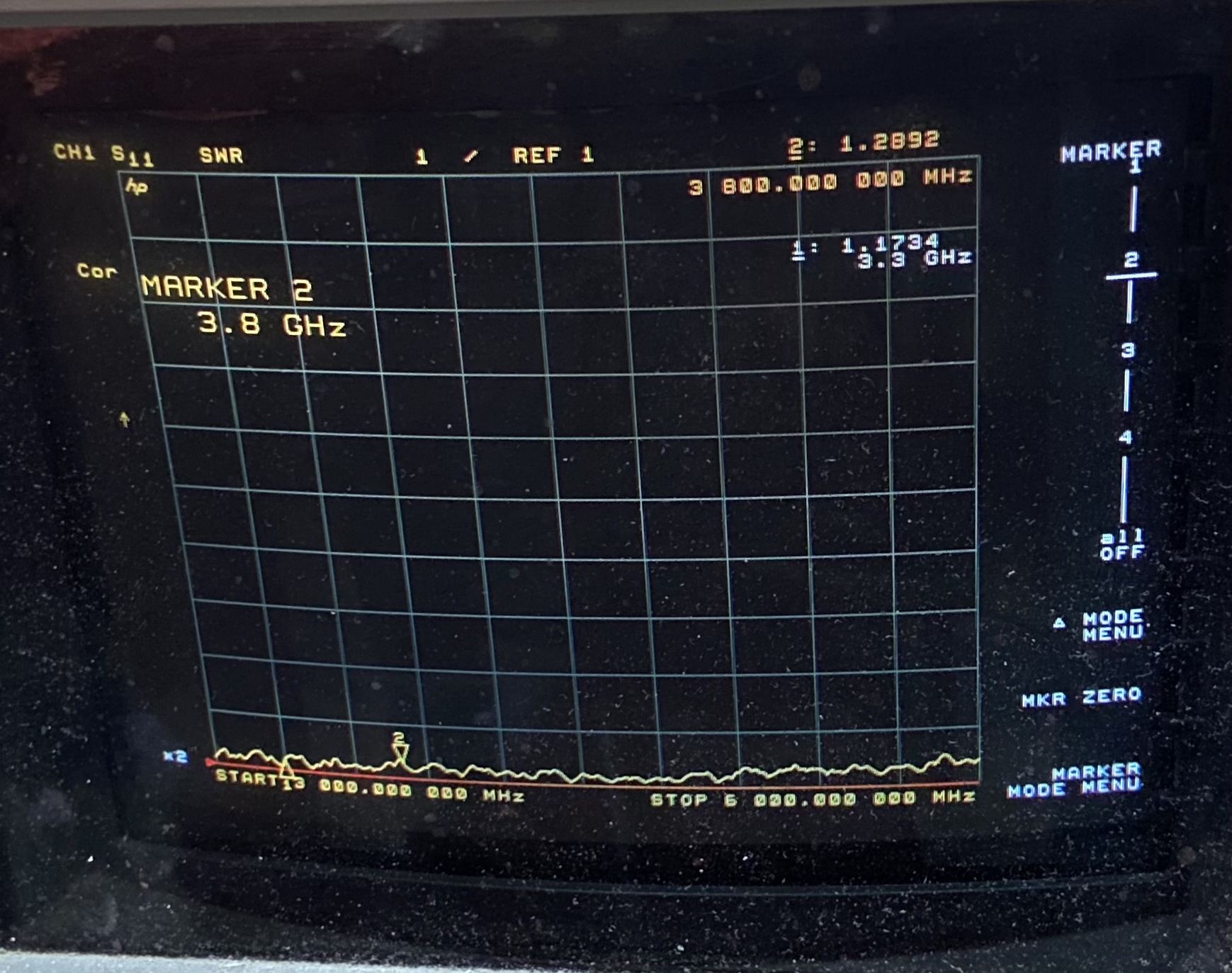

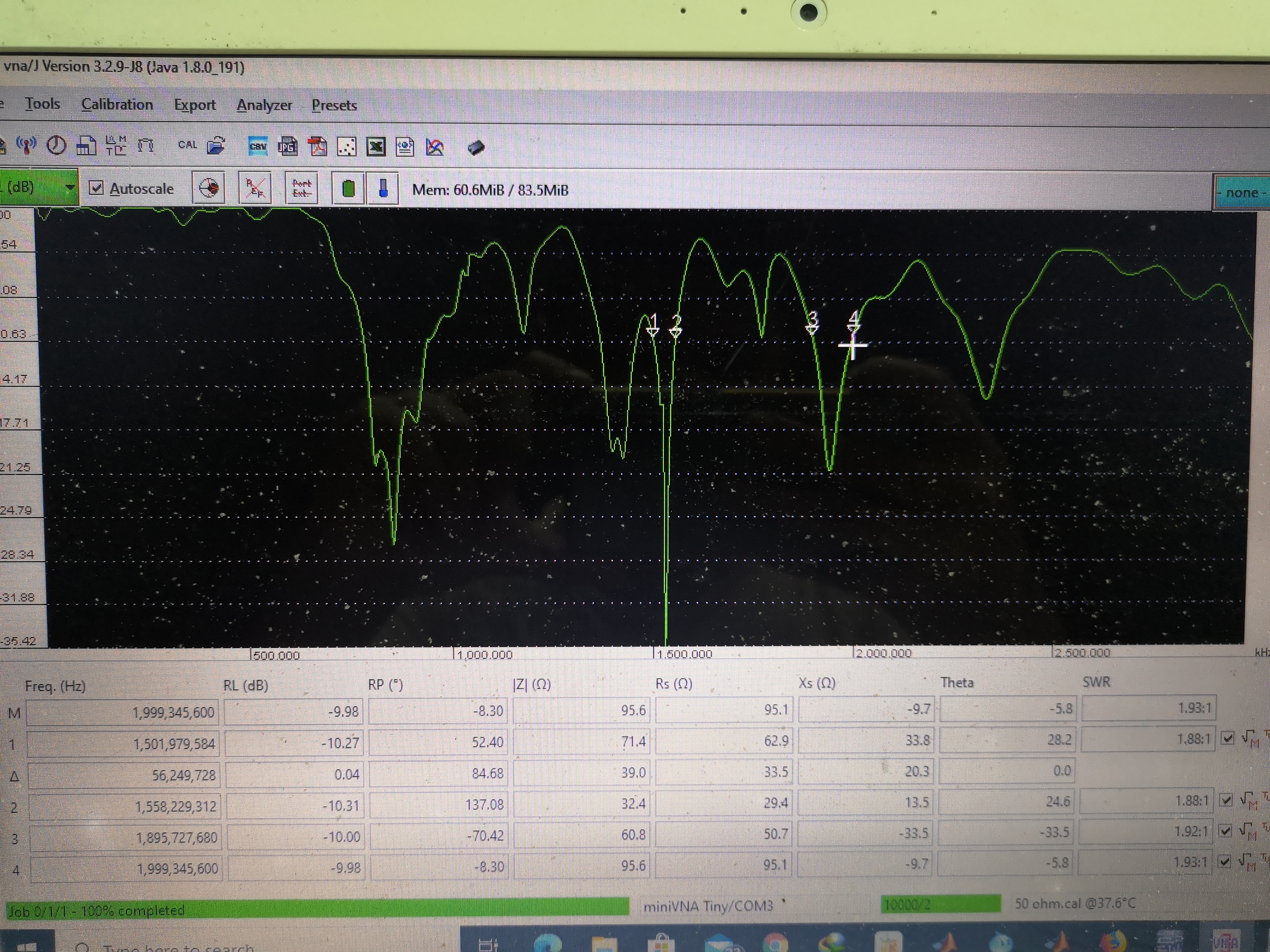

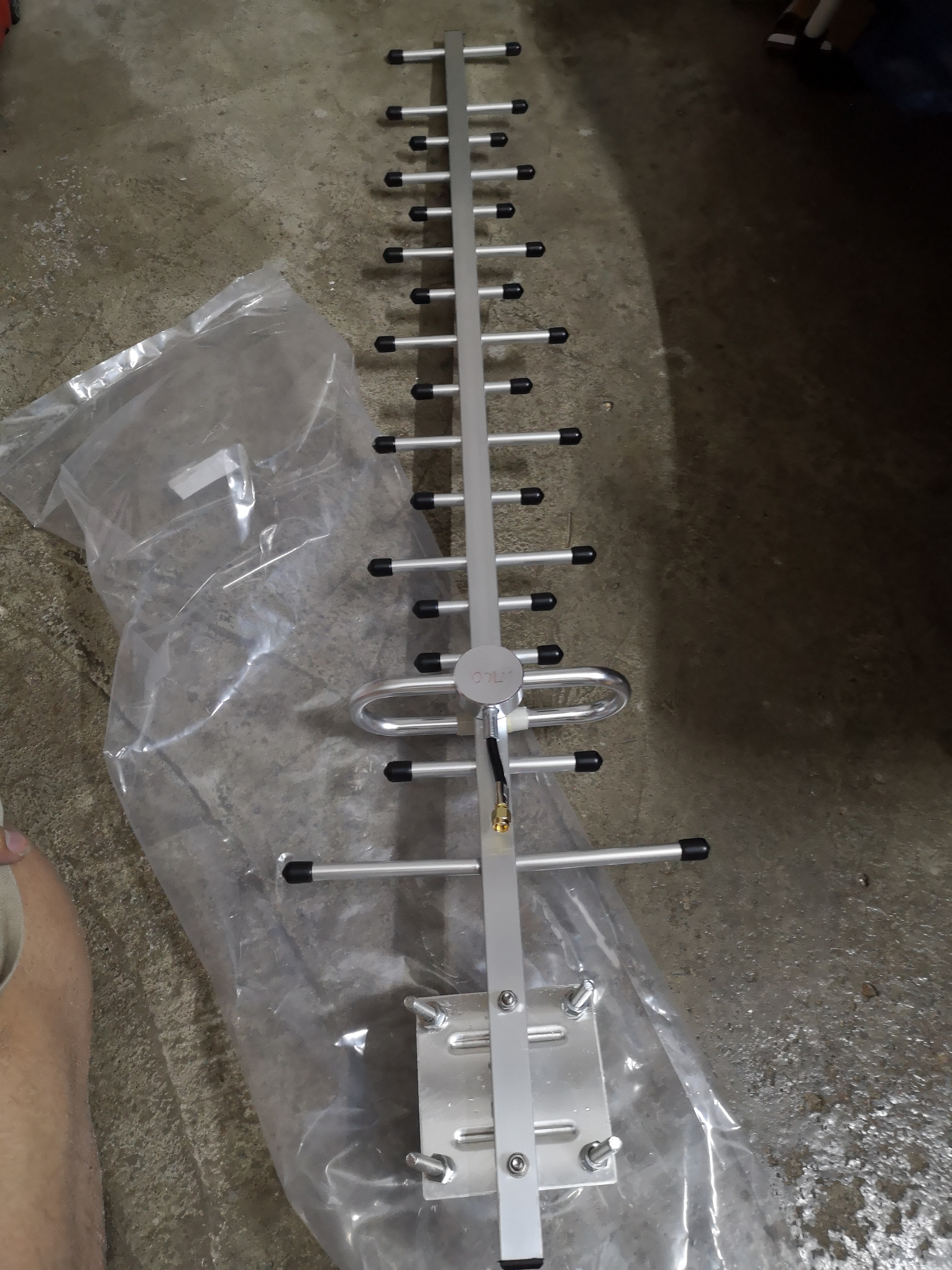

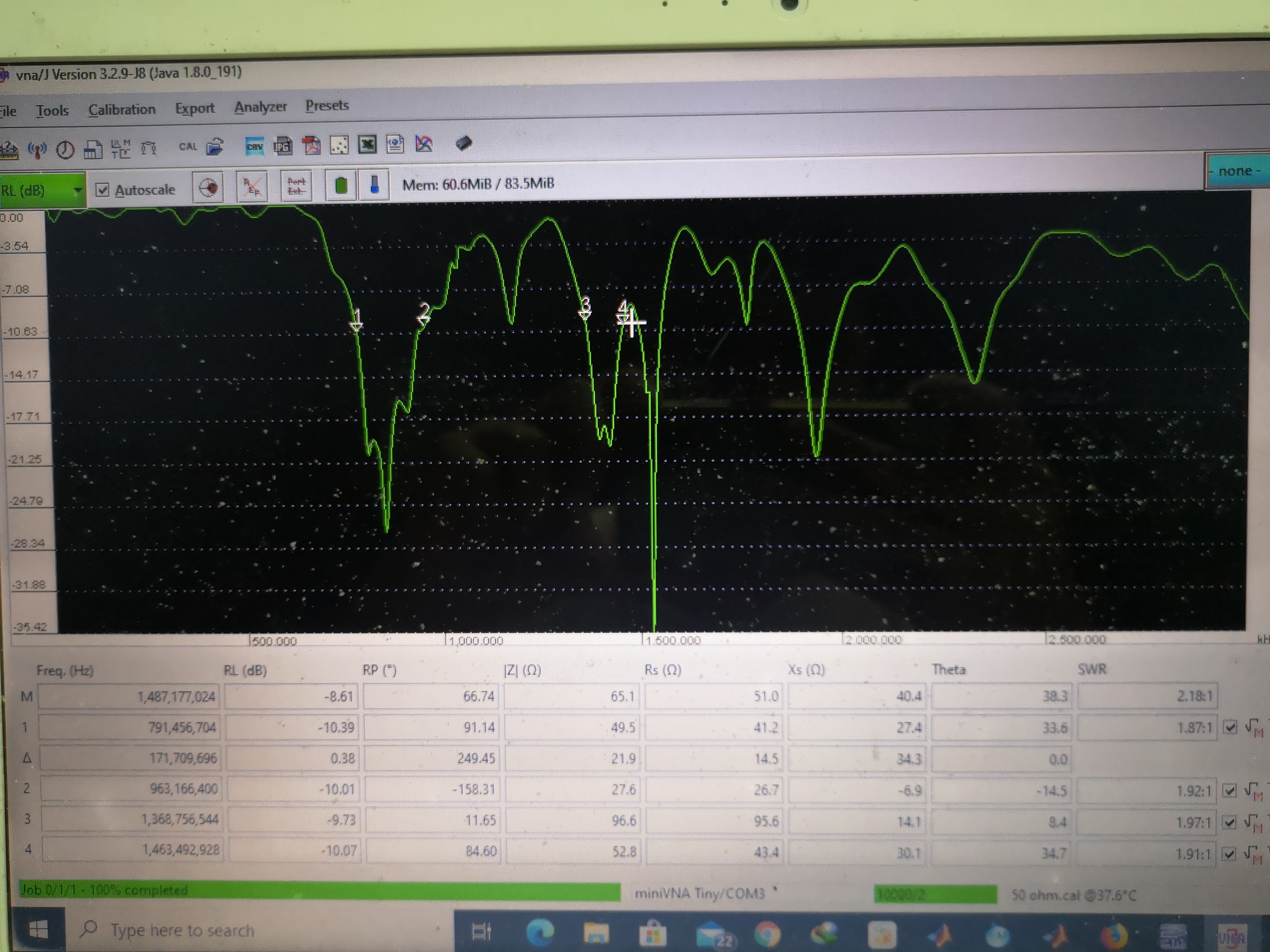

Today i had received and tested the antenna. The results is not similar as stated


1 person likes this

Share this post


Link to post
Share on other sites

I see TWO resonances...one at 750Mhz and the other at 1500Mhz... and a third (weaker)at 1900mhz or so...

Share this post


Link to post
Share on other sites

Yeam, can you post the dimensions to this antenna ... ??

Share this post


Link to post
Share on other sites

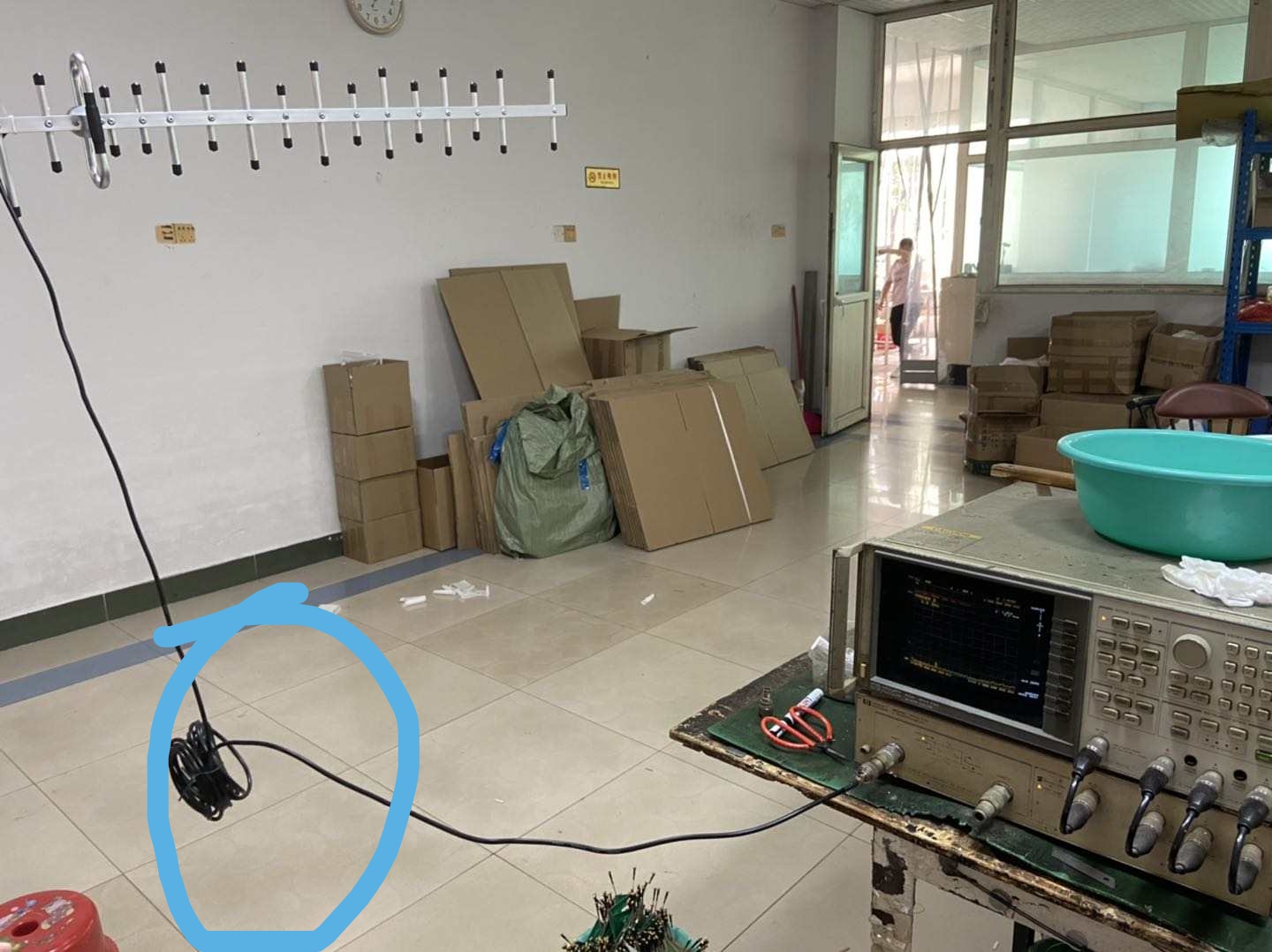

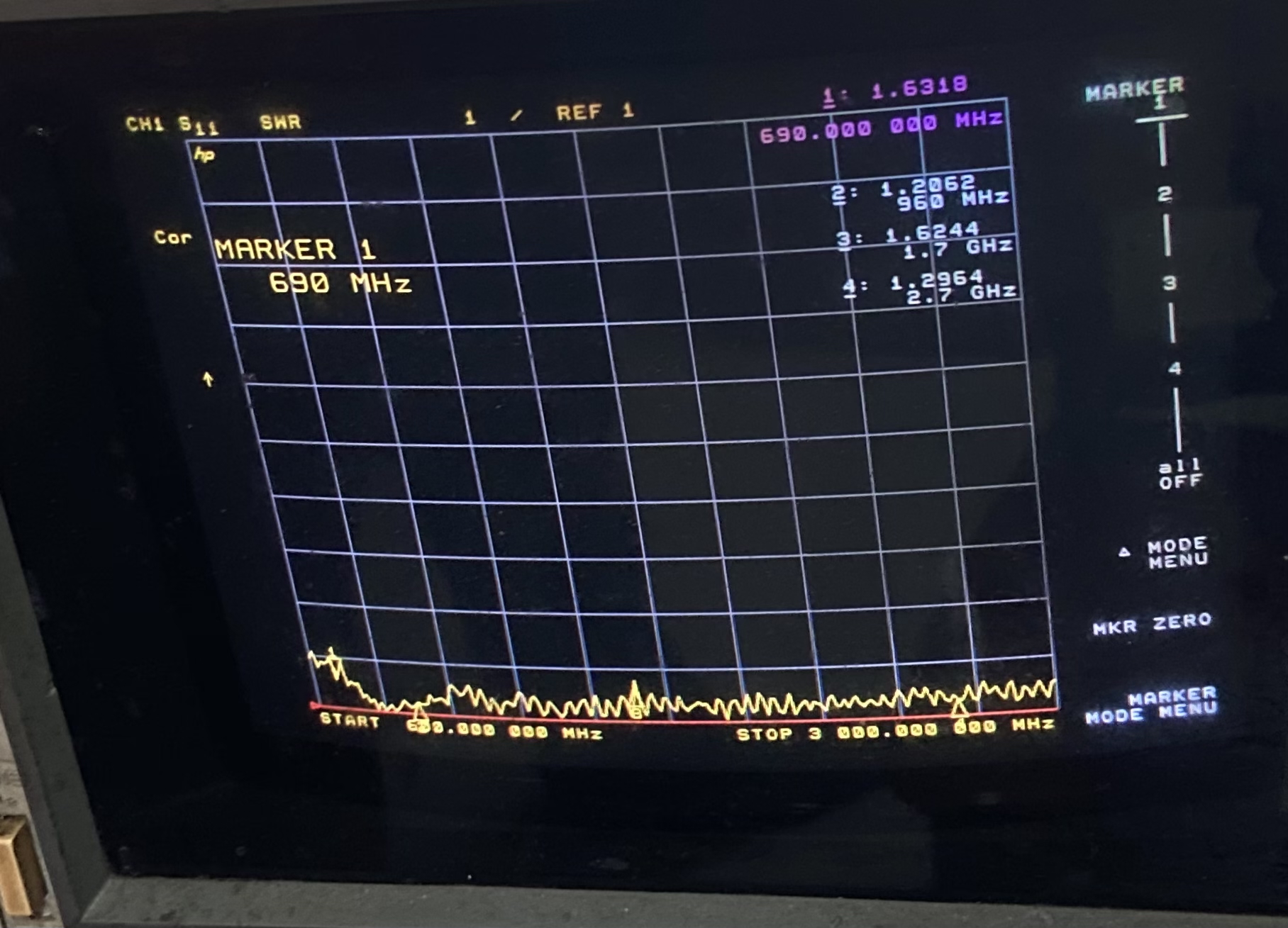

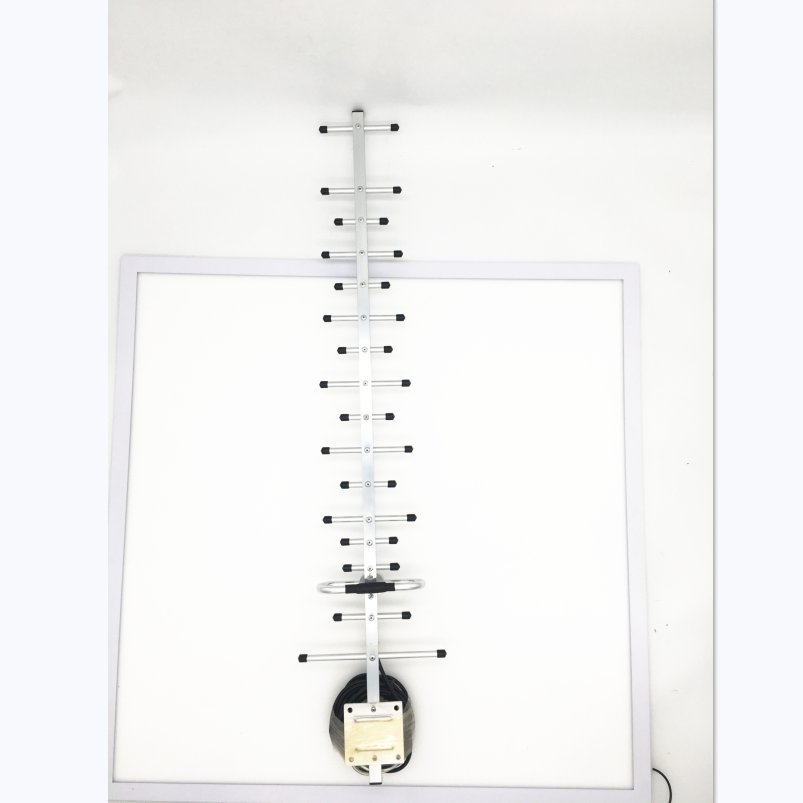

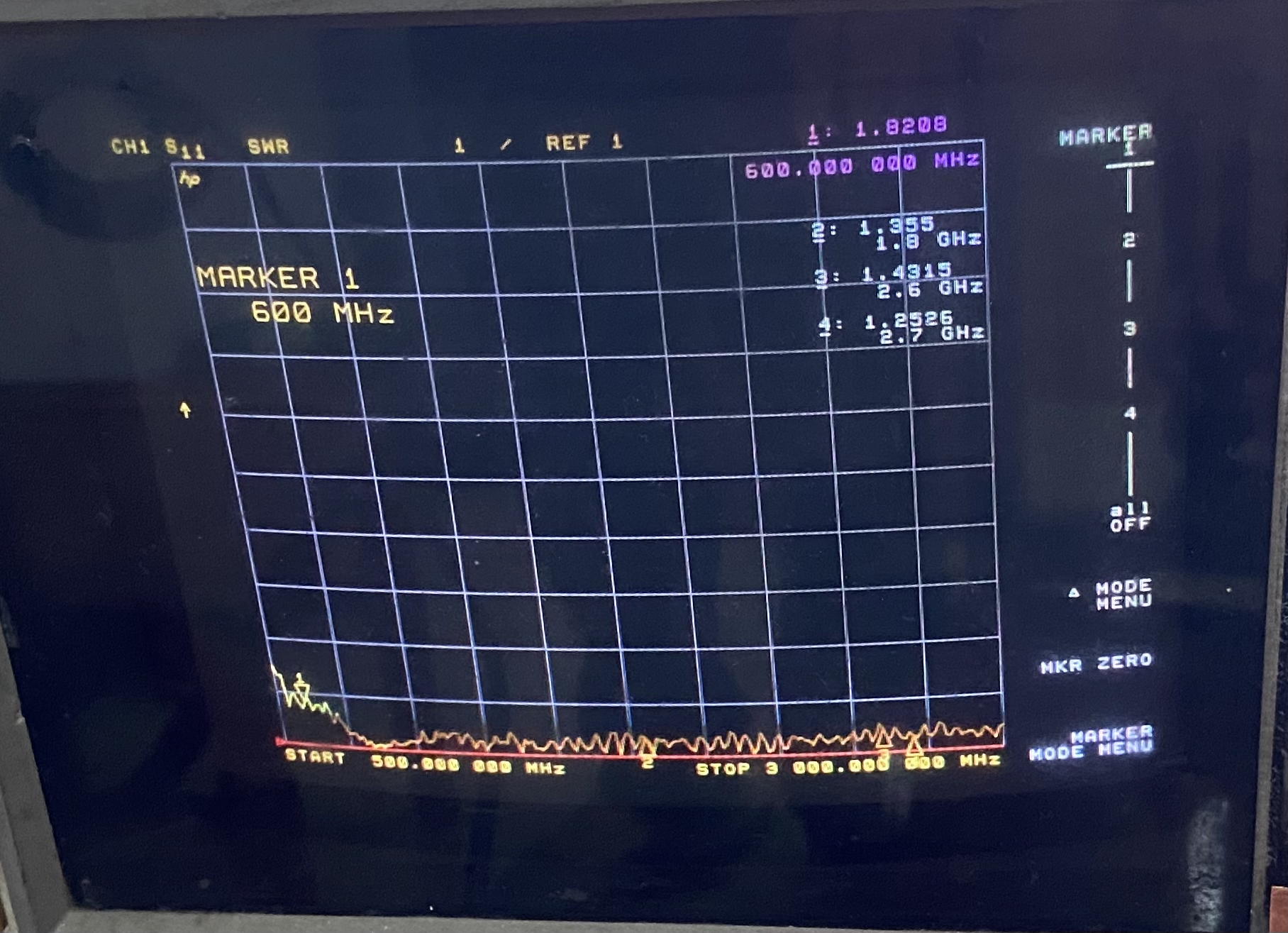

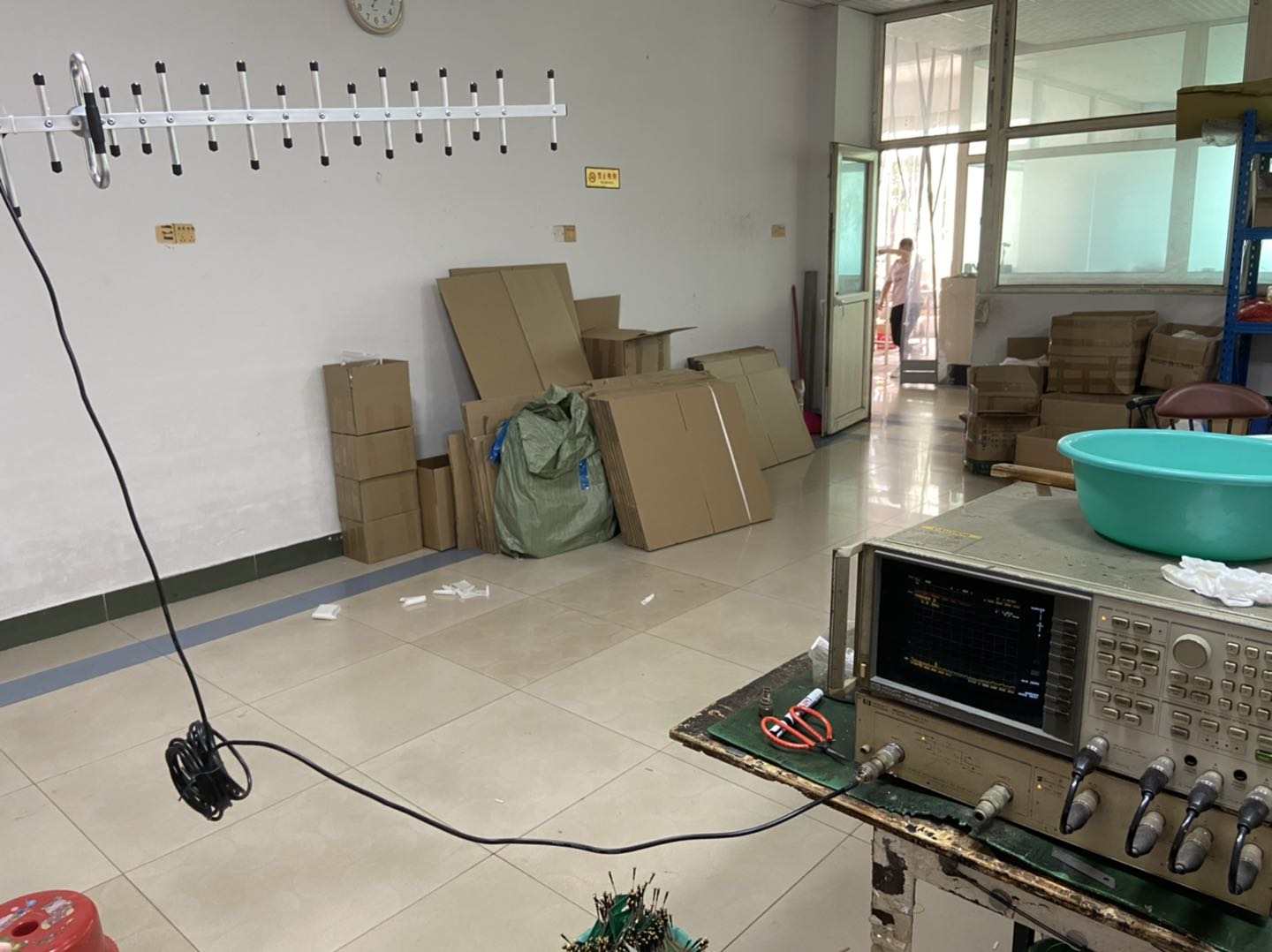

I will post soon, but i think the manufacturer tested the antenna wth the 10 meter RG58 cable in roll (as shown on the photo in the first post), which means ghe manufacturer has wrong steps in testing the antenna.

Share this post


Link to post
Share on other sites

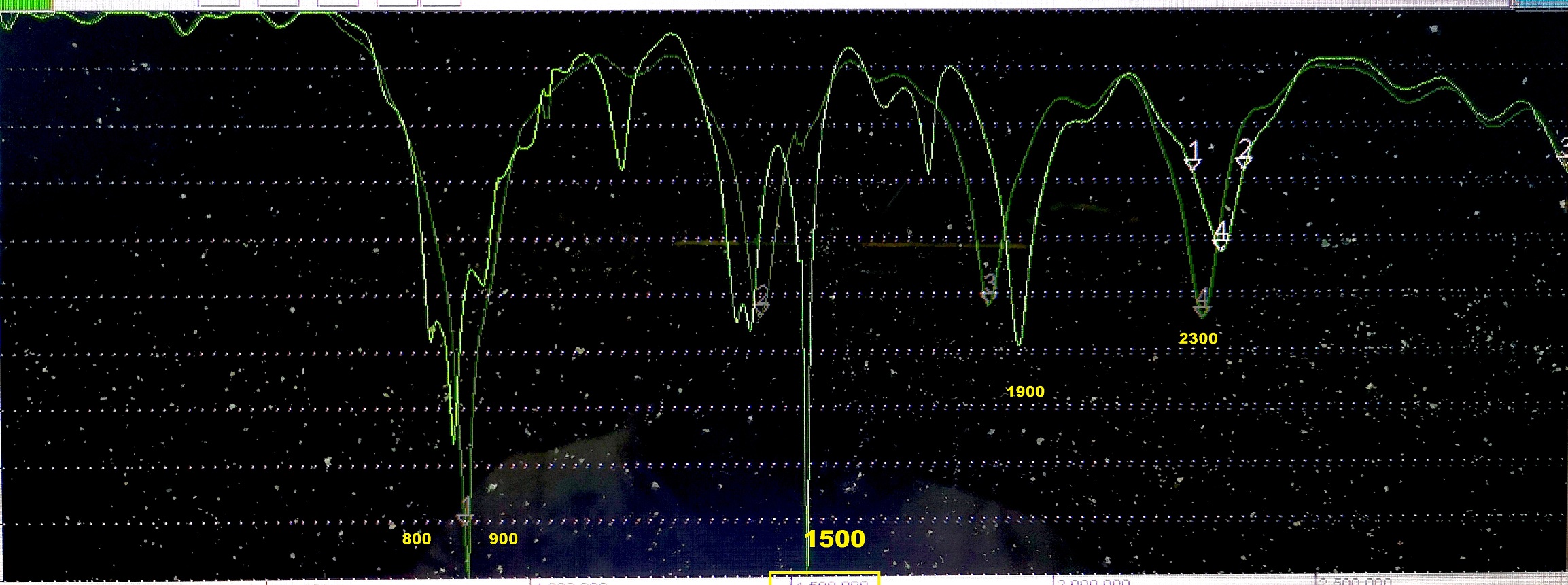

Here are the resonances frequency




Share this post


Link to post
Share on other sites
23 minutes ago, yeam said:

I will post soon, but i think the manufacturer tested the antenna wth the 10 meter RG58 cable in roll (as shown on the photo in the first post), which means the manufacturer has wrong steps in testing the antenna.


Share this post


Link to post
Share on other sites
23 hours ago, Admin said:

Yeam, can you post the dimensions to this antenna ... ??

16 hours ago, yeam said:

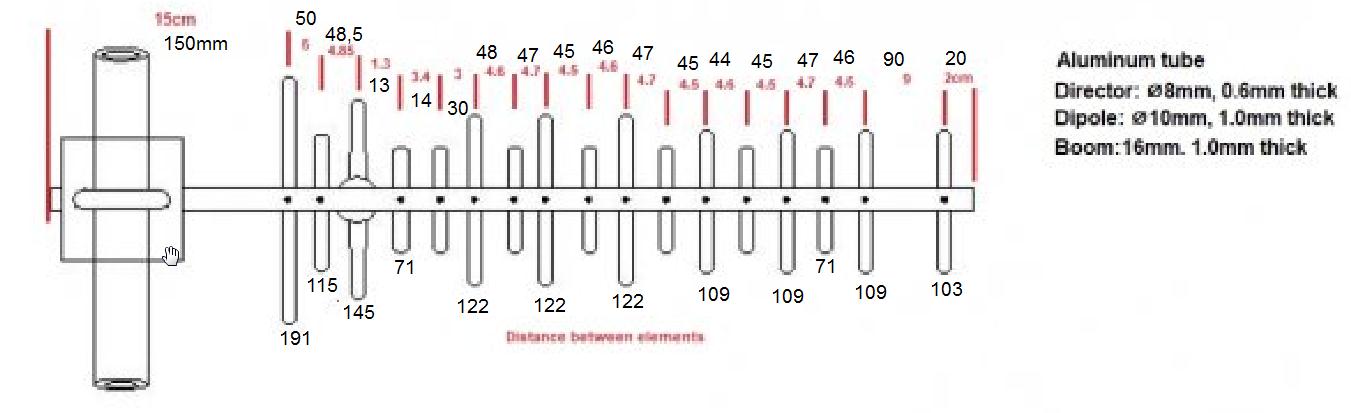

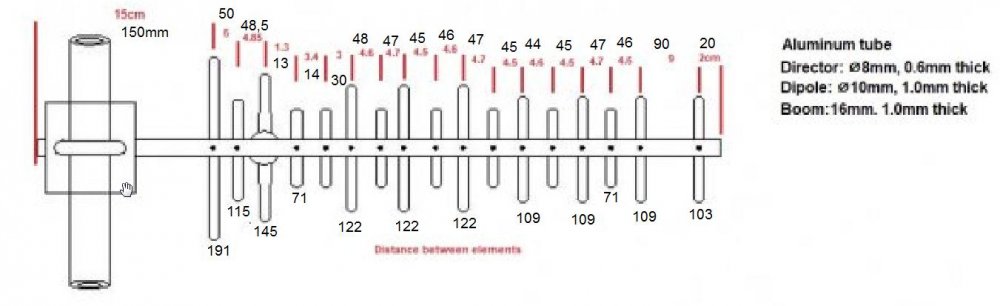

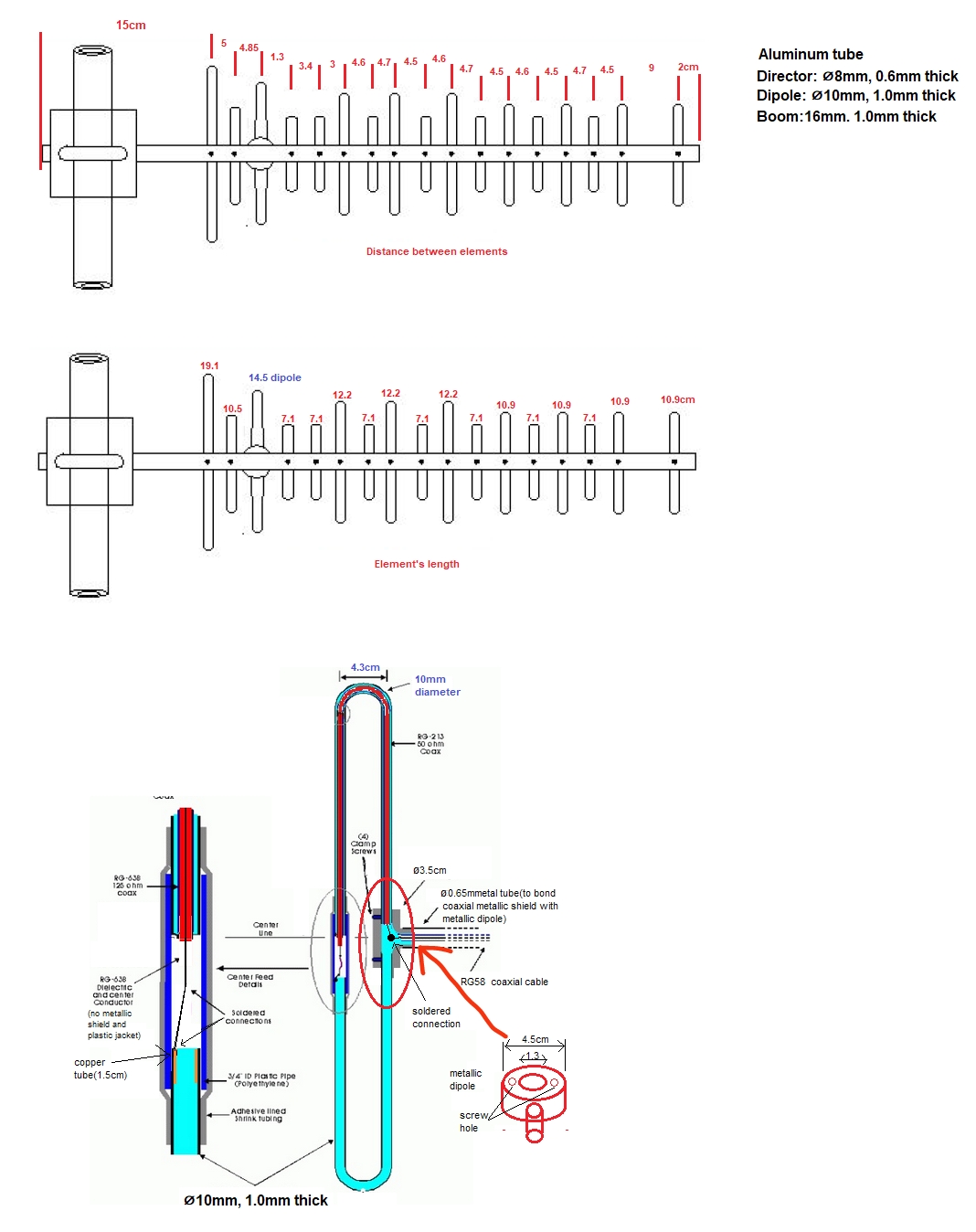

Here are the dimentions. Can you help me to simulate the s-parameter, radiation patern and gain? Thanks


1 person likes this

Share this post


Link to post
Share on other sites

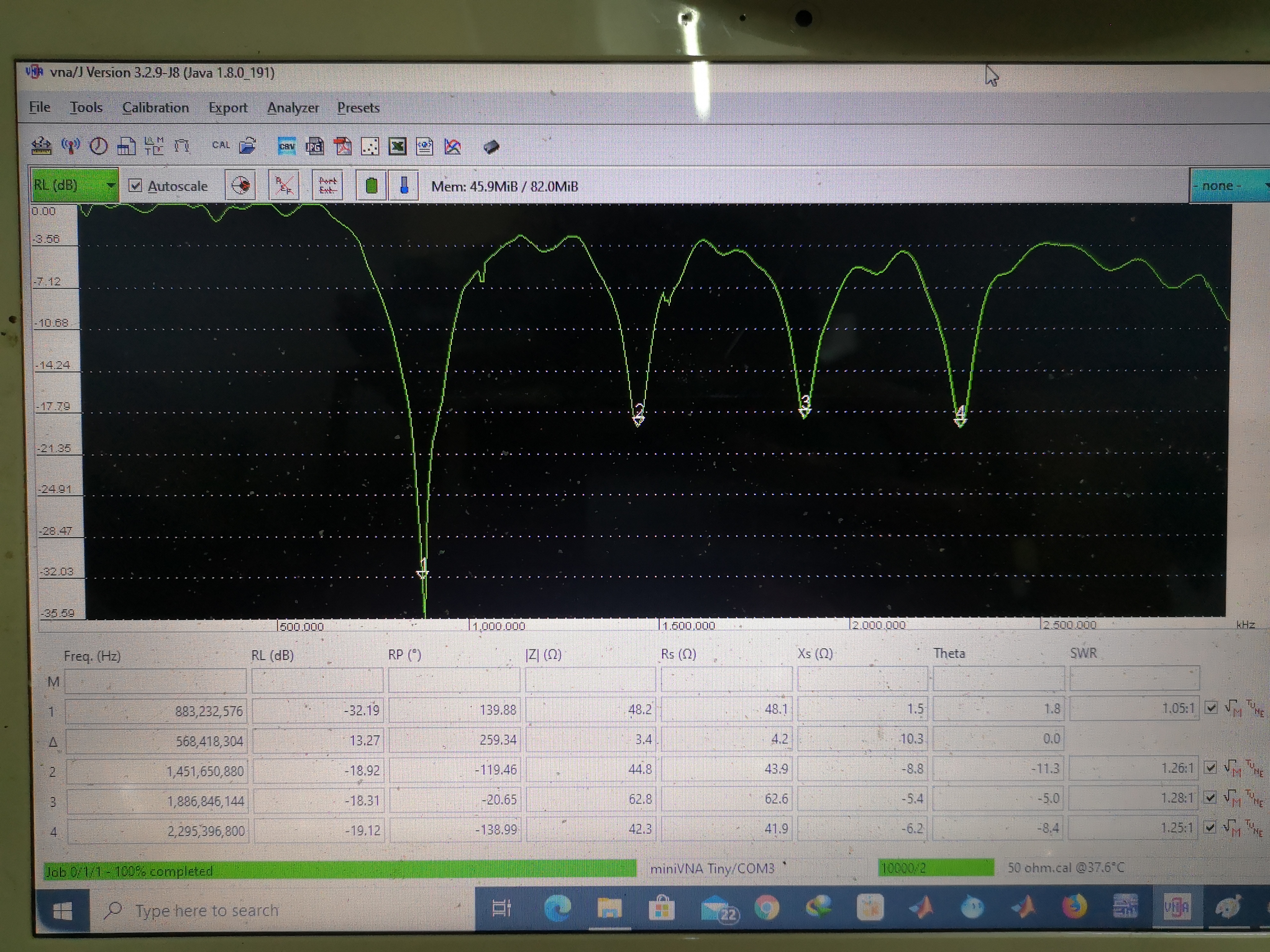

Here are the s-paramter for the folded dipole itself only. It seem like having 4 different working frequency. So bad 2.6Ghz is missing which is a common LTE frequency


Share this post


Link to post
Share on other sites

,,, yeam,, thank you for your post,but you can give the dimensions more clearly because it is not distinguished on your images..!!!

,,, these dimensions are good(in mm) ... ???


Share this post


Link to post
Share on other sites

i build a model...check it ou...(didn't like the resonances...small S11)

yagi.cst

Share this post


Link to post
Share on other sites

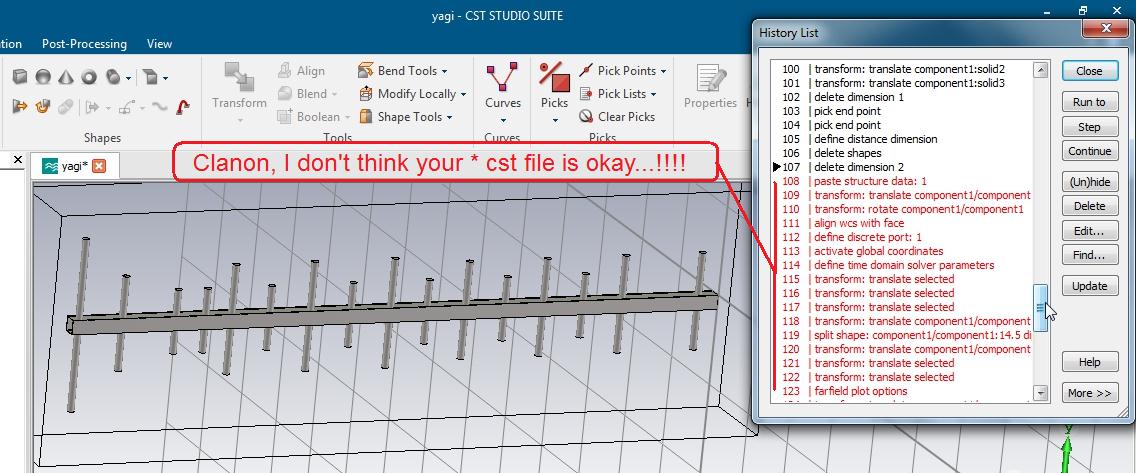

Clanon,,,, good job, but I don't know if you respected the F-dipole connection...!!!

1 person likes this

Share this post


Link to post
Share on other sites

you're RIGHT ...i was tweaking and fiddling with it...trying to get the  S11 right....(closer to the measurements...)

i think that the cylinder thing helps widen the band...and NOT sure about the port distance (dipole gap)

dont forget the IMPEDANCE MATCH with 125ohms quarter wave...

Edited by clanon

Share this post


Link to post
Share on other sites

,,, put some pictures, if you want ... !!

Share this post


Link to post
Share on other sites

i'll try with a 300Ohms port and see ...

Share this post


Link to post
Share on other sites


Edited by clanon

Share this post


Link to post
Share on other sites

i think i'm close...2.3ghz is not showing REMEMBER to use a 300 ohms port



yagi.cst

Edited by clanon

Share this post


Link to post
Share on other sites
On 1/17/2021 at 11:09 PM, Admin said:

,,, yeam,, thank you for your post,but you can give the dimensions more clearly because it is not distinguished on your images..!!!

,,, these dimensions are good(in mm) ... ???


Hi, the dimensions you shown above are correct

Share this post


Link to post
Share on other sites
