clanon

MikroTik QRT 5 antenna

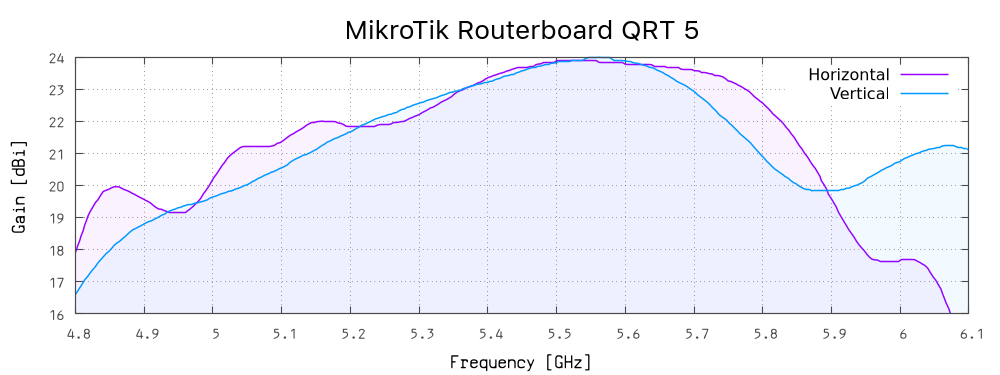

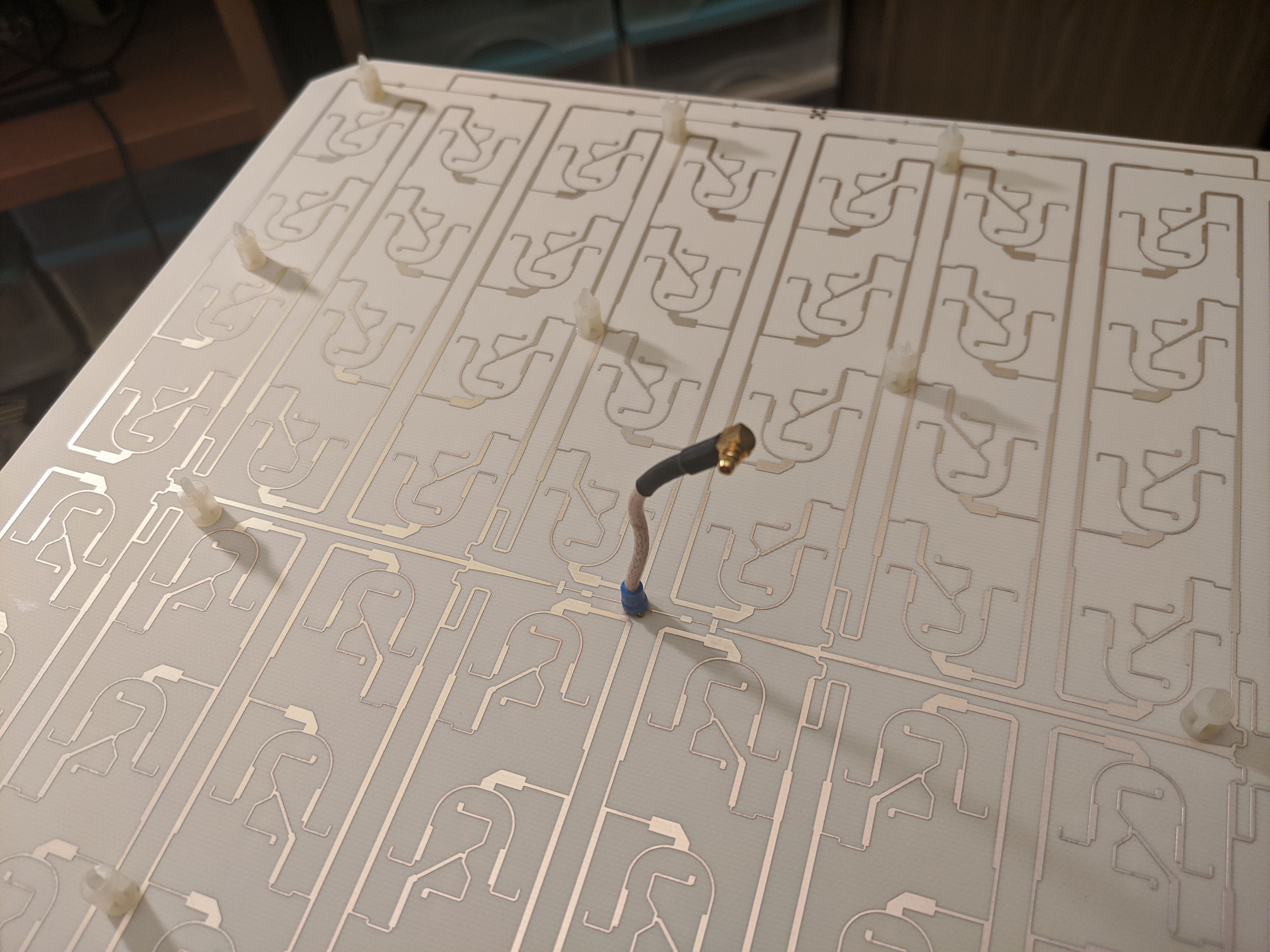

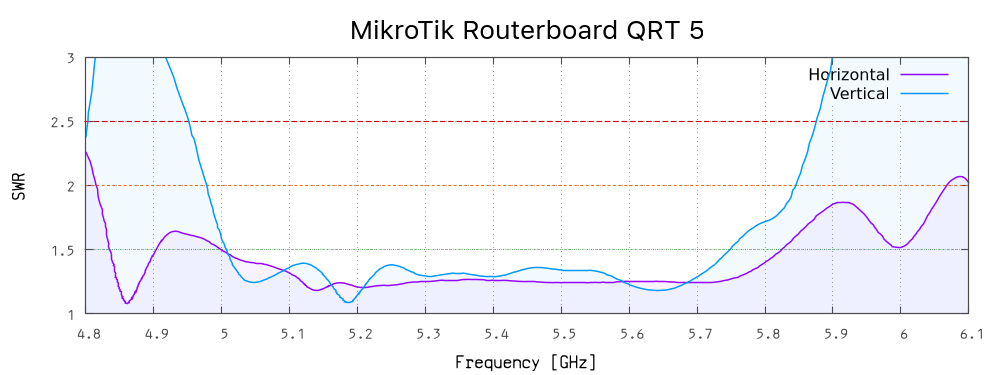

MikroTik QRT 5 is a dual-polarization 5 GHz microstrip panel antenna with a gain specified up to 24 dBi and integrated radio at just 31×32×5 cm size

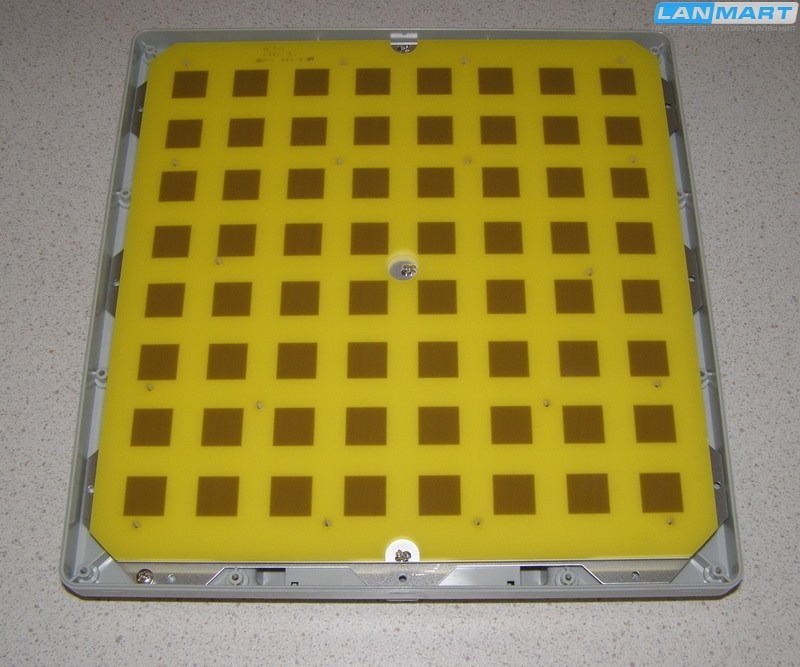

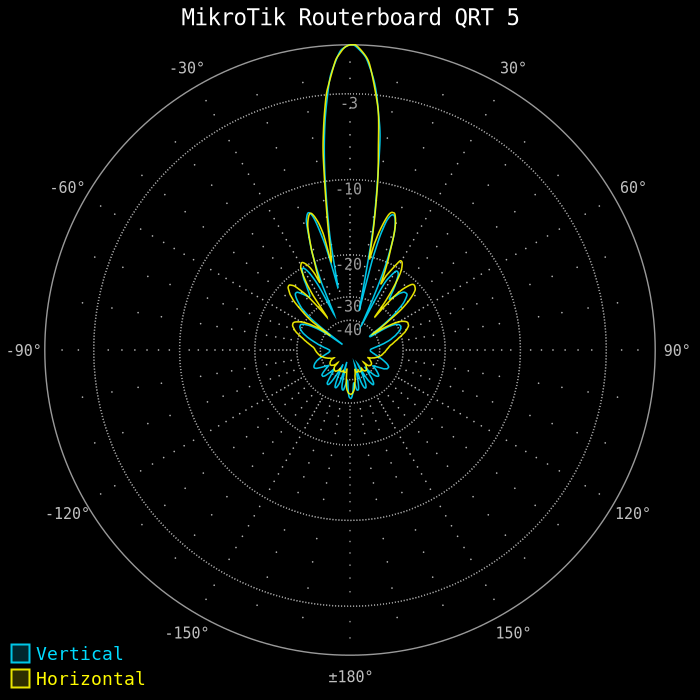

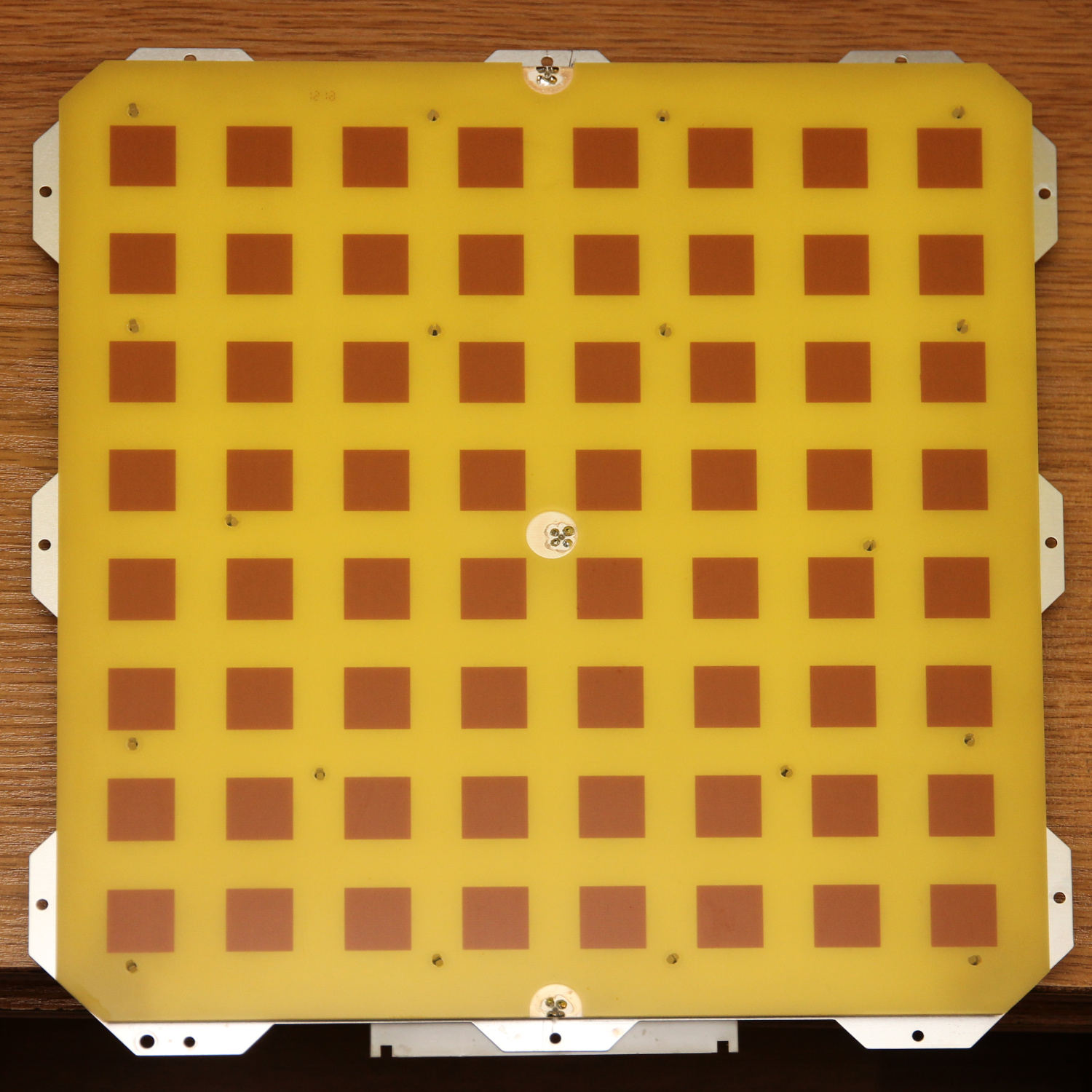

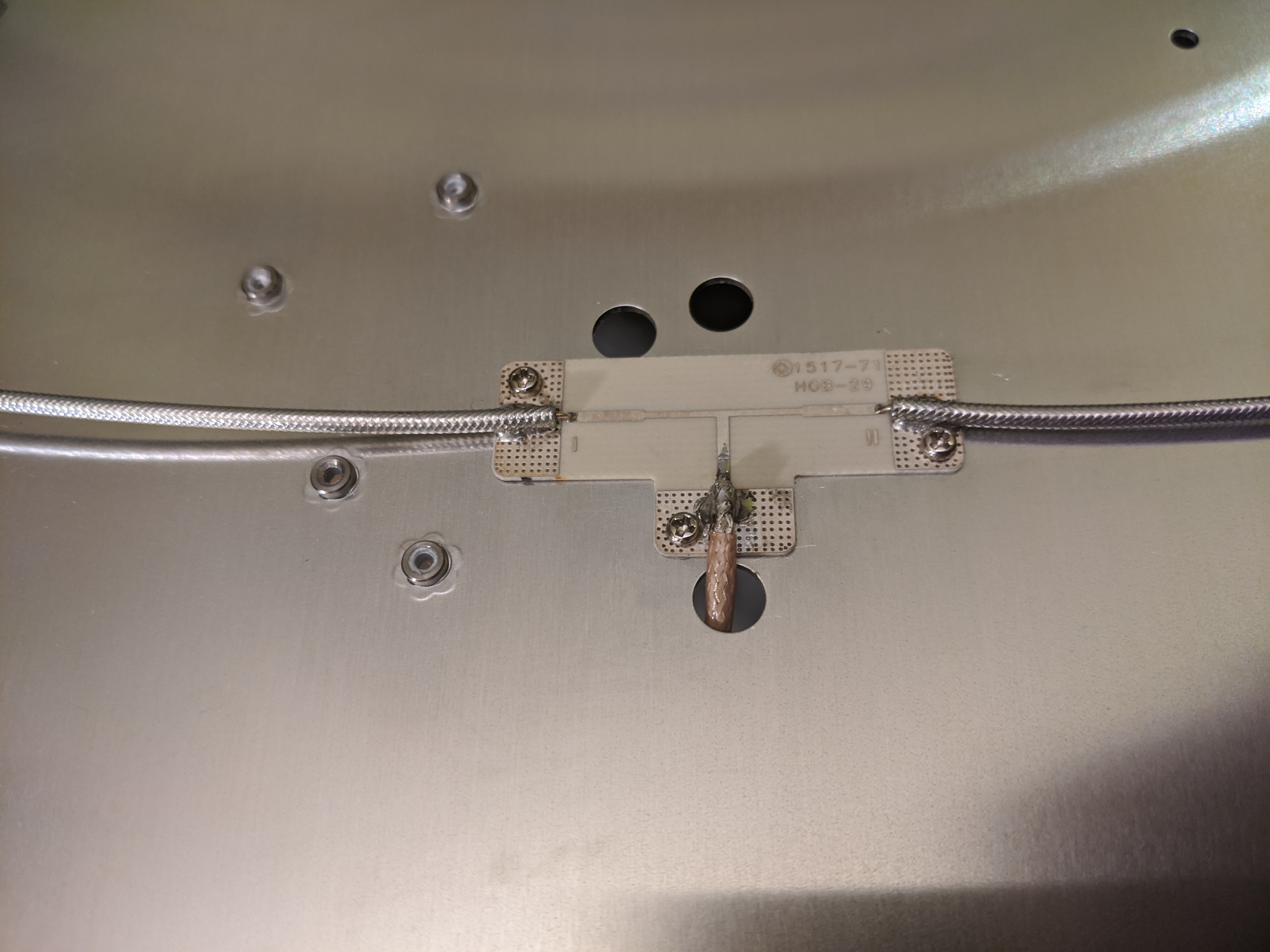

The plastic case looks quite robust and UV resistant. The microstrip antenna array inside consists of 64 elements (8×8), which result in 10.5° beamwidth (-3 dB). There is also a MikroTik RB911G-5HPnD-QRT board, which features a 2×2 MIMO 802.11an radio (AR9342 SoC) with 30 dBm tx power. The antenna is connected with two short MMCX pigtails.






Share this post


Link to post
Share on other sites

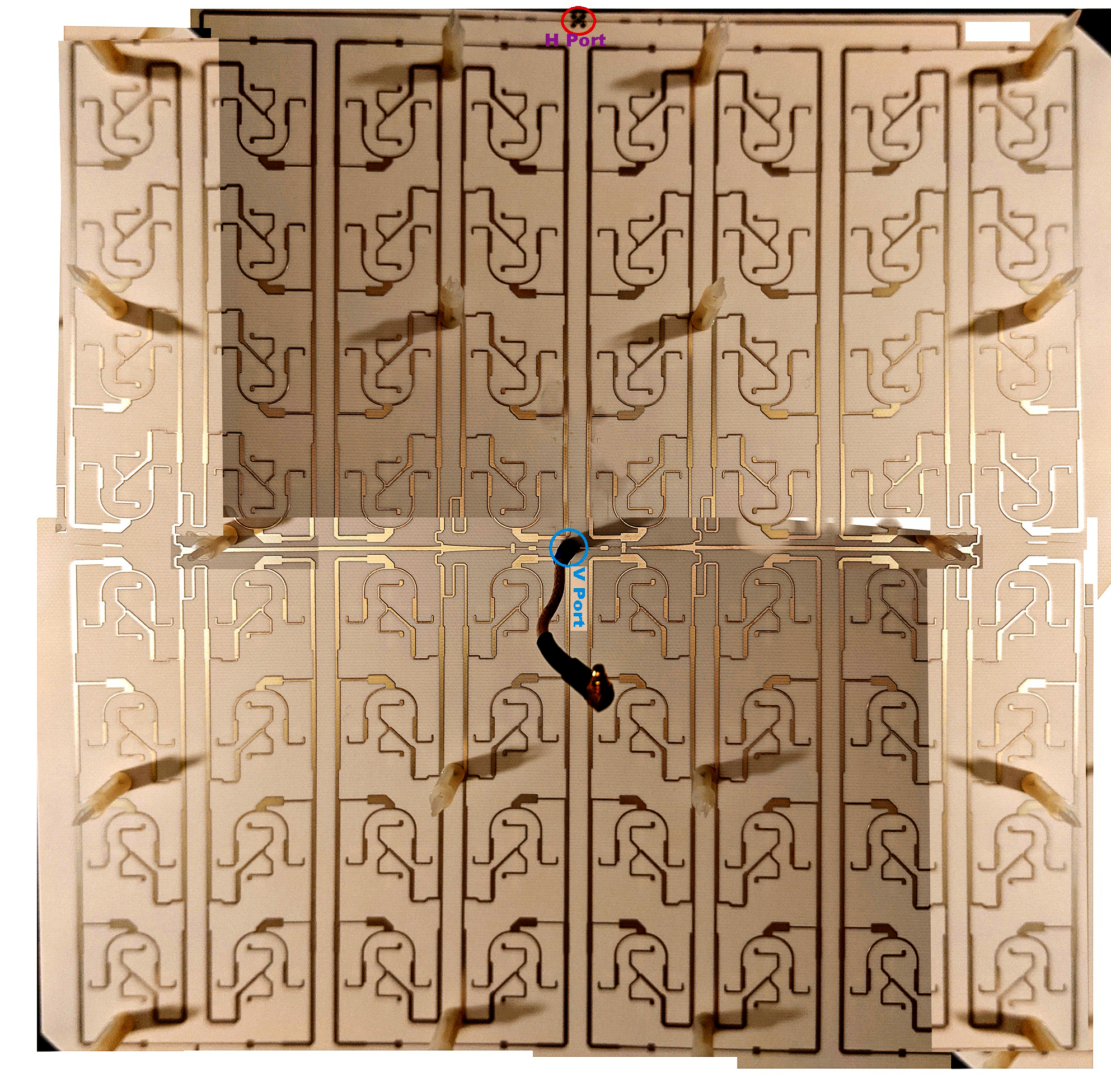

,,,, and what does the vibrator look like .... ???

Share this post


Link to post
Share on other sites
13 hours ago, Admin said:

,,,, and what does the vibrator look like .... ???

That's the MILLION DOLLAR question...

i'm trying to find a picture...so far no luck

Share this post


Link to post
Share on other sites

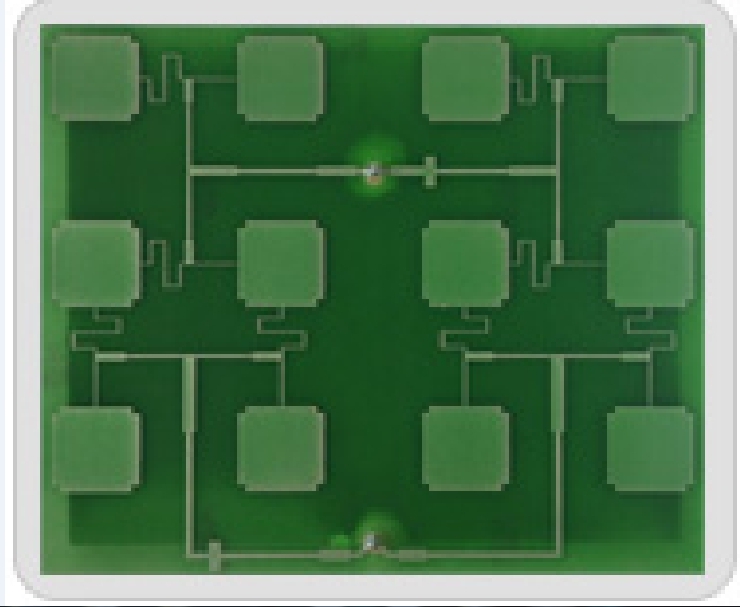

I think something like this...


1 person likes this

Share this post


Link to post
Share on other sites

,,, yes, it is possible, but I think we need circular polarization ... !!!

Share this post


Link to post
Share on other sites

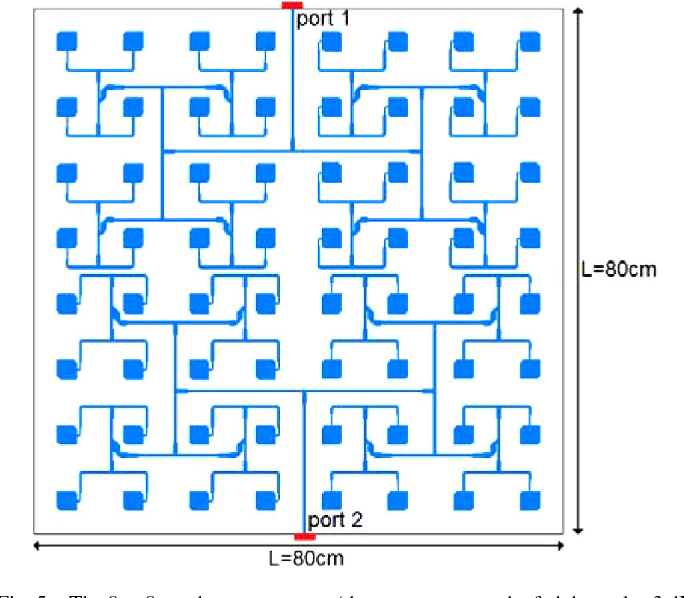

i ihink it could be  2 x 32 identical panels...MIMO...

Share this post


Link to post
Share on other sites

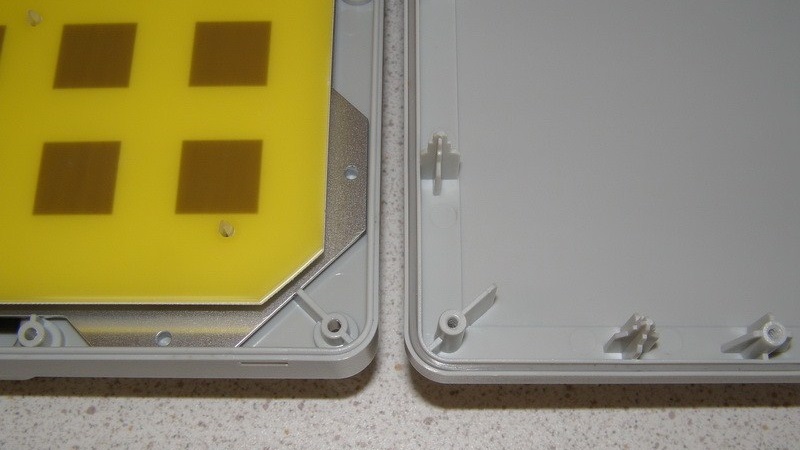

maybe more similar to sxtlite5 antenna whose gain is increased

Share this post


Link to post
Share on other sites

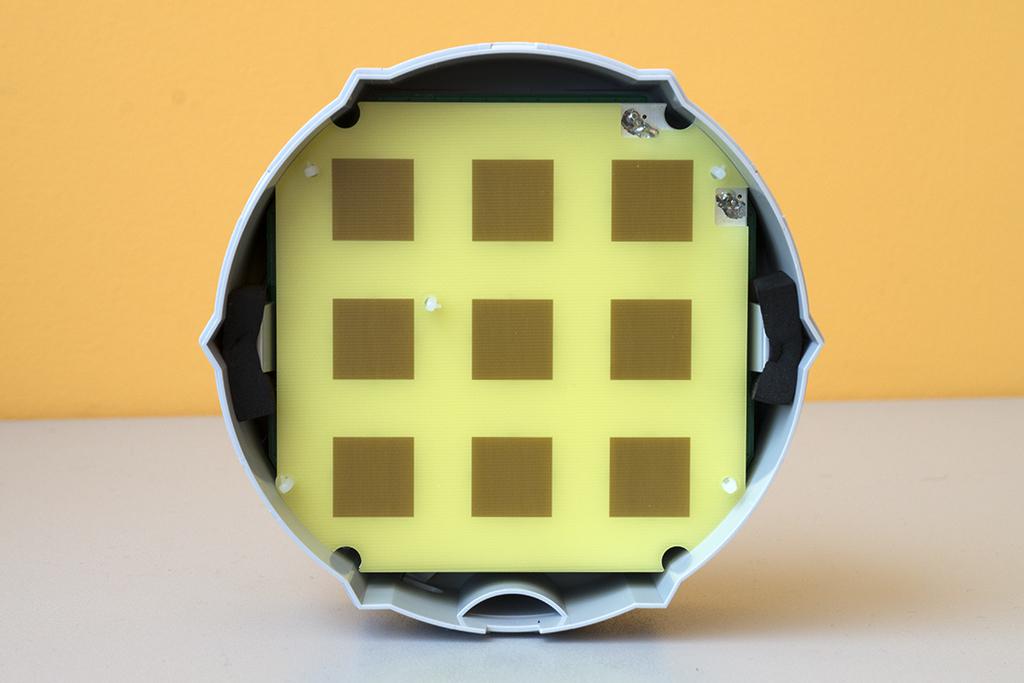

this model antena sxt lite5


1 person likes this

Share this post


Link to post
Share on other sites

,,,show the vibrator...!!!

Share this post


Link to post
Share on other sites

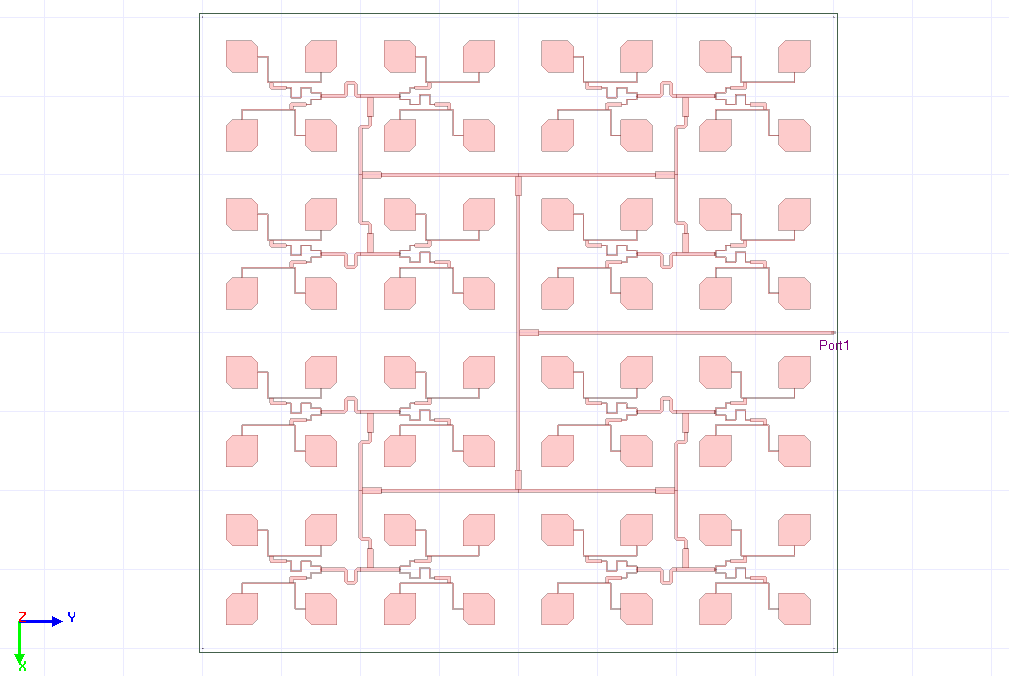

this vibrator, not same with sxt lite5
but is my imagination


1 person likes this

Share this post


Link to post
Share on other sites

,,,yes, it's something like that...


Share this post


Link to post
Share on other sites
12 hours ago, Admin said:

,,,yes, it's something like that...


yes right, and for its development depends on our imagination



Share this post


Link to post
Share on other sites

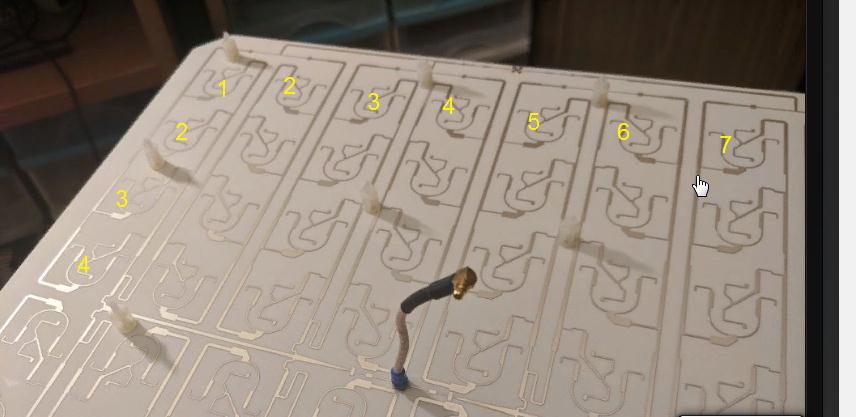

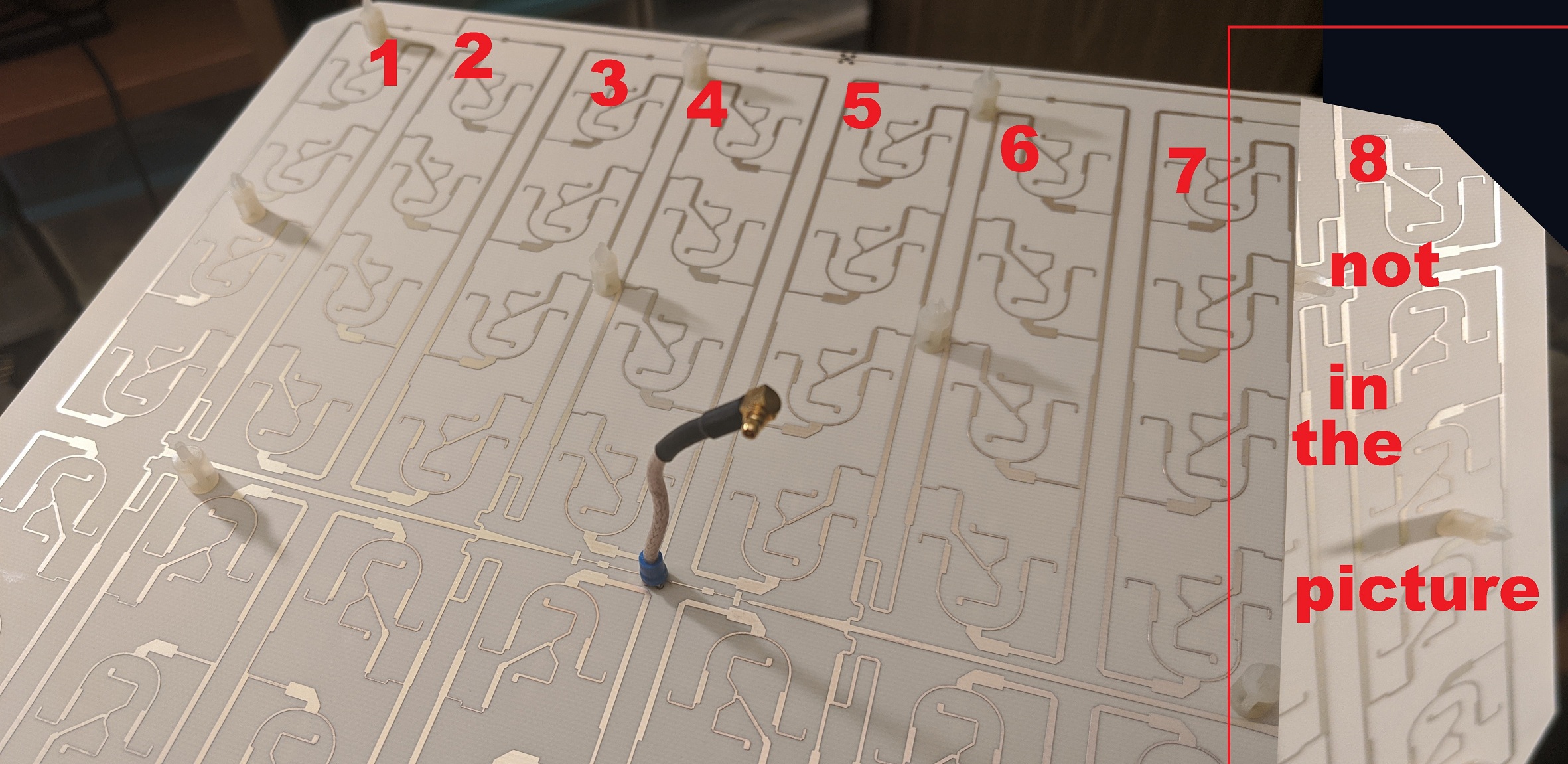

,,, I don't think that's it ... !!  7x8 patches...???

Share this post


Link to post
Share on other sites
On 11/15/2020 at 0:39 AM, clanon said:

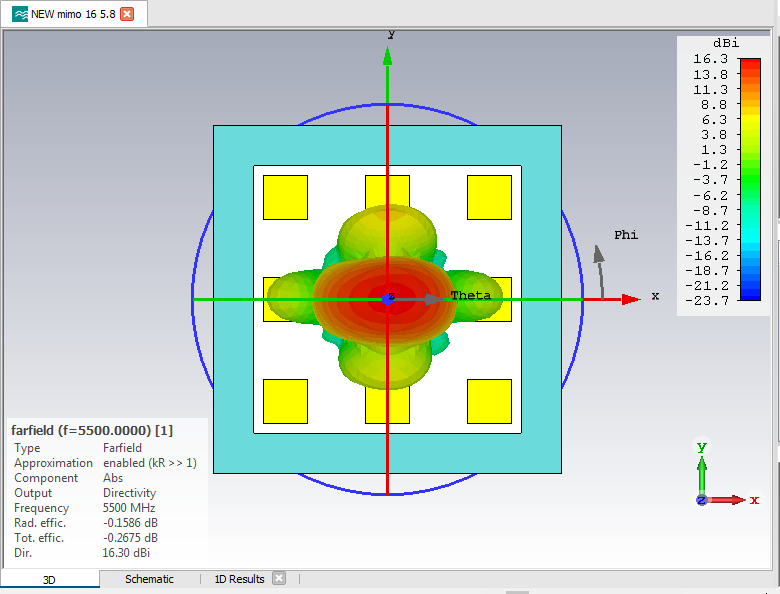

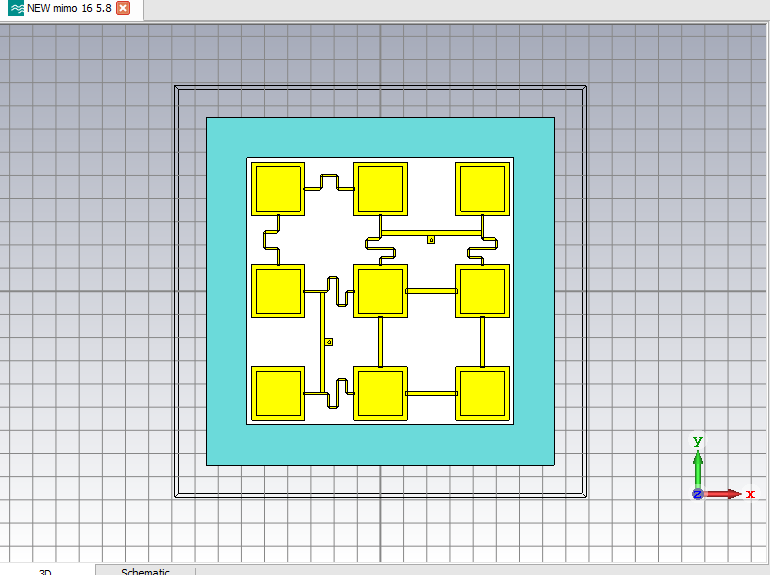

I think the sxtlite5 vibrator antenna might be like this model

1 person likes this

Share this post


Link to post
Share on other sites

i've NEVER seem a "pattern" like this...with square directors...

It looks like dipoles ...

Share this post


Link to post
Share on other sites
On 11/16/2020 at 4:10 PM, acri said:

I think the sxtlite5 vibrator antenna might be like this model




Share this post


Link to post
Share on other sites

Clanon, this antenna is very difficult to build ... !!
,,,try to post something simpler...DIY...!!!
