Convert 2.4 quados 8 quad to 5.700ghz

H

Hello, can any one can convert this antenna to 5.700ghz and simulate it?



I want to test this antenna as Access point.

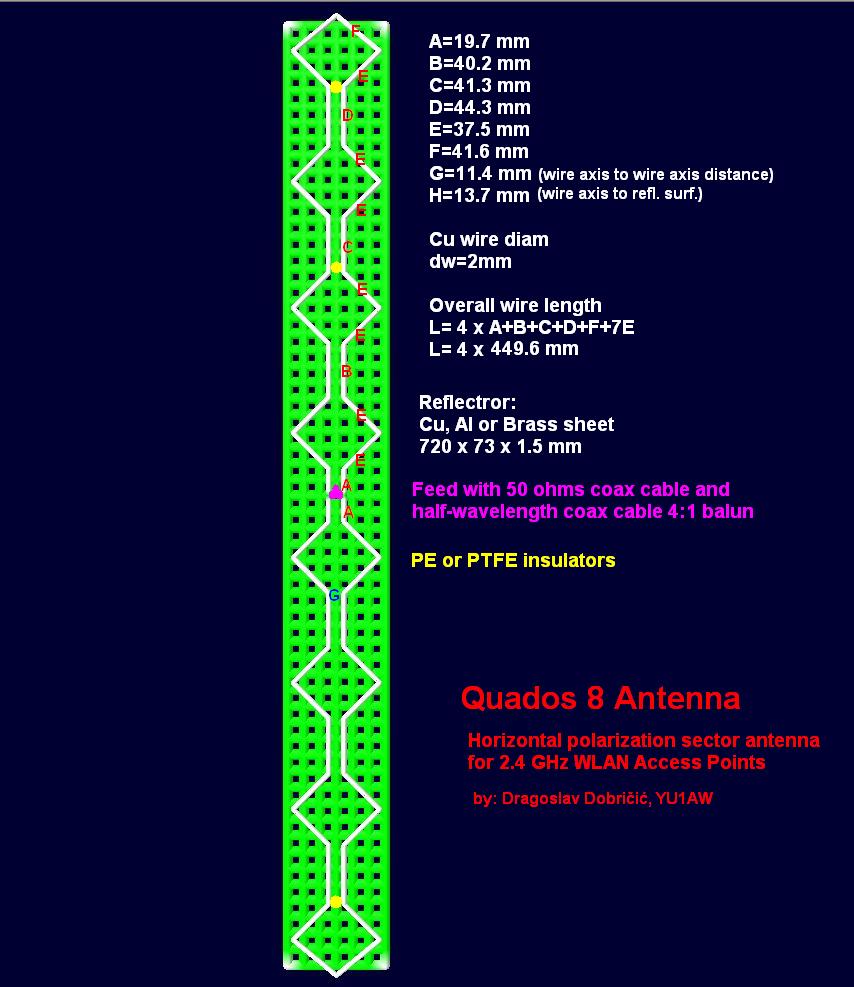

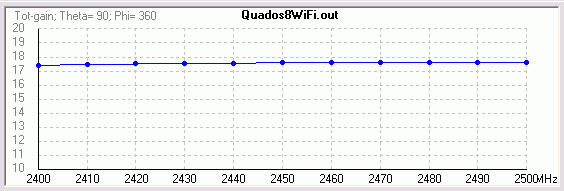

Quados8 Gain.gif

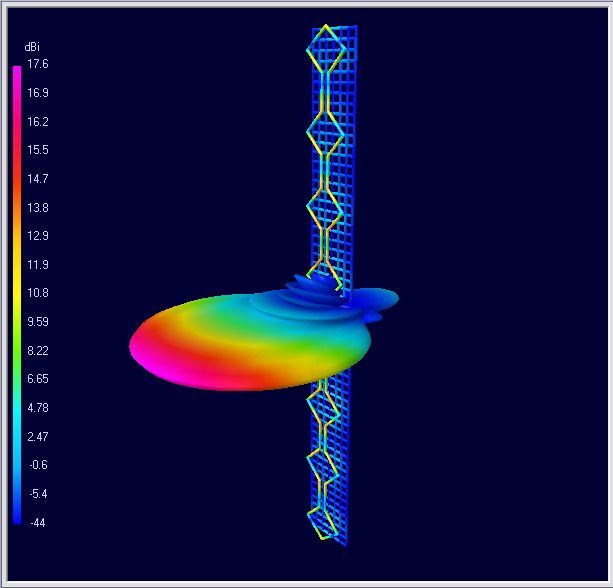

Quados8 3D.jpg

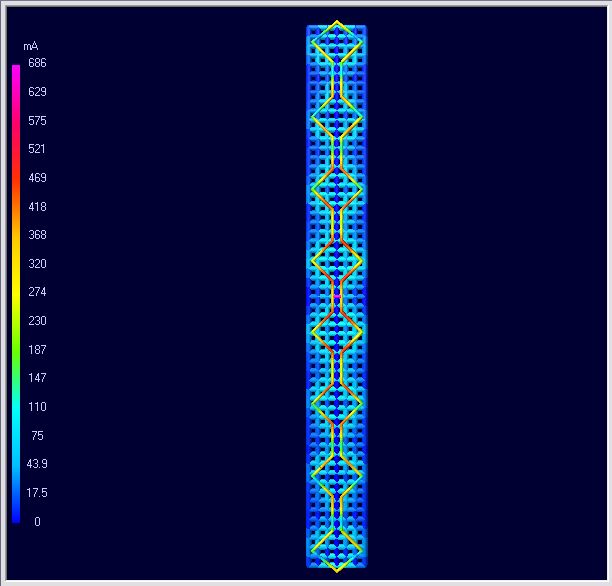

Quados8 curr.jpg

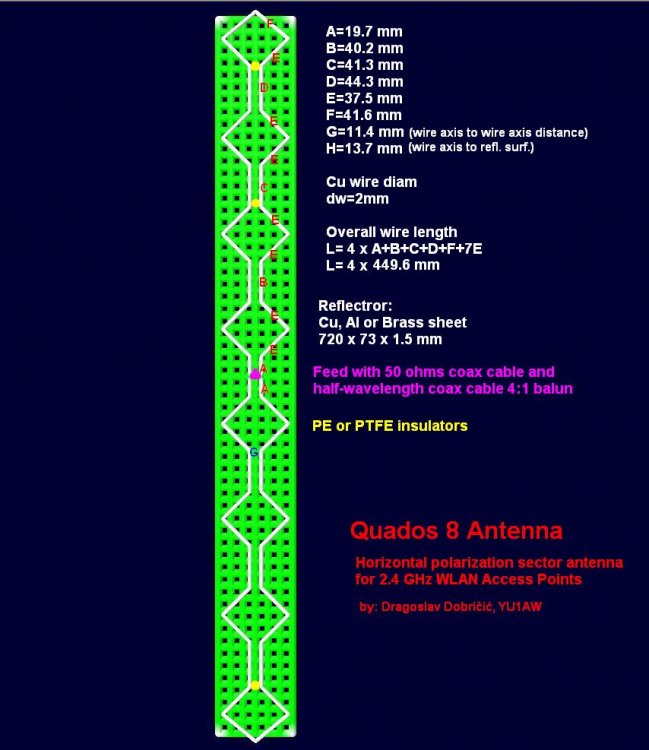

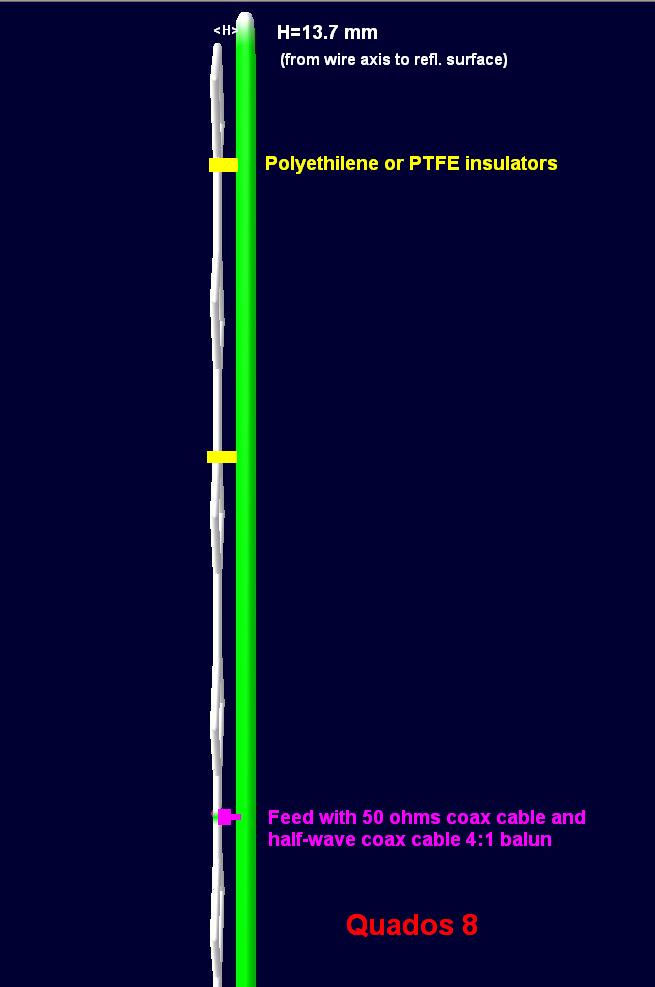

Quados8 dim.jpg

Quados8 dim1.jpg

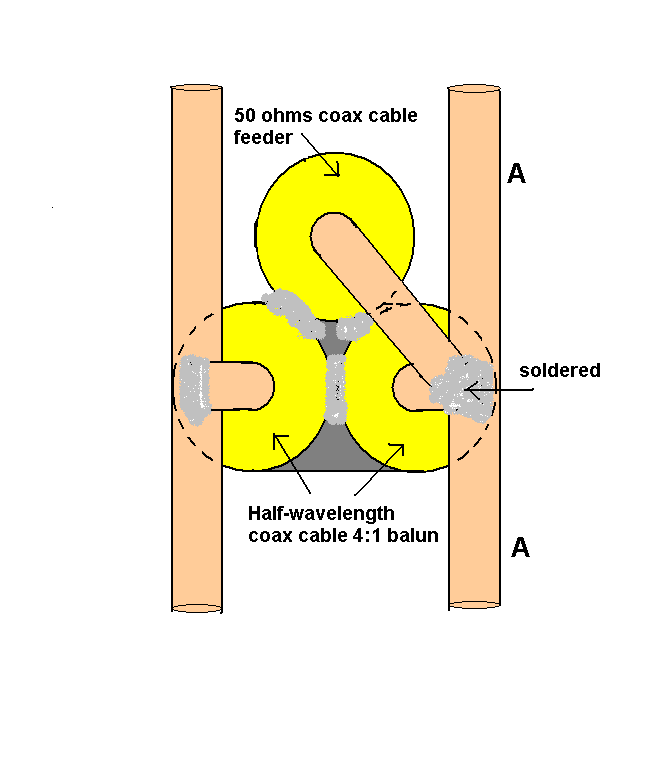

Quados feeding.gif

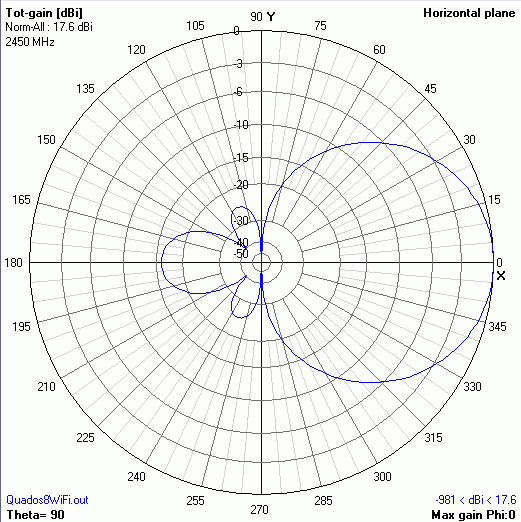

Quados8 Hdiag.gif

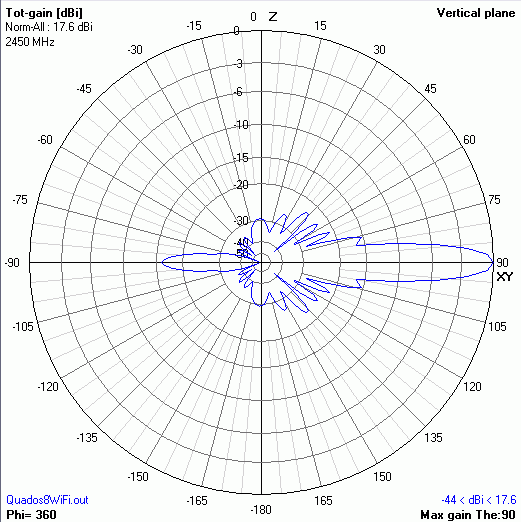

Quados8 Vdiag.gif

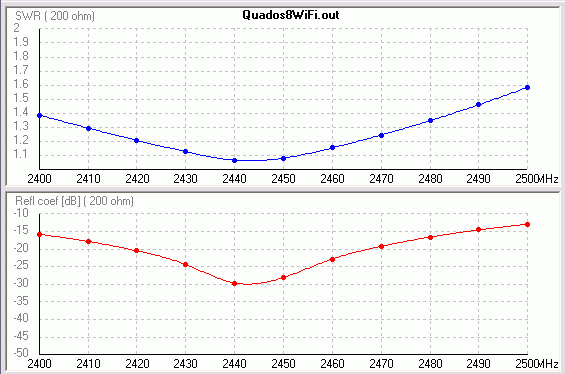

Quados8 SWR.gif

Share this post


Link to post
Share on other sites

,,, for the construction of the antenna on the frequency of 5.7 GHz the coefficient k = 0.4284 is used to transform the dimensions...

1 person likes this

Share this post


Link to post
Share on other sites
1 minute ago, Raul said:

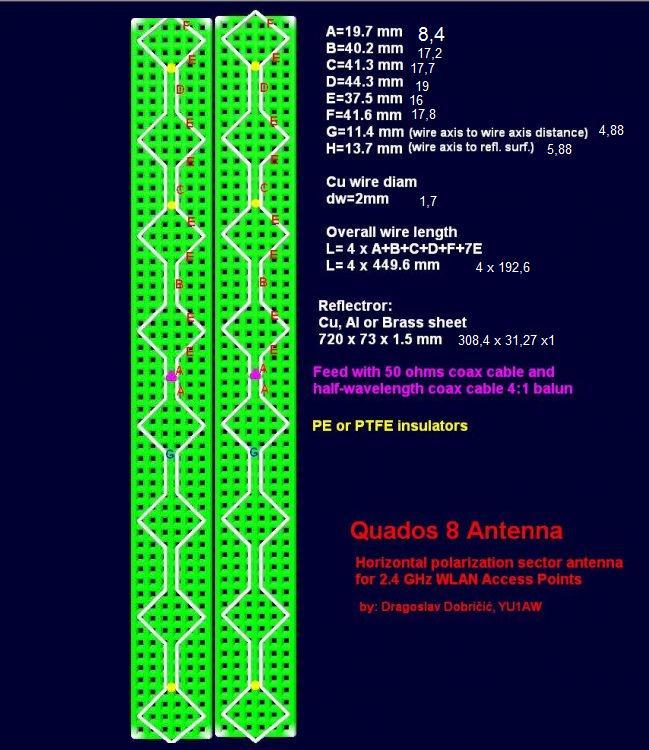

How about to put two antenna? Should i space it at 32mm?

,,,yes...!!!

1 person likes this

Share this post


Link to post
Share on other sites
Just now, Admin said:

,,,yes...!!!

It's from center antenna or side antenna?

Share this post


Link to post
Share on other sites

it should be studied and simulated , since impedance 200 ohms (originally) will be 100 ohms for two ...but 4 of those would make a direct adaptation to 50 ohms (1:1 balun required)

and YES

Share this post


Link to post
Share on other sites

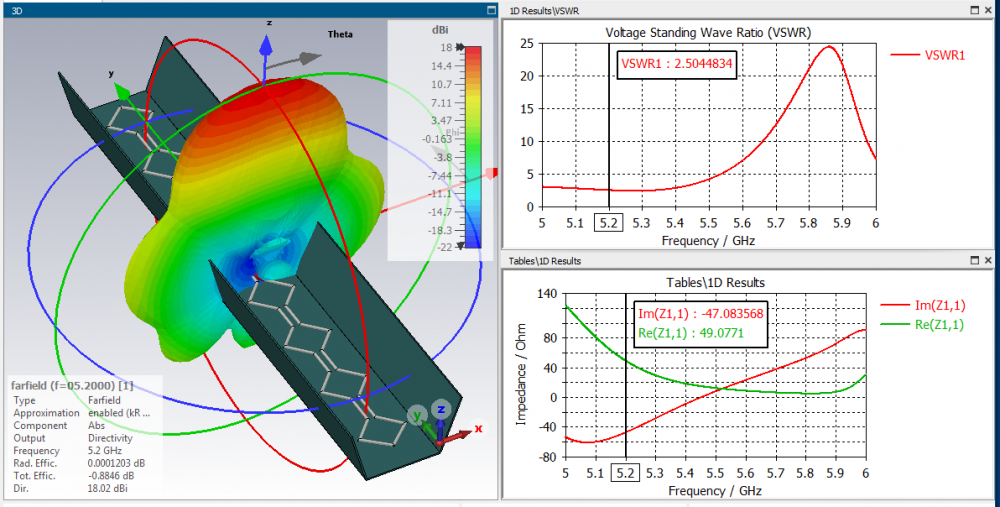

,,, a simulation with the above dimensions (given by me)...


2 people like this

Share this post


Link to post
Share on other sites

,,,the distance between the vibrator and the reflector as well as the other dimensions must be reviewed...!!!

Share this post


Link to post
Share on other sites

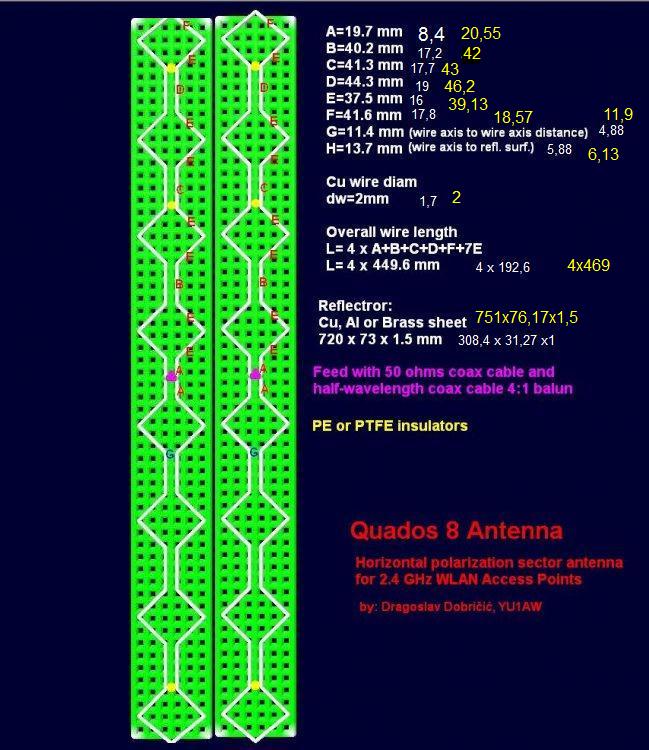

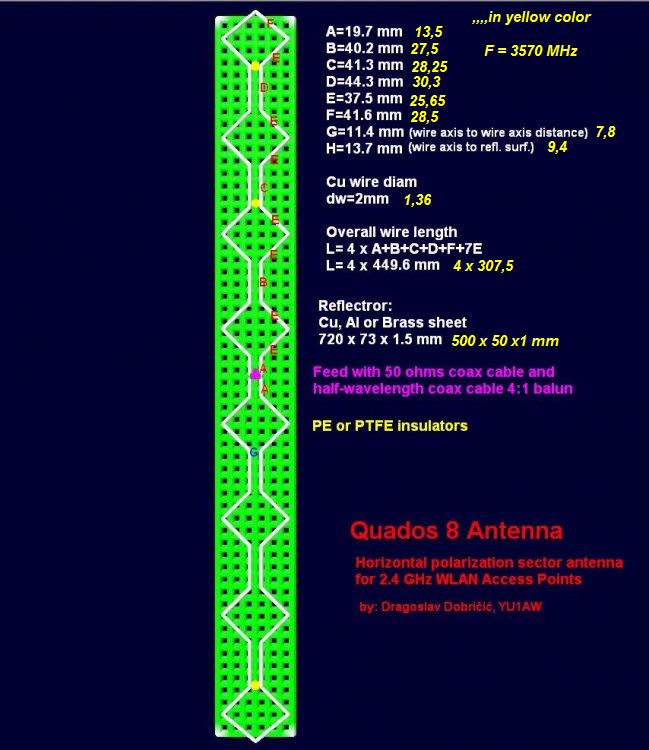

The dimensions in yellow are for the 2300 MHz frequency...


1 person likes this

Share this post


Link to post
Share on other sites

hi

i want to build this antenna for 3570 mhz frequency. using this guide:

Quados antenna online calculator - 3G-aerial



http://www.qsl.net/yu1aw/ANT_VHF/quados.pdf



is "quados 8" a good choice?

can i use thicker wire?

why there is no connection to the reflector?

also i don't know where solder the wires exactly!

two sides of the antenna or the two ends of the antenna?

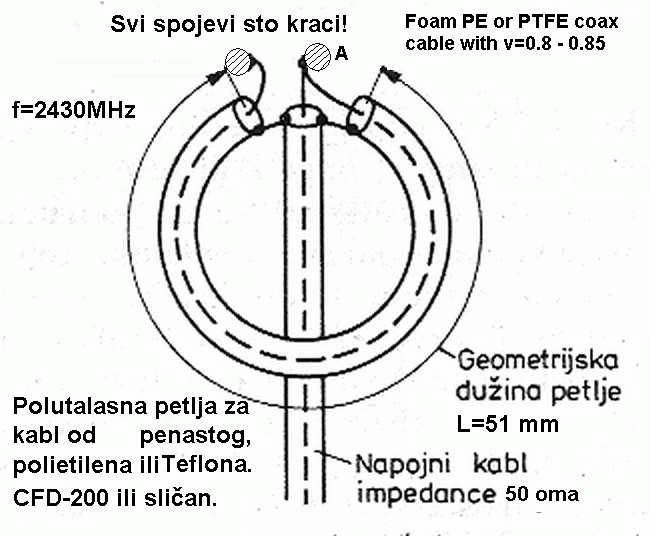

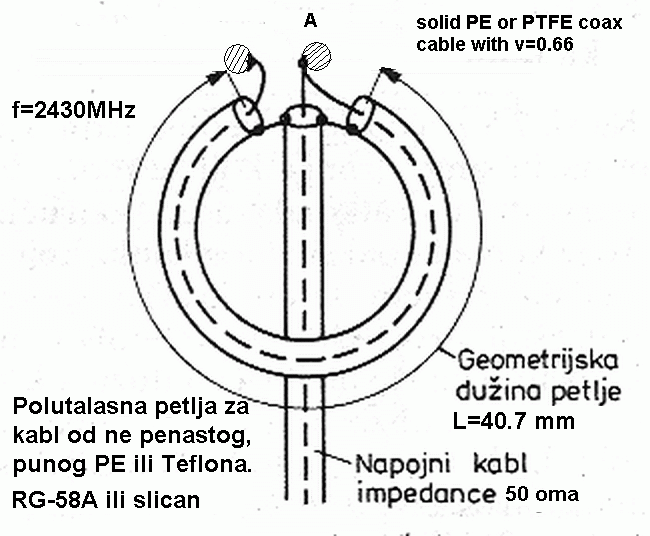

it has a 4:1 balun so 3 center conductors must be soldered to antenna

should i solder two ends of the antenna together? or they must be seperated?

please draw it for me if you can.

thanks a lot




Share this post


Link to post
Share on other sites

,,,the only method of powering the antenna is the one indicated in the sketch...!!!


2 people like this

Share this post


Link to post
Share on other sites
