MiMo 4G Panel Antenna

60 posts in this topic

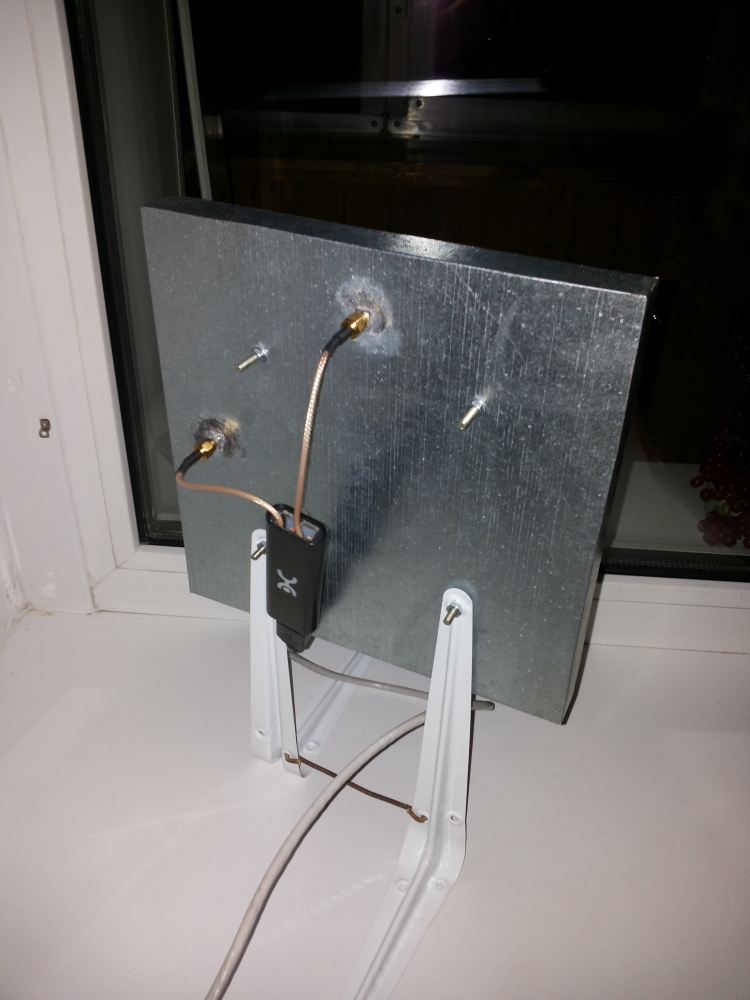

Featured outdoor antenna products which enhance your reception of 4G signal from the tower to your location. All antennas featured are easy to install and it is with the connectors required to connect to your existing modem.

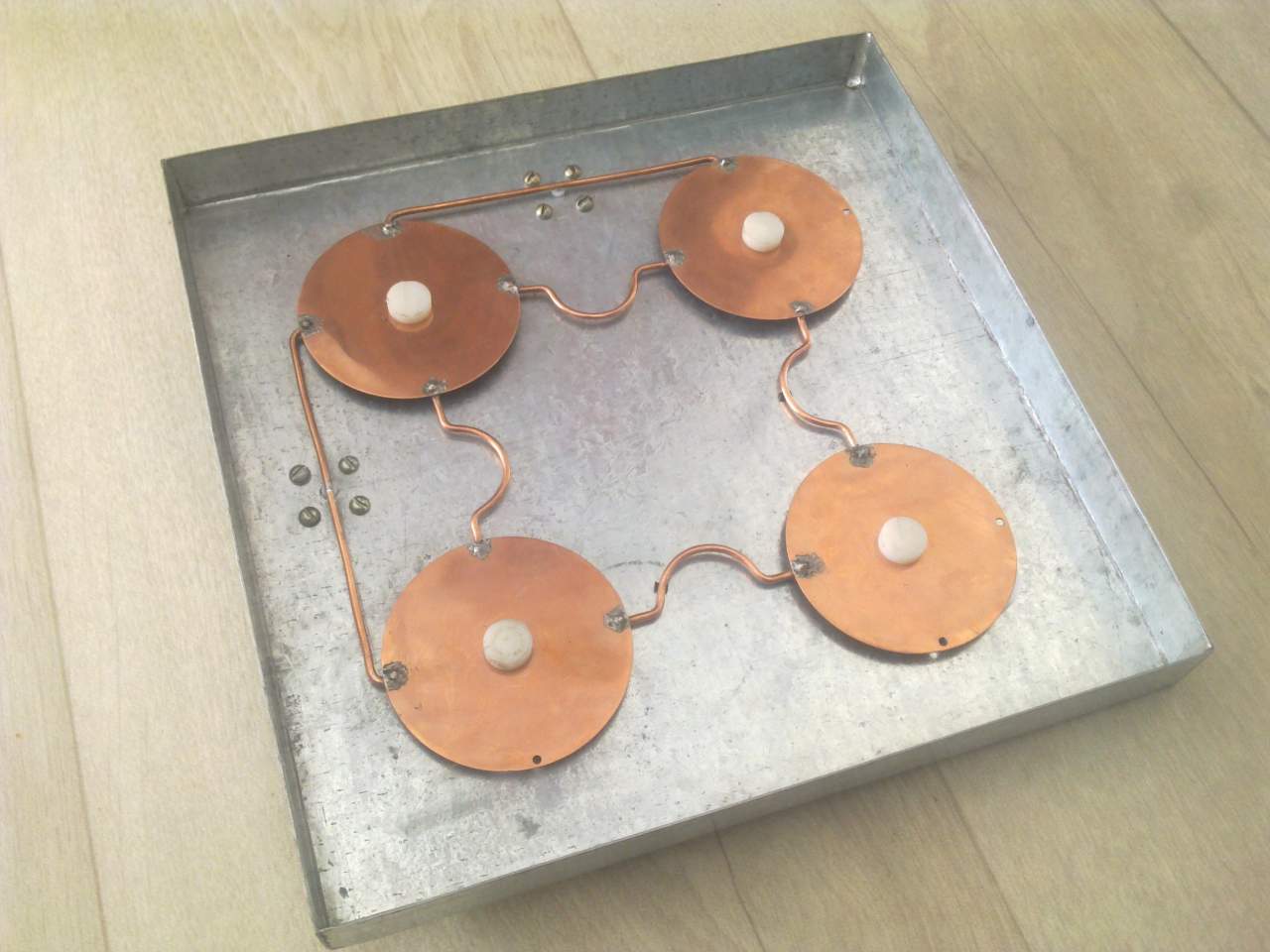

image (1).jpg

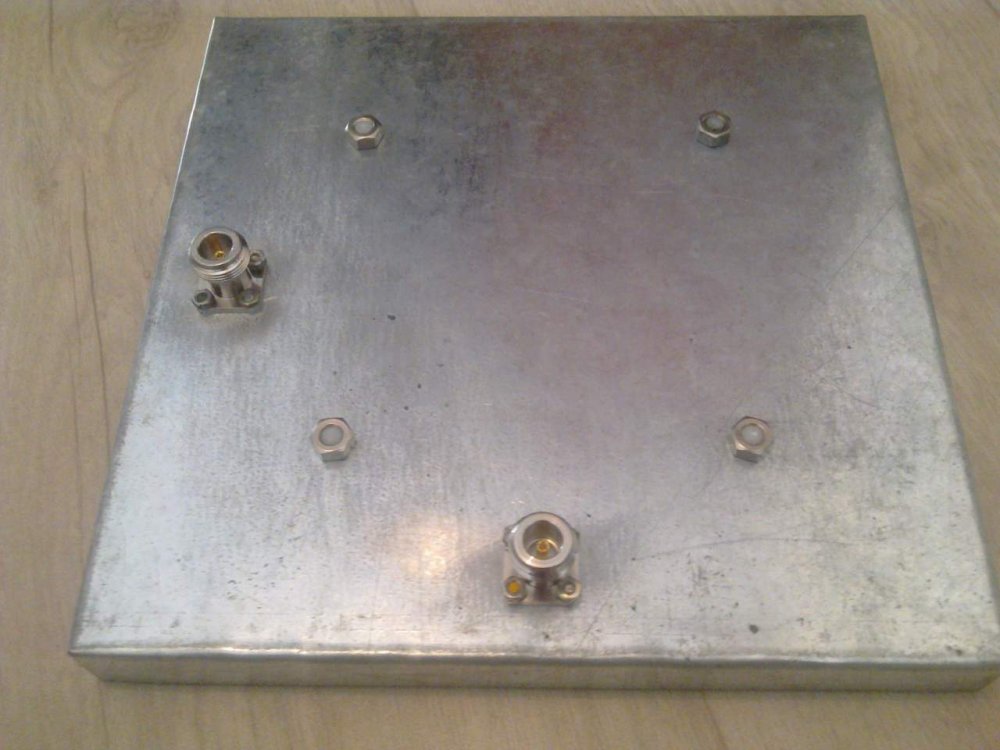

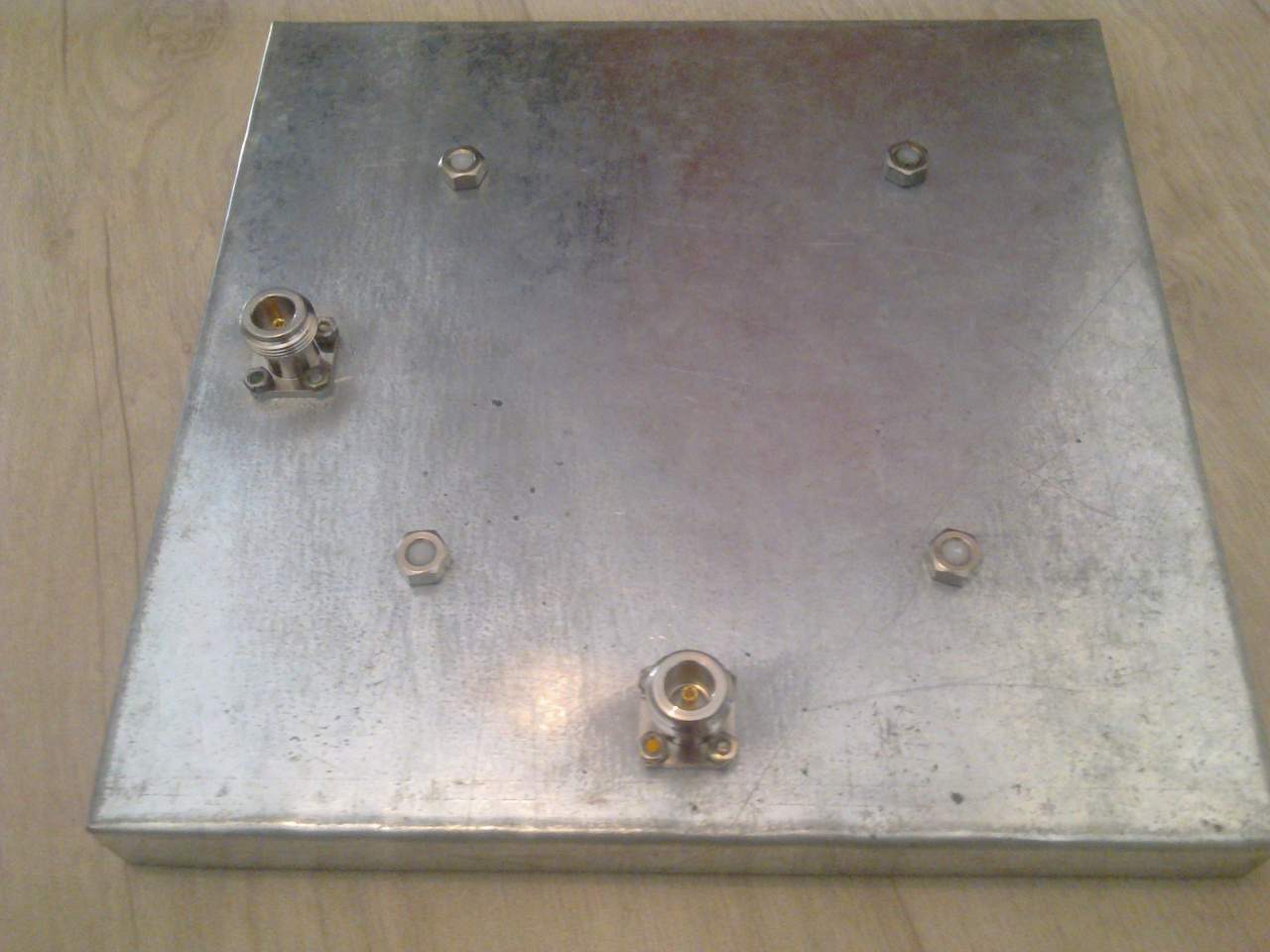

image (2).jpg

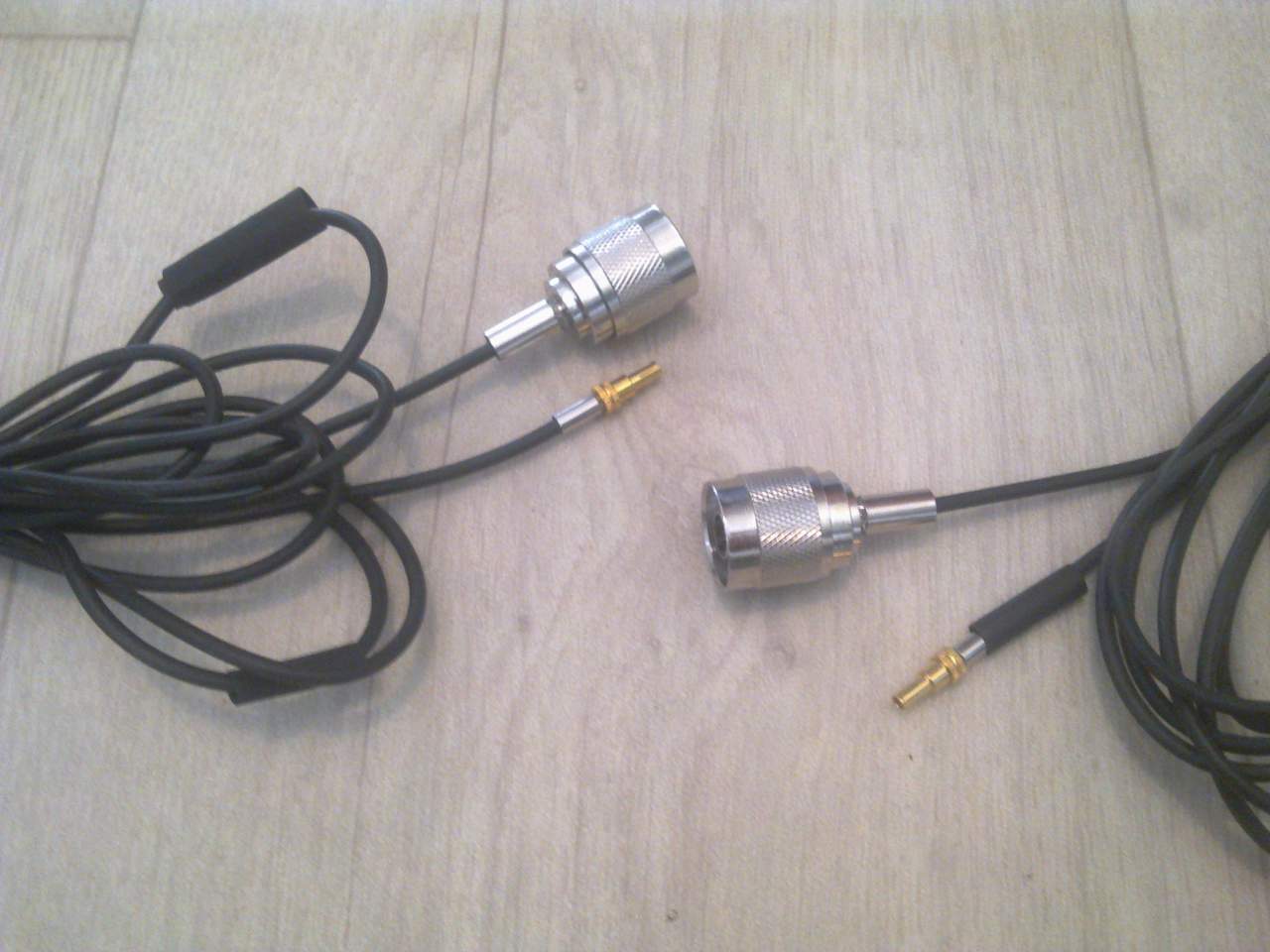

image (3).jpg

image (4).jpg


2 people like this

Share this post


Link to post
Share on other sites

a practice of execution by Starik0...















3 people like this

Share this post


Link to post
Share on other sites

Босс, то, что вы попробуете антенну, предложит на этих частотах? Клиентов у меня много. Каждому нужна другая антенна. У меня нет времени..9_9

band7

2500,0 - 2620,0 (FDD) upl

2620,0 - 2700,0 (FDD) downl

Edited by chilanzar2

Share this post


Link to post
Share on other sites
27 minutes ago, chilanzar2 said:

Босс, то, что вы попробуете антенну, предложит на этих частотах? Клиентов у меня много. Каждому нужна другая антенна. У меня нет времени..9_9

band7

2500,0 - 2620,0 (FDD) upl

2620,0 - 2700,0 (FDD) downl

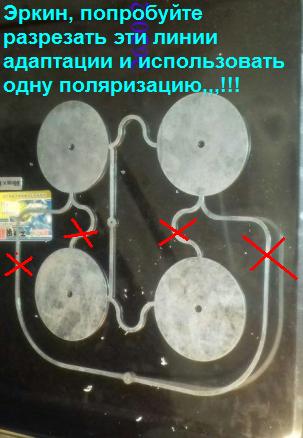

«Ну, Босс, но это широкополосная,,,!!!

Share this post


Link to post
Share on other sites

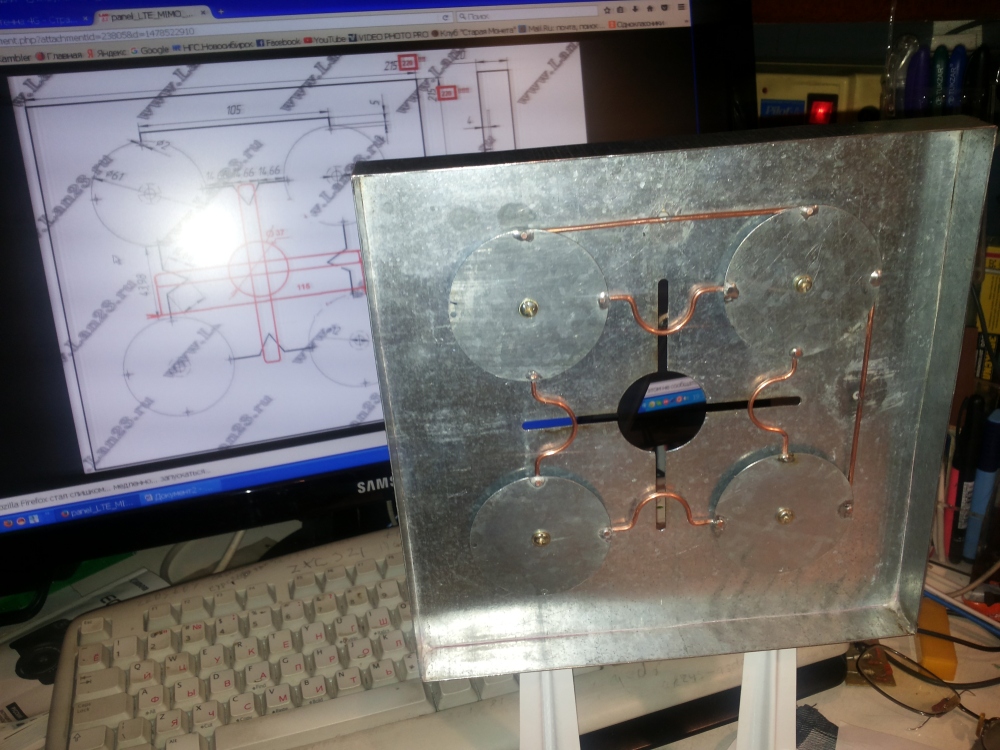

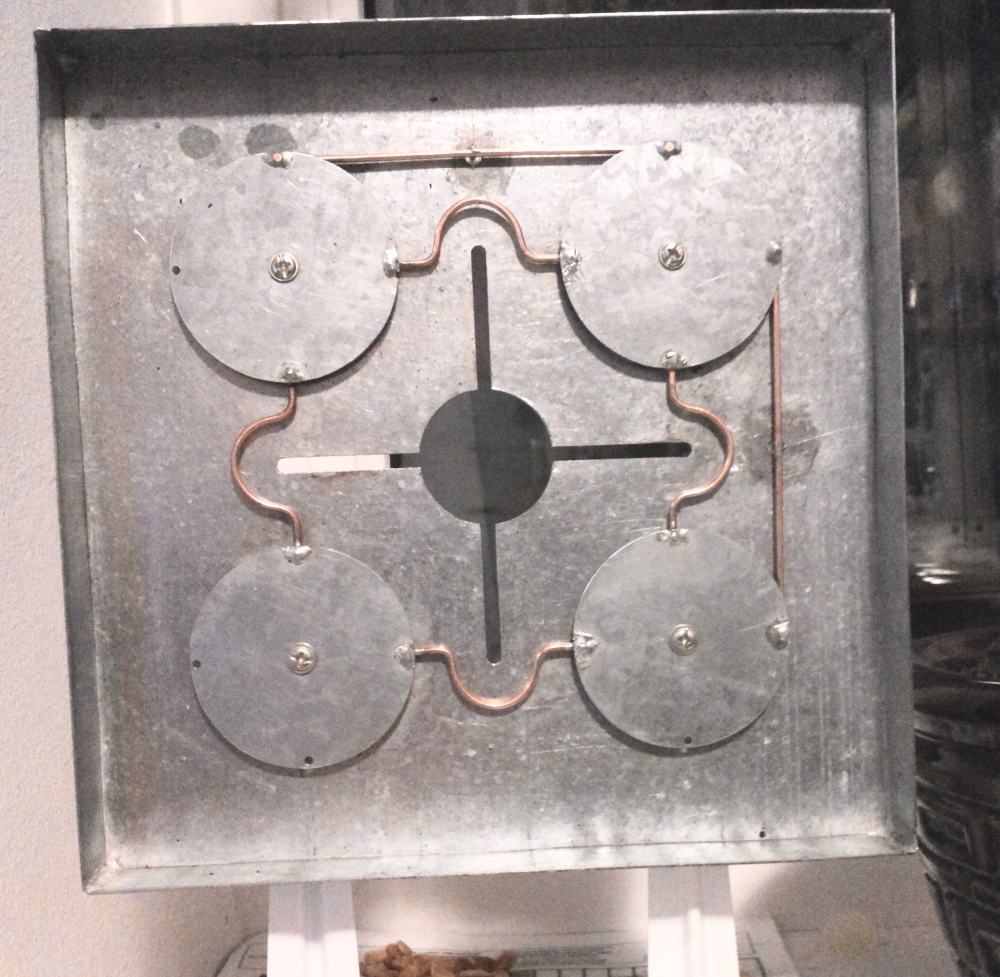

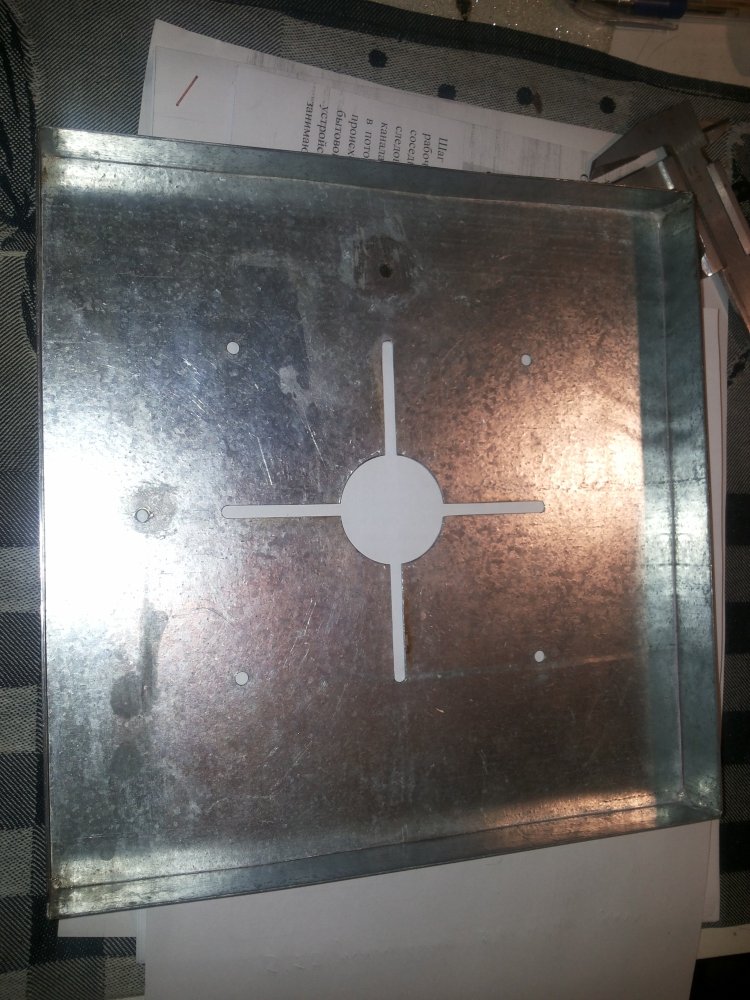

Я думаю, вот так будет проще. Каждой частоте по отдельным патчам

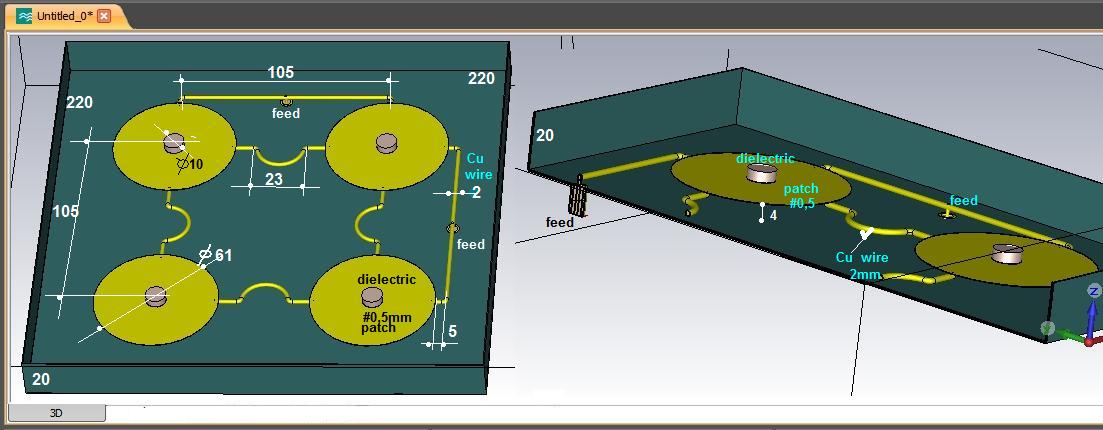

I think this will be easier. Each frequency on separate patches


Share this post


Link to post
Share on other sites

может быть, я думаю, квадратные патчи лучше, и проще делать.

Share this post


Link to post
Share on other sites

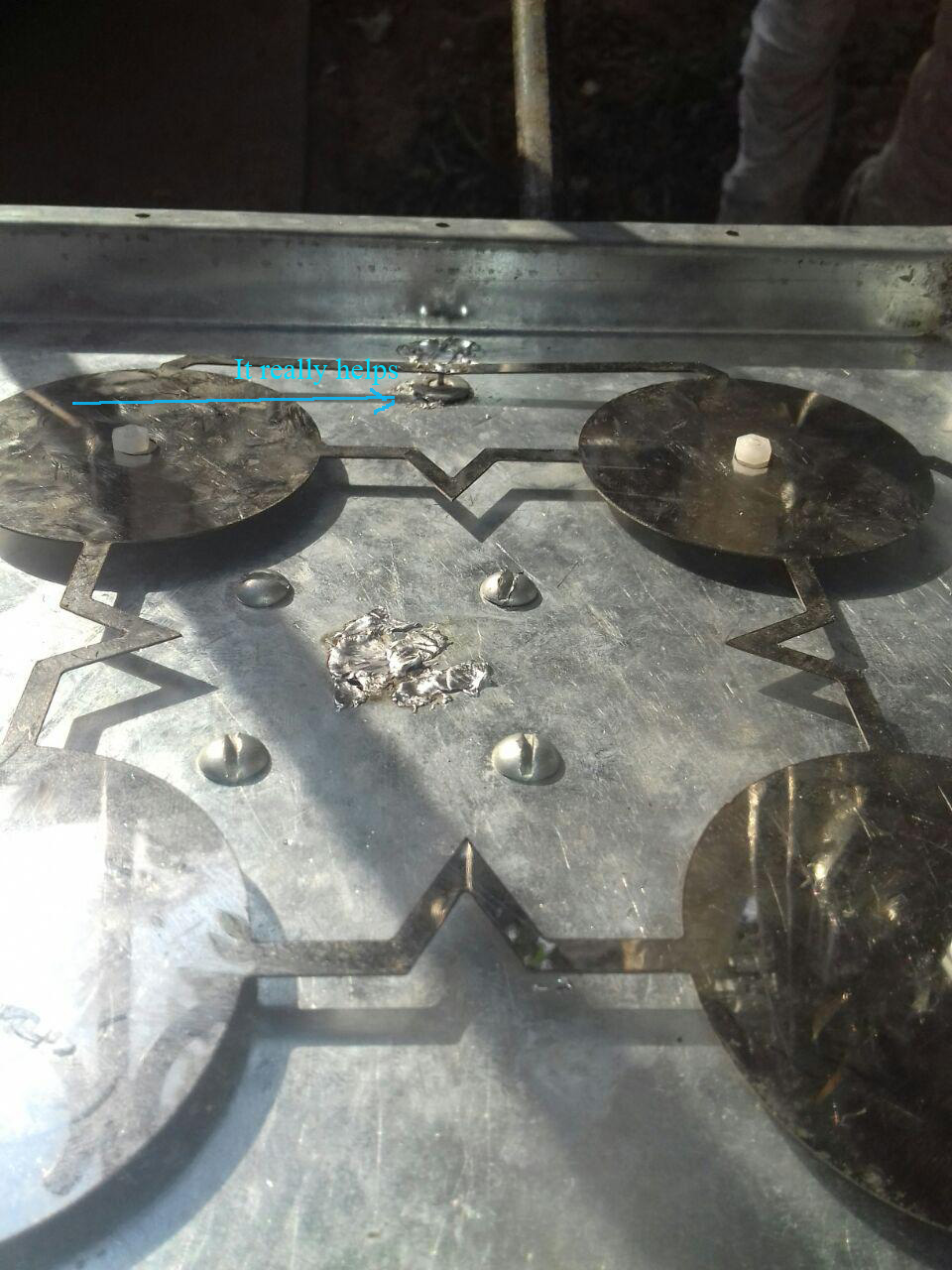

круговые диски более эффективны

1 person likes this

Share this post


Link to post
Share on other sites
17 minutes ago, chilanzar2 said:

Но, этот патч для 2400

только для образца .. !!!

1 person likes this

Share this post


Link to post
Share on other sites

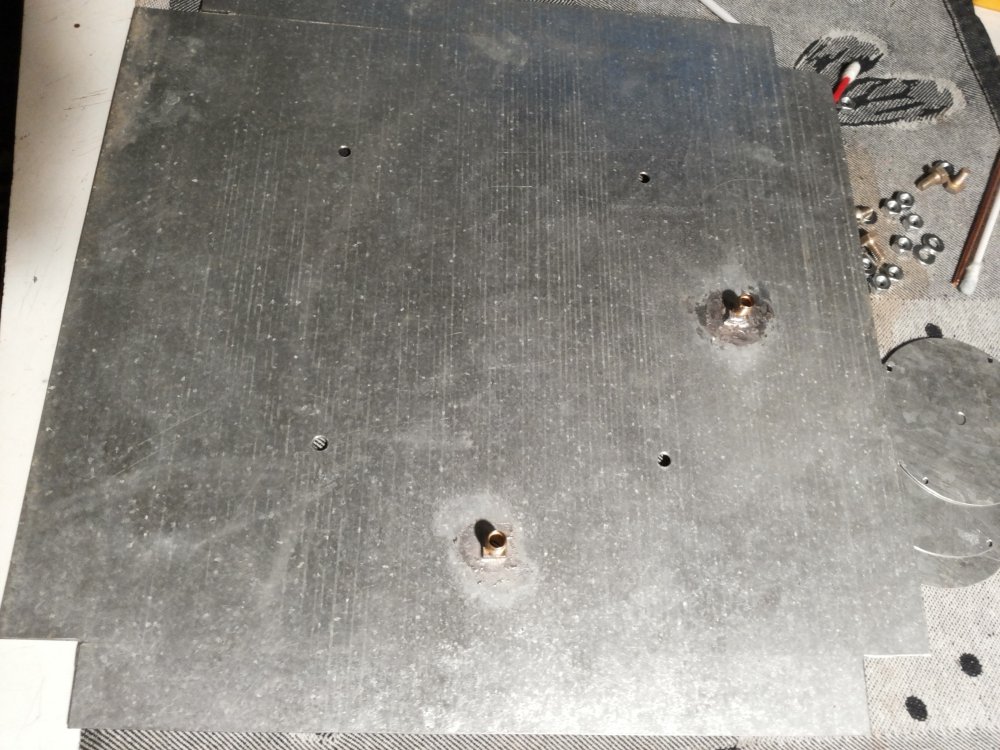

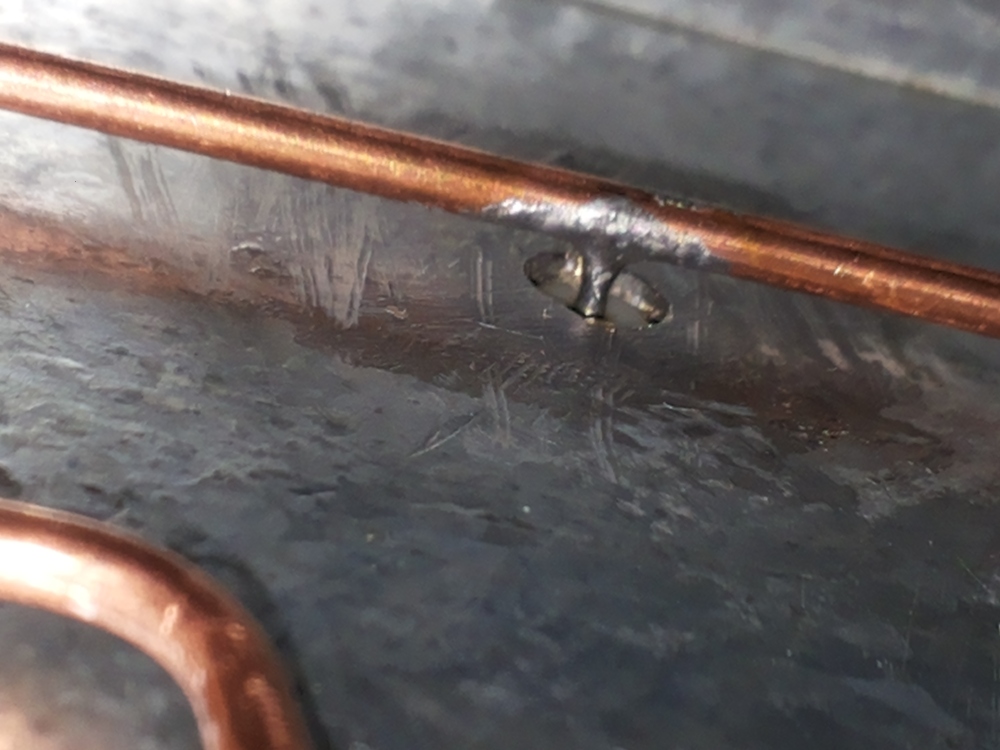

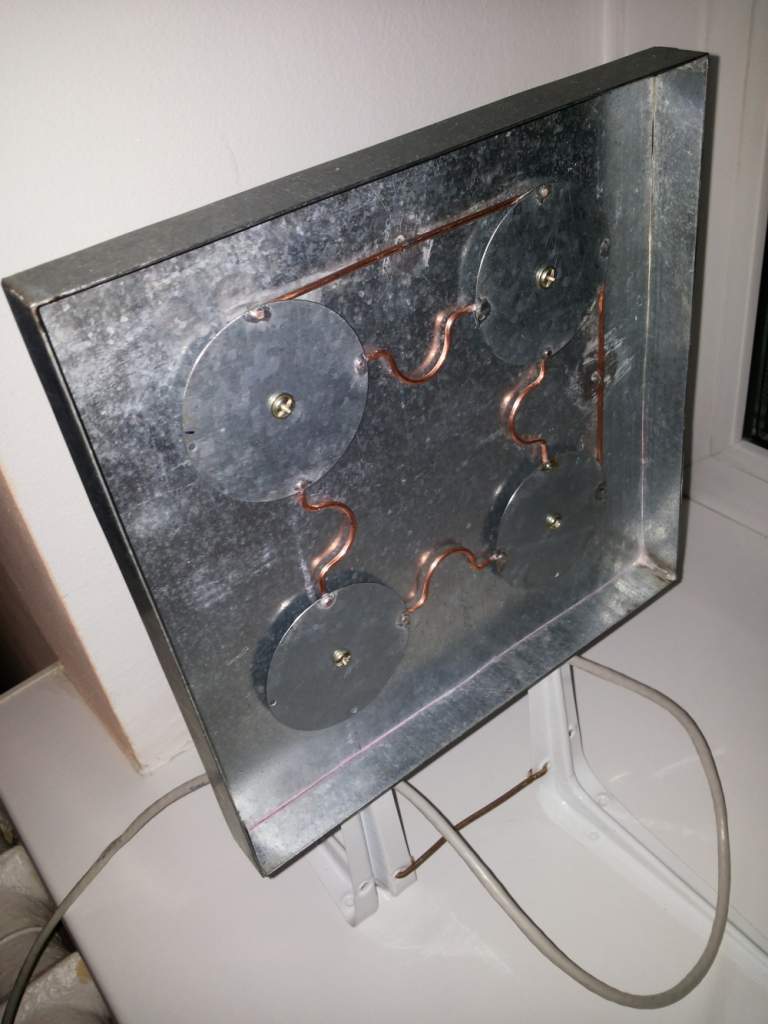

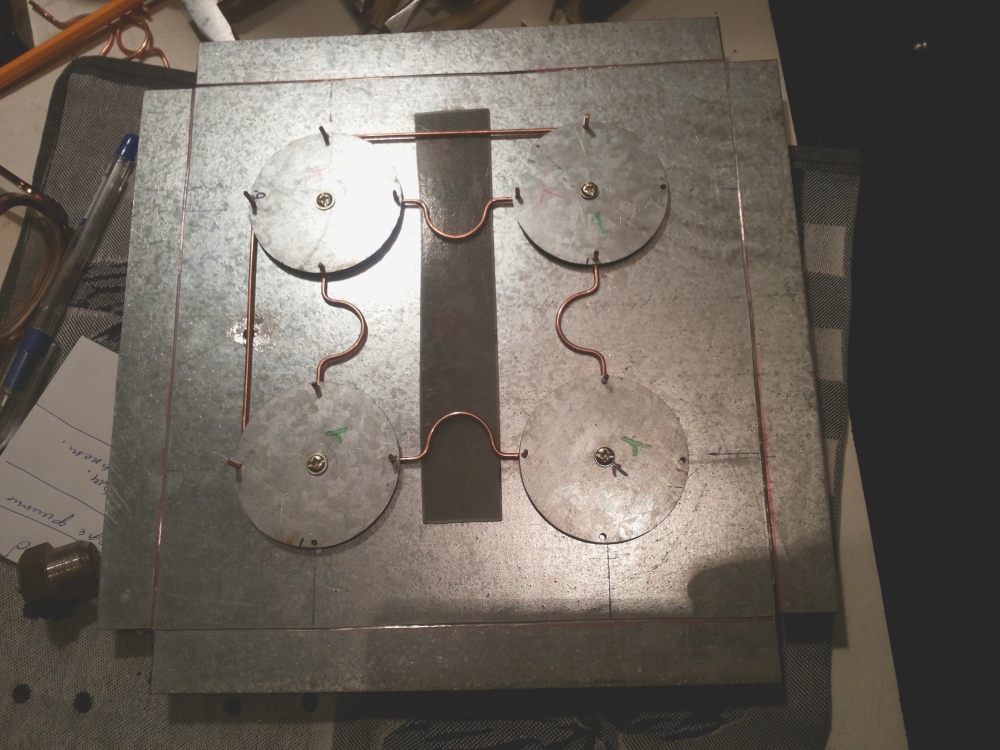

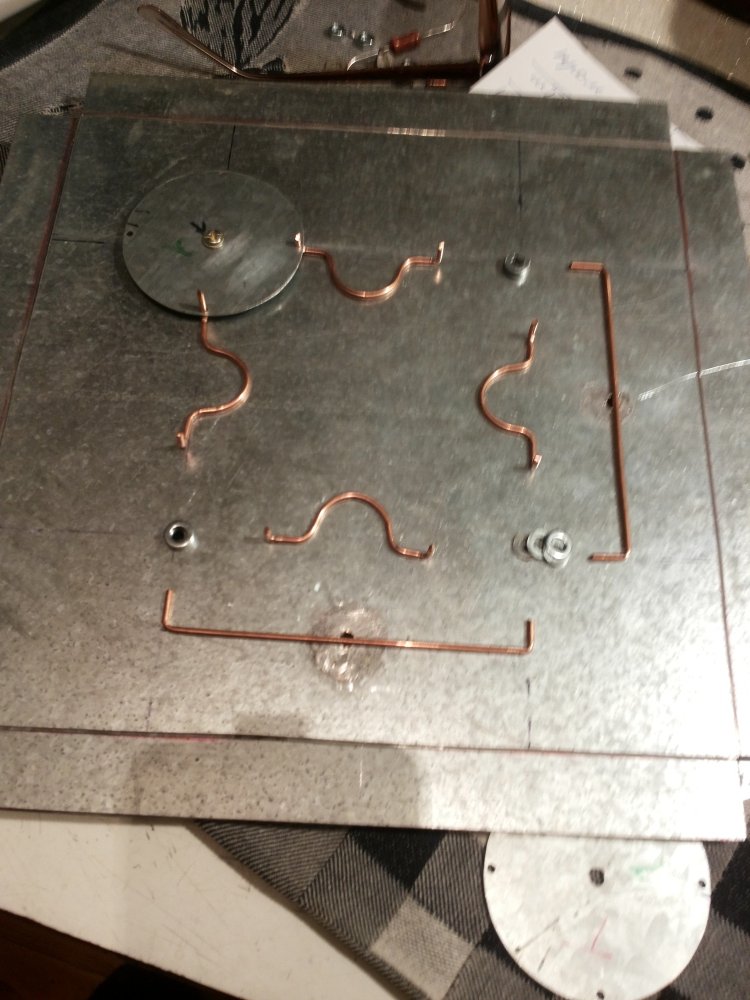

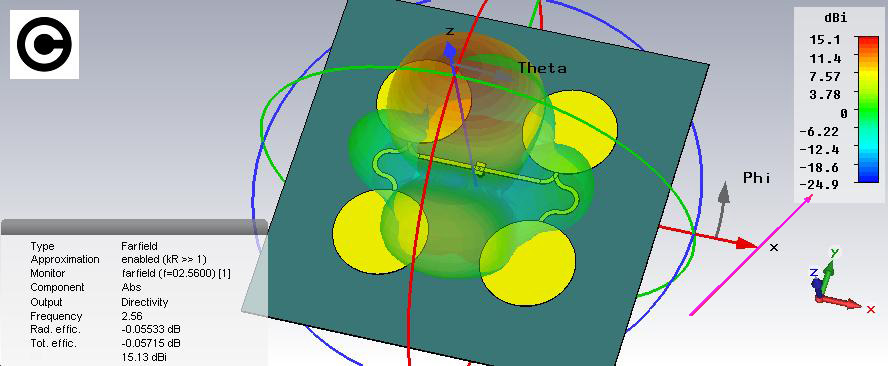

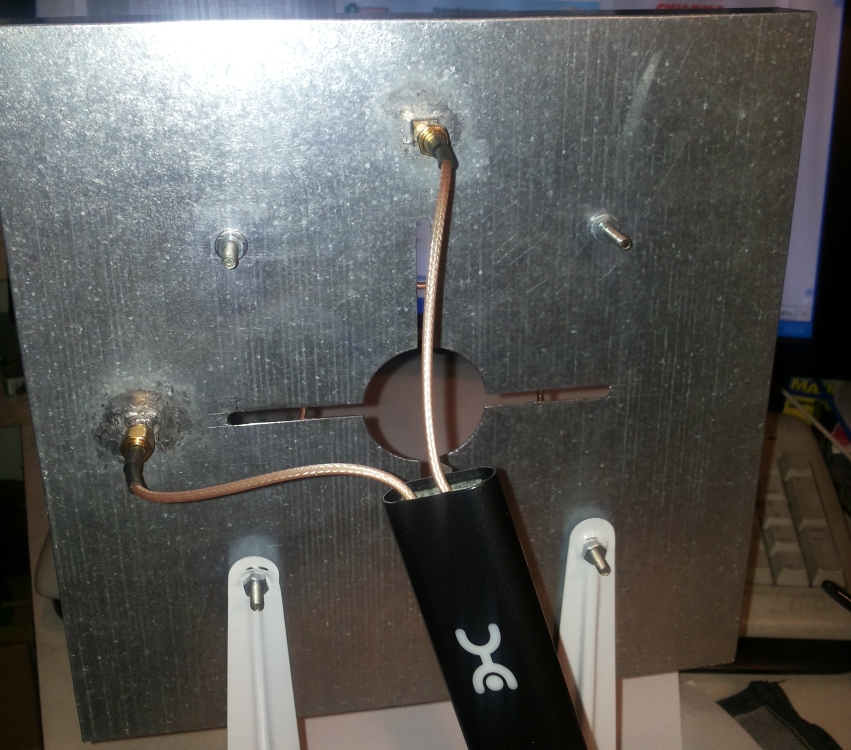

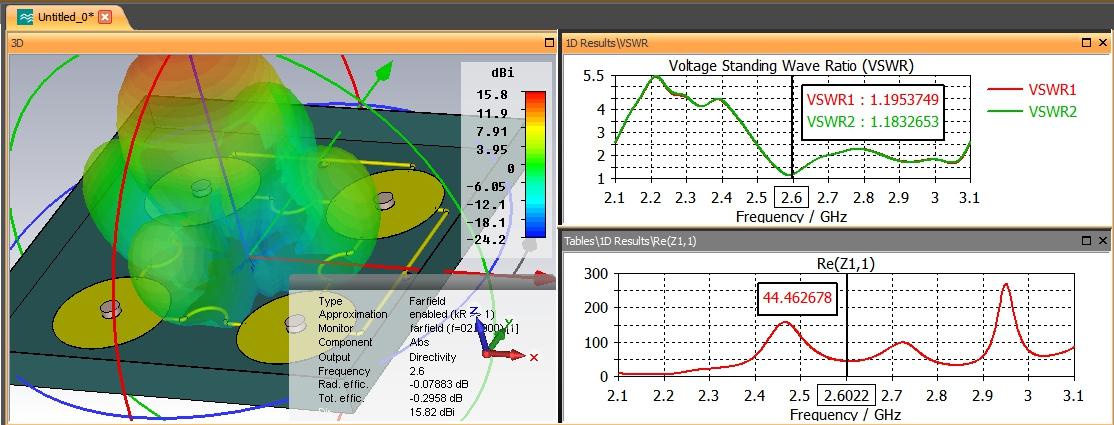

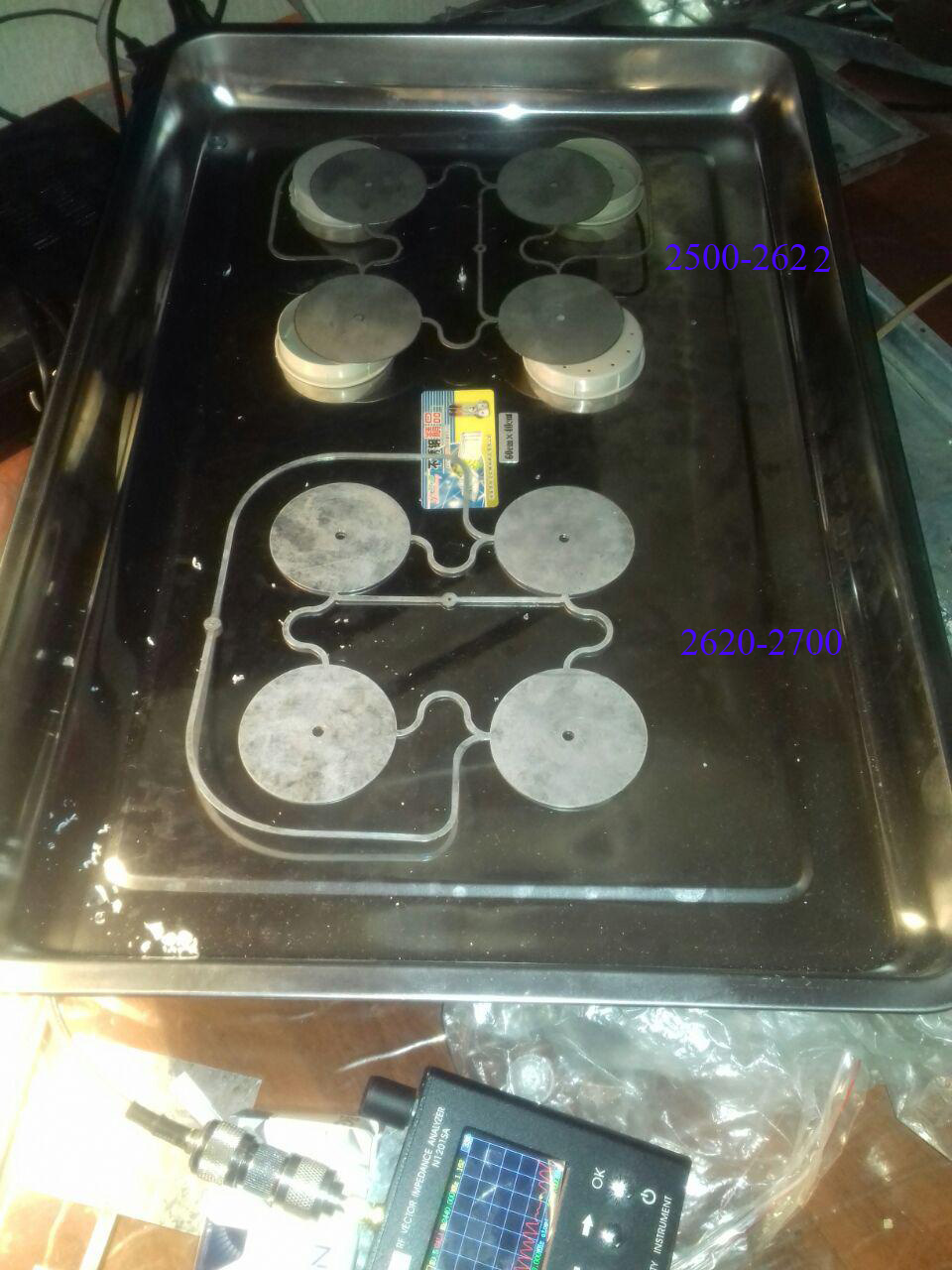

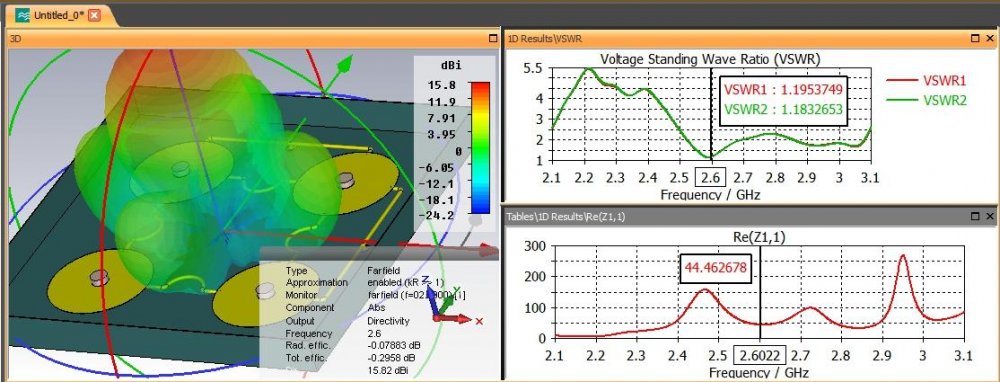

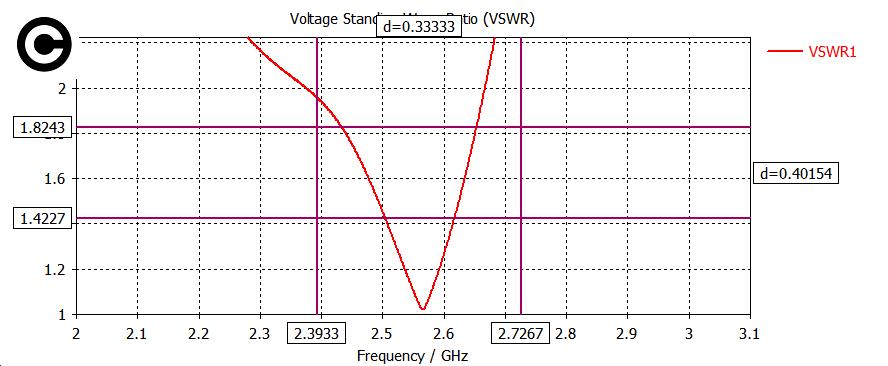

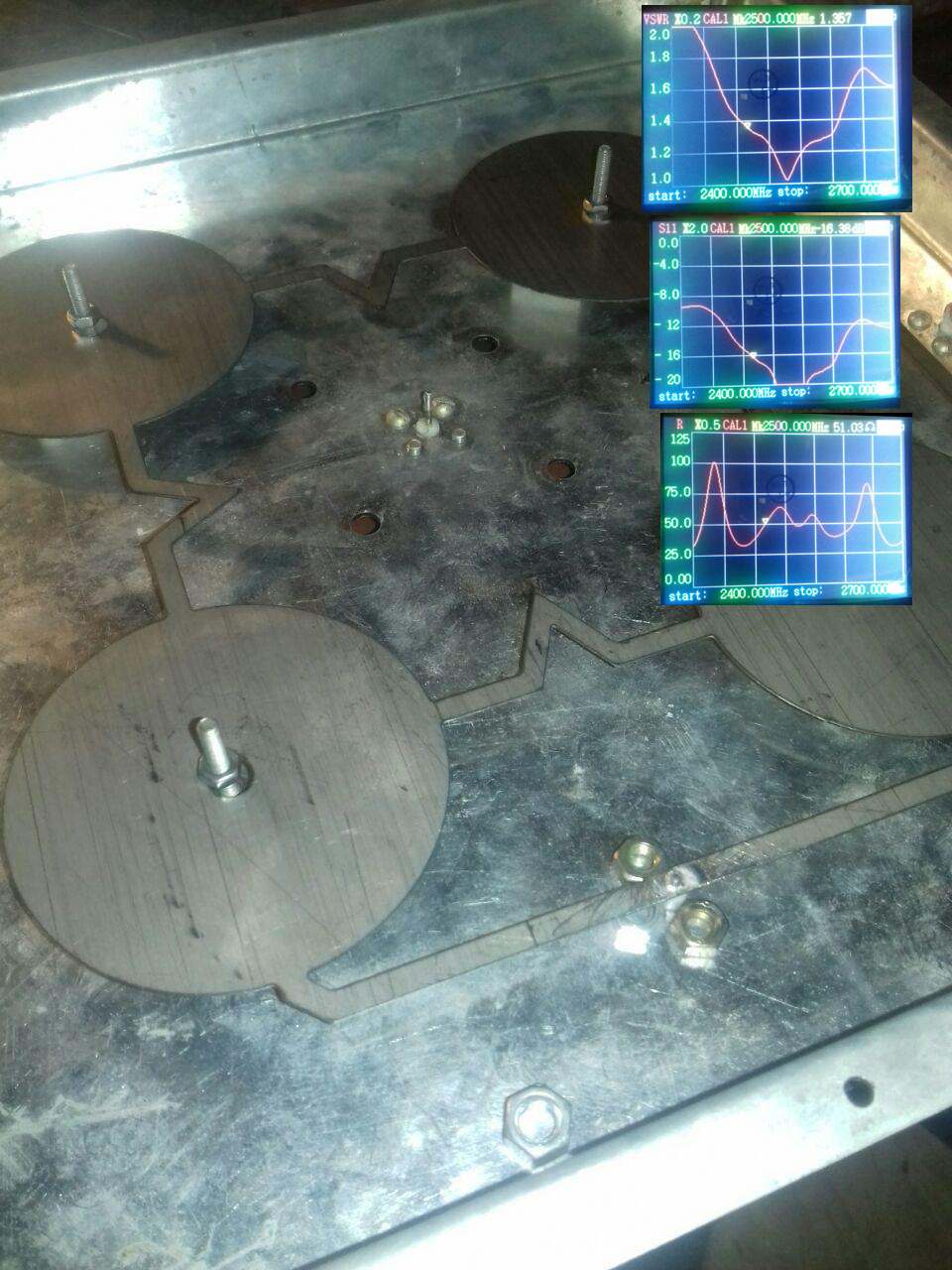

and here are the results for the frequency band
2500-2620MHz



1 person likes this

Share this post


Link to post
Share on other sites
10 minutes ago, chilanzar2 said:

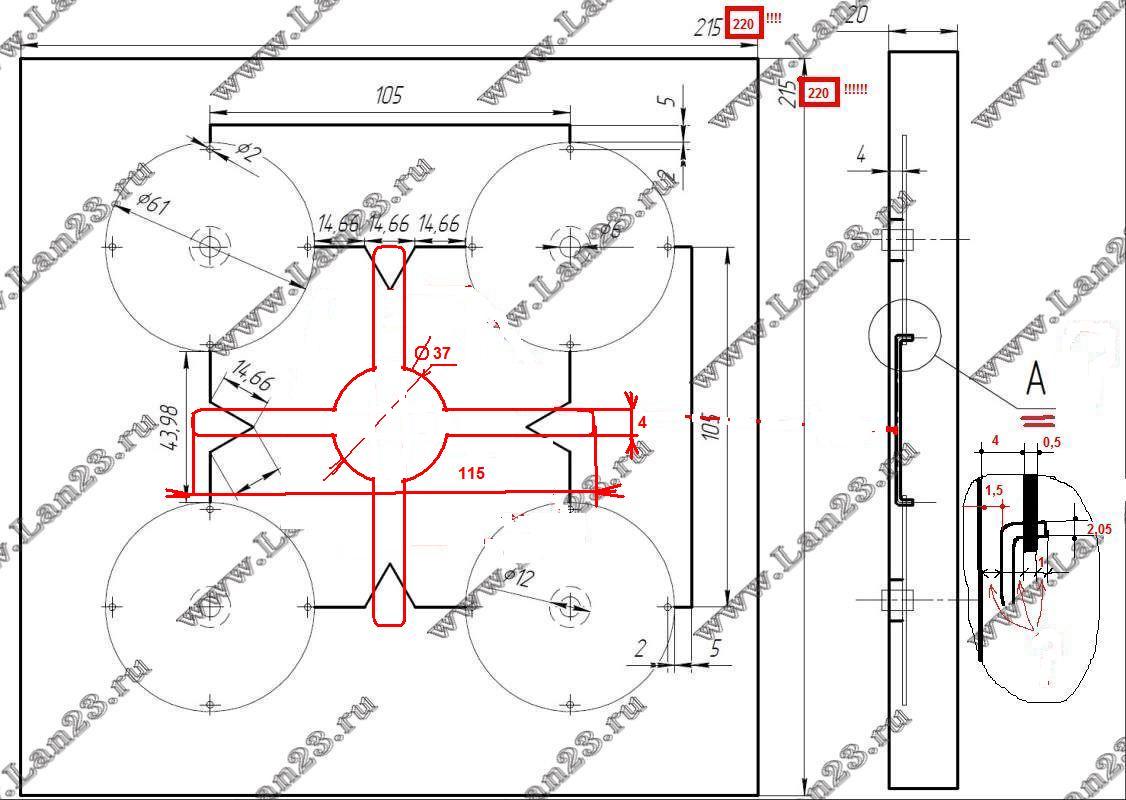

диаметр круга 61мм ?

Yes,,,!!!


Share this post


Link to post
Share on other sites
19 minutes ago, Admin said:

Да,,,!!!


at 2600-2700 what will be the diameter of the circle?

Share this post


Link to post
Share on other sites

"I do not know exactly, I think 59mm, but the simulation should be done

Share this post


Link to post
Share on other sites

this means;

the efficiency of an antenna is a ratio of the power delivered to the antenna relative to the power radiated from the antenna. A high efficiency antenna has most of the power present at the antenna's input radiated away. A low efficiency antenna has most of the power absorbed as losses within the antenna, or reflected away due to impedance mismatch.


the efficiencies;

    -radiation efficiencies(magnitude in dB)

    -total efficiencies(magnitude in dB)

    -gain(in dBi)

2 people like this

Share this post


Link to post
Share on other sites

the uplink and dowlink it should be roughly the same...

Share this post


Link to post
Share on other sites

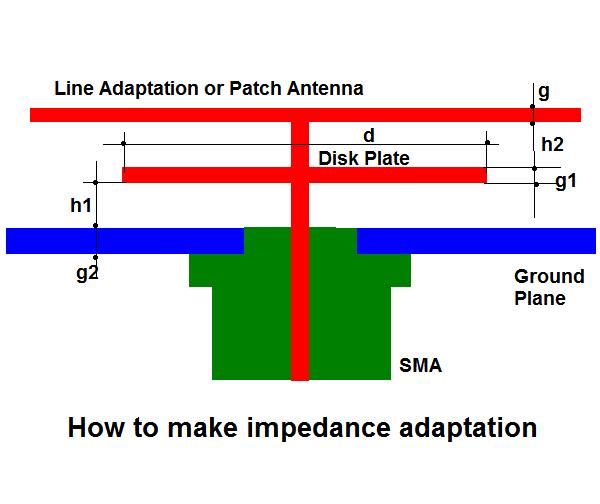

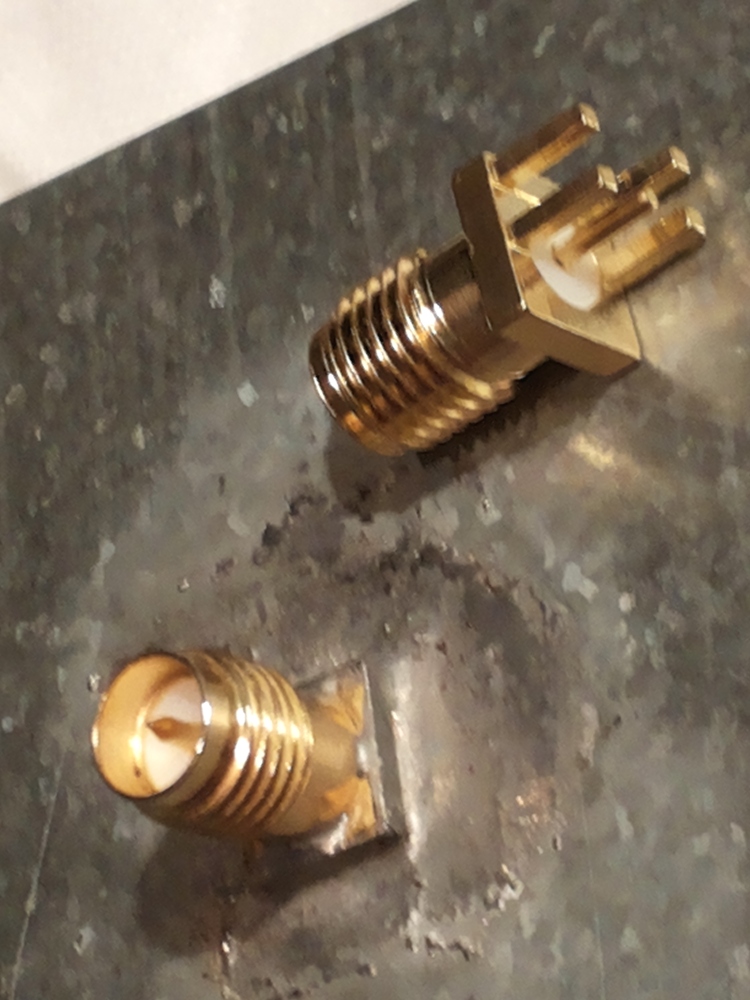

... yes. can adjust the impedance

or something like that,,,,


1 person likes this

Share this post


Link to post
Share on other sites
