chilanzar2

Diary of a solid man-a beginner antennae in excess of high frequencies.

236 posts in this topic

I can repair split air conditioners, satellite dishes, conduct electrical wiring. I can fix cars, and a lot more that I can
Recently, I put amplifiers gsm-3g. Grateful to these my professions, I did not become rich. But, I live in prosperity. In my refrigerator sometimes there are cheese, fish, sausage, and much more. Thanks God!
But, recently there was a client asking for a lot of wimax2300-2400. And I, understanding nothing in excess of high frequencies, tried to understand the theory and practice of these antennas. How do I do it - I'll write a little in this thread.

Edited by chilanzar2
1 person likes this

Share this post


Link to post
Share on other sites

Ok, Erkin, but it's important to know that these WIMAX antennas have a circular polarization...




1 person likes this

Share this post


Link to post
Share on other sites

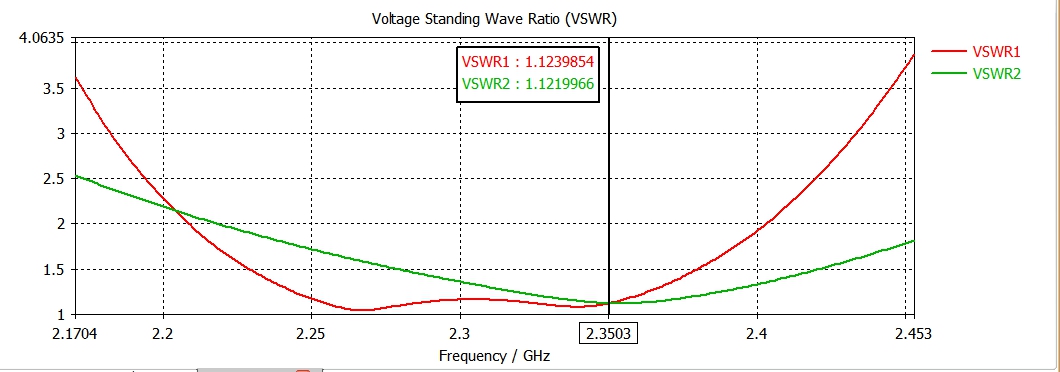

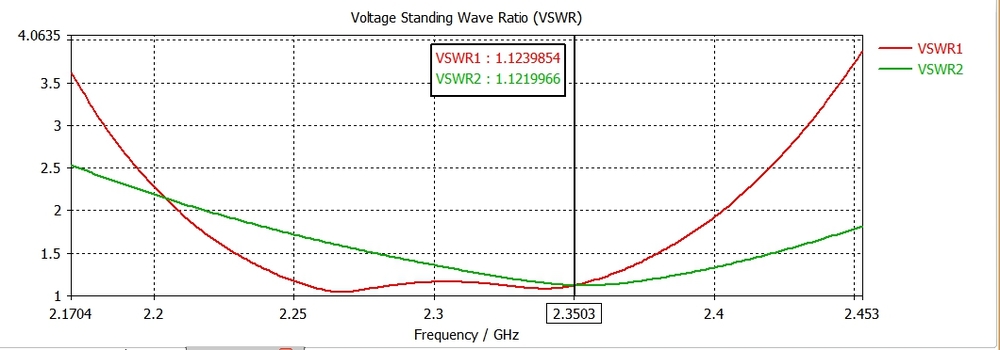

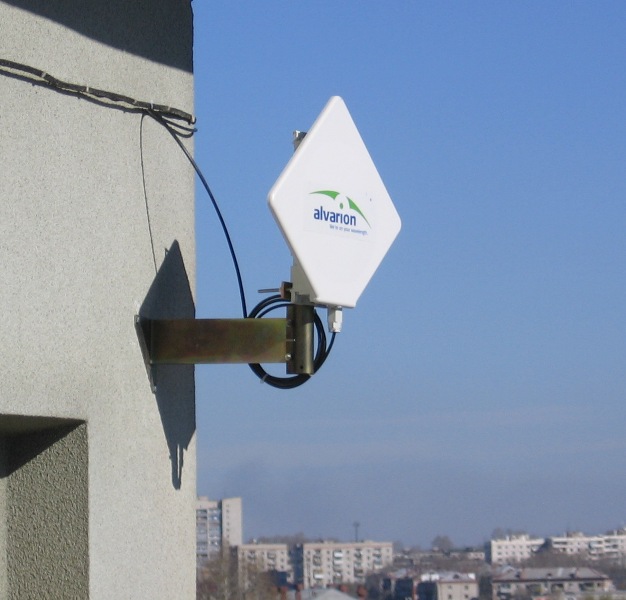

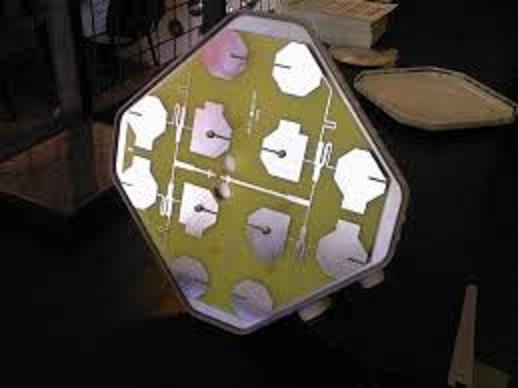

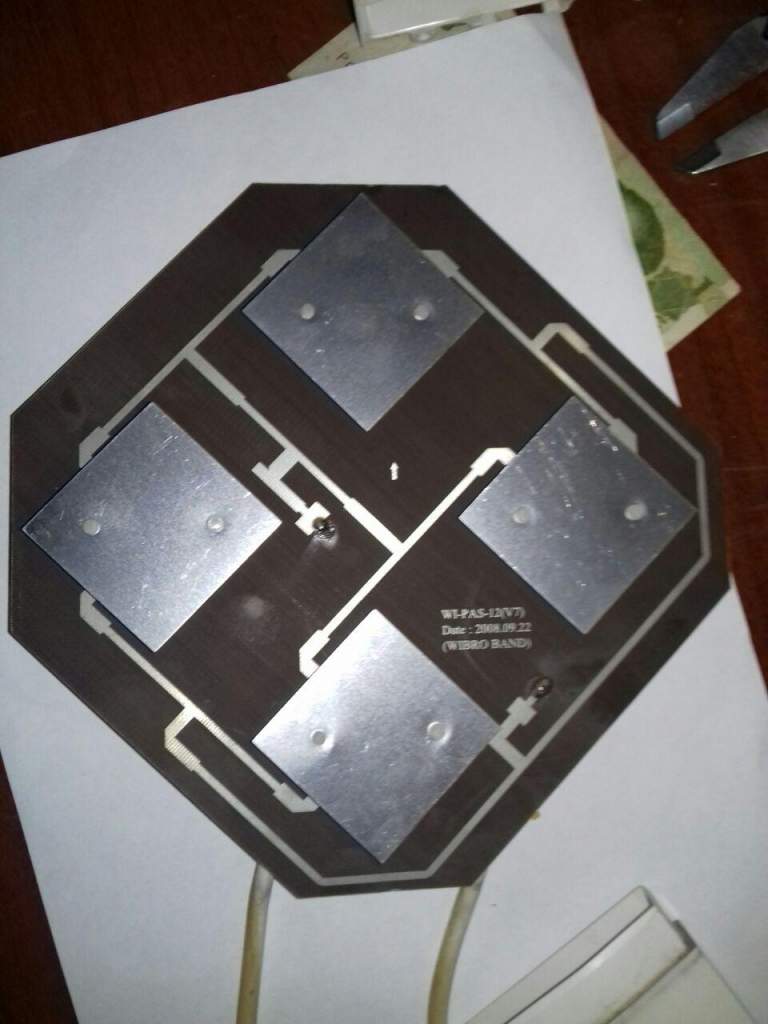

Jomy, on the second photo, an antenna-wimax - with circular polarization?



Share this post


Link to post
Share on other sites
33 minutes ago, chilanzar2 said:

Jomy, on the second photo, an antenna-wimax - with circular polarization?



Yes, of course, and as a special fact the circular polarization antenna has a minus of 2-3dBi to the linear polarized antenna







1 person likes this

Share this post


Link to post
Share on other sites

By the way, members of the forum, I must note that in search of information about extra high-frequency information, I have registered many such thematic forums. But only in this forum I get a lot of help. For this I want to thank the respected Admin a lot. He leads me in the world of antennas.

1 person likes this

Share this post


Link to post
Share on other sites

And for this, I think the positioning of your antenna should be changed.(repositioned)



Share this post


Link to post
Share on other sites

Admin, I can not find nylon screws and bolts.
I have to use metal screws. How many different sizes do metal-screws use, unlike nylon?
-------------------------------------------------- ------------------
Dear forum users, I want to note that I have been writing with the respected Admini for many hundreds of times - both in other forums and in this forum, even through private.
Antennas in excess of high frequencies - this is a very complicated thing. I did not think so in the past.

Edited by chilanzar2

Share this post


Link to post
Share on other sites

By the way, I do not speak English well. But, I perfectly know the Turkic languages of Central Asia and the Russian language. If I write badly, then do not laugh at me much. But, my hands are strong, and my head works well. I can fix almost everything. In addition to the nuclear power plan...:)

1 person likes this

Share this post


Link to post
Share on other sites

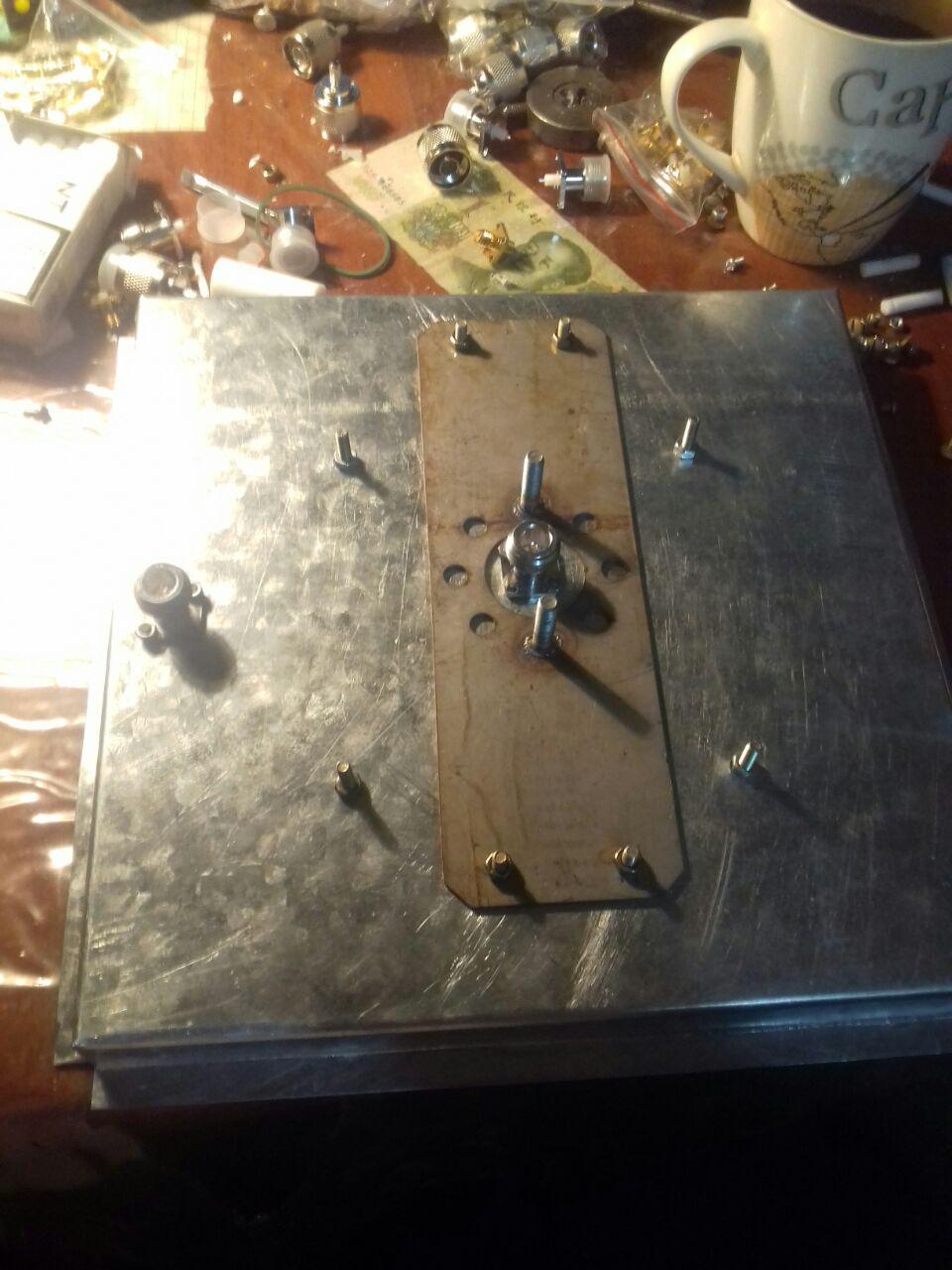

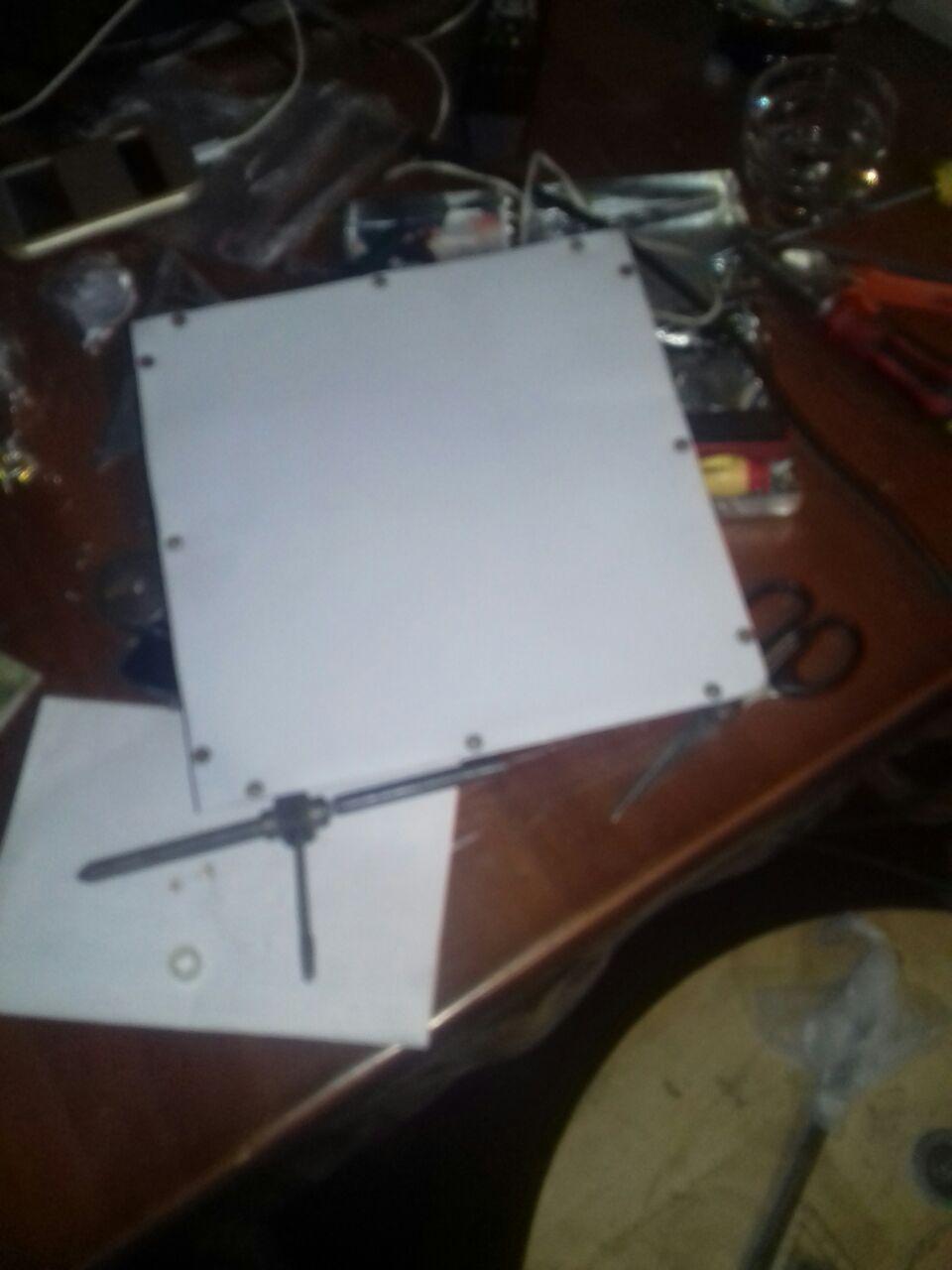

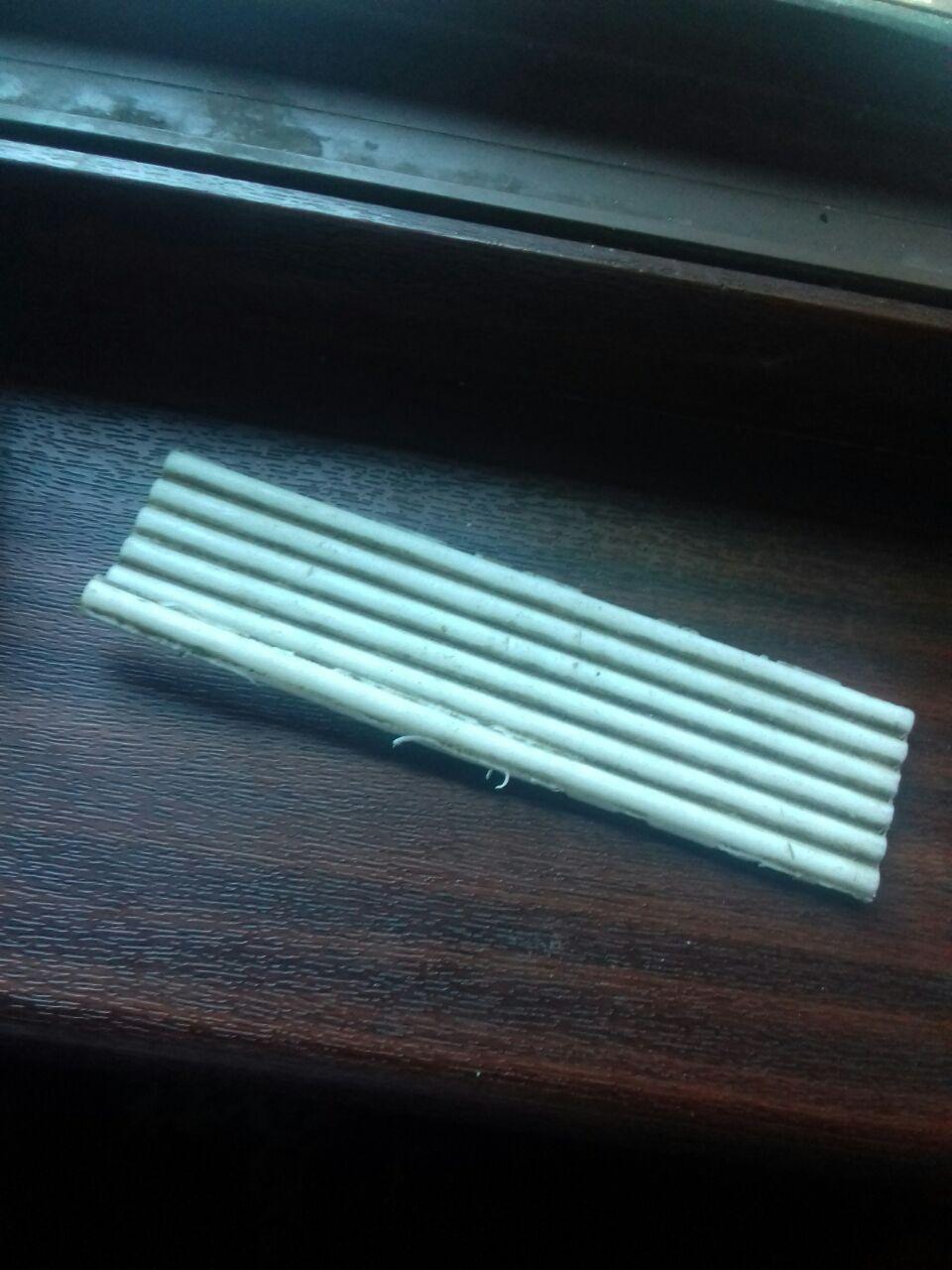

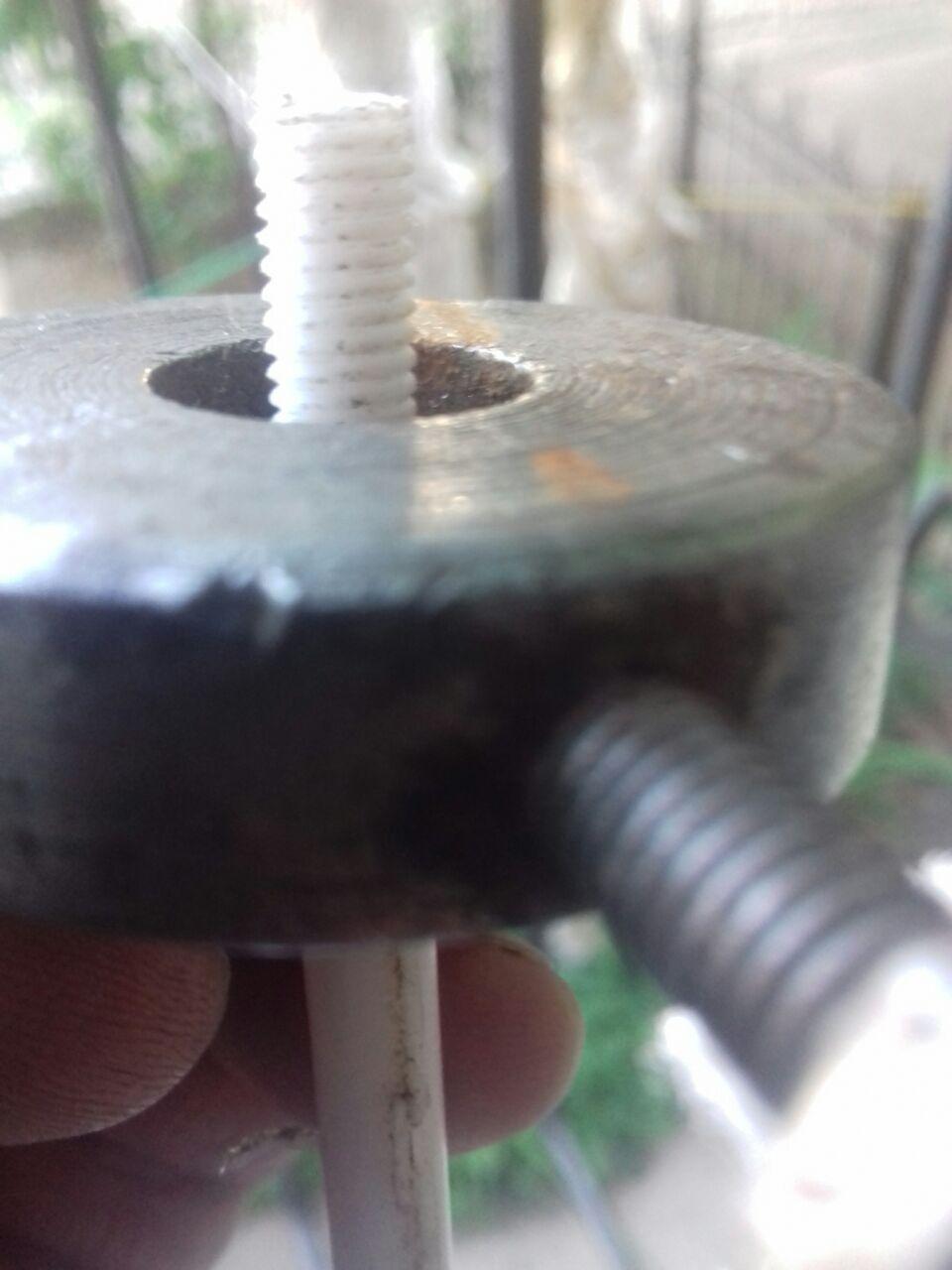

Today I found in the bazaar all sorts of little things here are such things - I'm starting to prepare the screws myself. To my good luck - this nylon thread - there is fluoroplastic




1 person likes this

Share this post


Link to post
Share on other sites

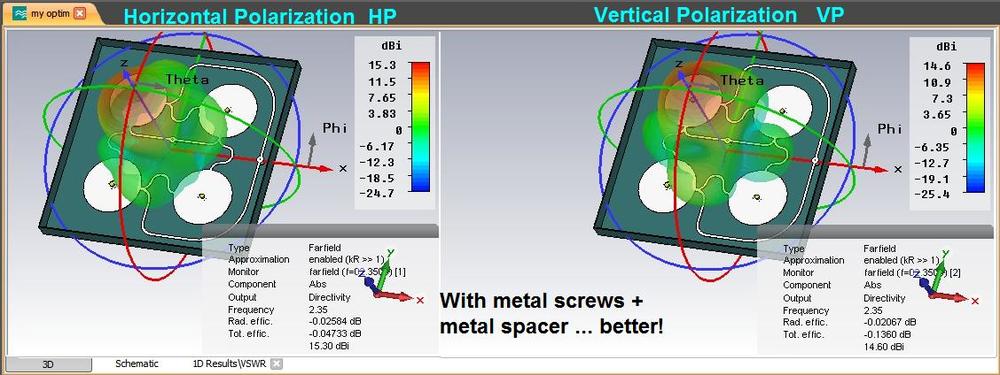

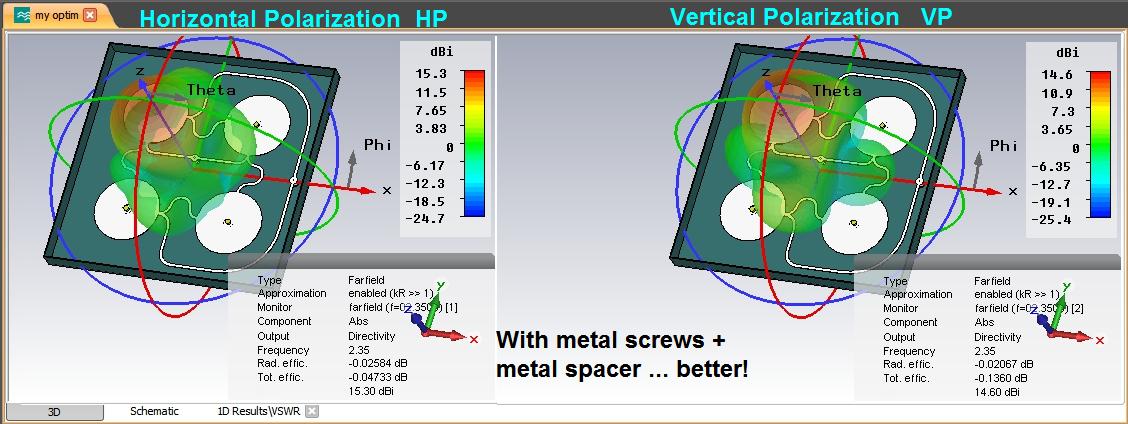

ERKIN, after my simulations, it looks like metal screws and spacers are better than plastic ones...







Share this post


Link to post
Share on other sites

We do not have such details. I am forced to make it myself. We try to make with our friend. We'll create this detail - I'll post it right away


Share this post


Link to post
Share on other sites

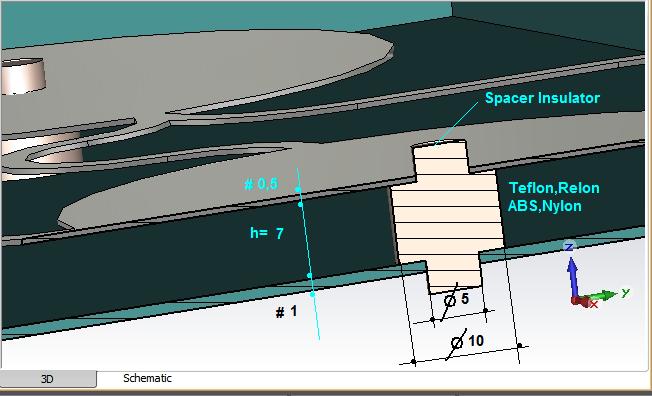

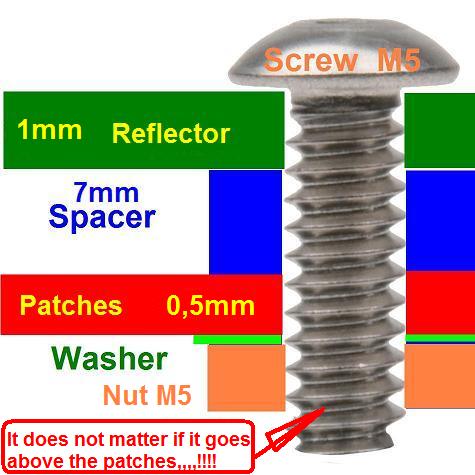

it's very simple,,,!!!







1 person likes this

Share this post


Link to post
Share on other sites

But, as simple as possible, it is with them...

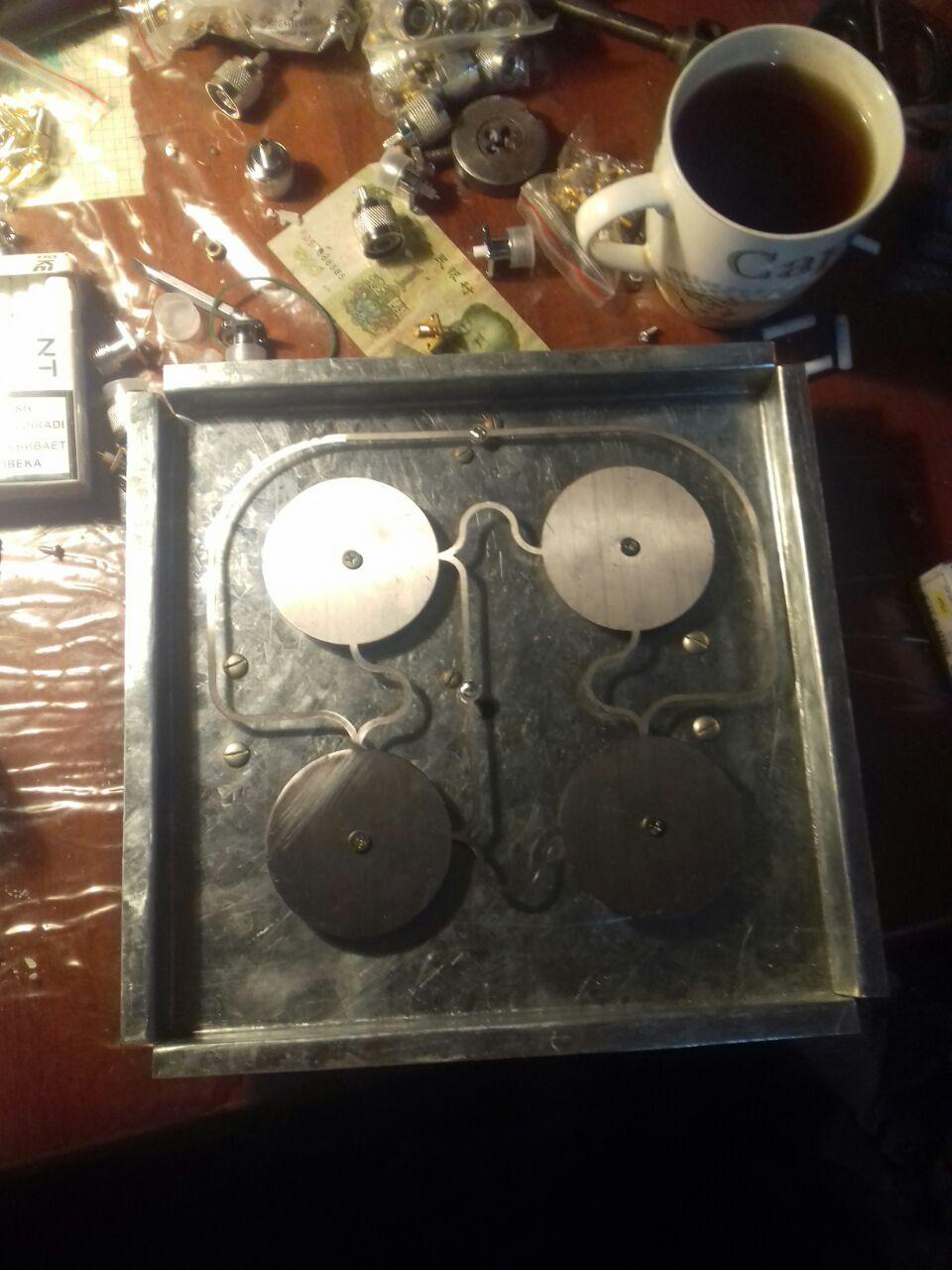

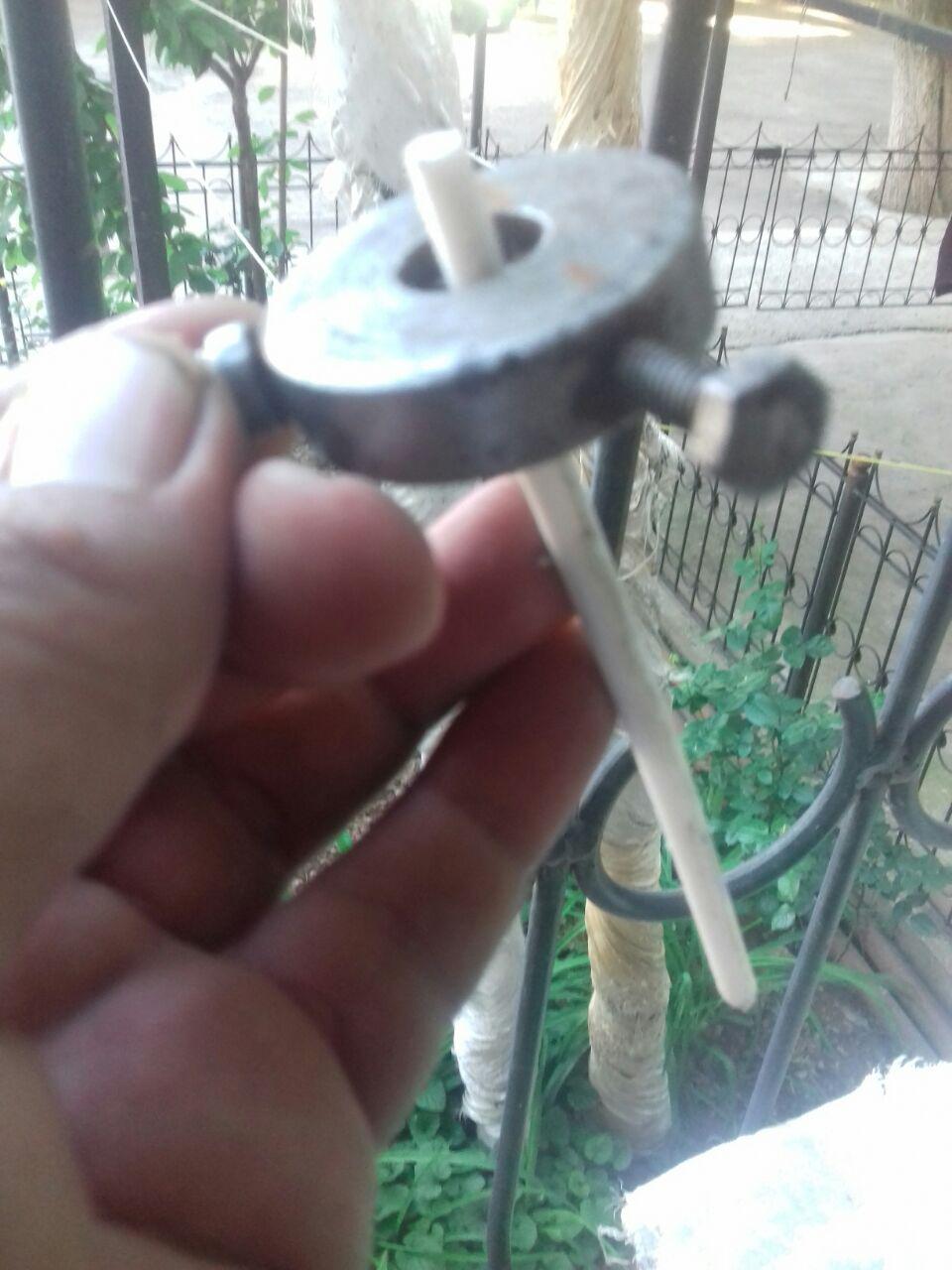

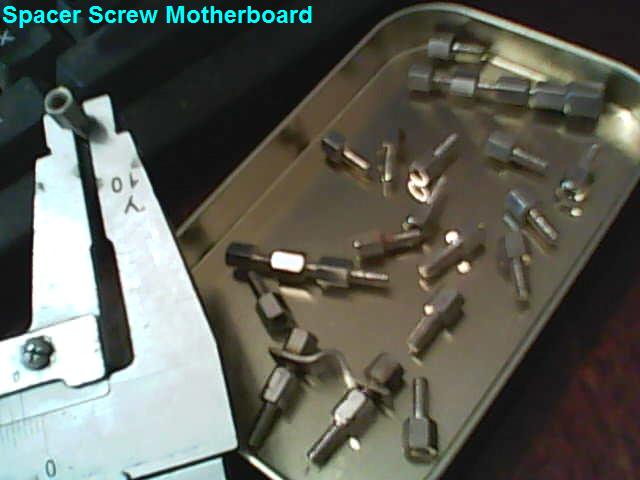

Picture 8.jpg





Share this post


Link to post
Share on other sites

 Bravo, excellent Erkin ... !!

Can you test with Anritsu ... ??

Share this post


Link to post
Share on other sites

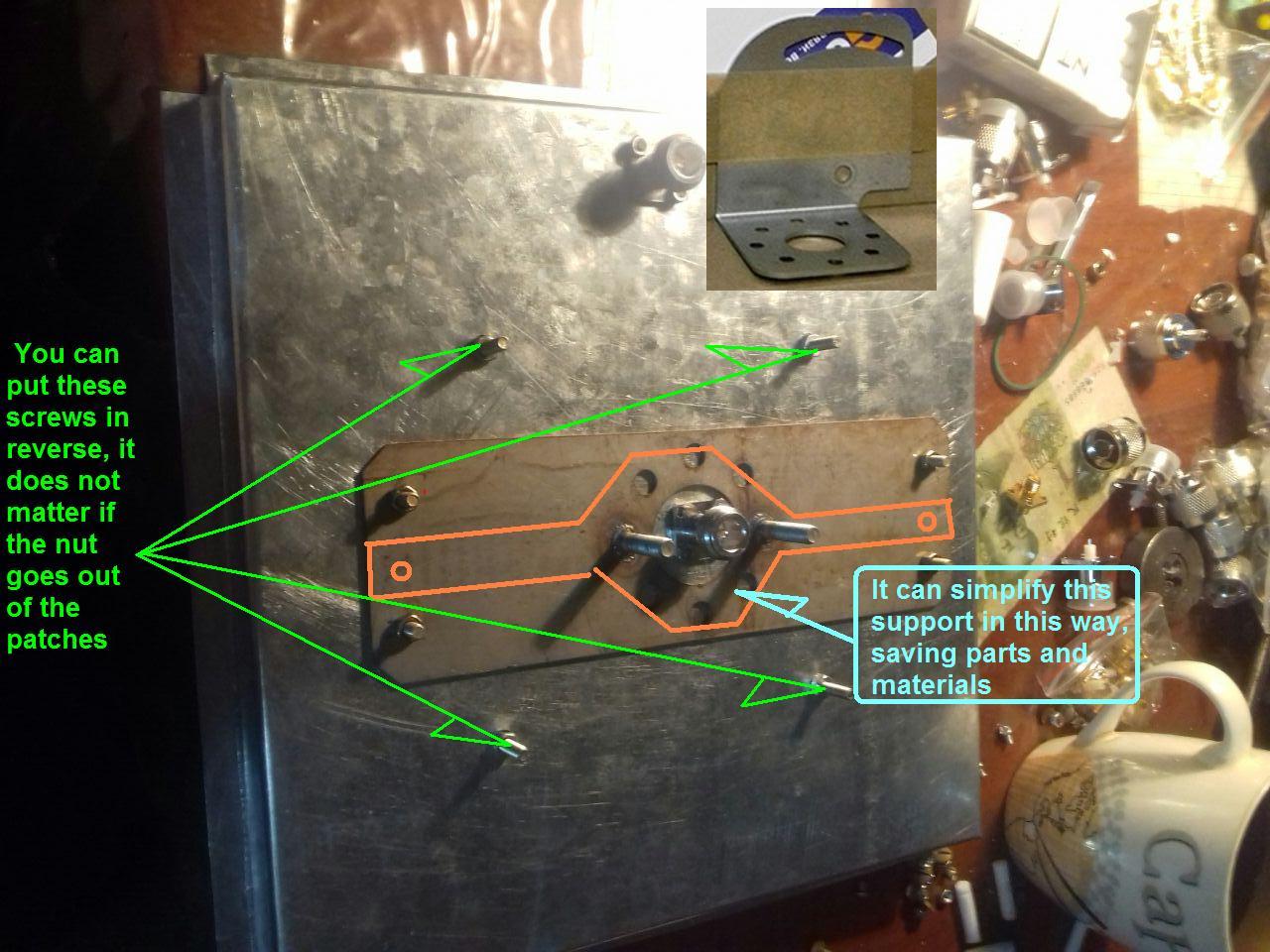

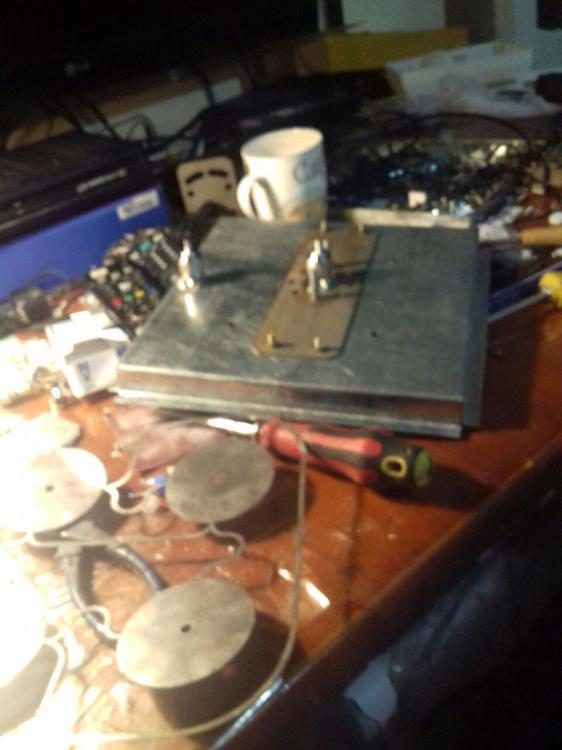

Attention, if you mount the four screws in reverse, with them you can also fit the plastic cover...!!!!





1 person likes this

Share this post


Link to post
Share on other sites

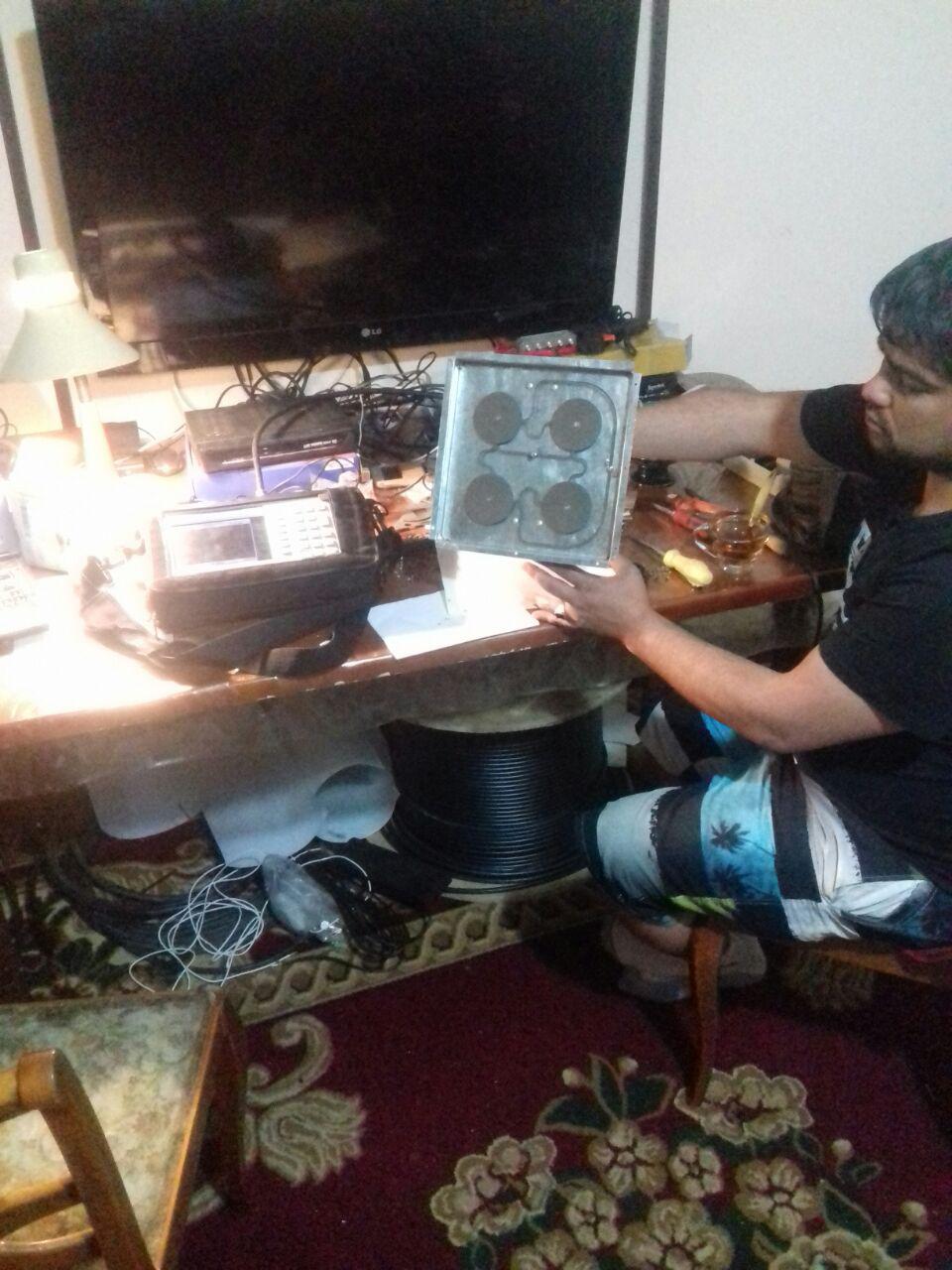

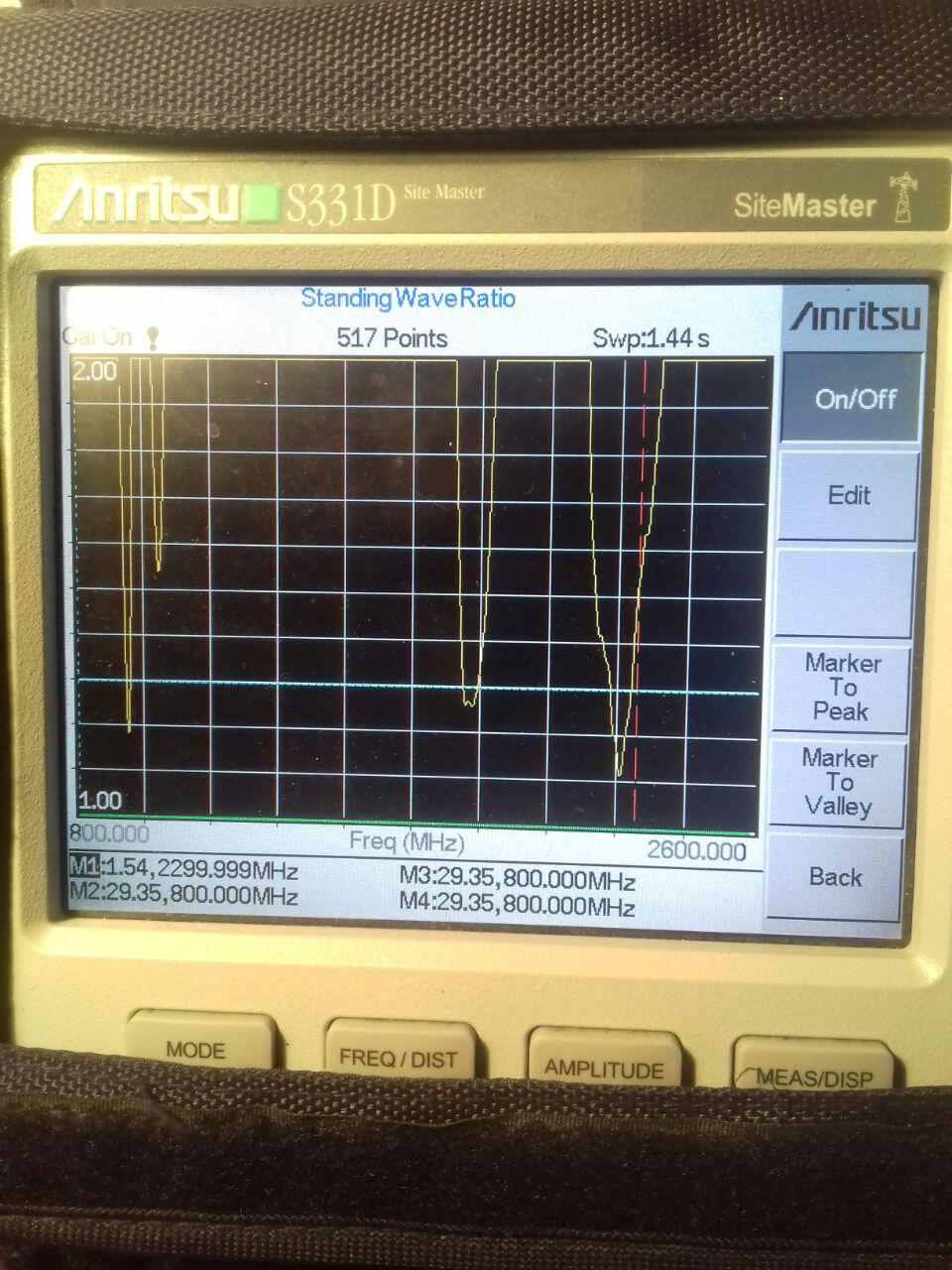

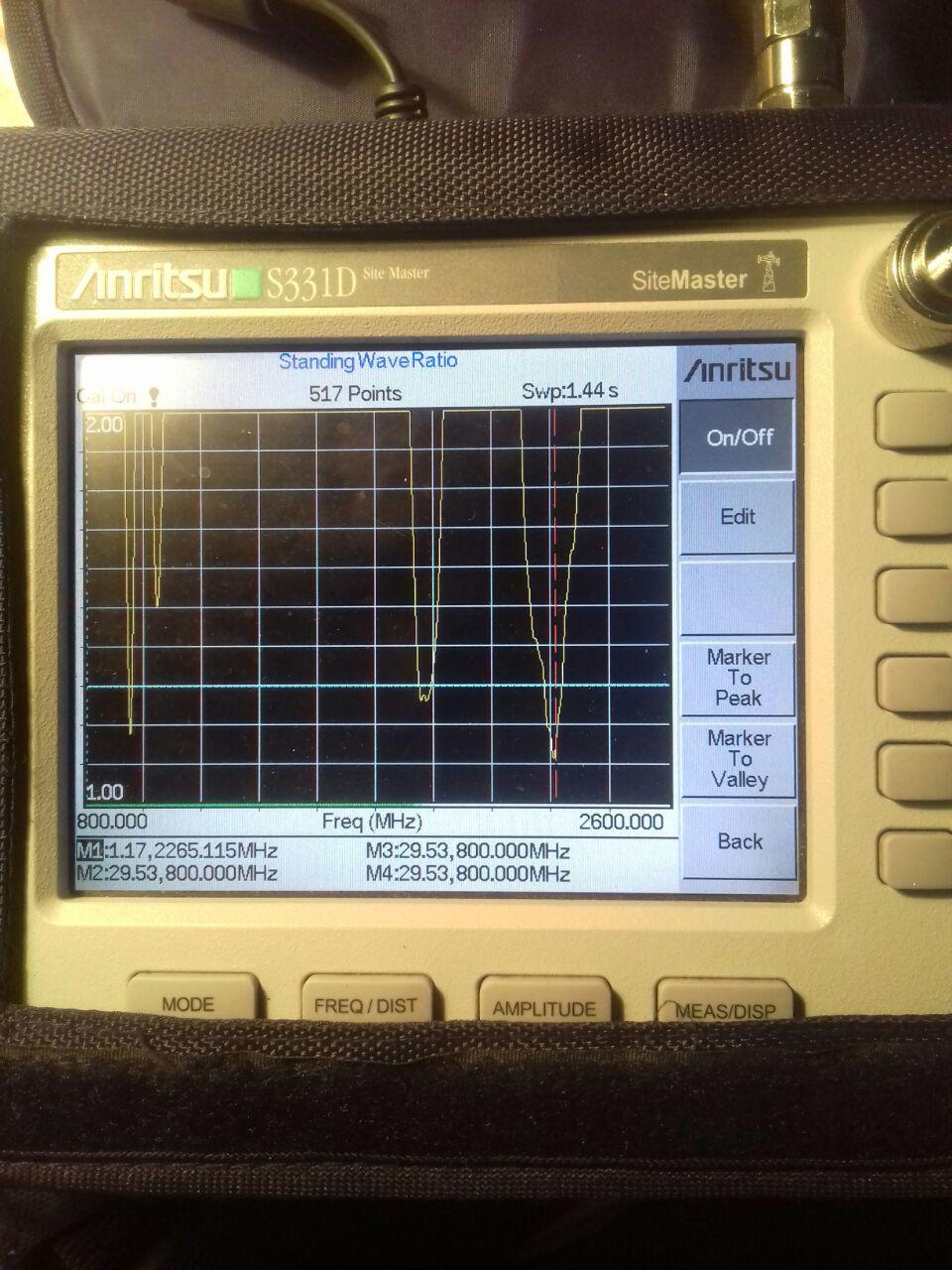

Now I will check on Antritsu. Fluoroplastic F4


1 person likes this

Share this post


Link to post
Share on other sites

My students! But, I myself am a student in high-frequency antennasxD
With love from Tashkent


1 person likes this

Share this post


Link to post
Share on other sites

I like, very nice everything ... !!!

Share this post


Link to post
Share on other sites

The last option, I'm sending you the * dxf file
