nileperch

help antenna 3G - 4G - CDMA 800 / 450 / Wimax

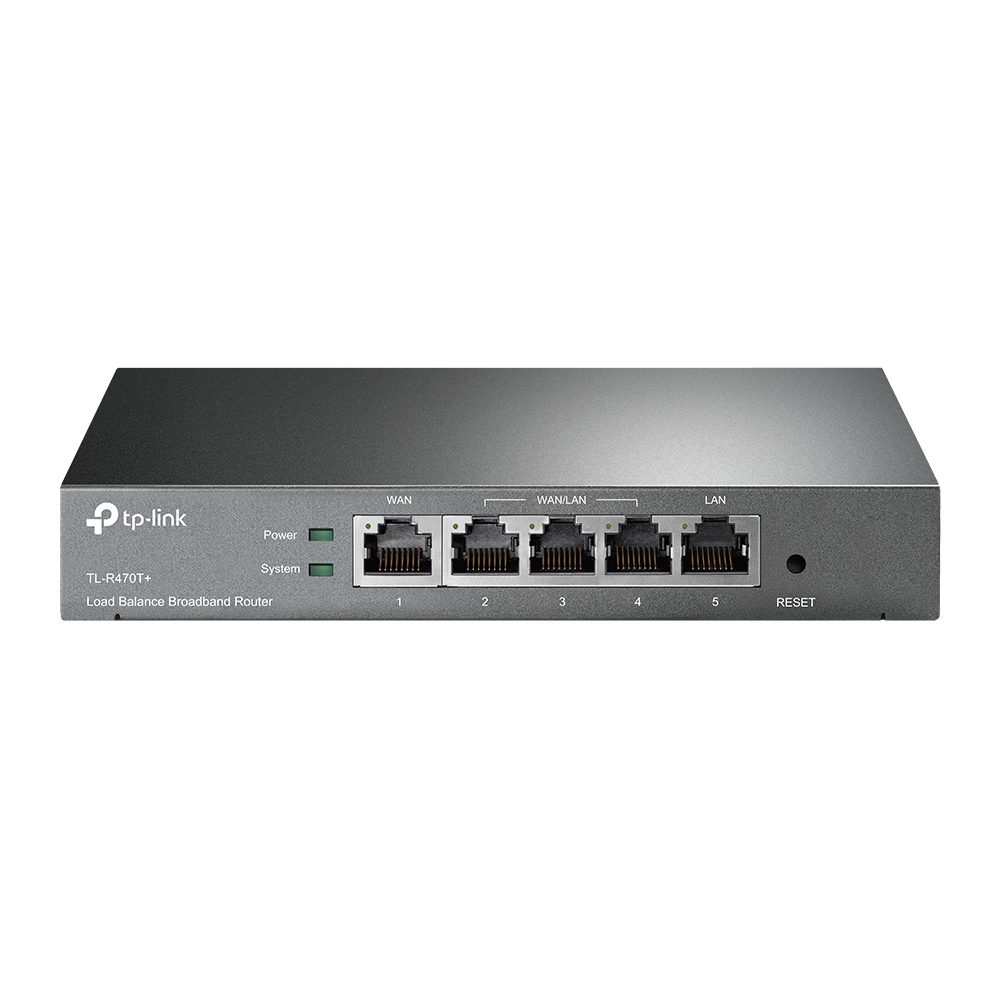

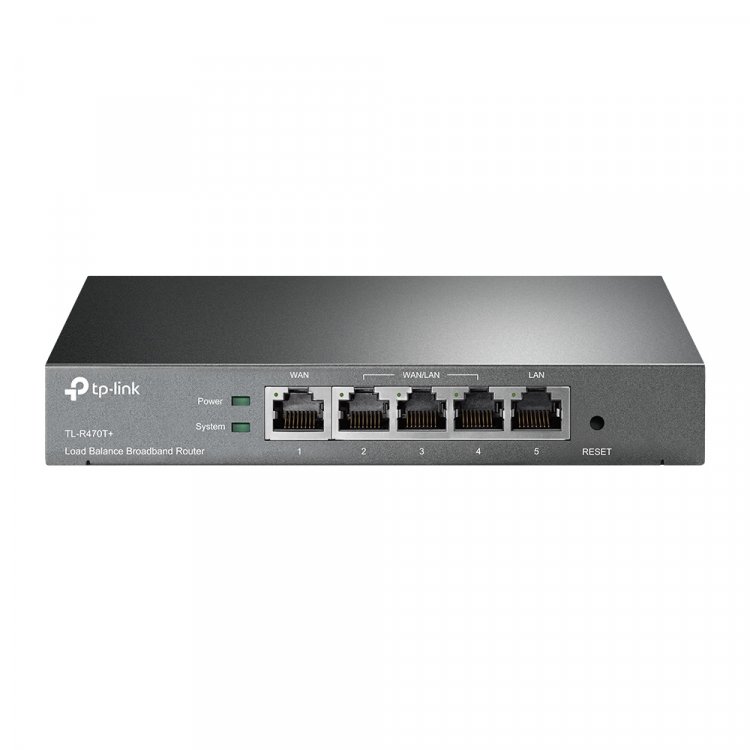

hello friend im new here , i need some help , i live in poor aria - now im on the town - in my village no covering  signal mobile broadband ,  just i have GSM 900 MHZ - for calling , i want to make some powre full antenna for 3G -2100 / 4G 1800 + 2600 / CDMA 800 / 450  - I want to make some help like small ISP i have  tp link TL-R470T+ Load Balance - and i want to connect 4 modem 3g or cdma or 4g te i get full speed - and i want to share internet for my small village -  town to village 34 km ....

thank you

Share this post


Link to post
Share on other sites

Hi buddy...!!!

Well, but your router has no external antennas, I think you still need a modem...!!




Share this post


Link to post
Share on other sites

hello master

i have modem 3g and 4g and cdma evdo 800 / 450 but i want powerful antenna  how i can make

Share this post


Link to post
Share on other sites

 okay, so you want an antenna for 800MHz or 470-820MHz .... ???

Share this post


Link to post
Share on other sites

this for broadband  want powre full antenna   town to village 34 km

for 3G -2100

4G 1800 + 2600

CDMA 800 / 450



antenna for bosting  wifi 2.4





Share this post


Link to post
Share on other sites

what it is best material to build high gain antenna - im see some like KIP9-1700/2700 DP for satellite dish but idont know what the rang

Share this post


Link to post
Share on other sites

,,, 34km is a lot, you have obstacles until BS ... ??

Share this post


Link to post
Share on other sites

the cdma evdo 800 + 450 it is 34km

3G + 4G i think it is 28km  some tower

wimax it is veary good but so far

Share this post


Link to post
Share on other sites

im see some like KIP9-1700/2700 DP for satellite dish it is 60cm can i get 120cm that it is good or bad too

Share this post


Link to post
Share on other sites

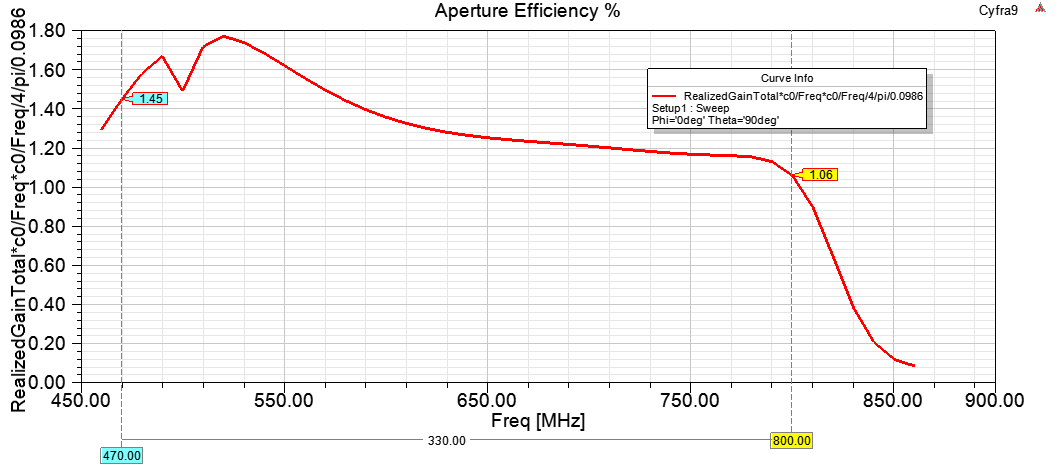

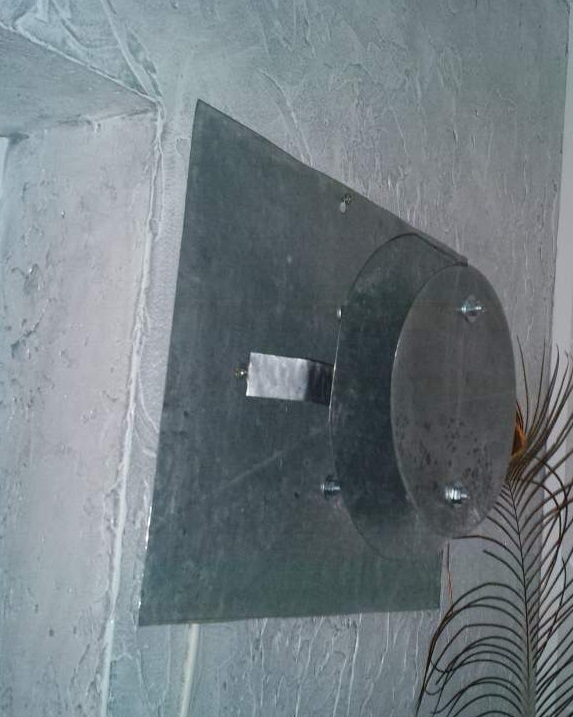

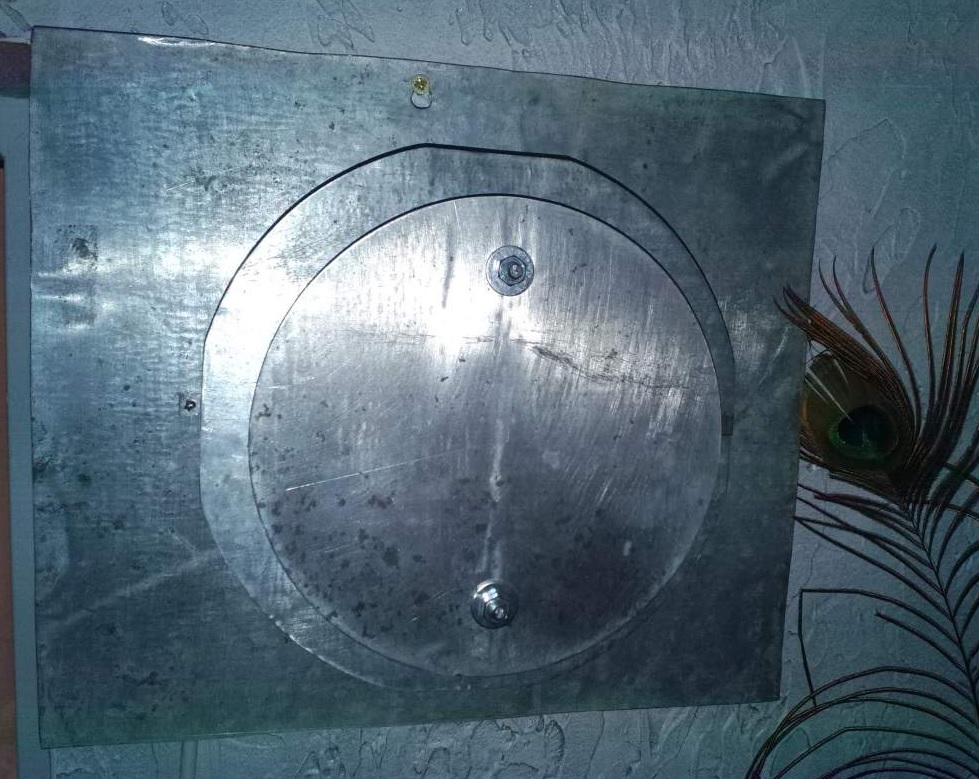

Here is a good antenna for 470-800 MHz...






Share this post


Link to post
Share on other sites
8 hours ago, nileperch said:

the cdma evdo 800 + 450 it is 34km

3G + 4G i think it is 28km  some tower

wimax it is veary good but so far

what about 3G + 4G

Share this post


Link to post
Share on other sites
9 minutes ago, nileperch said:

what about 3G + 4G

,,, see the post above ... !!!

,,, if you do not go through the whole forum, I can no longer help you ... !!!

,,, you have where to choose ... !!

Share this post


Link to post
Share on other sites
8 hours ago, Admin said:

,,, 34km is a lot, you have obstacles until BS ... ??

here



no  obstacles

Share this post


Link to post
Share on other sites
8 hours ago, Admin said:

,,,,,,or this..

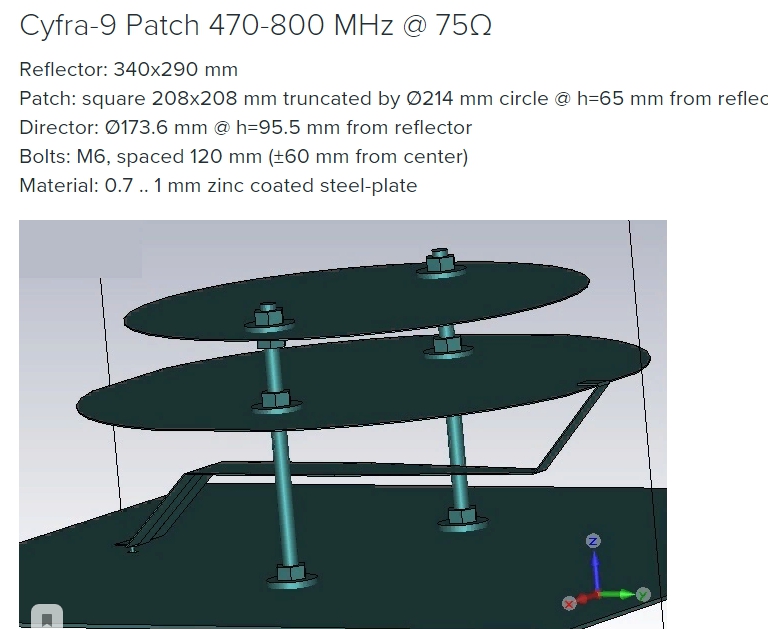

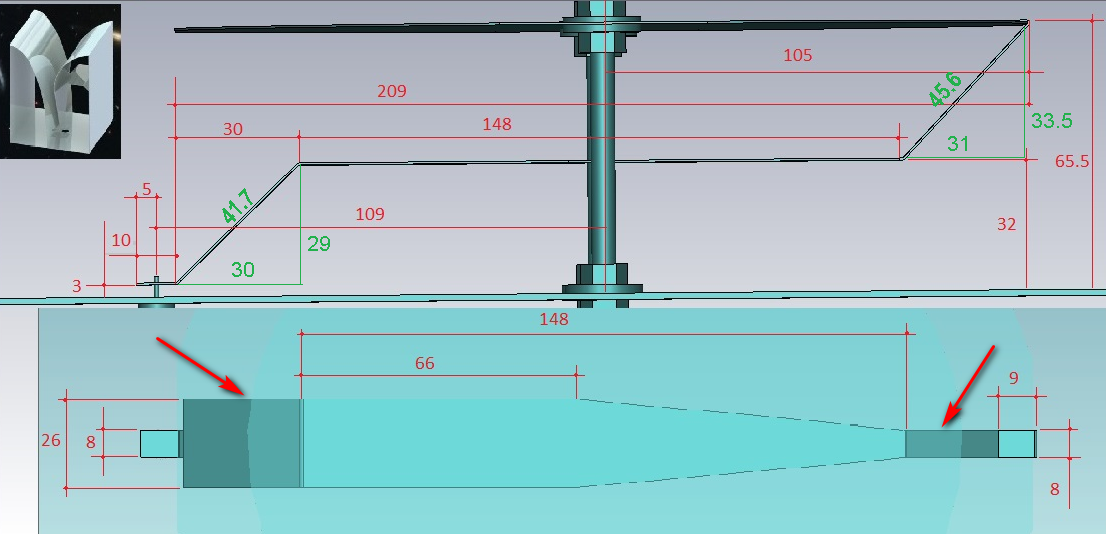

here this for 400 to 800 mhz

Share this post


Link to post
Share on other sites

,,, search and you will find .... !!!

Share this post


Link to post
Share on other sites
3 hours ago, Admin said:

,,, search and you will find .... !!!

no here :\

Share this post


Link to post
Share on other sites

please give me the antenna design for 4g 800 mhz too

Share this post


Link to post
Share on other sites

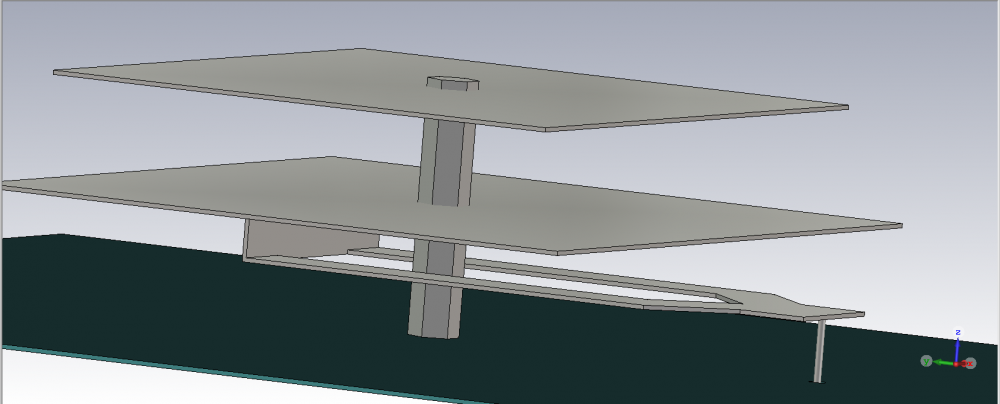

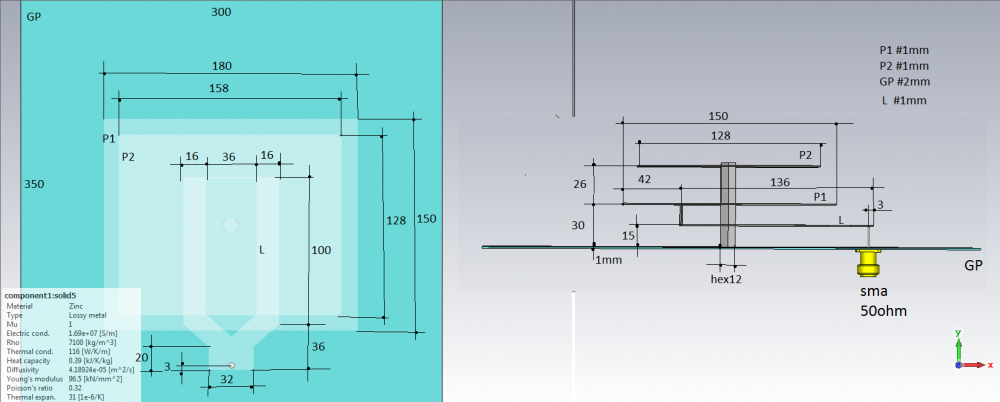

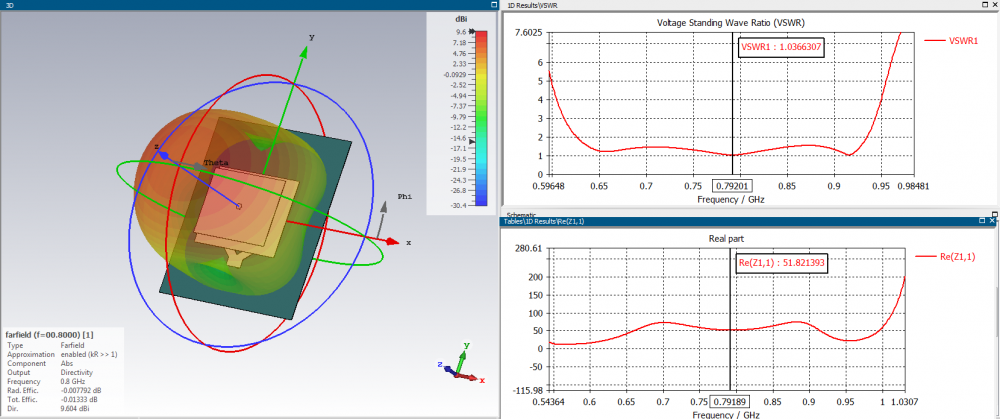

,,,this it"s...




1 person likes this

Share this post


Link to post
Share on other sites

I made this antenna that receives the signal from a distance of 14.8 kilometers. There is no direct visibility, there is high ground on the way.

2 people like this

Share this post


Link to post
Share on other sites
