U-slot antenna

30 posts in this topic

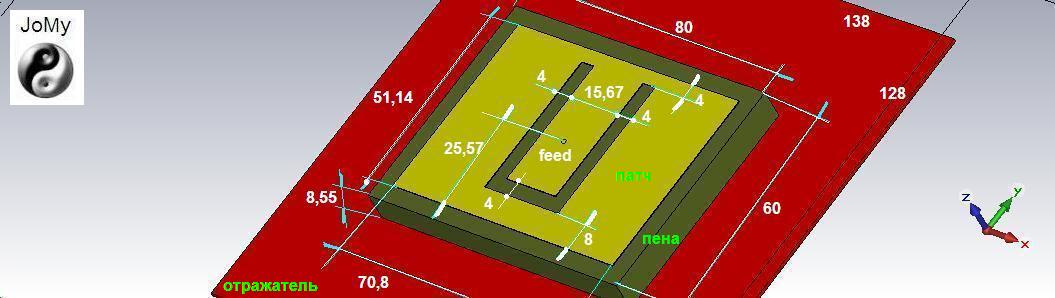

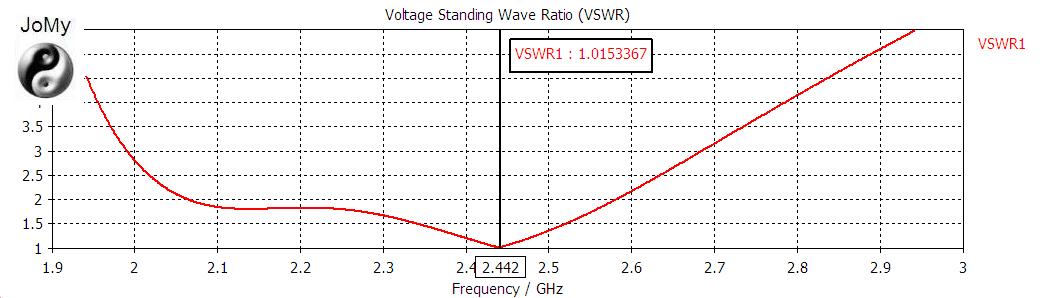

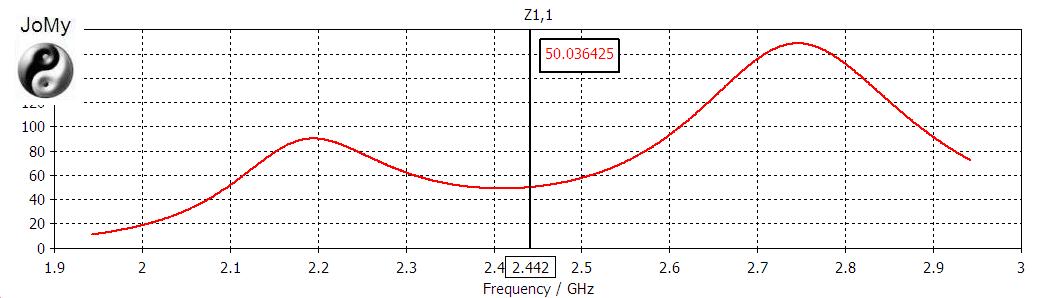

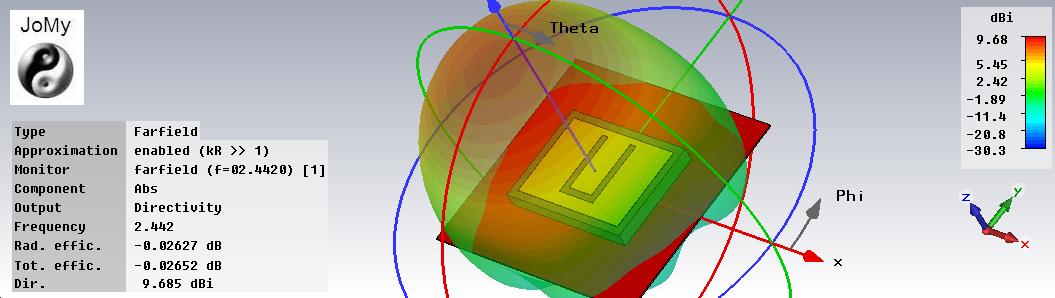

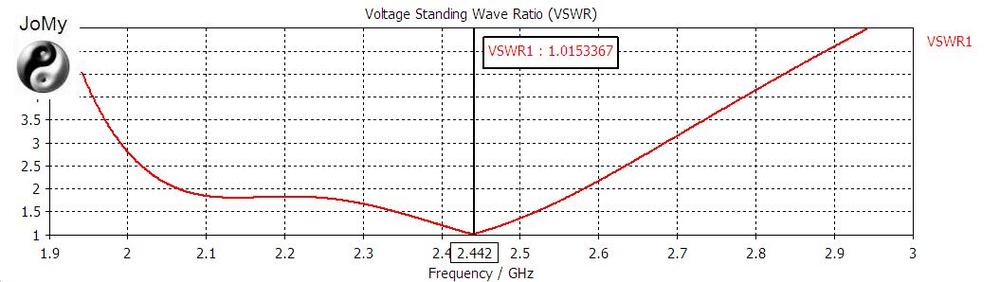

,,, type of antenna,not very easy to produce , but with good results in circular polarization.
Between the patch and  irradiated put plate of polystyrene or polyurethane...









2 people like this

Share this post


Link to post
Share on other sites

,,,unless if you translated feed point to the left or to the right...!!!

You can try...!!!!

Share this post


Link to post
Share on other sites

For circularly polarization, can you offer axial ratio vs frequency and the method to obtain this result.

Share this post


Link to post
Share on other sites
10 hours ago, MrElec said:

For circularly polarization, can you offer axial ratio vs frequency and the method to obtain this result.

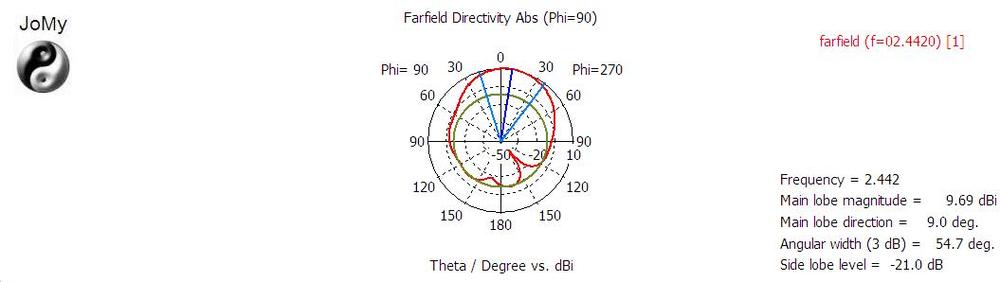

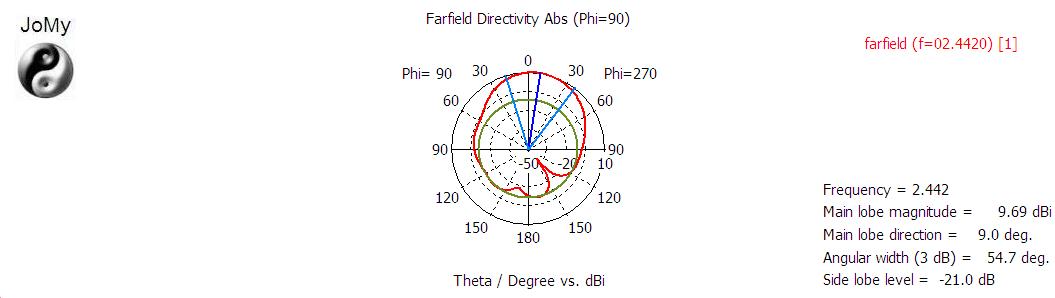

This is what you want?




Share this post


Link to post
Share on other sites

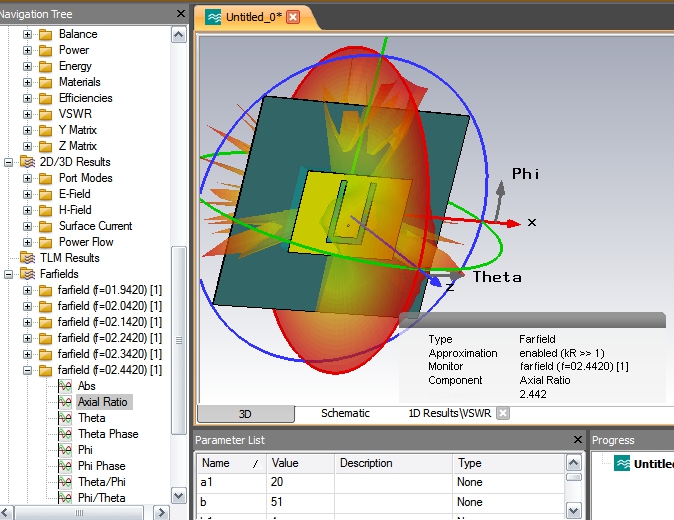

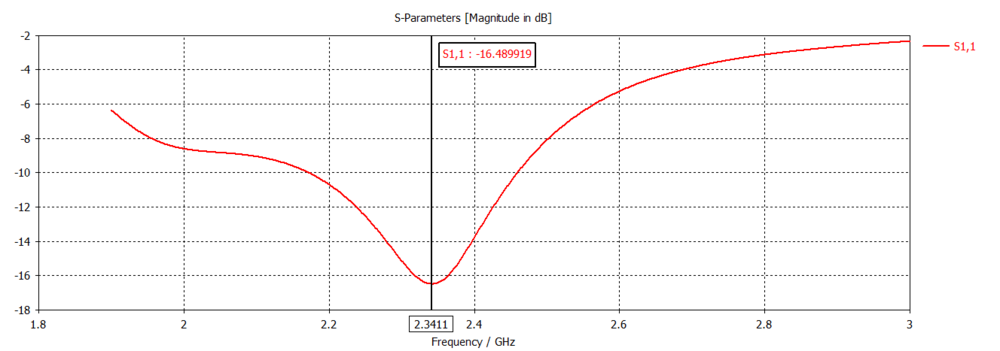

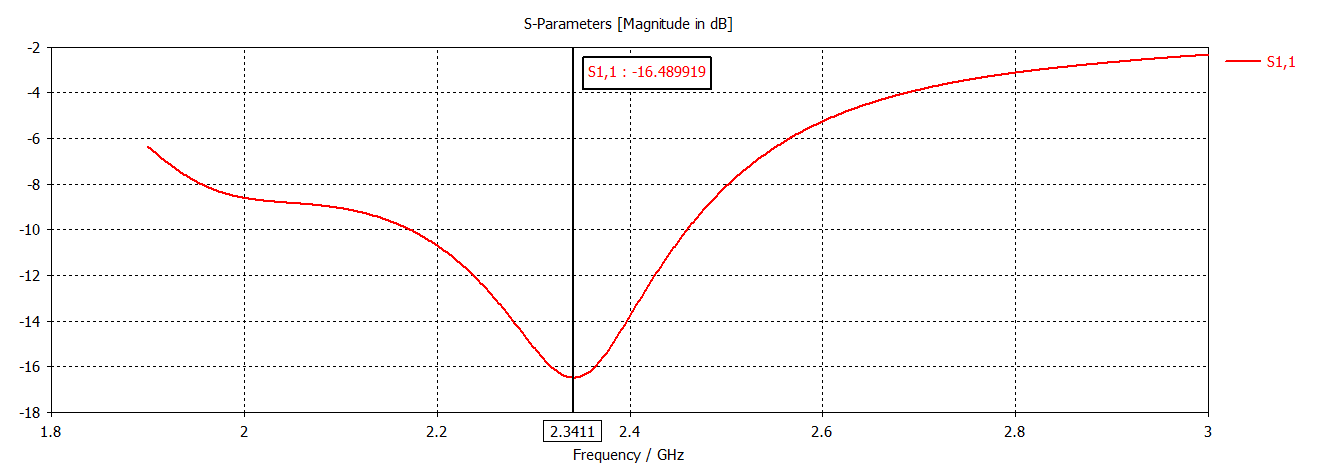

In fact i want to knowhow to plot Axial Ratio of a circularly polarized antenna Vs frequency (tha gragh is a cartesian one AR =f(frequency) ). I tried your model but i can't get the same results. I've attached the project. So could you tell me please what was wrong with the model and how to deal with the AR.

U-Slot Patch Antenna.cst

Share this post


Link to post
Share on other sites

what kind of dielectric spacer did you choose?
with what dielectric constant(relative permittivity)?

the best is polystyrene,,,!!!

Share this post


Link to post
Share on other sites

Hi,

I worked with foam loaded from CST material library. The relative permittivity of the dielectric is 2.2.



Share this post


Link to post
Share on other sites

Oh no, excuse me Admin i have made a mistake. In fact, i've created this material and renamed it to foam.

Share this post


Link to post
Share on other sites

,,,create another type of material (polystyrene) in CST material library, with er=1,2 and load it...!!!

Share this post


Link to post
Share on other sites

Do you have a reference to this antenna ? Also, may be the meshing is not good.



Share this post


Link to post
Share on other sites
1 hour ago, MrElec said:

In fact i want to knowhow to plot Axial Ratio of a circularly polarized antenna Vs frequency (tha gragh is a cartesian one AR =f(frequency) ). I tried your model but i can't get the same results. I've attached the project. So could you tell me please what was wrong with the model and how to deal with the AR.

U-Slot Patch Antenna.cst

your CST file I can not open ?!





My *cst file,,,!!!



E-Patch.cst

Share this post


Link to post
Share on other sites

I'm using CST MWS 2017. 've opened your project and now i see my problem. I've used PEC sheets and the dimensions are not the same. This is why we got different results. Now for circular polarization, usually we demand to plot axial ratio versus frequency in cartisian system AR = f (frequency) to prove that the antenna is circularly polarized. I think that there are some changes in the far field propreties. What do u think ?



Share this post


Link to post
Share on other sites

I did this simulation today and I did not have time to optimize something ... !!!

to me that looks,,,!!!!


Share this post


Link to post
Share on other sites

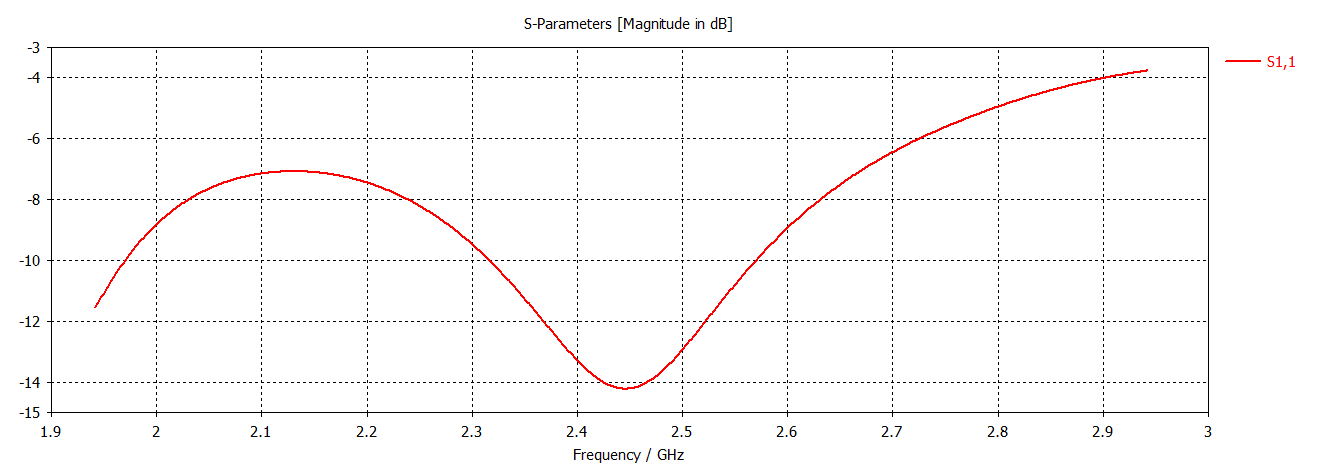

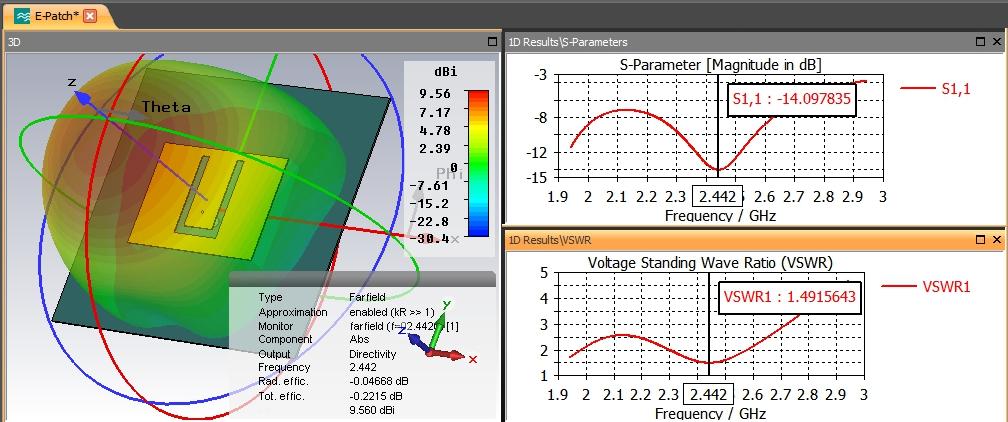

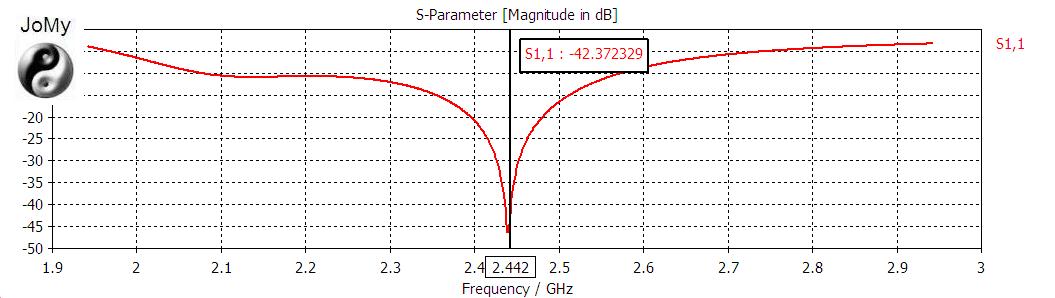

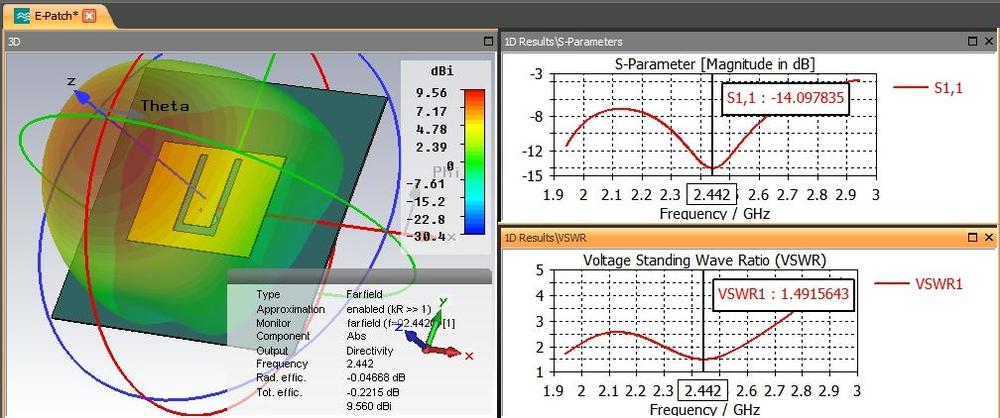

Yeh, your project gave S11 = -14.09 dB but it's value -42.37 dB in your first post.

Share this post


Link to post
Share on other sites

 in the past I think I used another dielectric with other dimensions

Share this post


Link to post
Share on other sites
3 hours ago, MrElec said:

Do you have a reference for this antenna ?

not

Share this post


Link to post
Share on other sites

in order to get the circular polarization you can vary the two side arm lengths of the U slot.....there are pretty good papers in IEEE explaining the CP generation using U slot....but you wiull get narrow Axial ration bandwidth in such cases.....in order to get wider axial ration bandwidth go for slot antennas.

1 person likes this

Share this post


Link to post
Share on other sites
