Posts posted by Admin
-
-
,,,wrong...!!!
1 person likes this -
12 hours ago, Hamza said:Put it inside bucket horn it works well ( I m HAMZA)
I put it inside bucket horn it works so well.
2 people like this -
-
,,, give up the nuts and put spacers from the 10mm diameter pipe and M8 screw inside...!!!
2 people like this -
This high gain multiband 4G omni antenna is designed for 800MHz (2G / 4G), 900Mhz (4G), 1800MHz (3G / 4G), 2100MHz (4G) and 2600MHz (4G) frequency band and supports all established standards like GSM, 2G, 3G and 4G (800 / 900 / 1800 / 2100 / 2600).
The antenna has a gain of up to 12dBi and helps you to improve your 2G, 3G or 4G connection even on long distances.
This 4G antenna works perfectly with LTE / 4G devices which have external antenna port.
Compatible 4G Routers with external SMA female antenna port:
- Telekom Speedport LTE, Speedport LTE II
- Telekom Speedbox LTE, SpeedBox LTE II, SpeedBox LTE III
- Telekom Speedport Hybrid
- Vodafone Easybox 904 LTE
- Vodafone B1000, B2000, B3000
- Vodafone LTE-Modem
- Vodafone LTE-Turbobox LG FM300
- O2 LTE Router
- FritzBox LTE- Router (except FritzBox LTE 6842)
- D-Link DWR-921
- Huawei B390, B593, B890
- Huawei E5186
- Teltonika RUT230, RUT240, RUT550, RUT950, RUT955
- Many more...
Optionally we offer a pair of antenna cables of type LMR200 with a length of 2.5m, 5m, 10m and 15m with N male to SMA male (fits to the most common LTE routers - see list above) connectors.
The enclosure of the antenna is made of solid plastic and stainless steel. The robust, light weight and UV resistant construction is weatherproof. This allows to use this 4G antenna for outdoor appliances.
The antenna is designed for mast/pole or wall handle installation. A mounting kit (angle bracket and u-clamp for 30-50mm diameter handles) is included.
Product specifications
Type of Antenna Omni-Directional 2G/3G/4G LTE Antenna (2x2 MIMO)
VSWR max 1.8
Ground DC-Ground
Polarisation Horizontal / Vertical (Linear)
Appliance Indoor and Outdoor
Max input power 50W
Max wind load 200km/h
Dimensions 20cm Diameter x 21cm Height
Weight 400g
Color White
Directivity Omni-Directional
1 person likes this -
,,,,adeden,speak in English please...!!!
-

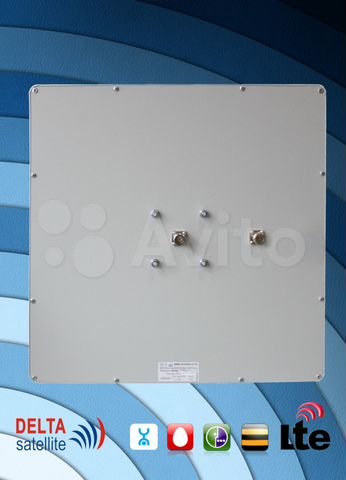

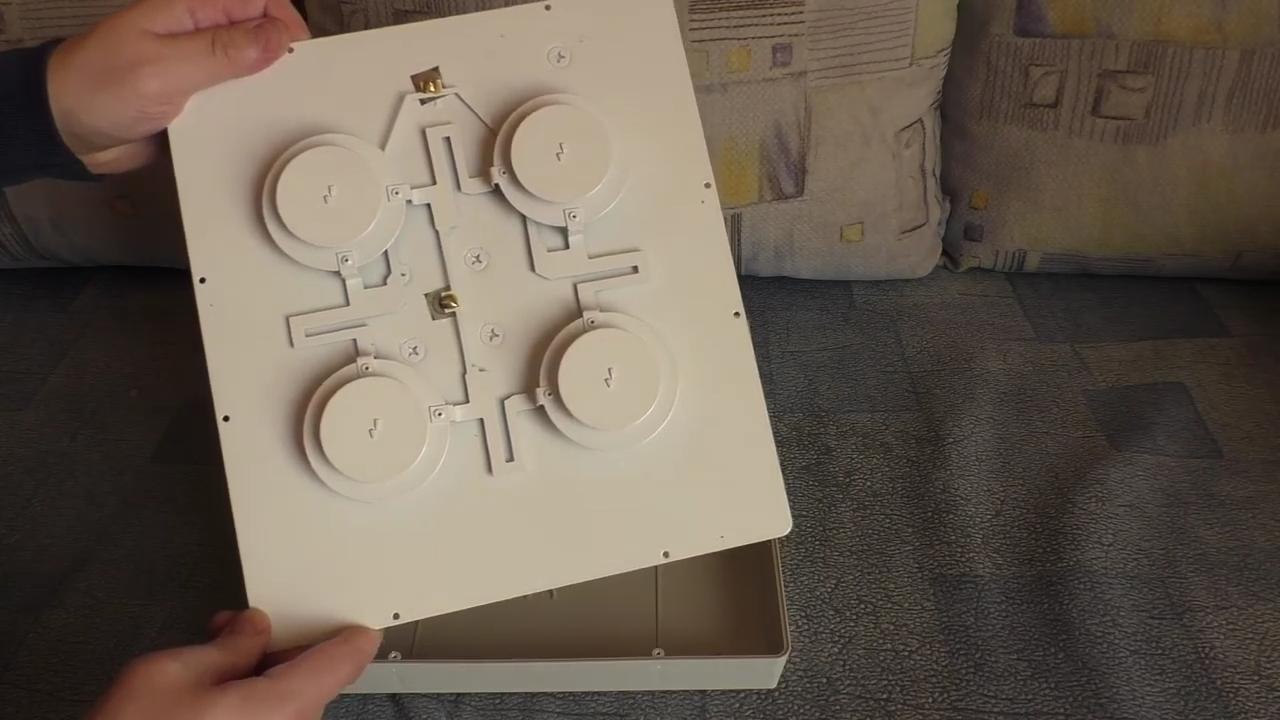

,,, this is the real Petra-9 2x2 Box antenna...
1 person likes this -
,,, these are the dimensions(in Red) for 2.3 GHz...
-
1 person likes this -
-
The Antex AX-2017PF panel antenna
is intended for use in a set with 3G modems (routers). The antenna type is common-mode array. It is recommended for use at the borders of service areas, when the 3G signal level is weak and unstable, as well as in the case of a long connecting cable between the modem and the antenna installation point.
The AX-2017PF is a version of the AX-2017P antenna, but only for a 75 ohm cable. The antenna uses an F-female connector (a conventional TV connector with a thread), which makes it possible to make cable assemblies directly by the user without resorting to the help of specialists, without using special tools. By using a SAT703 TV cable instead of a 50 ohm cable, you can save a lot of money .
Electrical characteristics
Operating frequency range, MHz 1900-2200
Gain, dBi 16÷17
Bottom width in the H-plane, deg 32÷40
Bottom width in the E-plane, deg 16÷19
Side lobe level, dB max -13
Forward / backward ratio, dB not less 20
Input impedance, Ohms 75
SWR in the operating frequency range, max. 1,5
Permissible power, W 10
Polarisation vertical/horizontal
Mechanical characteristics
Weight with mounting, g 1800
Overall dimensions without mounting, m 0. 45x0. 24x0. 05
Connector F-female
Antenna Material steel, galvanized steel
Protective coating powdered polymer paintMaterial of the protective box Polycarbonate+ABS
1 person likes this -
-
,,, maybe so ...
2 people like this -
I think the galvanized sheet is the best...!!!!
-
,,, a constructive variant of the user "com666" ... !!!
1 person likes this -
-
,,, the antenna dimensions of the user "com666"....
2 people like this -
,,, I think that for a good isolation between ports, such a configuration would be necessary...
2 people like this -
,,, I don't know, have to try ... !!
1 person likes this -
-
,,,clanon,try to put the simulation in the center...!!!
-
,,, vova, try not to post so many photos,,, too many useless pictures,I will delete them...!!!
,,, the thickness of the sheet does not influence too much the characteristics of the antenna...!!!
-
,,, clanon, you can turn this into * maa file...???
1 person likes this -

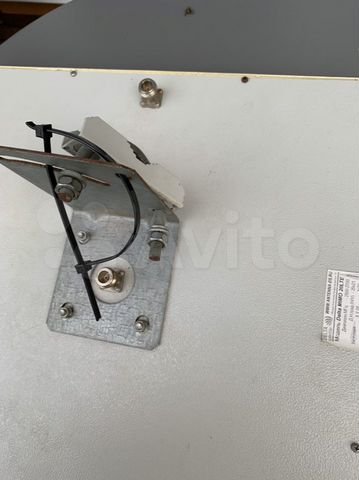

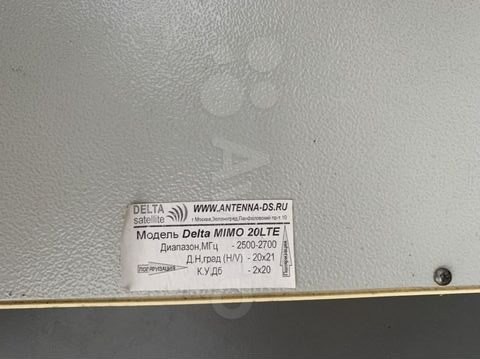

,,, another fake antenna made by mcneill...!!!
2 people like this
