What can do, with a cover pate!

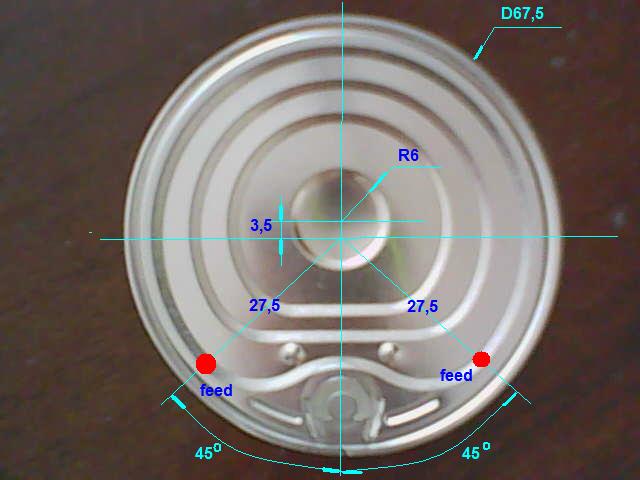

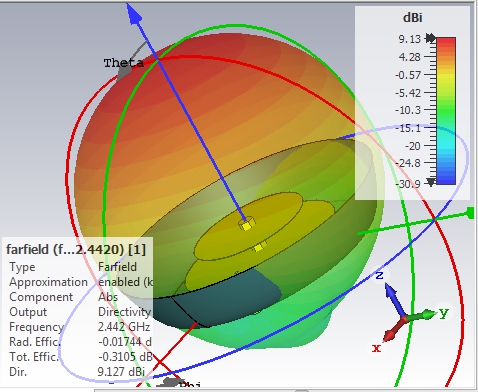

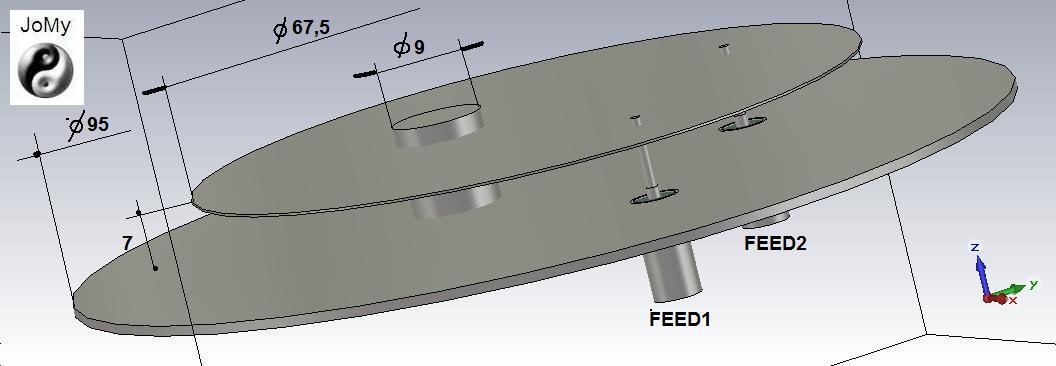

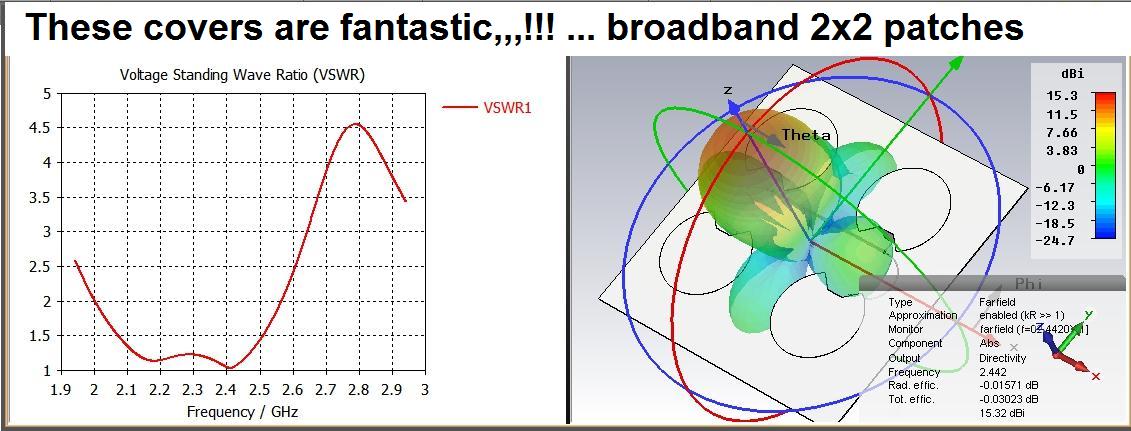

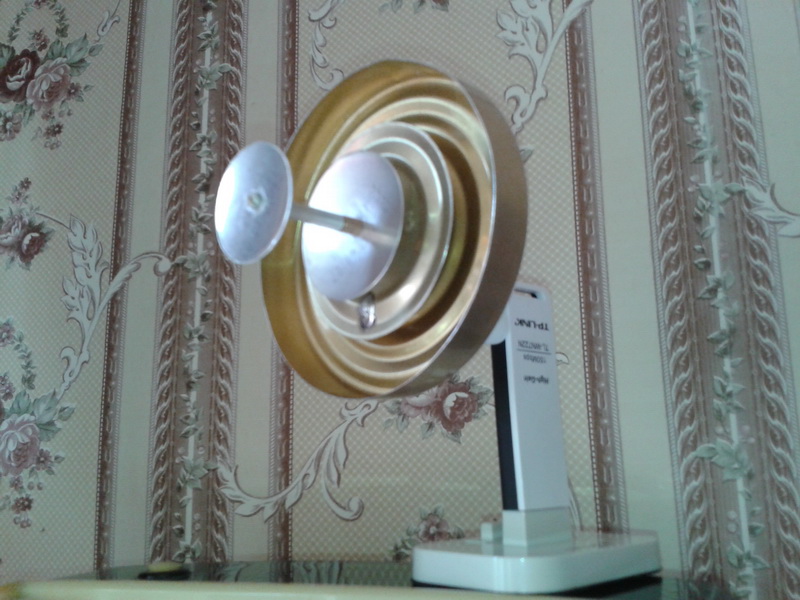

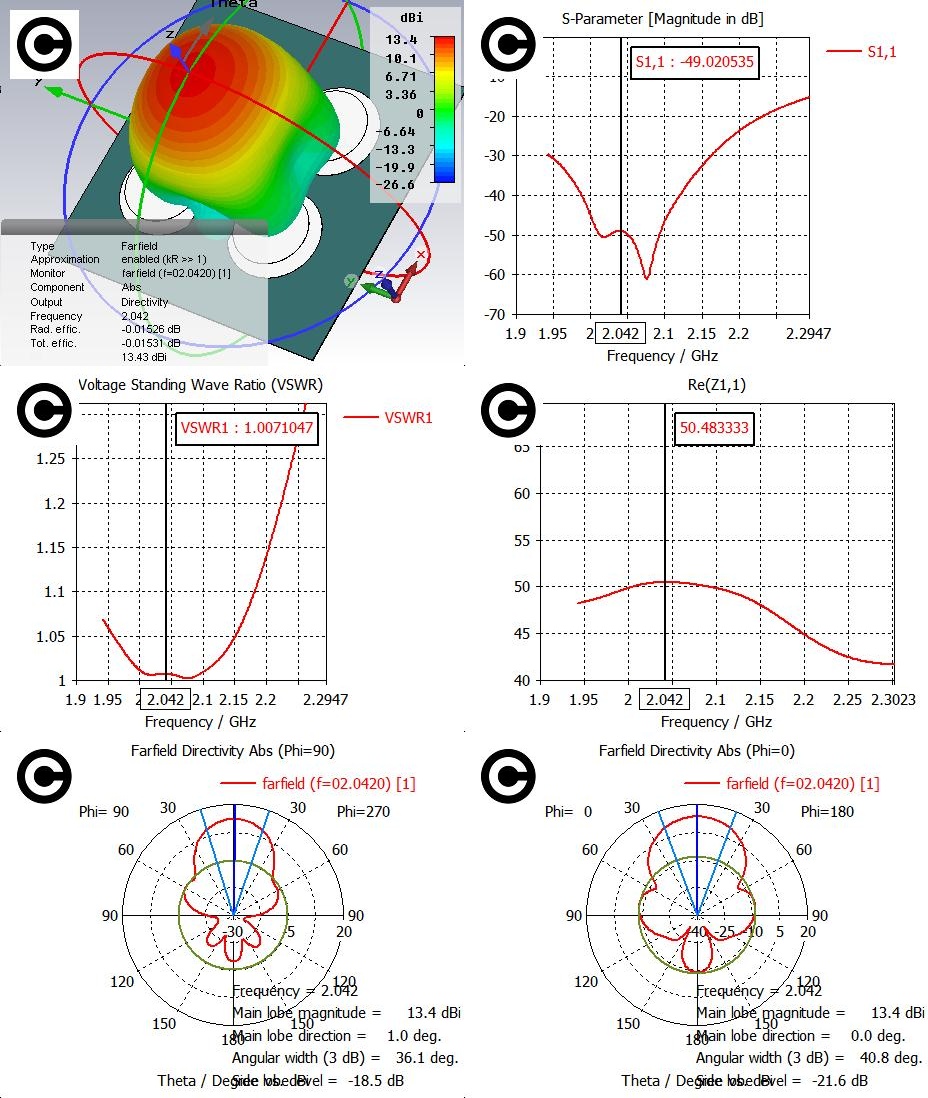

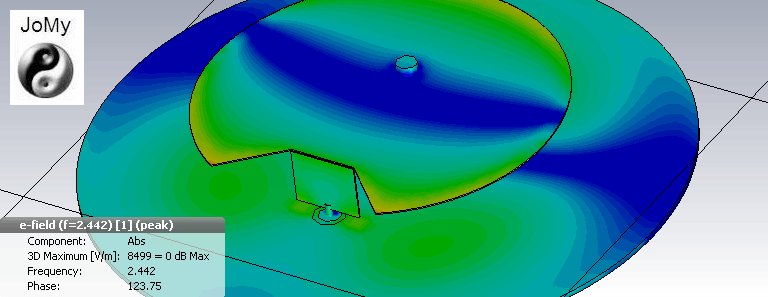

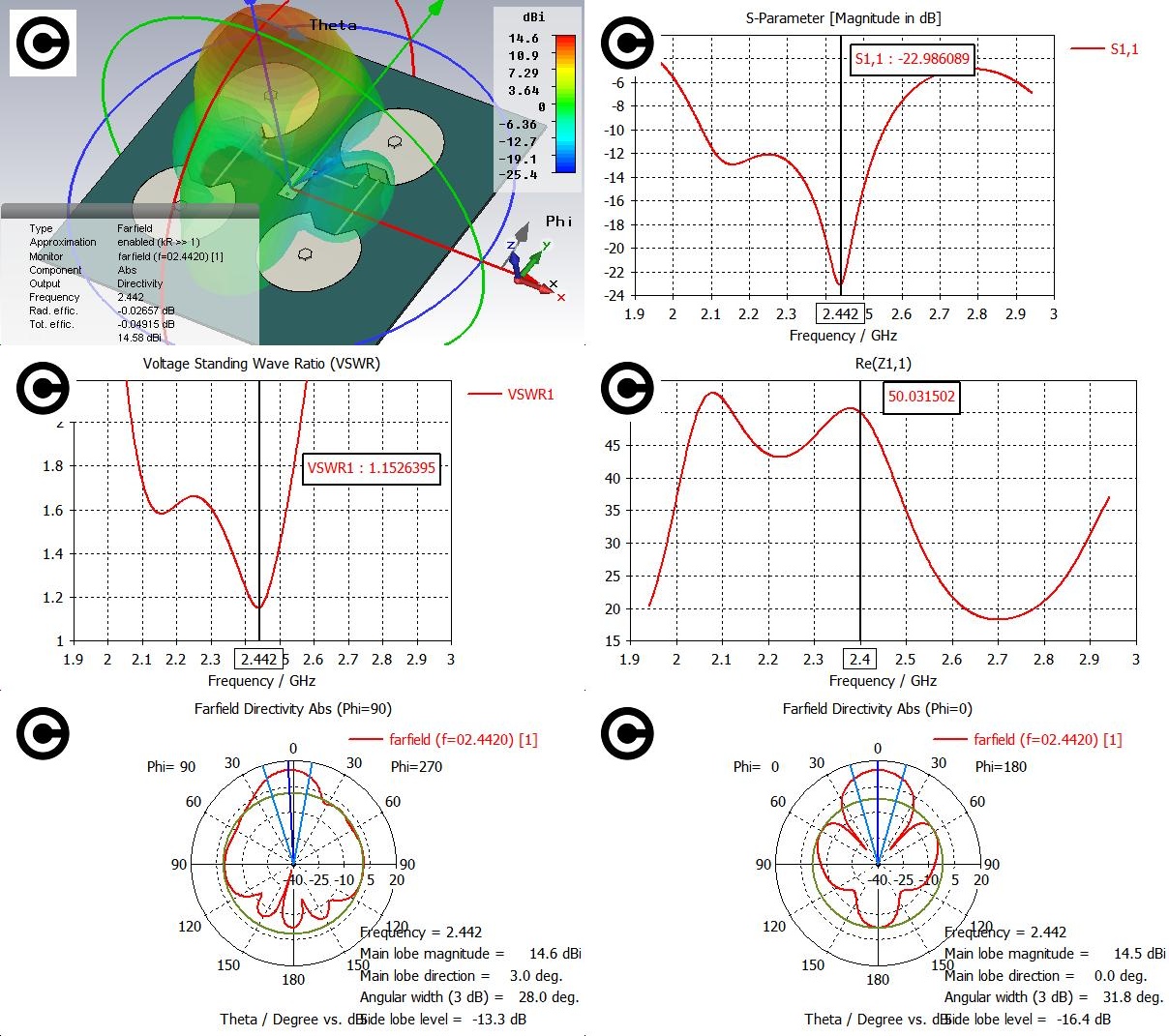

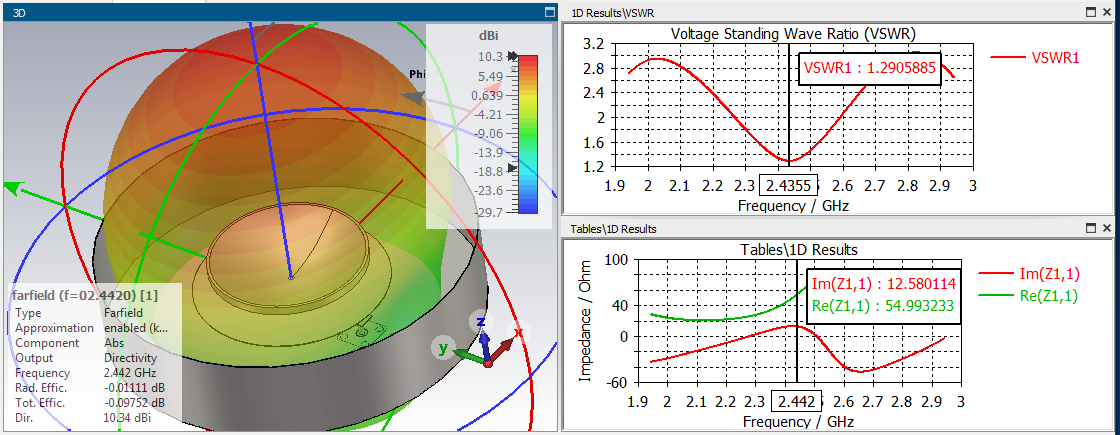

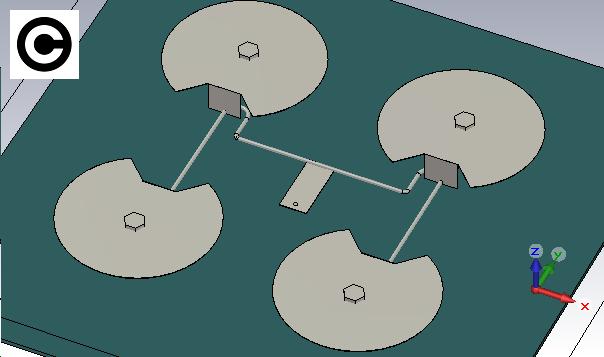

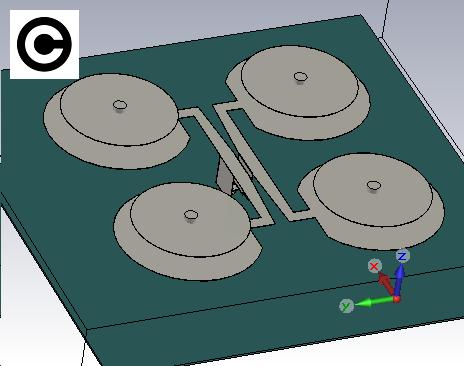

If you like pate, do not throw the covers, are good, to manufacture circular antenna patches



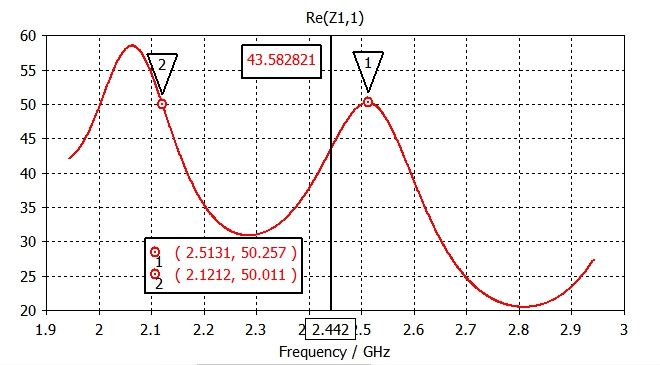

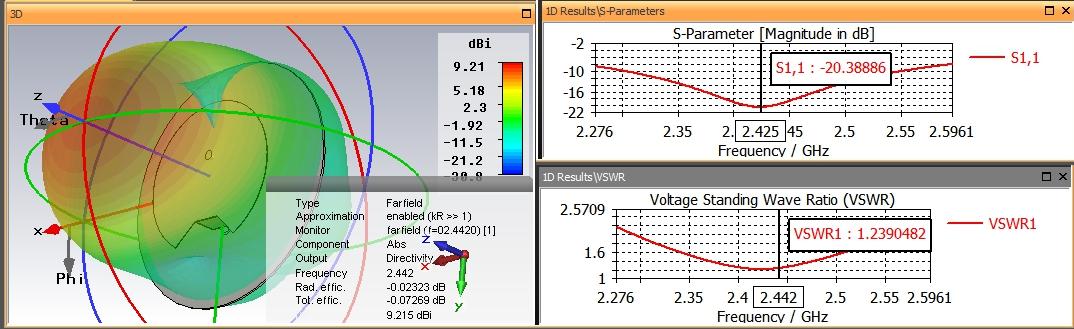

image (1).jpg

image (2).jpg



Share this post


Link to post
Share on other sites

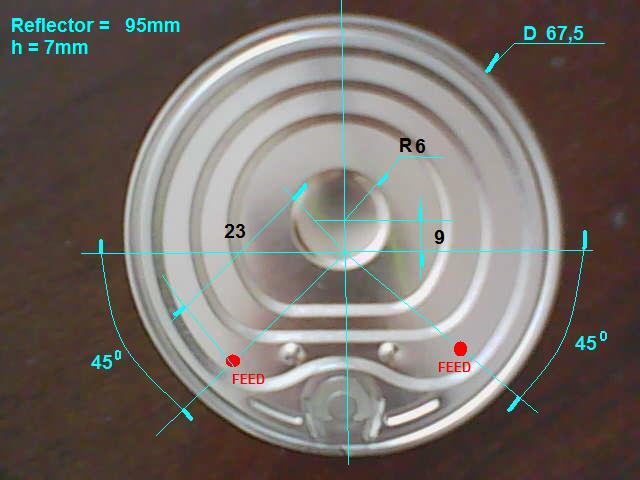

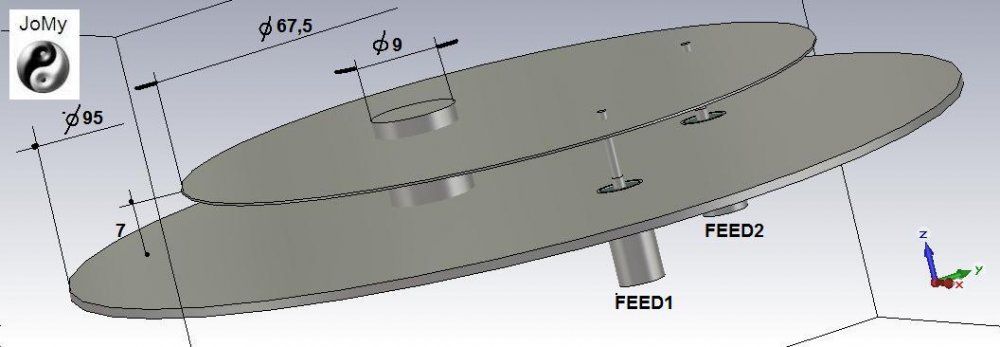

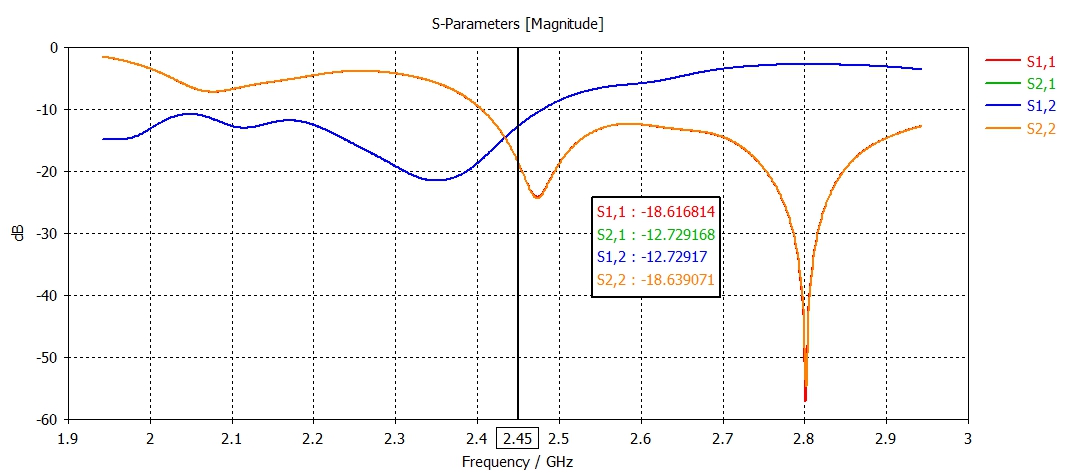

WILL NOT BE EASIER ,MiMo ... !!!



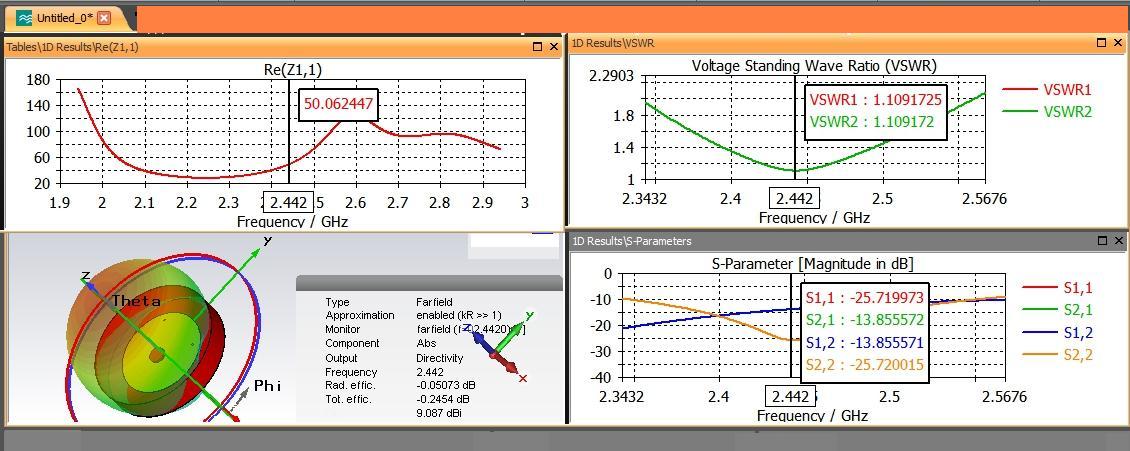

image (1).jpg

image (2).jpg


1 person likes this

Share this post


Link to post
Share on other sites

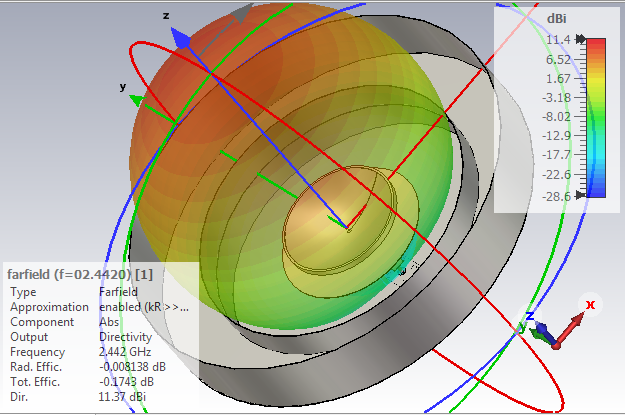

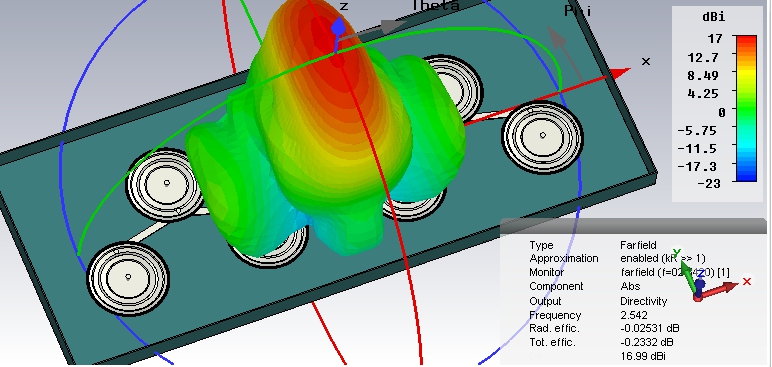

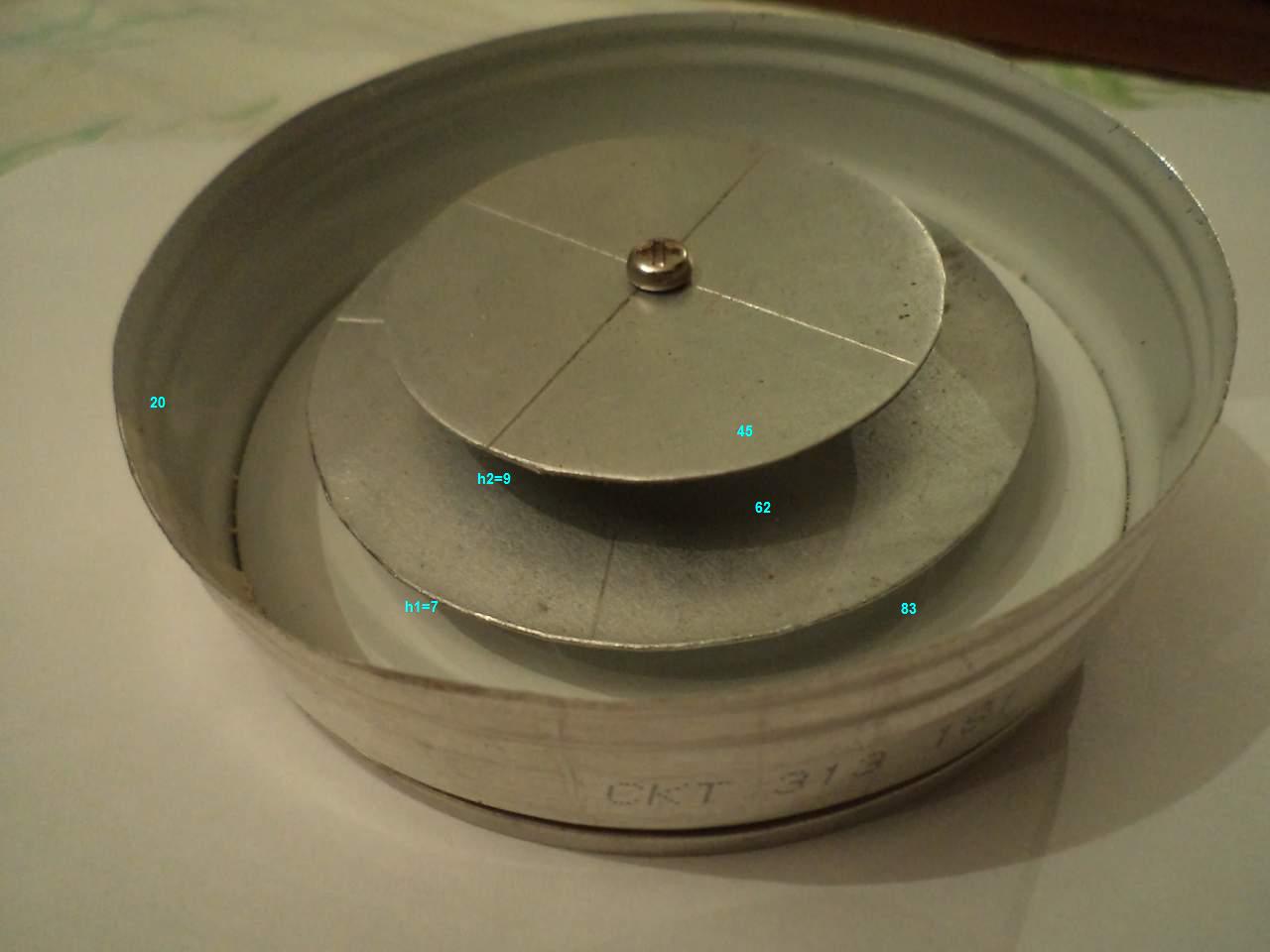

,"and here is a patch-yagi antenna made only from tin cans....







2 people like this

Share this post


Link to post
Share on other sites

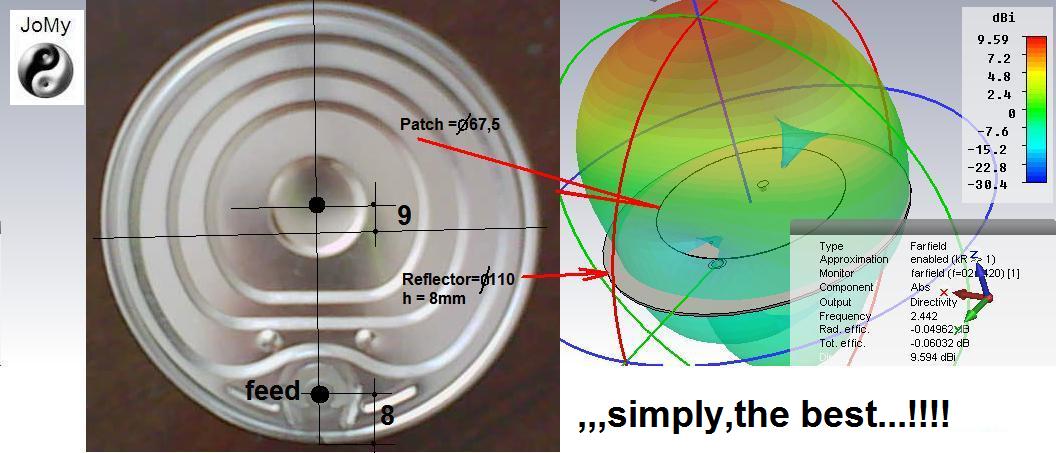

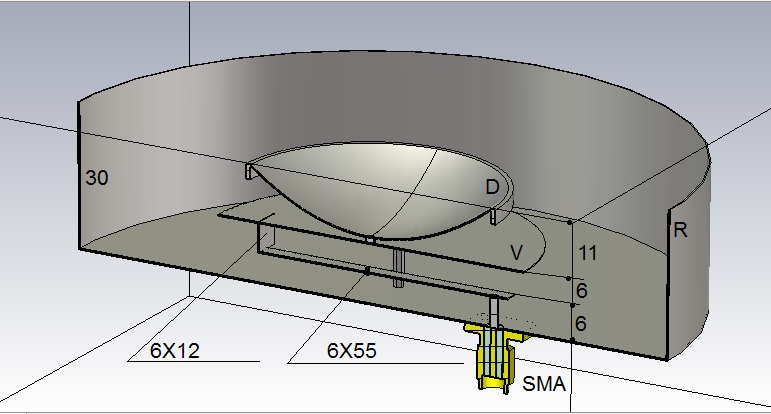

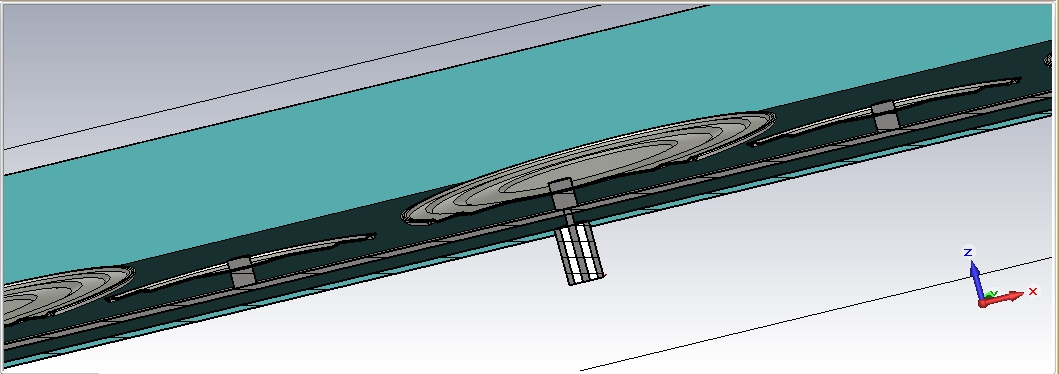

,,,a simpler method by using a winged reflector...


1 person likes this

Share this post


Link to post
Share on other sites

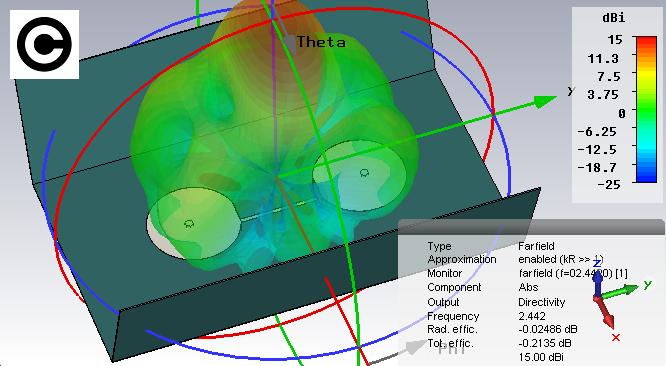

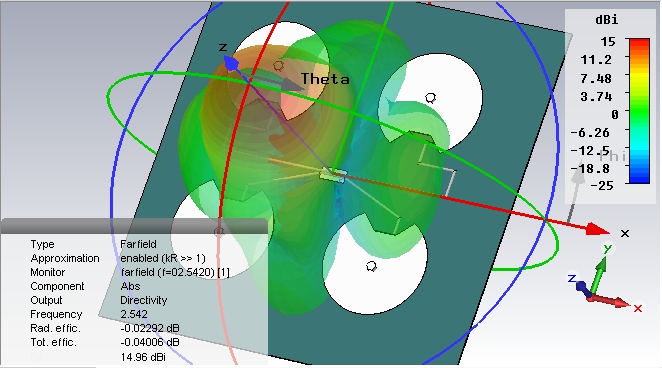

,,, another form of patches feeding...





Share this post


Link to post
Share on other sites

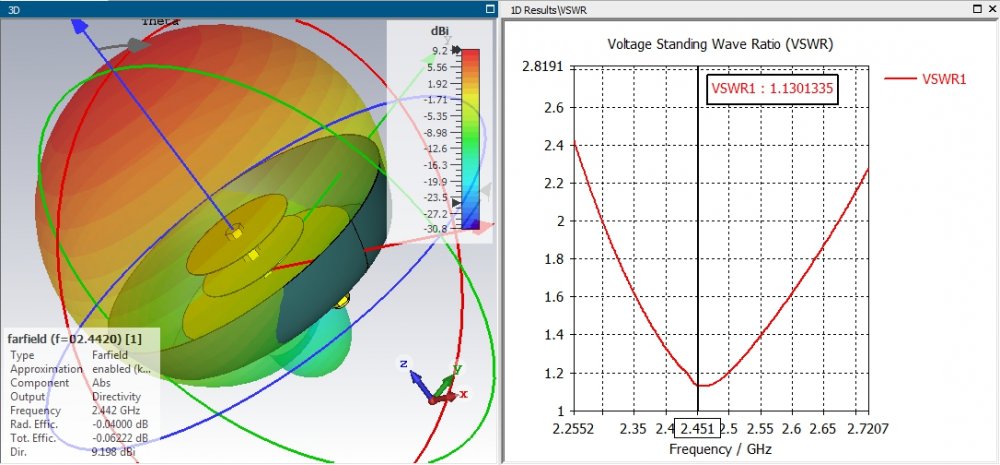

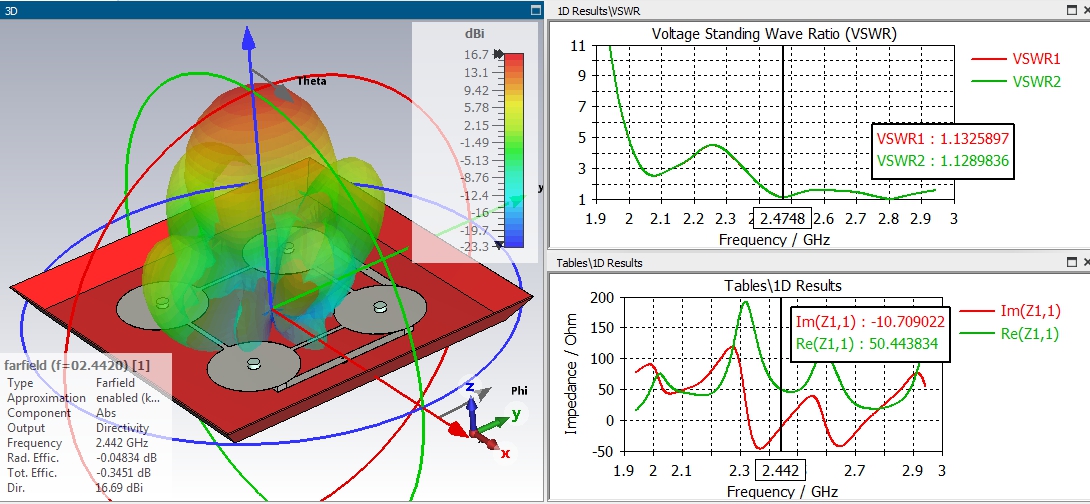

 A simpler solution for getting a wide band panel antenna is this ...

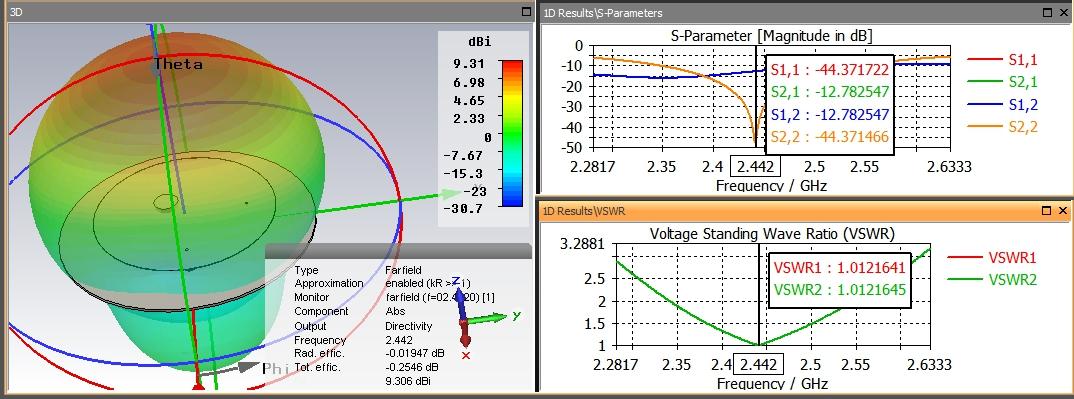

With some very good results...




Share this post


Link to post
Share on other sites

"Yes, of course, these lids of liver pudding boxes are formidable.....!!!!

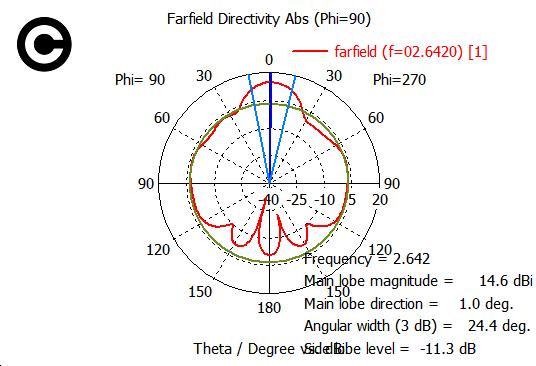

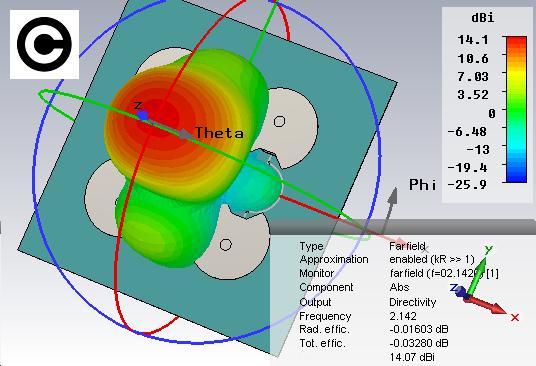

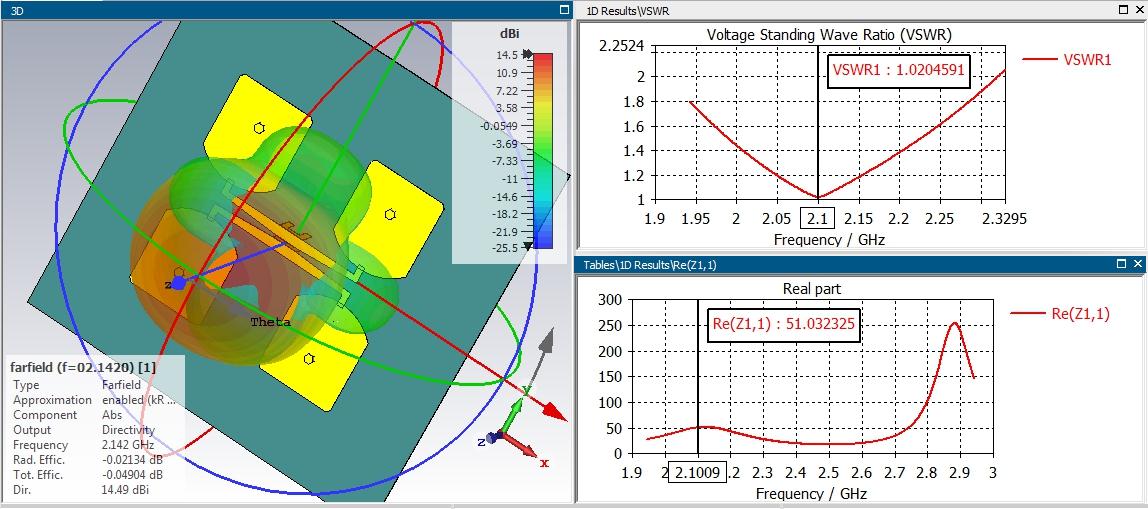

Powerful 3G and 4G  panel antenna for receiving the weak of the Internet on a smartphone

Thanks shown to the idea now you can build your own simple, but extremely powerful antenna for its size, which can stably make a weak Internet signals 3G and 4G on your mobile phone or tablet. This panel is workable even when the other antenna is inefficient.















Share this post


Link to post
Share on other sites

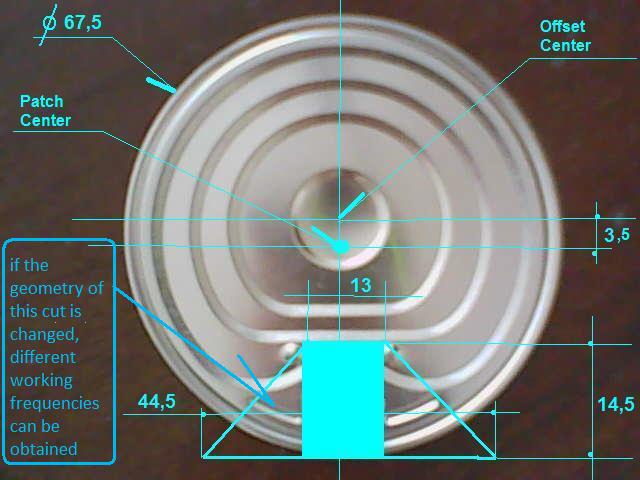

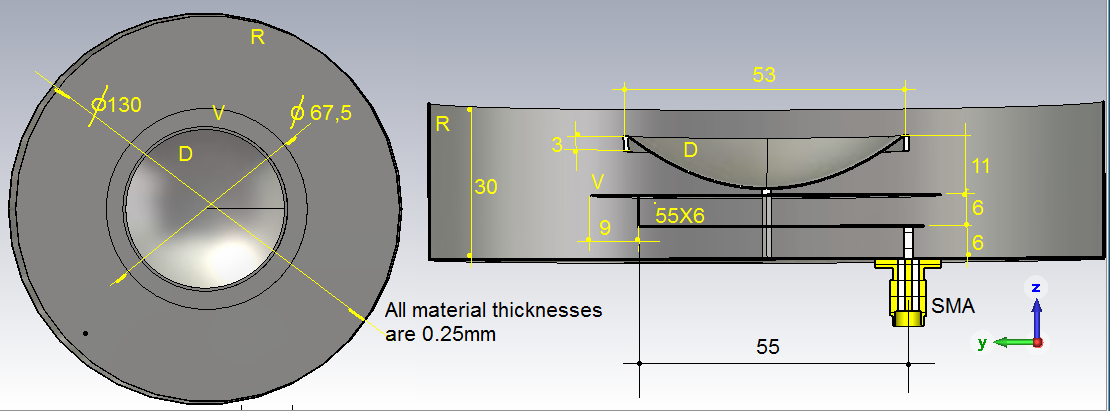

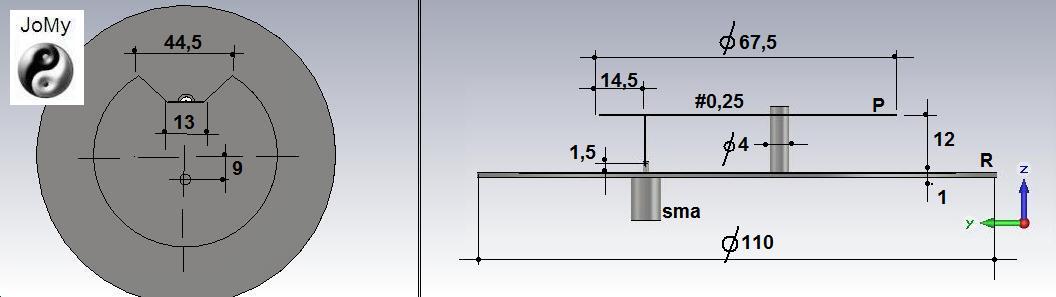

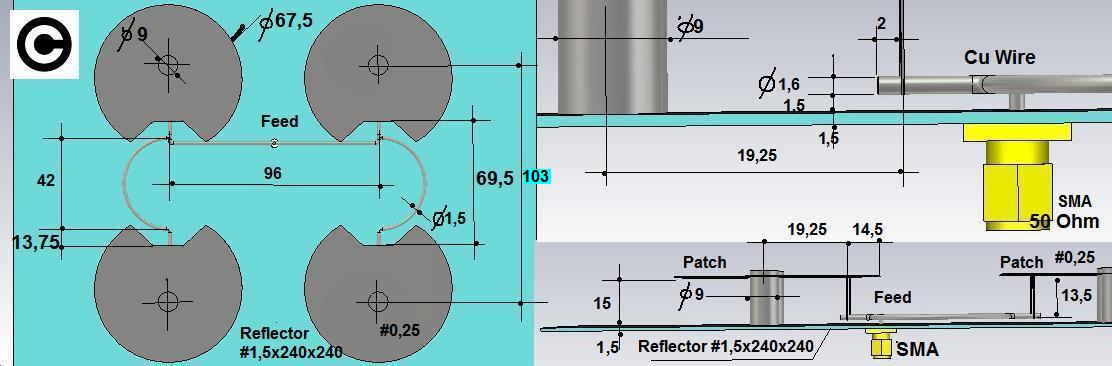

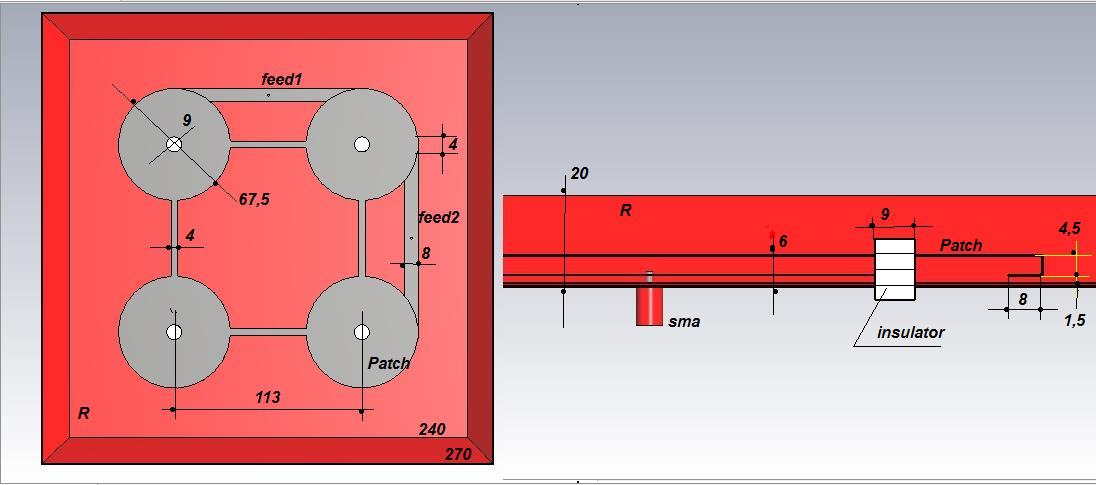

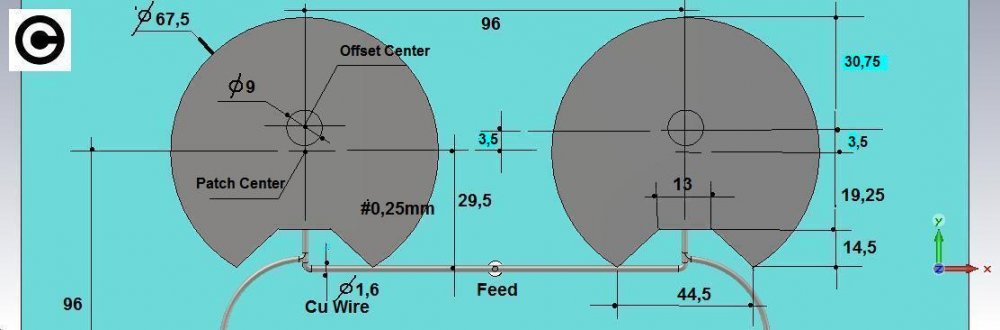

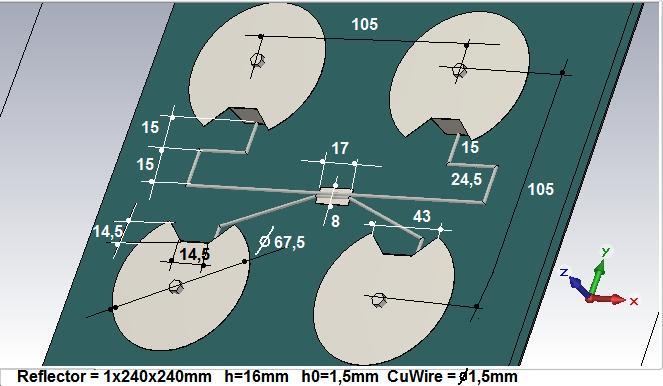

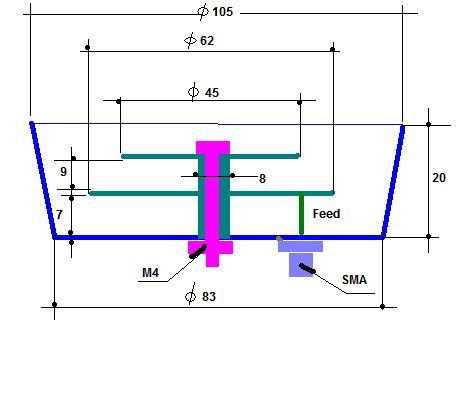

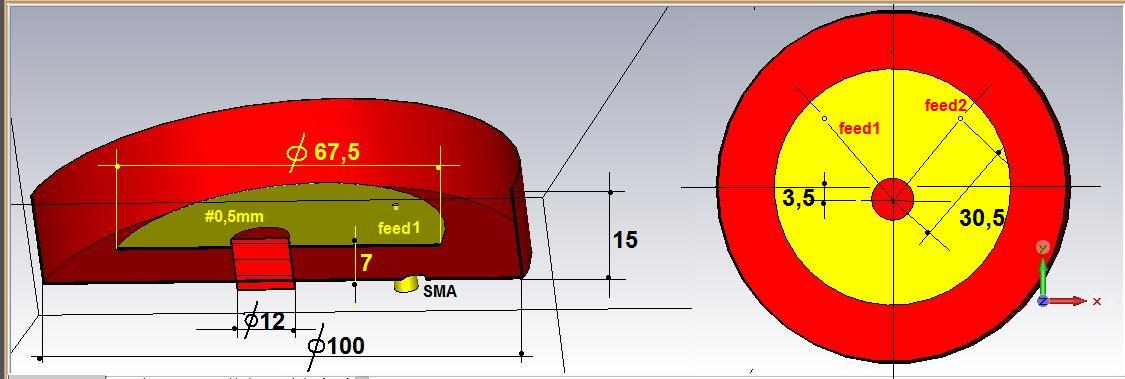

,,, for those interested, I present below the constructive dimensions of this antenna panel...

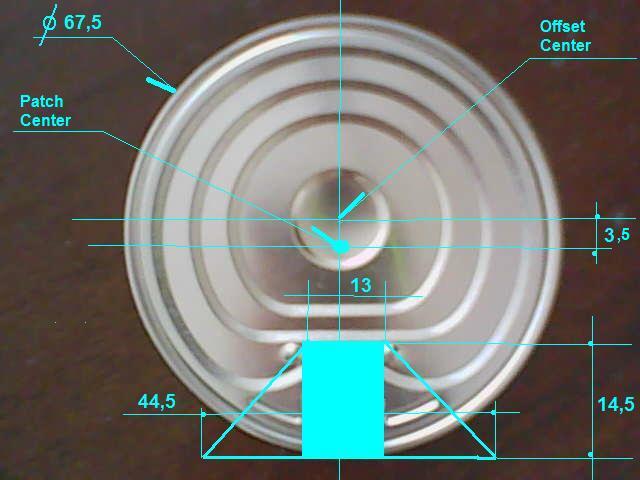

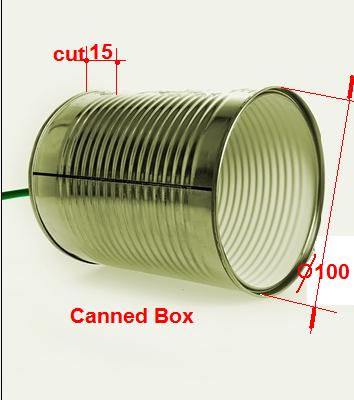

,,,that's how a box cover is cut out...


1 person likes this

Share this post


Link to post
Share on other sites

Another "adventure" with these liver pate caps ... !!!!

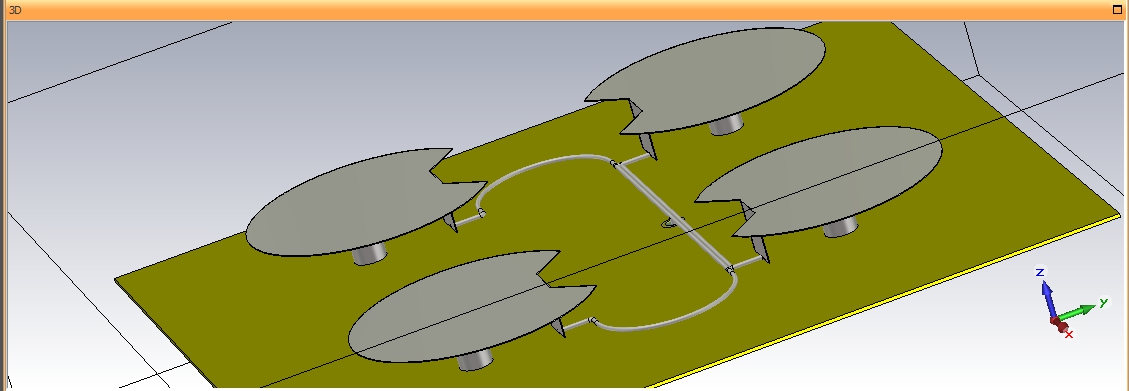

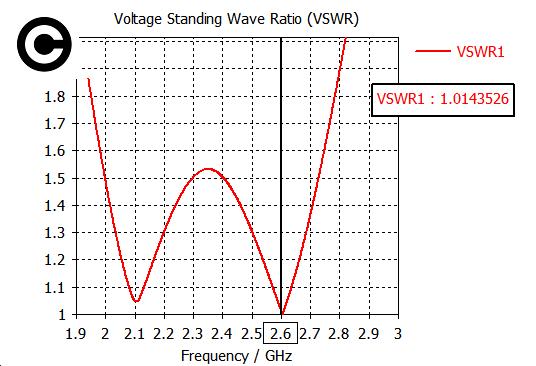

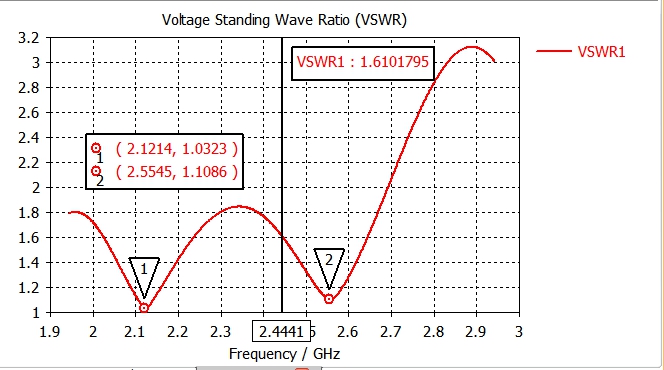

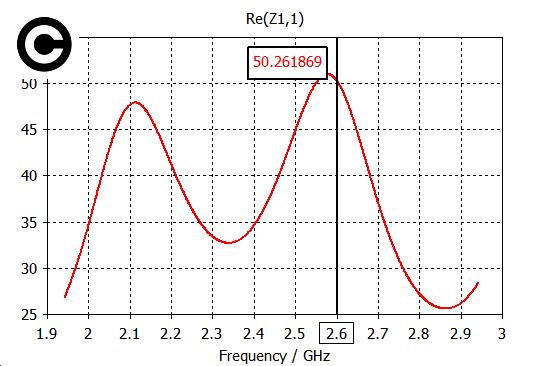

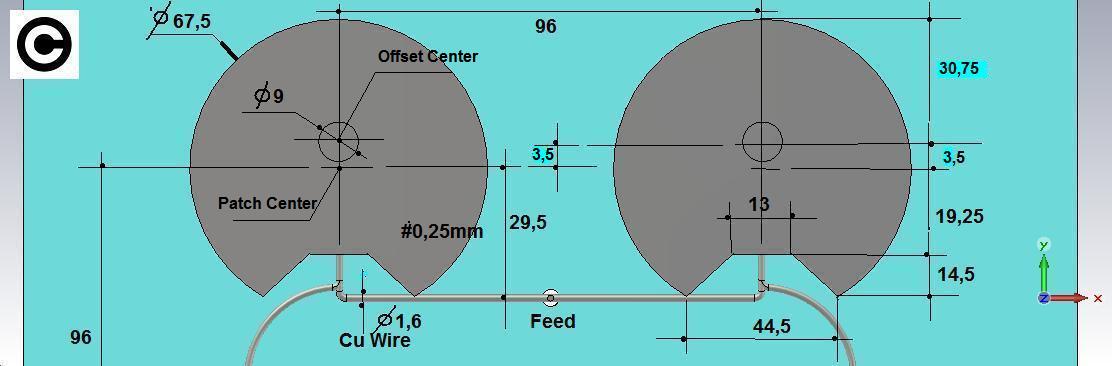

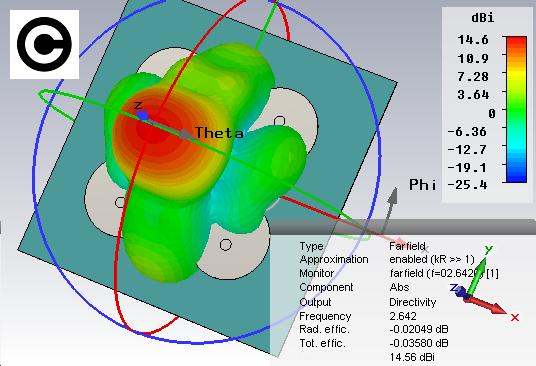

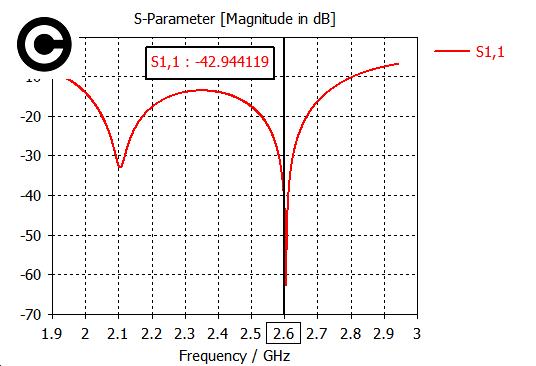

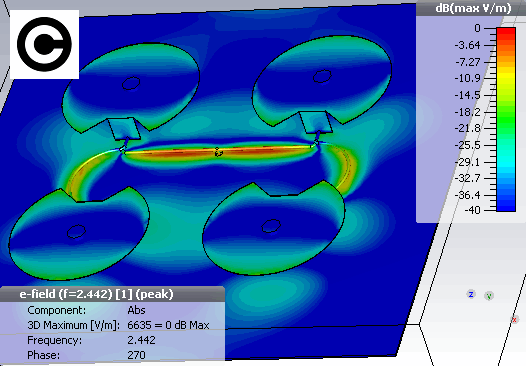

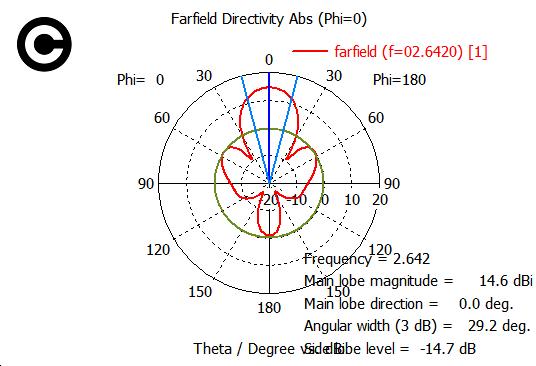

,,, it"s a panel antenna having a double frequency band (3G + 4G)





1 person likes this

Share this post


Link to post
Share on other sites
