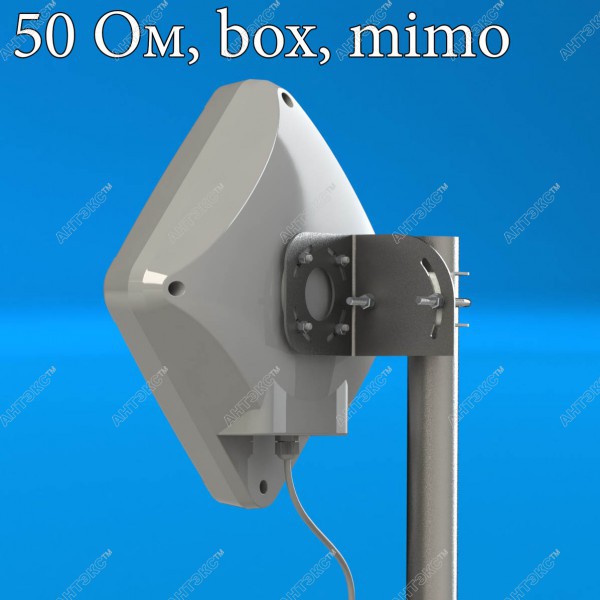

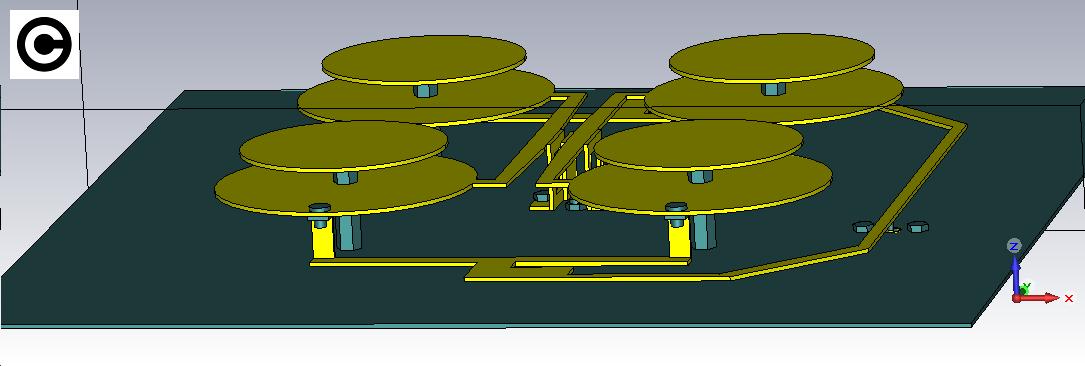

PETRA BB UniBox MIMO 2x2 antenna with thermoboxes for 3G/4G modem.

50 posts in this topic

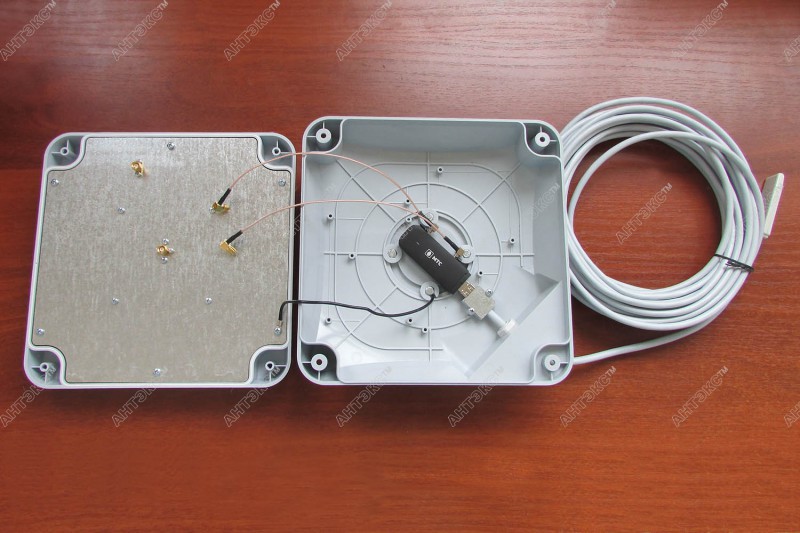

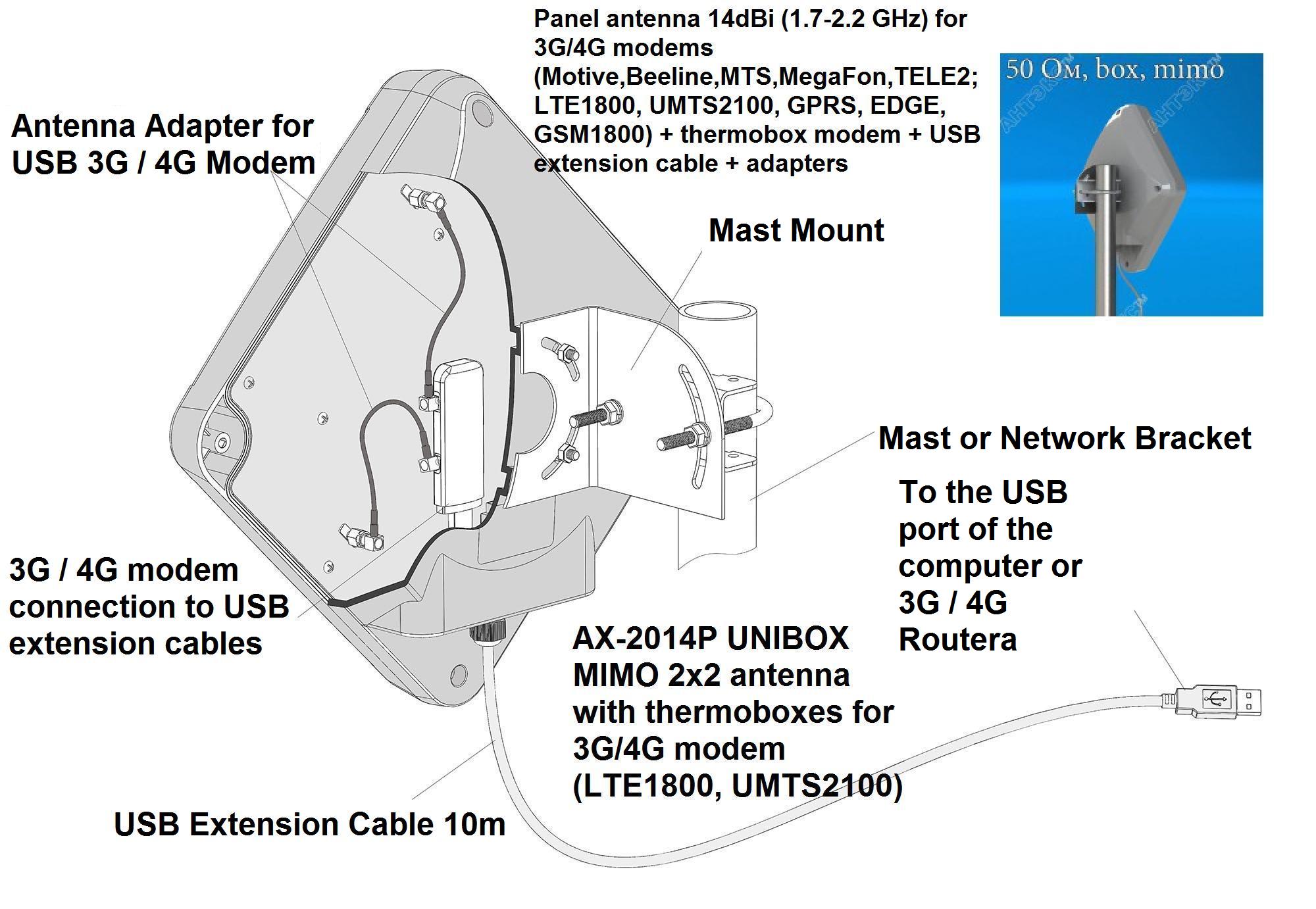

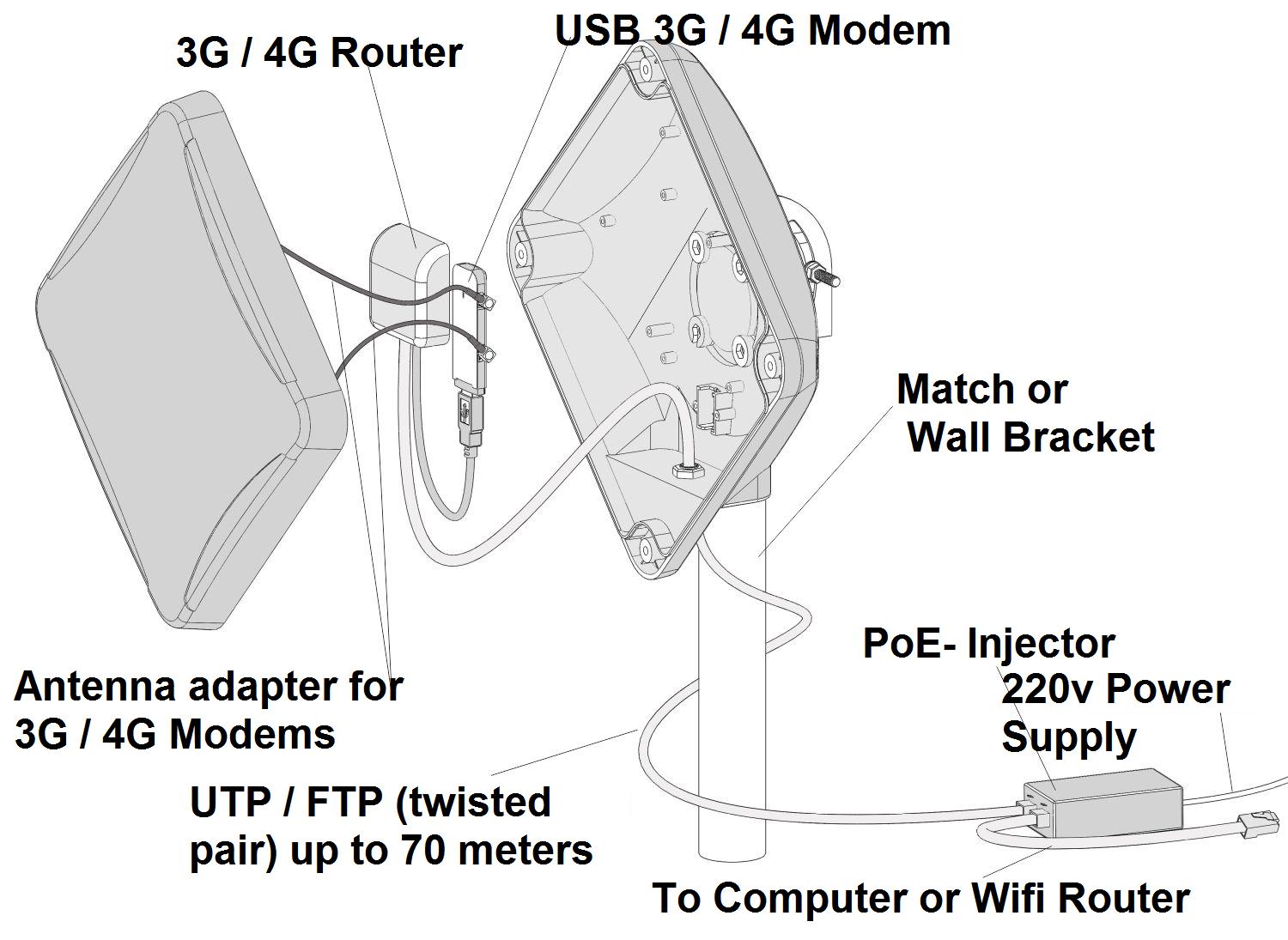

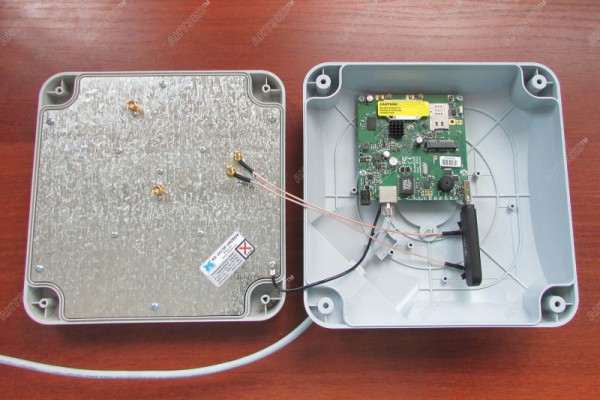

PETRA BB MIMO 2x2 UniBox is an antenna combined with a large sealed box (UniBox) which you can put any 3G/4G modem and even router. The antenna is provided with connectors - SMA-male. Included are two adapters to connect 3G/4G modems (the type of adapters to choose). The connection of modem to PC or router located in the room is via a USB extension cable. System UniBox - protects the modem from adverse weather conditions!



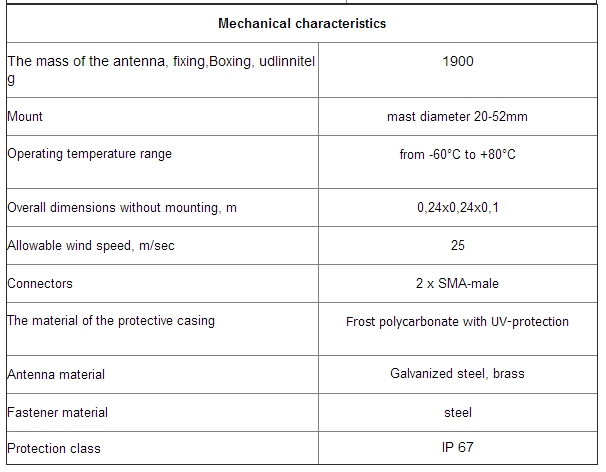

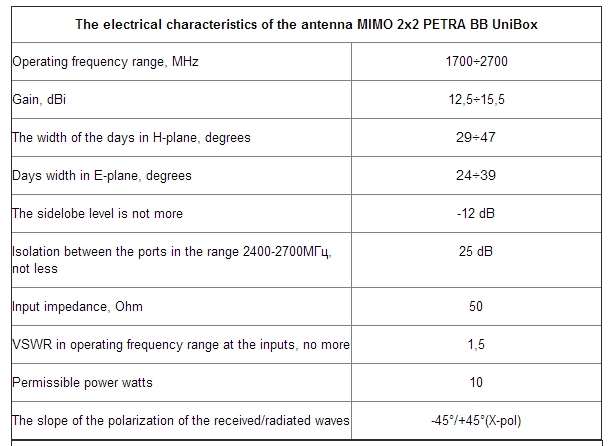

Advantages:

Universal antenna with excellent gain and operating in all high-speed standards
Reliable fastening of the modem in the box
Quality connectors for connection of modem and antenna
Quality adapters with minimal losses
Hermetically sealed
Hardy and ultrafiol case material
The possibility of repeated Assembly and disassembly of the box
All set to launch the modem

























1 person likes this

Share this post


Link to post
Share on other sites

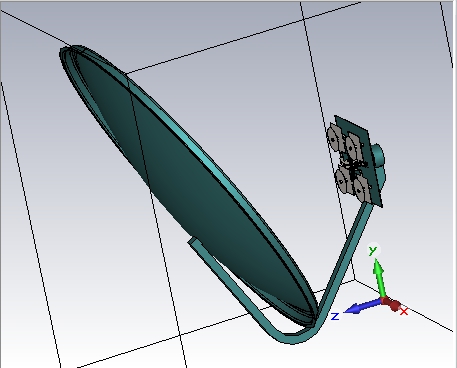

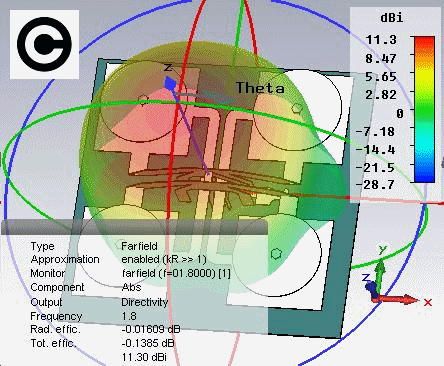

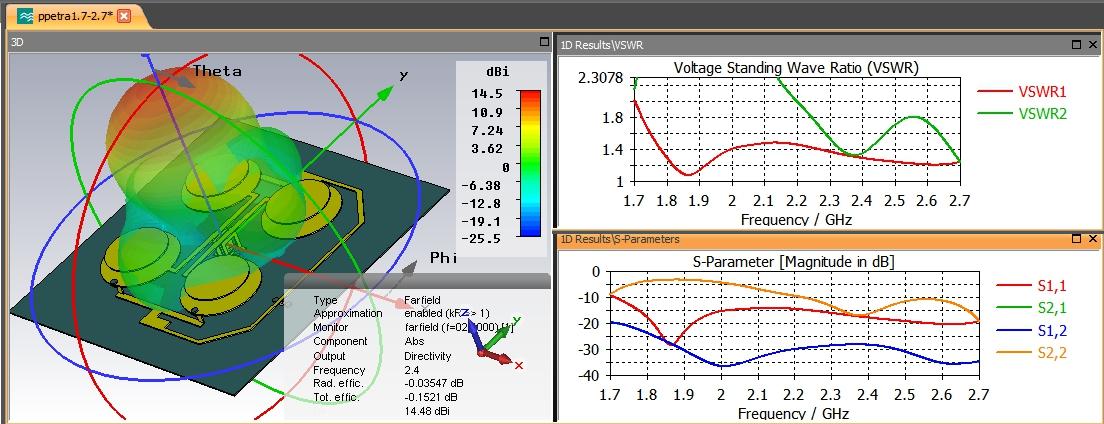

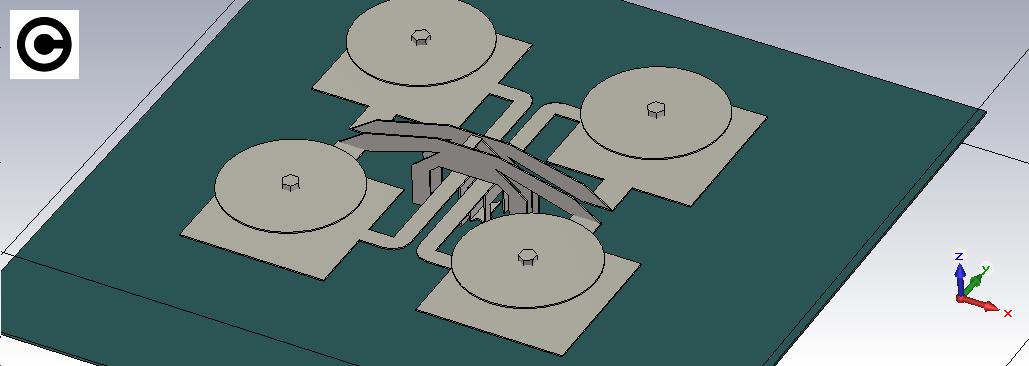

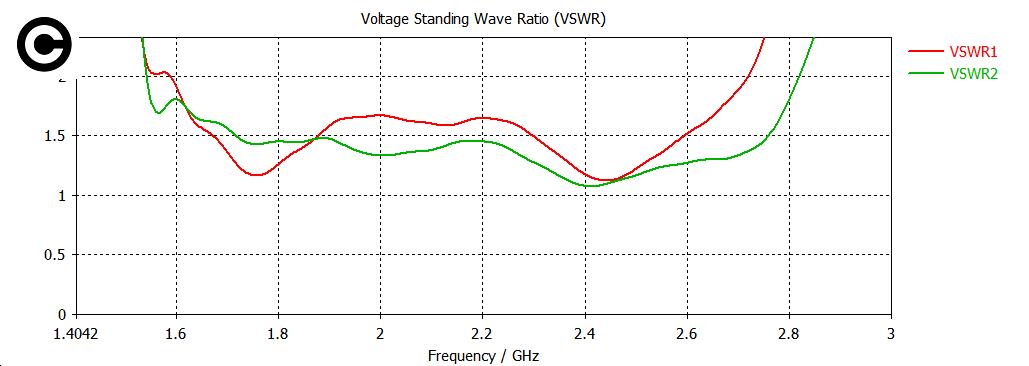

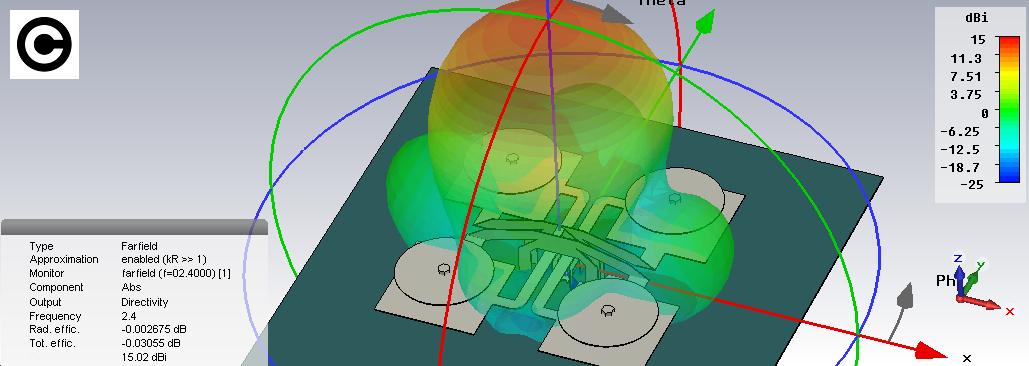

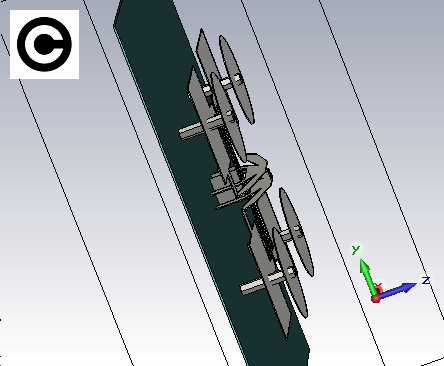

,,,an earlier version of antenna simulation with CST Studio...











5 people like this

Share this post


Link to post
Share on other sites

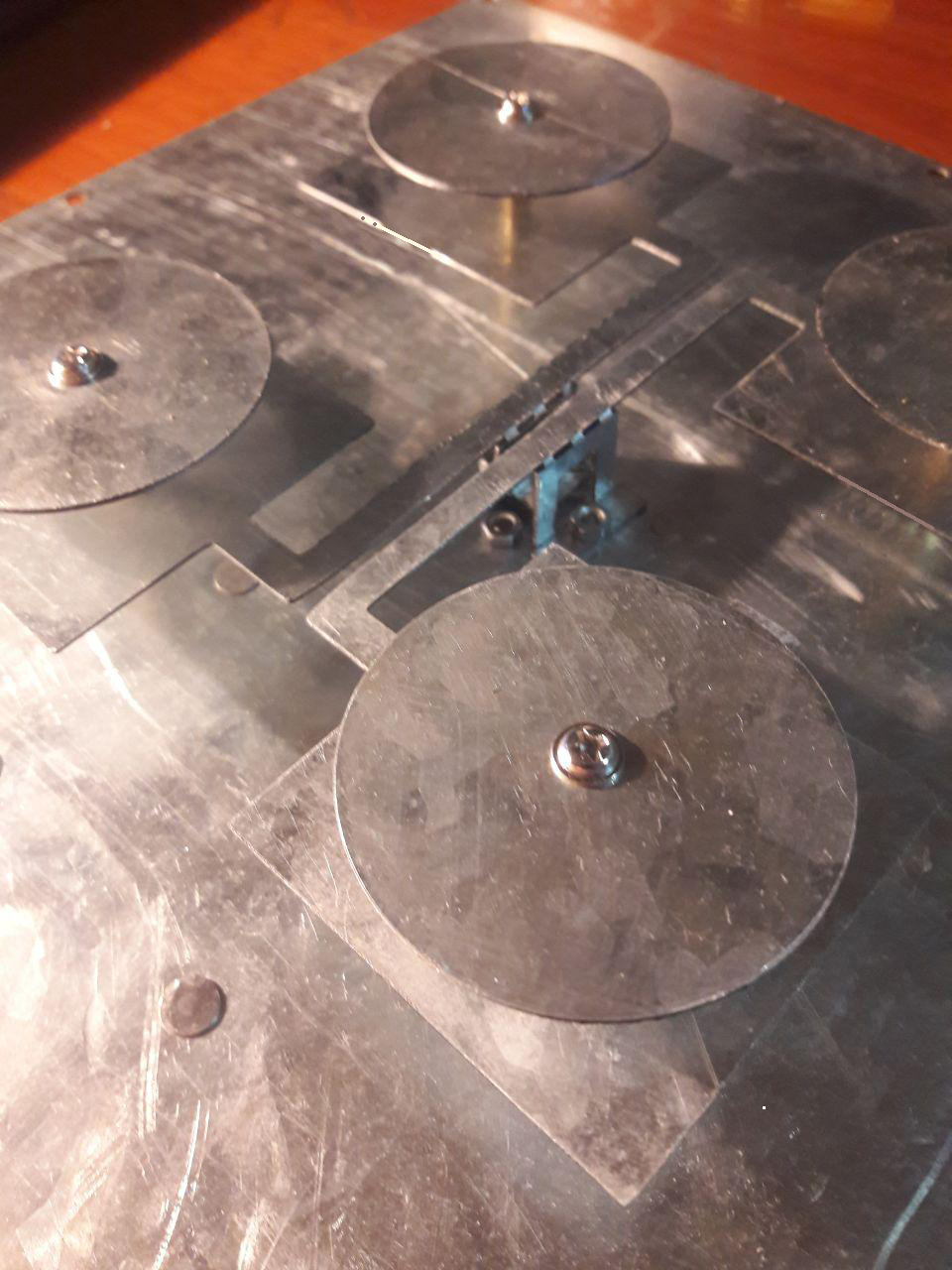

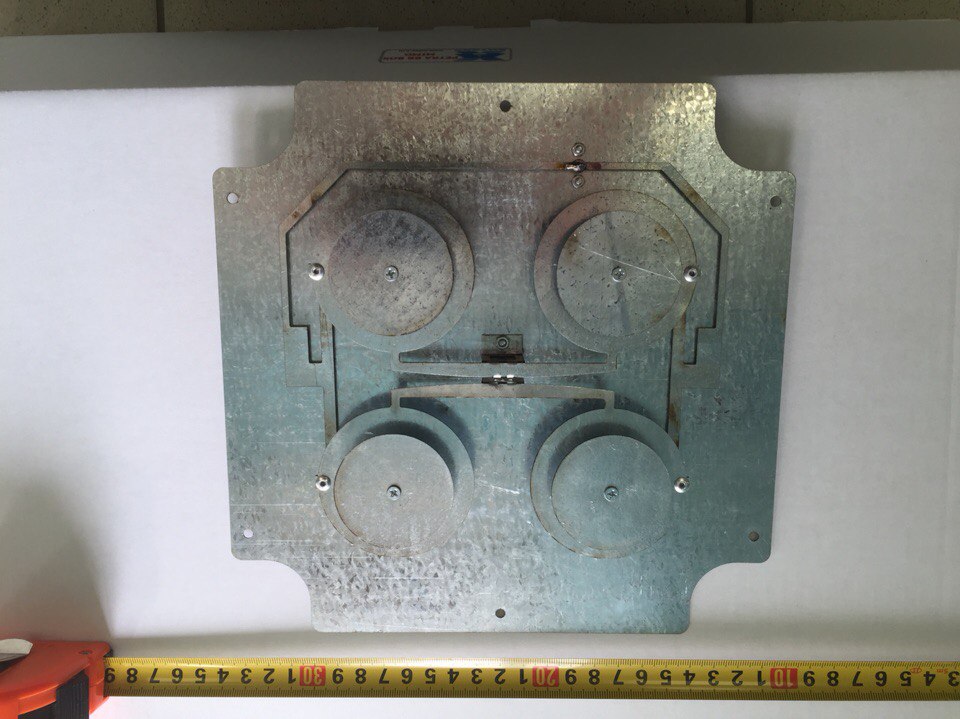

Galvanized sheet 0,3-0,4mm

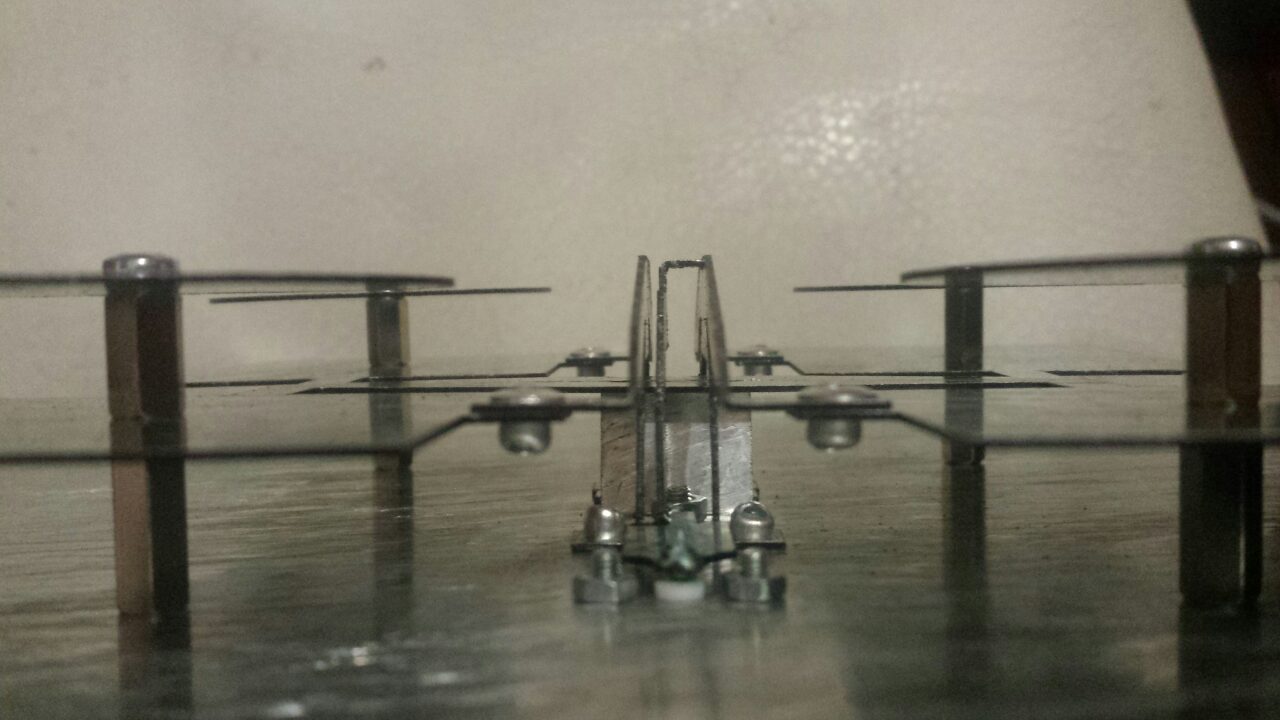

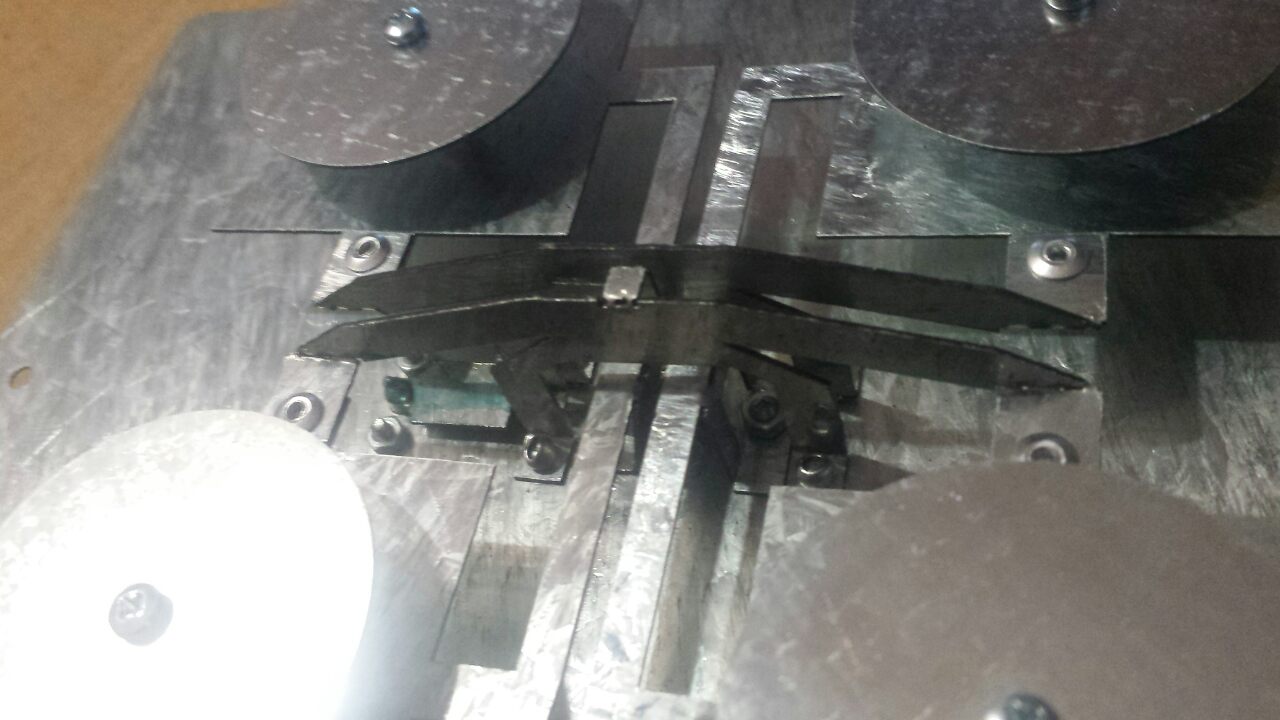

Another kind of power supply via coaxial cable

Version of REMO.


1 person likes this

Share this post


Link to post
Share on other sites
1 hour ago, chilanzar2 said:

The last photo - the antenna works like 3G?

Yes, approximate

Share this post


Link to post
Share on other sites

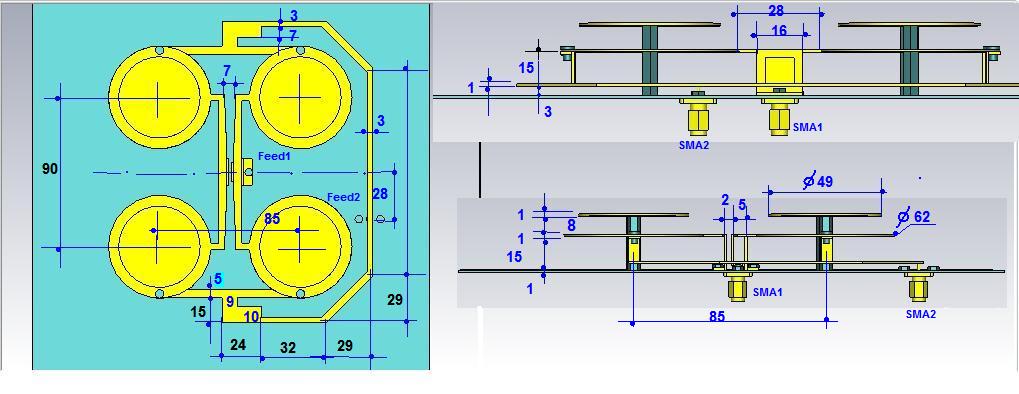

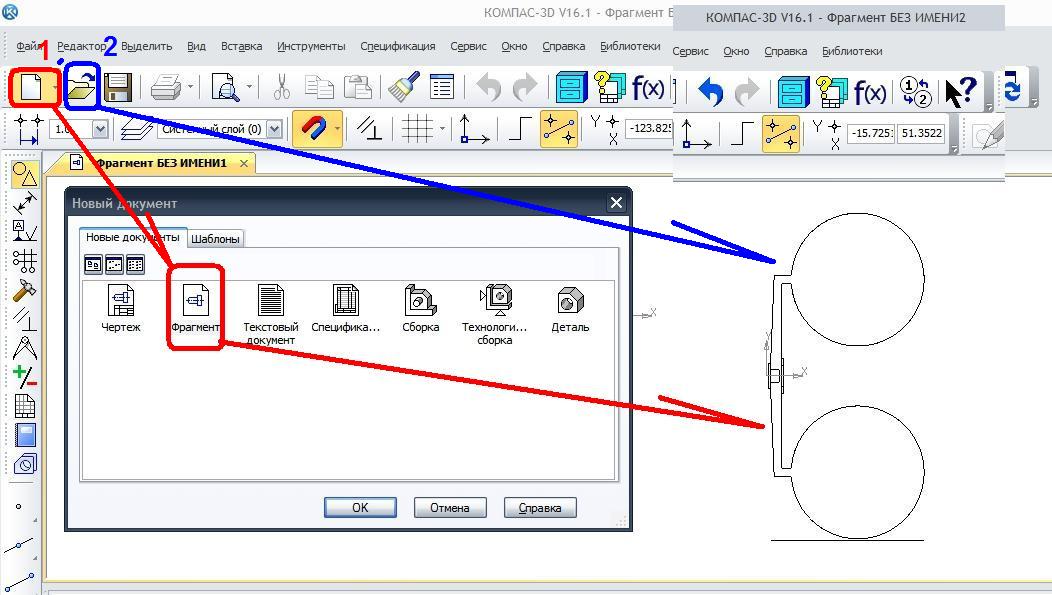

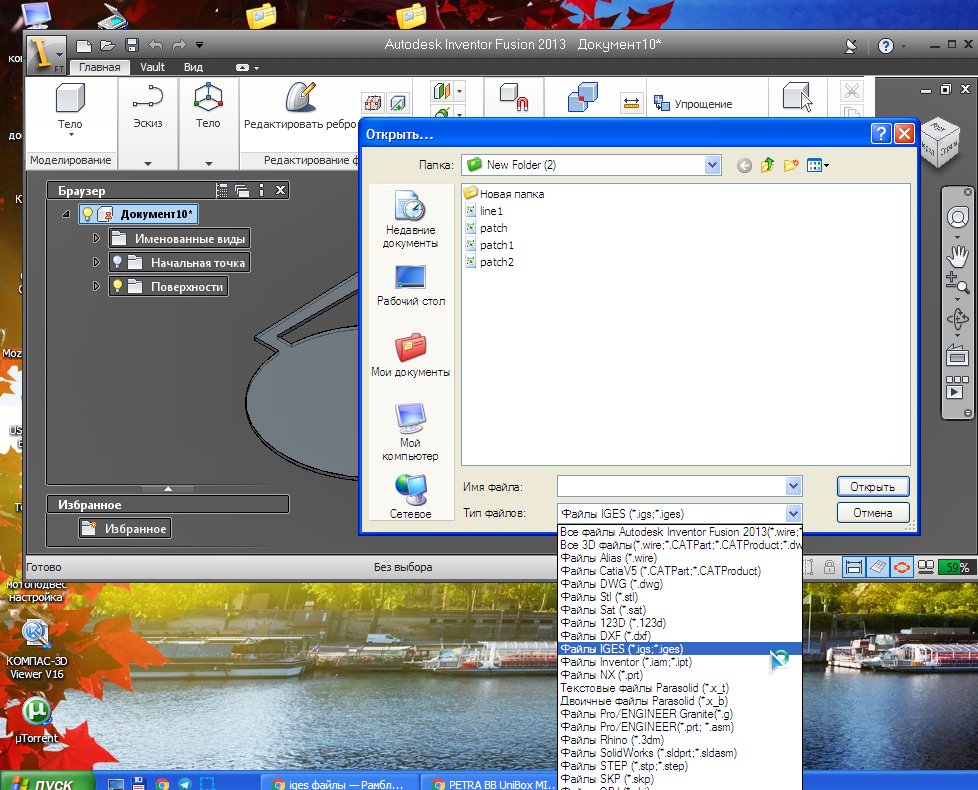

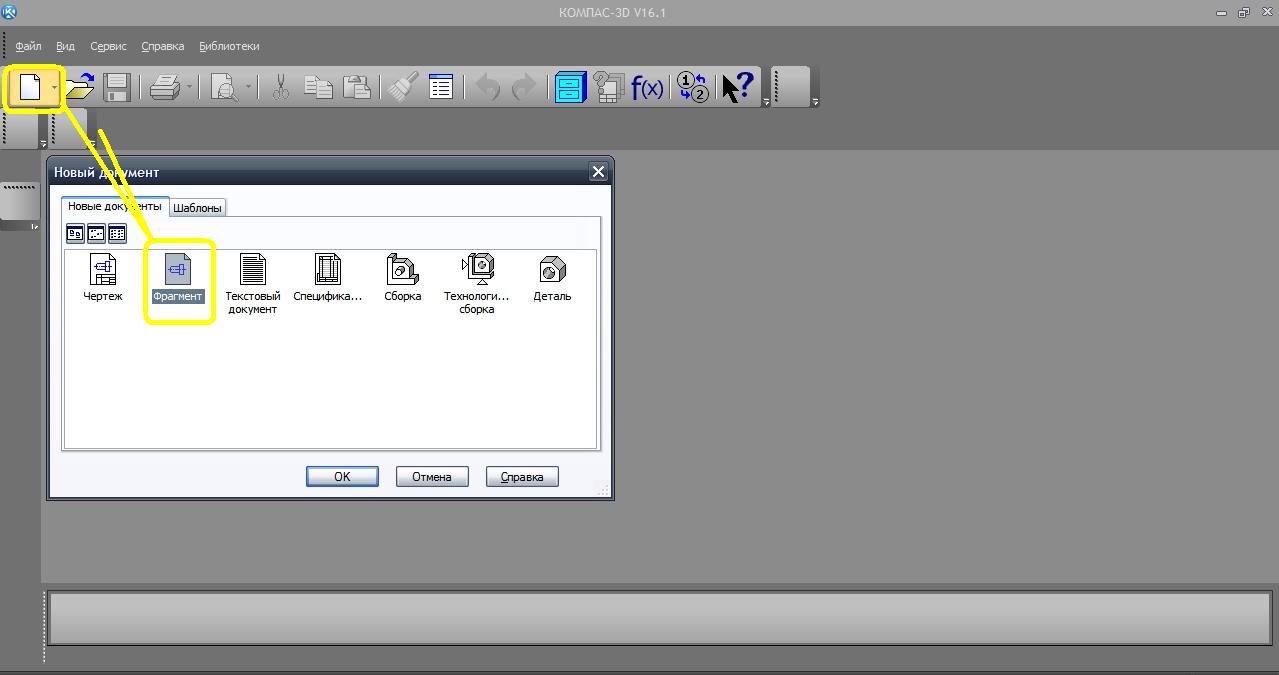

Does not open my compass this file

 Бляха-муха, его мать такую

Share this post


Link to post
Share on other sites

Jomy, With other files can not be opened? I'll learn to open this igis. Then the laser operator will not understand this. They say, remake our format - dxf and others.

Edited by chilanzar2

Share this post


Link to post
Share on other sites

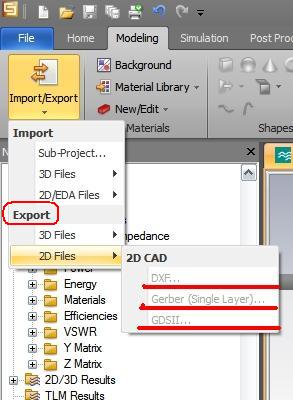

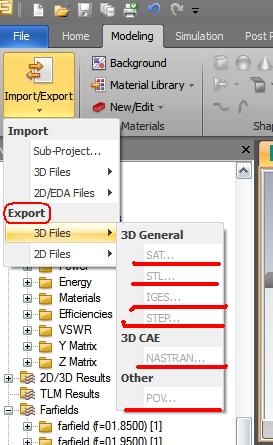

I can export only this files....



Share this post


Link to post
Share on other sites

For the first time in my life I encounter these files and programs. I think my life is not enough to learn to use them.

Share this post


Link to post
Share on other sites

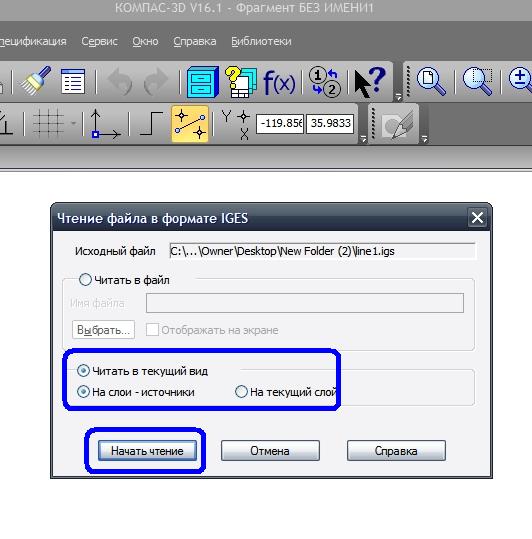

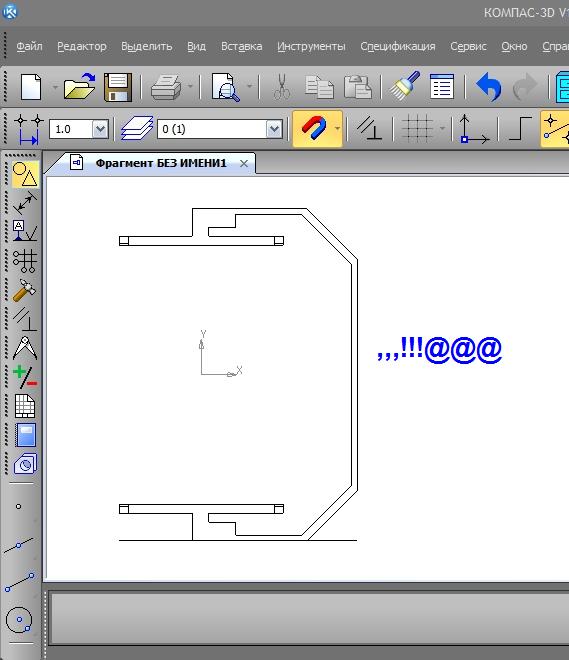

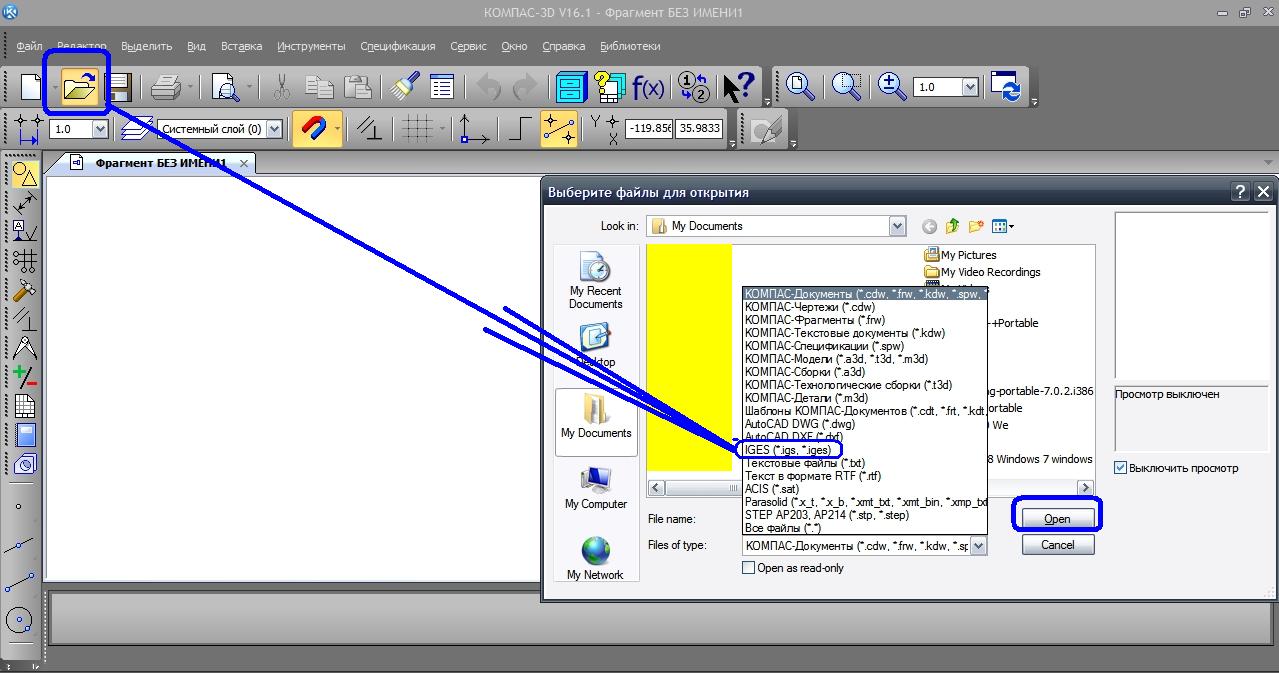

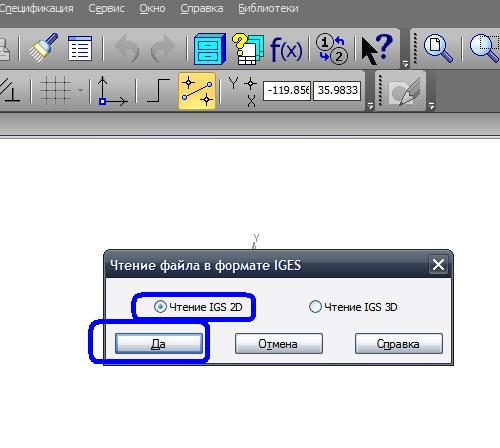

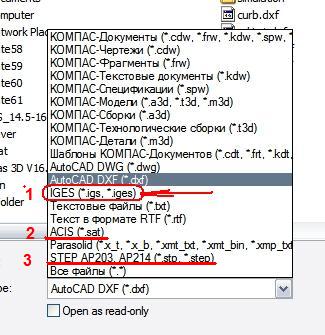

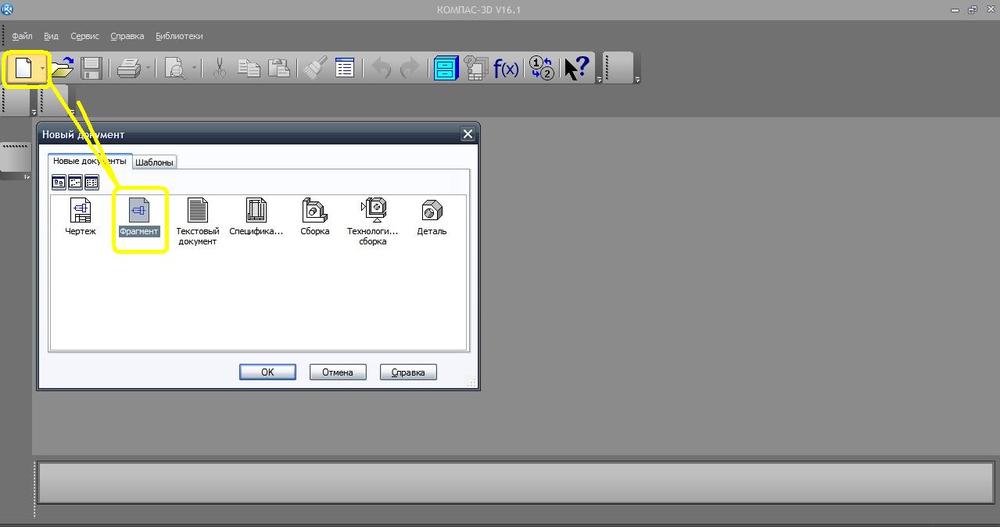

And KOMPAS only accepts these files,,,




Share this post


Link to post
Share on other sites

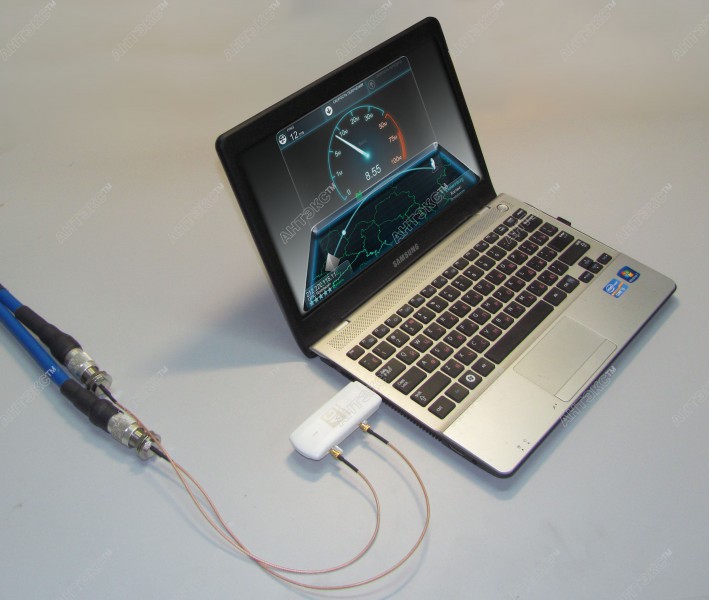

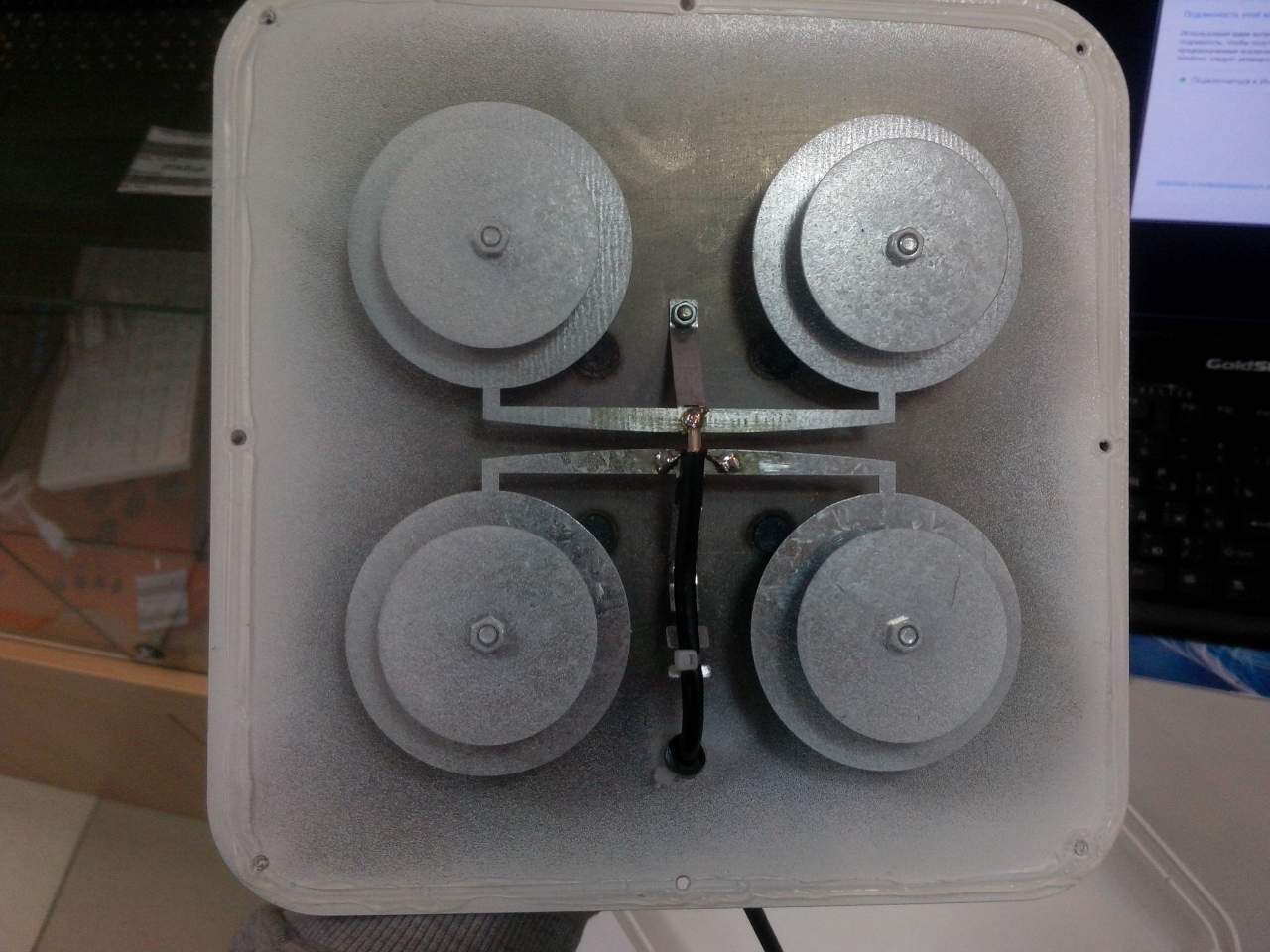

Laptop connection



1 person likes this

Share this post


Link to post
Share on other sites

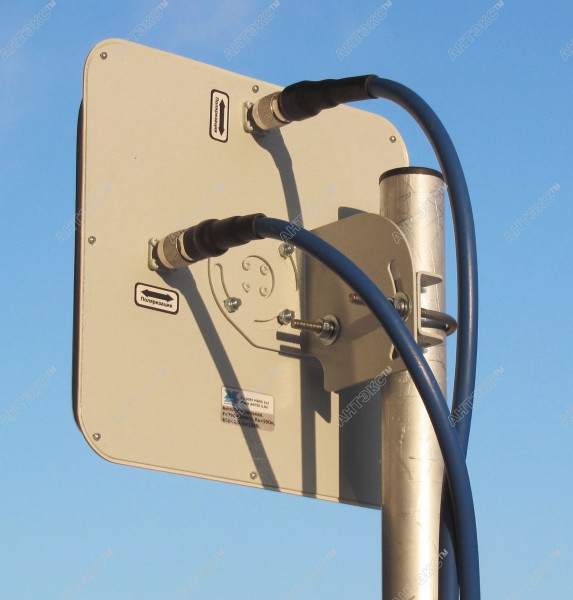

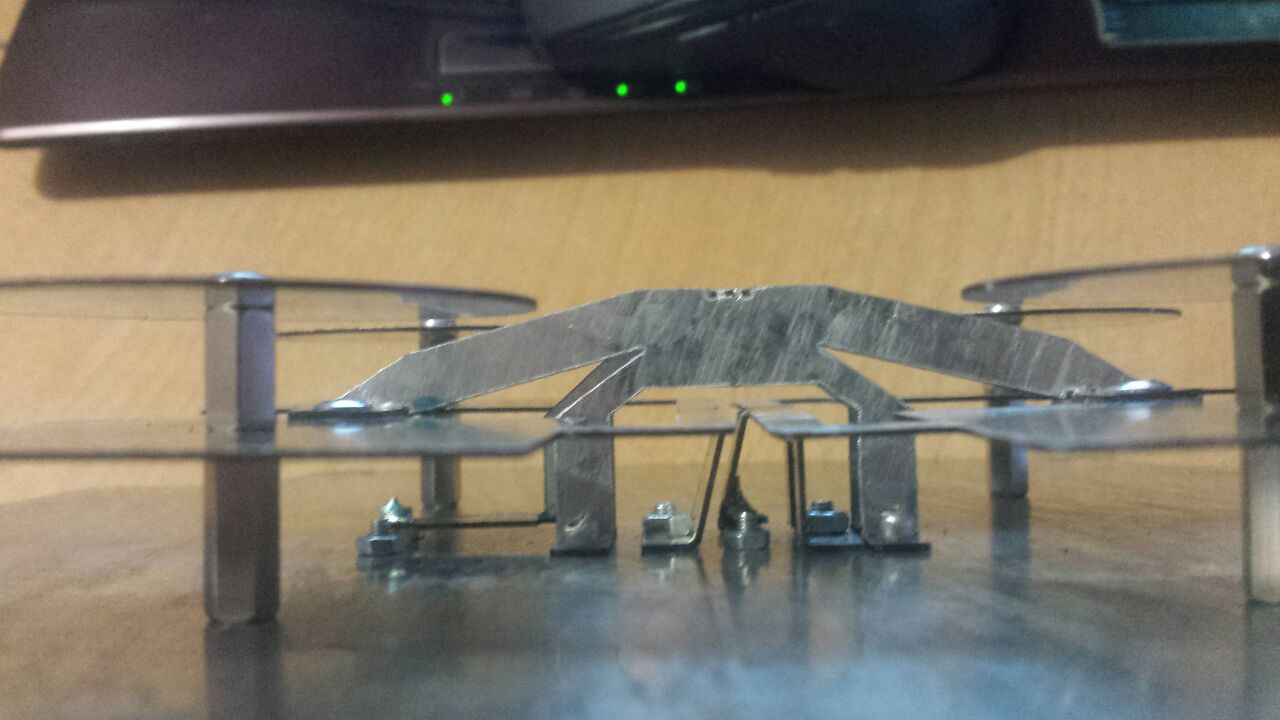

Yes, this is a very good MiMo broadband antenna...









1 person likes this

Share this post


Link to post
Share on other sites

Decreasing the reflector size, this MiMo antenna can fit into an offset parabola,,,,!!!


1 person likes this

Share this post


Link to post
Share on other sites
19 hours ago, Admin said:

Decreasing the reflector size, this MiMo antenna can fit into an offset parabola,,,,!!!


a small gain - frequency 1700-2100 ...11 DB

Share this post


Link to post
Share on other sites

thanks, Jomy! Great project!  I have a good job. But I got a little bit off that antenna. Here is such a dish will work ? Really need broadband, no MIMO


1 person likes this

Share this post


Link to post
Share on other sites

this antenna is what 2400-2500 gain  Wi Fi ?  I need maximum gain at that frequency of .

Share this post


Link to post
Share on other sites

Chil, what is the reflector's size to you...????

Share this post


Link to post
Share on other sites

247mm is big, I think it should be 150 ... 170mm

Share this post


Link to post
Share on other sites
