Antenna for digital TV

35 posts in this topic

Antenna for digital TV is no different from antennas for analog TV. choose from a large Ku.

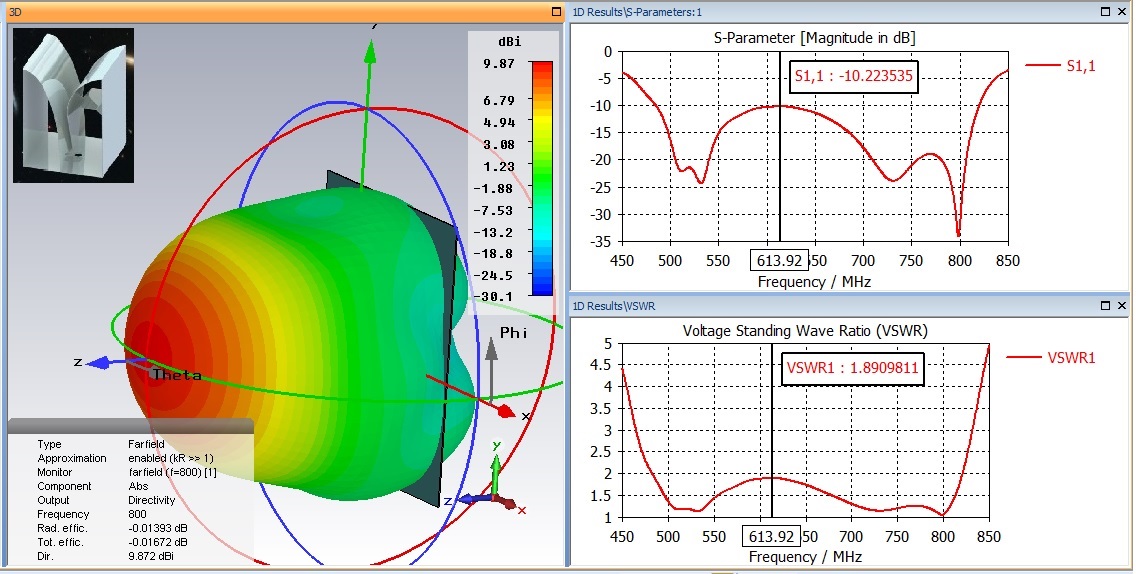

Specify which channels are broadcasting UHF. the antenna should cover the range(500-800MHz).

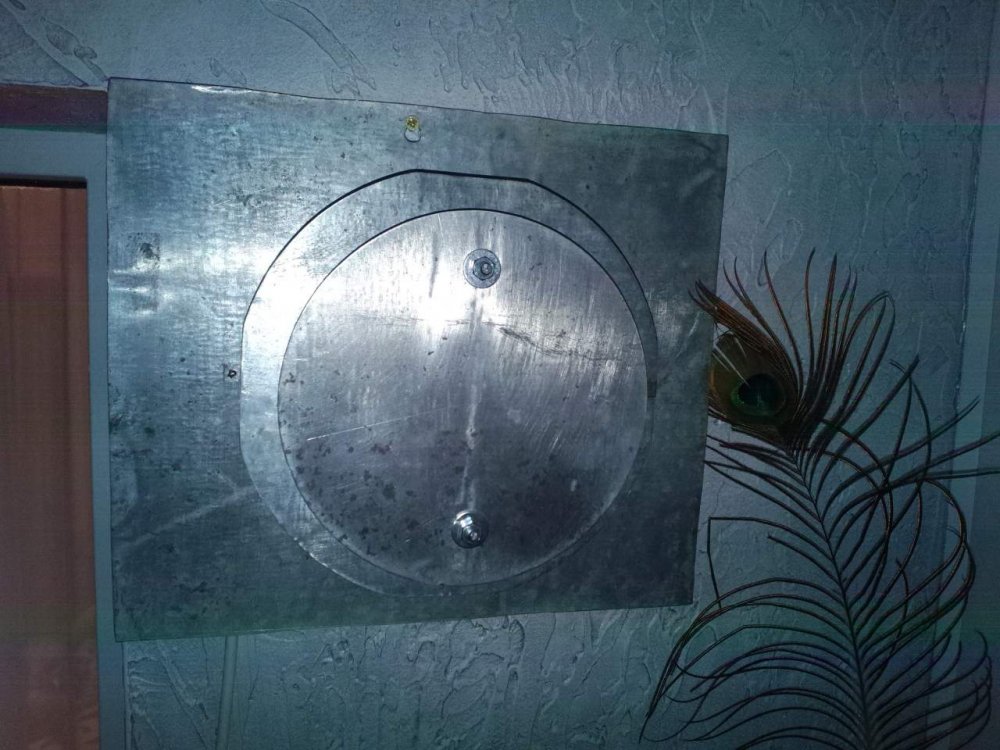

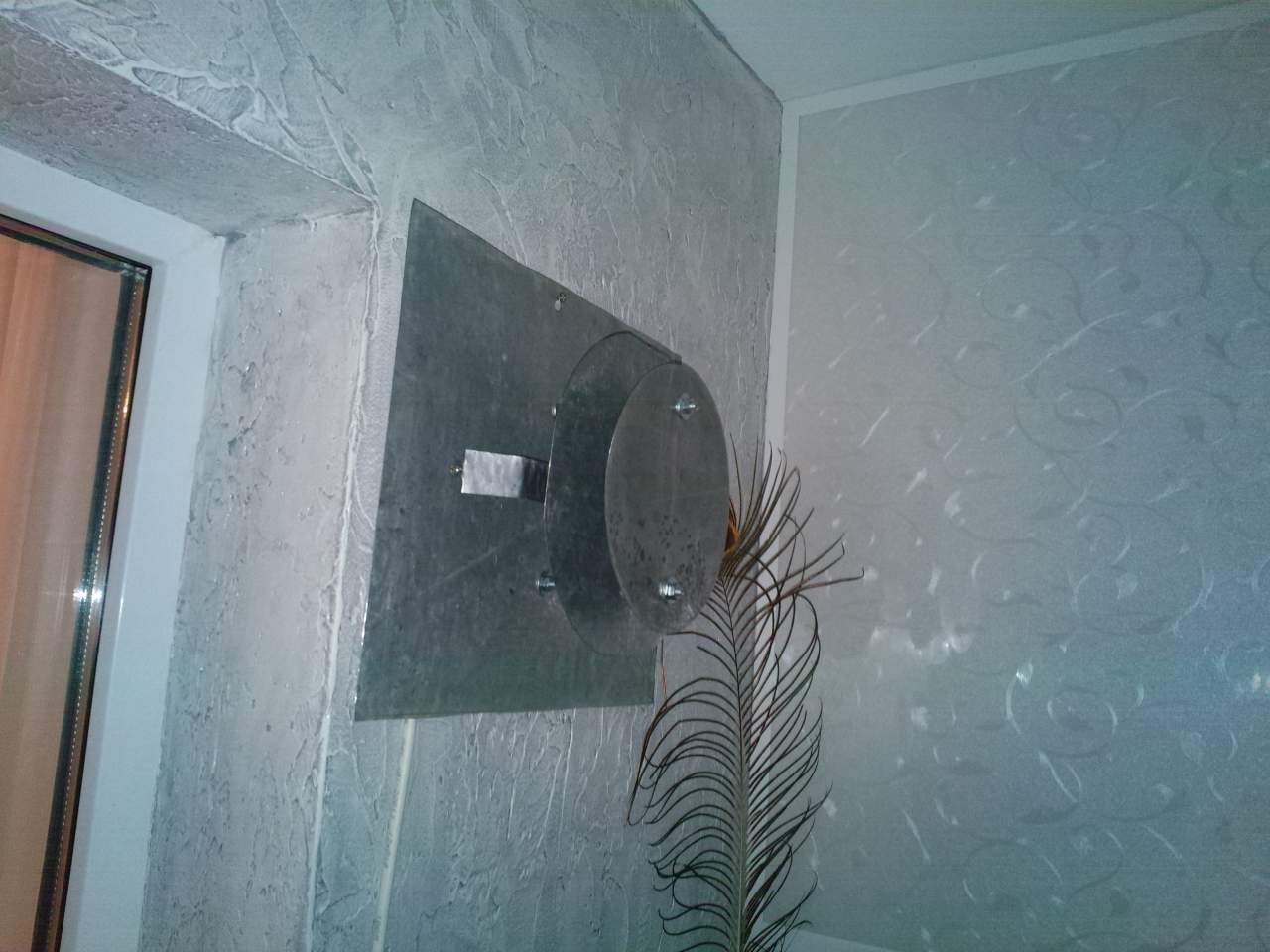

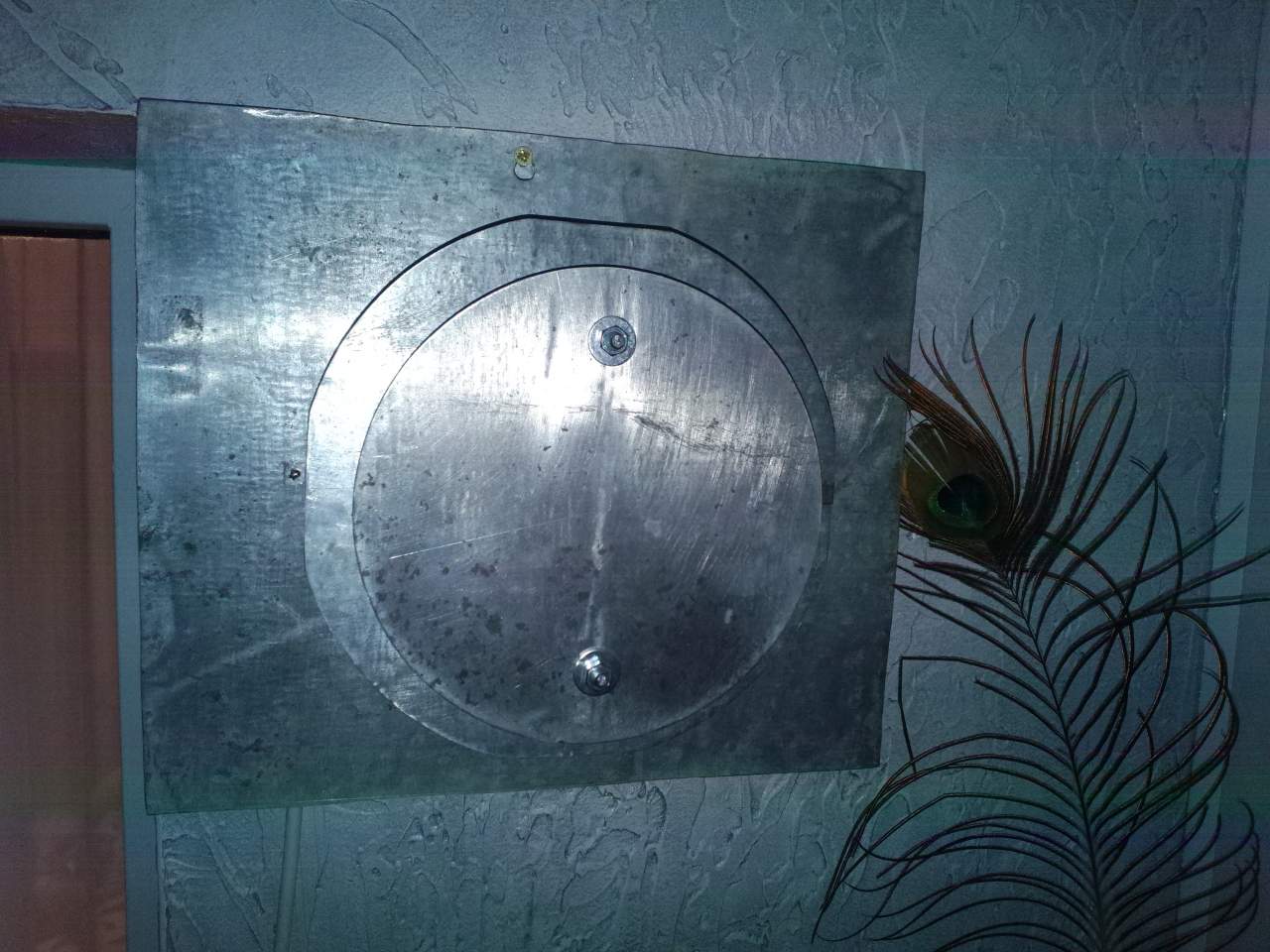

This is a realization of VodkaMan friend.

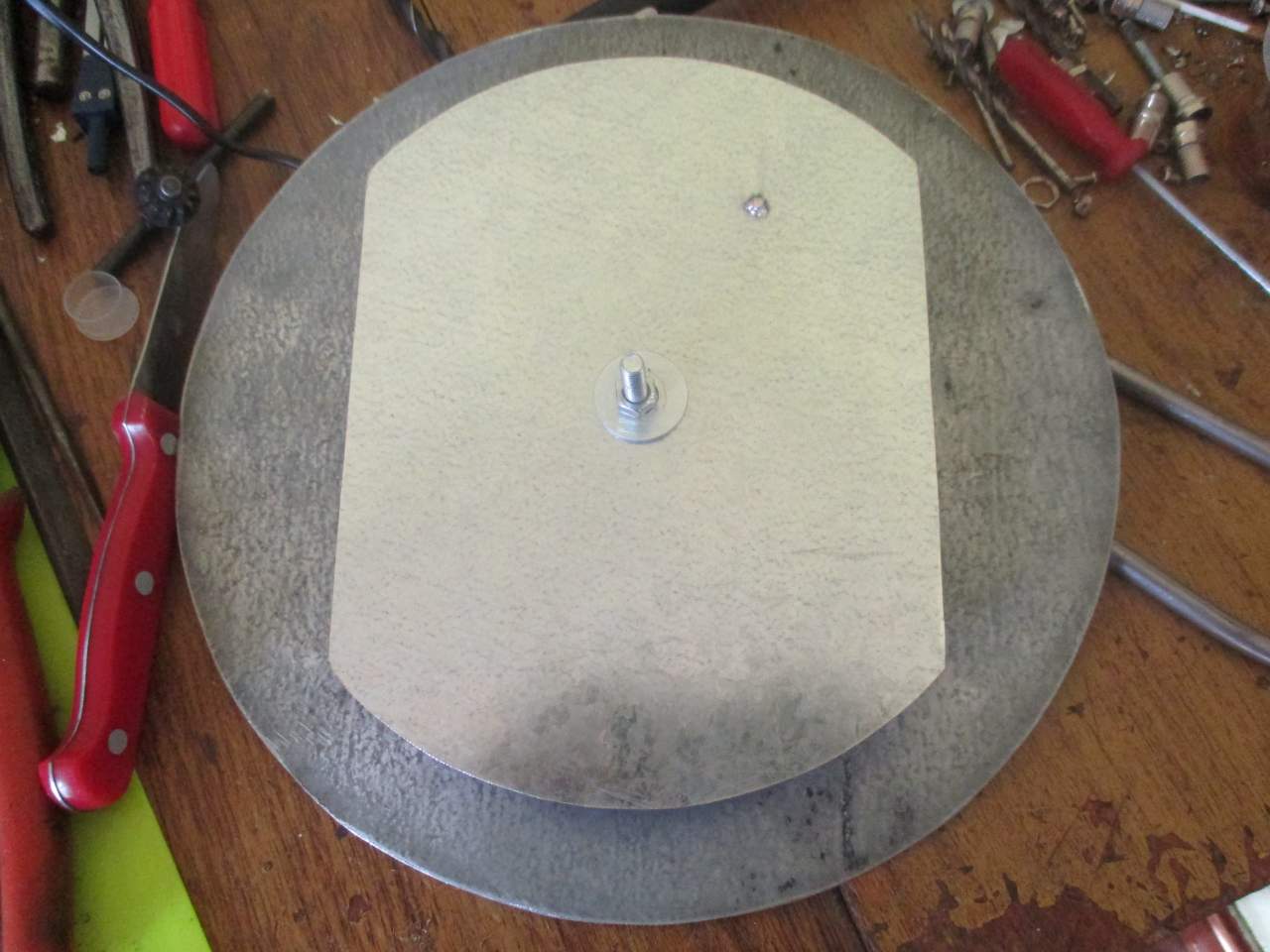

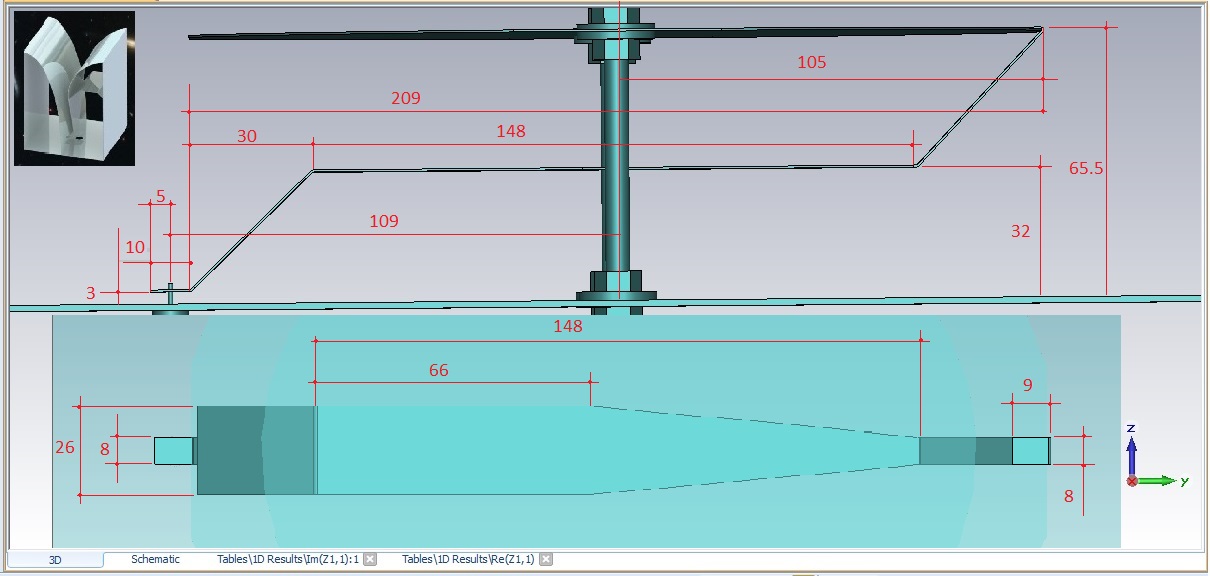

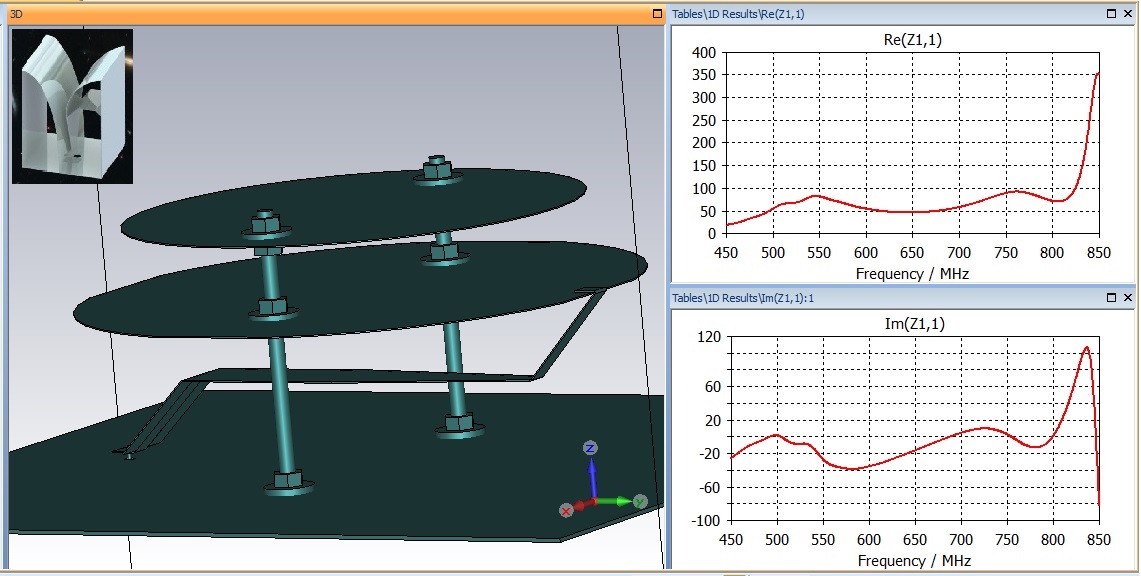

Some improvements for this type af patch antenna UHF:
 Mounting studs M6 with nuts and washers. Line powering with ramps instead of fillets (I think smarter).
 Reflector rectangular 340mmx290mm, the distance between studs 120mm.
Patch - 208mmx208mm truncated cylinder 214mm installed at a height of 65 mm (the gap).
Director - 173.6 mm in diameter, at a height of 95.5 mm from the reflector (the gap).
Material - galvanized 0.5 mm.






2 people like this

Share this post


Link to post
Share on other sites

Jomy, on the first message shows the antenna from Vodkaman. This antenna options is hard to move to LTE band 5 and 18?

Share this post


Link to post
Share on other sites
1 hour ago, chilanzar2 said:

Jomy, on the first message shows the antenna from Vodkaman. This antenna options is hard to move to LTE band 5 and 18?

,,, then about 800-900 MHz ... ??


Share this post


Link to post
Share on other sites

But I think for the LTE antenna , needs a circular or elliptical polarization...!!!

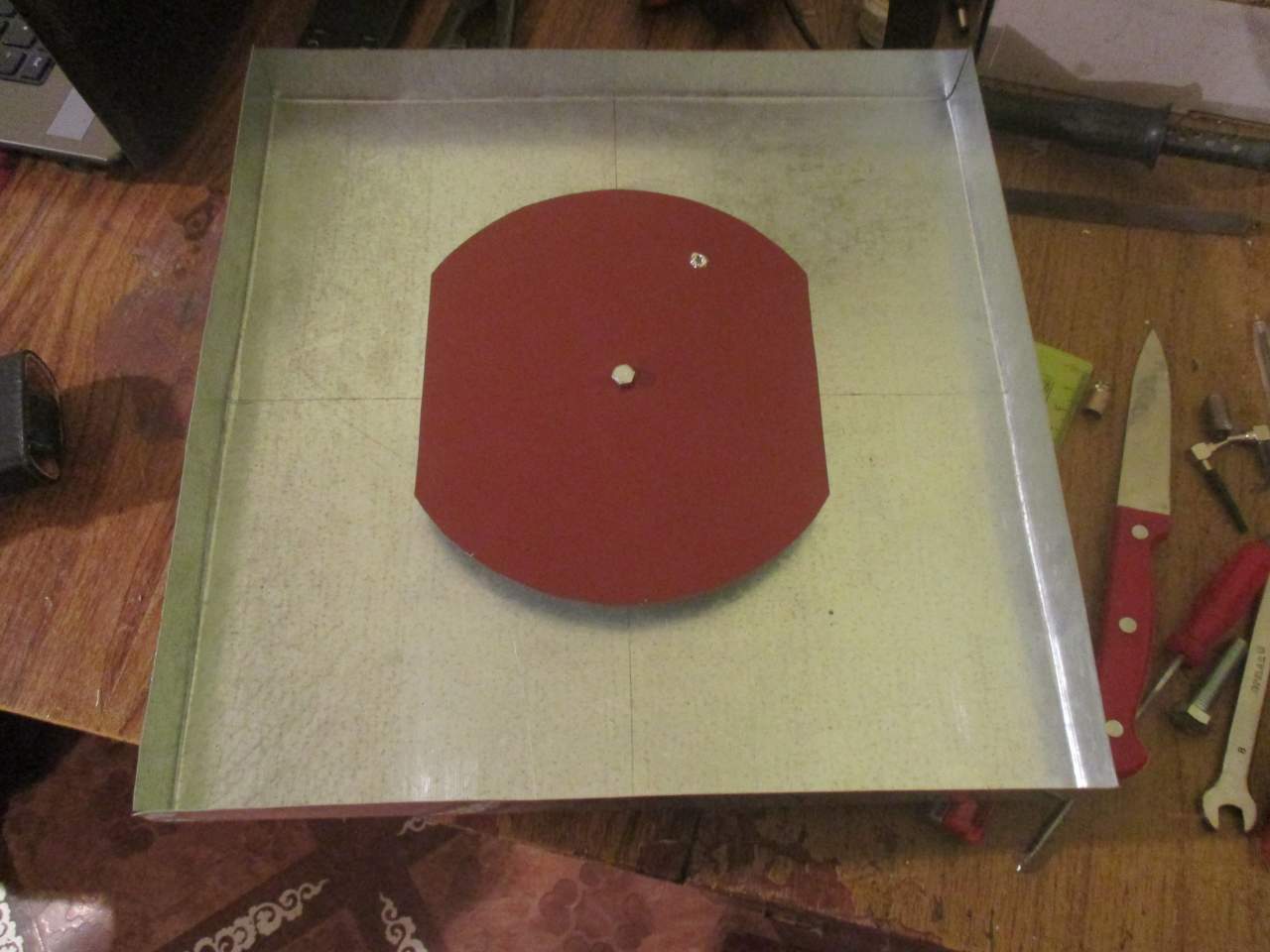

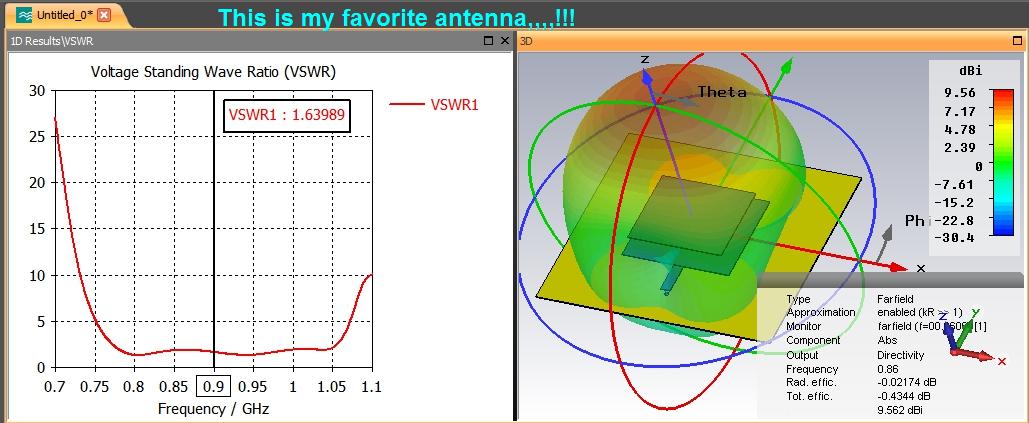

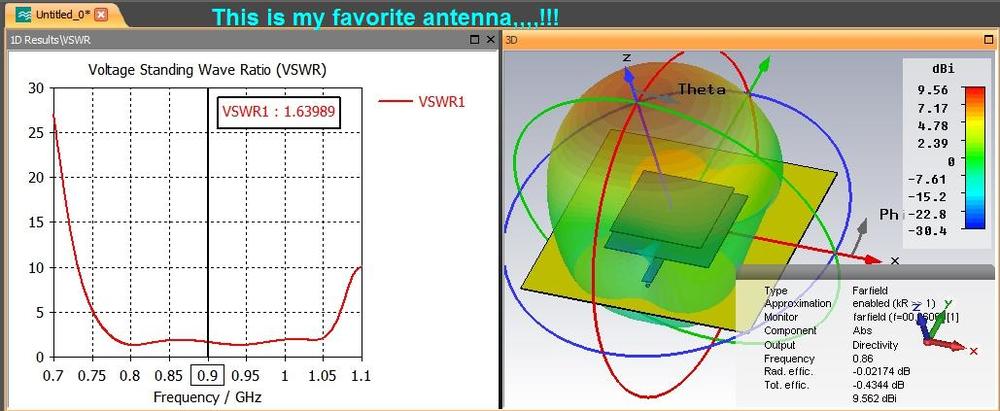

You need an antenna like this....


1 person likes this

Share this post


Link to post
Share on other sites

the size of this antenna is big ? any way there is size reduction?

Share this post


Link to post
Share on other sites

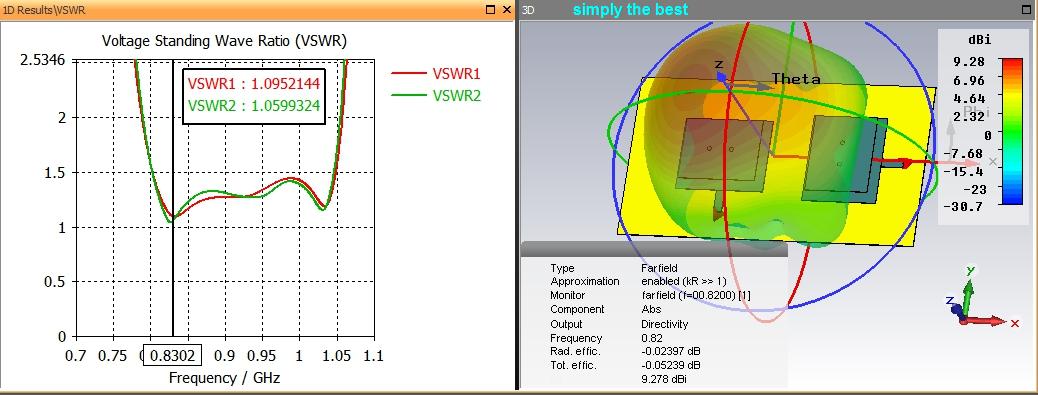

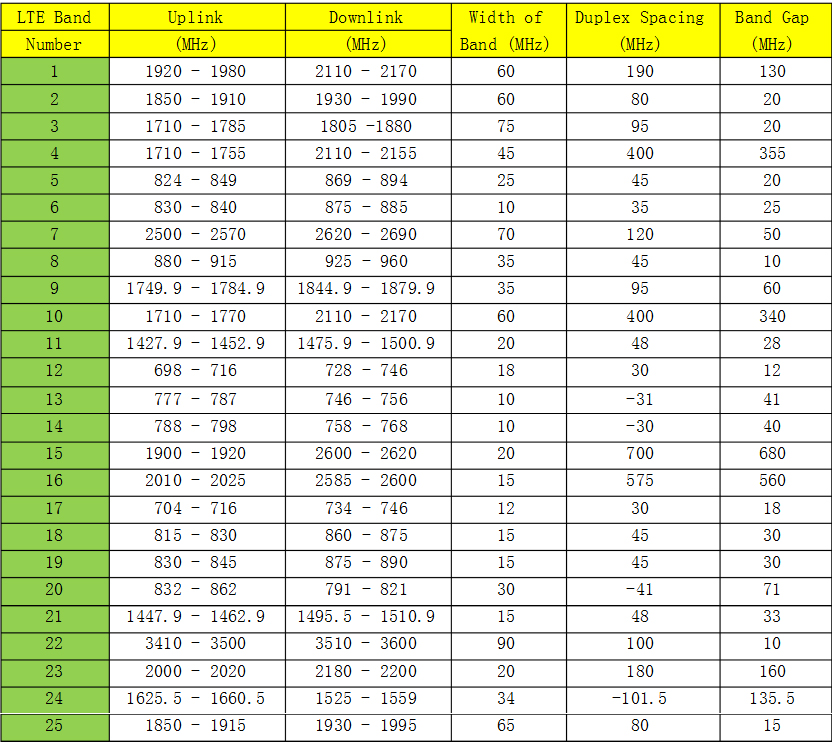

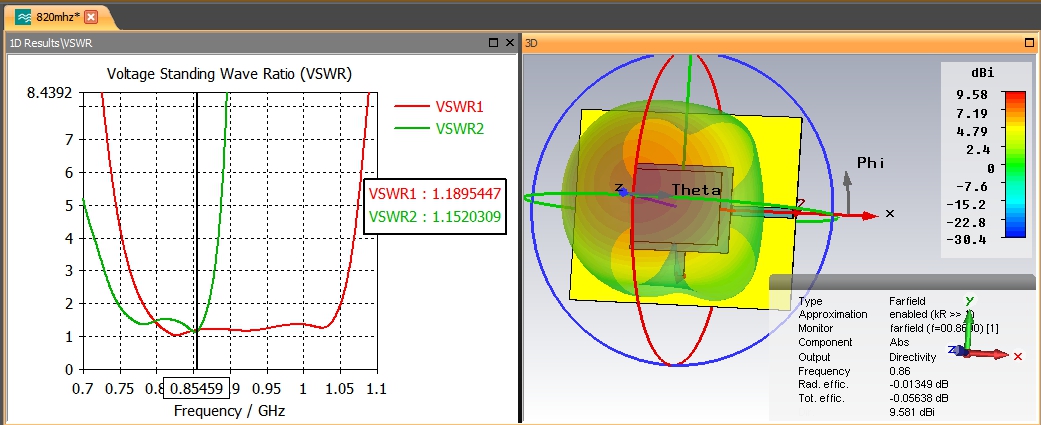

I think there is no other option to reduce the size of antennas - MIMO 850Mhz Band5 =UL 824-849/ DL 869-894 MHz

Share this post


Link to post
Share on other sites

Okay, and finally, tell me what you want?

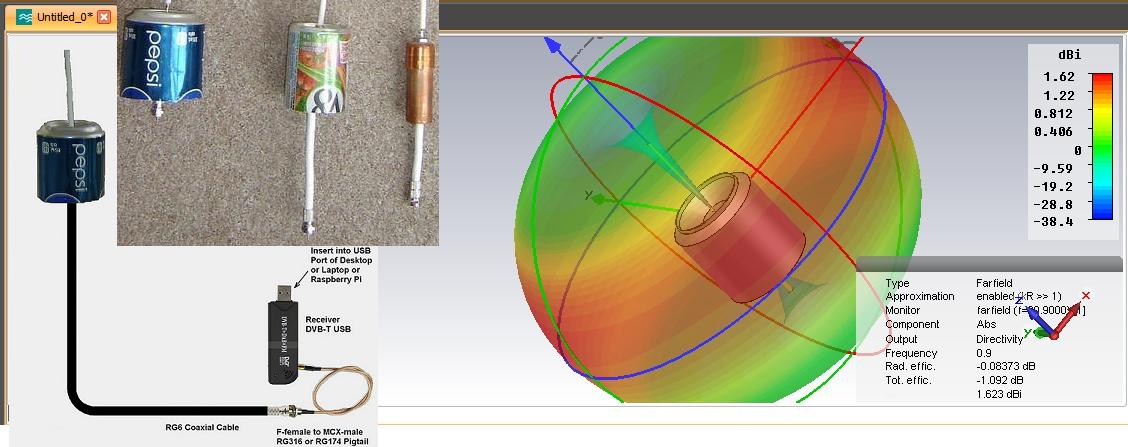

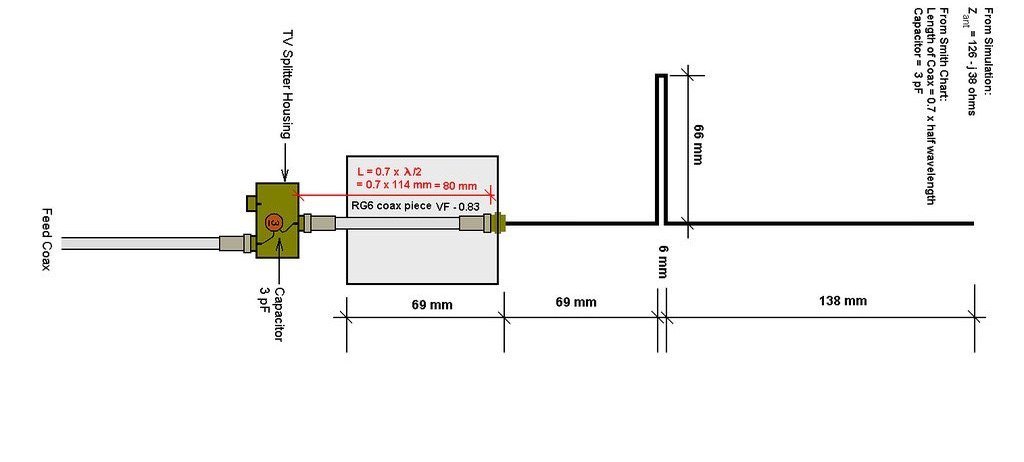

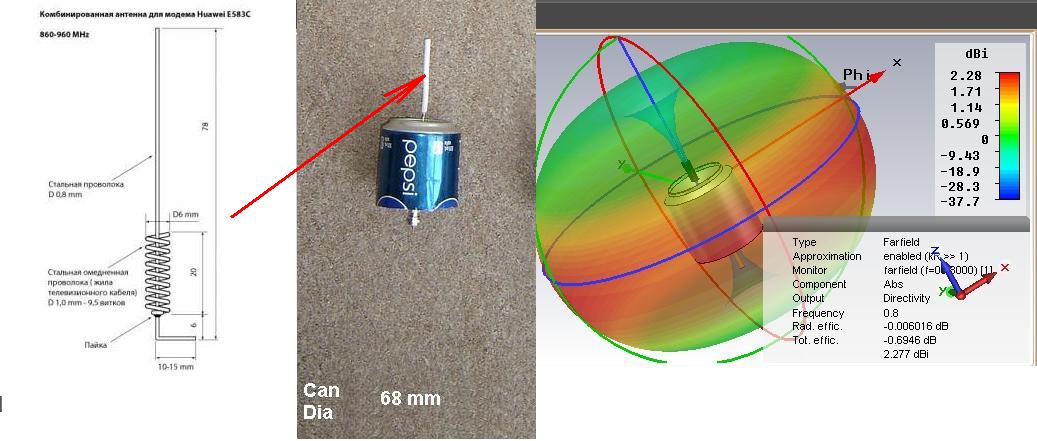

Something like that,,,,

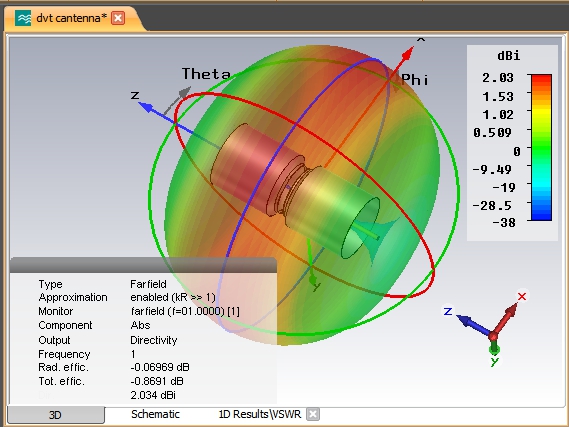

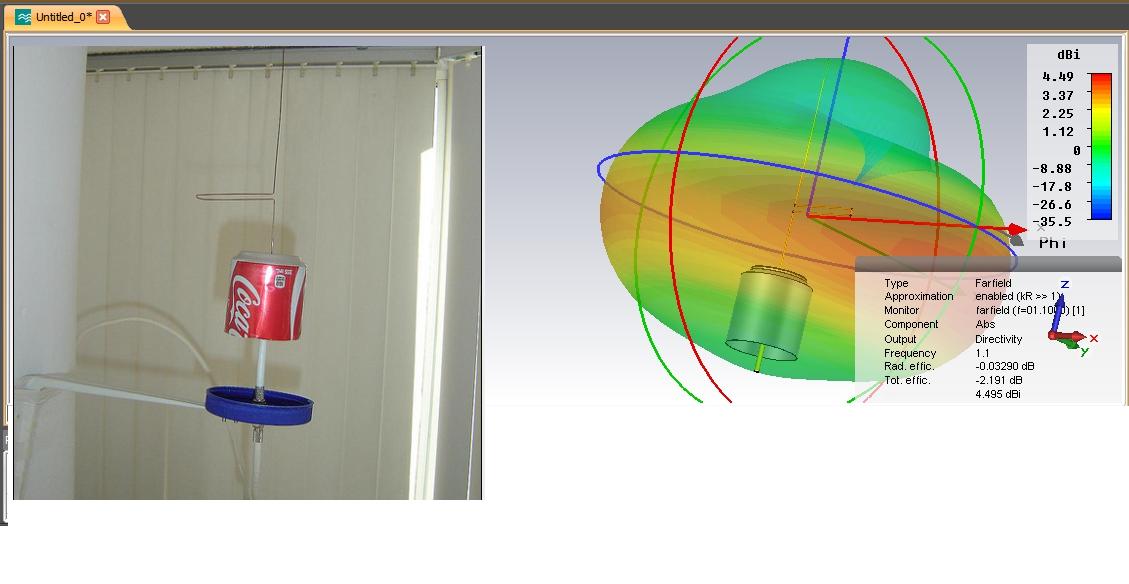

,,,or like that....???






Share this post


Link to post
Share on other sites

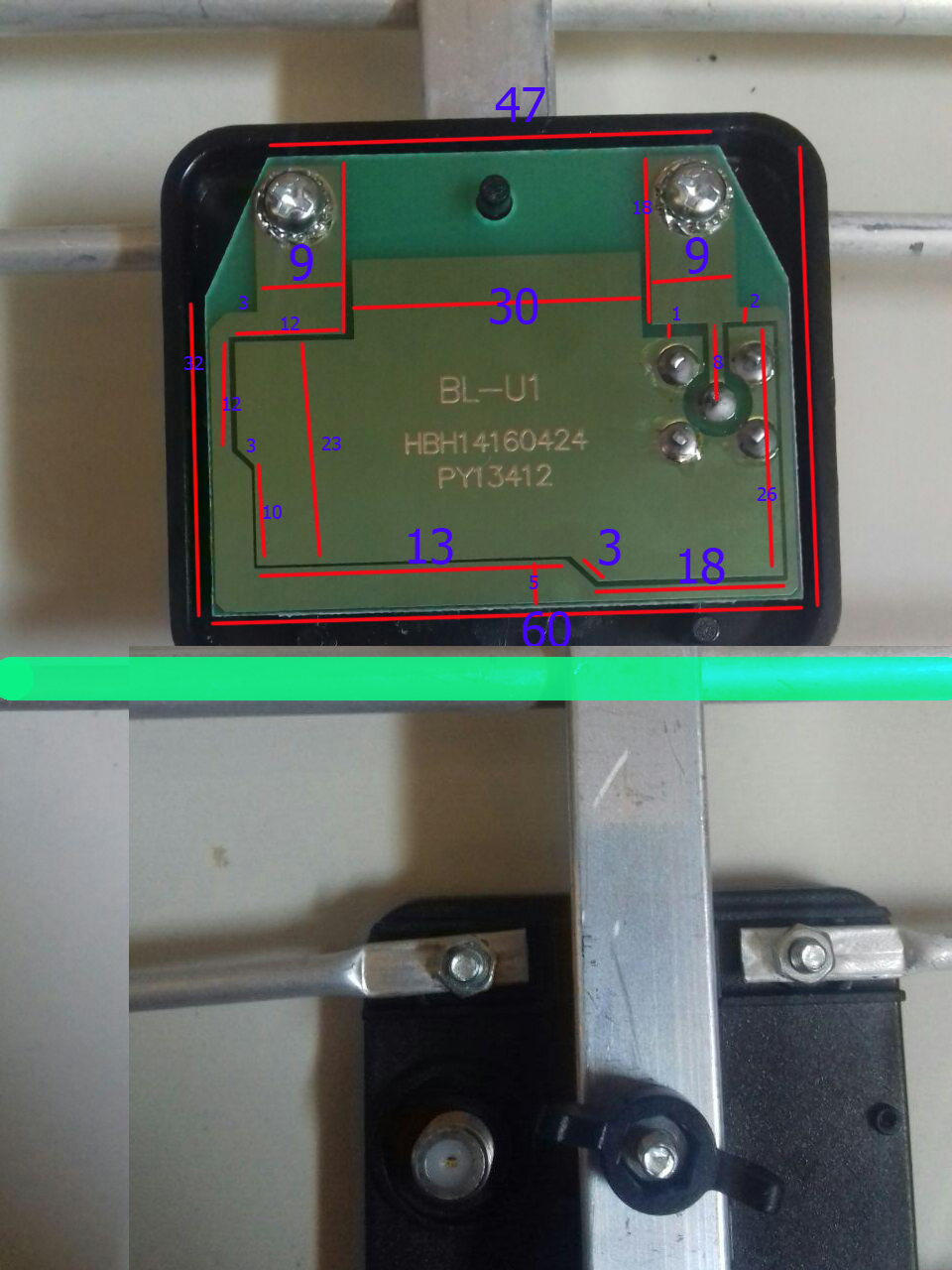

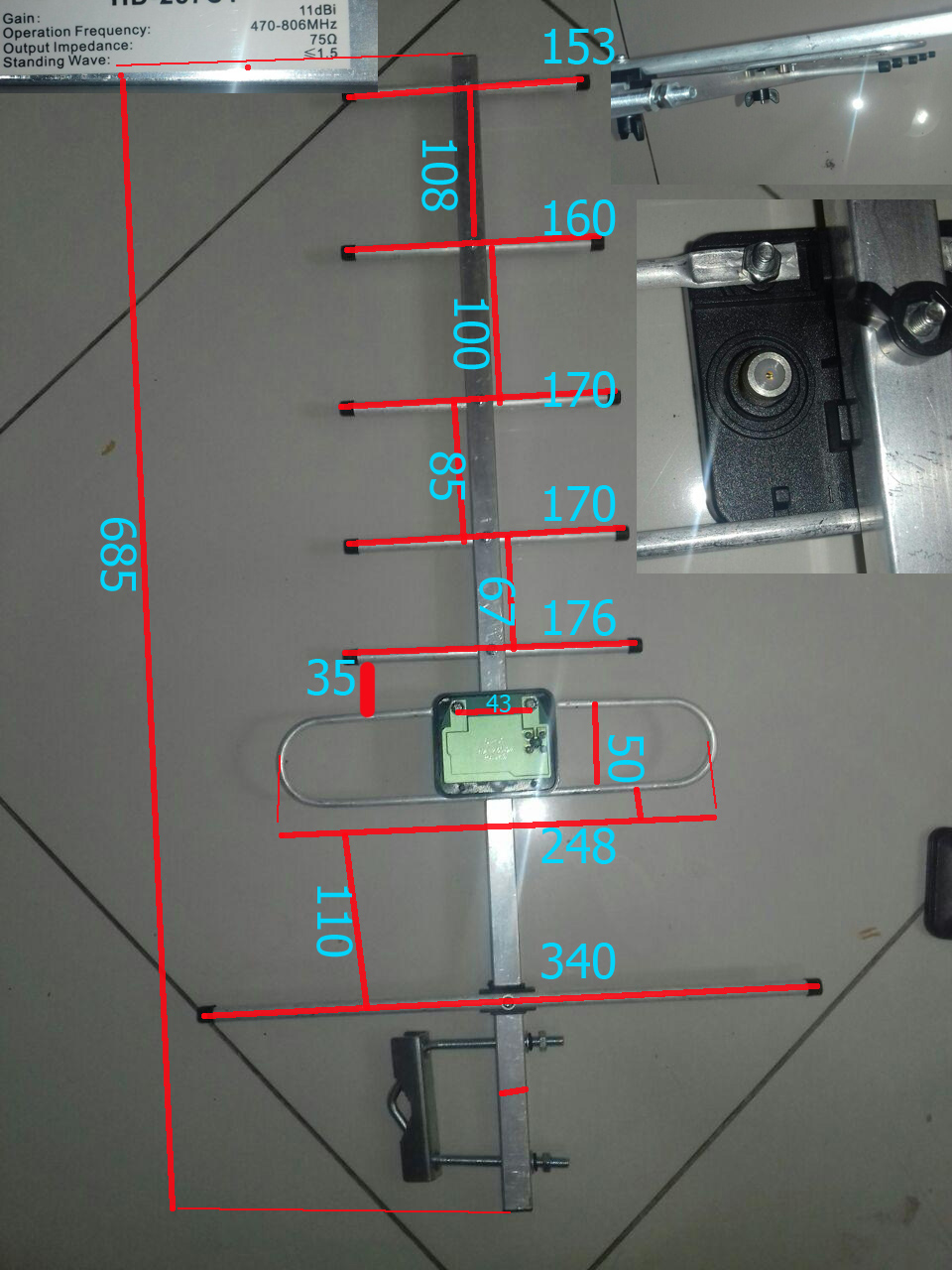

And what do you want with these images for yagi antenna?

Share this post


Link to post
Share on other sites

I just showed how antenna. Yagi is very difficult to manufacture. Jomy, patch MIMO-850 the big? what size is the reflector?

Edited by chilanzar2

Share this post


Link to post
Share on other sites

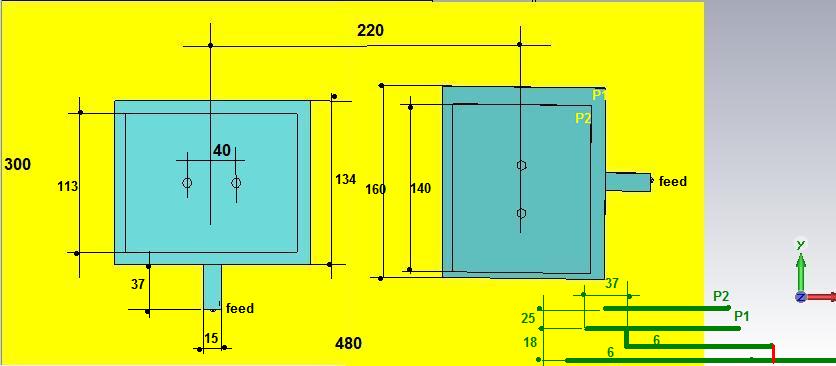

300x300mm

or 360x300mm

1 person likes this

Share this post


Link to post
Share on other sites

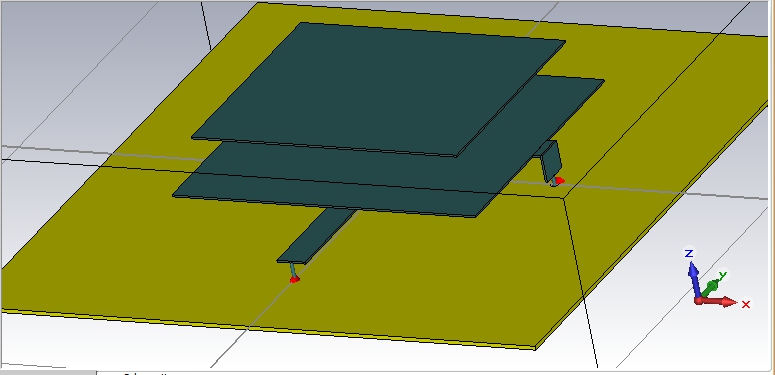

with one patch antenna gain is 9DBi, and if the second patch to put on top of the first patch, the antenna gain will be great?

Share this post


Link to post
Share on other sites

No, only the frequency range increases....!!!

1 person likes this

Share this post


Link to post
Share on other sites

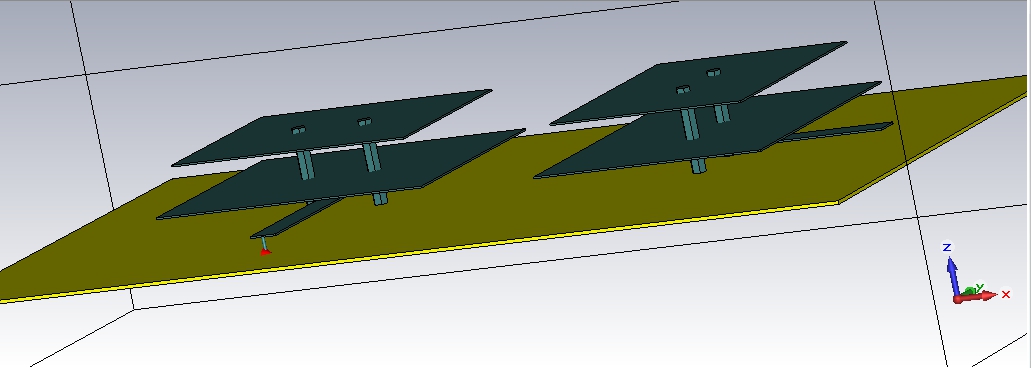

You can position two  patches-antennas at 90 degrees for the MiMo antenna










1 person likes this

Share this post


Link to post
Share on other sites
