Patch Panel 3G

32 posts in this topic

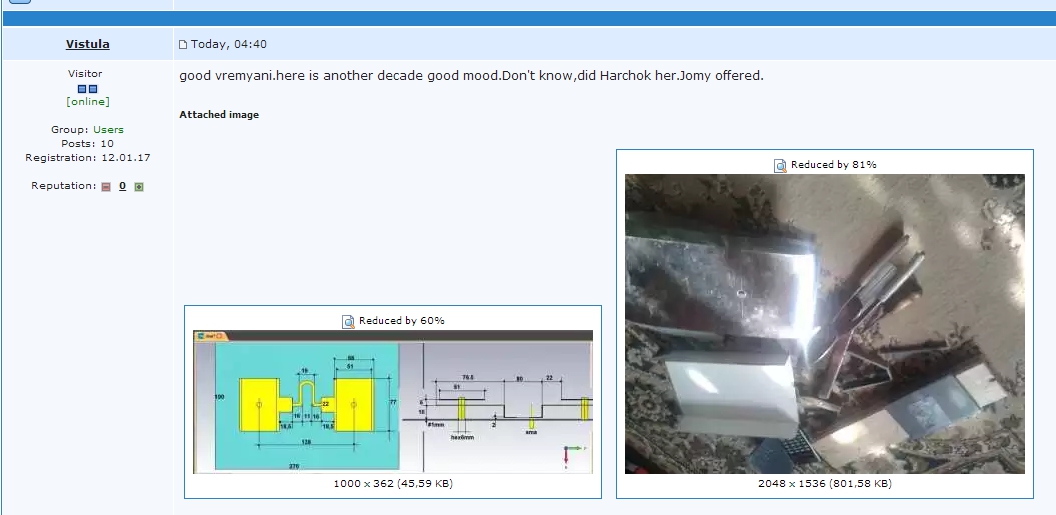

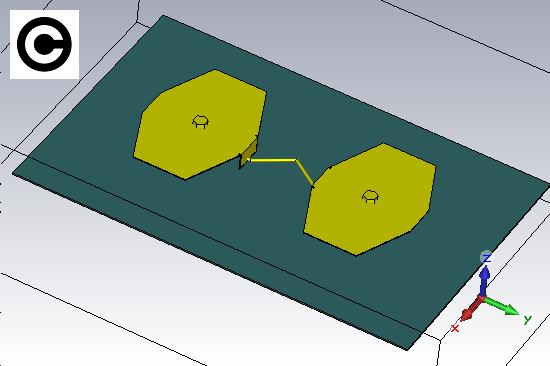

Double Patch Regular Polyhedron










The rectangle 94*68 mm, the sides of the cutting plane 28 and 16 mm rack Diameter 6 mm.
each patch has an input impedance of 100 Ohms, between 0.5 *Lambda of the connecting line. Obtained by parallel connection of 50 Ohms.

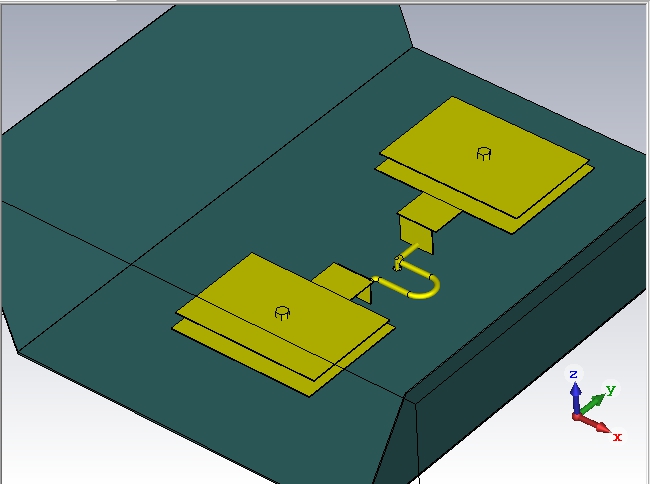

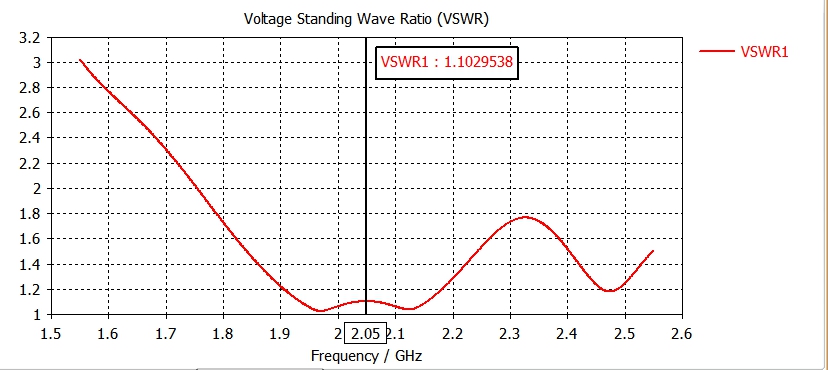

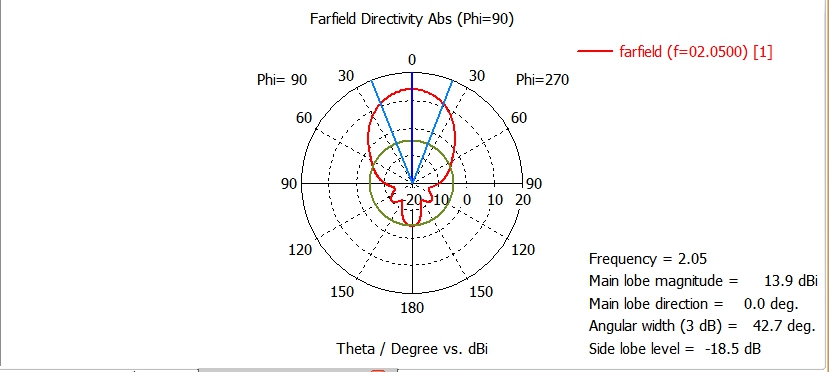

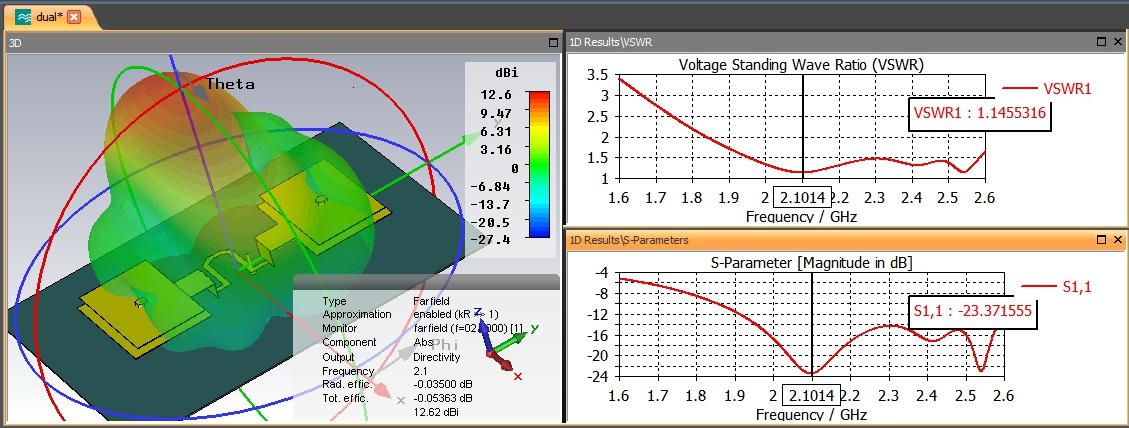

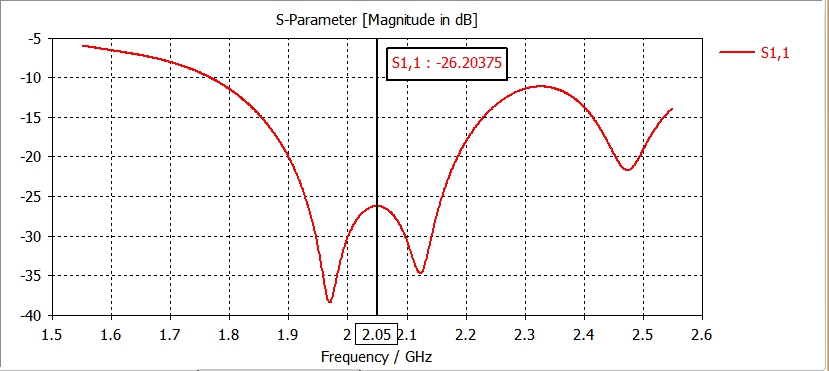

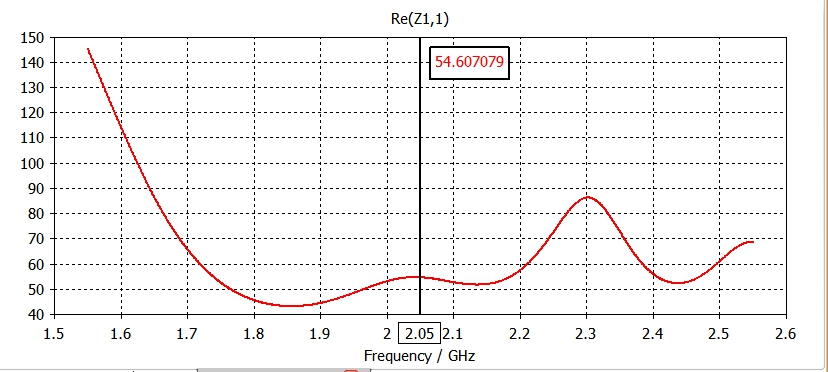

And cool chart SWR
the broadband is a patch in the form of an pseudo- ellipse with eccentricity 0.8, 2 Patches of narrow-band, but with the increase of the gap band of operating frequencies increases at 0.1 Lambda reaches 10/11 %. When band gaps, increases the ability of multi-mode excitation. With the increase of the gap increases and the value of the input impedance.
Based on this information, can built a patch with a gap from the reflector is 15 mm.
The line length is 0.5 L, so its width is not critical. In this project its width is about 2 mm d = 1 mm
The gap( between the surfaces) 15 mm width  to reflector Conn. line 13 mm.
the distance between the two coherent emitters choose, usually based on two criteria. Or the maximum gain, then it's 1 lambda or a little more. Or at a minimum side lobes, then it is less than lambda, about 0.7/0.8.


1 person likes this

Share this post


Link to post
Share on other sites
14 minutes ago, vodkaman said:

Very nice antenna.

 Yes, and you can post your version,four pseudo-ellipse( quadro)....!!

Share this post


Link to post
Share on other sites

?????? ?????. ??????? ? ???? ??????? ???? ? ?? ?? ??? ? ?? ????????. ? ??? ??? ???? ?????? ?????? ????????? ? ??? ??????? ??????? ????????.)) ??????? ? ??????? ??? ???????? ? y??????? ????????.






Share this post


Link to post
Share on other sites

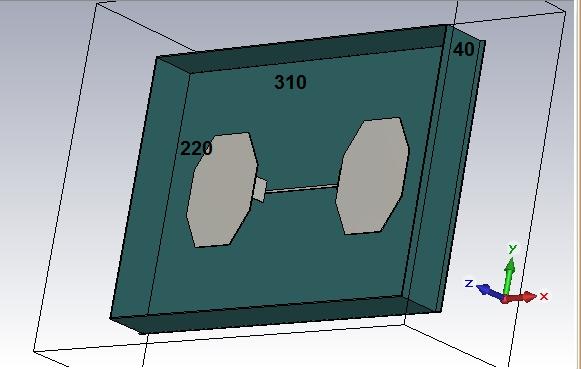

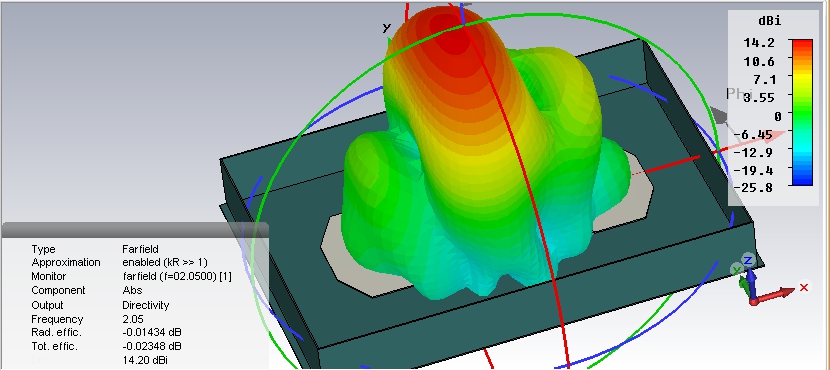

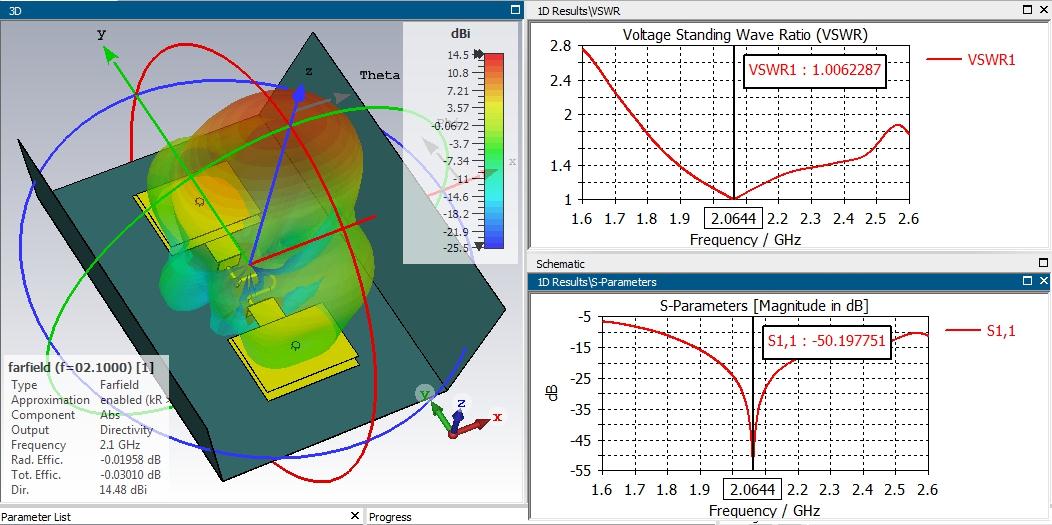

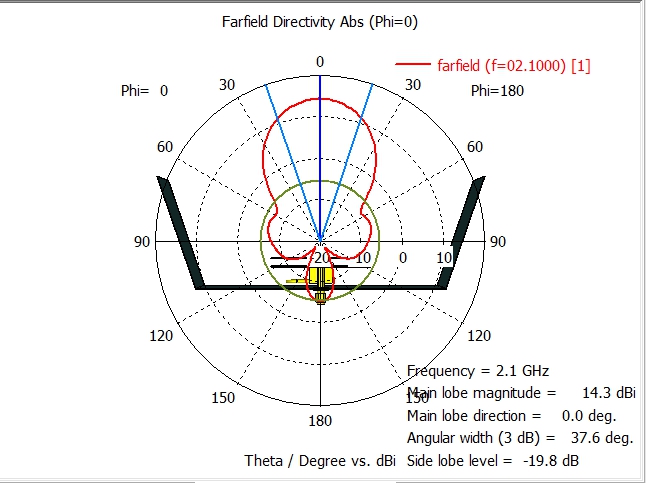

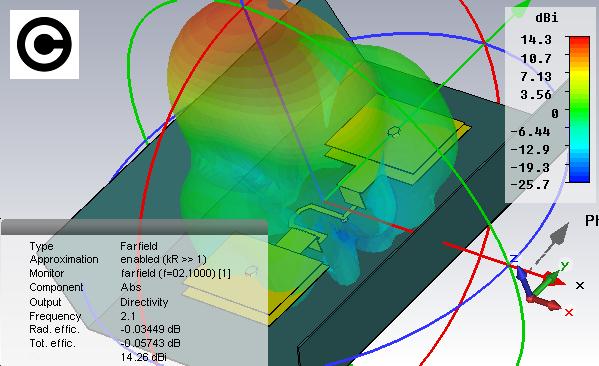

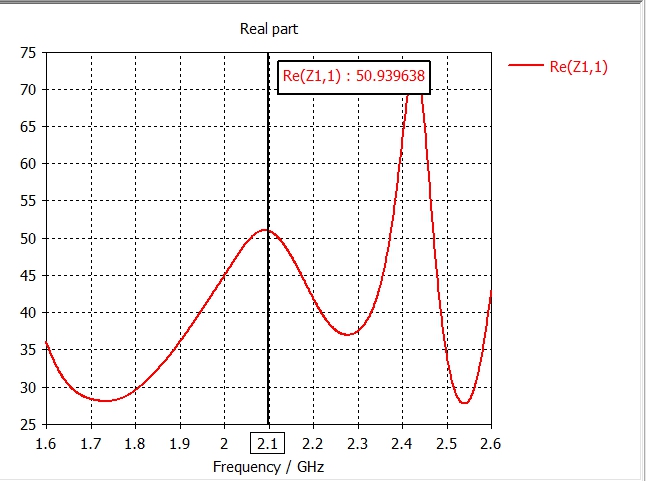

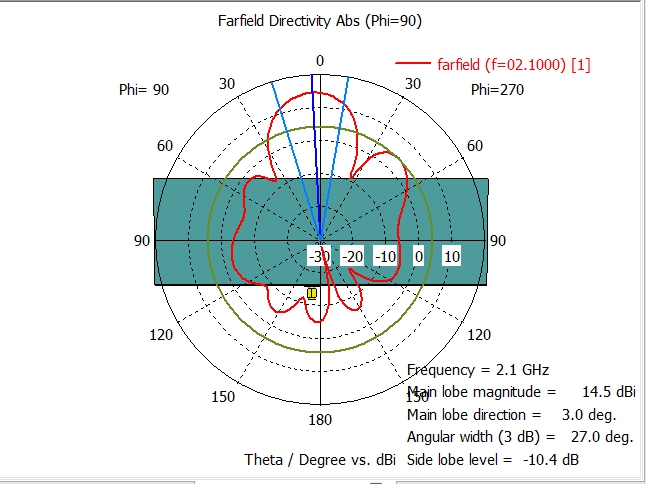

A new panel antenna with 2 patches and 2 rectangular directors for the 2.1GHz frequency










1 person likes this

Share this post


Link to post
Share on other sites

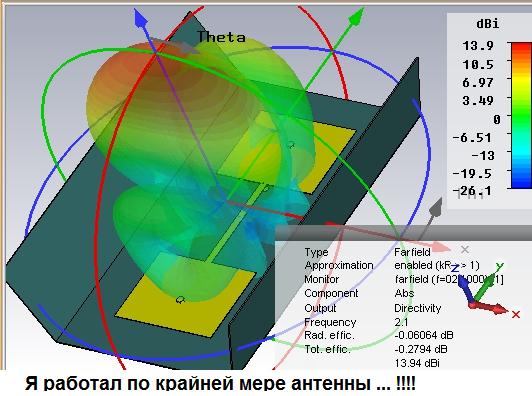

and with the lateral wing version...




1 person likes this

Share this post


Link to post
Share on other sites

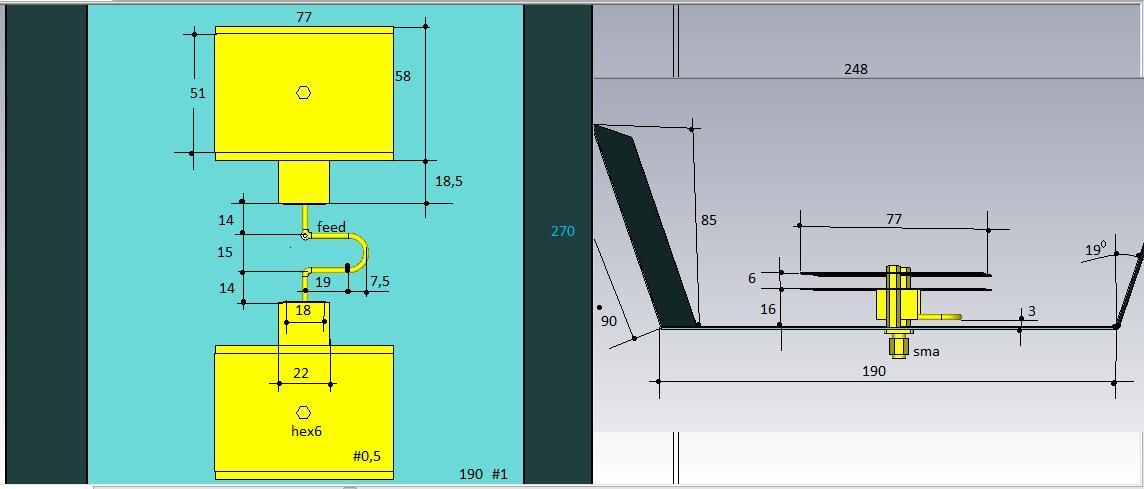

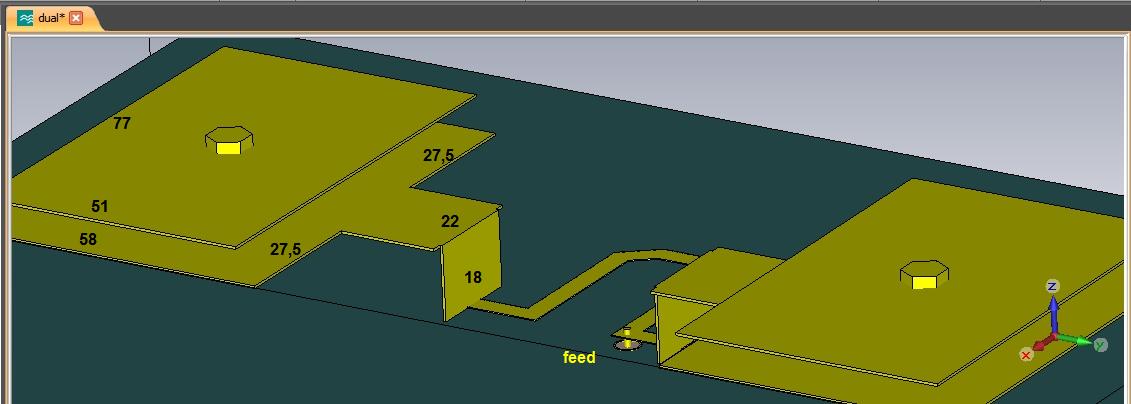

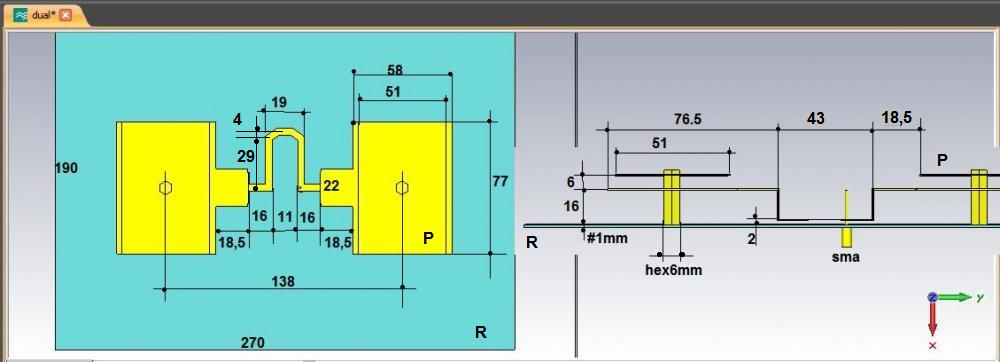

Adaptation line dimensions


1 person likes this

Share this post


Link to post
Share on other sites



,,,for Guest...

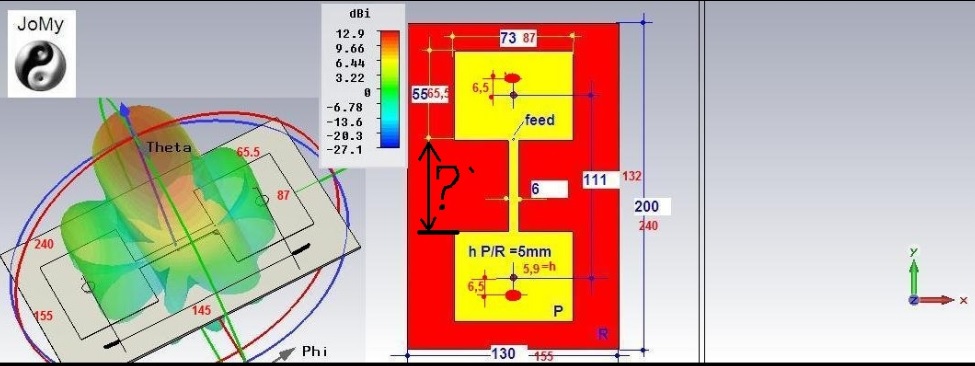

dimensions gauge reflector


With such dimensions of the reflector it is possible to be such an antenna gain

Share this post


Link to post
Share on other sites

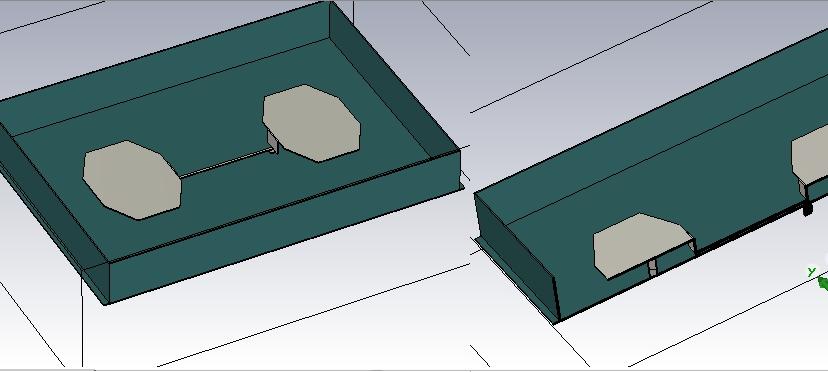

I think this is an ideal double-patches form of antenna...



Share this post


Link to post
Share on other sites

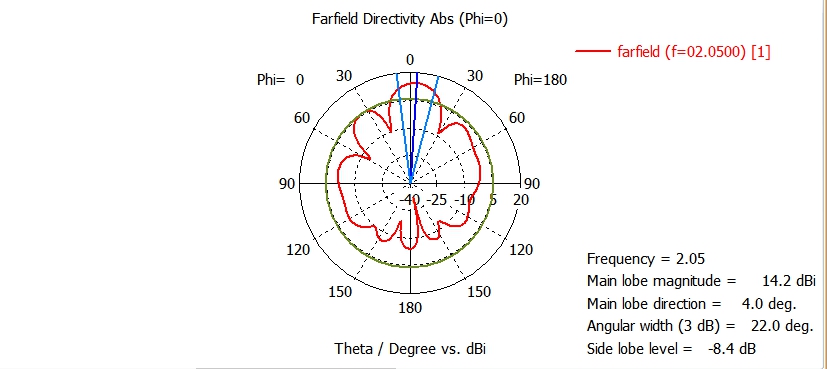

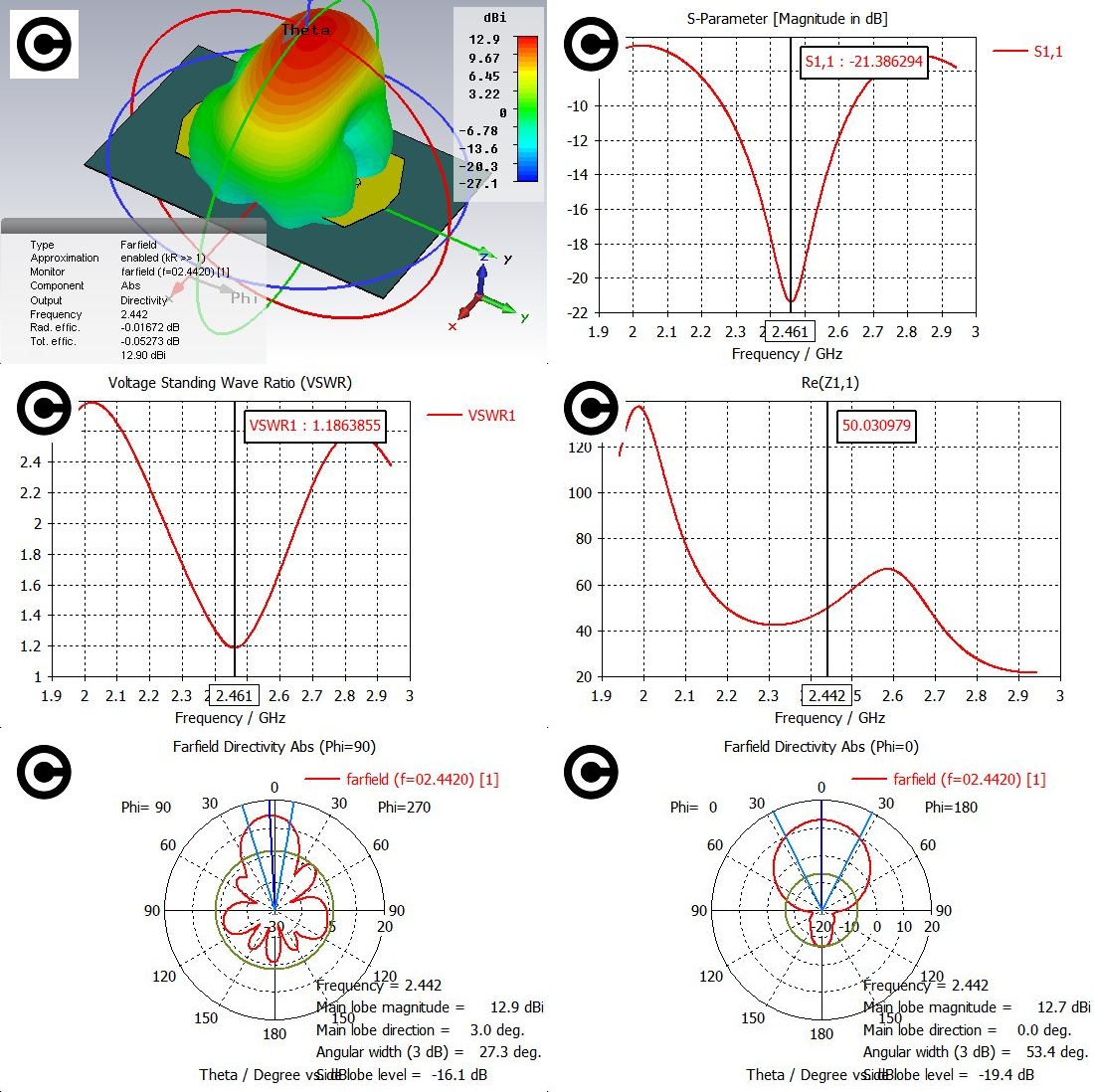

"at user request, sa3500, I tried to optimize this antenna ...






1 person likes this

Share this post


Link to post
Share on other sites

,,, what do you mean 85% ... ???

Share this post


Link to post
Share on other sites

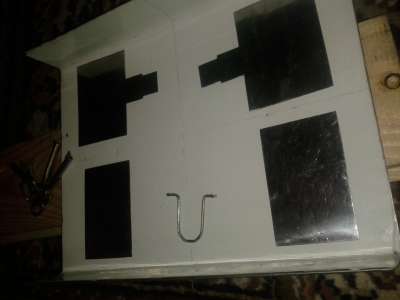

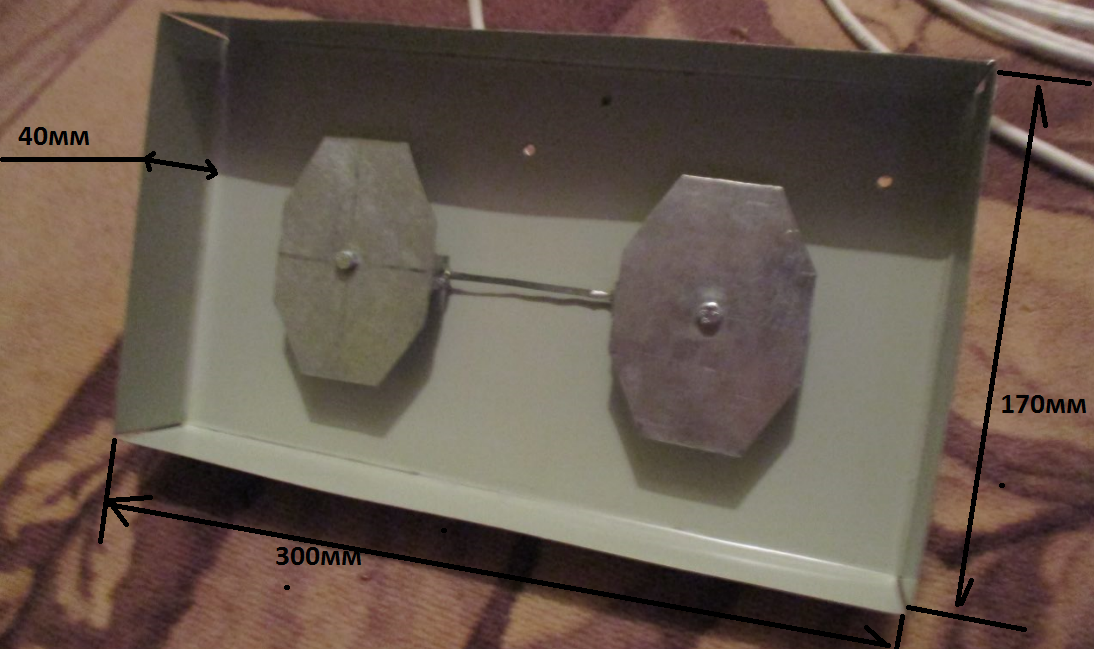

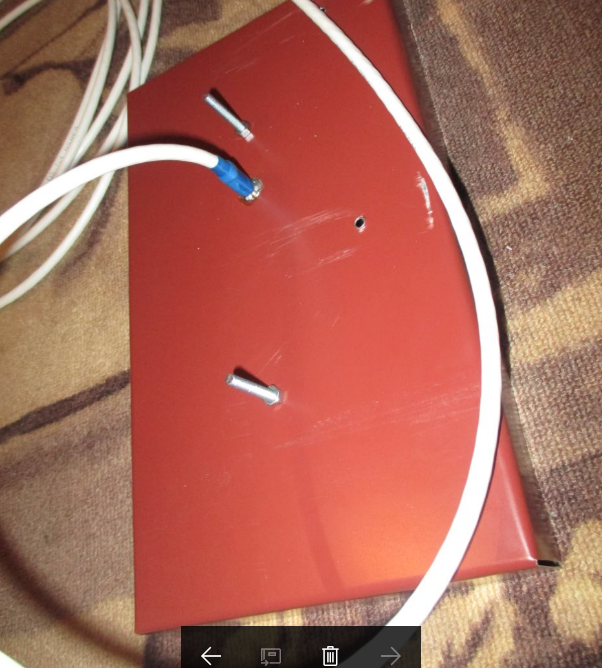

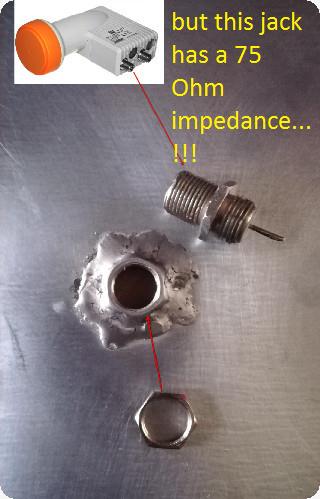

I completed the antenna almost.

85% - work done :)



Share this post


Link to post
Share on other sites

"Well, then everything is okay...!!!

Share this post


Link to post
Share on other sites

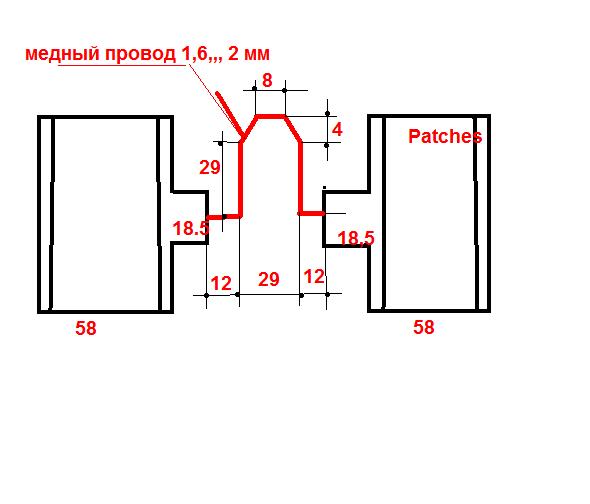

"And here's the sizes ...



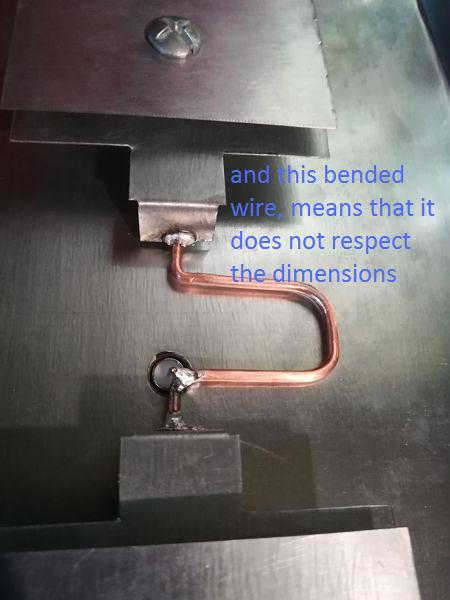

,,, for the adaptation line, the copper wire with a diameter of 2.6mm




3 people like this

Share this post


Link to post
Share on other sites

Posted (edited)

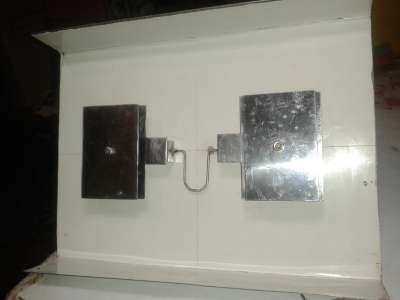

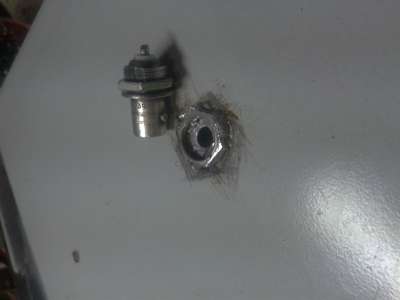

ОК. Thank you. I think I'll post a photo tomorrow
