Sector 5 Ghz Original - And Copied

55 posts in this topic
13 hours ago, Admin said:

There's no problem, I'll try to solve it...!!!

Ok waiting u

And please dont forget to send picture of the dbi gain of this antenna and the frequency

Share this post


Link to post
Share on other sites

,,,for this antenna can you give these dimensions? ... ???




Share this post


Link to post
Share on other sites
Just now, Admin said:

,,,for this antenna can you give these dimensions? ... ???




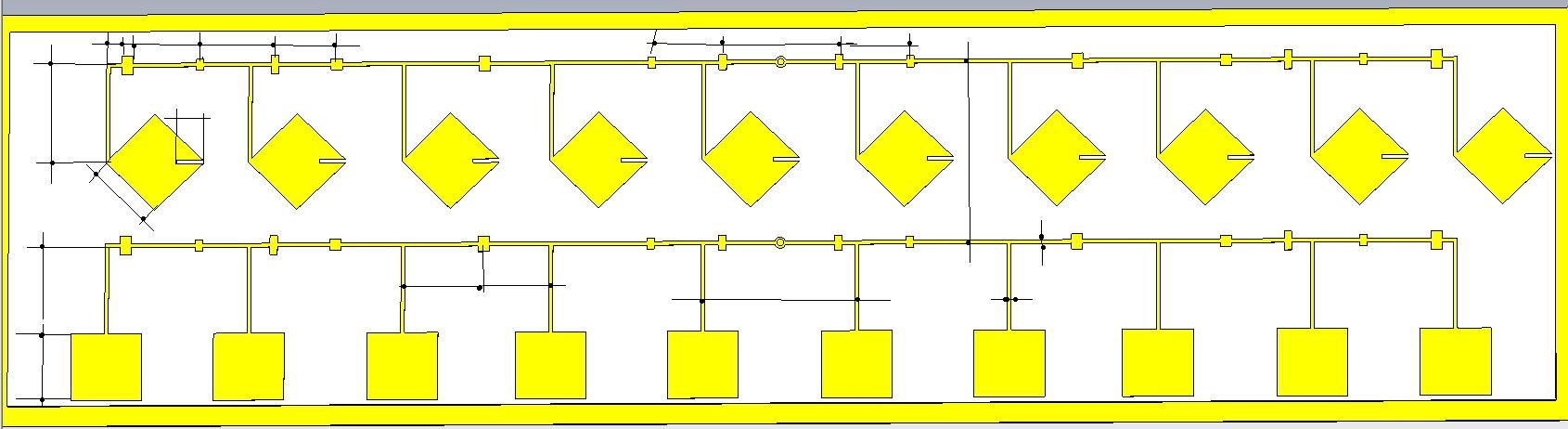

helo sir this antenna was having too much faulty dimensions so i draw a new one with good dimension im gonna send it to you now

Share this post


Link to post
Share on other sites

,,,for which the antenna is working on the band 5-5,35GHz ... ???


Share this post


Link to post
Share on other sites
On 1/26/2019 at 4:07 PM, Admin said:

,,,for which the antenna is working on the band 5-5,35GHz ... ???


the seller say that this antenna is 19 db  working from 5000 to 5,800

Share this post


Link to post
Share on other sites

i have now a better dimension for this antenna do you want me to send it to you ?

and retest it for check if there is increasing in DB ?

i mean better dimensions 100%



Share this post


Link to post
Share on other sites

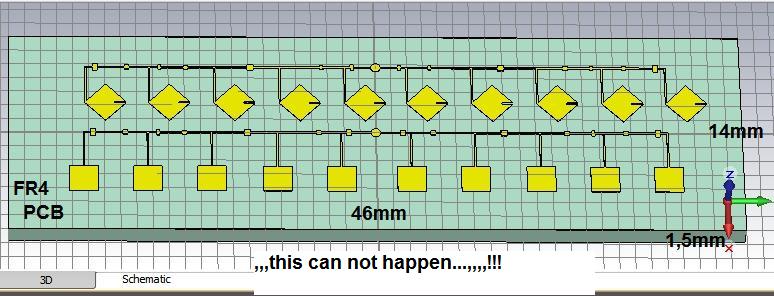

,,,the antenna can not be so small ... how can it be PCB = 1,5x14x46mm ???

Share this post


Link to post
Share on other sites
1 hour ago, Admin said:

,,,the antenna can not be so small ... how can it be PCB = 1,5x14x46mm ???

wait i will check the dimension

Share this post


Link to post
Share on other sites
2 hours ago, Admin said:

,,,the antenna can not be so small ... how can it be PCB = 1,5x14x46mm ???

check nowww

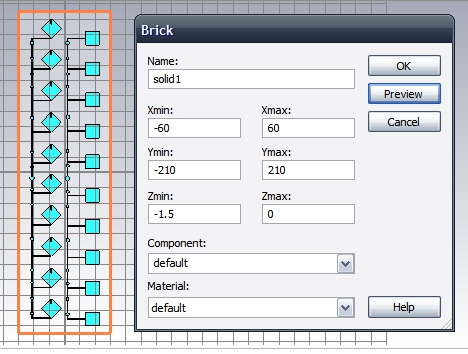

ant.stl

Share this post


Link to post
Share on other sites
2 hours ago, Admin said:

,,,good, I think this would work ...


ok bro pleaseeeeeeeeee test it and let me if there any news

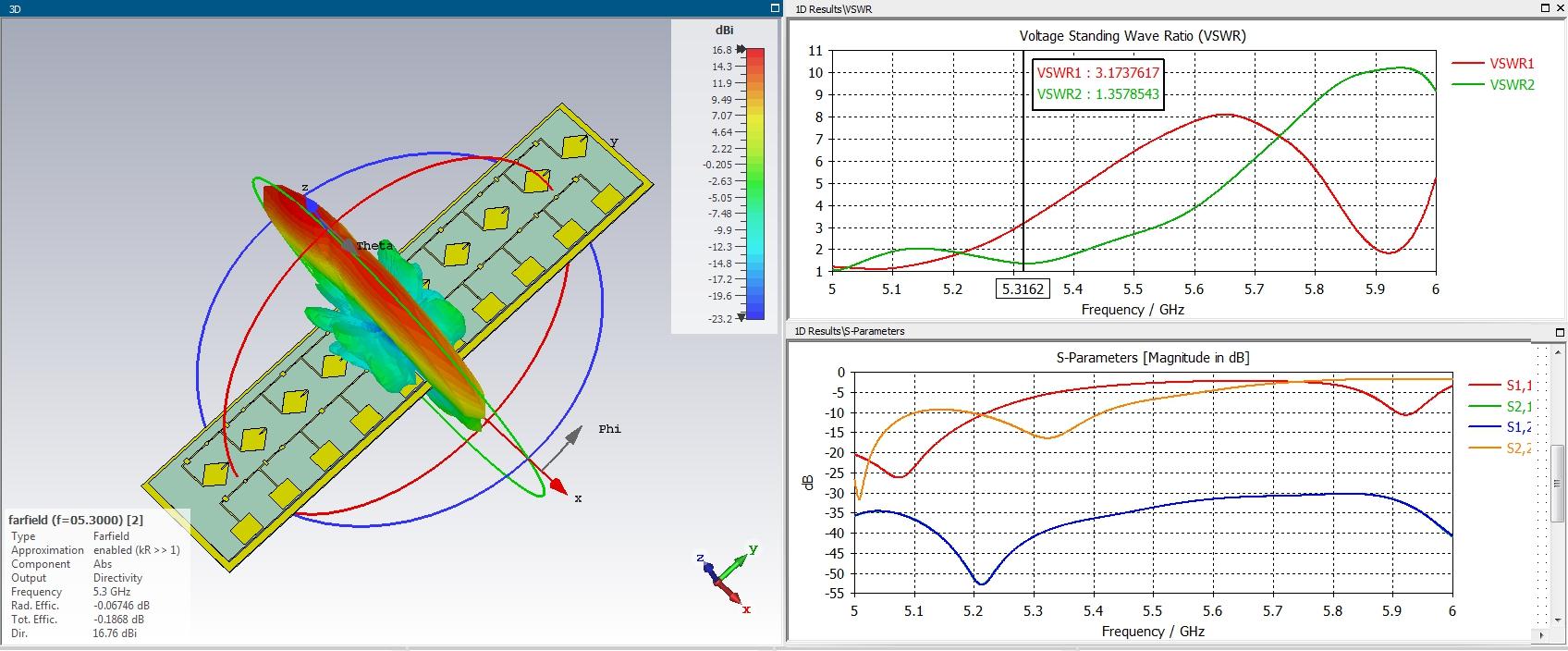

because i test it and printed to pcb board and i scan for 3 km , the Original board is still better i dont know whyyyyyyyyyyyyyy helpp

Share this post


Link to post
Share on other sites

For such frequencies, the material from which the PCB is built, matters a lot...!!!

Share this post


Link to post
Share on other sites



16 hours ago, Admin said:

For such frequencies, the material from which the PCB is built, matters a lot...!!!

from fr3 pcb board 1 layer

Share this post


Link to post
Share on other sites

,,, and the thickness and distance from the reflector...!!!

Share this post


Link to post
Share on other sites
13 minutes ago, Admin said:

,,, and the thickness and distance from the reflector...!!!



reflectror thickness 2 mm

vibrator to reflectror 3mm



Share this post


Link to post
Share on other sites
