Admin

List of usb wireless adapters (monitor mode)

images?q=tbn:ANd9GcSQ-aHQAQo-GccOwK8wx7D

Name and model: Alfa Network 1000mW AWUS036H
Chipset: Realtek 8187 L
monitor and reinjection mode: Yes,
Data and specifications
Remarks: The adapter No. 1 for audits, especially reinjecting in monitor mode in windows technology B / G is becoming obsolete, somewhat unstable in navigation. Possibility of using high power application alfatools accepts promiscuous mode.
  WIRELESS SECURITY RECOMMENDED for use in monitor mode.






Name and model: Alfa Network AWUS036NH
Chipset: Ralink RT3070
monitor and reinjection mode: Yes,
Data and specifications
Notes: After the previous model, it is the second best choice for monitor mode. Has many supporters as detractors, saturated environments was somewhat unstable in navigation, supports standard N






Name and model: Alfa Network AWUS036NHA
Chipset: Atheros AR9271
monitor and reinjection mode: Yes,
Data and specifications
Remarks: Connector for exchange or connect more gain antennas, standard IEEE 802.11b / g / n with a transmission capacity of 150 Mbps data Somewhat less powerful than the two previous models to monitor alpha mode, but more sensitive and stable her sisters to navegar.En new models have replaced the atheros chipset AR9271L.



th?id=OIP.M67951c7d550e68c66e102ddd48ac3



Name and model: WNDB-ANT Connection Dual Band
Chipset: Ralink RT2870 / RT3070
monitor and reinjection mode: Yes,
Data and specifications
Comments: Very good adapter and monitor navigation mode, the option to use 5 Ghz makes it much more versatile than any other adapter, external antenna connector for 2.4 GHz and integrated antenna for use in 5Ghz.




Name and model: Signal King N 360000
Chipset: Ralink RT3070
monitor and reinjection mode: Yes,
Data and specifications
Observations: RPSMA connector to exchange antennas different model and gain






Name and model: Startech USB300WN2X2D
Chipset: Ralink RT3572l
monitor and reinjection mode: Yes,
Data and specifications
Comments: Very good adapter 2 connectors antena.Doble 300 mbps.Mimo2T2R band.



tp_link_adaptador_wifi_802_11n_chip_athe



Name and model: TP-LINK TL-WN722N
Chipset: Atheros AR9271
monitor and reinjection mode: Yes,
Data and specifications
Observations: RPSMA connector to exchange more gain antennas of the best adaptadadores for its relacción quality / cheaper price.The with excellent results, only 100 mw will limit their power in monitor mode. To overcome the above mentioned is advisable to use with antennas direccionales.Tambien is recommended for use with an amplifier.






Name and model: ASUS USB-N14 Wireless N-300
Chipset: Ralink RT5372
monitor and reinjection mode: Yes,
Data and specifications
Comments: Very good adapter at an unbeatable price, dual-band.




Name and model: WNDB-ANT Connection Dual Band
Chipset: Ralink RT3572
And reinjection monitor mode: If,
Data and specifications
Notes: The option to use 5 Ghz makes it versatile. 2 external connector 5 dBi antennas to use in both frequencies, the power adapter is minimal.




Name and model: Alfa AWUS036NEH
Chipset: Ralink 3070
monitor and reinjection mode: Yes,
Data and specifications
Observations: threaded external antenna rp-sma




Name and model: Connection WANT 15-3W
Chipset: Ralink RT2870 / RT3070
monitor and reinjection mode: Yes,
Data and specifications
Remarks: Good adapter monitor mode, does not give the power of 3 watts advertised, high-gain omnidirectional antenna.




Name and model: Connection WANT9-2W
Chipset: Ralink RT2870 / RT3070
monitor and reinjection mode: Yes,
Data and specifications
Observations: Connector to exchange more gain antennas incorporates omnidirectional antenna 9 dBi .No gives 2 watts of power advertised. Good performance in monitor mode.




Name and model: Wifiscan WS2024e
Chipset: Ralink RT3070
monitor and reinjection mode: Yes,
Data and specifications
Observations: AIO adapter + directional antenna 14 dBi gain




Name and model: Wifiscan 2000mw / 6dbi
Chipset: Ralink RT3070
monitor and reinjection mode: Yes,
Data and specifications
Observations: Aerial 6 dBi antennas RPSMA connector to exchange more profit.




Name and model: TP-LINK TL-WN727N
Chipset: Ralink RT2870 / RT3070
monitor and reinjection mode: Yes,
Data and specifications
Remarks: internal antenna.




Name and model: Alfa Network 500mW Wireless USB Adapter AWUS050NH
Chipset: Ralink RT2770
monitor and reinjection mode: Yes,
Data and specifications
Remarks: external antenna connector.






Name and model: Alfa Network AWUS036NHR
Chipset: Realtek RTL8188RU
And reinjection monitor mode: If,
Data and specifications
Notes: RPSMA connector to exchange antennas. Audita well only medium distances. Not recommended for use in monitor mode. There is a version v2




Name and model: Érize ERZW54-USB04RS300
Chipset: Realtek 8187 L
monitor and reinjection mode: Yes,
Data and specifications
Remarks: external antenna connector, it supports promiscuous mode, possibility of using high power application alfatools




Name and model: Érize ERZW54-USB03H1W
Chipset: Ralink 2571 w
monitor and reinjection mode: Yes,
Data and specifications
Remarks: external antenna connector.




Name and model: kasens 2000 mw
Chipset: Realtek 8187 L
monitor and reinjection mode: Yes,
Data and specifications
Remarks: external antenna connector, posiblilidad alfatools application using the high power driver supports promiscuous mode.



tarjeta_wifi_54mbps_edimax_ew_7711usn.jp

Model name: Edimax EW-7711USn
Chipset: Ralink RT2870 / RT3070
monitor and reinjection mode: Yes,
Data and specifications
Remarks: external antenna connector to exchange more gain antennas.



Adaptor-wireless-USB-54Mbps-TP-Link-TL-W

Name and model: TP-LINK tl-wn422gc
Chipset: Atheros AR9271
monitor and reinjection mode: Yes,
Data and specifications
Observations: connector for exchanging different antennas profits. Good choice quality, price



images?q=tbn:ANd9GcSZc6WAyqNPUMlSwwItg3n

Name and model: TP-Link TP-WN321G v4.1
Chipset: Ralink RT2870
monitor and reinjection mode: Yes,
Data and specifications
Observations: a little deaf. 100mW. without antenna, MOD.






Name and model: TP-Link TL-WN422G USB 802.11g 100mW
Chipset: Zydas zd1211rw
monitor and reinjection mode: Yes,
Data and specifications
Remarks: supports promiscuous mode. There is another similar model but without external antenna, the TP-LINK TL-WN322G .Del TP-Link TL-WN422G-there are two versions v1 has the zydas zd1211rw chipset and Atheros AR9271 v2




Name and model TP-Link TL-WN321G
Ralink RT73 chipset
monitor and reinjection mode If,
Data and specifications
Remarks: internal antenna




Name and model: Érize ERZW54-USB04RS1W
Chipset: Realtek 8187 L
monitor and reinjection mode: Yes,
Data and specifications
Notes: works perfectly in both managed and monitor mode. I do not know if the application alfatools sevira also for erice 1w, accepts promiscuous mode.



erize_erzw54_usb04rs800_adaptador_usb_wi

Name and model: Érize ERZW54-USB04RS800 (800 mw)
Chipset: Realtek 8187 L
monitor and reinjection mode: Yes,
Data and specifications
Observations: I think that is the twin brother of gold 800mw externally, sensitivity is higher in the gold 800mw, supports promiscuous mode.



images?q=tbn:ANd9GcQZajbSNRlrdk0_puANbkN

Name and model: WIFLY-CITY 1500MW 20G
Chipset: Realtek 8187 L
monitor and reinjection mode:
Data and specifications
Observations: economic Adapter (14 €) connector sma, configurable antenna with alfatools, configurable with the driver and utility of Alfa 1w, internal heat sink.




Name and model: WIFISKY 1000 mw
Chipset: Realtek 8187 L
monitor and reinjection mode: Yes,
Data and specifications
Remarks: external antenna connector, high sensitivity, supports promiscuous mode, possibility of using high alfatools chipset power application



images?q=tbn:ANd9GcS_oQdN-Tn7nsmnIHcrqH-

Name and model: HIGH POWER 500mw USB LAN CARD
Chipset: Realtek 8187 L
monitor and reinjection mode: Yes,
Data and specifications
Remarks: external antenna connector, it supports promiscuous mode, ability to use the application alfatools high power driver



images?q=tbn:ANd9GcTAR7bkv-kghaFvcI_Im1a

Name and model: freewifilink FL2016G 1000 mw
Chipset: Realtek 8187 L
monitor and reinjection mode: Yes,
Data and specifications
Notes: Known as Black Dragon, external antenna connector, it supports promiscuous mode, possibility of using high alfatools power application





Share this post


Link to post
Share on other sites

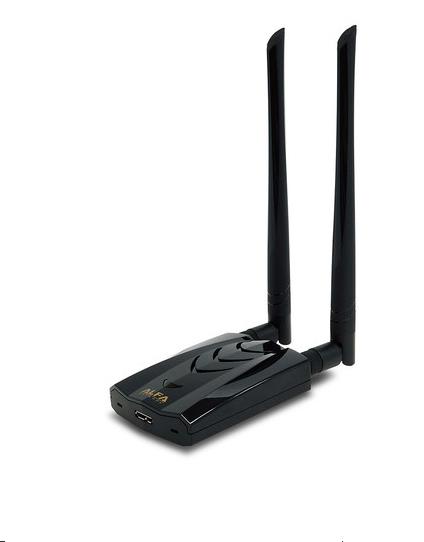

AWUS036ACH is a high-speed wireless adapter with support for the new 802.11ac standard.

Specifications:

Chipset: Realtek RTL8812AU

Standard wireless 802.11 a / b / g / n / ac

USB Port: 3.0 Micro-B

Security: WEP, WPA, WPA2, Cisco CCX

Compatibility: Windows XP / Vista / 7/8, MacOS X, Linux

Antenna connectors: female RSMA

Detachable 5dBi antennas

Transmission rates:

802.11a: 6,9,12,18,24,36,48,54 Mbps

802.11b 1, 2, 5.5, 11 Mbps

802.11g: 6,9,12,18,24,36,48, 54Mbps

802.11n: up to 300 Mbps

802.11ac: up to 867 Mbps

Share this post


Link to post
Share on other sites

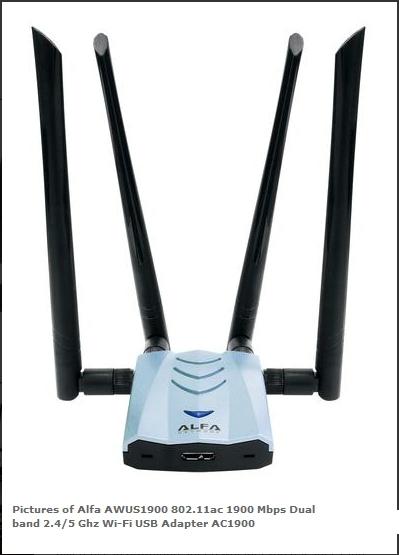

Alfa AWUS1900 is a new quad antenna 802.11ac Wi-Fi USB receiver boasting router connection speeds of up to 1900 Mbps (1300 Mbps for 5 Ghz + 600 Mbps for 2.4 Gz). It is compatible with Microsoft Windows 7, 8/8.1, and Windows 10. This connects to your computers USB port with enclosed USB 3.0 cable and boosts the Wi-Fi performance of that specific PC. This is not a router or repeater.




Share this post


Link to post
Share on other sites

I'll add the cards with the 8187B , 8187L vs 8187B

Not as much signals as the version but aALL of them INJECTABLES!



·Note that 8187L displays APs with high RSSI but 8187B does not.
(APs with high RSSI are usually non injectable)

The winner is 8187B by a 15 to 20% margin."

Edited by clanon

Share this post


Link to post
Share on other sites

would you recommend the best wireless adapter with high power and sensitivity  for long range coverage  and thanks in advance

1 person likes this

Share this post


Link to post
Share on other sites
4 hours ago, Rtyon said:

would you recommend the best wireless adapter with high power and sensitivity  for long range coverage  and thanks in advance

what standard (speed) and frequencies ?...2.4 5.8 A B G N ...AC

2.4ghz b/g/n High sensitivity (- 96 dbm at 1mbps)  anything with AR9271 (Tplink tl-wn 722n Version 1) 150 mbps max





Share this post


Link to post
