CST GENERATING GERBER FILES

[streetdog 0]

HELLO ALL , IM NEW TO ANTENNA DESIGN . IM DESIGNING A TRIANGLE ANTENNA WITH TRIANGLE GROUND AND PATCH WITH COAXIAL FEEDING ( HOLE FEEDING). MY QESTION IS I HAVE CONSTUCTED THE CONNECTOR BY WACHING SOME TUTORIALS AND NOW CAN I USE THIS  THE NORMAL 50 OHM CONNECTOR WHICH IS AVAILBALE IN THE MARKET AFTER FABRICATION. AND HOW CAN I GENERATE THE GERBER FILES FOR THE FABRICATION . AND THE RESULTS I HAE ACHIVED IS 5.991 GHZ @ S11= -32.31 DB AND VSWR IS 1.049 AND GAIN OF 6.3DBI. IS THIS RESULTS ARE GOOD OR DO I NEED TO CHANGE ANYTHING? HOPE I GET THE SOLUTION THANKS.

[Admin 2735]

,,,hi buddy...!!!

welcome to this forum...!!!
if you can give some dimensions it would be better!

Gerber files are from CST-Studio...???

And why don't you write in normal letters?

[streetdog 0]

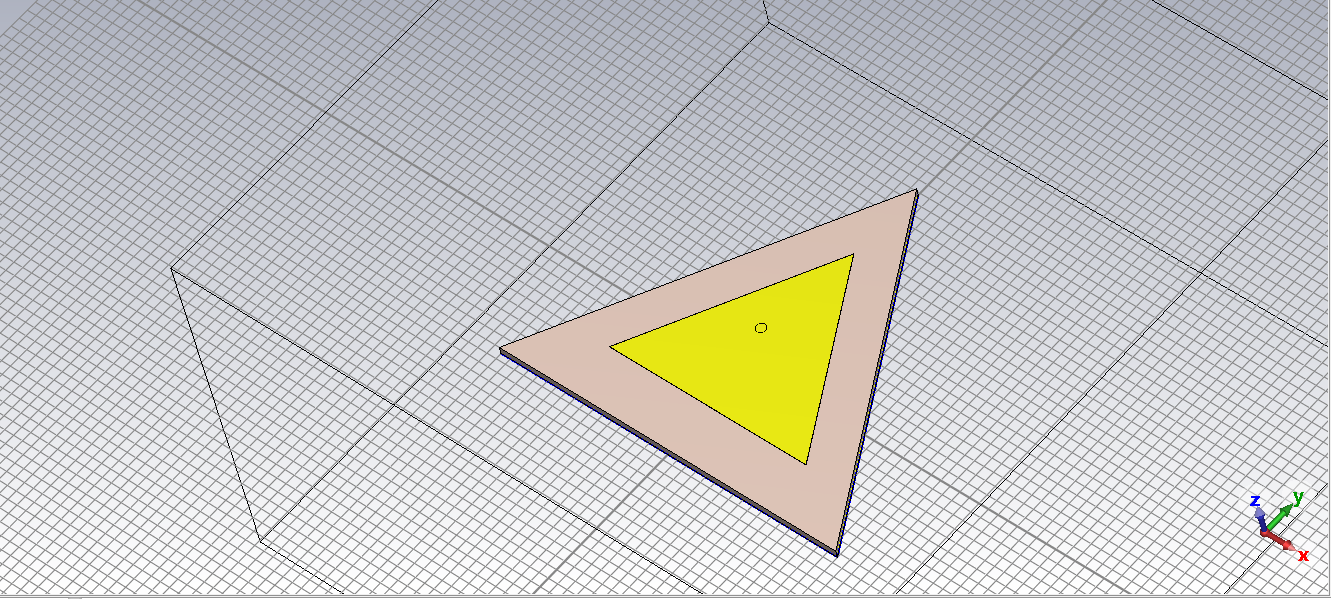

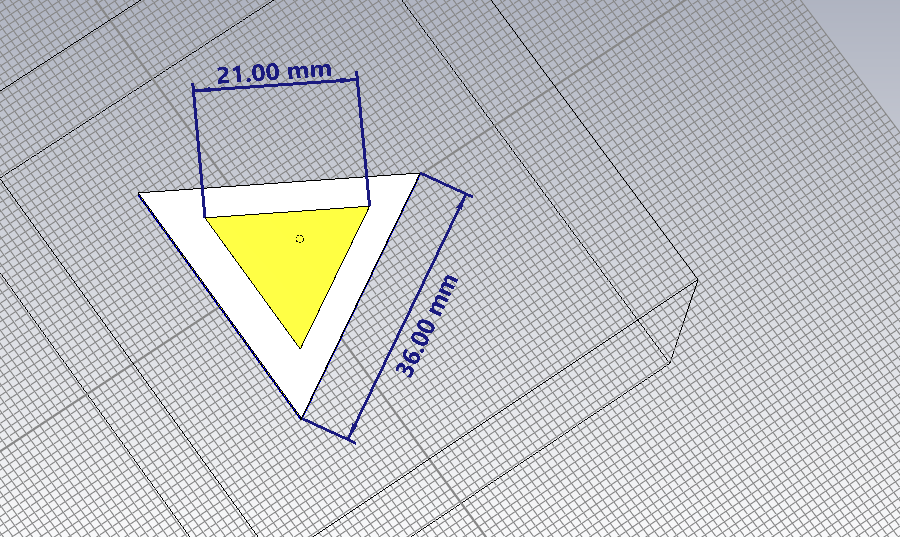

hi , i have attached the picture with diamensions ,

yes from cst studio,sorrry  unfortunately wrote with caps lock , next time i will write in normal letter.

[Admin 2735]

,,,but you need to show the positioning of the power point and the thickness of the PCB...!!!

[streetdog 0]

is power point means feeding point??



[streetdog 0]

, im using roggers RT5880 with thickness 0.787 mm and copper thickness is 0.035 mm

and feeding location is x = -1.5 and y = 3.

[Admin 2735]

I think it's easier to post the CST file....!!!

[streetdog 0]

trianngle rt5880.cst

[Admin 2735]

[streetdog 0]

ho ok thanks , so i need to redesign it?



[streetdog 0]

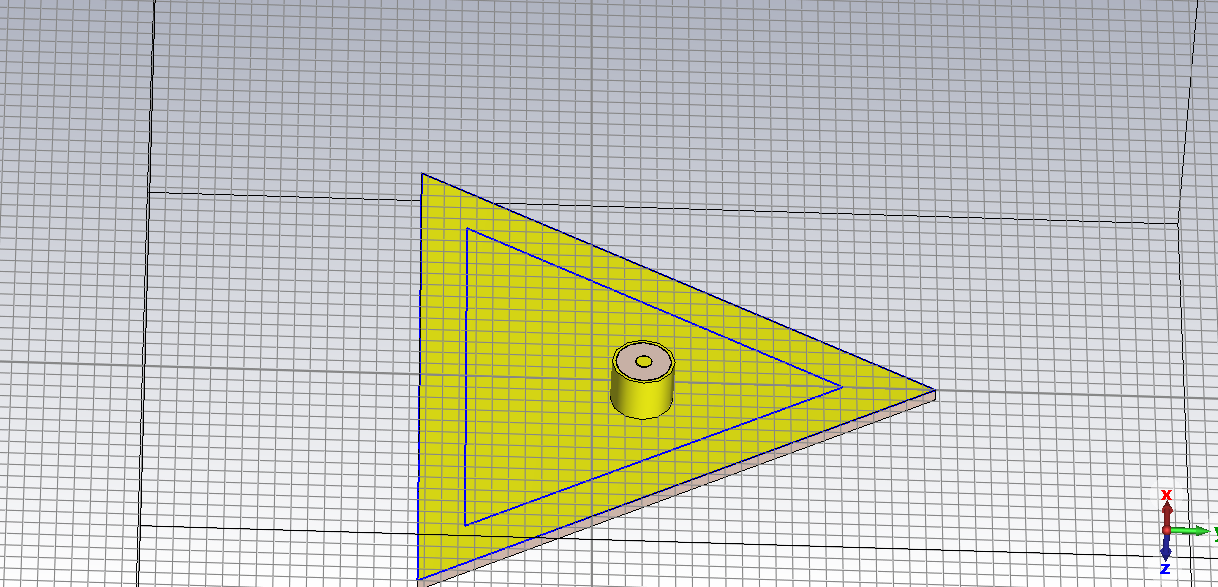

i have modified now.

trianngle rt5880.cst

[Admin 2735]

Okay, then post the results...!!!

[streetdog 0]

i have attached the modified file.

trianngle rt5880.cst

[Admin 2735]

Okay, now post the images with the results obtained...!!!

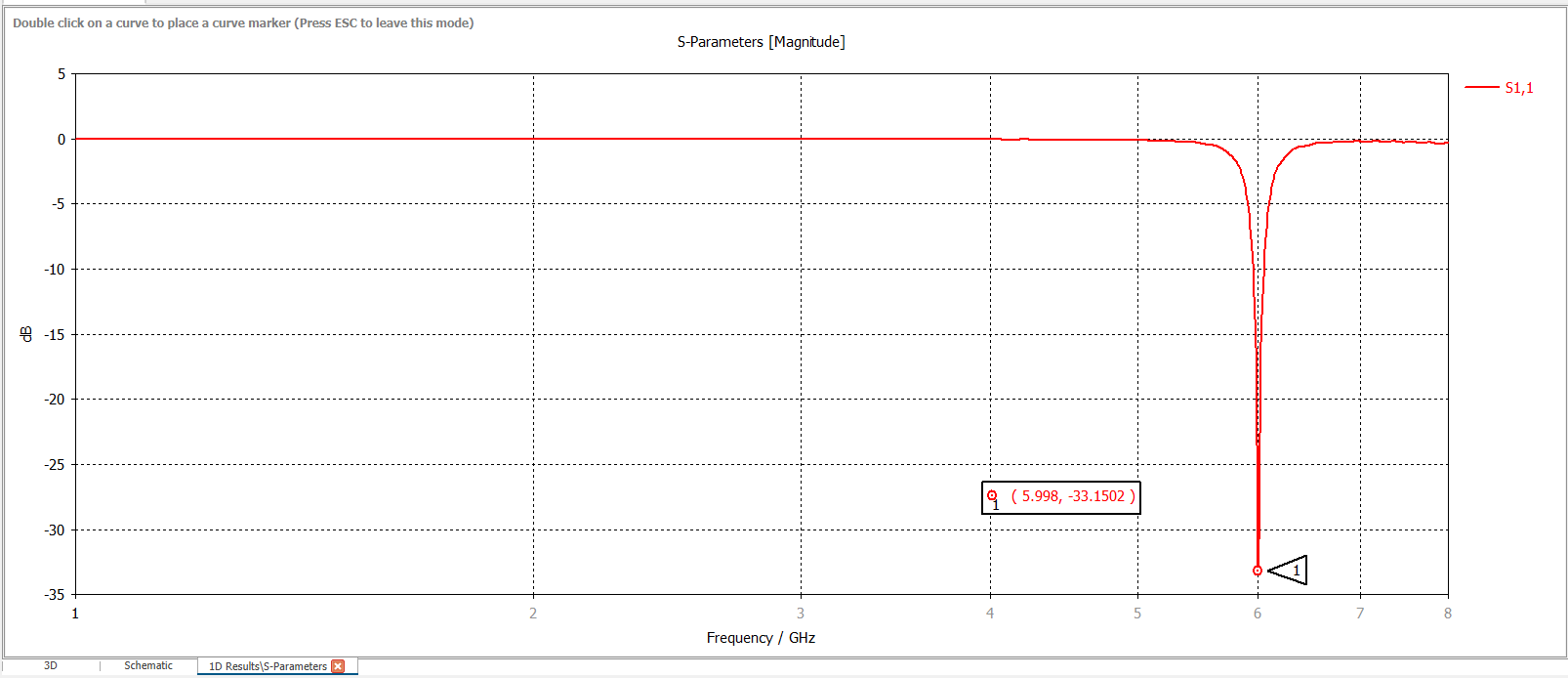

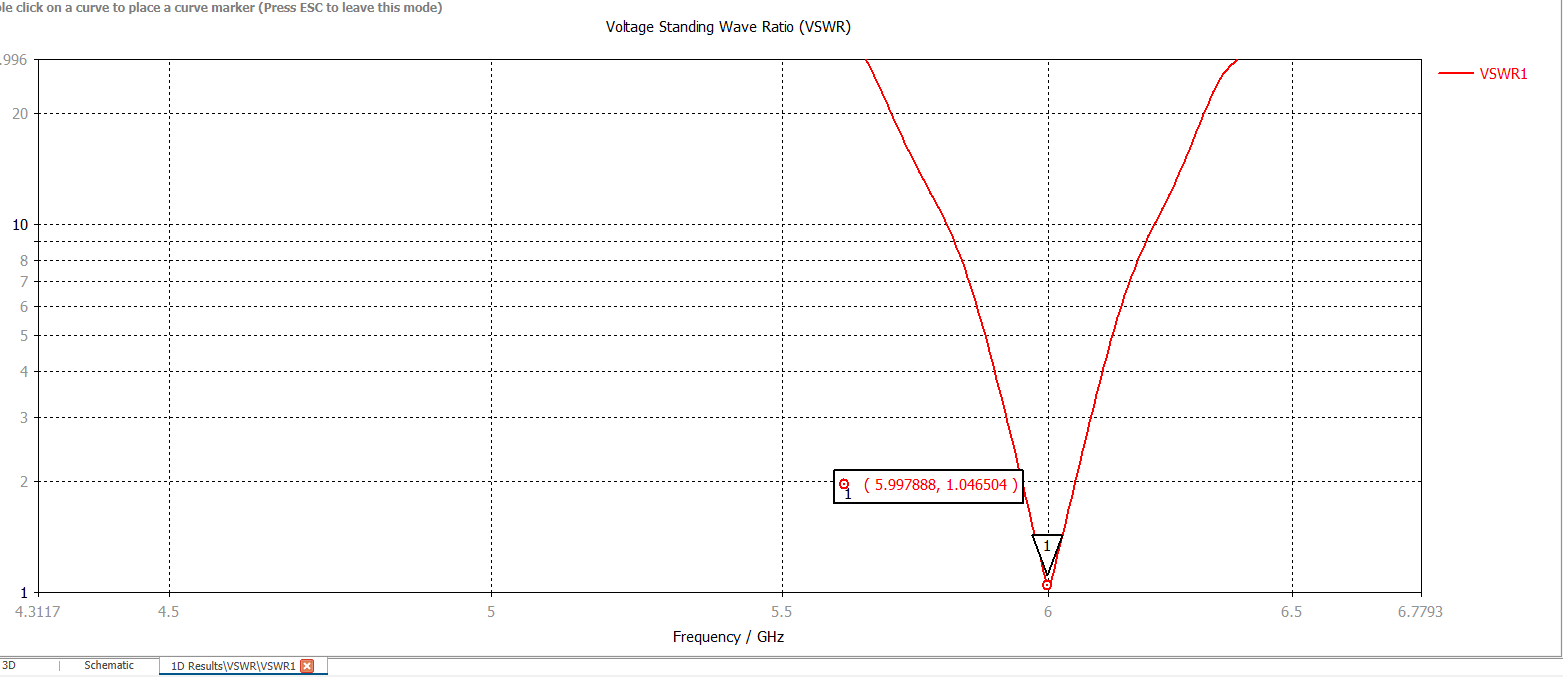

[streetdog 0]

[Admin 2735]

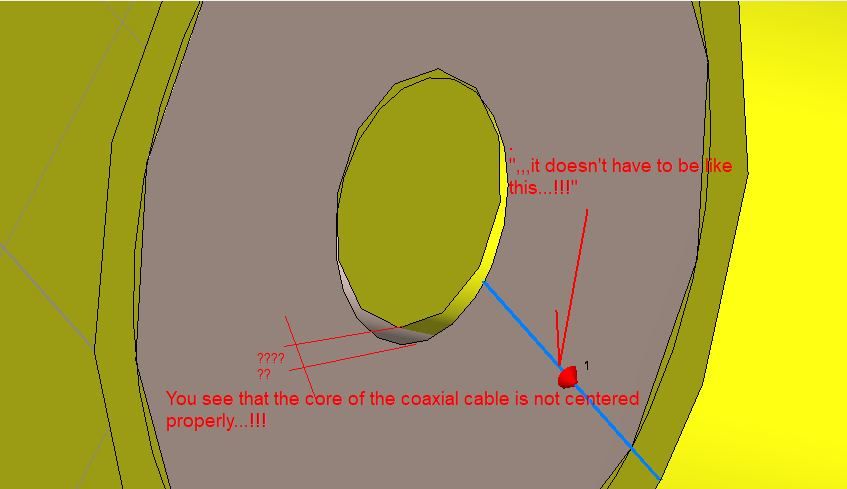

Your file is completely wrong...!!!
