Yagi-Disk antenna for 2350 MHz

I need your help, namely:
calculations are needed Yagi-Disk antenna for 2350 with a band of at least 100MHz at 50Ω

Share this post


Link to post
Share on other sites

,,,search here and you will find what interests you...



Share this post


Link to post
Share on other sites

Types of Polarization:

Linear Polarization

Circular Polarization

Elliptical Polarization

Share this post


Link to post
Share on other sites

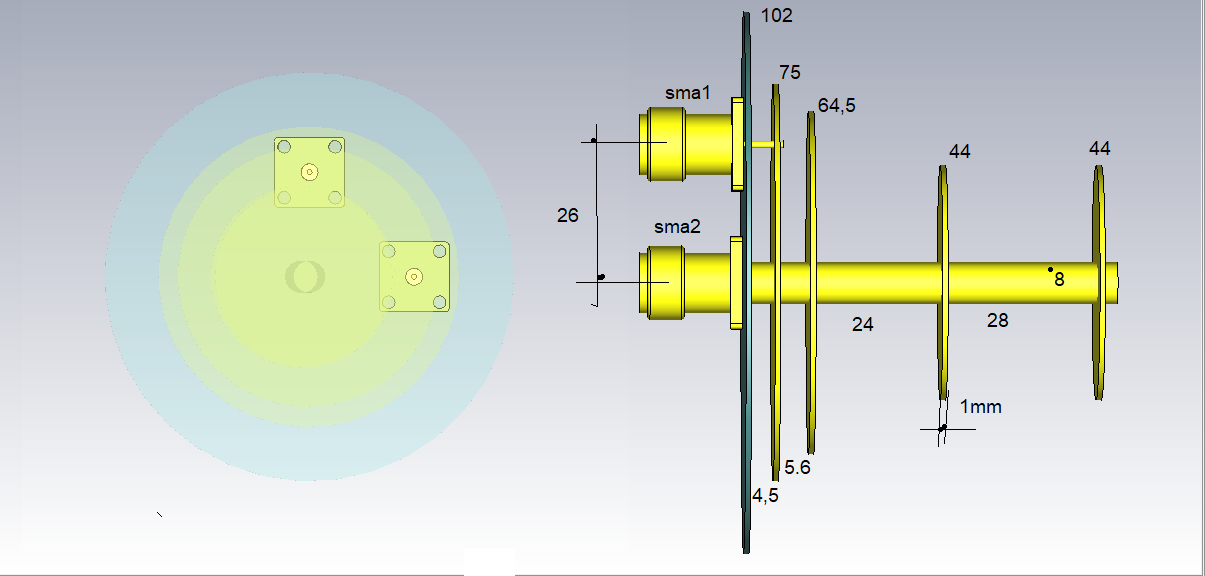

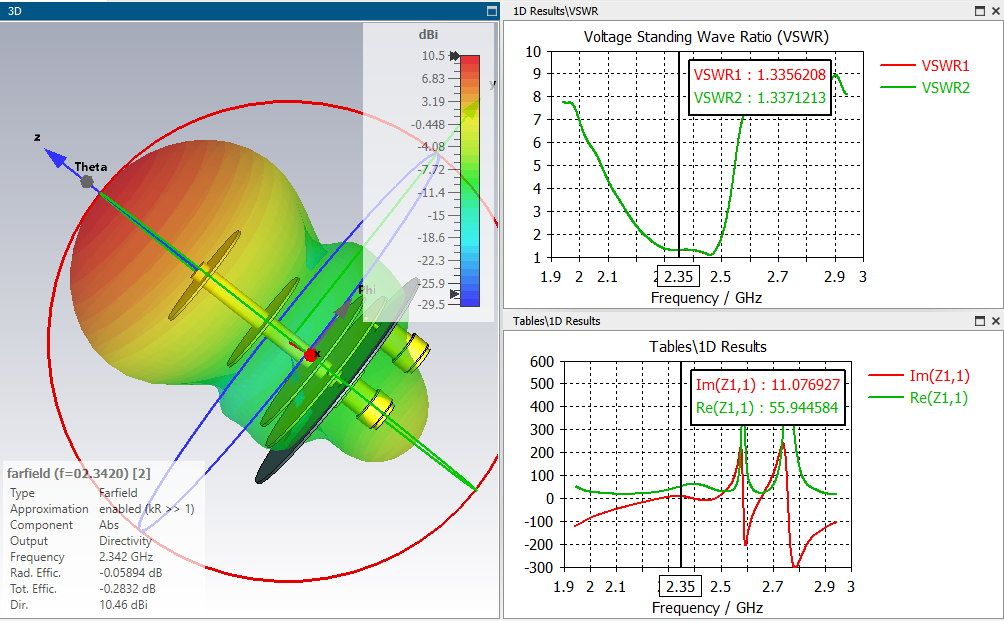

,,,do you like this...??


Share this post


Link to post
Share on other sites

Yes, it's not bad, but SWR needs to be <1.2. Also, if possible, if it improves the result, increase the number of disks.

Share this post


Link to post
Share on other sites
2 hours ago, Admin said:

,,,do you like this...??


It is possible to get a drawing or *cst file, I will try to do it.

Share this post


Link to post
Share on other sites

,,, better try to simulate it yourself...!!!




Share this post


Link to post
Share on other sites
5 minutes ago, Admin said:

,,, better try to simulate it yourself...!!!




Yes, I will try, thank you very much. I will show the result.

2 people like this

Share this post


Link to post
Share on other sites

I seem to be doing something wrong. Can you still reset the cst file?






Share this post


Link to post
Share on other sites

,,,this is not possible, it's a mistake in the SMA plug (the connection between the plug and the vibrating disc)>>>!!!!

,I will send you the cst file"

Share this post


Link to post
Share on other sites

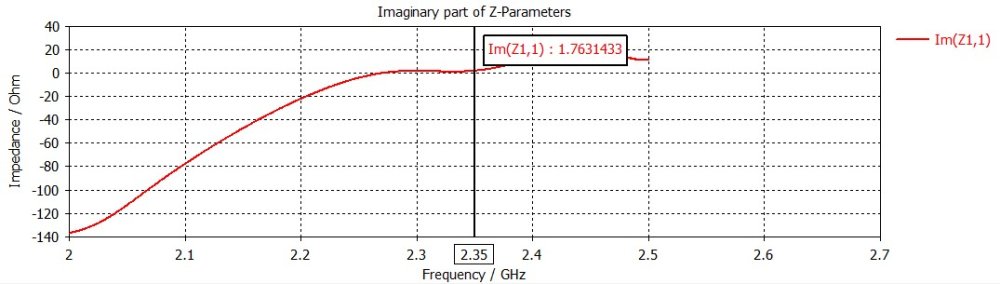

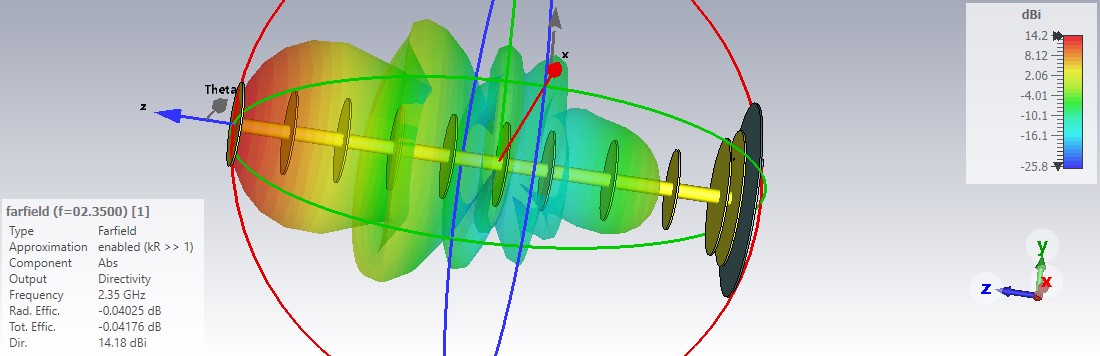

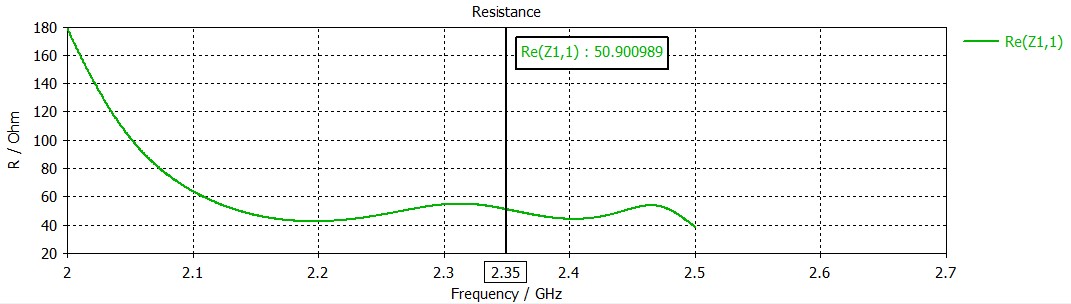

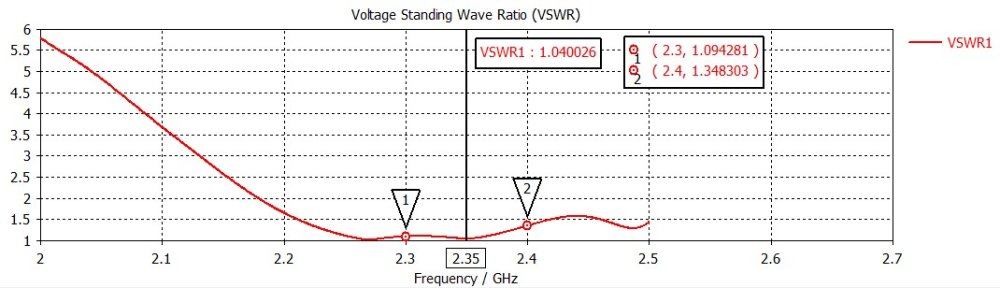

And what...isn't it good...????

Share this post


Link to post
Share on other sites
6 minutes ago, Admin said:

And what...isn't it good...????

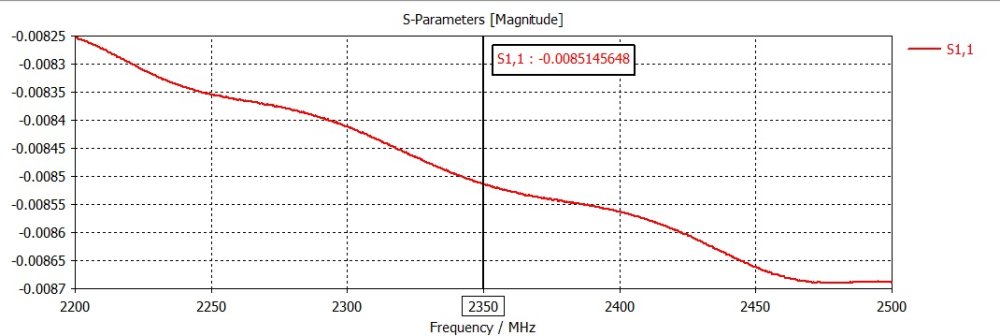

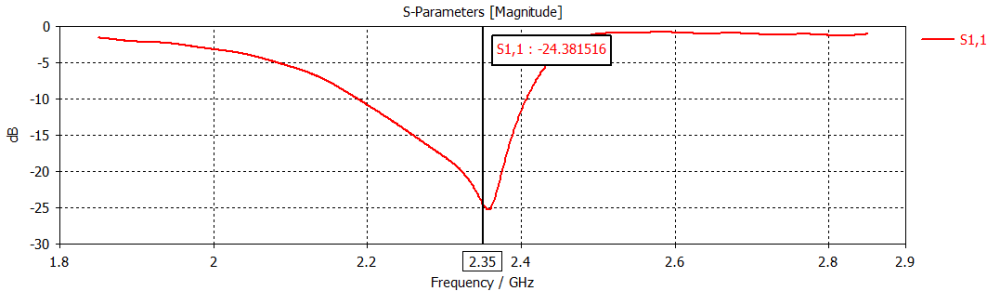

S1.1 is out of range

Share this post


Link to post
Share on other sites

S11 or VSWR indicates the amount of energy reflected in the RF circuit and transmitted to the antenna. The smaller the value, the better it is. Generally, S11≤-6dB or VSWR≤3 would indicate acceptable performance.

Share this post


Link to post
Share on other sites

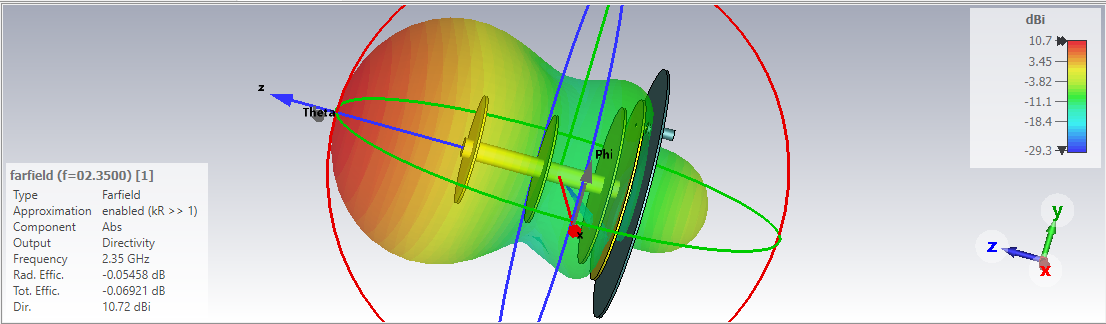

,,,the antenna looks very good but it would be interesting to see its feed points  (inside)...!!!

Share this post


Link to post
Share on other sites
On 10/31/2024 at 7:24 PM, dumser2 said:

I seem to be doing something wrong. Can you still reset the cst file?






PORT ISN'T THERE , dangling (not touching metal on BOTH SIDES) or wrong port...CHECK WARNINGS
