TheMaksimys

Bifilar Helix Antenna with Reflector

Hi everyone,

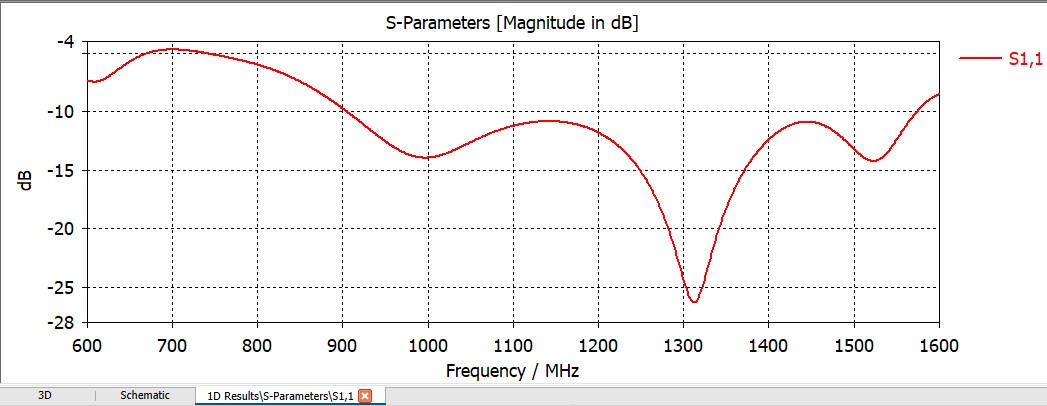

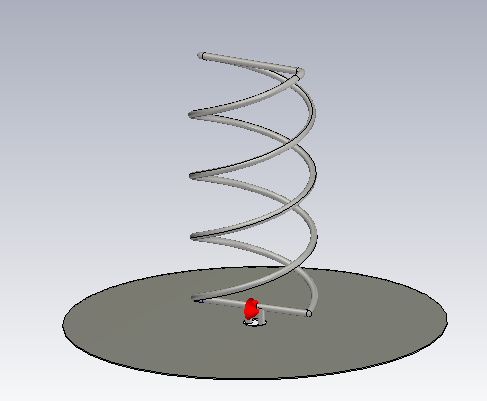

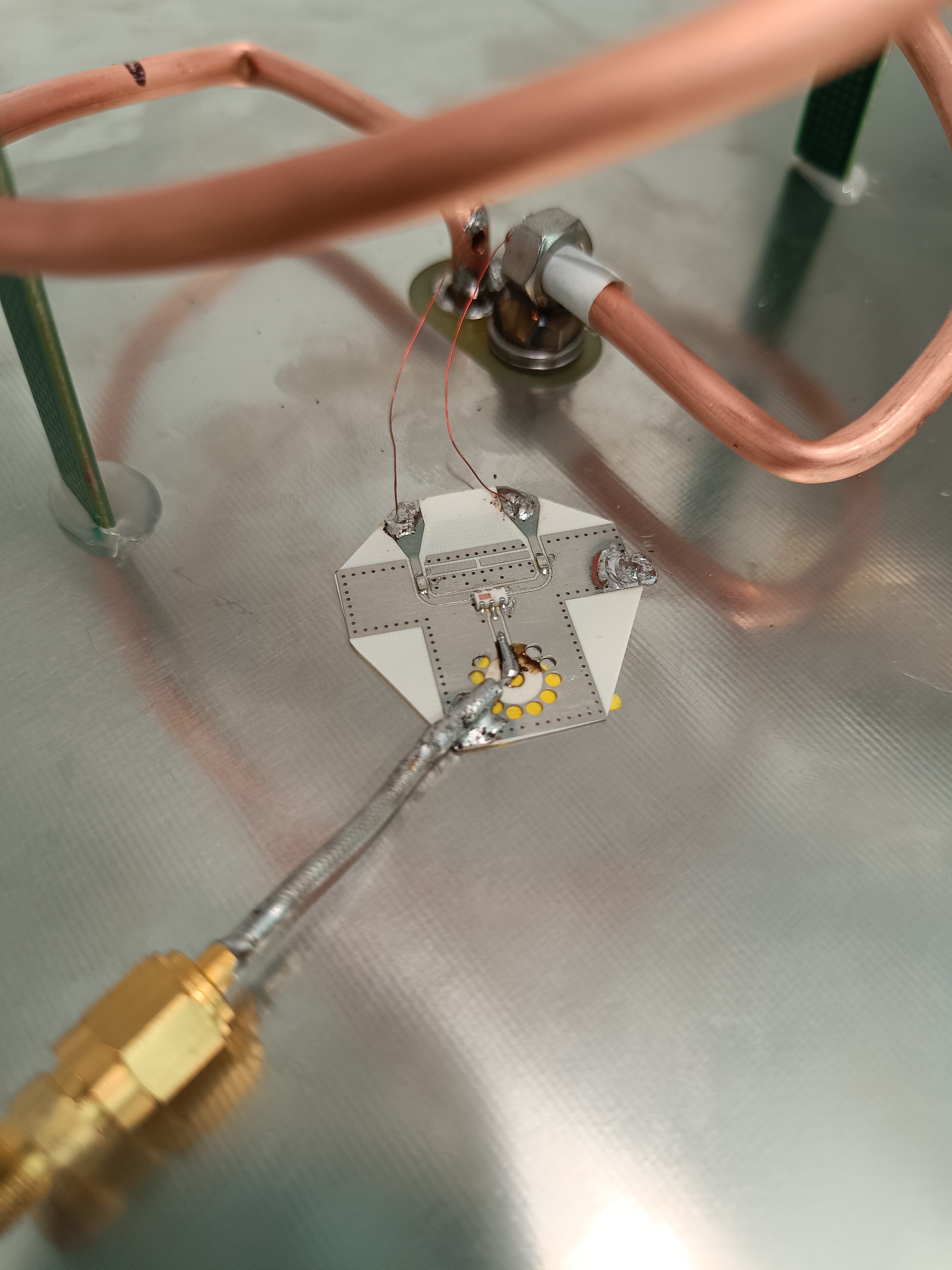

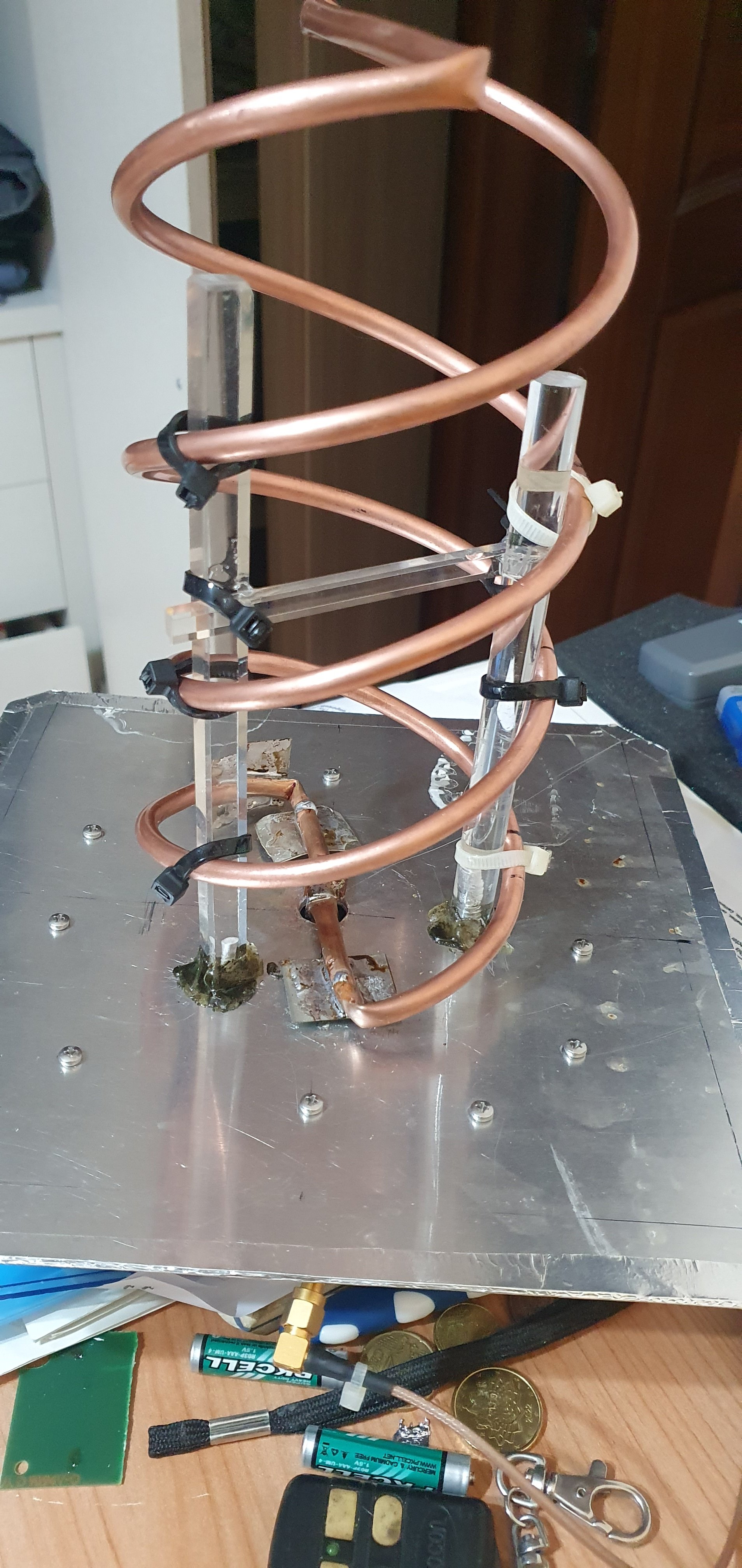

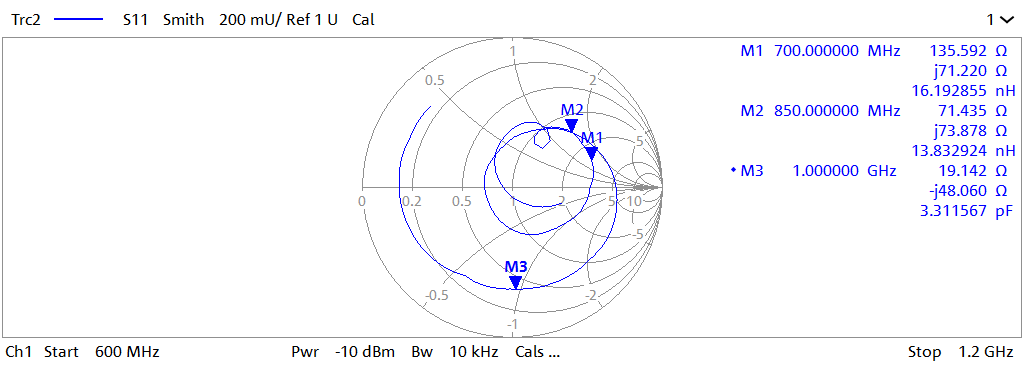

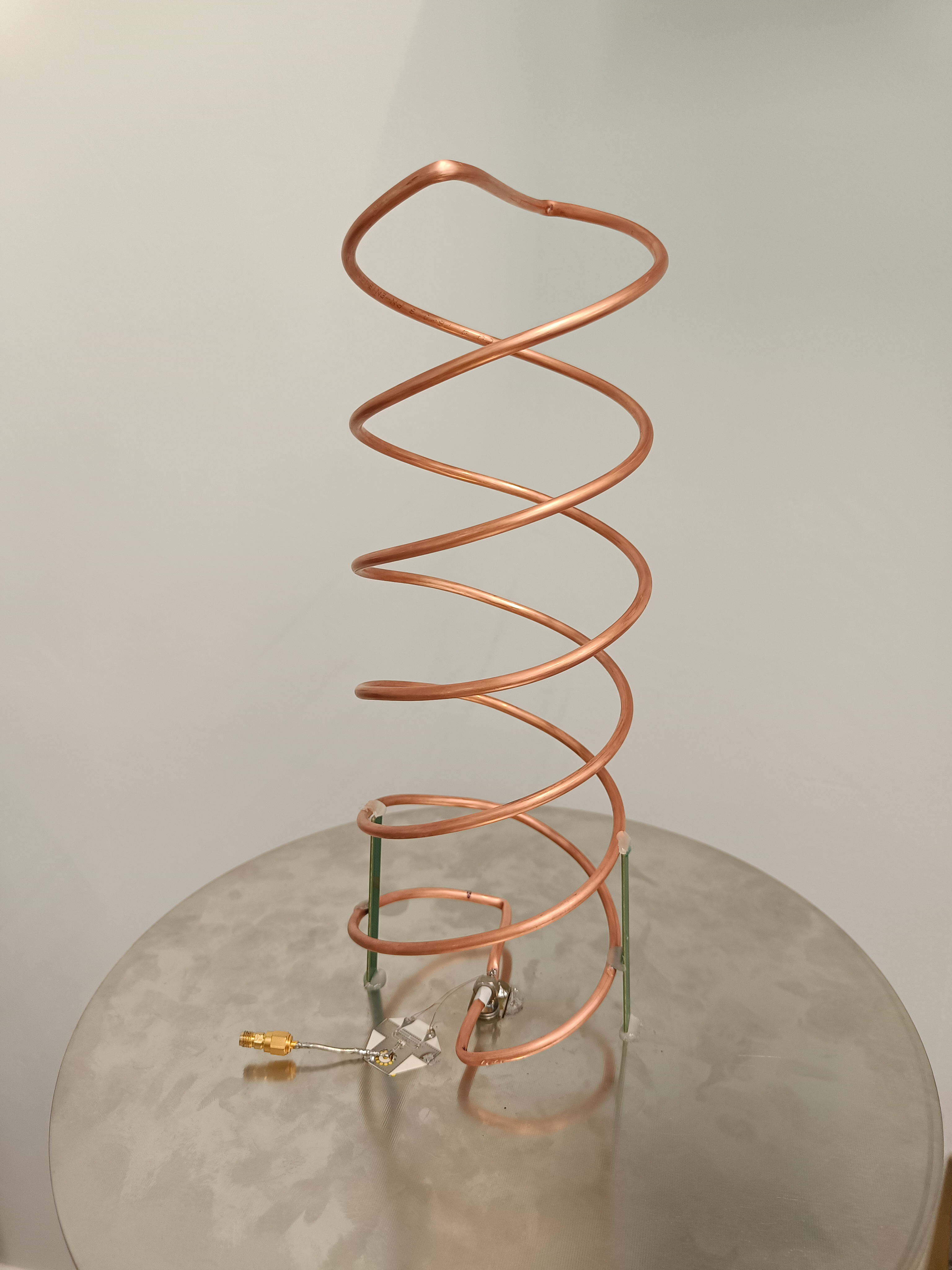

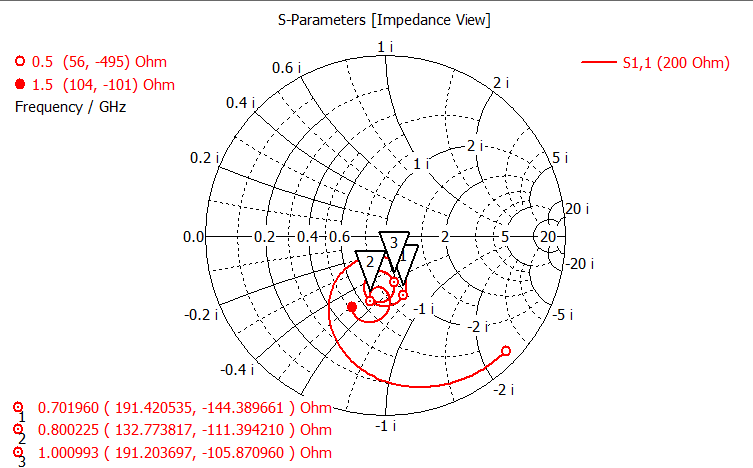

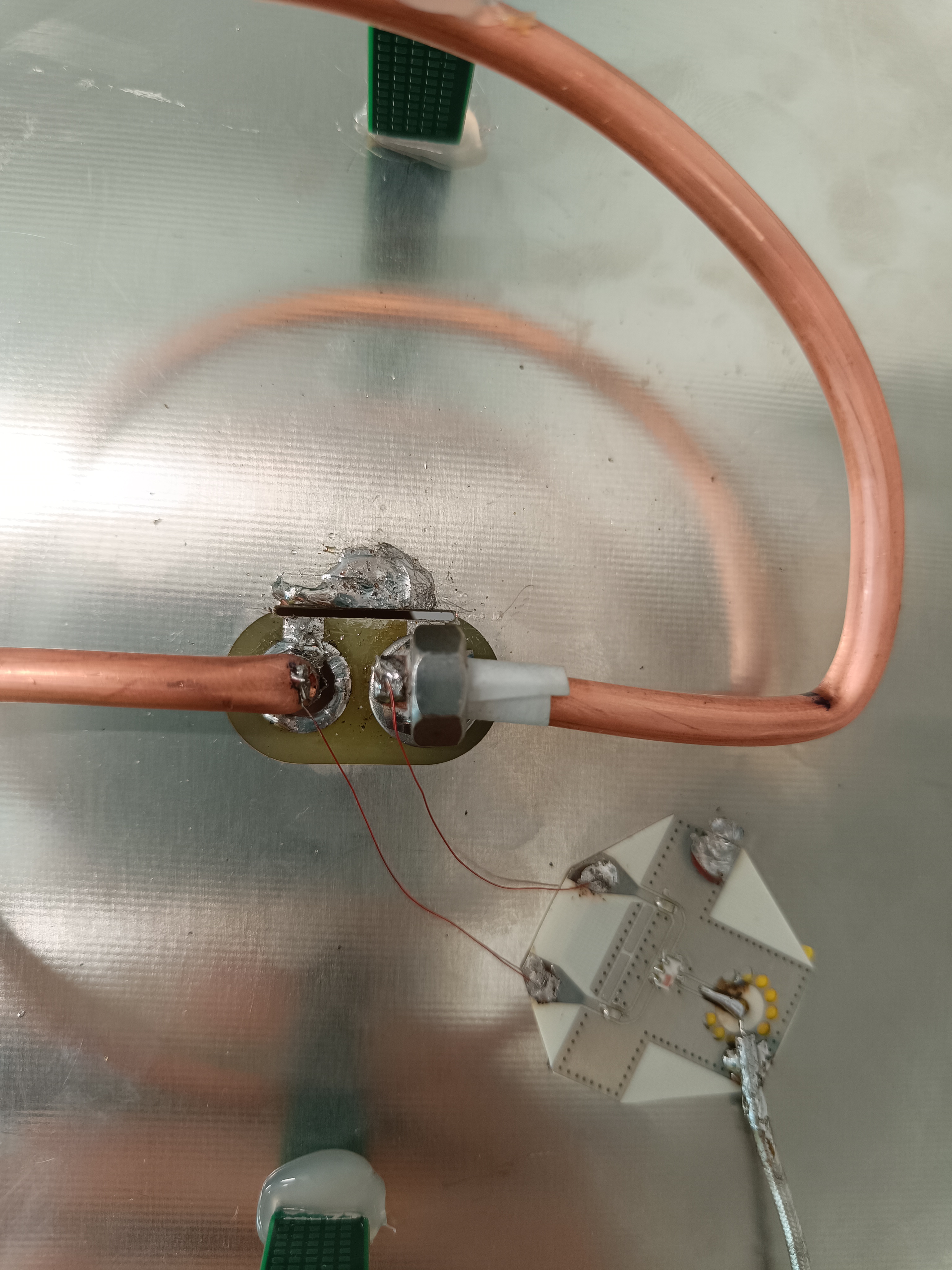

I am attempting to make this antenna to work for ISM band (868-915 MHz). It seems that I am having troubles with the feeding structure, since the measured Return loss barely represents what I observe in simulations. The antenna is designed for the characteristic impedance of 200 ohms, so I am using the Mini-circuits 4to1 balun and connecting the balanced side rigth to the ends of helix, just as in the simulation. I cannot really find the reason for the discrepancy in the results, since even if I am feeding the antenna with unbalanced 50 Ohms it still demonstrates the return loss that is way off from the simulated results. I am attaching the simulation file and a few photos of the prototype. Thank you for everyone who will contribute to the discussion of this topic!



BFHA_tests_3.cst






1 person likes this

Share this post


Link to post
Share on other sites

,,,hi buddy...!!!

,,,you can try to do Clanon's impedance matching...



1 person likes this

Share this post


Link to post
Share on other sites
1 hour ago, Admin said:

,,,hi buddy...!!!

,,,you can try to do Clanon's impedance matching...



Unfortunately not really an option, since I was looking for a wideband solution, but thank you for pointing me to this post!

1 person likes this

Share this post


Link to post
Share on other sites

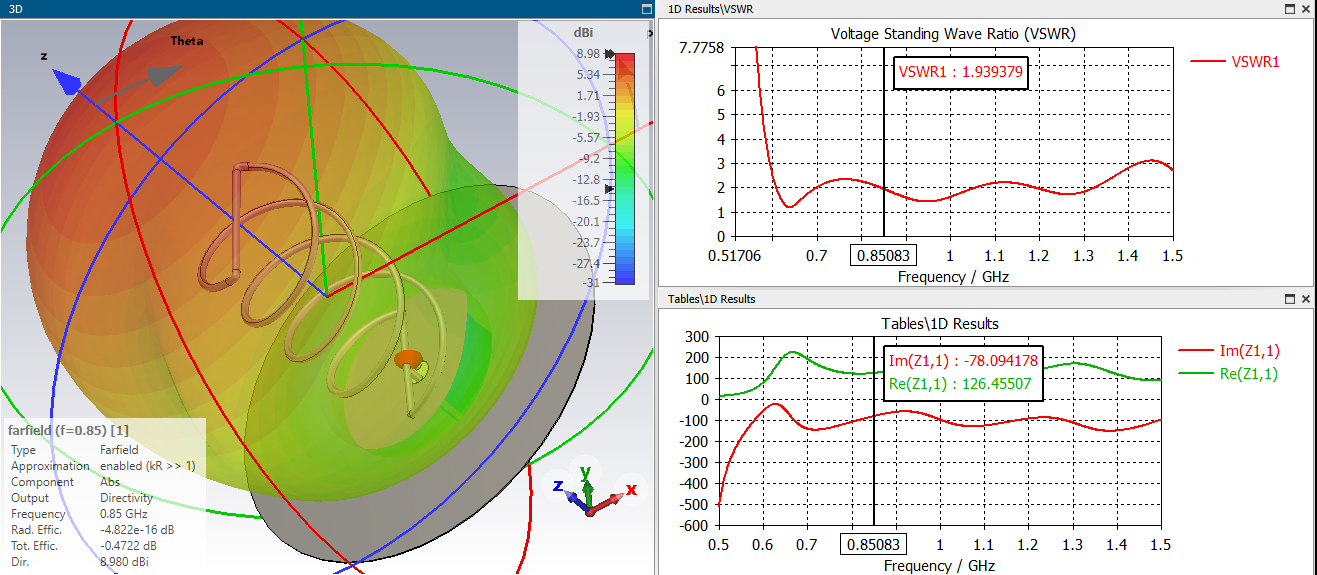

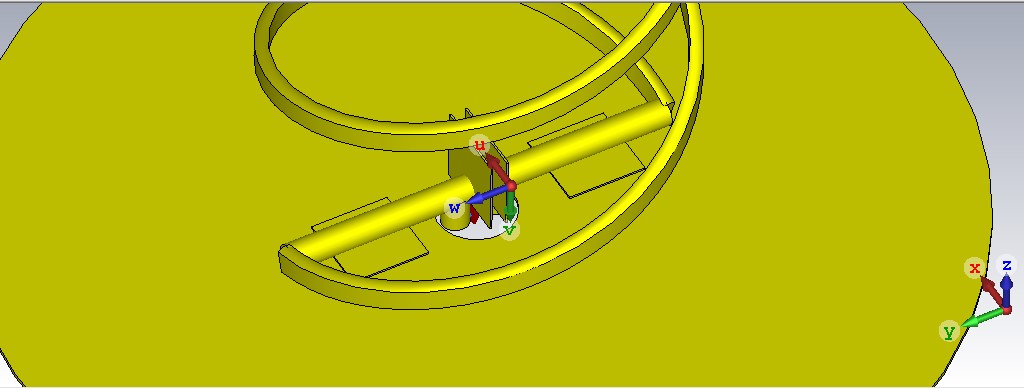

,,,,these would be the results on your Bifilar Helix Antenna....!!!


2 people like this

Share this post


Link to post
Share on other sites
On 12/06/2024 at 9:04 PM, Admin said:

,,,,these would be the results on your Bifilar Helix Antenna....!!!


Hi Dear, Please could you send me the *.stp file? Because I'm using CST2019, Many thanks! Andrea

1 person likes this

Share this post


Link to post
Share on other sites

Yes, It Works!



Have a nice day!



2 people like this

Share this post


Link to post
Share on other sites

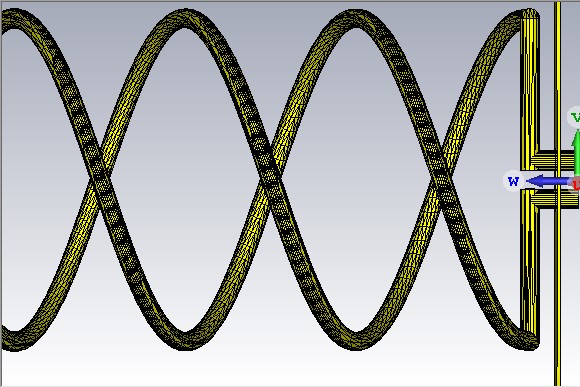

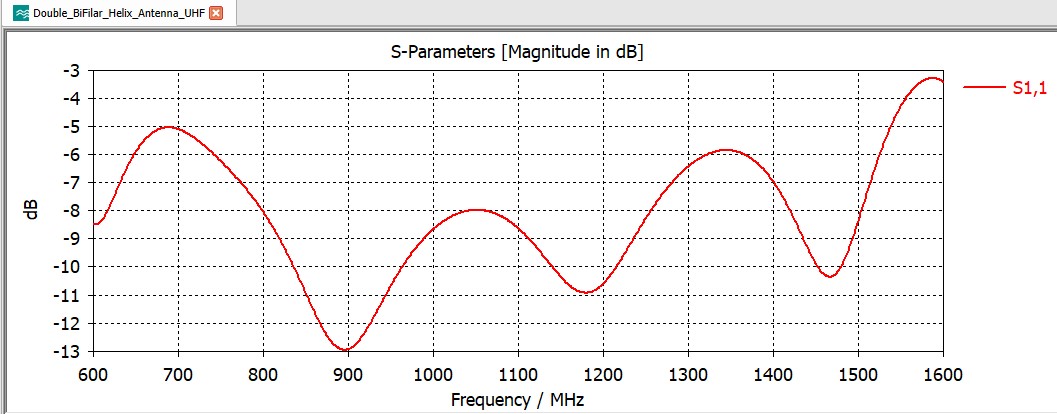

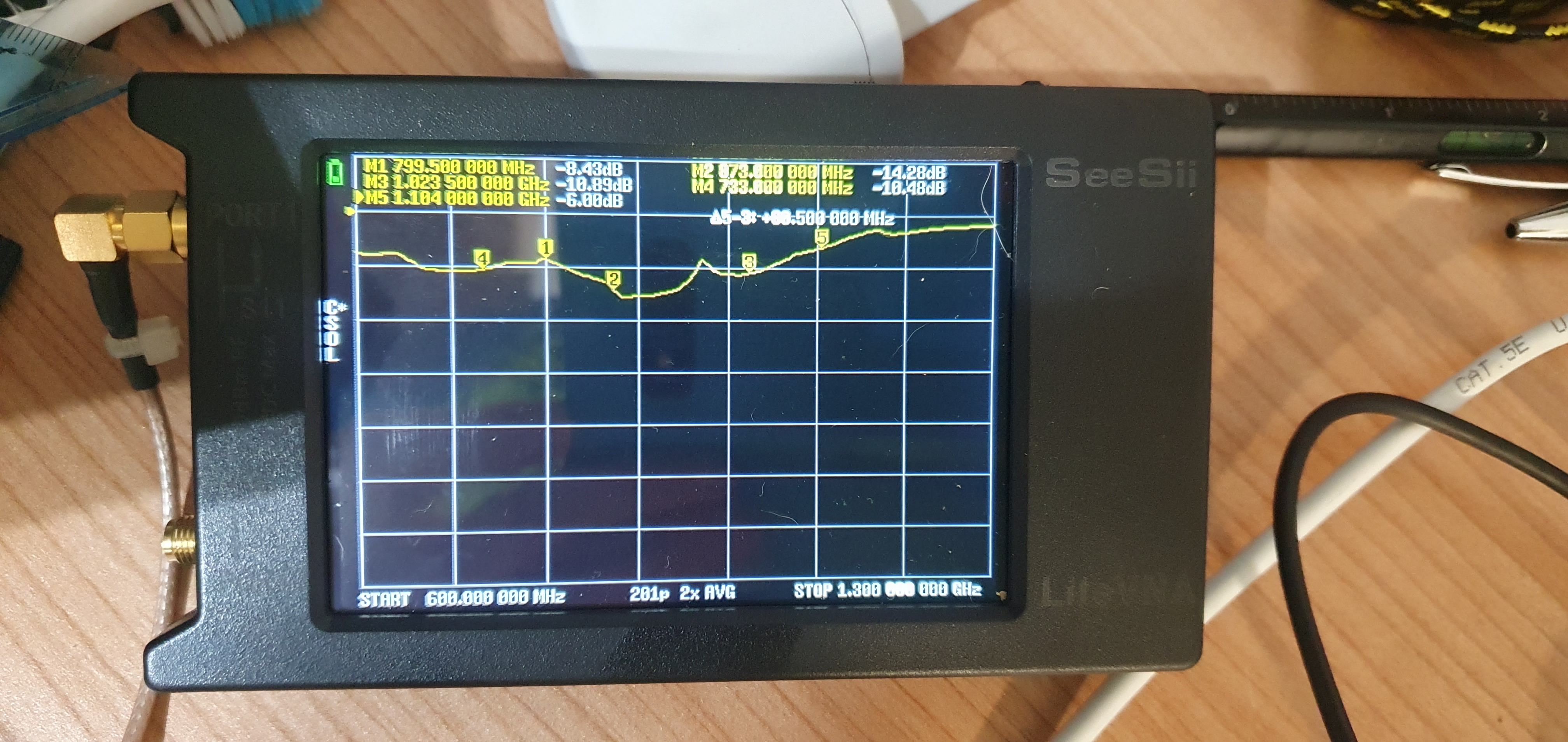

Have you tried to get the GND closer to the antenna? VSWR gets better! In this case GND plate moved to the antenna by 6 mmbifilar_2.jpg


Share this post


Link to post
Share on other sites
