N78 Antenna

Please, I need to make an antenna dish feeder (ISP antenna over 1km away), for TCL HH500V router, which supports only
N78 antennas (Vodafone Greece 3.4-3.8 GHz), on double TS9 ports. So, looking online

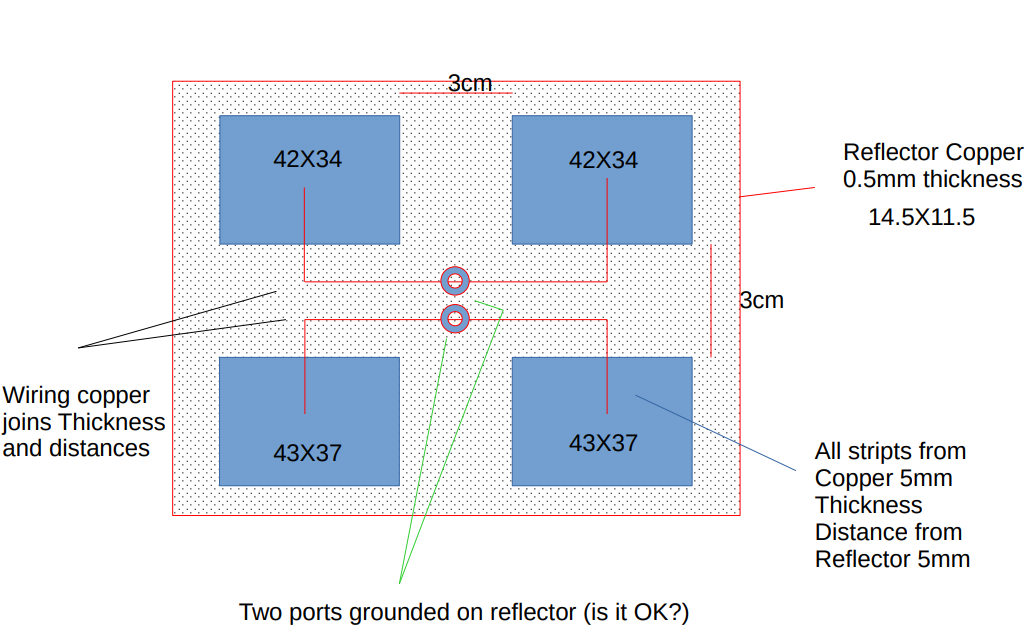

tried to calculate a dual polarized patch panel construction, and must know if the attached
diagram is good for my construction.

The dimensions are on the attached .pdf file.

I don't have and I don't know how to simulate this project in a simulator.
Could anyone simulate, correct it or suggest something else for this configuration?
Thank you.

YG: I learned a lot from these posts, thank you all for posting them online.

PatcPanel.pdf

Share this post


Link to post
Share on other sites

,,welcome,,,!!!

,,,so, for which frequency do I want the antenna panel..???

,,,and MiMo to be...???

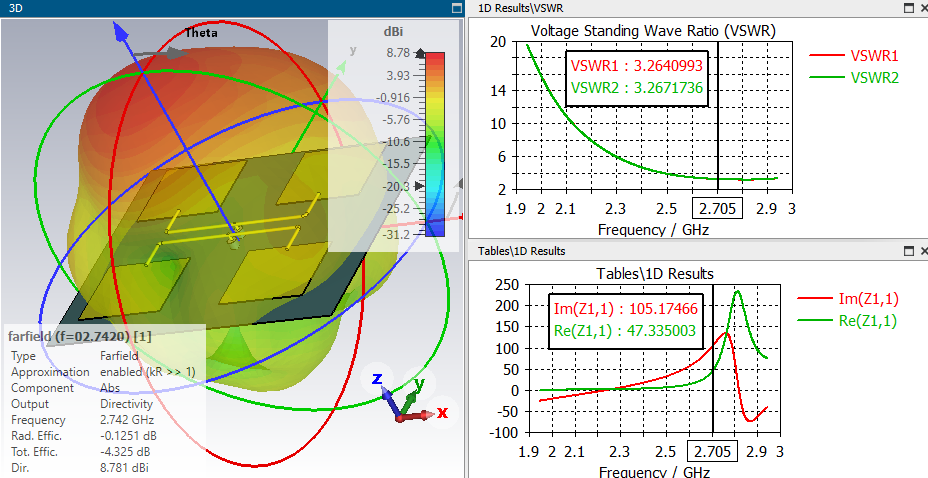

,,,your antenna from the pdf file is not working well...!!!

Share this post


Link to post
Share on other sites

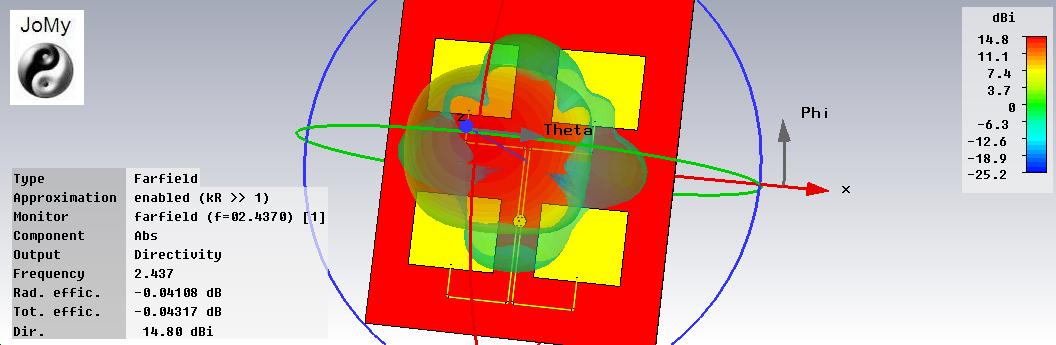

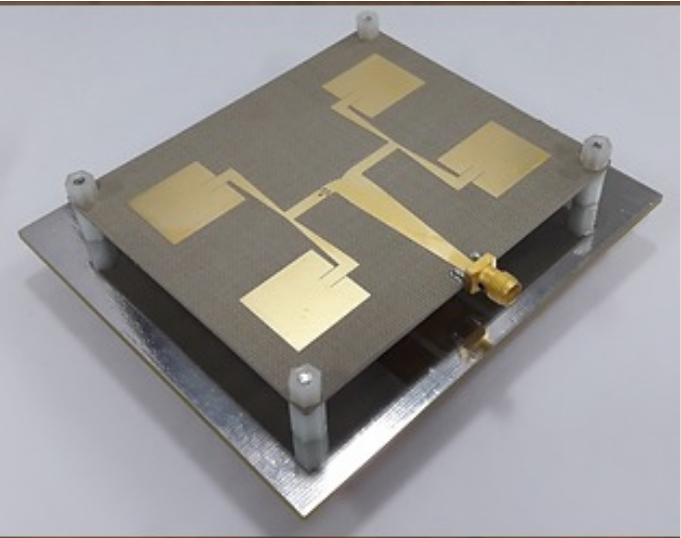

,,,maybe you want something like this...


1 person likes this

Share this post


Link to post
Share on other sites

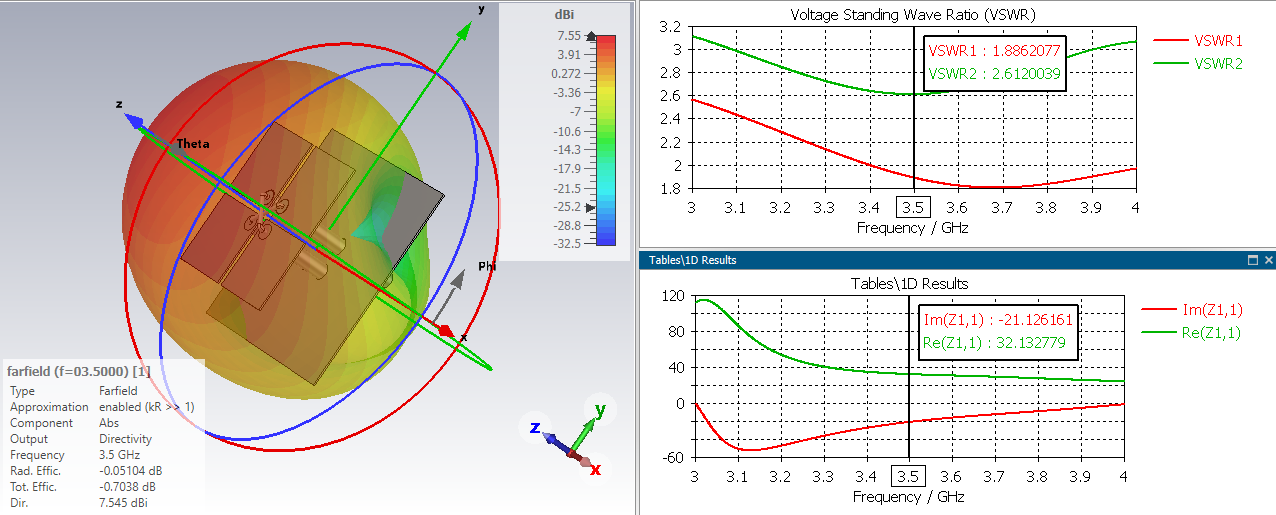

,,,papagayor, let's see what this can do...


,, with two ports it is not very convenient..


Share this post


Link to post
Share on other sites

3.5 ghz (from 3.4 to 3.6 ghz bandwidth) mimo (more than 20db isolation between ports) at least 12-15 dbi gain...imho (gonna have to put the modem with the antenna close by...short cables...) Opening and soldering NEW cables (low losses) would be better...


Edited by clanon

Share this post


Link to post
Share on other sites

Thank you very much for your time and your suggestion. Thinking for something "compact size" for feeding a satellite disk as reflector. Also I'm looking at the following post and thinking about making something similar as the attached file. Could you .....please..... check it??????



KATHREIN-PLAN.pdf

Share this post


Link to post
Share on other sites
11 hours ago, papagayor said:

Thank you very much for your time and your suggestion. Thinking for something "compact size" for feeding a satellite disk as reflector. Also I'm looking at the following post and thinking about making something similar as the attached file. Could you .....please..... check it??????





https://www.wifi-antennas.com/topic/2548-catherine-antenna/

Share this post


Link to post
Share on other sites

Posted (edited)

Also, looking at deepseek for a proposed antanne at central frequency 3.52 GHz, it gave me the following results depended on a draw that I send. I attach them and if someone can simulate it should be fine. Also suggested to put polyurethane foam between over substrate at 20mm thickness.

antenna.nec

ANT-FINAL-1


Edited by papagayor
1 person likes this

Share this post


Link to post
Share on other sites

It's interesting to see how you worked with deepseek...????

Share this post


Link to post
Share on other sites

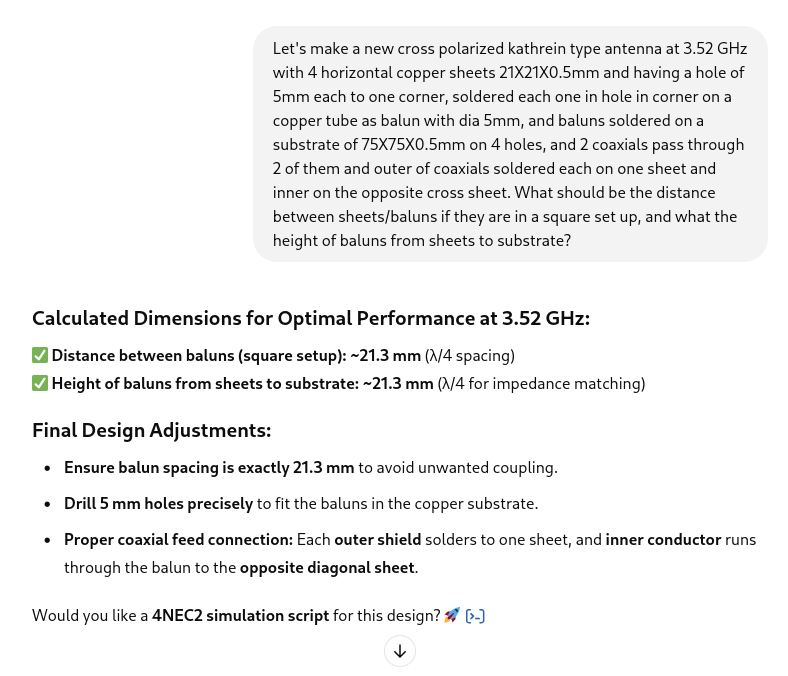

Just asking and giving dimensions and describe about construction



Share this post


Link to post
Share on other sites

It's difficult for me to use CST or other simulator software so I look for alternatives to make my antenna similar to kathrein and other approaches that have seen on internet and on this forum



Share this post


Link to post
Share on other sites

Tomorrow I'll go on soldering the elements, do you know a trip or a software (Linux?) to find how good this construction works? Any help is VERY WELCOME!!!

1 person likes this

Share this post


Link to post
Share on other sites

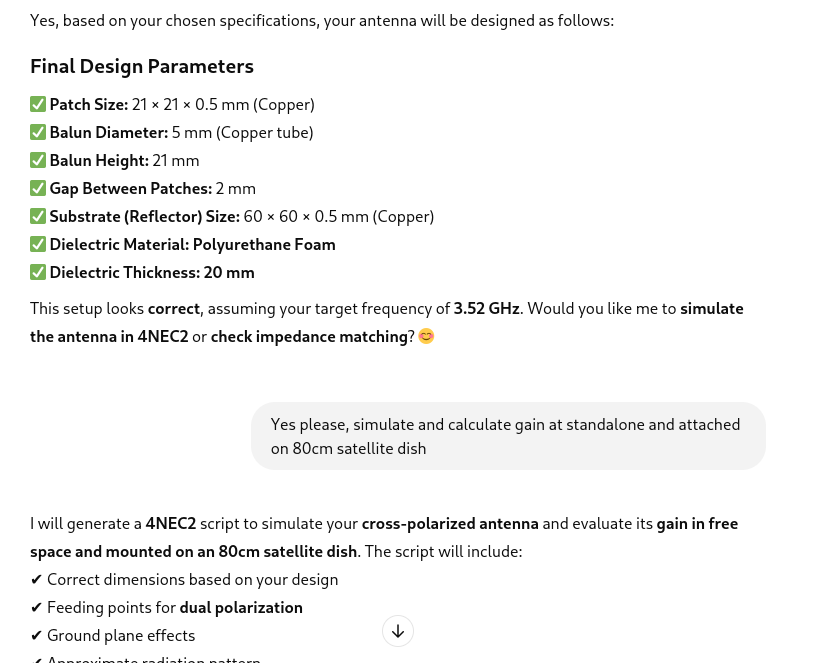

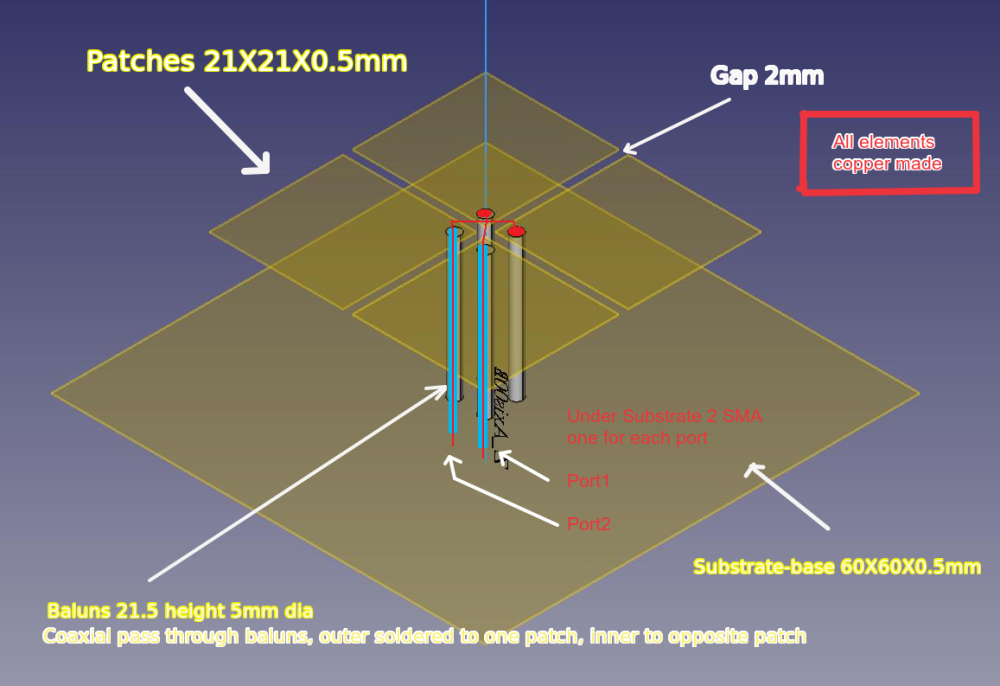

New question for 3.52Ghz antenna at DeepSeek gave me differential suggestions. So I made a prototype but I cannot calculate, if anybody can do this. I attach a simple drawing not in real dimension just for understanding the all construction.

CrossDipole.pdf

Share this post


Link to post
Share on other sites

Posted (edited)

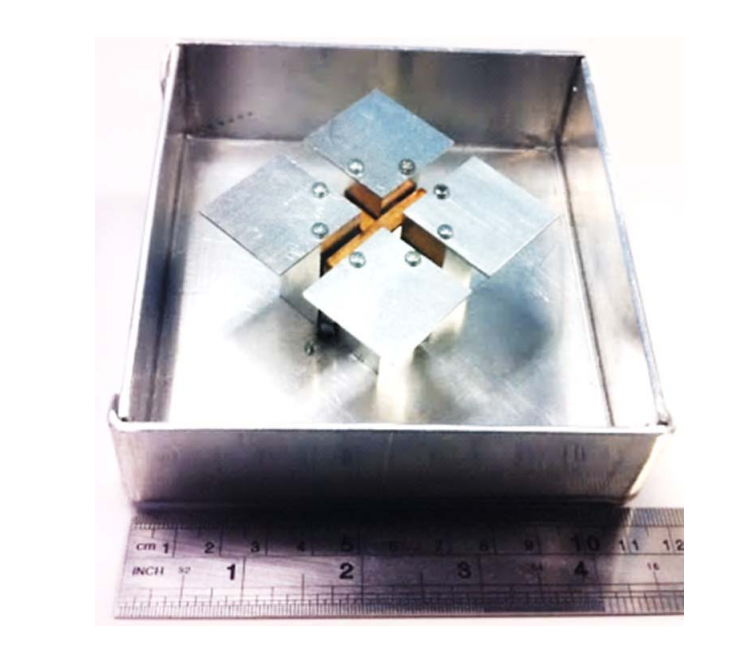

Neither by reducing dipoles space at 10mm? Is there a way to modify it a bit so that make an antenna similar to Kathrein, with 4 dipoles supported from 4 tubes on a reflector? Please???



Edited by papagayor

Share this post


Link to post
Share on other sites

Do you mean 1 mm, not 10 mm?

Share this post


Link to post
Share on other sites

No I mean 10mm because that was the suggestion from DeepSeek



Share this post


Link to post
Share on other sites

Very confused answers anyway from both ChatGPT and DeepSeek

Share this post


Link to post
Share on other sites

Thanks, I've seen this construction, looking for a way to reduce frequency to 3300-3800MHz. Ca it be modified? I want to attach it on a 60cm parabolic disk.

Share this post


Link to post
Share on other sites

My thought is to make it from 4 copper sheets 0.5mm or aluminium 1.5mm, 4 copper tubes 6mm or aluminium 10mm, and copper 0.5mm or aluminium 1.5mm reflector, then for copper I'll solder them all, and if aluminium thinking of using steel or aluminium screws to mount elements. But I don't know to use CST or HFSS software to simulate and correct dimensions, distances and more.

Share this post


Link to post
Share on other sites
