Admin

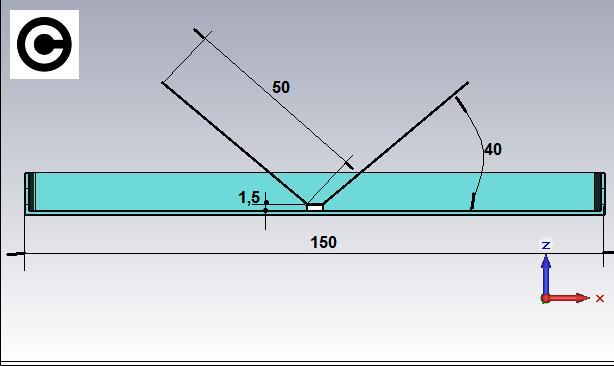

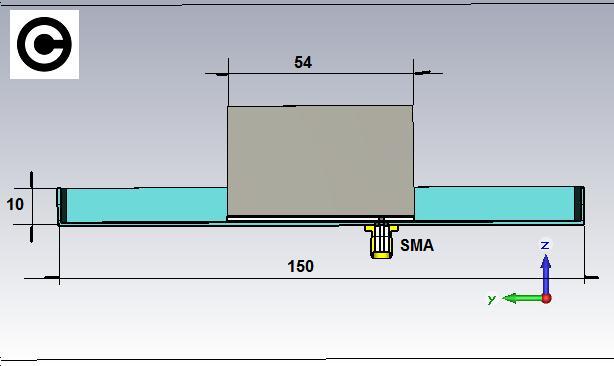

WIDEBAND V-SHAPED ANTENNA

Interest in broadband  antennas associated with the spread when it comes to super short pulse radar channels.
There a number technical solutions for example, the mirror antenna with horn reflector that have a fairly wide operating bandwidth.

However, most of the known constructive-designs does not satisfy the requirements  the characteristics imposed on the stably the device.

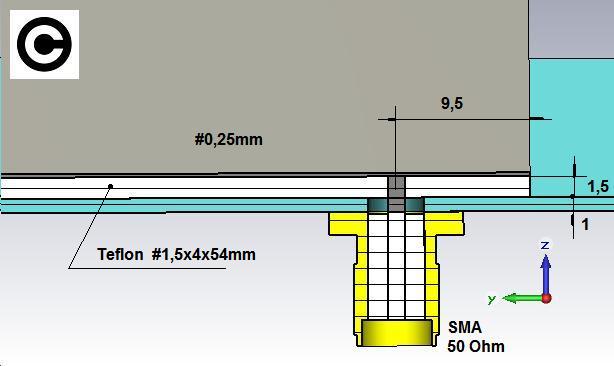

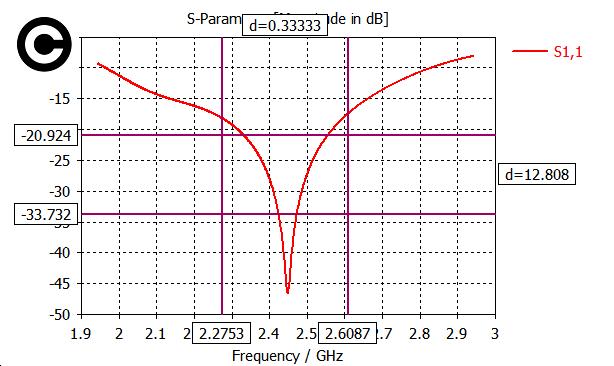

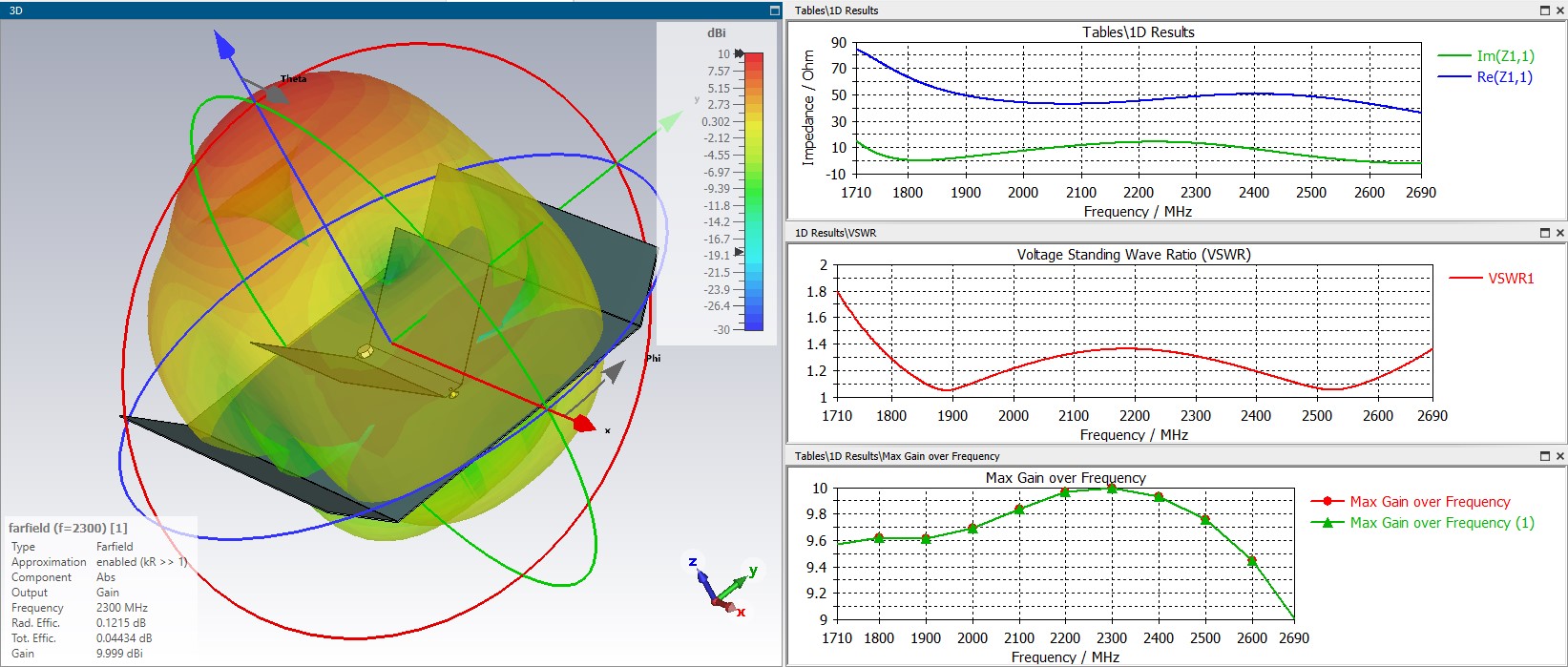

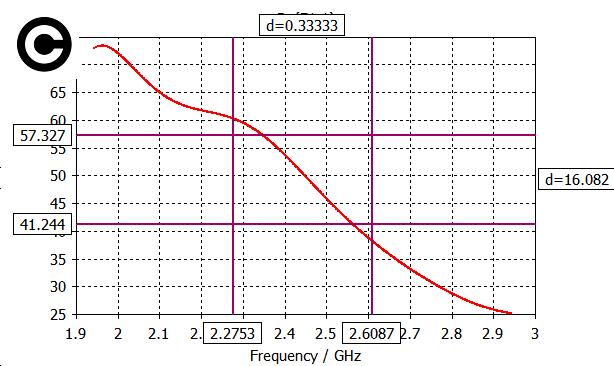

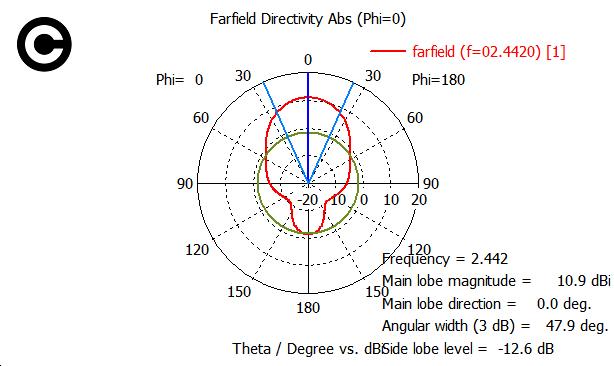

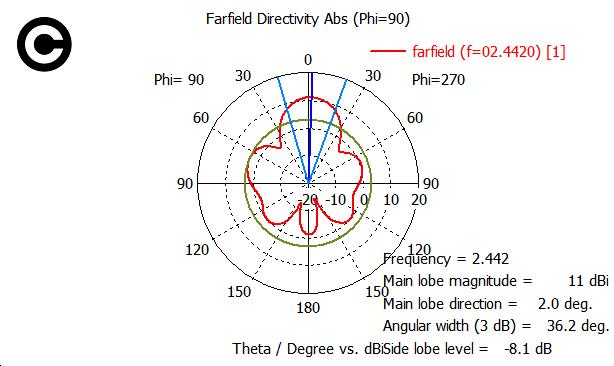

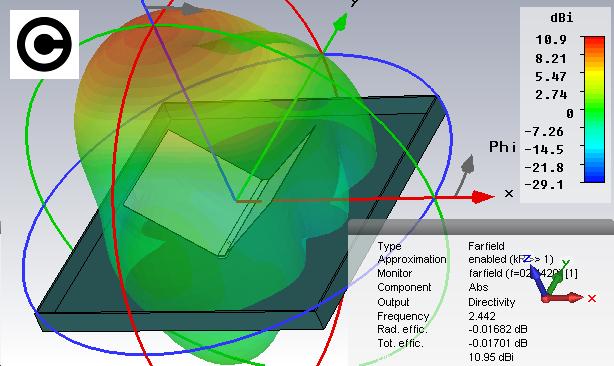

Here it is shown that such antenna can be made the  agreement in the frequency band of the order of 30 % at level, VSWR<1.5 .

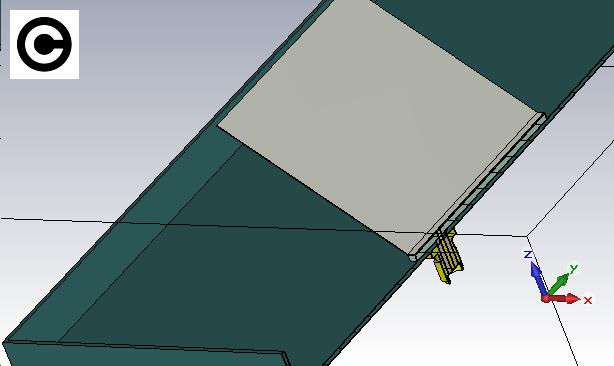

Is of practical interest to the study of antennas of this type with real constructive implementations of the nodes powering.

















Share this post


Link to post
Share on other sites

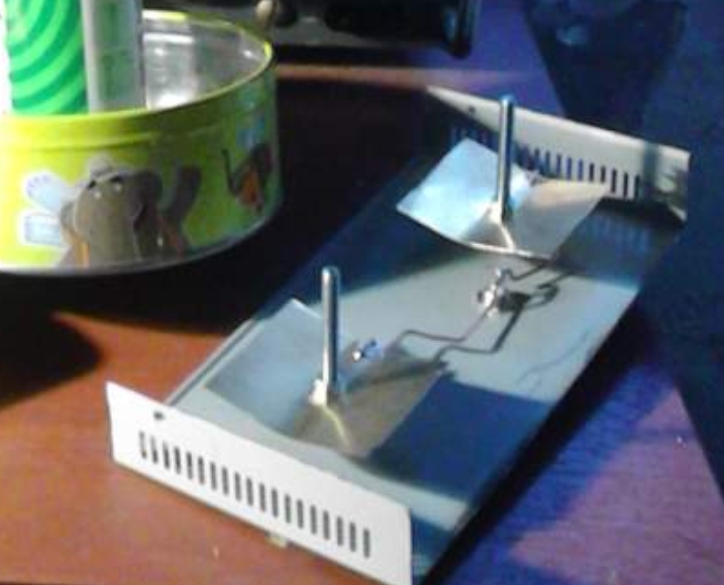

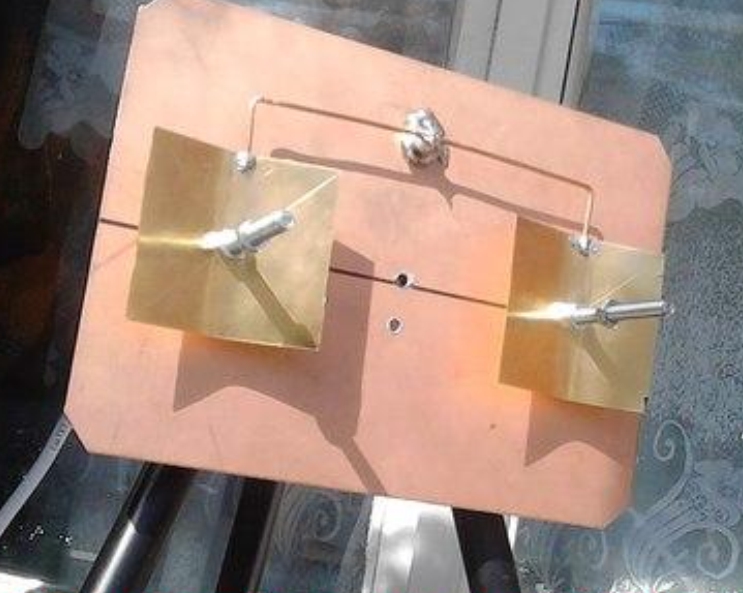

,,,this works too....



Some people have tried it but without any noticeable results...



Share this post


Link to post
Share on other sites

nice brother
take advantage of the goods that are around us

Share this post


Link to post
Share on other sites

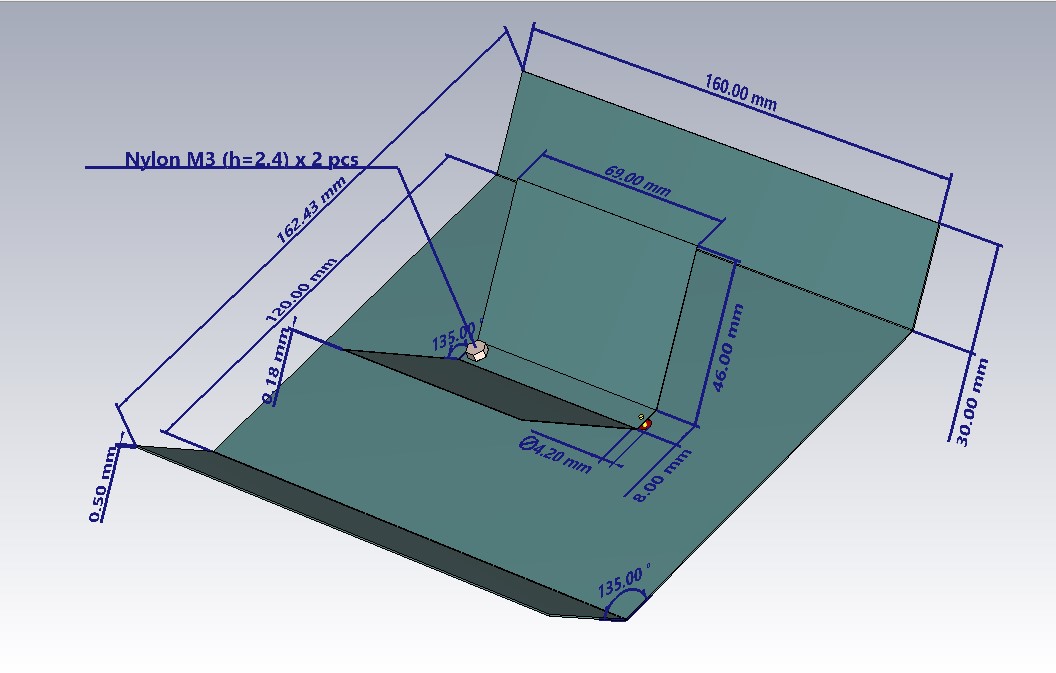

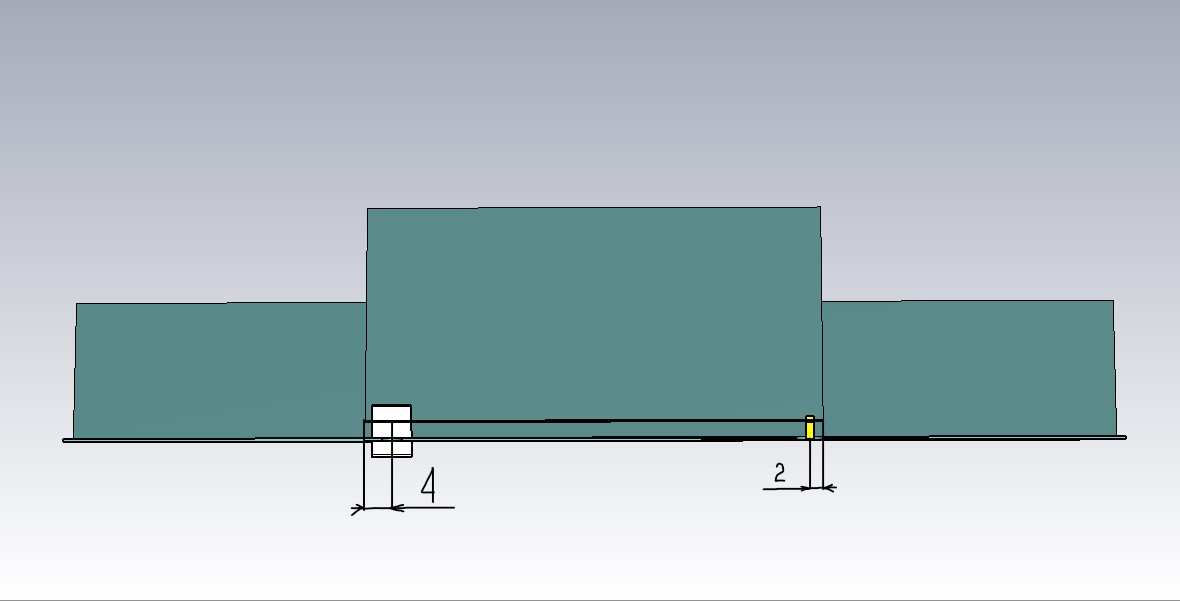

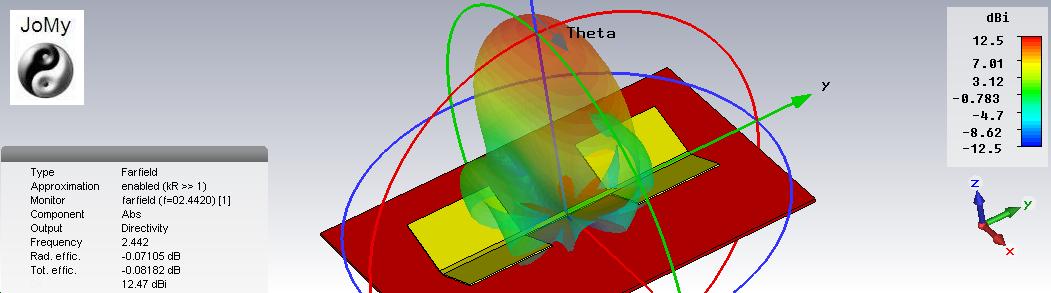

edge feed - 2mm

height 2.4 mm

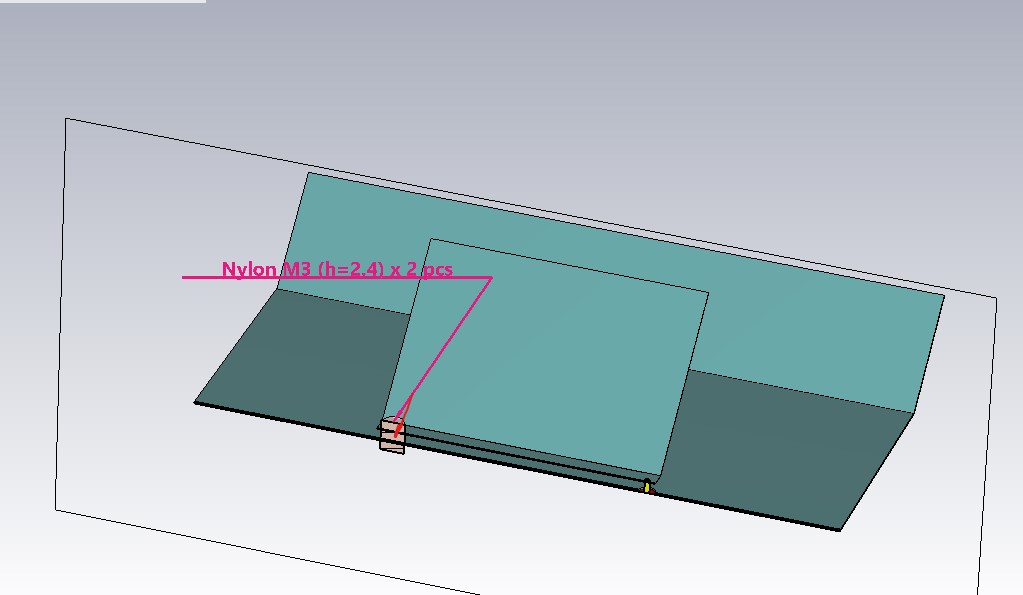

nut m3 (h =2.4) nylon 2 pcs

screw m3 (l =10 mm) nylon from edge 4 mm


vvibrator_1.1.cst

2 people like this
