BESTER BDM-2 3G ANTENNA, 15dBi

29 posts in this topic

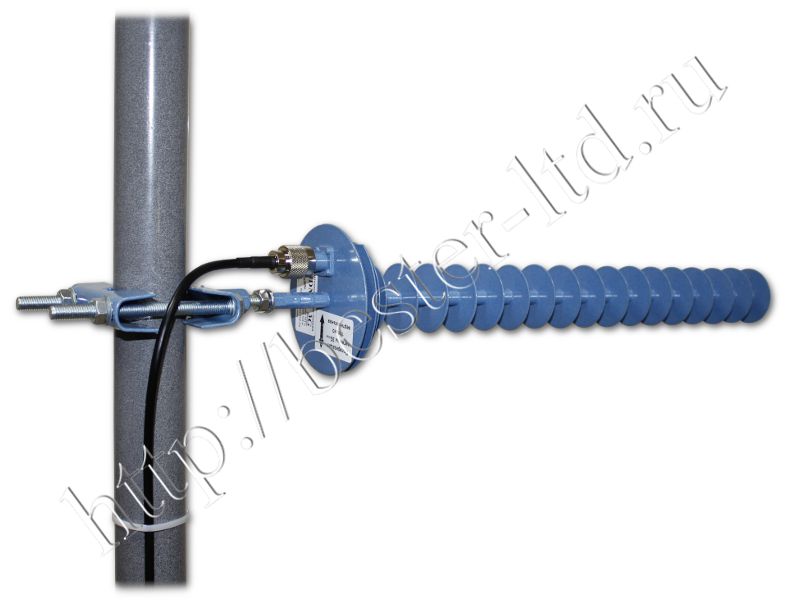

The BDM-2 is a wave channel with crack initiation, and delay line is made of sequentially installed disk elements.

Compared to classic antenna BDM new directed antenna BDM-2 is:
More gain;
Improved radiation pattern;
More stable operating parameters;
Greater reliability;
Superior mechanical characteristics.








Share this post


Link to post
Share on other sites

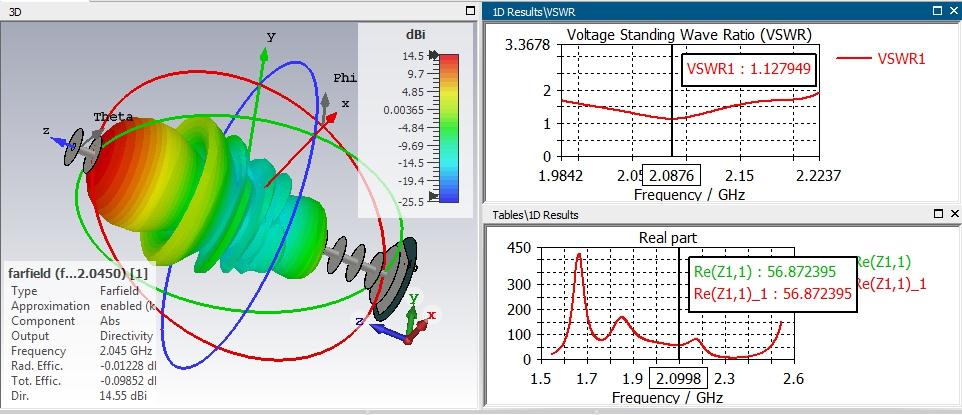

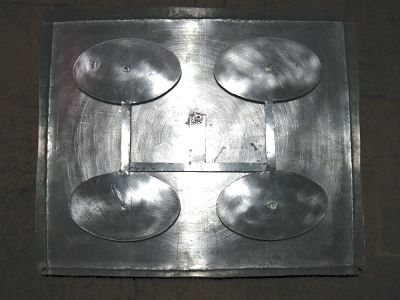

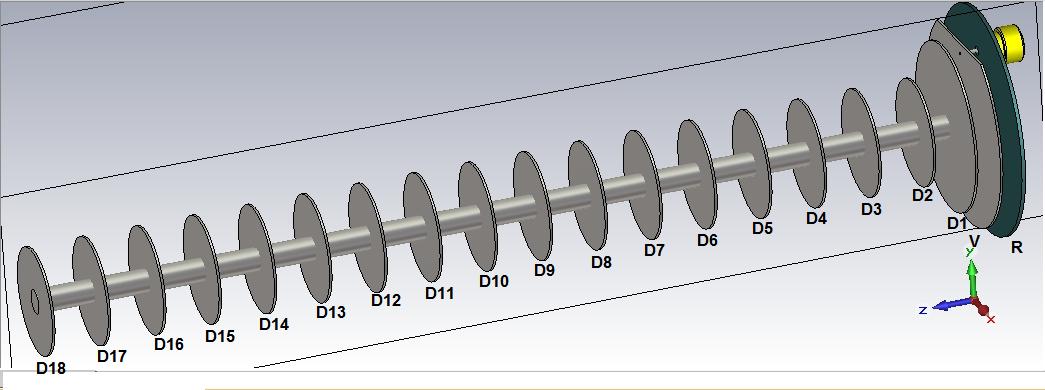

Today completed the antenna. What to say....

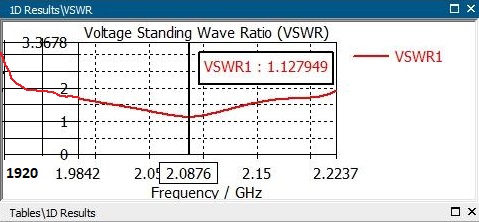

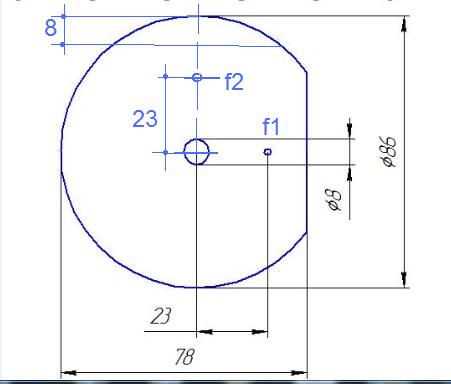

The link below is the same and easier to manufacture:






3 people like this

Share this post


Link to post
Share on other sites

, why don't you try this,for the first time...???




,,, it may be other dimensions, it must be checked however ... !!!

Share this post


Link to post
Share on other sites
2 hours ago, Admin said:

why don't you try this,for the first time...???

It's not urgent.

2 hours ago, Admin said:

,,, it may be other dimensions, it must be checked however ... !!!

Check if you have time.

Why two ports? There is no MIMO support on 3g networks.

Share this post


Link to post
Share on other sites

Well, then tell me for which frequency range...???!!!

Share this post


Link to post
Share on other sites

,, with galvanized sheet, quoting thickness ... 1mm or 0.5mm...???

Share this post


Link to post
Share on other sites
1 hour ago, vars-cat said:

Too difficult task?

,,,my friend, I've been pretty busy the last few days..!!!

Share this post


Link to post
Share on other sites
On 26.11.2019 at 0:00 PM, Admin said:

,,,my friend, I've been pretty busy the last few days..!!!

.....!!!,,,,,,,,Still pretty busy?,,,,,,,,,,!!!.....

Share this post


Link to post
Share on other sites
11 hours ago, Admin said:

But, why don't you try it...???


Because you posted a new drawing 11 hours ago :)

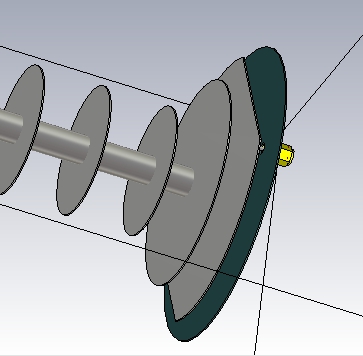

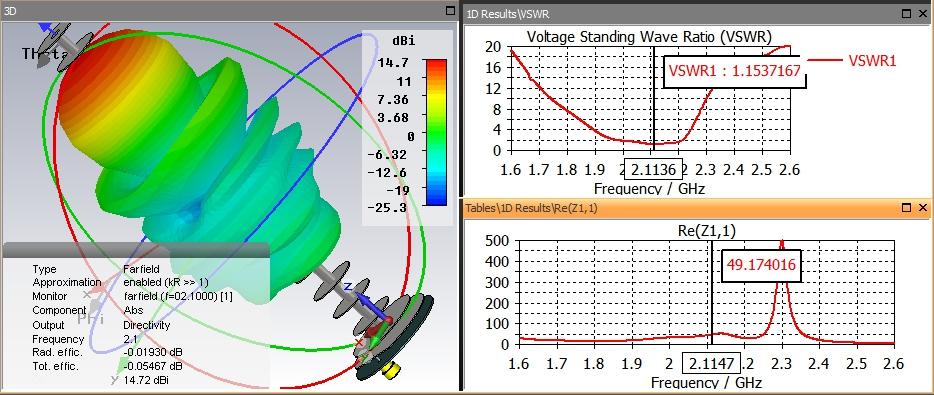

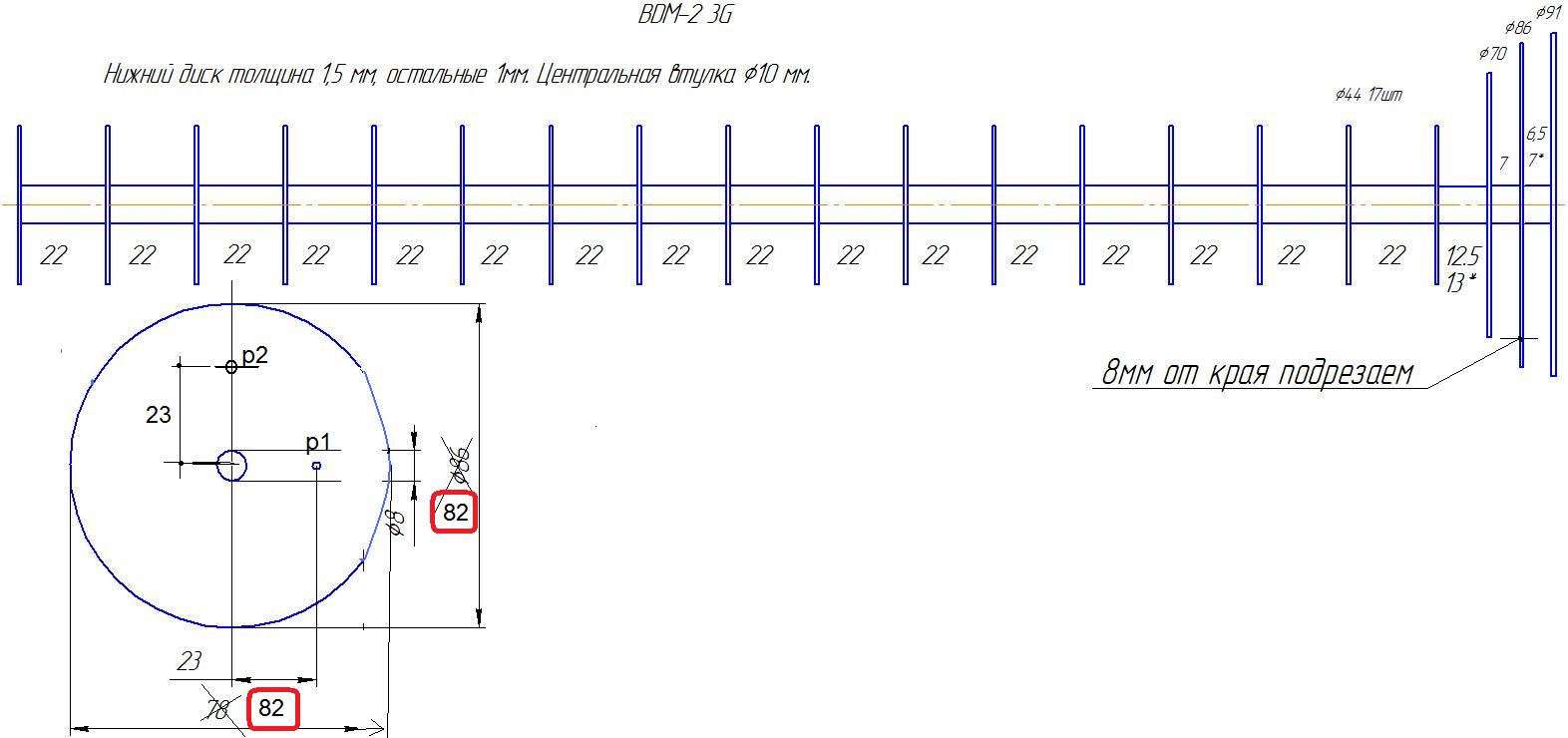

And what about this?

On 22.11.2019 at 11:52 AM, vars-cat said:

Why two ports? There is no MIMO support on 3g networks.



Share this post


Link to post
Share on other sites

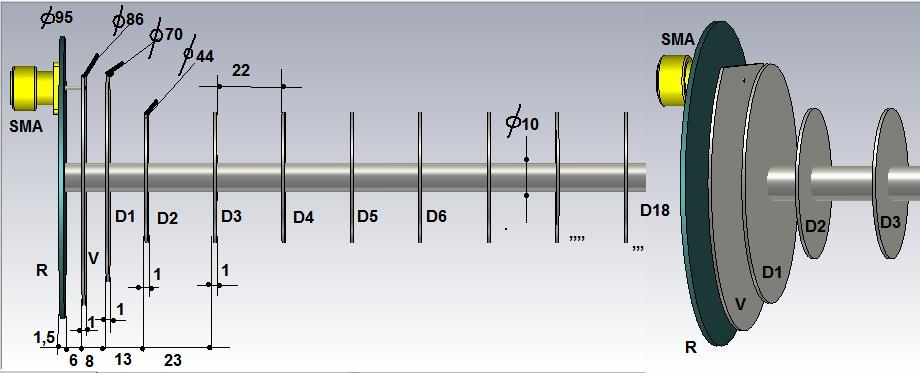

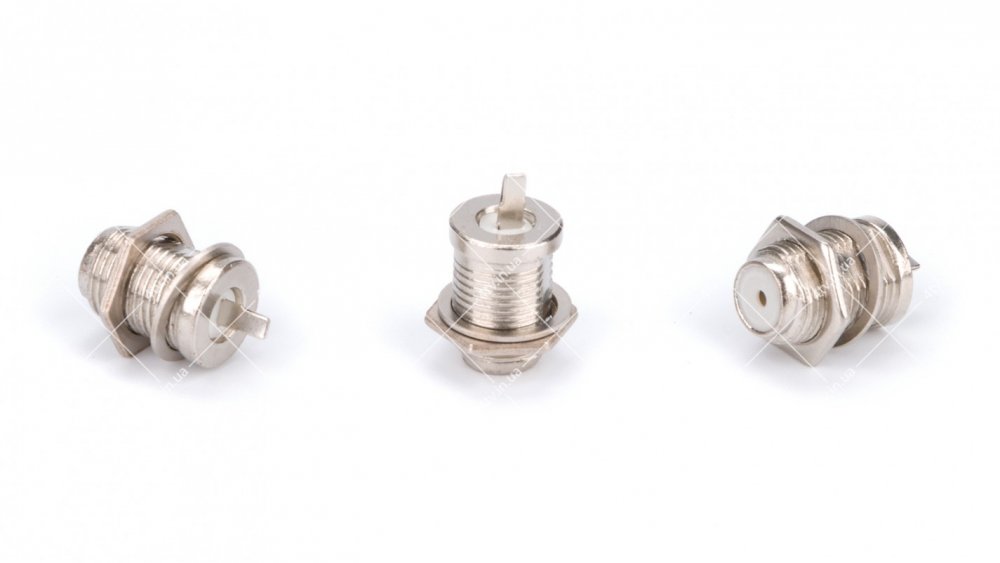

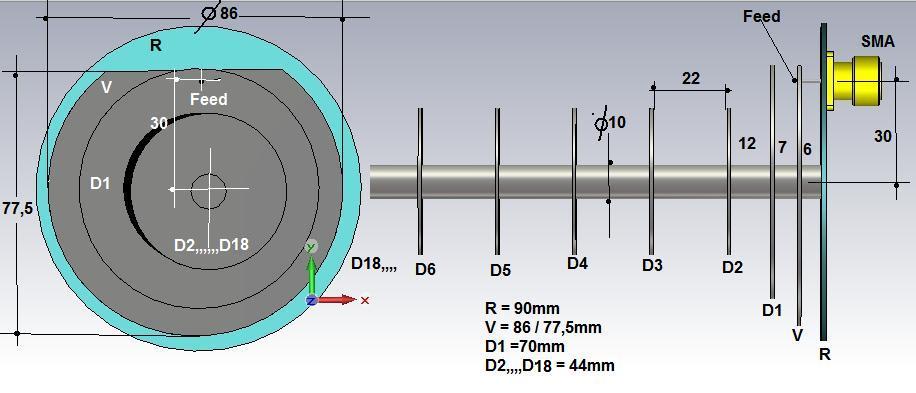

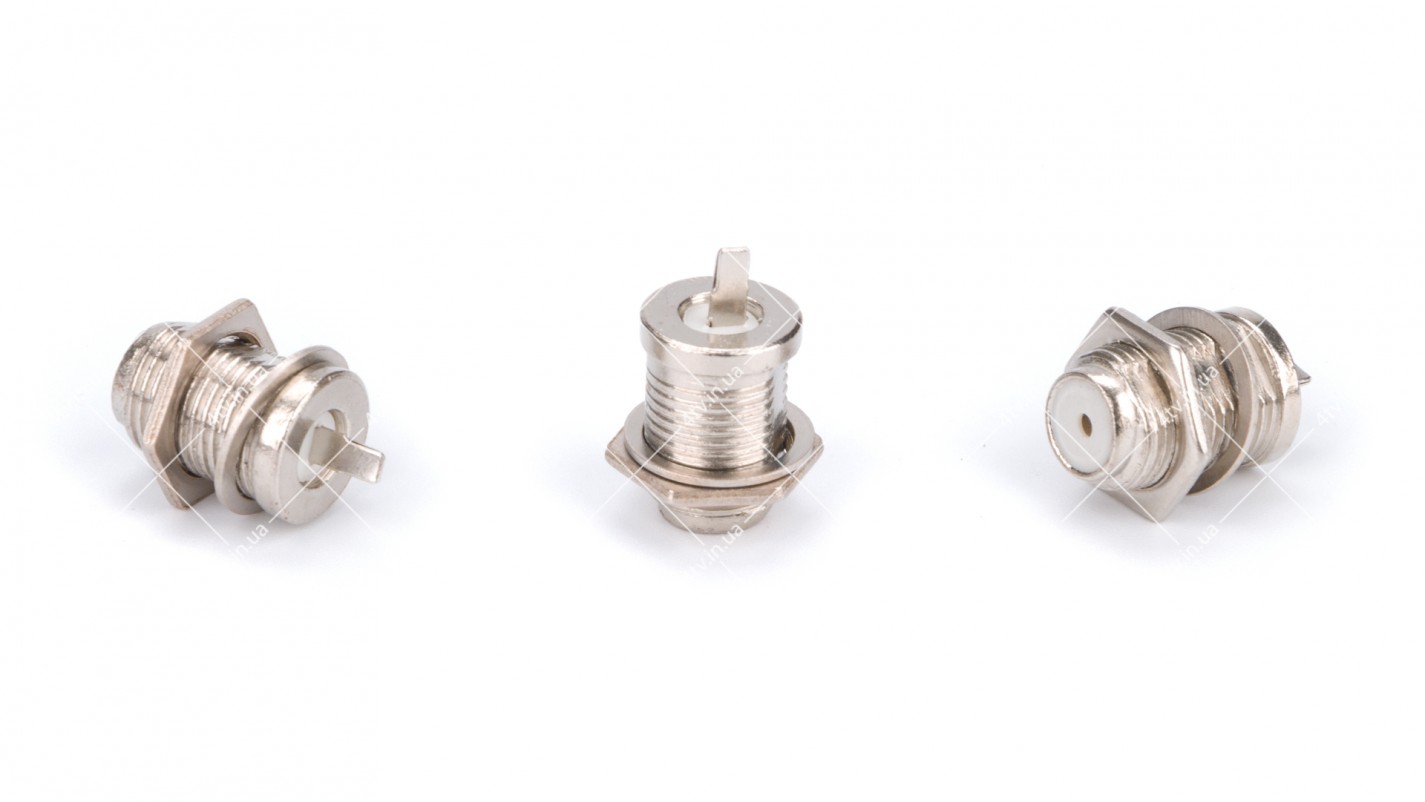

,,, give me the dimensions to this connector F(in section)...!!!

These connectors are for 75 Ohm impedance...???

Share this post


Link to post
Share on other sites
59 minutes ago, Admin said:

,,, give me the dimensions to this connector F(in section)...!!!

These connectors are for 75 Ohm impedance...???

,,, I wrote to Yurik82 to give measurements (he took measurements). Waiting for his answer...!!!

Yes, 75 Ohm...



Share this post


Link to post
Share on other sites

If you are friends with these people, why don't you ask them to solve your problem...???!!!

Share this post


Link to post
Share on other sites
6 minutes ago, Admin said:

If you are friends with these people, why don't you ask them to solve your problem...???!!!

I asked, but he wouldn't help. This must be a very difficult task.

Share this post


Link to post
Share on other sites
20 hours ago, Admin said:

I do not believe that...!!

Unfortunately this is true. Didn’t even give a connector model..



22 hours ago, Admin said:

,,, give me the dimensions to this connector F(in section)...!!!

Here you go (big thanks to Sergey Sychugov).

F-female.aedt

Edited by vars-cat
