Edel2020

antenna for FM radio 88 - 108

44 posts in this topic
6 hours ago, Admin said:

the diameter would decrease....but to get more than 10 db it should take more than 2 meters....i think...

Share this post


Link to post
Share on other sites

,,, I don't know,  have to try ... !!

1 person likes this

Share this post


Link to post
Share on other sites

Someone who models this antenna for please ...... no idea of the measurements, they have told me that it is very good but I have never been able to get measurements


Share this post


Link to post
Share on other sites

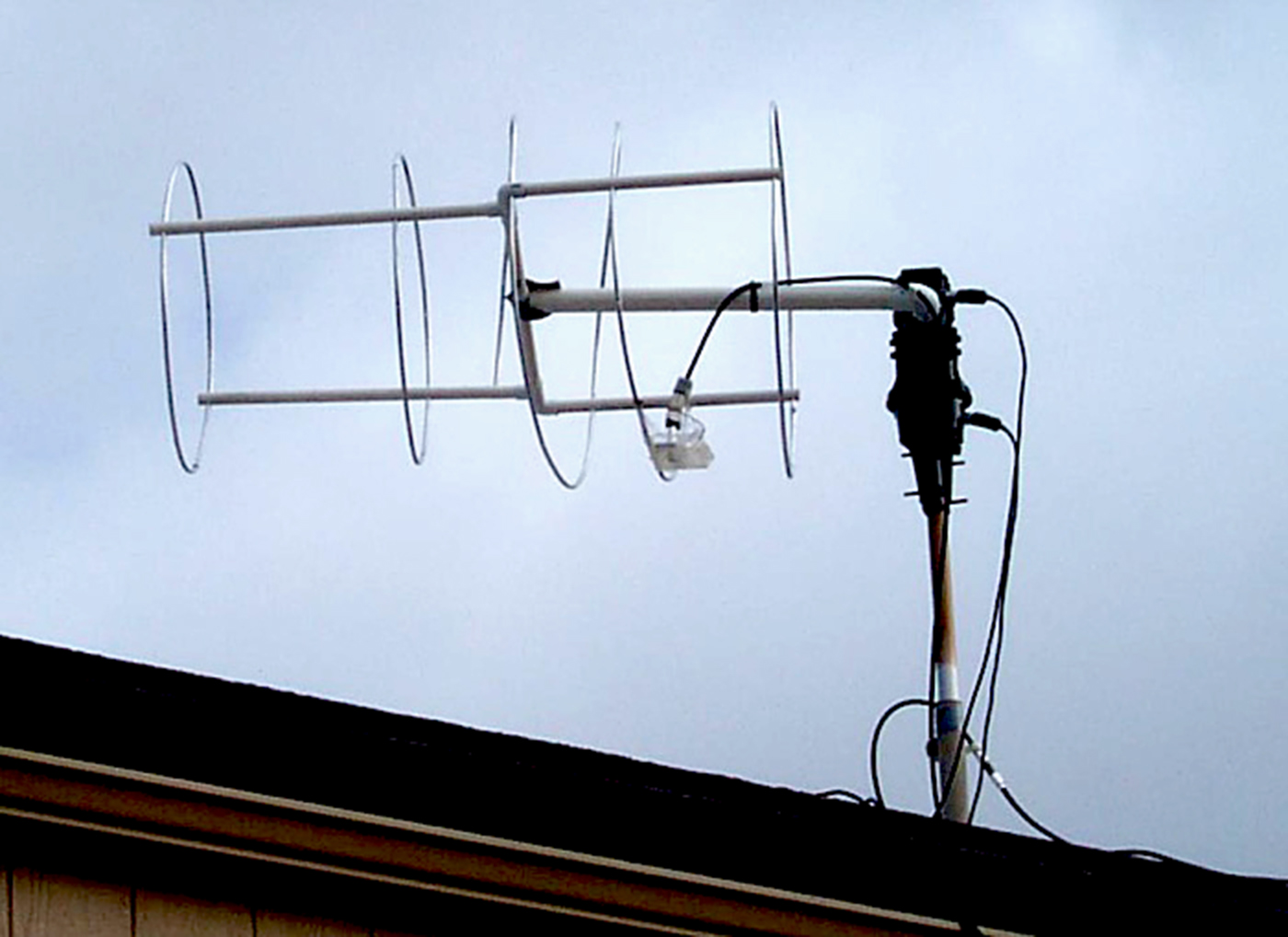

around 10 dbi if the signal is in the same POLARIZATION...3 db less if lineal source...

Jomy should try and make it smaller with the meanders in the circle...

3/8 pipe (9.5mm) refrigerator tubes...


Edited by clanon
2 people like this

Share this post


Link to post
Share on other sites

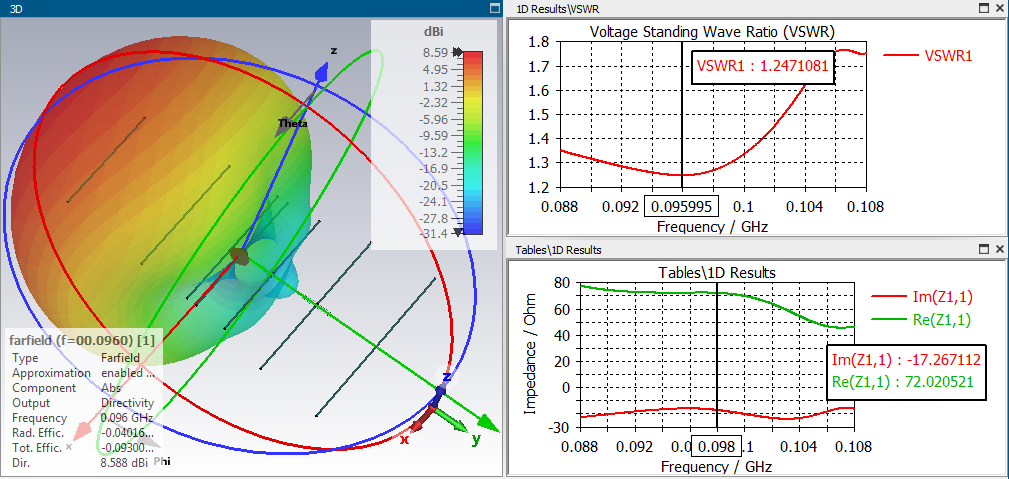

,,, so I think it is the most suitable, I will try to do a simulation...!!!


1 person likes this

Share this post


Link to post
Share on other sites

If that works it would be very good, it has a good size, how did the simulation turn out?

Share this post


Link to post
Share on other sites

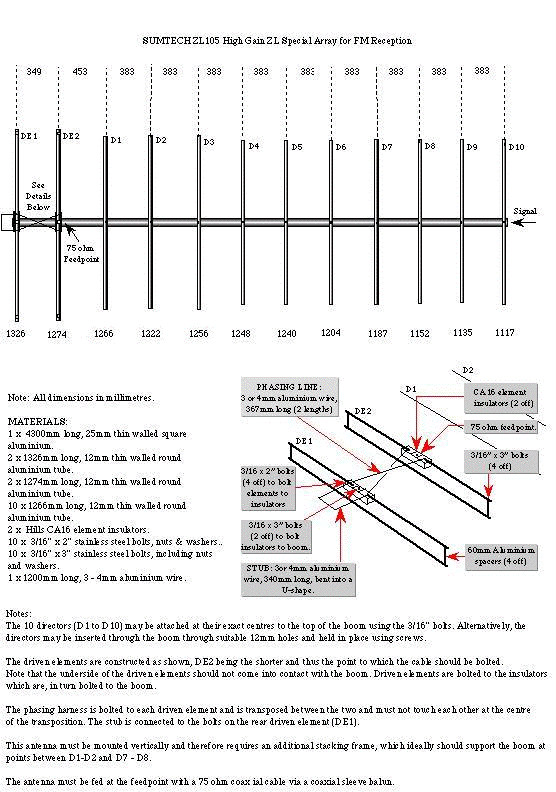

simulate this ... but try to give a more contained size and run the frequency towards 98 Mhz and not the 105 Mhz in which the band is centered in this antenna


Share this post


Link to post
Share on other sites

Edel, but this antenna is over 4 meters length...!!!

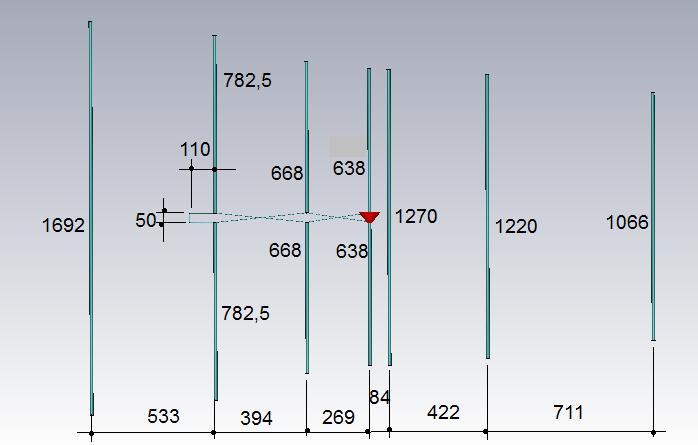

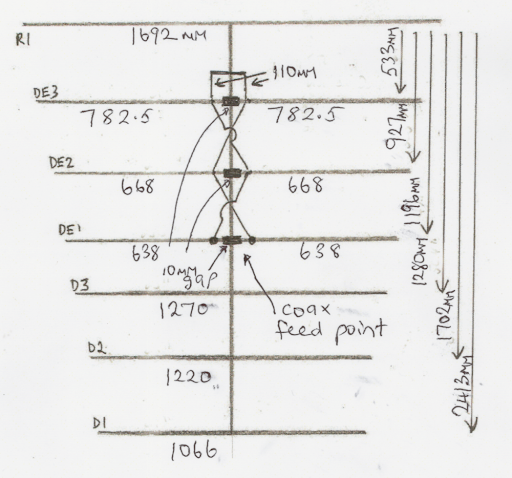

,,, the antenna according to my sketch above, is better(75 Ohm impedance)...!!!

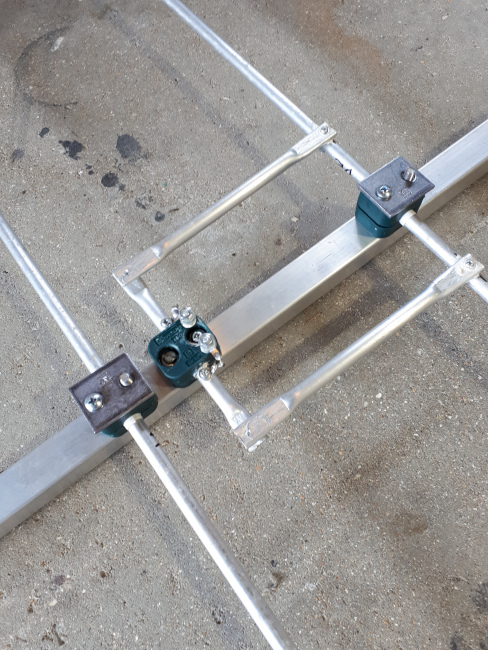

antenna elements = 16x2 mm aluminum pipe
adaptation line = copper wire 3mm diameter


1 person likes this

Share this post


Link to post
Share on other sites

:D:DYou're right, it's big, it was just to test if it could be made smaller and keep the gain high, maybe with a bigger reflector, you are the specialist, thank you very much

Share this post


Link to post
Share on other sites

Please someone who uploads the scheme of a good RF amplifier for this band that is well tested

Share this post


Link to post
Share on other sites

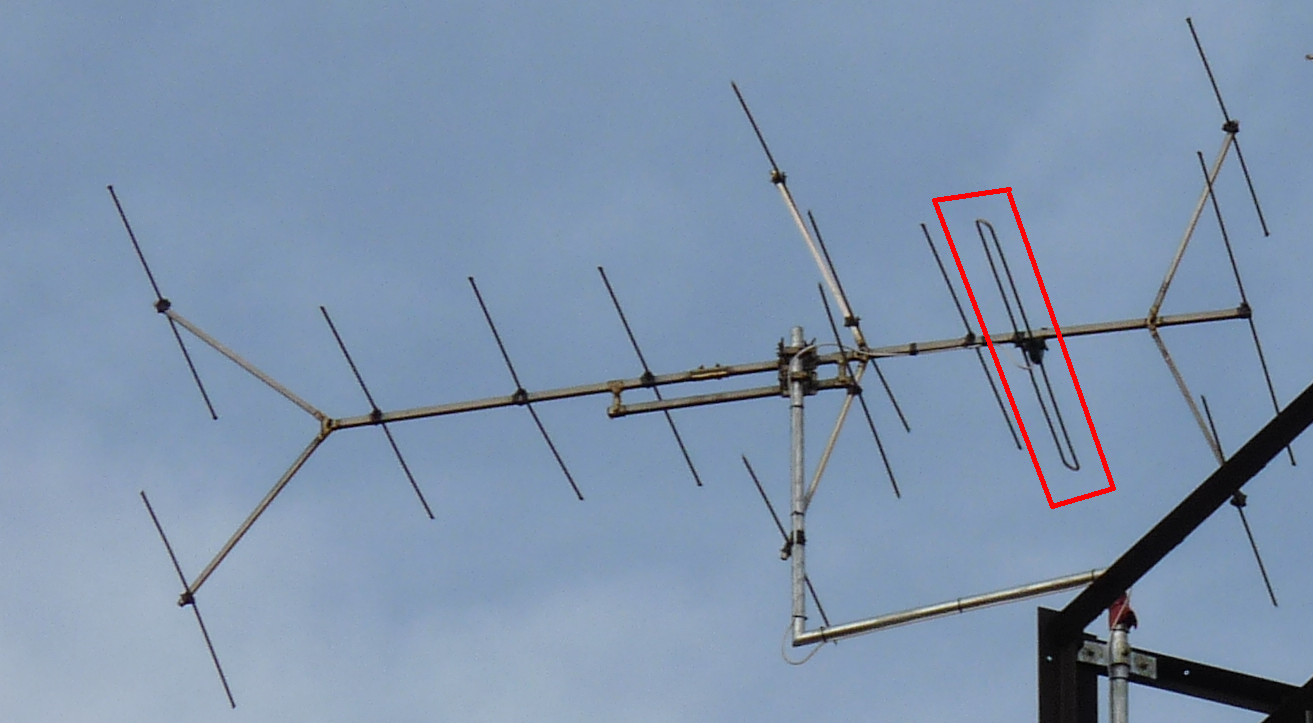

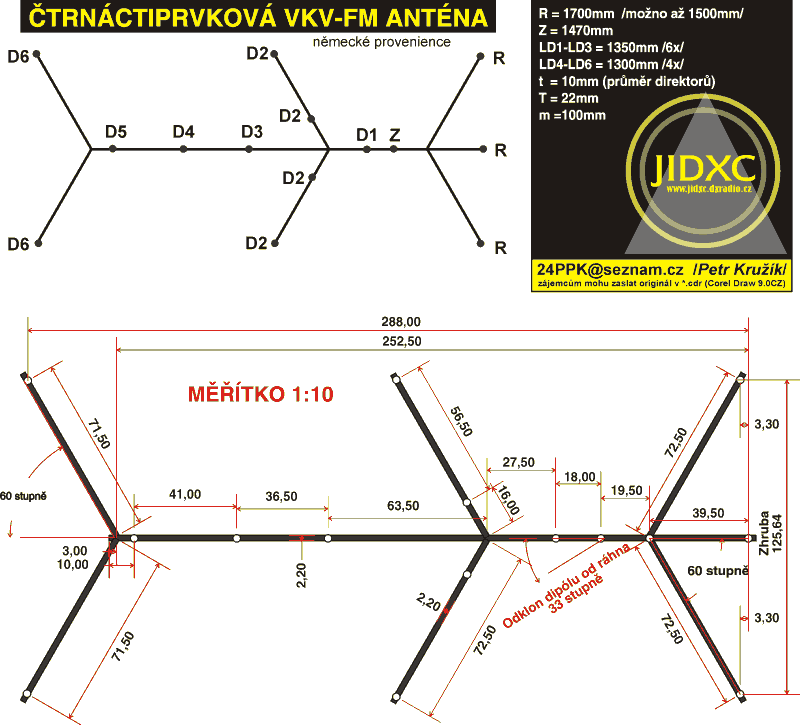

Hello greetings to all ... continued with the subject to not let it cool I found this antenna produced only in the old GRANIA Germany in the 70s and 80s, great gain but very badly distributed throughout the bandwidth we use today (88-108) in those times and in that F / r.




1 person likes this

Share this post


Link to post
Share on other sites

Posted (edited)

The bad thing about this antenna is the F / R, how could it be improved?

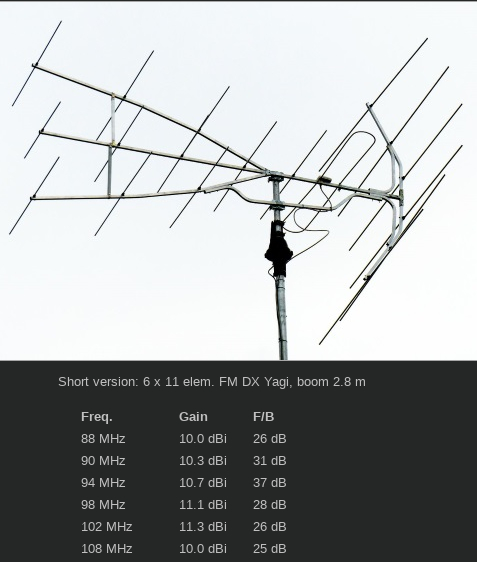

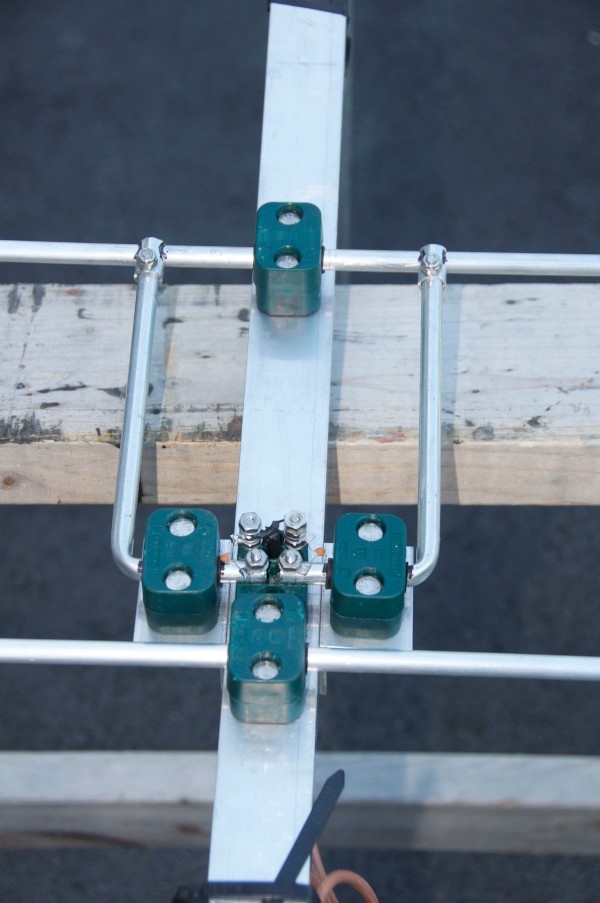

We could take the design of the active element used by Brian Beezley Author of the Site http://ham-radio.com/k6sti/index.html in your Metric Yagis to improve it?



Can someone model it and share the changes?


Edited by Edel2020
1 person likes this
