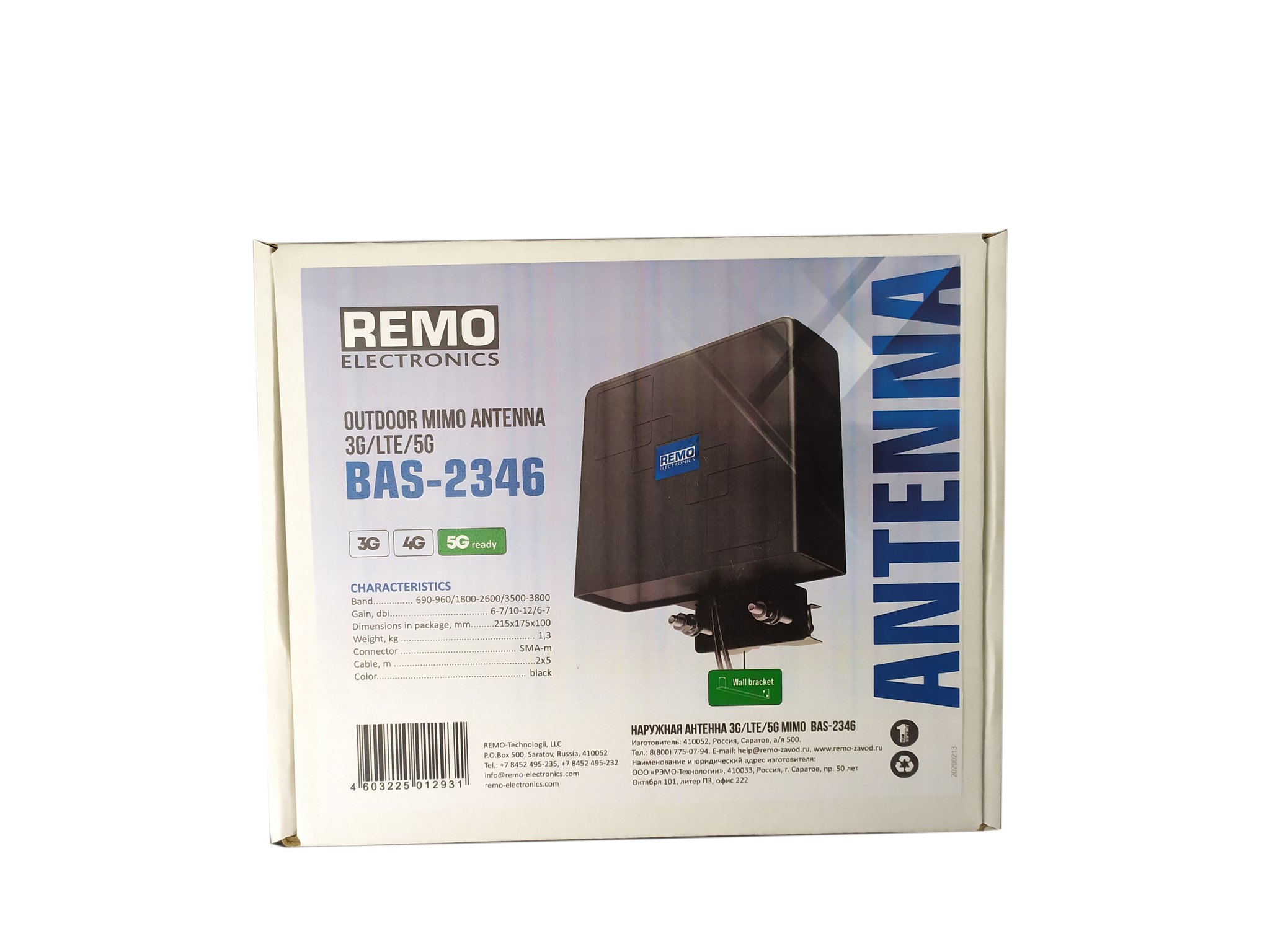

The BAS-2346 FLAT MINI MIMO antenna is designed for equipment operating in the frequency range of 690-960 MHz / 1800-3600 MHz and having ports for connecting external antennas with MiMo support (Multi input multi output) The antenna is connected by two 5-meter-long RG-58A/U cables with SMA connectors. If necessary, the cable can be extended in the same way as the wave one with a resistance of 50 Ohms. You may need an SMA-CRC9 adapter (TS9, FME, etc.) to connect to the hardware.Adapters and an additional cable are purchased separately. The antenna can be mounted on a mast with a diameter of 20 mm to 50 mm or on a wall bracket.

A distinctive feature is the extended frequency range, including 3.5 GHz.

The location of the antenna:Outer
Supported communication standards:GSM (GPRS/EDGE), 3G (HSPA/HSPA+/WCDMA), 4G (LTE800, LTE1800 LTE2700, WiMax)
Operating frequencies, MHz:690-960 MHz / 1700-2700 MHz /3400-3600 MHz
Gain factor, max., dBi:7dB / 12dB / 7dB
The standing wave ratio on voltage not more than:1.5
Wave resistance, Ohms:50
Cable length, m:5
Connector type:2 x SMA
Overall dimensions (without mounting unit), mm:160x170x75
Weight, not more than, kg:1
Package dimensions, mm:175x215x100
Package weight, kg:1.1
