acri

Feed Point back Side antenna mantbox 15s

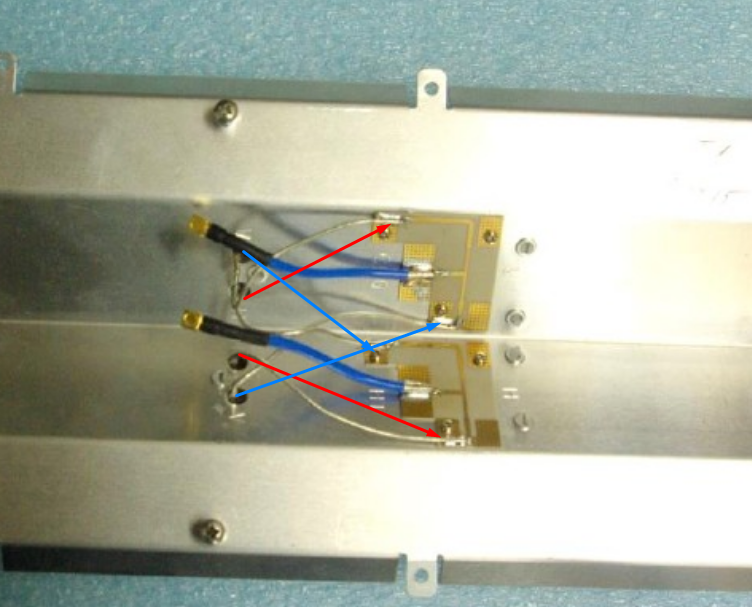

The Mantbox 15s antenna is a dual chain Mimo but I am surprised if I see the back side there are 4 feed points and 2 connectors
can anyone explain about this?


Share this post


Link to post
Share on other sites

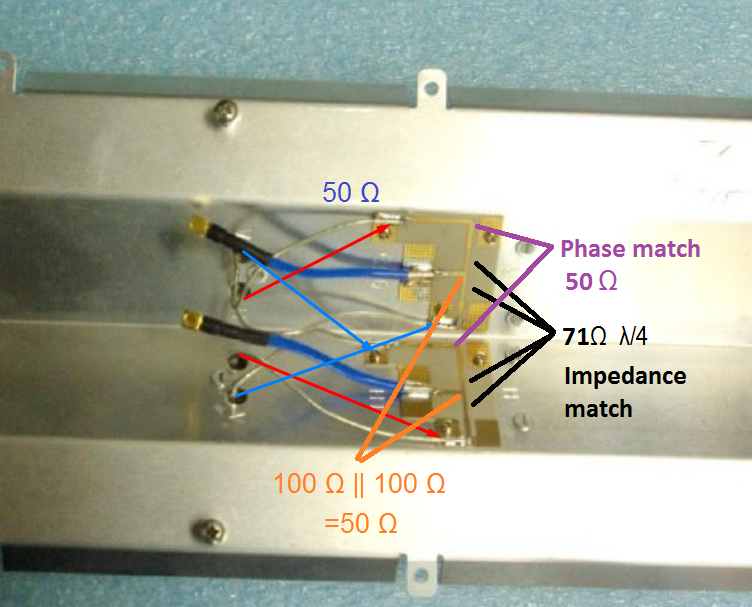

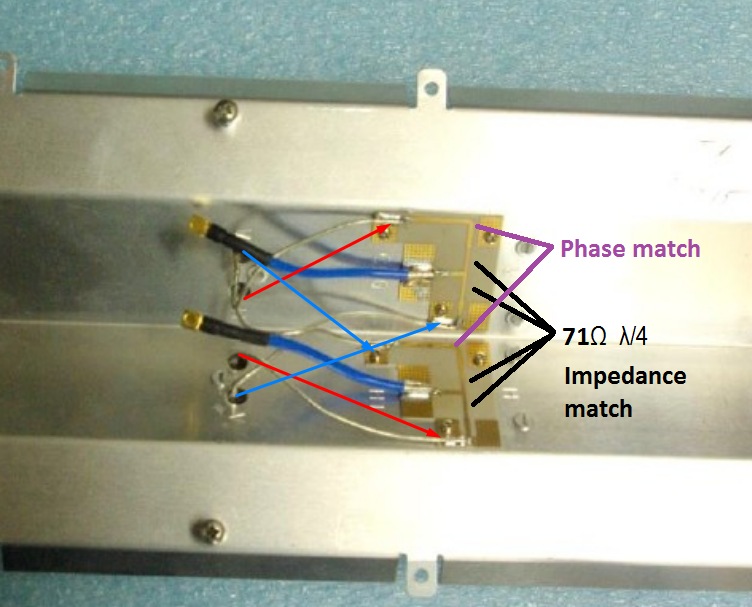

that is a power splitter (impedance matching)

2x H pol. on one splitter

2x V pol. on the other splitter

2 people like this

Share this post


Link to post
Share on other sites
4 hours ago, swarg_eu said:

that is a power splitter (impedance matching)

2x H pol. on one splitter

2x V pol. on the other splitter

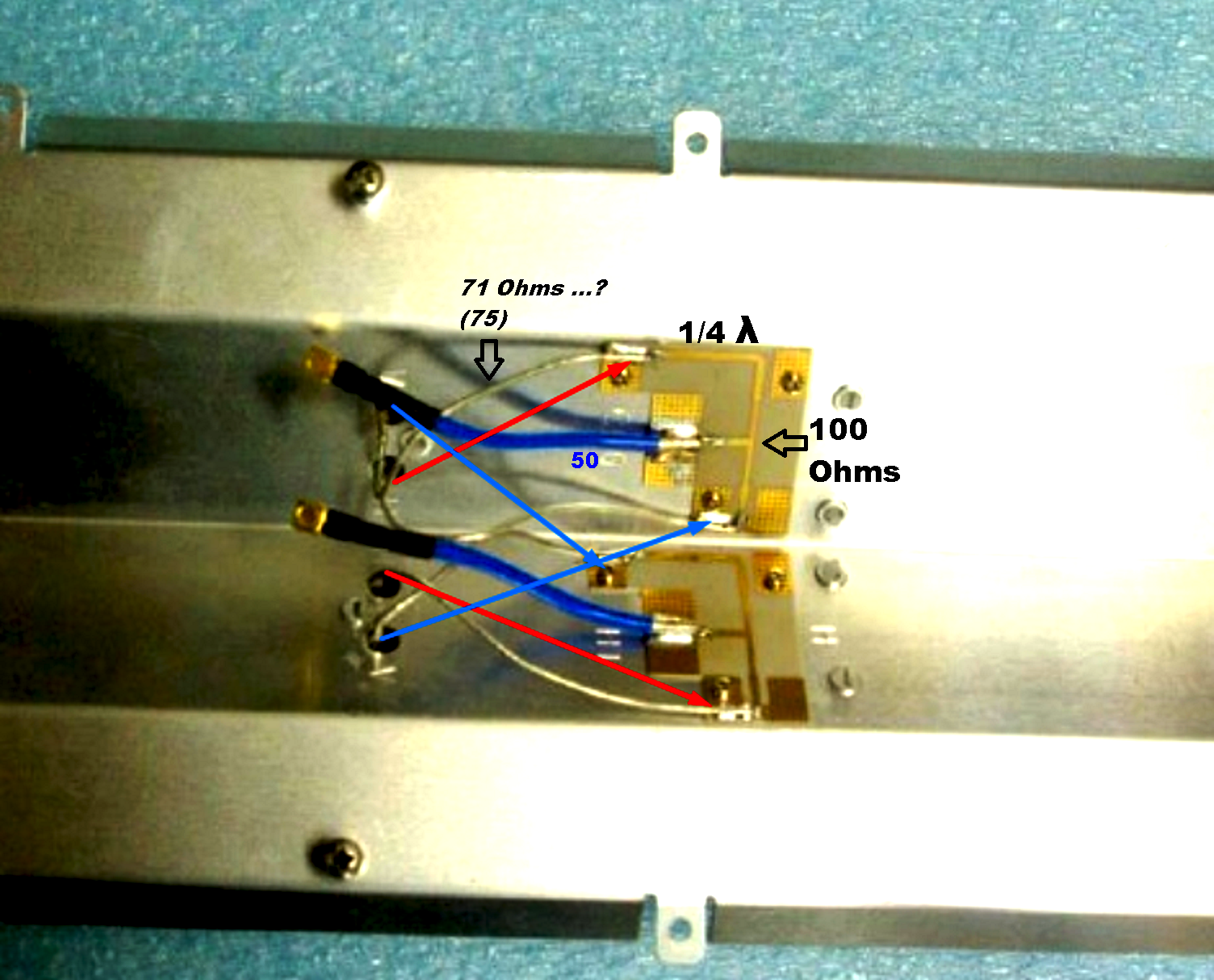

like this...?


Share this post


Link to post
Share on other sites
On 13/10/2020 at 9:34 AM, swarg_eu said:

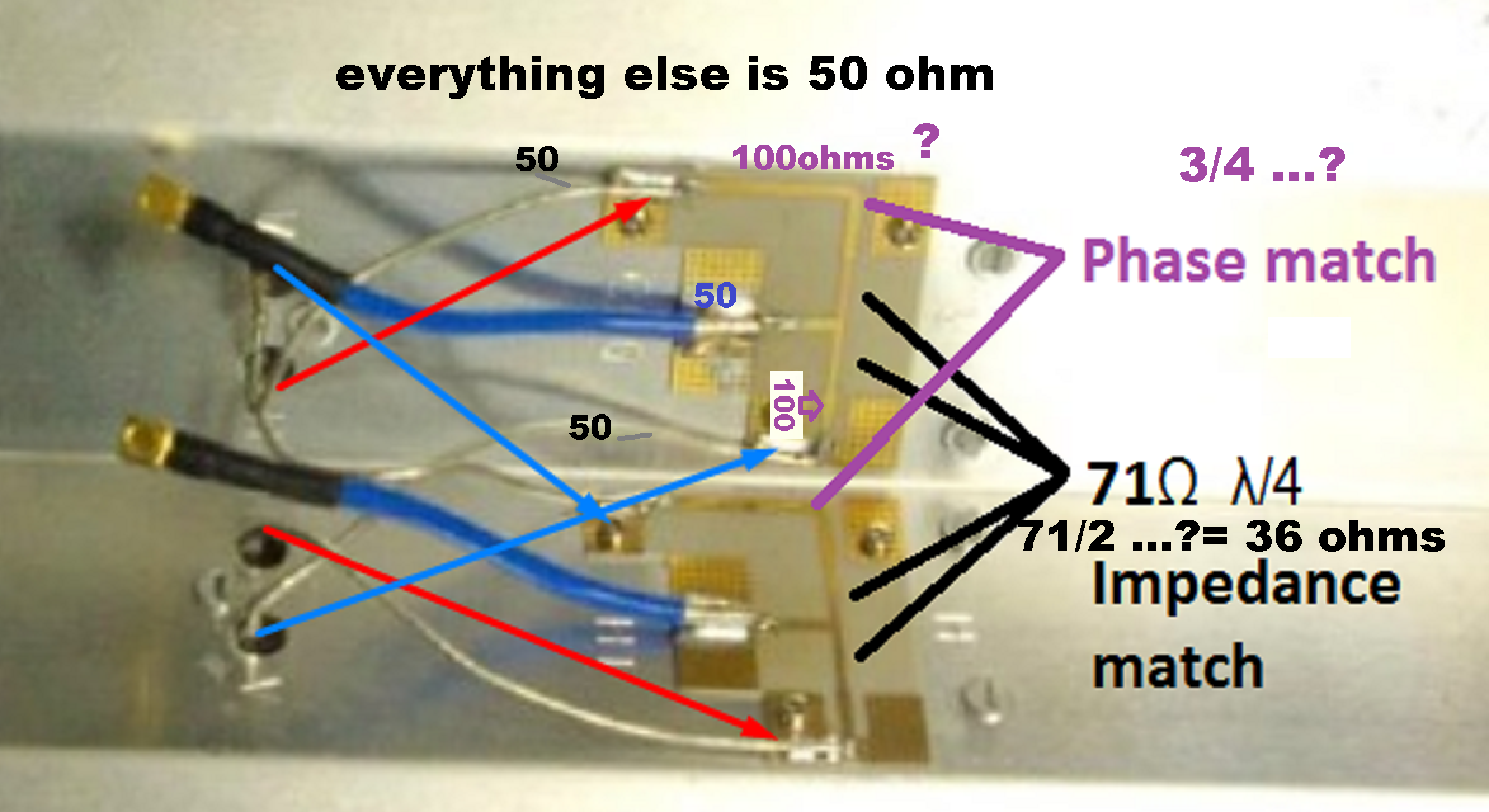

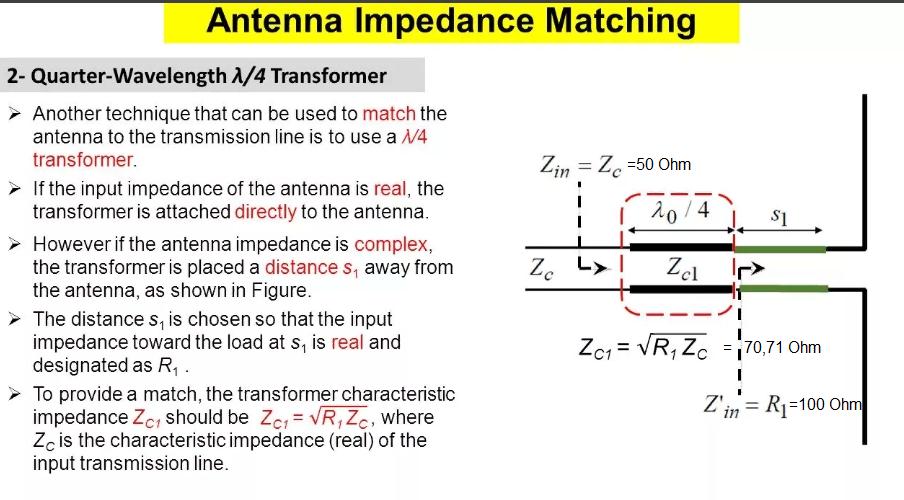

everything else is 50 ohm



?

Sin título.png
