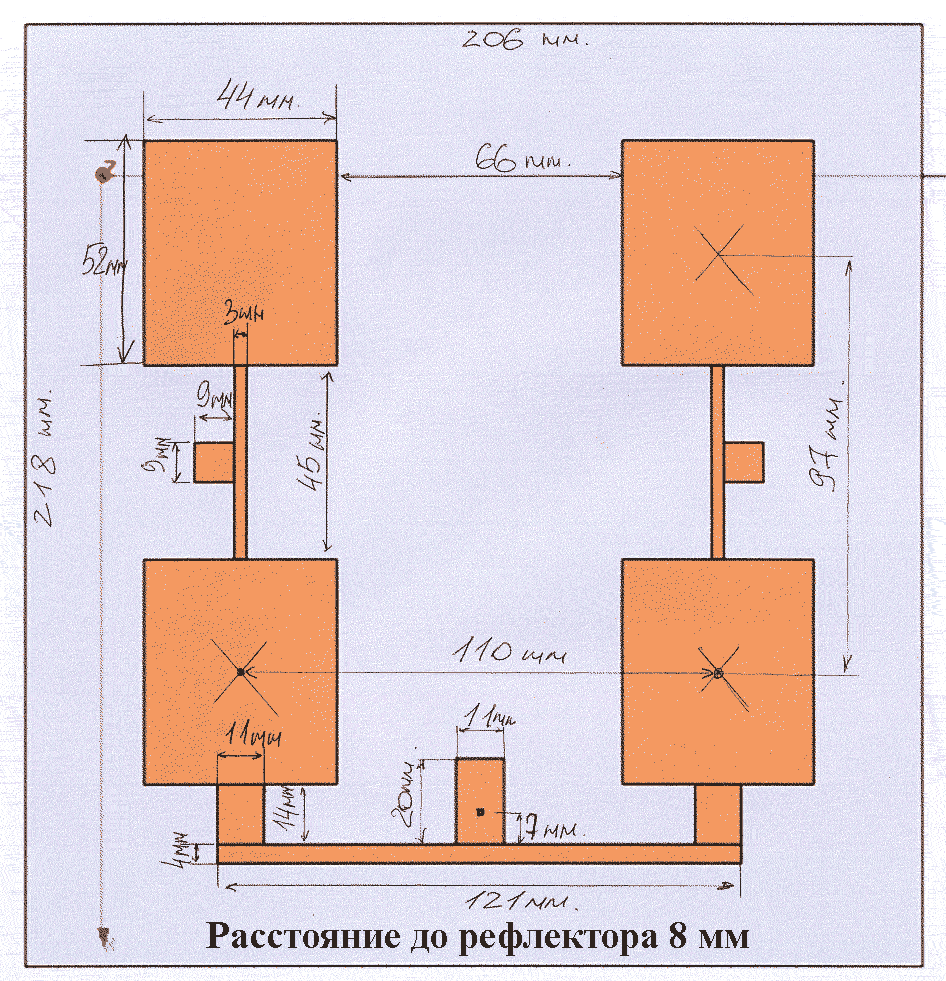

Panel Antenna 15dBi

30 posts in this topic

hi Admin...

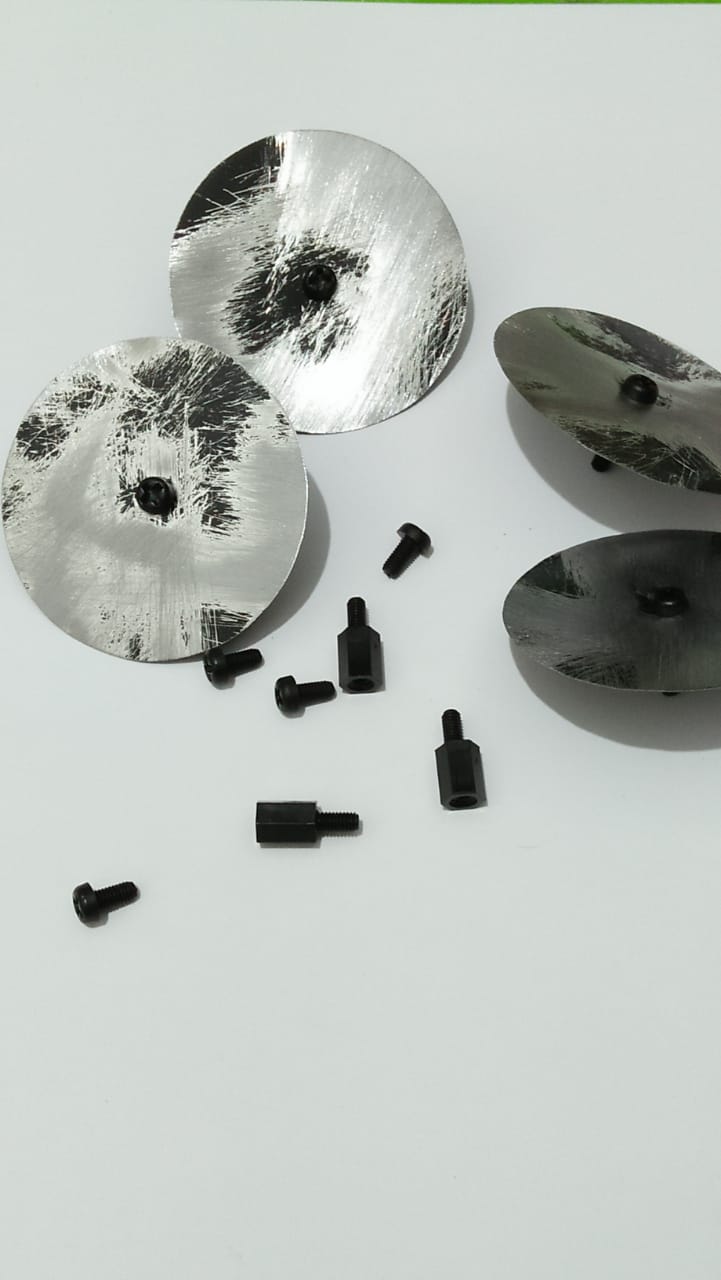

i do not have teflon, how about changed it with m6 plastic spacer??


WhatsApp Image 2018-11-20 at 7.49.55 PM.jpeg

Share this post


Link to post
Share on other sites

,,,best. instead of Teflon spacers. uses metal spacers,,,

1 person likes this

Share this post


Link to post
Share on other sites

so... changed it with 10mm copper tube is no problem?? or with 10mm bolt??

Share this post


Link to post
Share on other sites

it is not easy to find pvc tube with small diameter, how about rg8 coax, clean up the inside and using only outter jacket..

Share this post


Link to post
Share on other sites

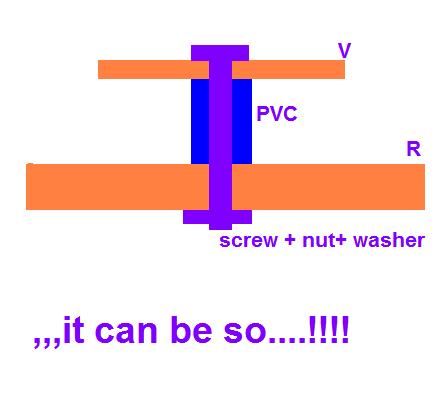

", it does not matter the diameter of the PVC cylinder, you give it a screw hole...

1 person likes this

Share this post


Link to post
Share on other sites

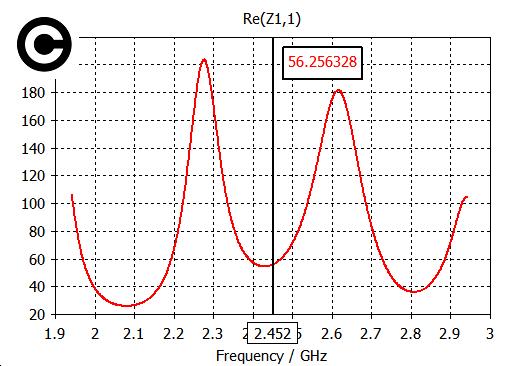

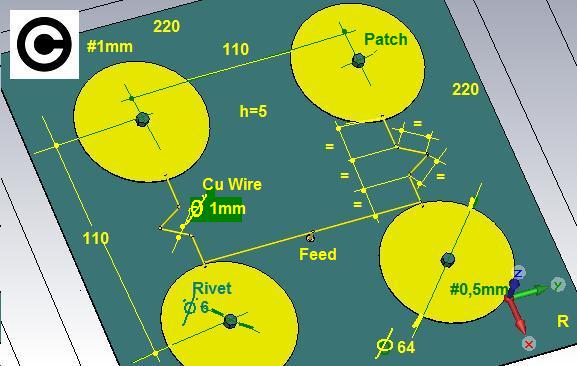

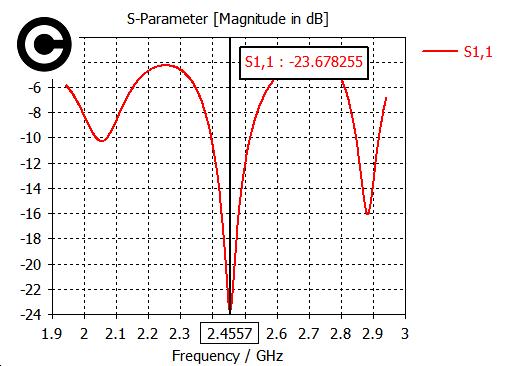

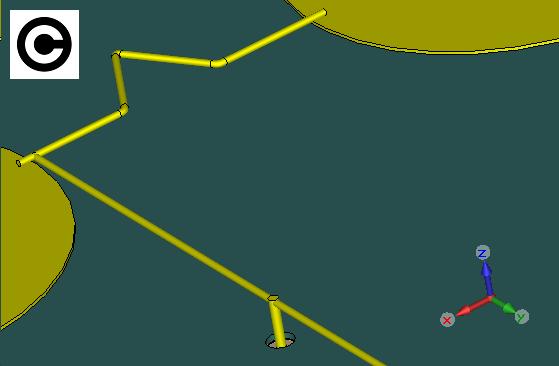

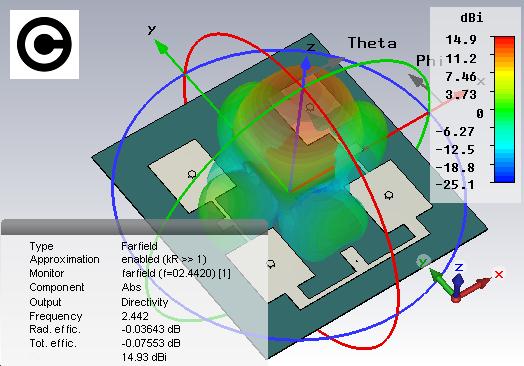

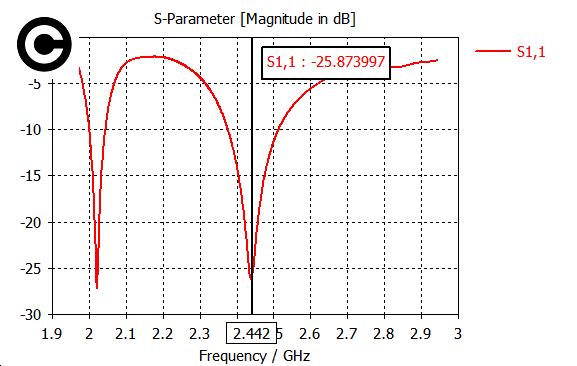

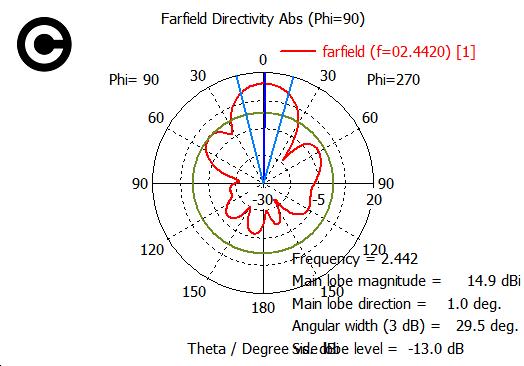

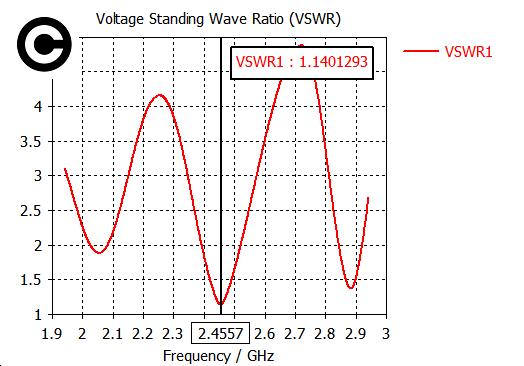

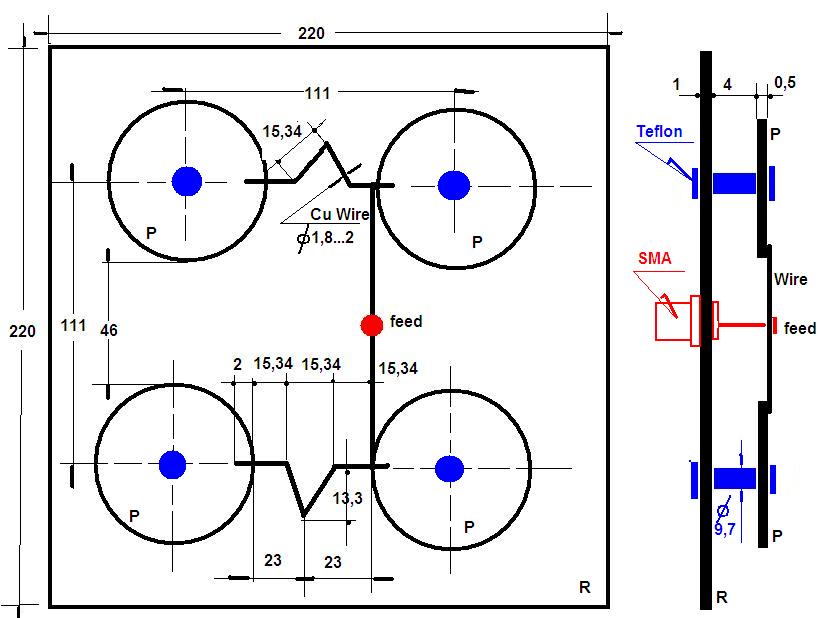

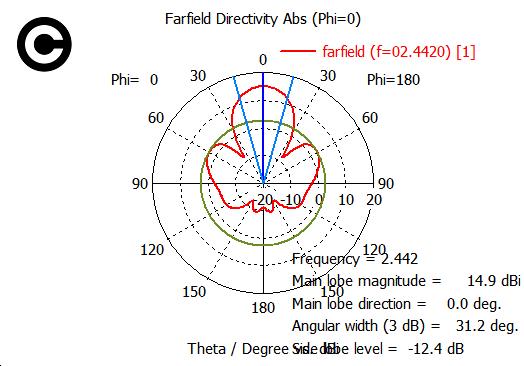

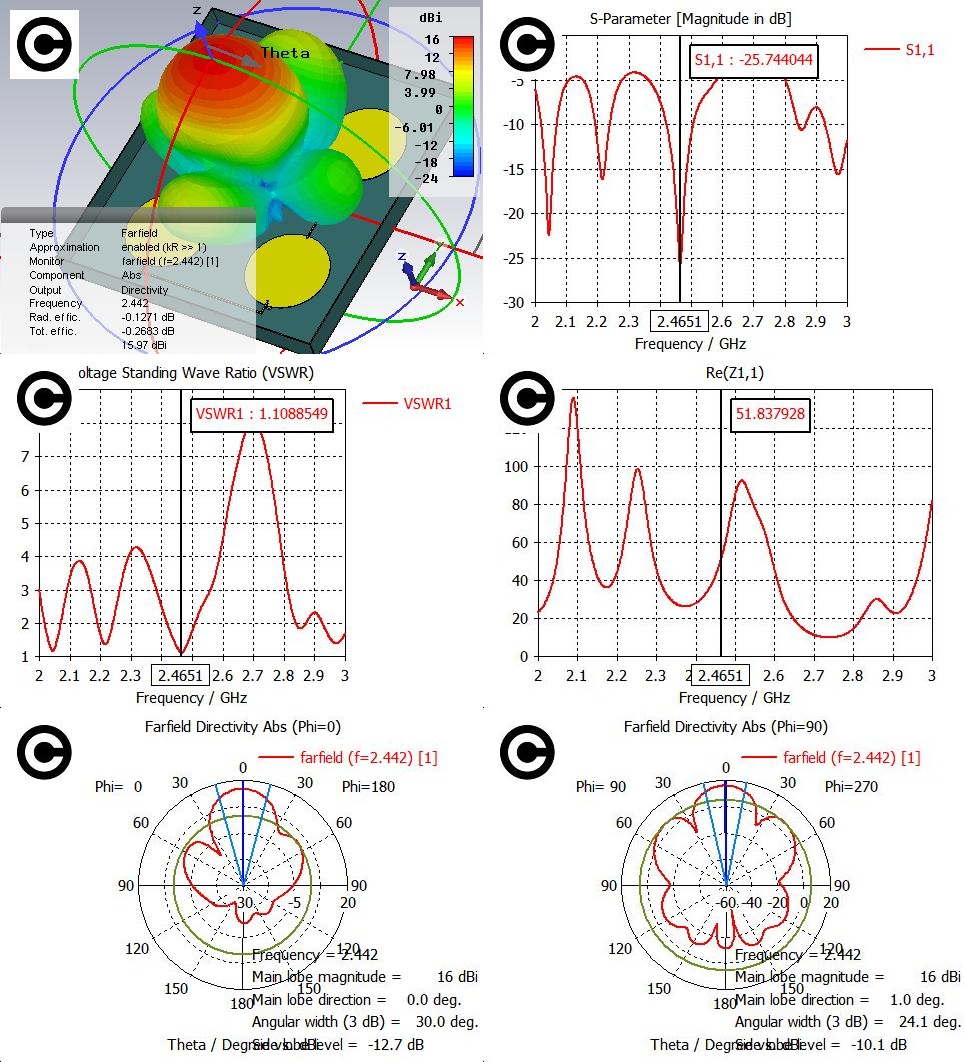

Well, I thought it was appropriate to make an improvement on my older antenna project, which is why I made this optimization...

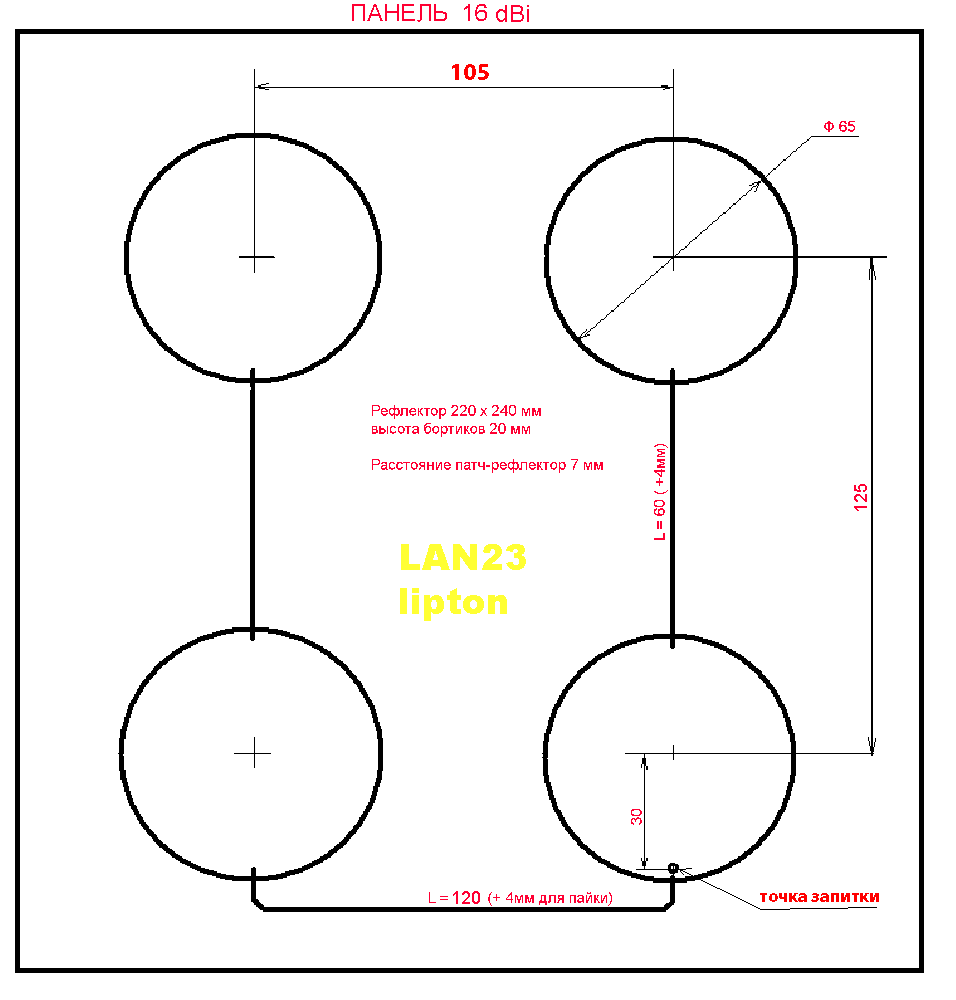

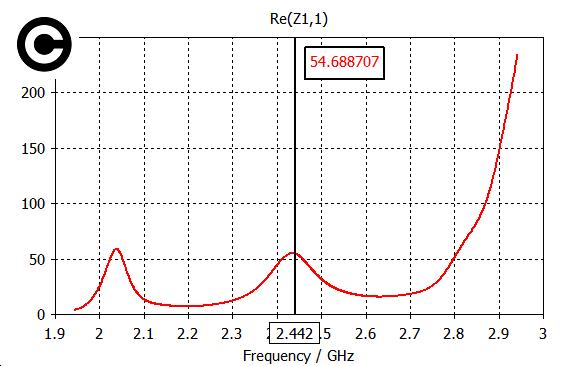

my old_01.jpg

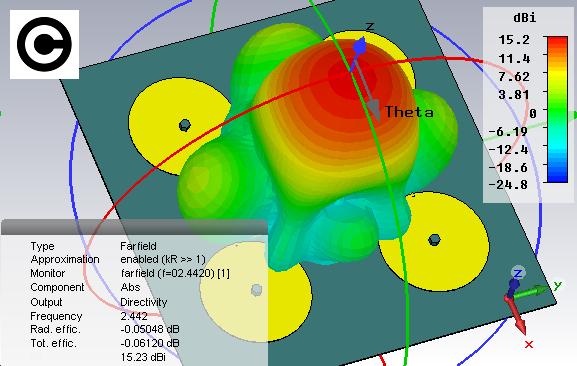

my old_02.jpg

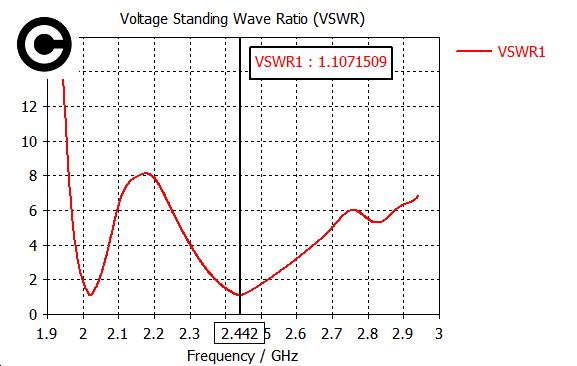

my old_03.jpg

my old_04.jpg

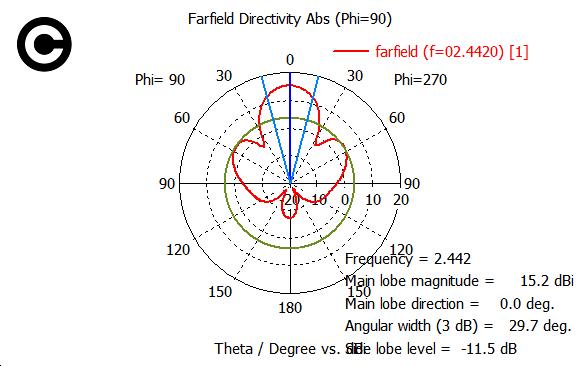

my old_05.jpg

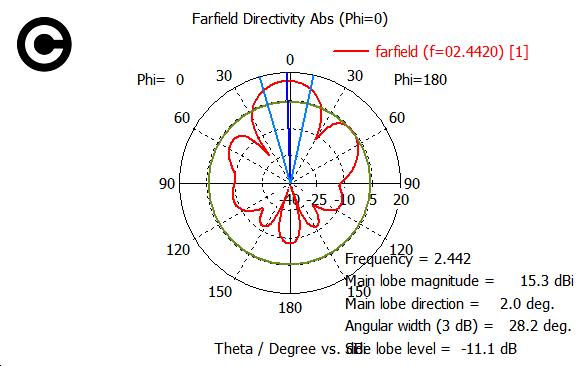

my old_06.jpg







my old_07.jpg

my old_09.jpg

1 person likes this

Share this post


Link to post
Share on other sites

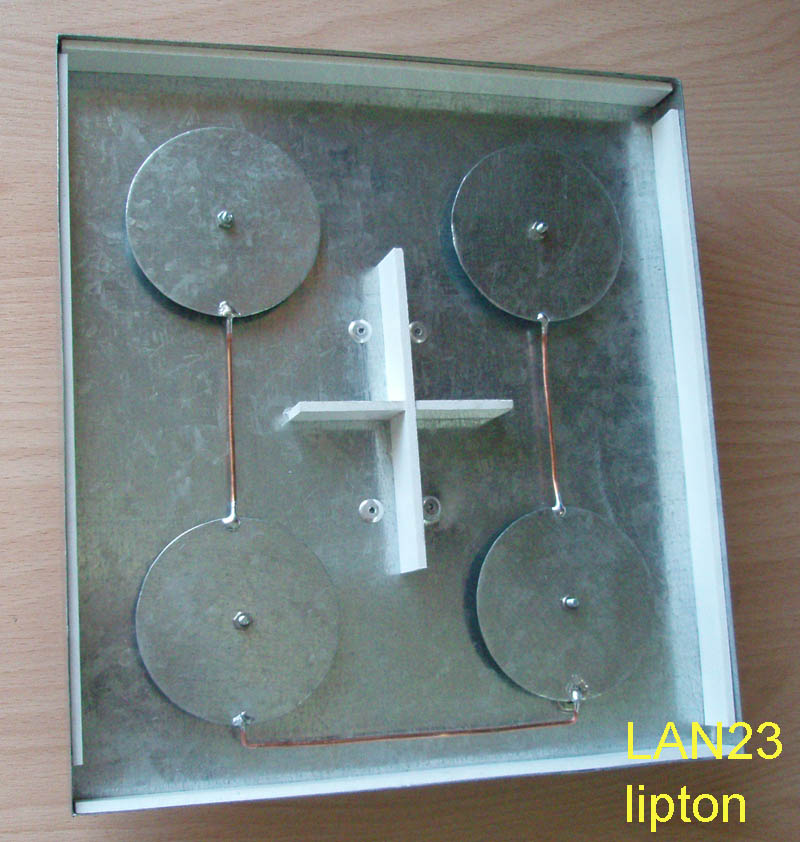

how about housing/enclosure for this antenna, what is the best material??

Share this post


Link to post
Share on other sites

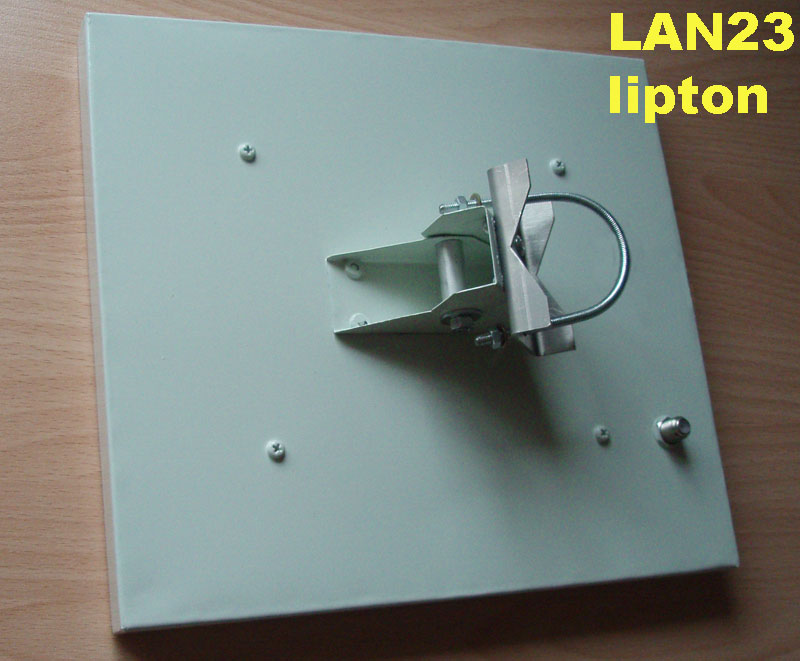

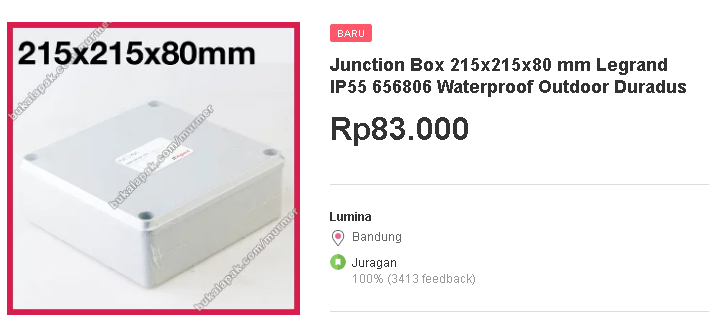

i do not thinking to mounting this kind to the outdoor...

maybe another option like abs plastic, pvc or maybe arcylic

Edited by bejonet

Share this post


Link to post
Share on other sites

"If you put the antenna on the electric pen, you can...!!!

Share this post


Link to post
Share on other sites

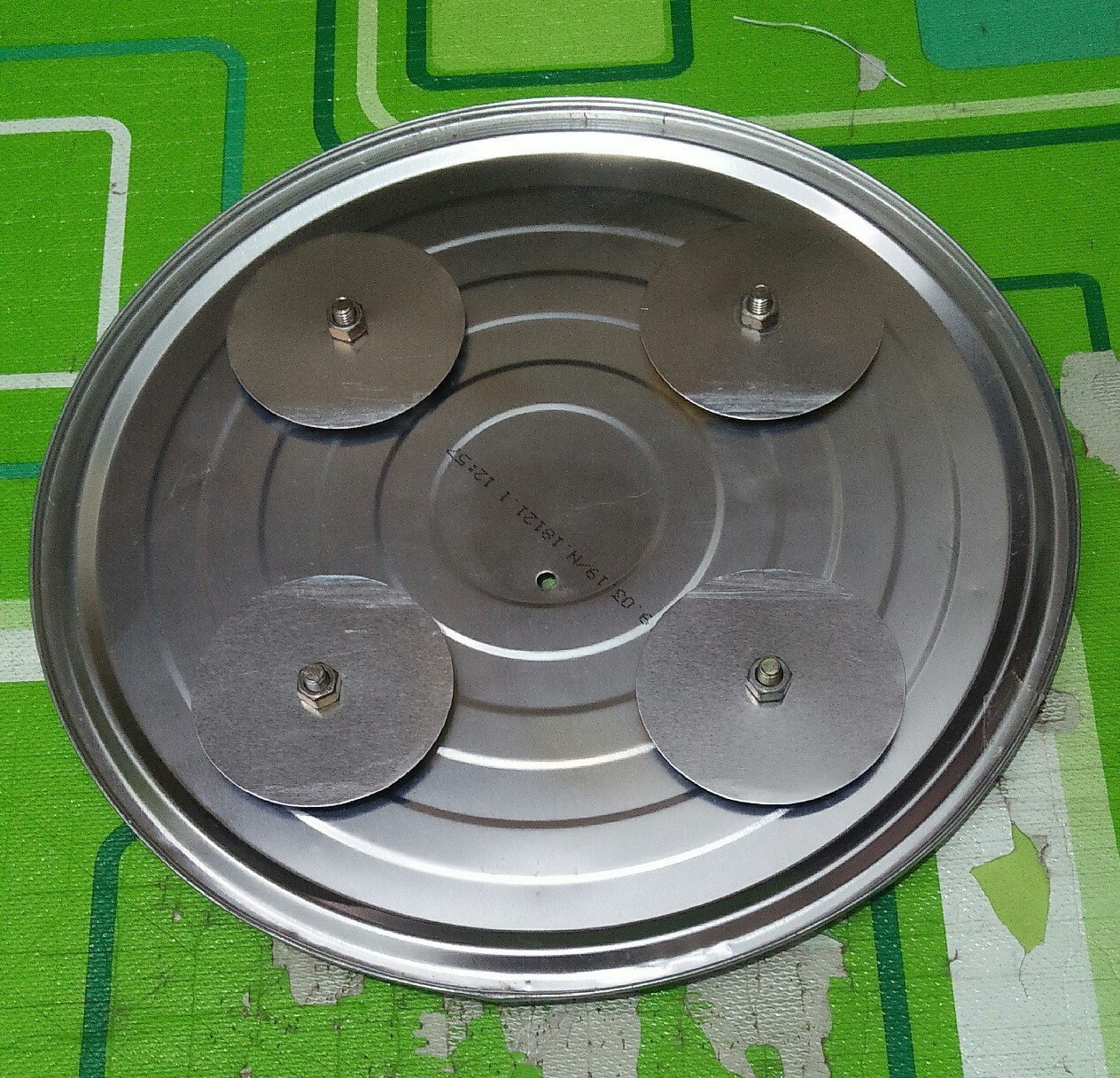

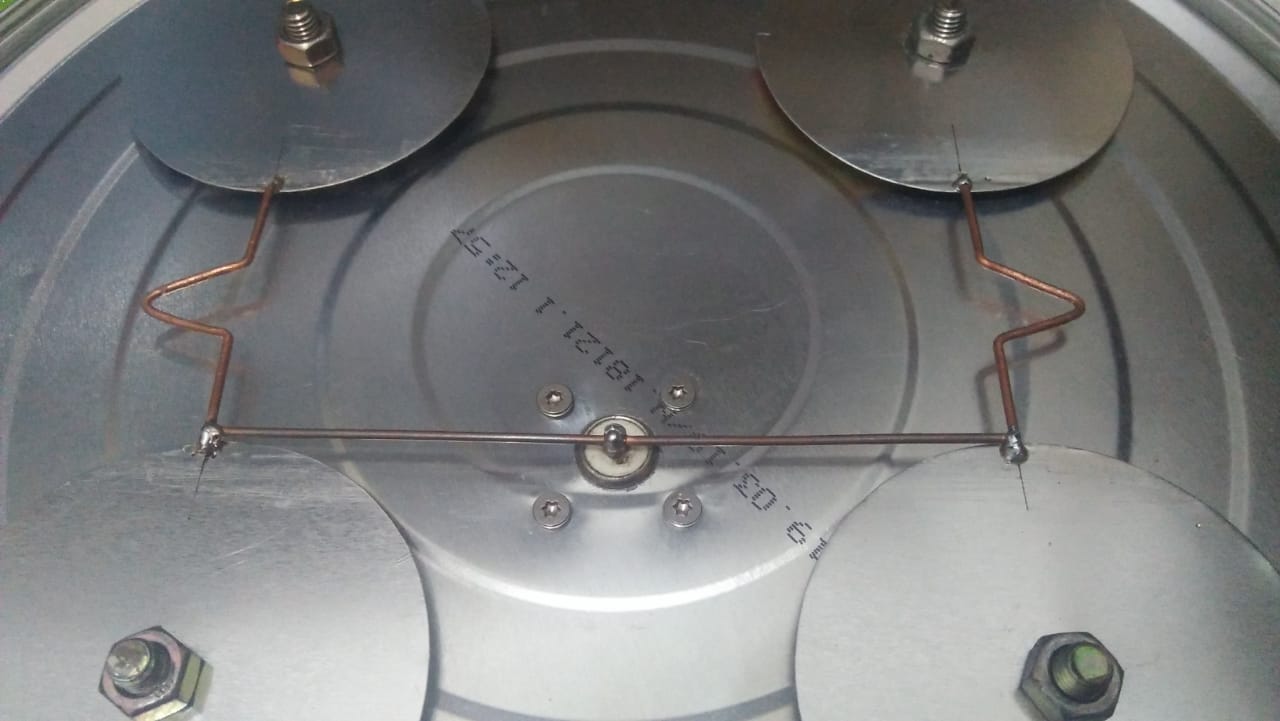

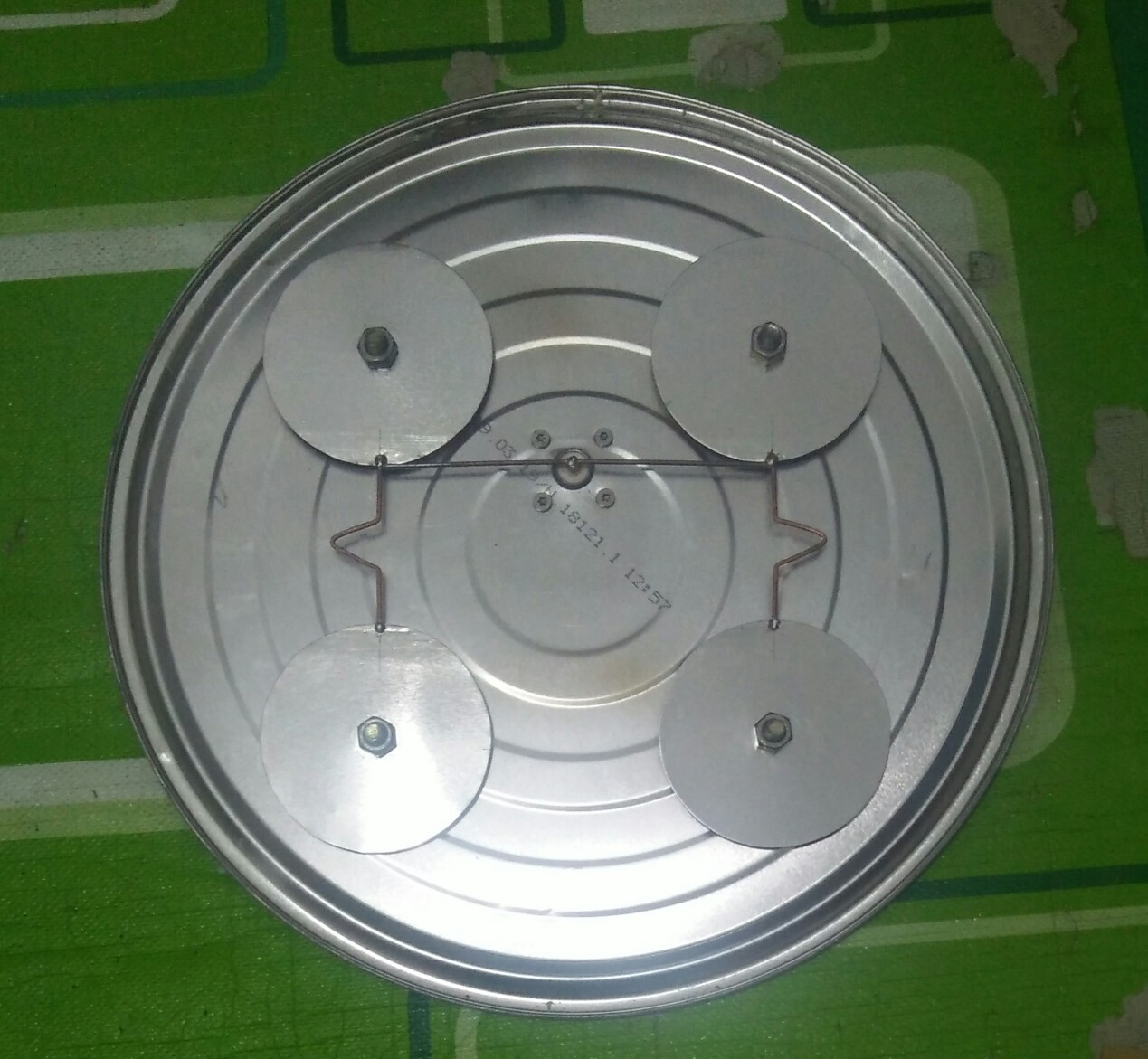

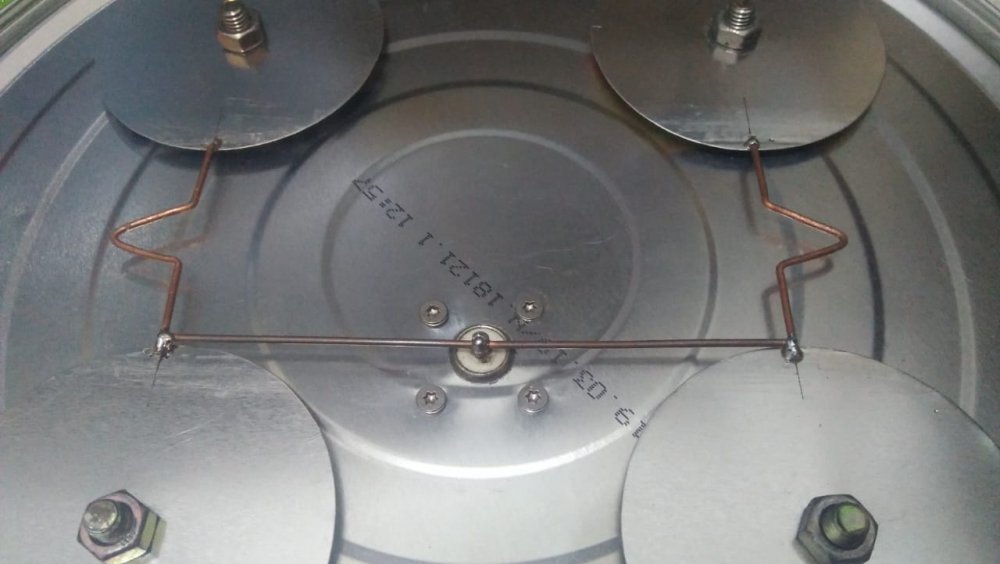

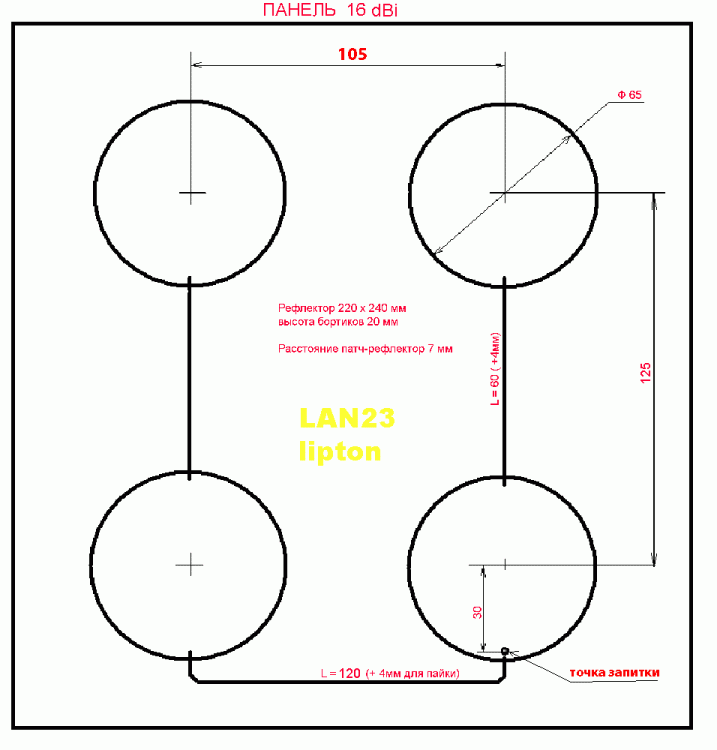

Anyway, here I have presented another antenna panel construction...



Share this post


Link to post
Share on other sites

,,,,good, it's good and so, but it needs a bigger diameter at the cookie cans....!!!

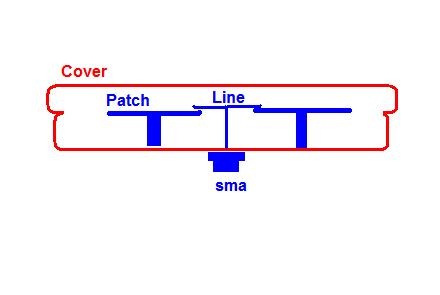

,,,, and the cover should be inverted....!!!!

Share this post


Link to post
Share on other sites

diameter of reflector is 260mm, if it is work I plan to buy galvanizes or cooper sheet..

Share this post


Link to post
Share on other sites

"It's good, but the cover needs to be reversed, kind of like ...


1 person likes this

Share this post


Link to post
Share on other sites

,,,good good very good....!!!
,,,congratulations my friend ... !!!

Share this post


Link to post
Share on other sites

thank you... You are the best teacher....

I do not have 1mm cooper wire so i used 1.5mm too, it is influence or not..??

Share this post


Link to post
Share on other sites

yes, the diameter of the copper wire , influences the impedance of the antenna...!!!

2 people like this

Share this post


Link to post
Share on other sites
