lrg

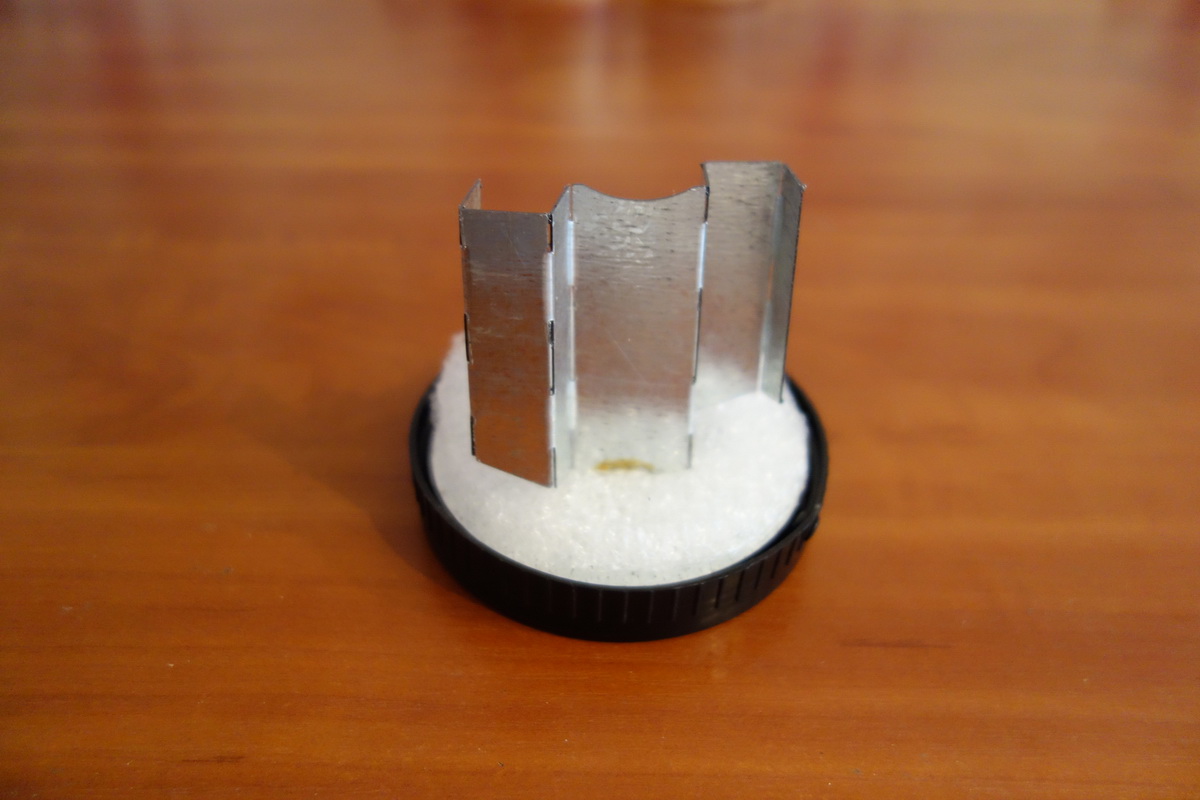

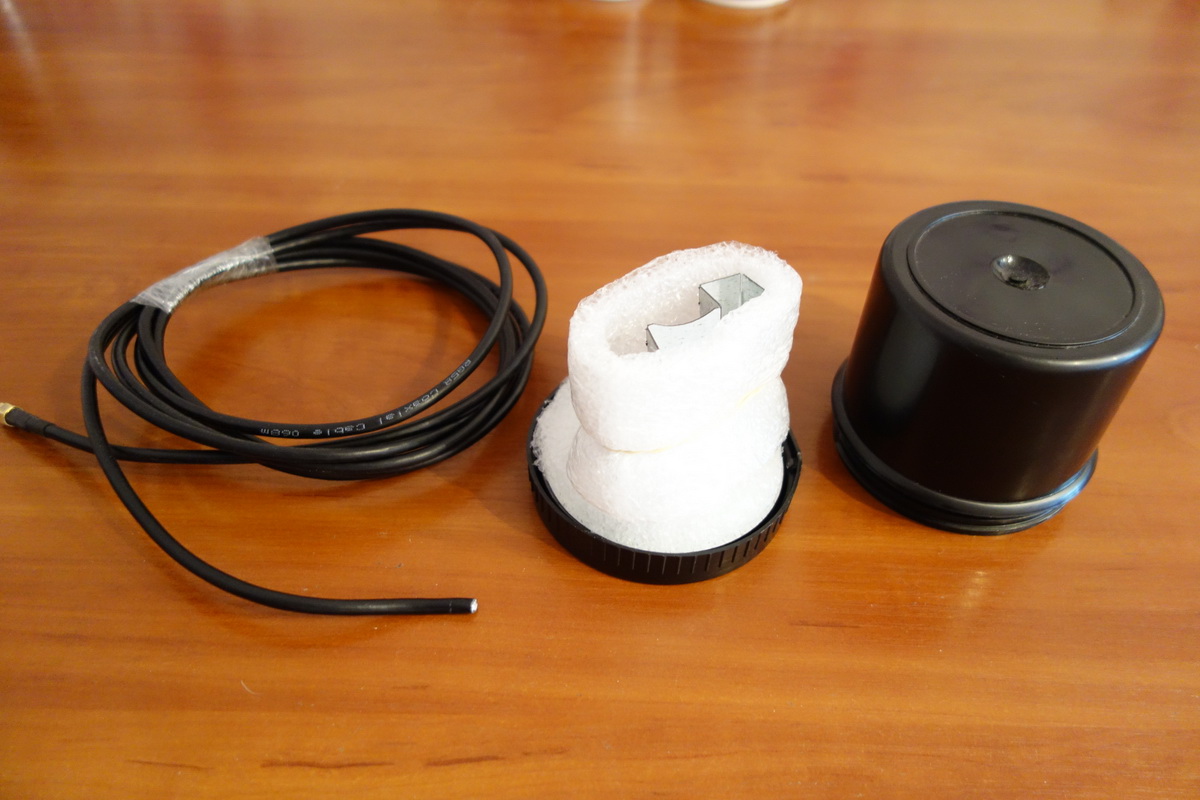

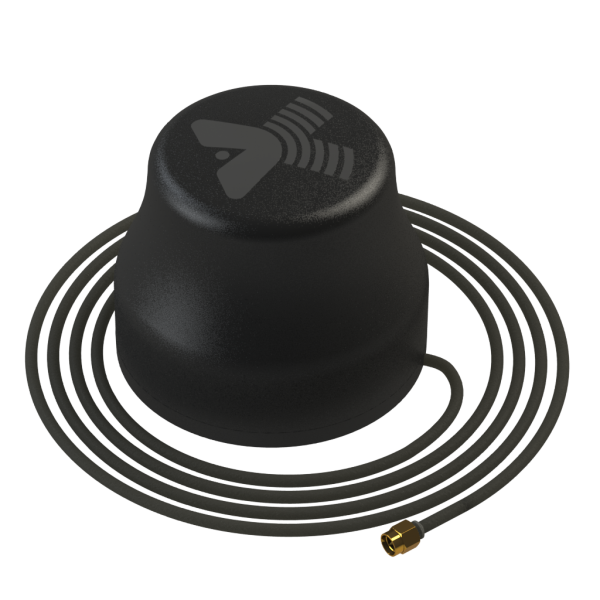

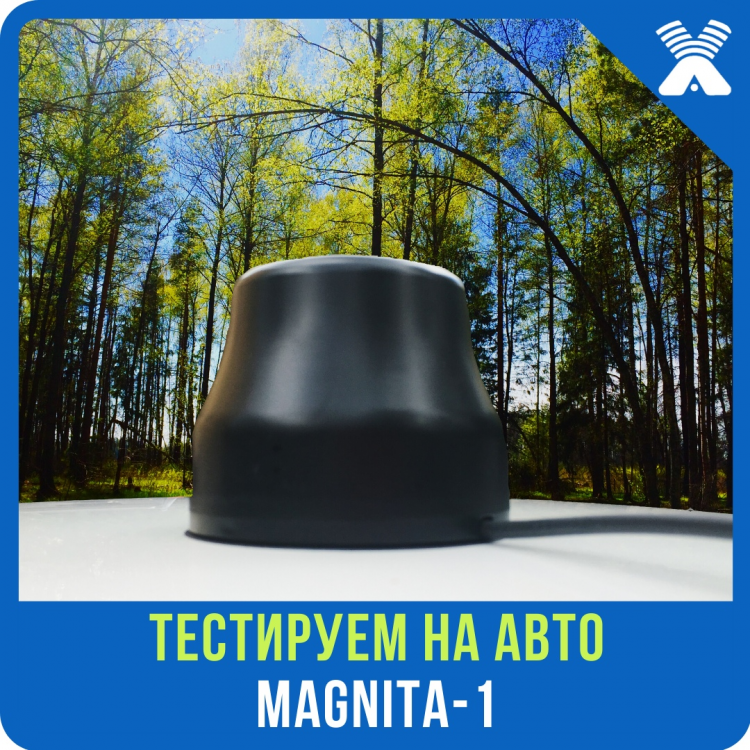

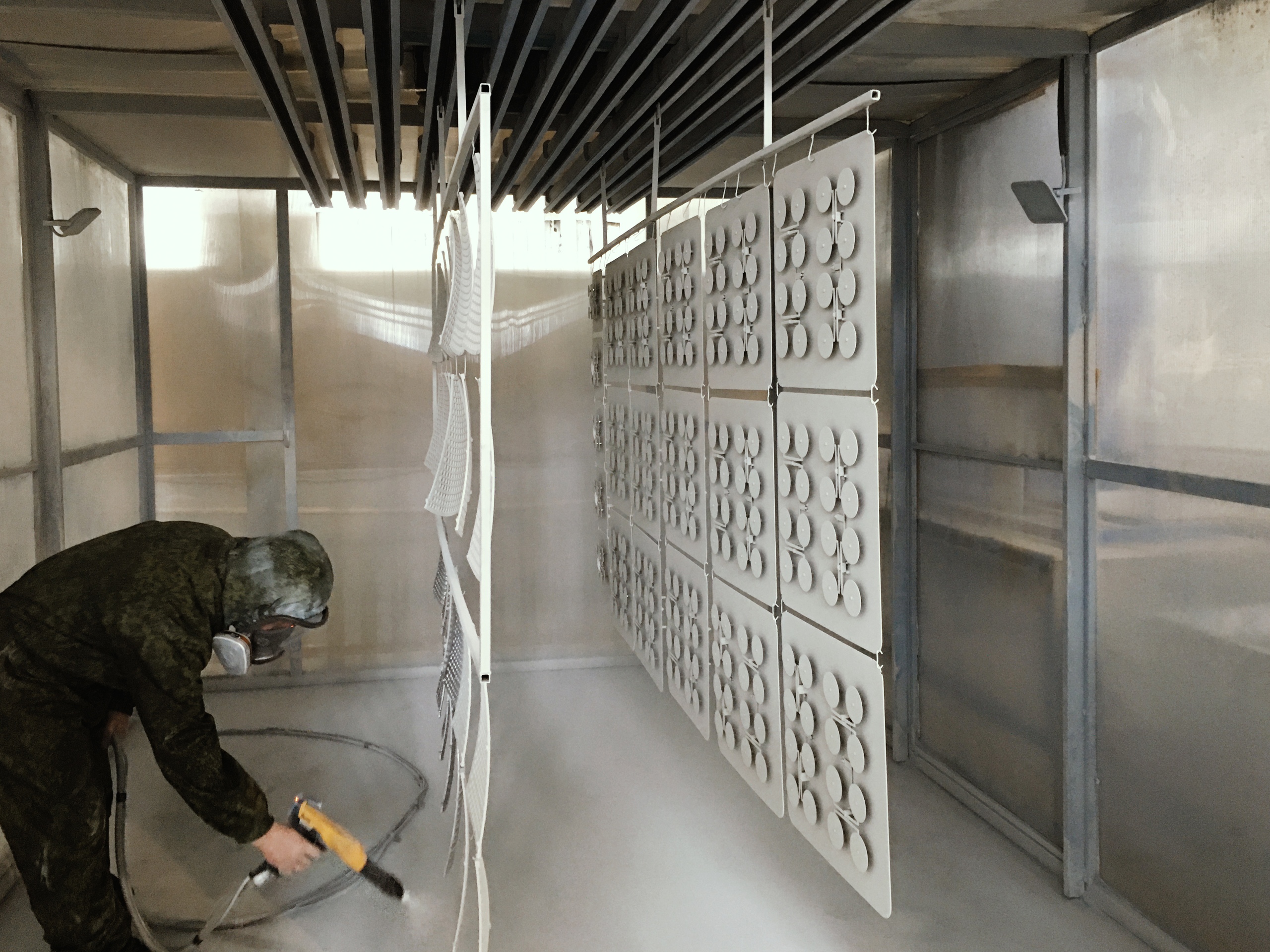

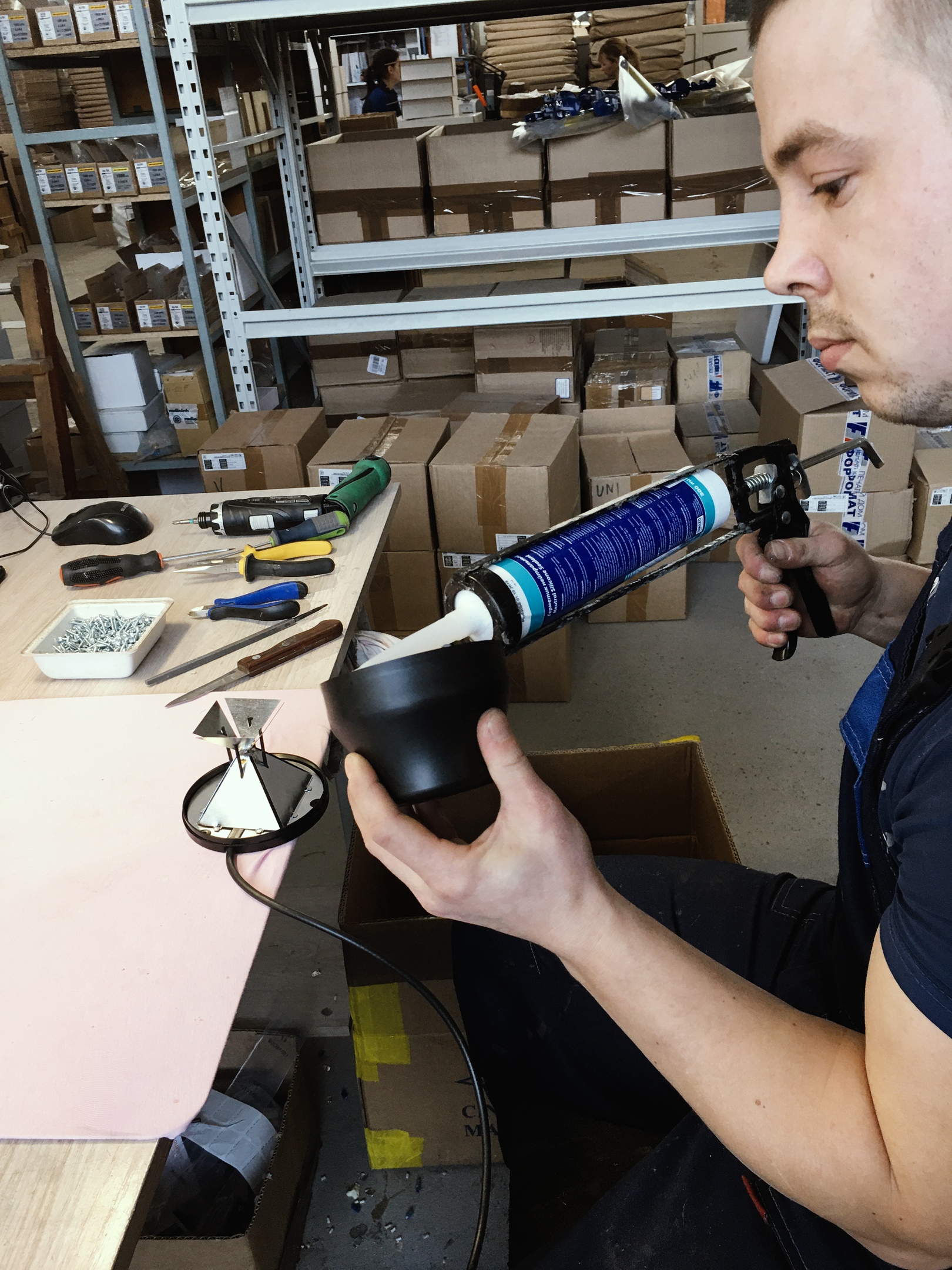

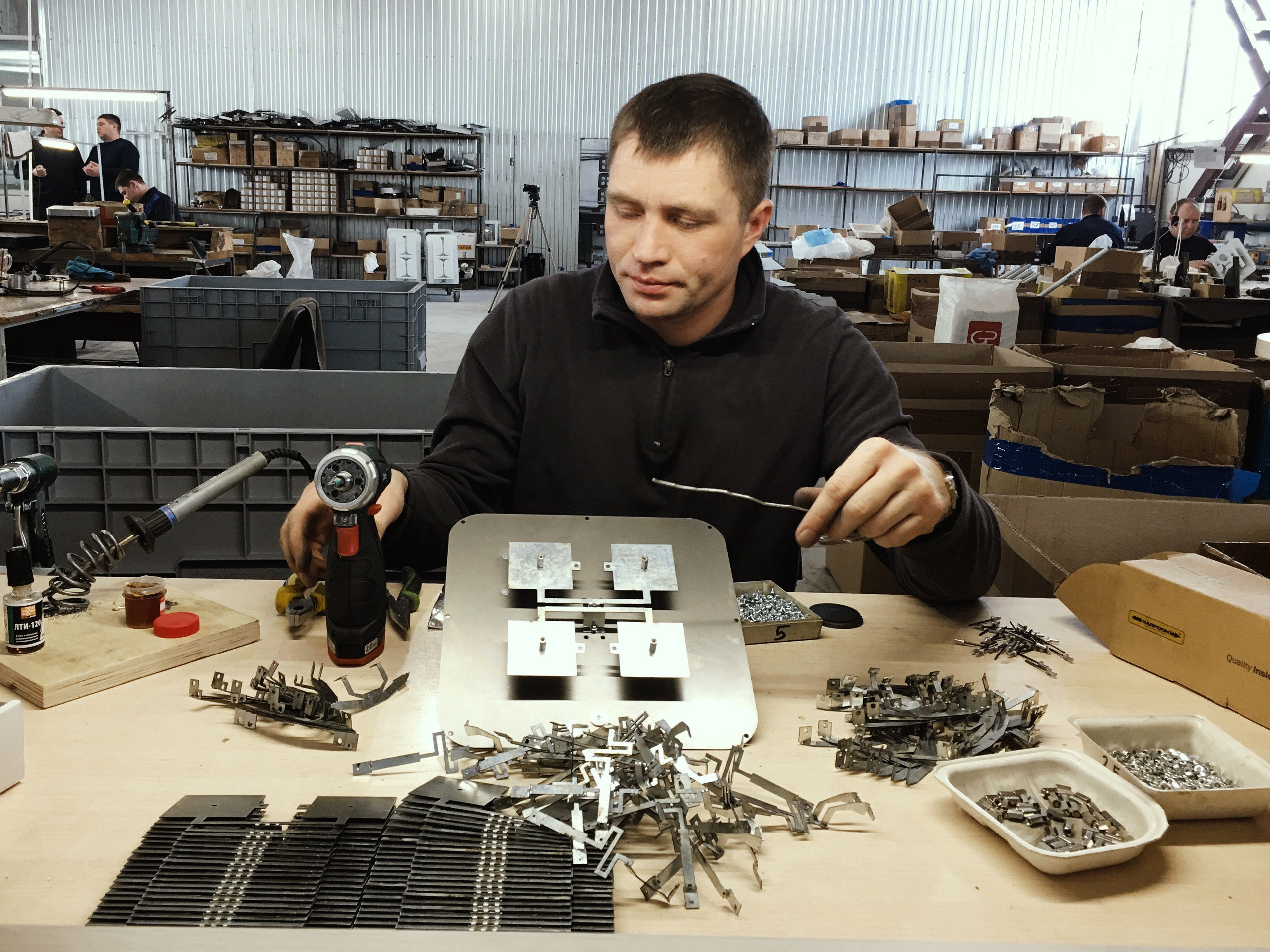

MAGNITA-1

Electrical characteristics of the Magnita-1 antenna


Operating frequency range, MHz 790-960/1700÷2700

Gain factor (excluding cable losses when placing the antenna on the roof of the car), dBi 2÷4 / 6.0÷7.0

Gain factor (excluding cable losses when placing the antenna in free space), dBi 2,0÷3.0

Bottom width in the H-plane, deg 360

Bottom width in the E-plane at the level of -3 dB 15÷45

Angle of the main maximum position of the directional diagram when placing the antenna on the roof of the car, degrees 5÷25

Input resistance, Ohms 50

SWR in the operating frequency range, no more than 1,6

Permissible power, W 10

Polarization vertical



Mechanical characteristics of the Magnita-1 antenna



Weight with cable, g 240

Overall dimensions without cable, m 0.10 x 0.10 x 0.08

Attraction force of the magnetic system (at the thickness of the metal roof of the atomobile-0.7 mm), N  50÷55

Connector SMA-male / on-demand

The material of the radiator tinned tinplate
Casing material ABS + polycarbonate

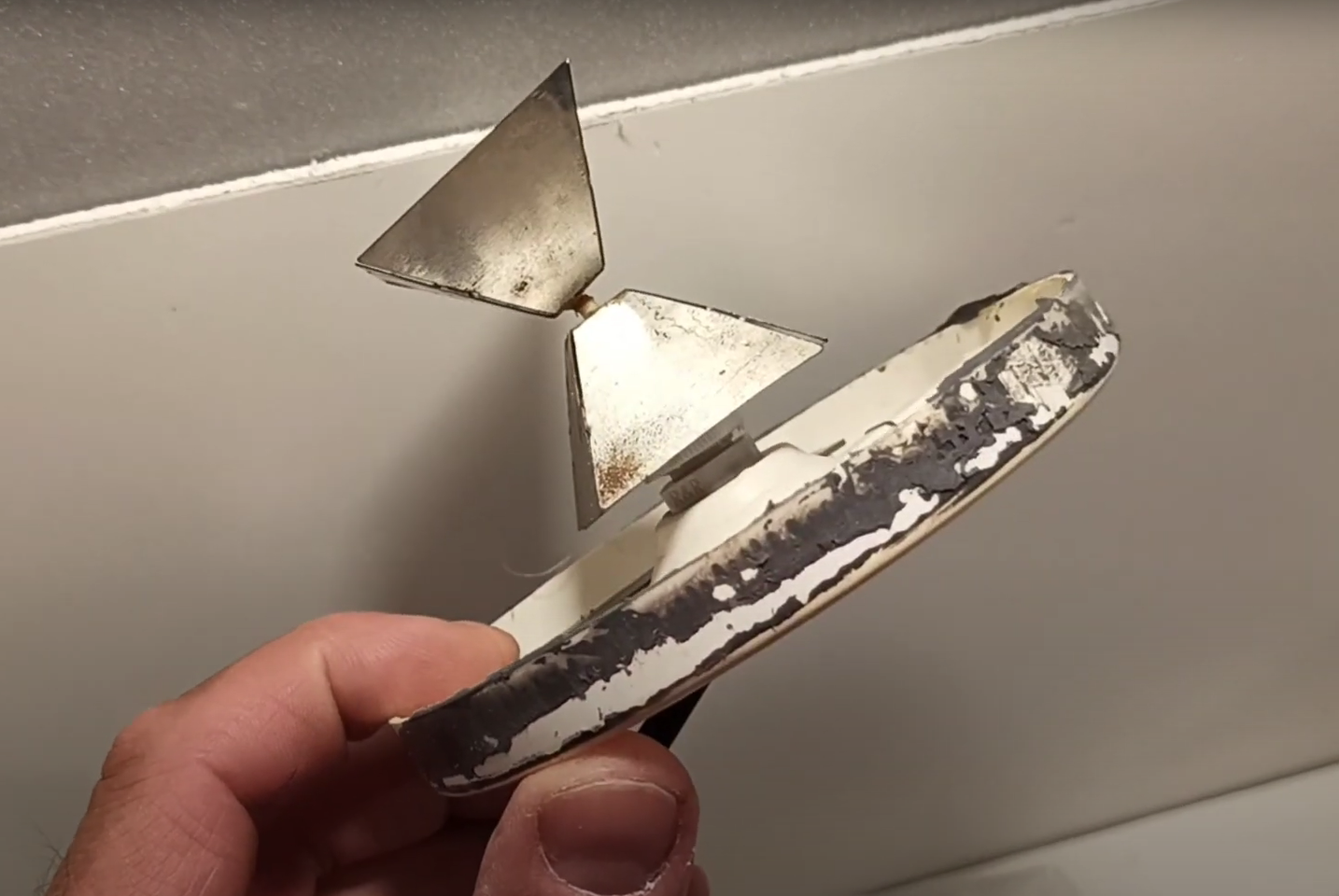

Снимок экрана (34)1.png


Share this post


Link to post
Share on other sites

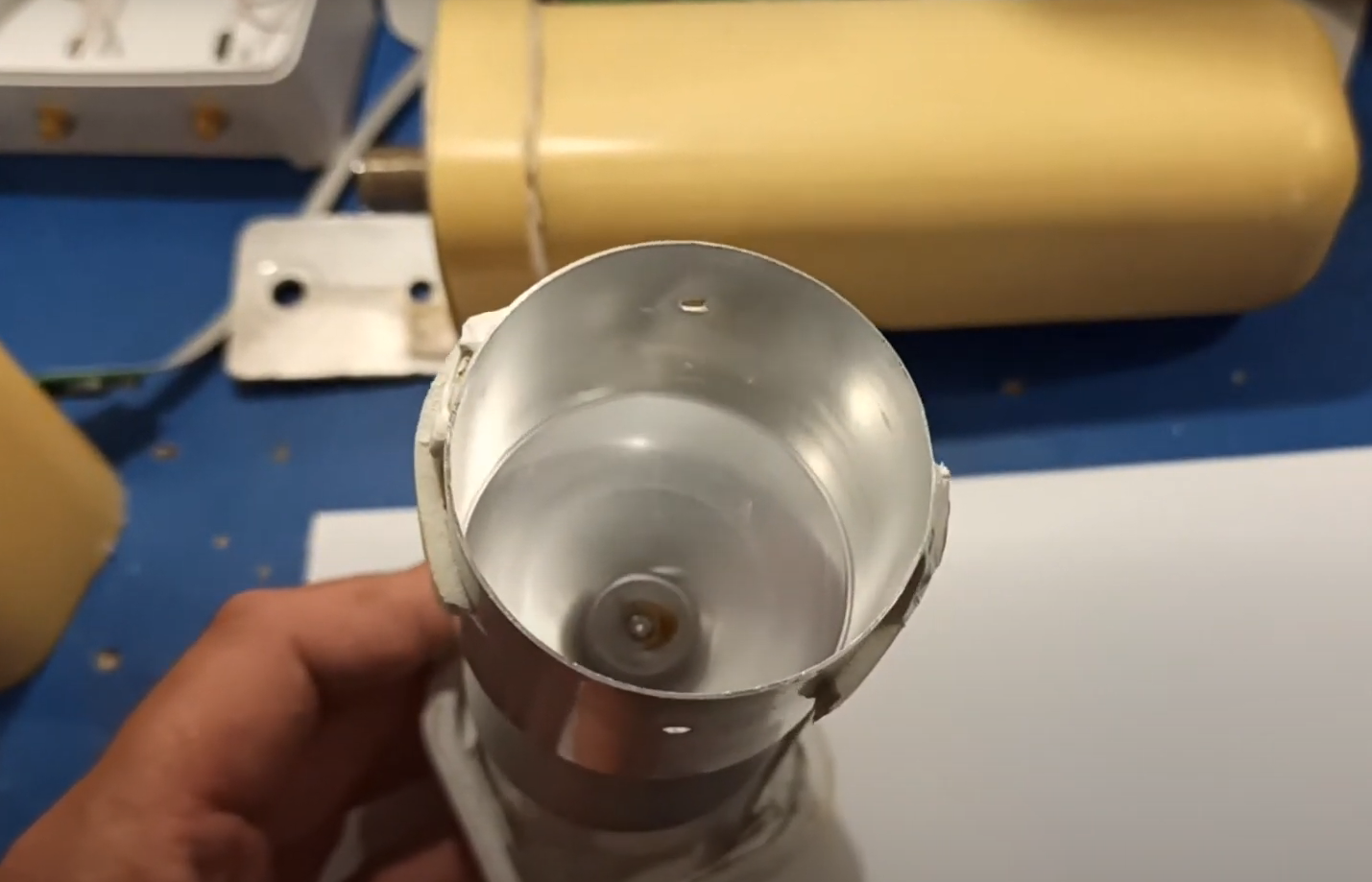

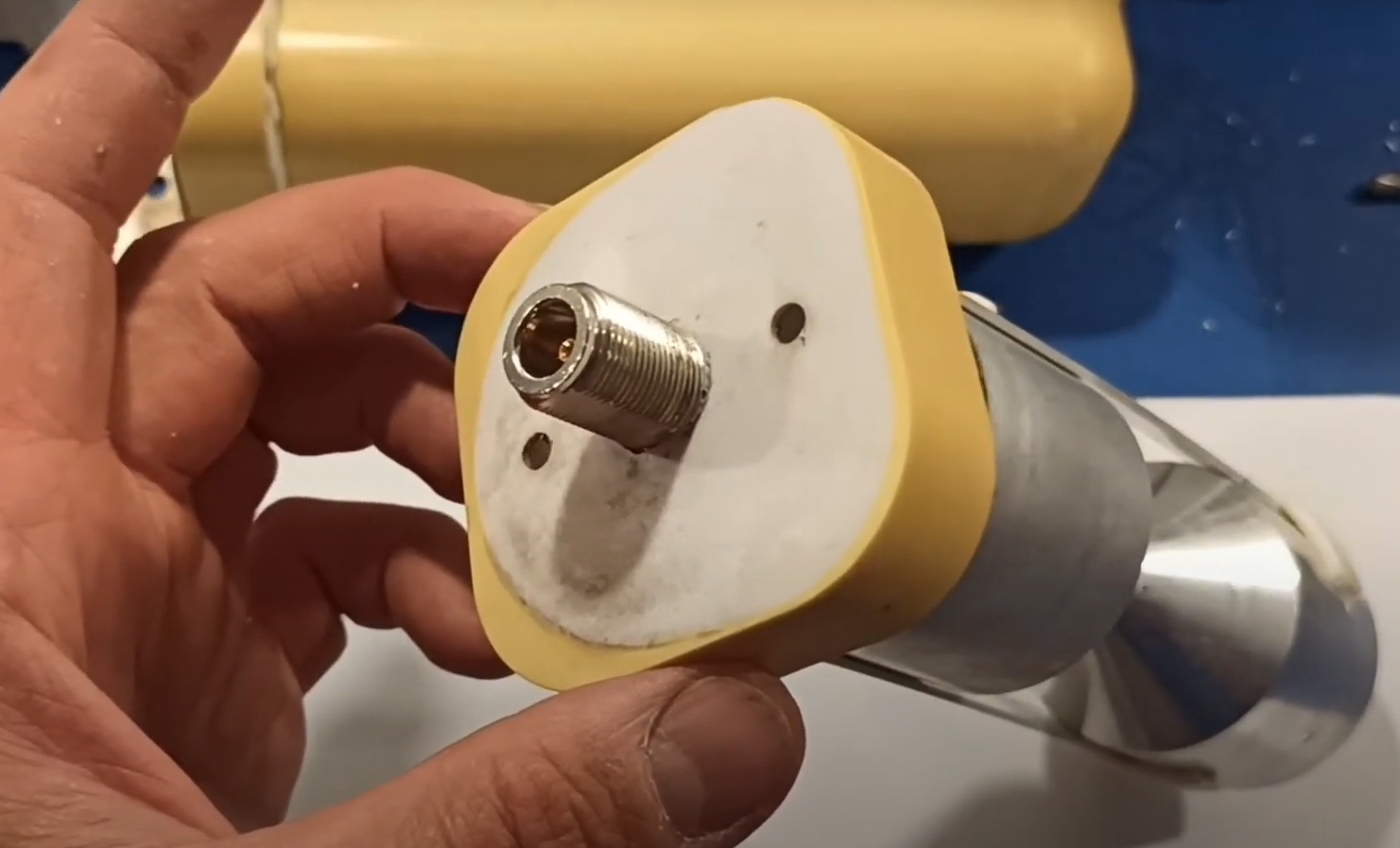

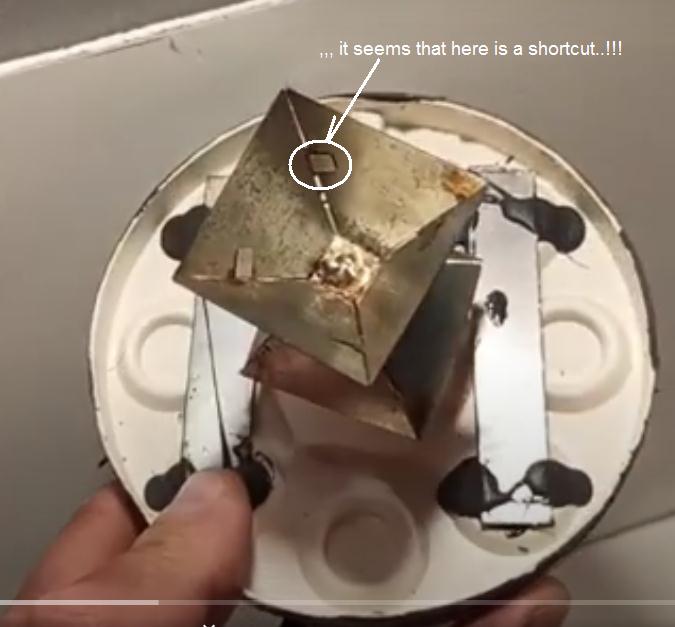

,,, it seems that still matters that shortcut, for low frequencies...


Share this post


Link to post
Share on other sites

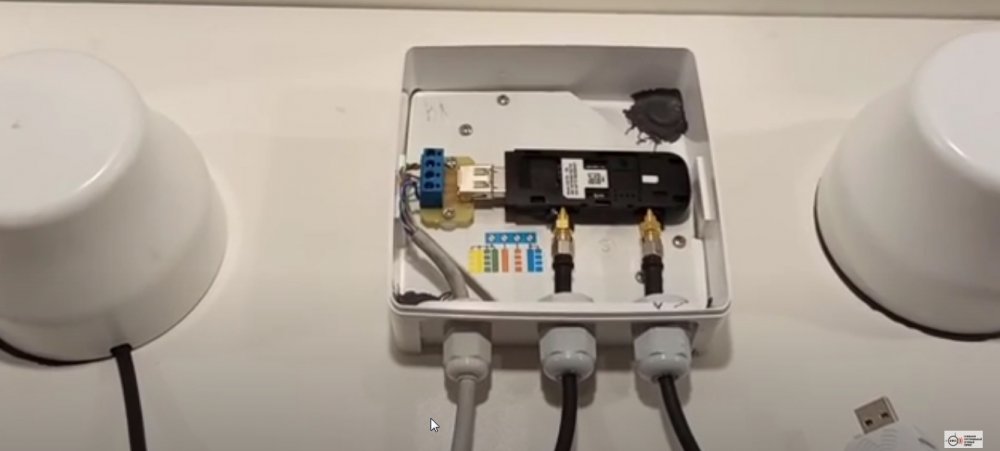

,,,mounting two Magnita antennas with a modem for MiMo...


Share this post


Link to post
Share on other sites

,,, there would be these too...



Share this post


Link to post
Share on other sites

Irg, do you have the dimensions of this antenna ... ???

Share this post


Link to post
Share on other sites
19 часов назад, Администратор сказал:

Ирг, у вас есть размеры этой антенны ... ???

увы нет

Share this post


Link to post
Share on other sites

Irg,from where did you get the detail of the antenna...???

Share this post


Link to post
Share on other sites
На 21.08.2020 в 10:52 вечера, Администратор сказал:

Irg, откуда вы получите деталь антенны ... ???




Share this post


Link to post
Share on other sites
5 минут назад, Администратор сказал:

,,, YouTube ... ??

Нет. "Зенит"




Edited by lrg
2 people like this

Share this post


Link to post
Share on other sites

Irg, you can put the above images under spoiler...???

Share this post


Link to post
Share on other sites
13 минут назад, Администратор сказал:

Irg, вы можете поместить выше изображения под спойлер ... ???

Который?

Share this post


Link to post
Share on other sites

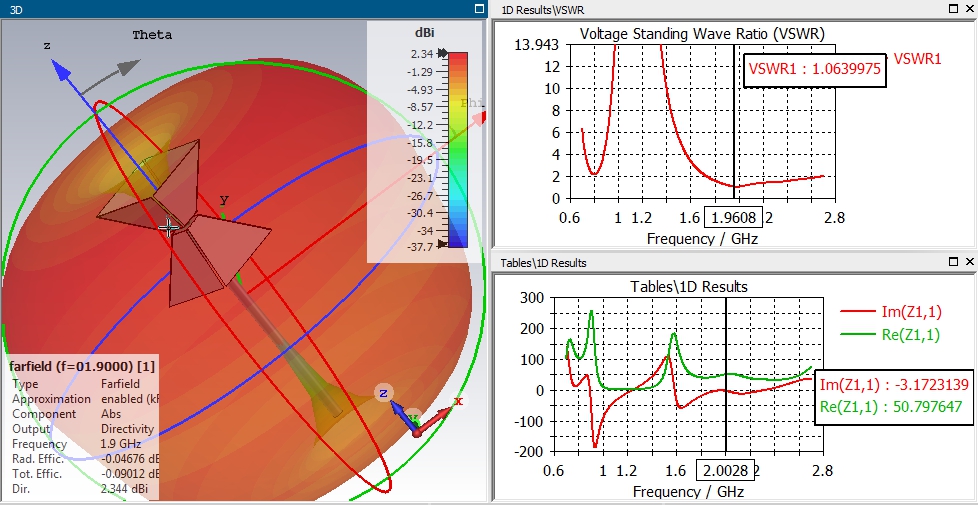

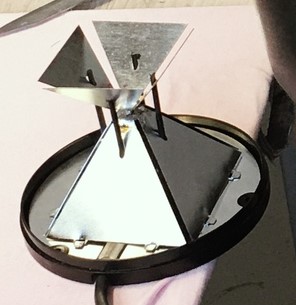

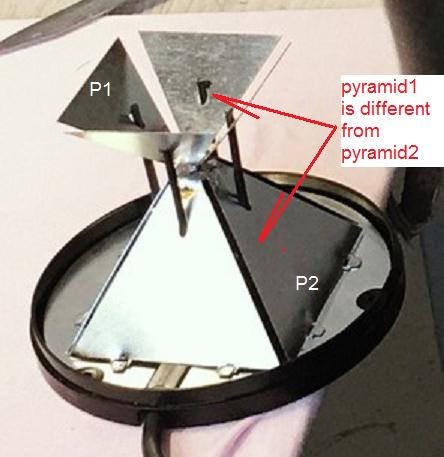

Those aren't Pyramids ...those are BOW TIEFOLDED!

imho

Share this post


Link to post
Share on other sites

,,, yes, you're right, but that's what I called them in a hurry...!!

1 person likes this

Share this post


Link to post
Share on other sites

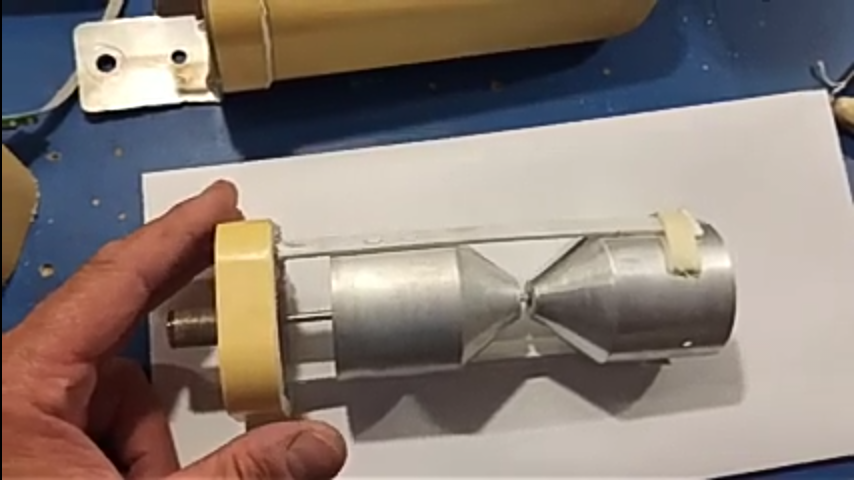

,,, another type of car-antenna



1 person likes this

Share this post


Link to post
