Petra-9 2x2 MIMO BOX antenna

32 posts in this topic

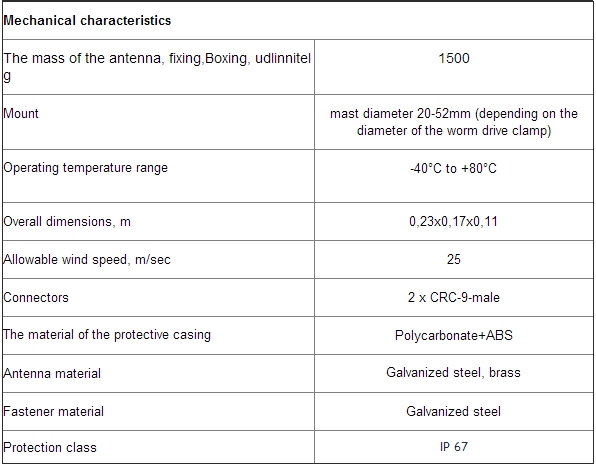

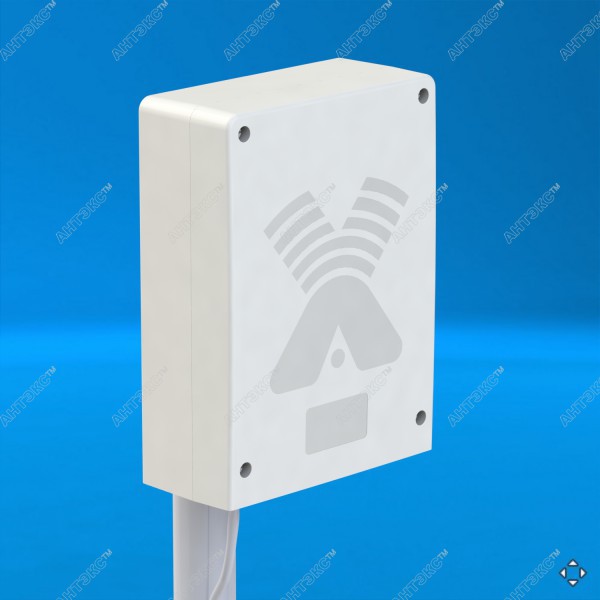

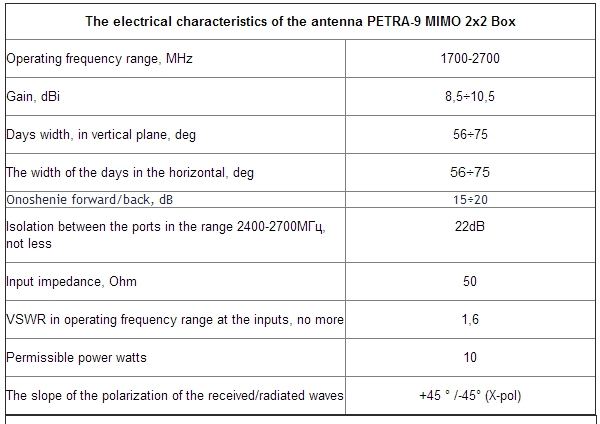

Universal antenna Petra-9 MIMO 2x2 built-in professional sealed box. CRC9 connectors. F=1700-2700 MHz. GAIN=9dBi. Polarization X-pol. Standards: LTE-A, LTE1800, LTE2600, UMTS2100, WIFI.

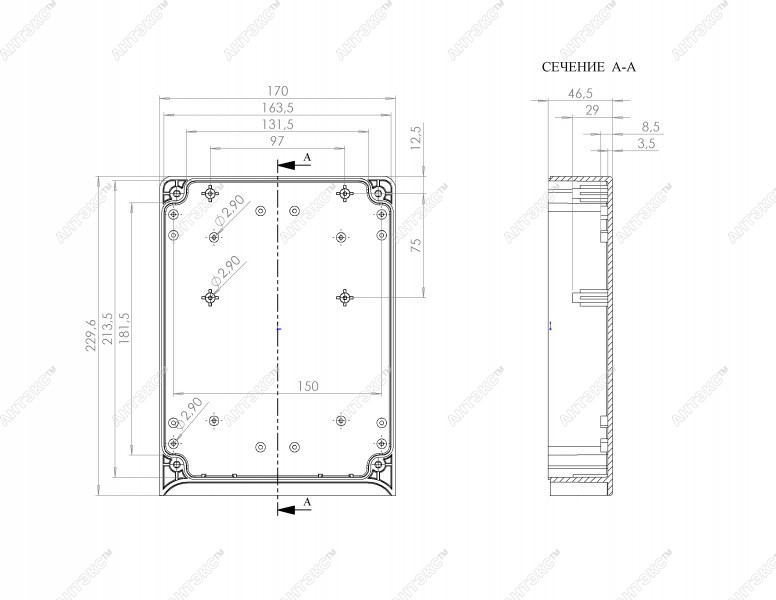

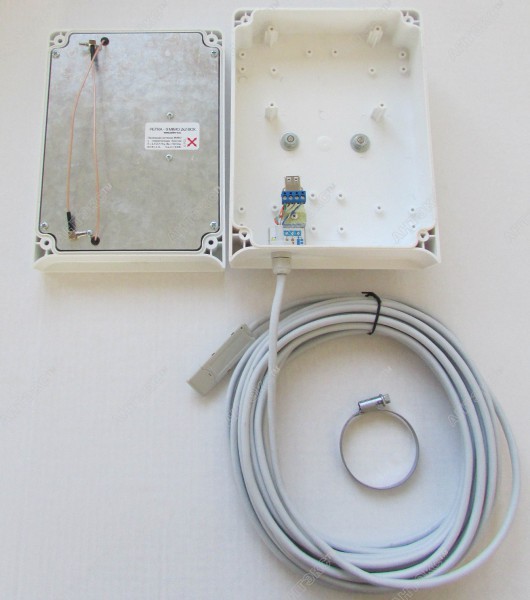

PETRA-9 MIMO 2x2 Box is the antenna combined with a large sealed box in which you can put any 3G/4G modem and even router. The antenna is provided with connectors - CRC-9. The connection of modem to PC or router located in the room is via a USB extension cable. A sealed box will protect the modem from adverse weather conditions!









2 people like this

Share this post


Link to post
Share on other sites

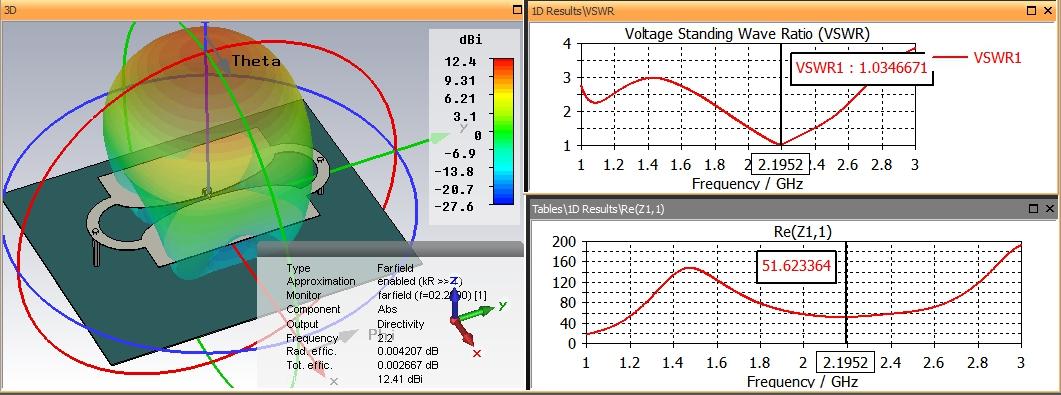

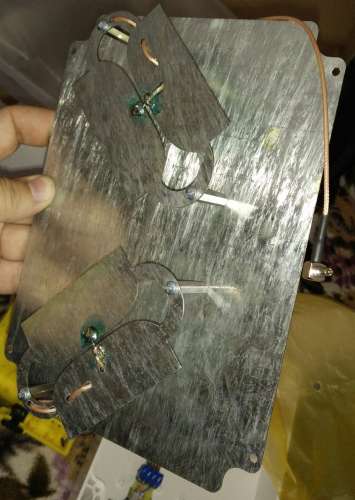

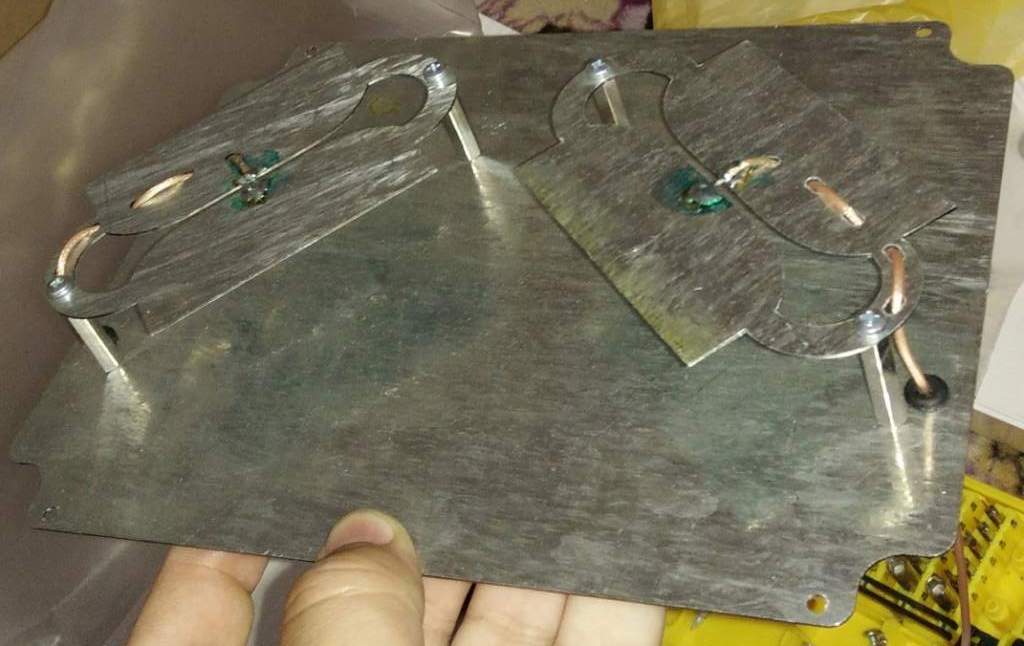

It seems like this antenna pattern is a shit, in fact a Russian lie...






"Yes, of course, if you place two such antennas at 45 degrees for a circular polarization, 3dBi is lost from the gain of the antenna but can not provide frequency bandwidth (1.7-2.7GHz)

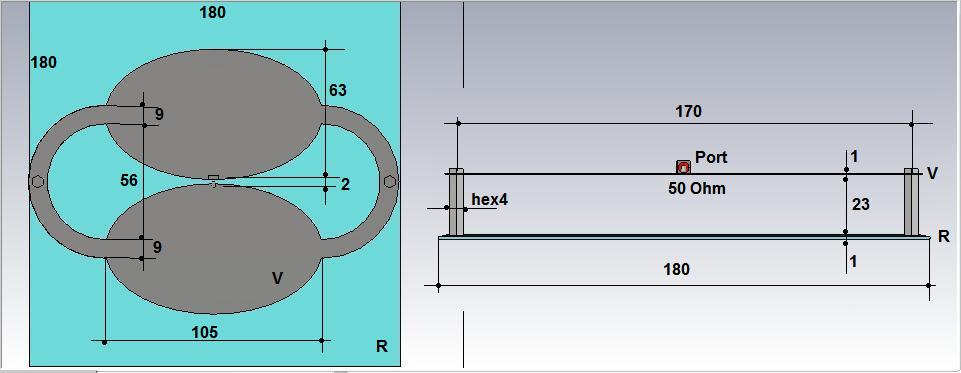

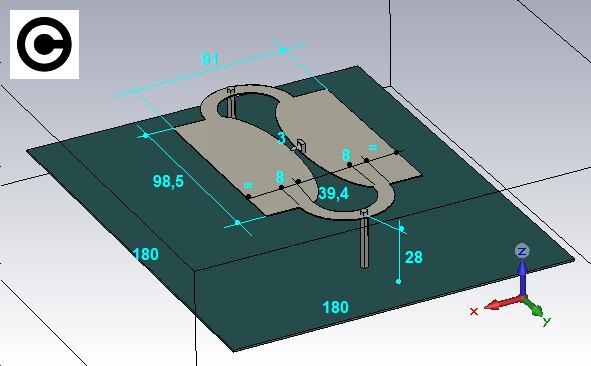

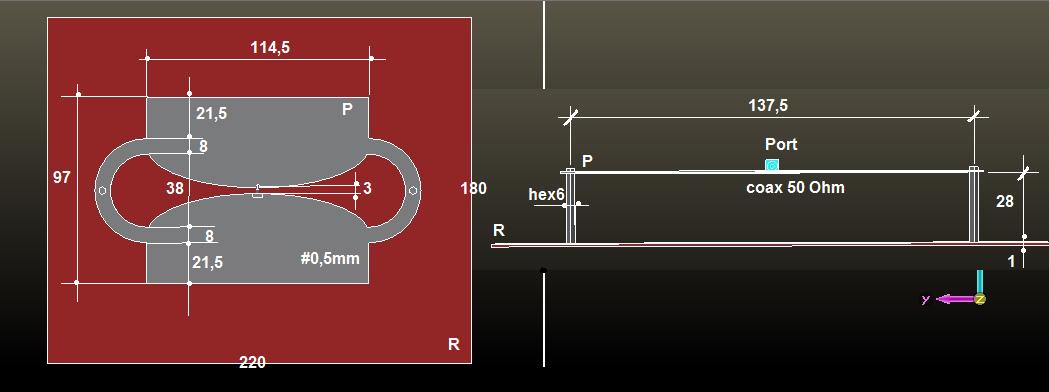

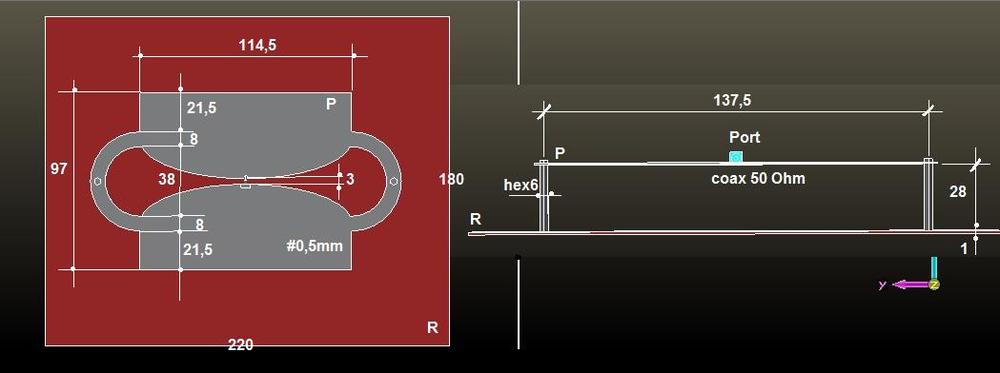

CONSTRUCTIVE DETAILS


1 person likes this

Share this post


Link to post
Share on other sites

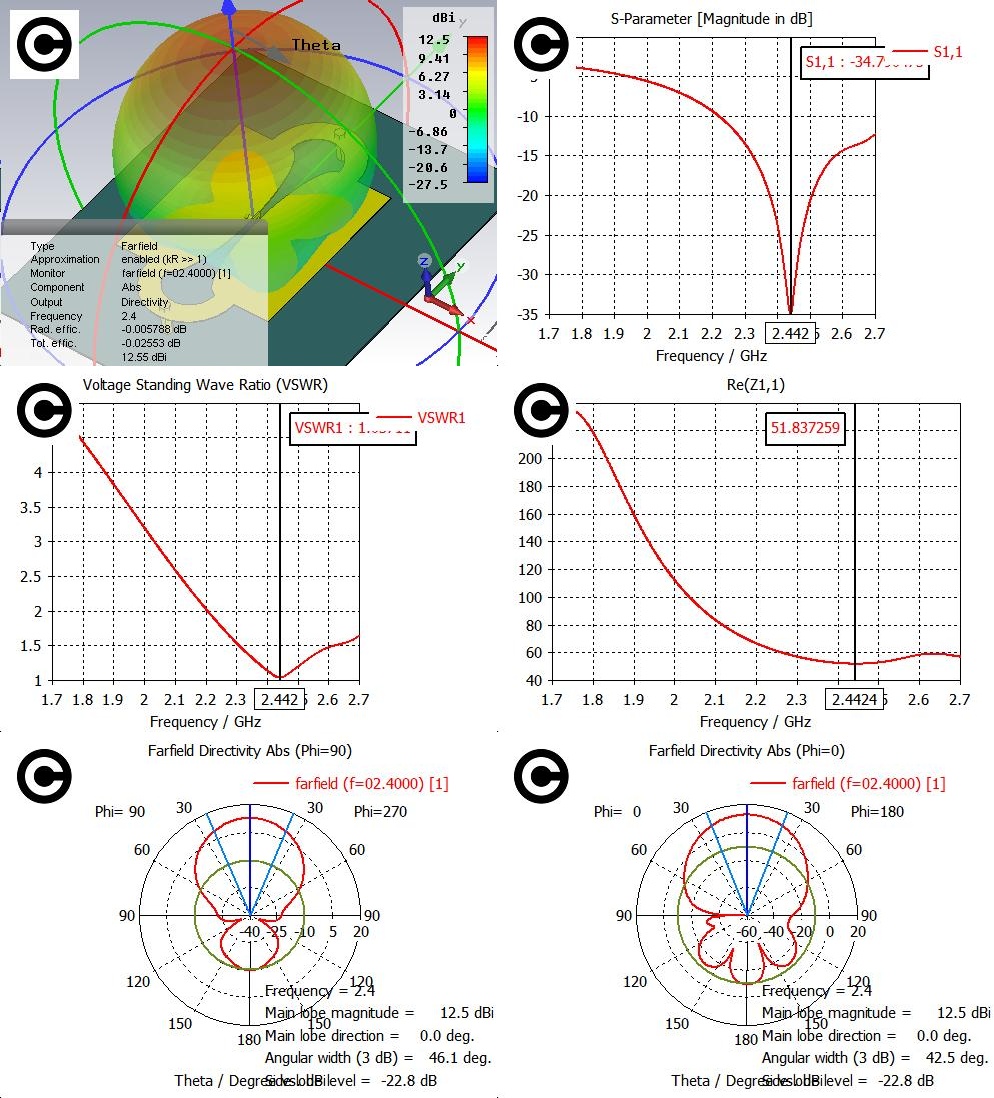

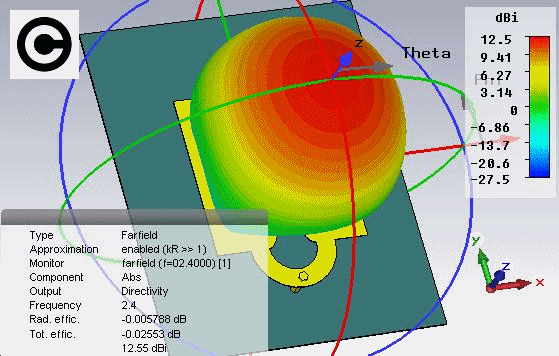

,,,but it must to...












Files for laser cutting,,,,

oval.dxf

Oval.cst

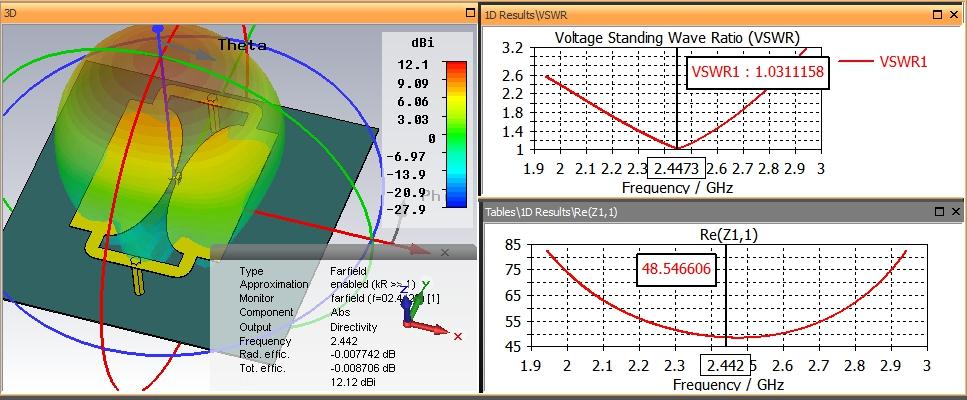

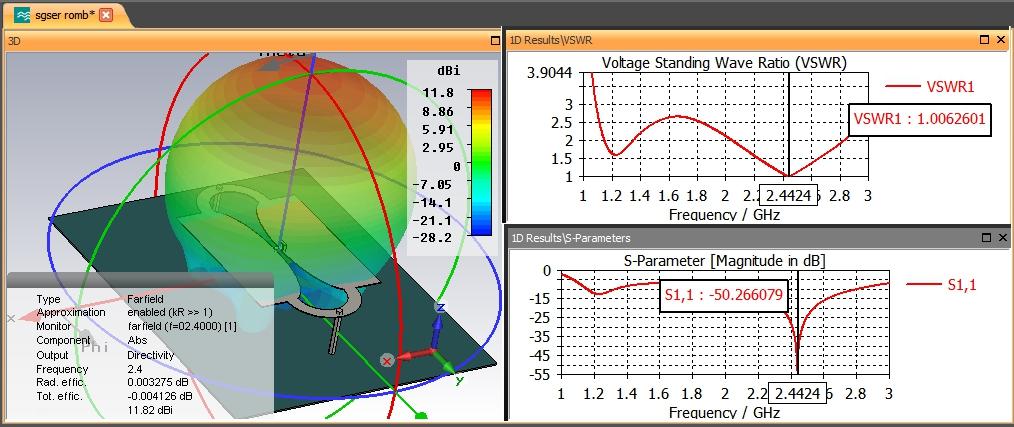

And another way,,,,






4 people like this

Share this post


Link to post
Share on other sites

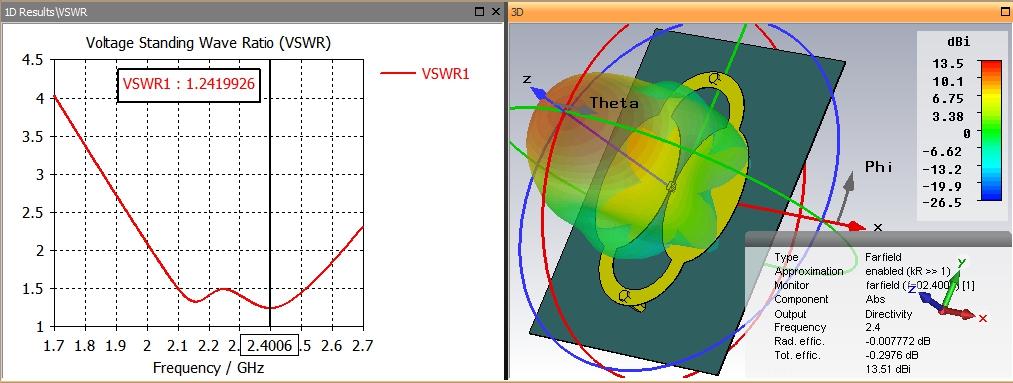

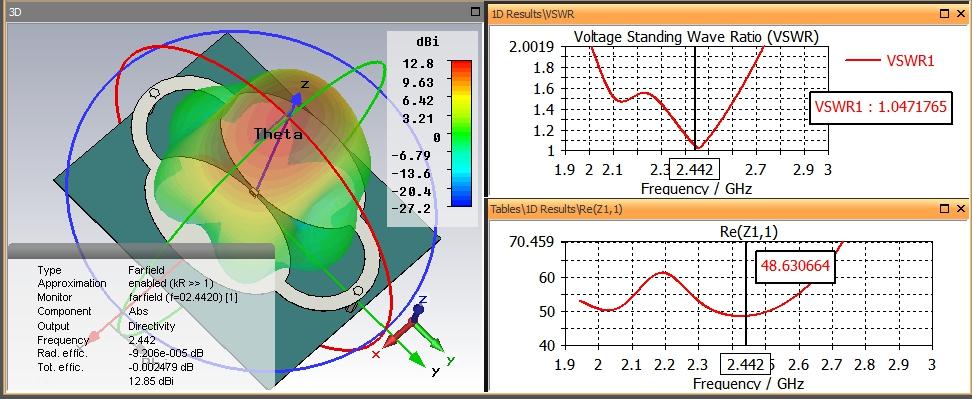

,,, and yet it looks better .. !!!


1 person likes this

Share this post


Link to post
Share on other sites

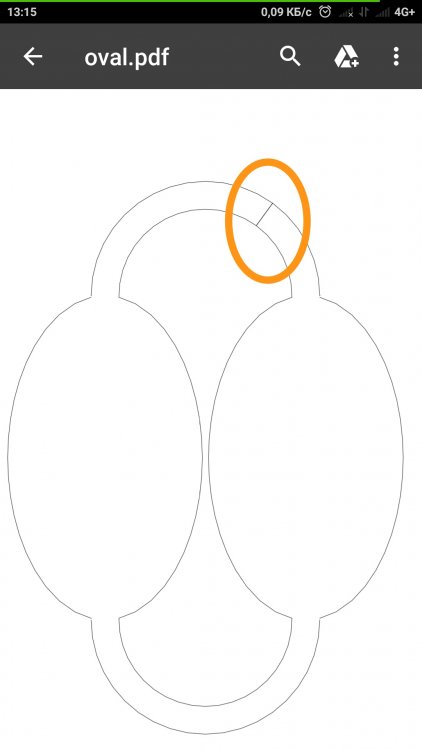

Hi! I'm a bit confused about the antenna. I've downloaded the template file *.dxf opened it and found out that the rounded stripe connecting the two ovals has a line across it. Does that mean that the rounded stripe has to be cut along that line. I haven't seen tat there's a cut on the photos and pictures with the simulation. What's that? Can you explain it to me?

Edited by maksimerin

Share this post


Link to post
Share on other sites

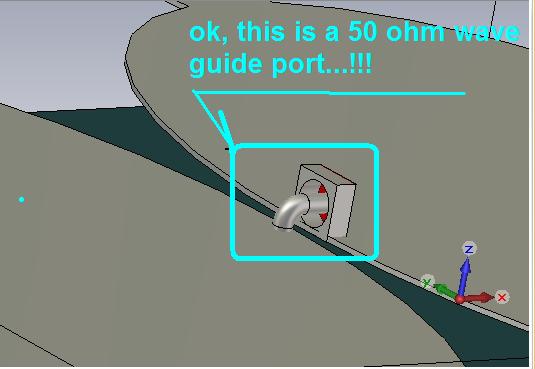

Ok. That's handy! How to make one?

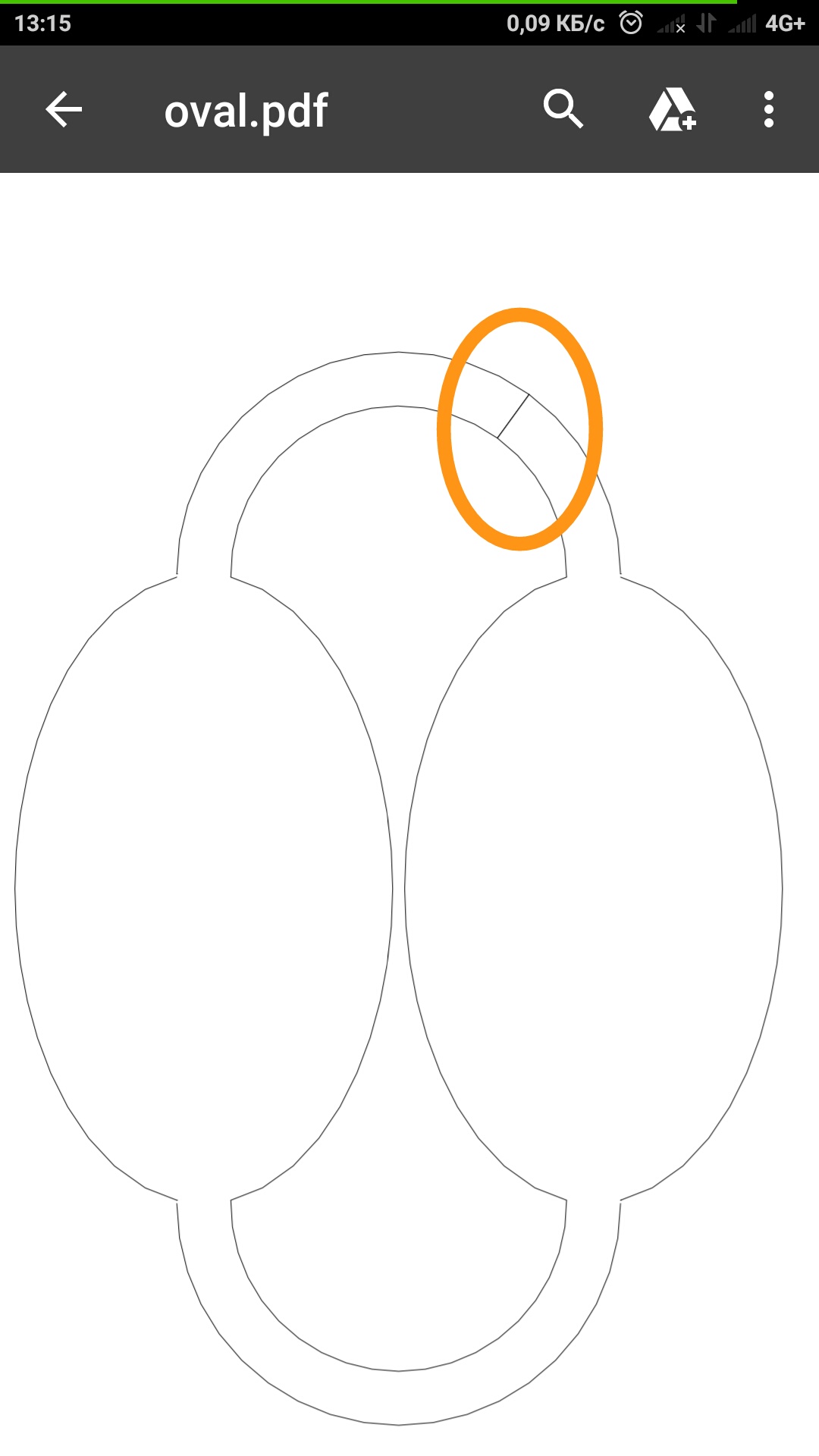

Actually i was meaning what is shown on the picture.


Share this post


Link to post
Share on other sites

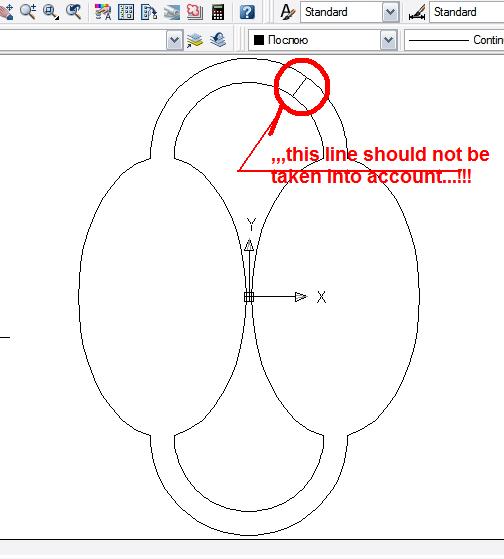

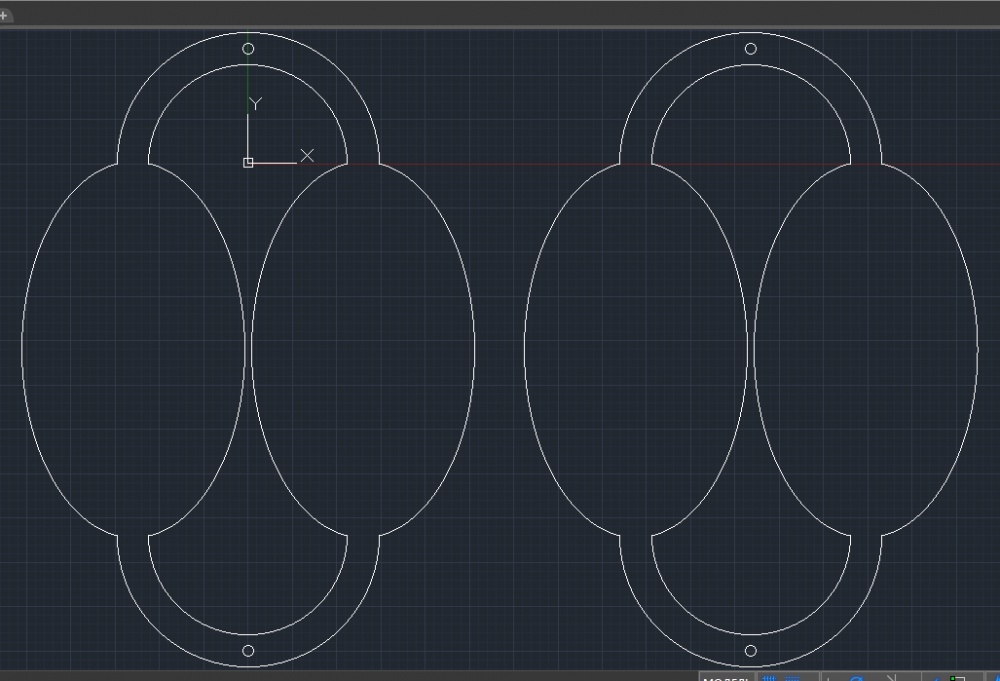

,,, with what program do you read the *dxf file?

,,, you can make the transmission lines separately from ellipses and then you can weld them.

Share this post


Link to post
Share on other sites
28 minutes ago, maksimerin said:

Autocad mobile and DWG fastview for Android. Both the same result.

,,,you do not have a desktop...??




1 person likes this

Share this post


Link to post
Share on other sites

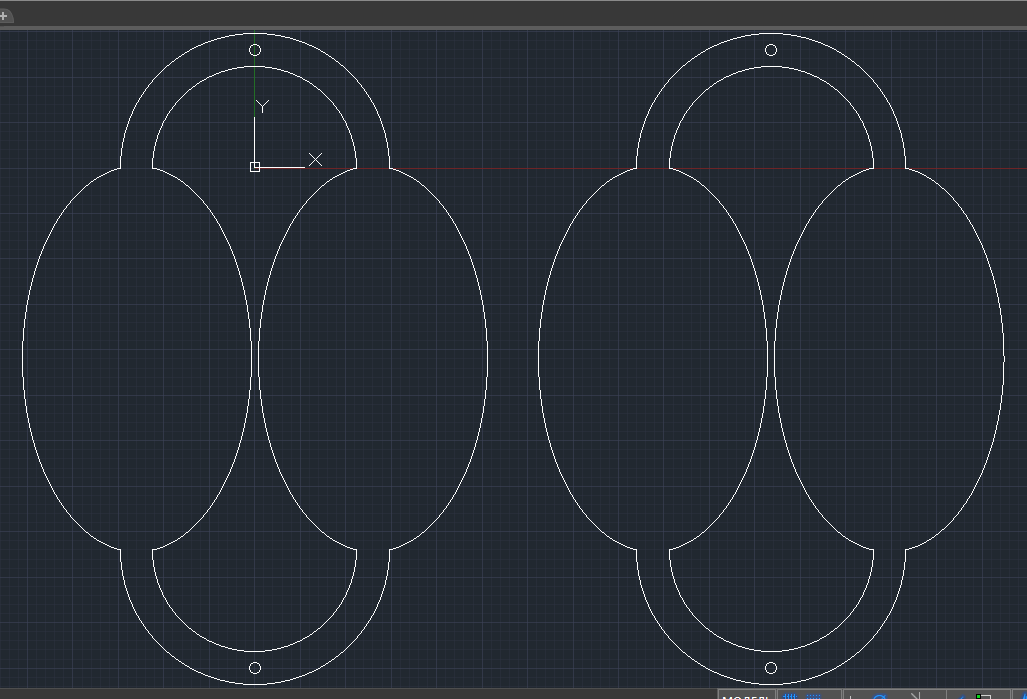

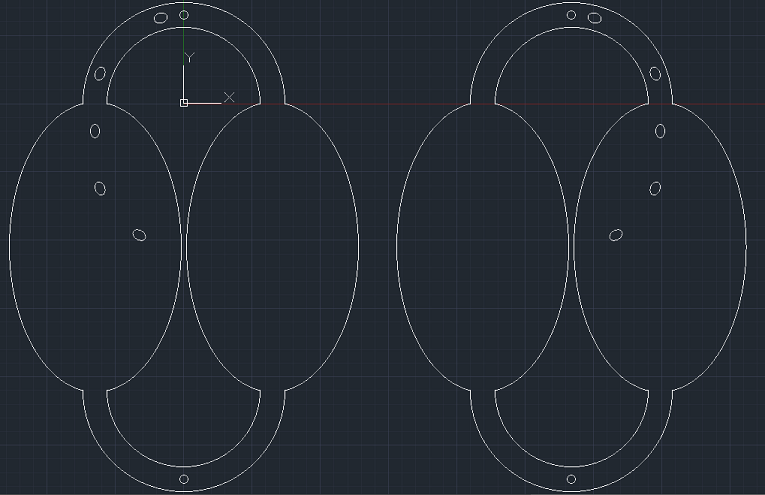

Ok. Here are the files for laser cutter in different formats. They have to load properly otherwise if you still experience issues with them while opening approach me here directly via messages. Best of luck!


oval_2.cdr

oval_2.dwg

oval_2.dxf

2 people like this

Share this post


Link to post
Share on other sites

ok, but the holes for the coaxial cable need to be drawn...


Share this post


Link to post
Share on other sites

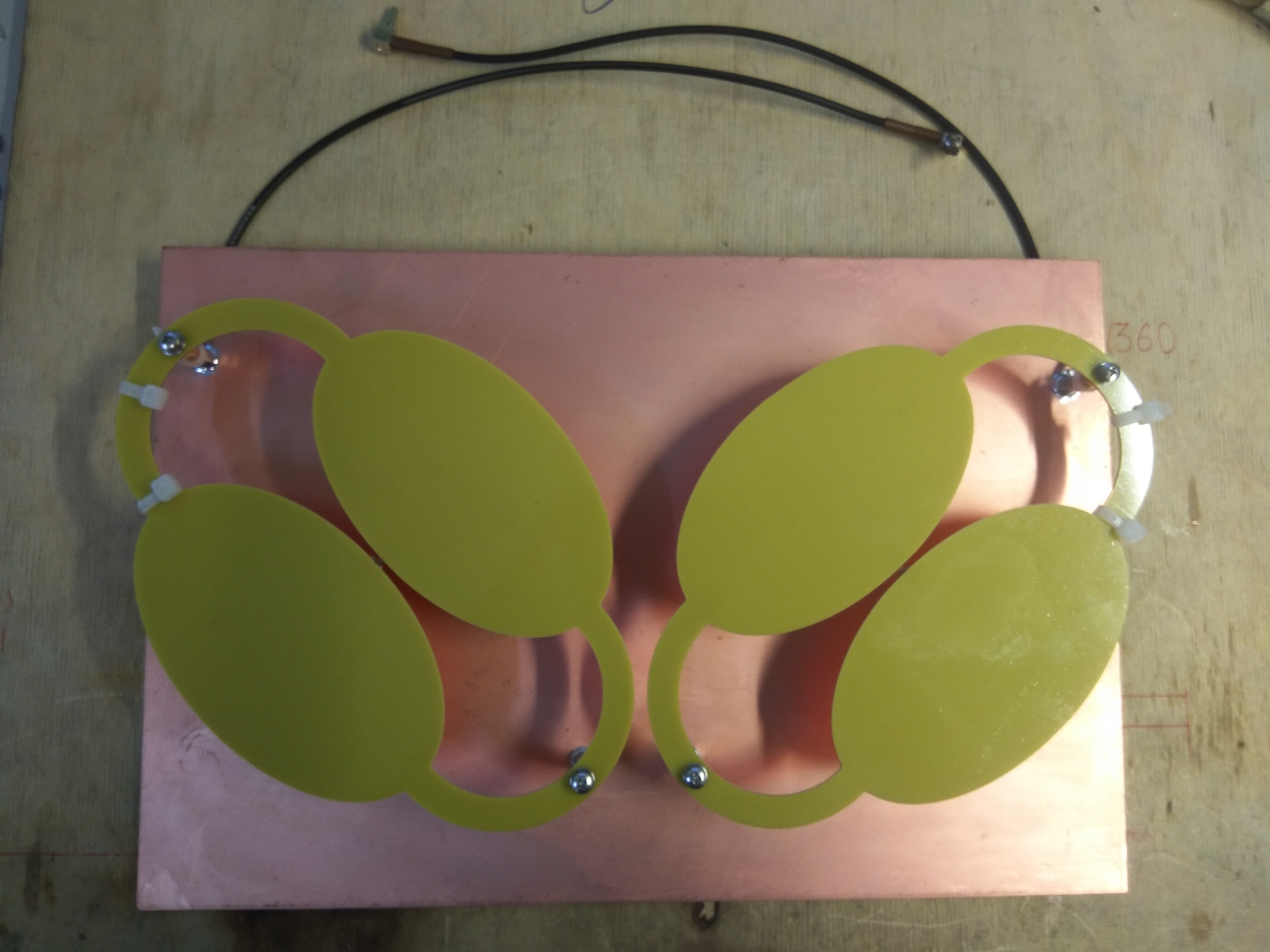

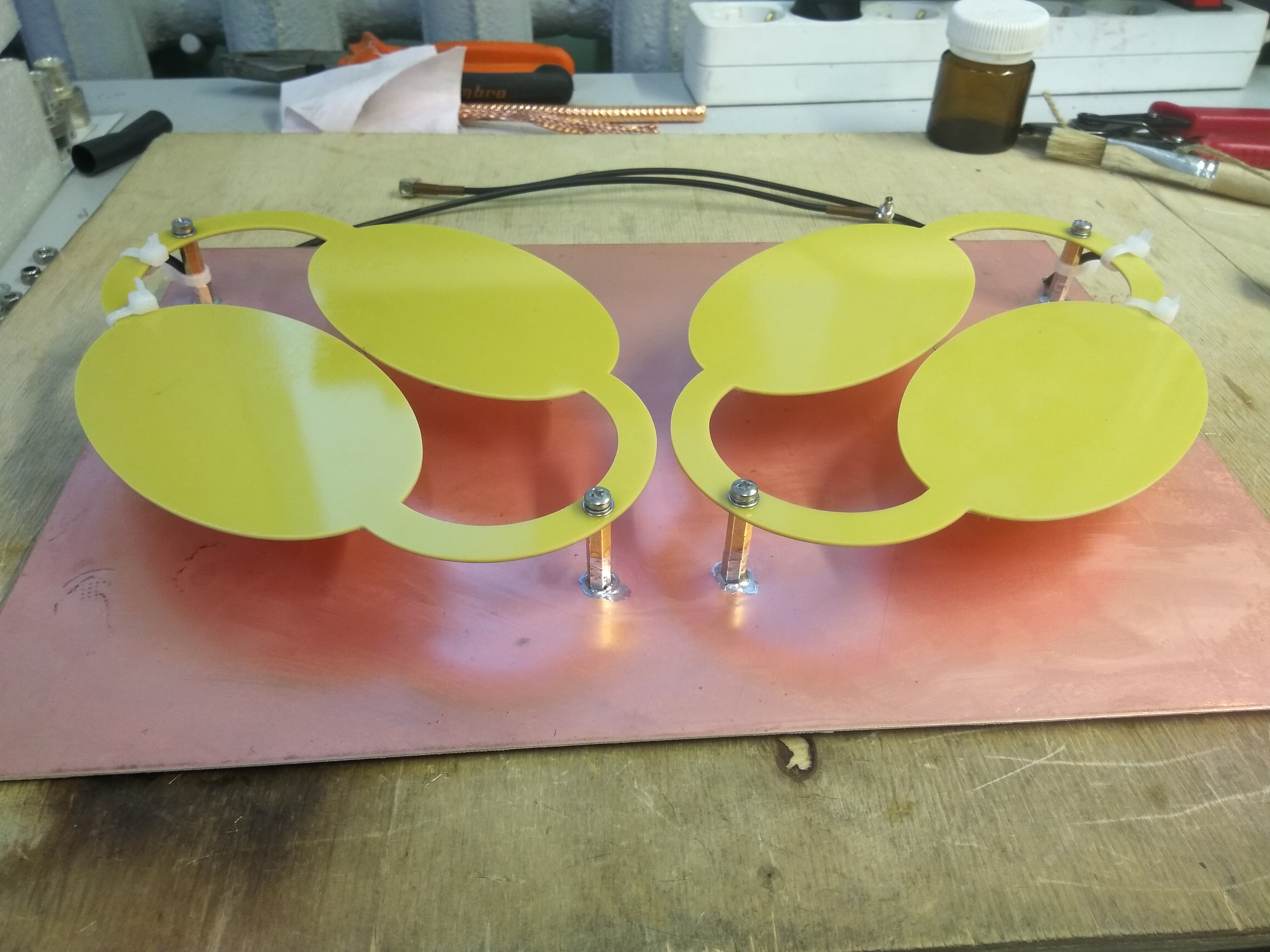

Here is my take on this antenna built of PCB. I screwed up with the size of the reflector,  i'll change it after some meddling with it.



3 people like this

Share this post


Link to post
Share on other sites

oooo .... it's like a work of art ... !!!

,,, but tell me please Maksim, the vibrator is made like the reflector in PCB ... ??

Share this post


Link to post
Share on other sites

Yes. I turned the vibrators upside down to have the distance between copper plates 23 mm as it is mentioned in the specs.

Share this post


Link to post
Share on other sites

«В любом случае, я должен сделать симуляцию с этой PCB ... !!!
,,,какой тип печатной платы сложен .. ???

"In any case, I have to make a simulation with this PCB ... !!!
,,, what type of circuit board it"s .. ???



Share this post


Link to post
Share on other sites

1,5mm однослойная, должно быть fr4. покупал в обычном магазине радиоэлектроники.



Share this post


Link to post
Share on other sites

,,,and how did you cut the PCB...???

Share this post


Link to post
Share on other sites

I used a milling machine with CNC control which is used for cutting the wood, laminate, etc. But the result was not predictable for the operator had to try it out first and after he got to know that it was possible to have those details cut he did it. Before that i tried laser cutting machine which is used for thin wooden laminate but it couldn't handle it.

1 person likes this

Share this post


Link to post
Share on other sites

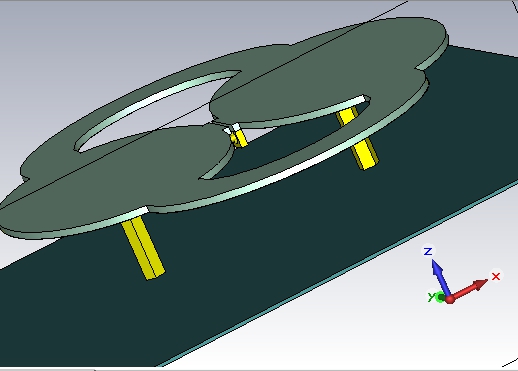

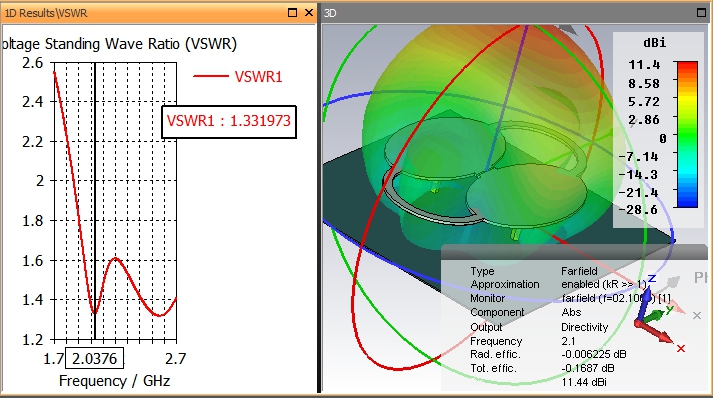

The vibrator made of FR4 # 1.5mm and moving the support points in its center...




2 people like this

Share this post


Link to post
