Admin

Sector Antenna 2,442GHz

49 posts in this topic

Practice Valet ....


1 person likes this

Share this post


Link to post
Share on other sites

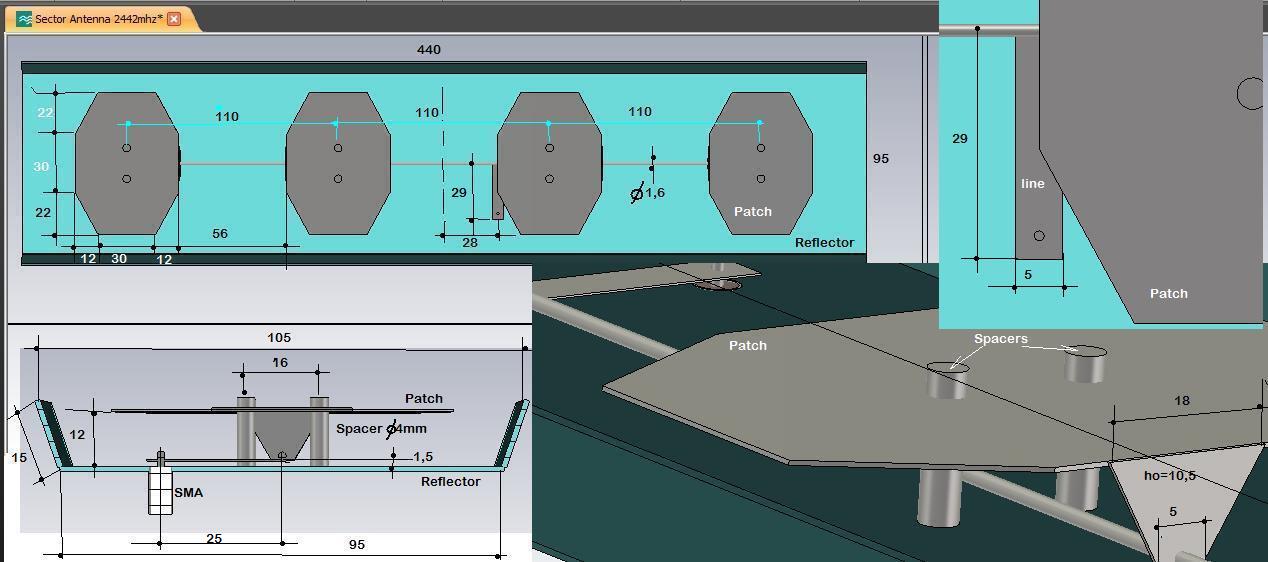

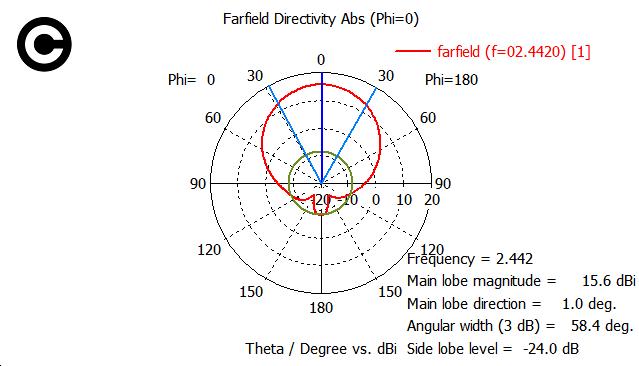

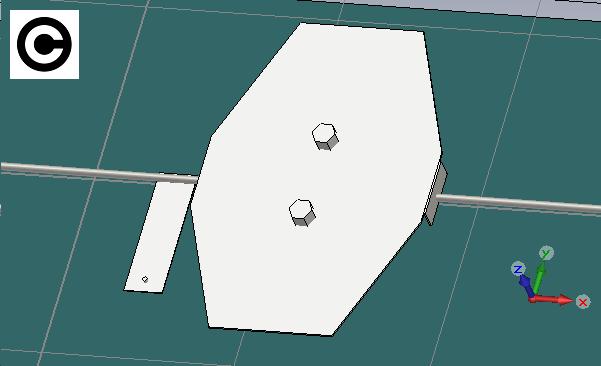

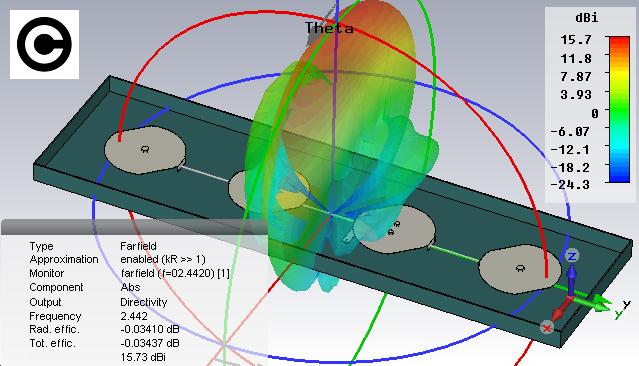

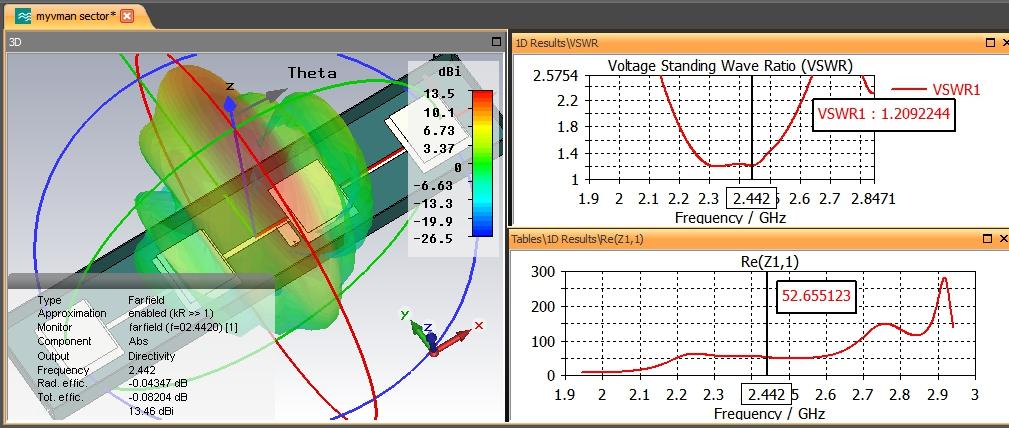

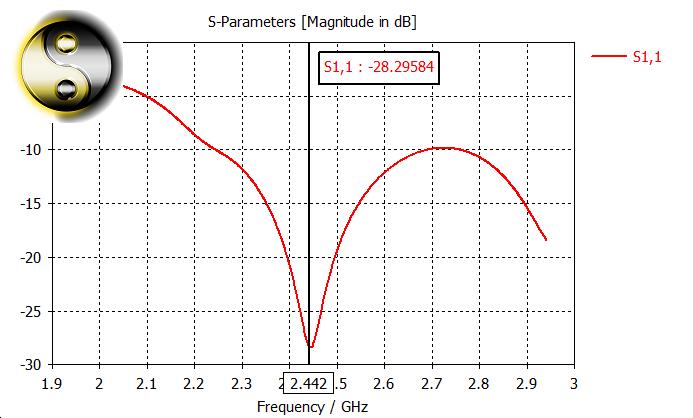

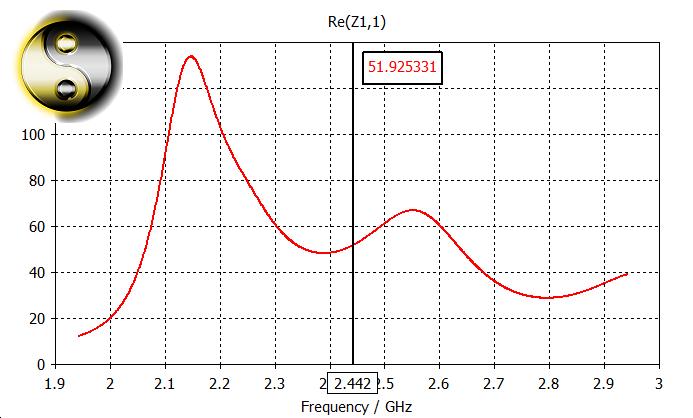

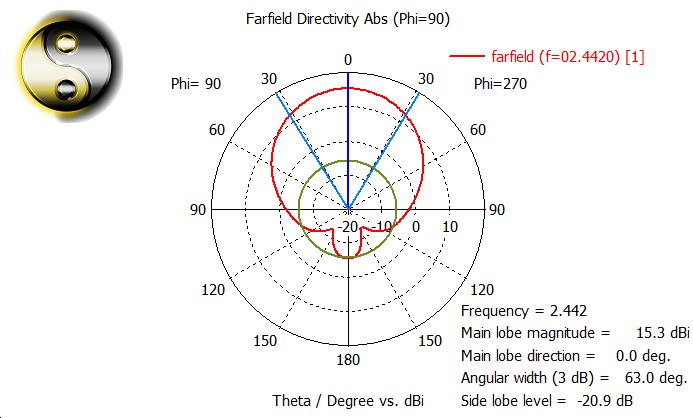

A sector type antenna with bester-patches

bester sector4_01.jpg

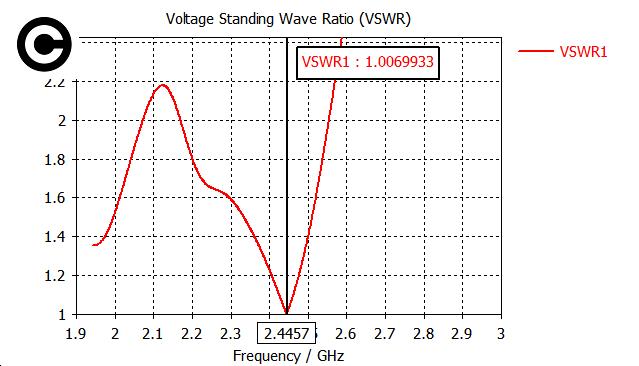

bester sector4_02.jpg

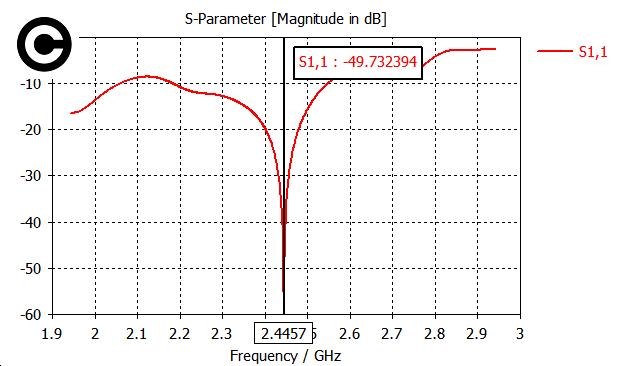

bester sector4_03.jpg

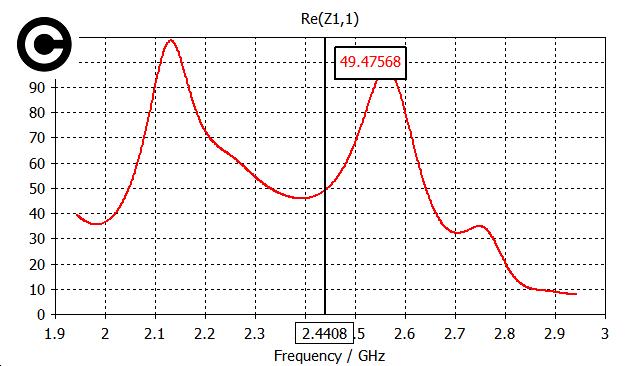

bester sector4_04.jpg

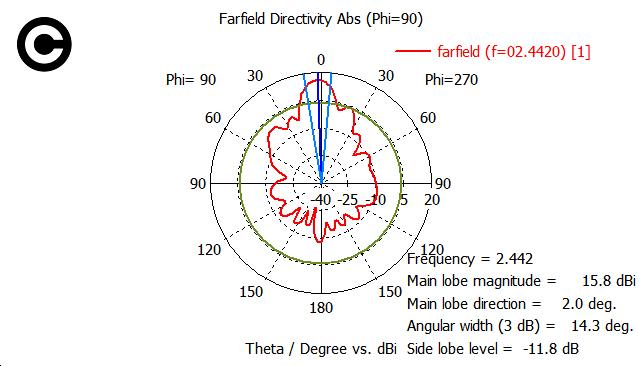

bester sector4_05.jpg

bester sector4_06.jpg

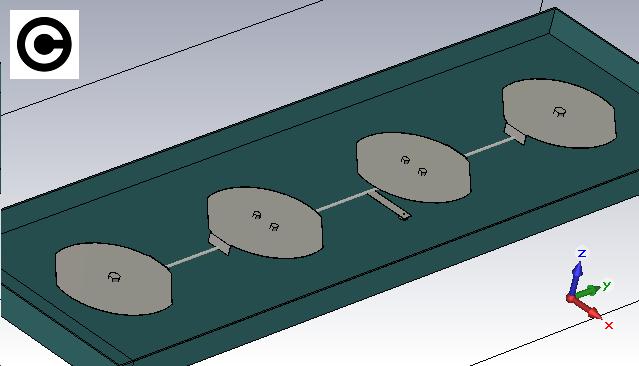

bester sector4_07.jpg

1 person likes this

Share this post


Link to post
Share on other sites

,,,simply the best...rectangular patches suspended on polystyrene foam




in this variant, the inclined wing reflector and isolating spacers


1 person likes this

Share this post


Link to post
Share on other sites
On 27/8/2017 at 0:39 AM, Admin said:

Antena tipe sektor dengan patch terbaik

bester sector4_01.jpg

bester sector4_02.jpg

bester sector4_03.jpg

bester sector4_04.jpg

bester sector4_05.jpg

bester sector4_06.jpg

bester sector4_07.jpg

can my brother tell me the detail construction, the shape is long, the width of the reflector is about 100mm, the gain is about 16-20dbi, the frequency is 2422Mhz.

Share this post


Link to post
Share on other sites

16,,,,19dBi it can only be obtained with at least 8 patches....!!!!!

Share this post


Link to post
Share on other sites

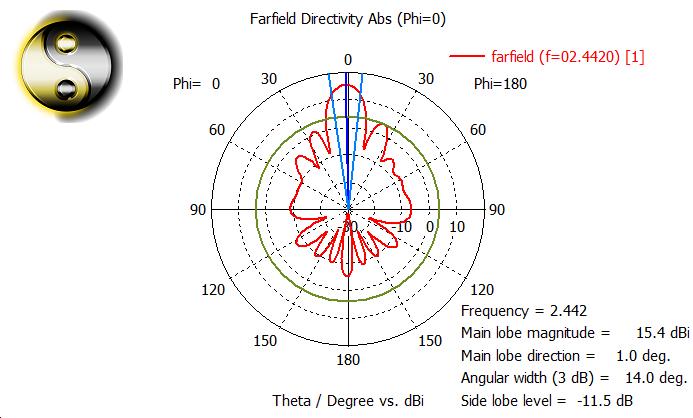

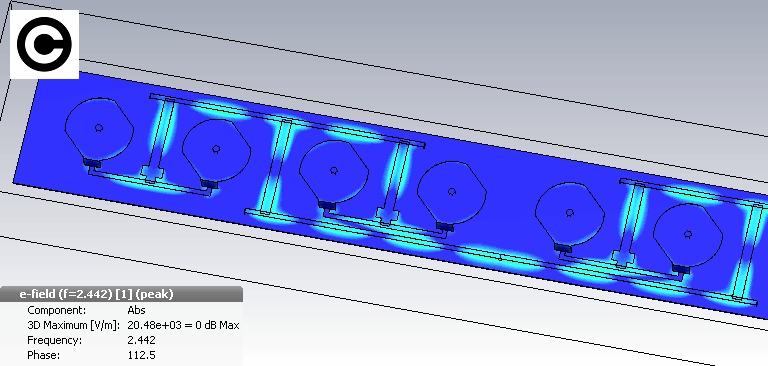

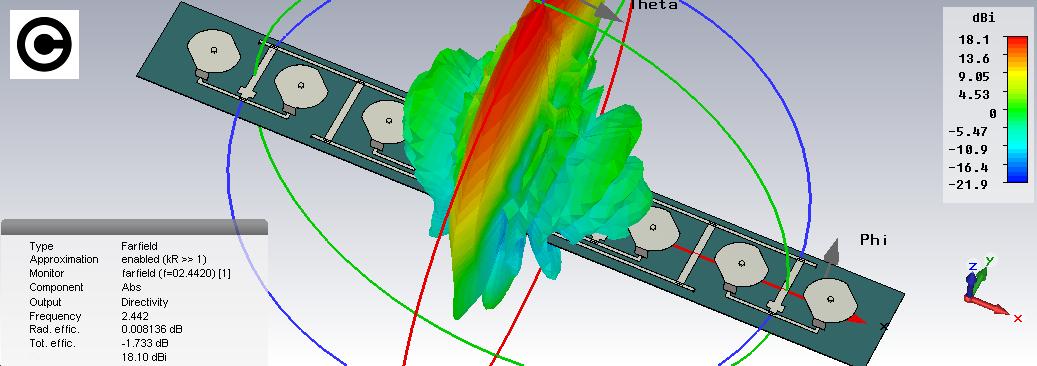

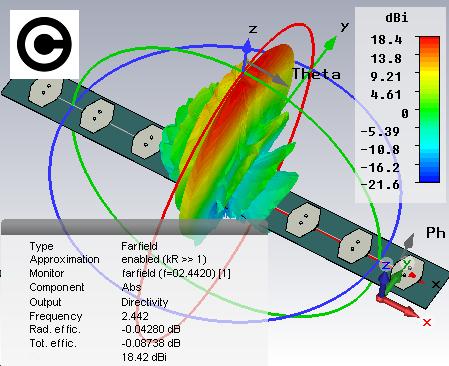

And there's also an 8-patches antenna sector with circular polarization...

Regele Mihai_01.gif

Regele Mihai_01.jpg

1 person likes this

Share this post


Link to post
Share on other sites

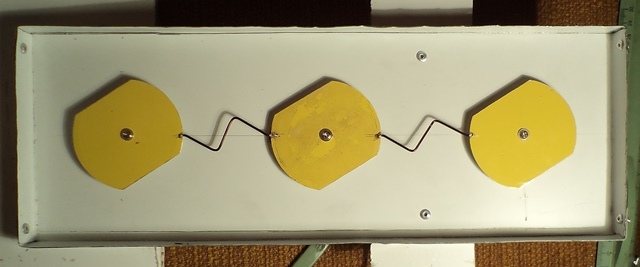

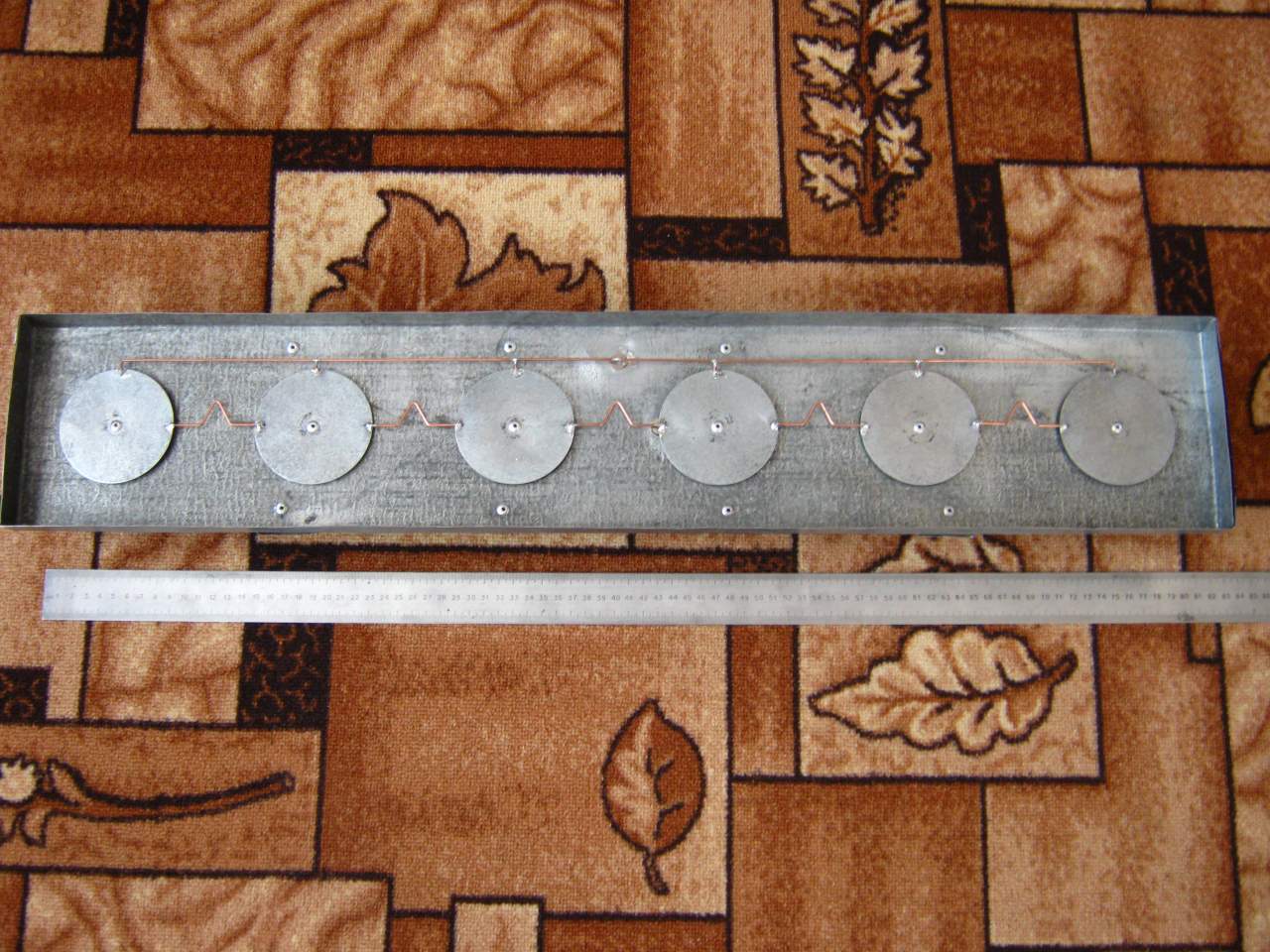

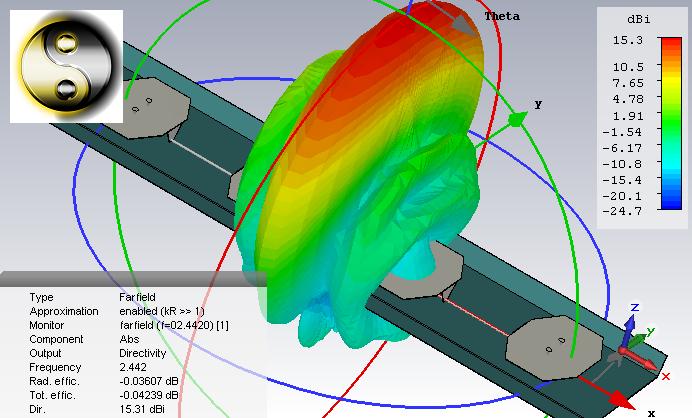

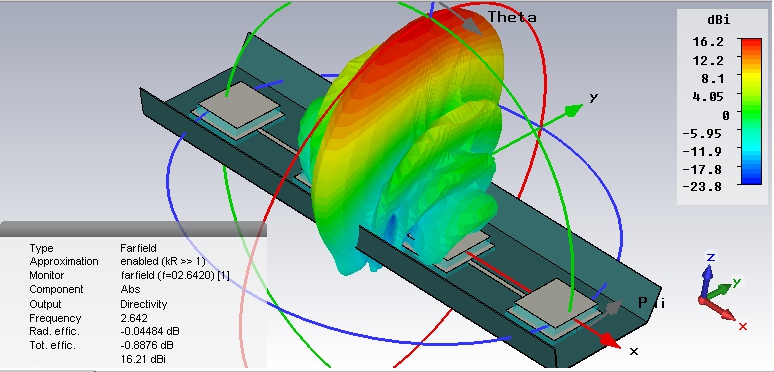

My old variants of the antenna sector...



1 person likes this

Share this post


Link to post
Share on other sites

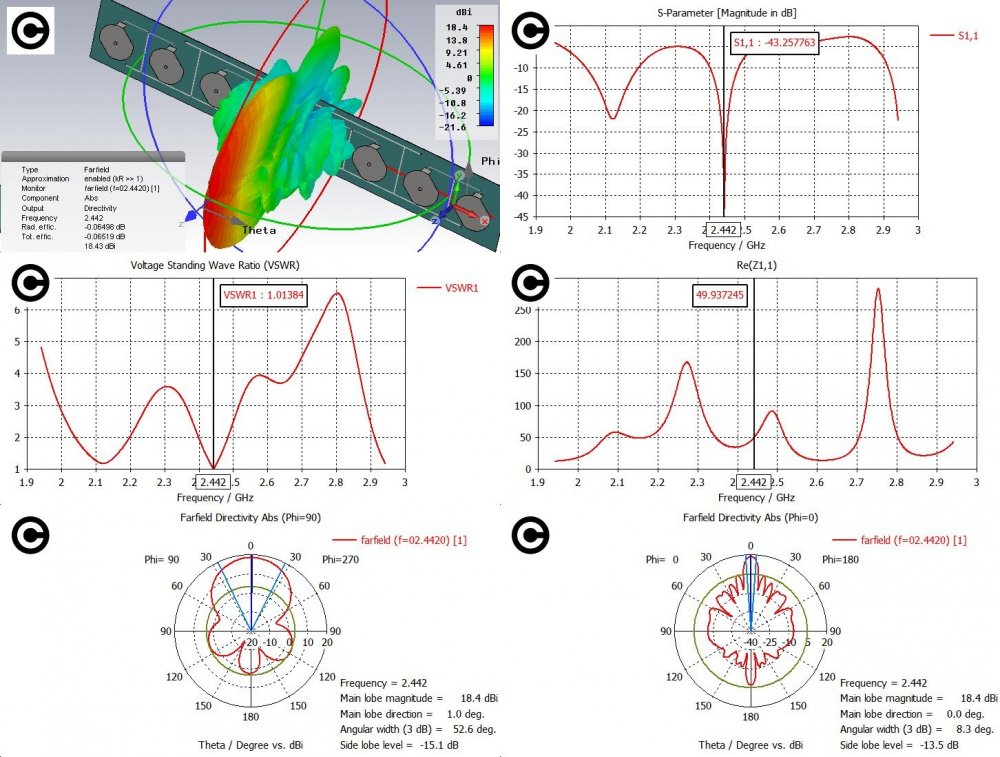

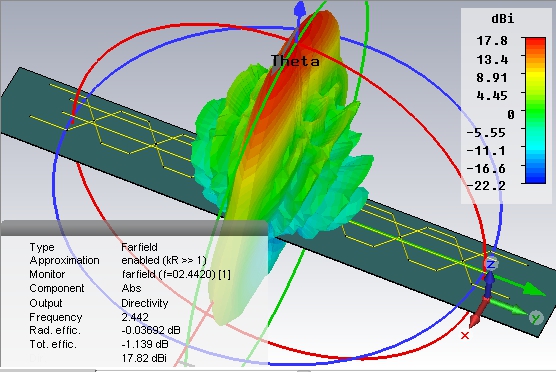

,,,a simplified constructive solution with Cu-wire transmission lines...



2 people like this

Share this post


Link to post
Share on other sites

,,,something like that, it's easier to build....!!!!


1 person likes this

Share this post


Link to post
Share on other sites

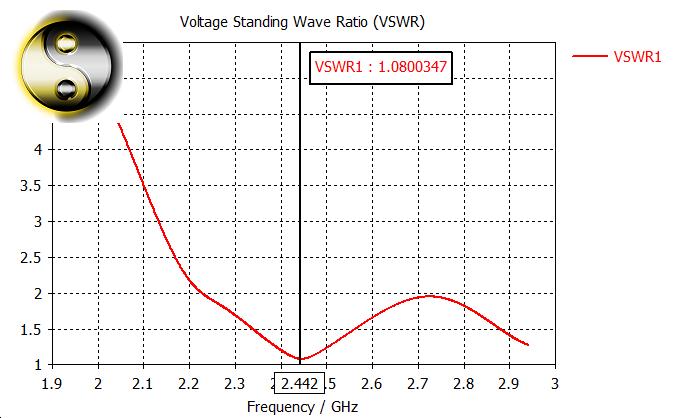

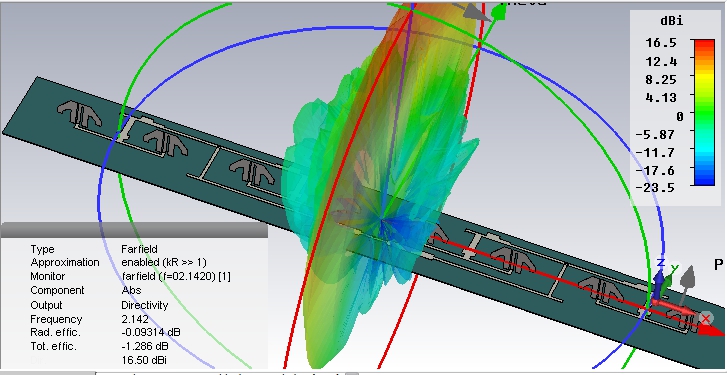

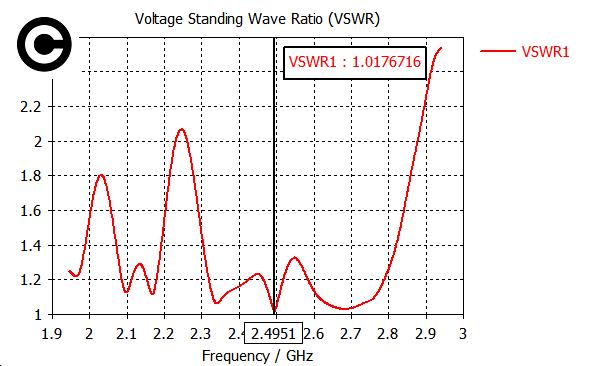

A new patch format...for broadband








1 person likes this

Share this post


Link to post
Share on other sites
On 21/12/2017 at 7:06 PM, Admin said:

My old variants of the antenna sector...



if odd, how is that radiation result? would not it be mismatched

Share this post


Link to post
Share on other sites

"""both antennas work...!!!!

Share this post


Link to post
Share on other sites

as always, I have seen, the number of elements if not one, two, four, eight. only this time I see there are three, maybe there are also five or seven.

Share this post


Link to post
Share on other sites

"""depends on the position  of the feed point  and transmission lines ......!!!!

Share this post


Link to post
Share on other sites

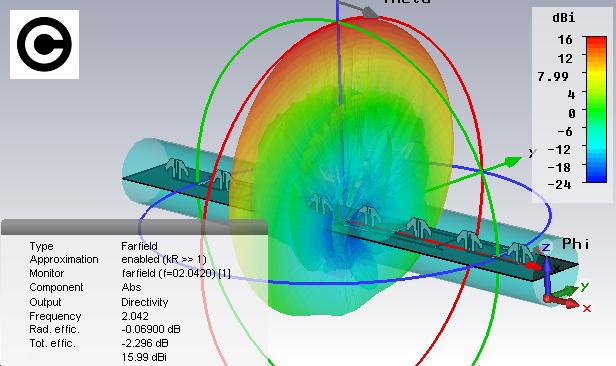

a sector antenna variant with curved dipoles...


,,in ABS tube(110mm diameter)...


1 person likes this

Share this post


Link to post
Share on other sites

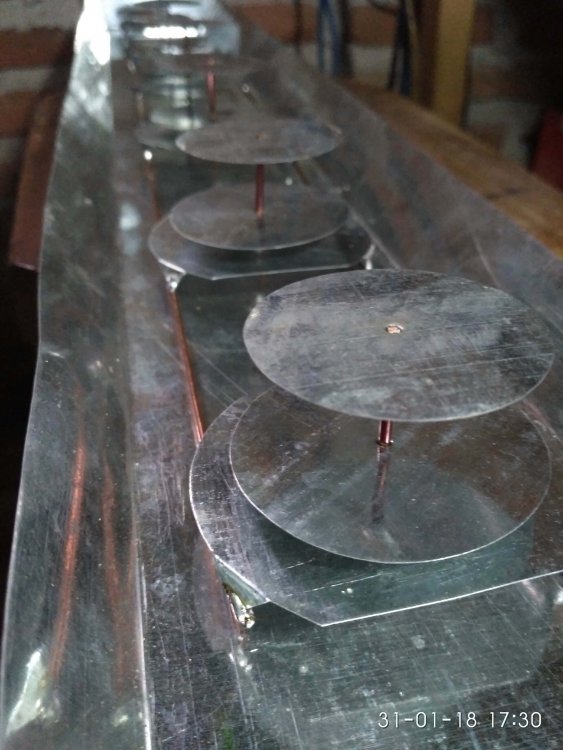

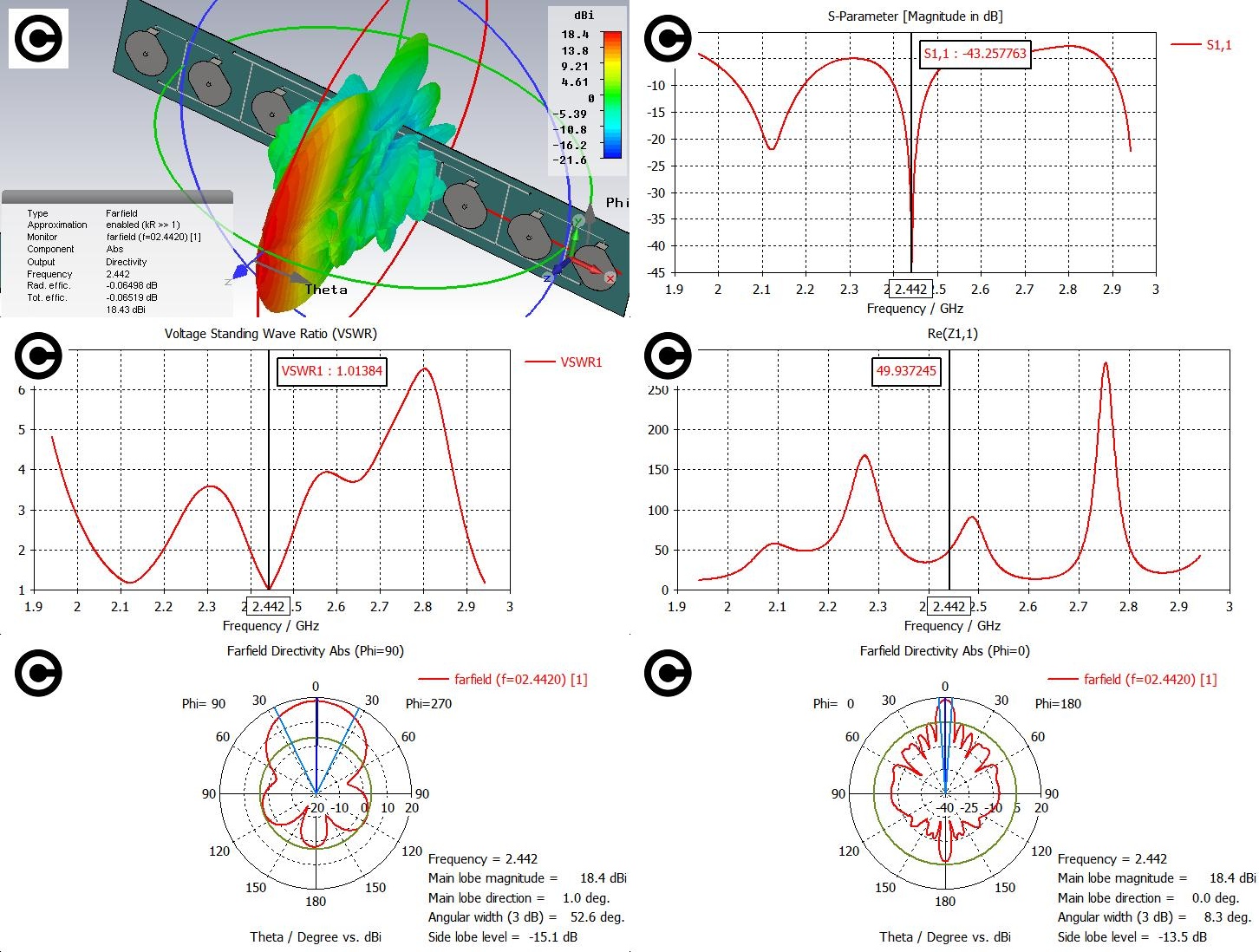

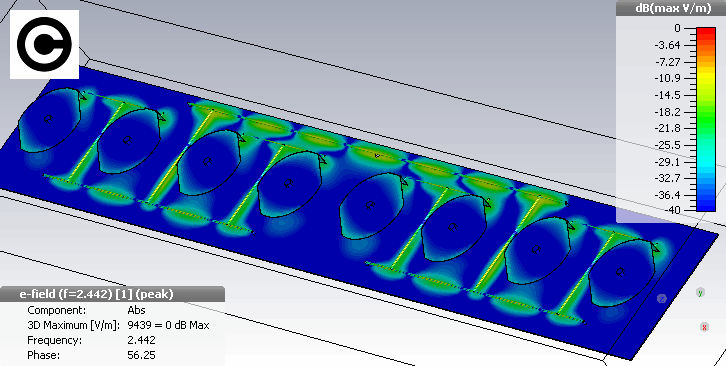

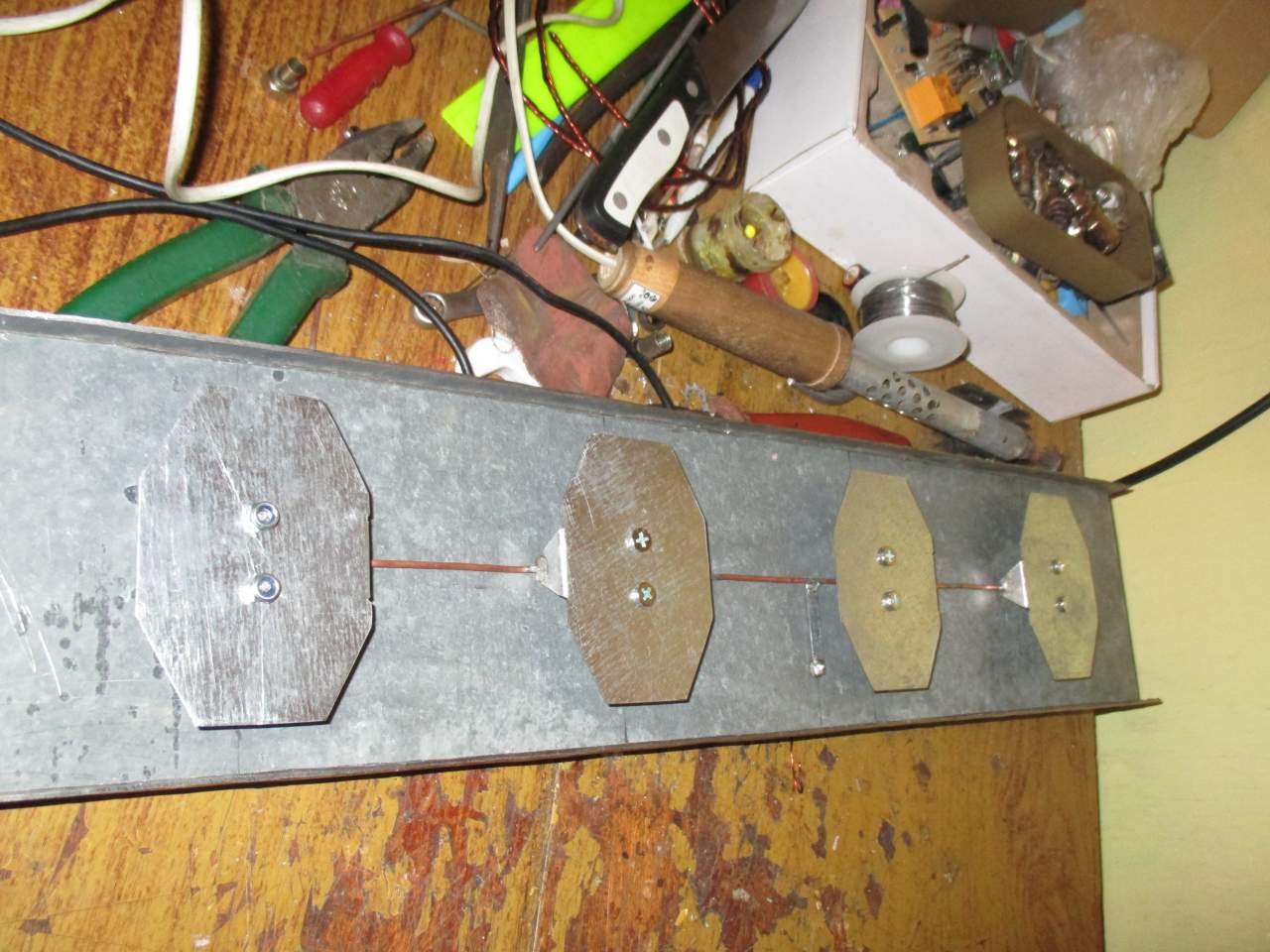

,,,and here is a model sector antenna, made by the user Pragata...


1 person likes this

Share this post


Link to post
Share on other sites
On 12/21/2017 at 7:06 PM, Admin said:

My old variants of the antenna sector...



please send me file .cdr ekstensi

Share this post


Link to post
Share on other sites

I do not think I have them anymore....!!!

it's a long time ago...!!!

Share this post


Link to post
Share on other sites
1 hour ago, Admin said:

I do not think I have them anymore....!!!

it's a long time ago...!!!

can send other models

Share this post


Link to post
Share on other sites
On 9/1/2018 at 9:50 PM, Admin said:

A new patch format...for broadband








Can this patch to be a Mimo patch?


Share this post


Link to post
Share on other sites
