Omni 15dbi outdoor

[clanon 284]

XLS Excel dimensions for wifi

colineaire.xls

[clanon 284]

https://web.archive.org/web/20070827000210/http://www.xaviervl.com/Antenne/Colinear/index.html

[eco32 45]

Thats stubm balun, it may be directed downward or upward, I have no idea what the difference in operation is. Only klow that is to phase shift. (My version in previous page was tunable)

Edited August 27, 2024 by eco32

[clanon 284]

4 hours ago, eco32 said:

Thats stubm balun, it may be directed downward or upward, I have no idea what the difference in operation is. Only klow that is to phase shift. (My version in previous page was tunable)

Open side pointing up (the direction of the Energy you DON'T want coming through the Shield of Coaxial) imho The confussion comes from the rubber duckie pointing DOWN (open end) cause it is ACTING as a Quarter wave and ground plane to obtain a HALF WAVE dipole...

Edited August 27, 2024 by clanon

[eco32 45]

I did mistake, it is stub balun not a stubm balun

[clanon 284]

On 8/28/2024 at 4:10 AM, eco32 said:

I did mistake, it is stub balun

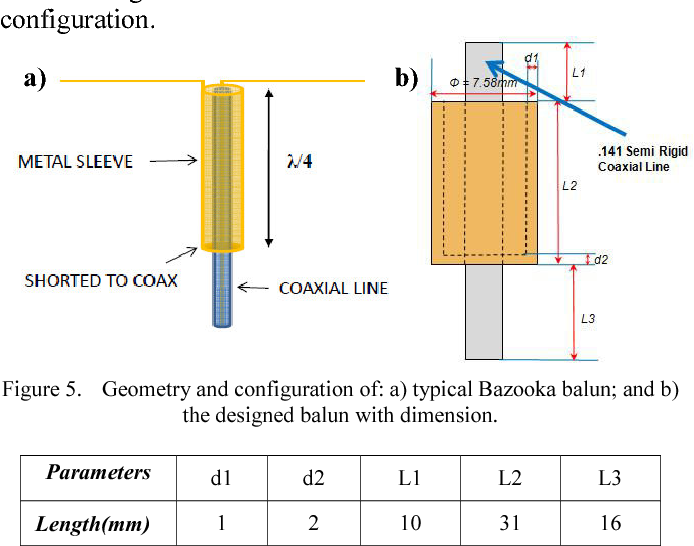

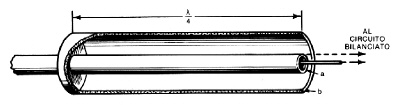

It's known as a BAZOOKA balun

[Admin 2713]

,,,something like this...

[Jayakumaran S 4]

On 6/25/2024 at 11:34 AM, Admin said:

,,,to make the simulation easier, you can leave air space...!!!

On 6/25/2024 at 11:34 AM, Admin said:

,,,to make the simulation easier, you can leave air space...!!!

Dear Sir,

After a long gap, I revisited this website and designed an dual band 2.4GHz and 5GHz omnidirectional antenna based on approximate online dimensions. I attempted to set up a wave port, but encountered meshing issues.

I have attached the design file. Could you kindly help simulate the antenna?

Thanks in advance.

Omni_2.4GHz_5GHz.cst
