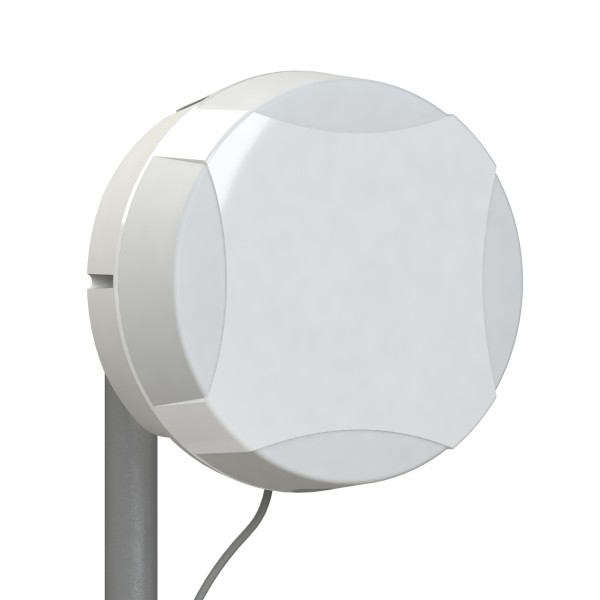

Mona Unibox PRO

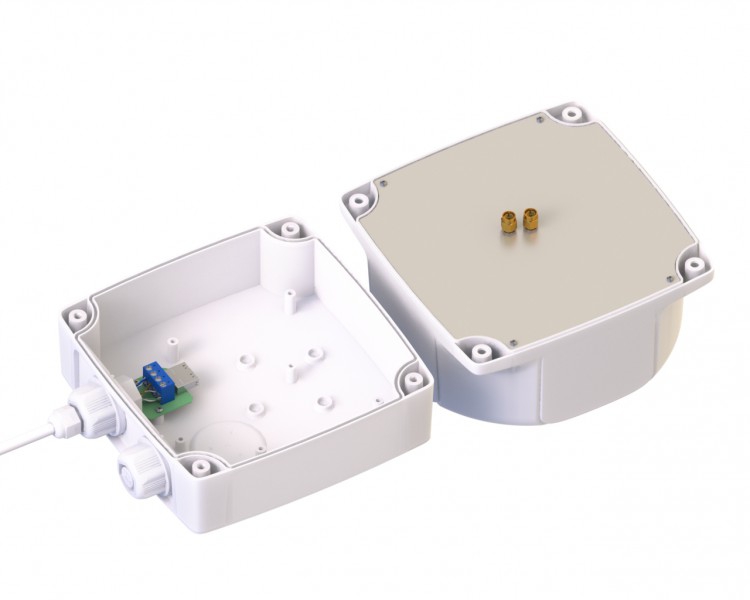

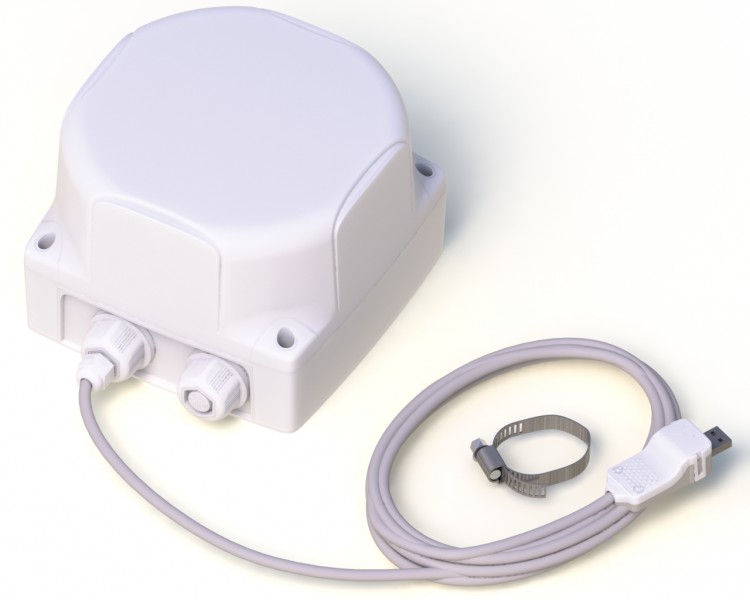

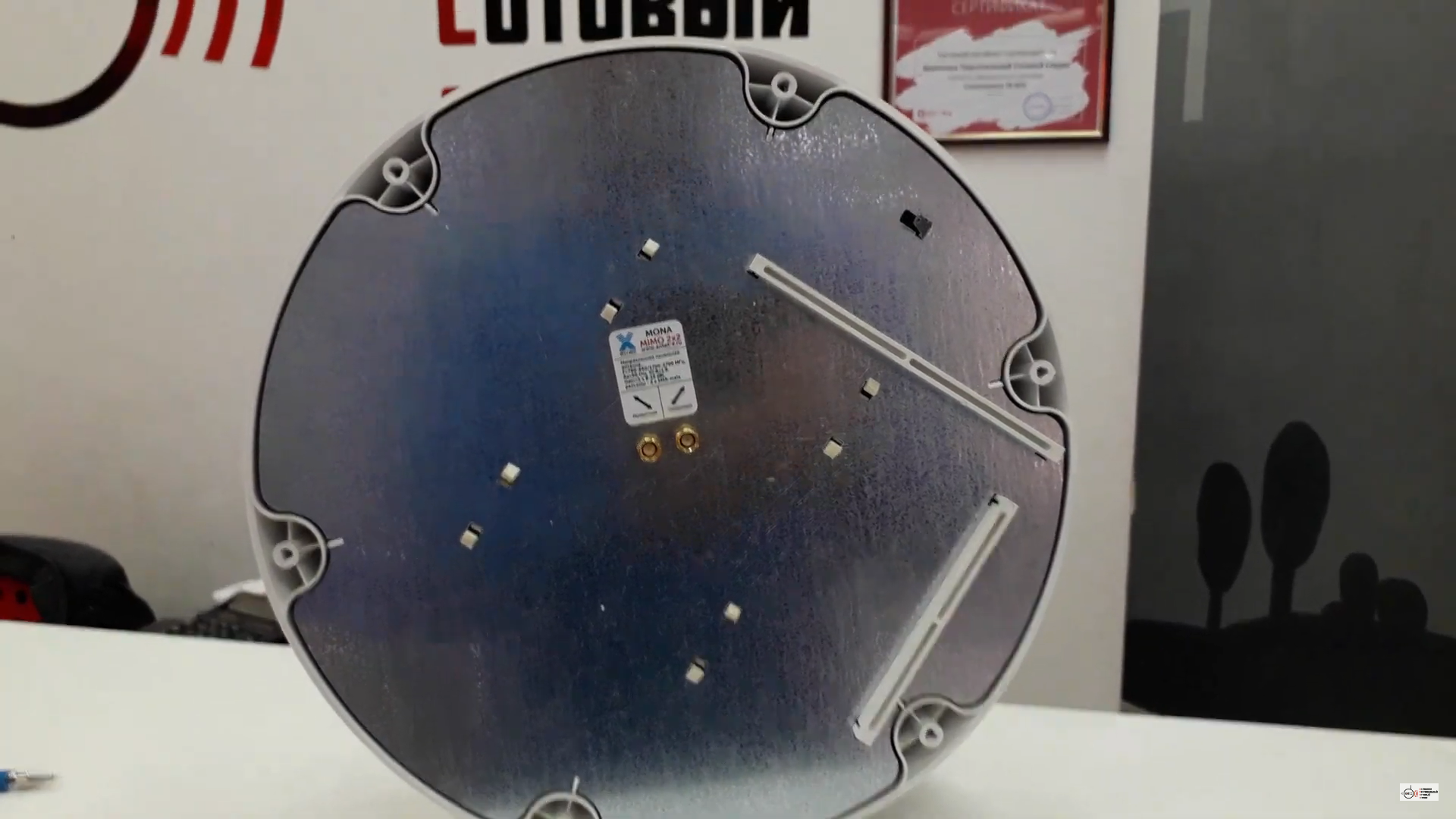

Panel antenna MONA Unibox PRO with sealed box 3G/4G USB modem is the ready solution for signal amplification LTE800/GSM900/GSM1800/UMTS900/UMTS2100/WIFI2400/LTE2600.



   Electrical characteristics

Operating frequency range, MHz790÷960/1700÷2700

Gain, dBi 8÷9/10÷15

Width of DN in the horizontal plane, deg 27÷68

Days width, in vertical plane, deg 26÷68

The ratio of forward/back, dB13÷20

The sidelobe level, dB<-13

Input impedance, Ohm50

SWR in the frequency range, not more1,8

Permissible power watts10

Polarization vertical+horizontal or X-pol

    Mechanical characteristics

Weight with mount, g 2300

Overall dimensions, m 0,3x0,3x0,165

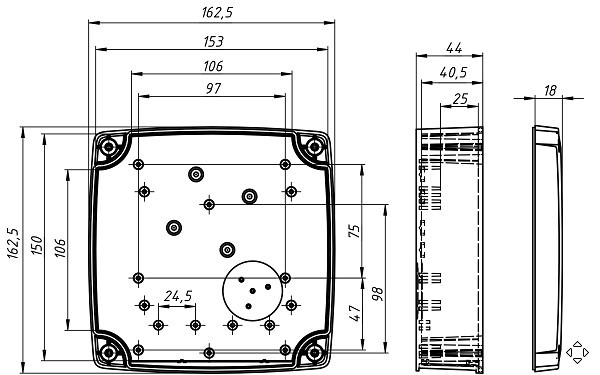

Internal dimensions sealed box, mm not less than 210x160x65Connectors

2 x SMA-male, USB, SIM

Mthe material of the antennasteel, galvanized steel

Material of protective box ABS+polycarbonate

Working temperatures IP67

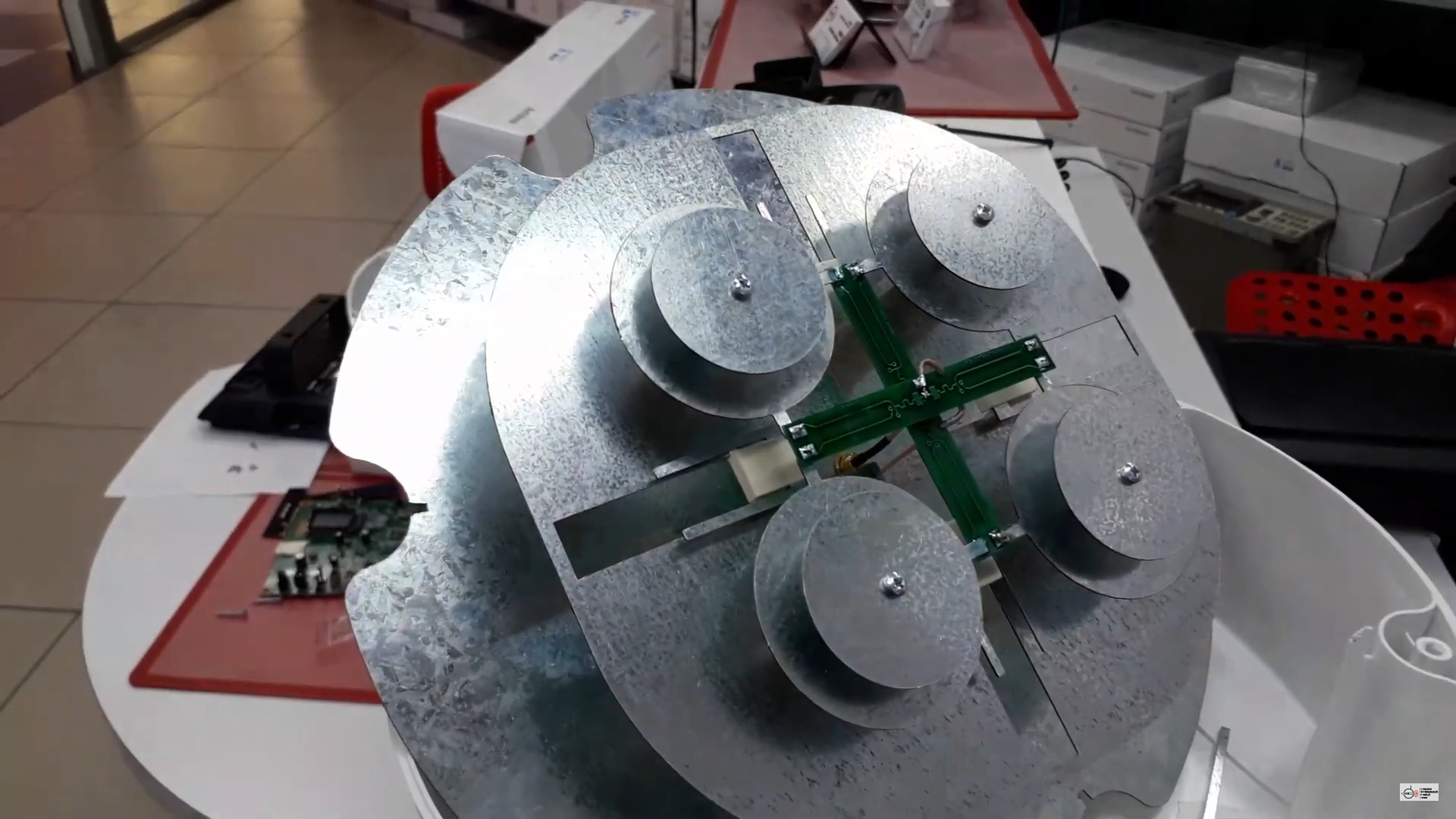

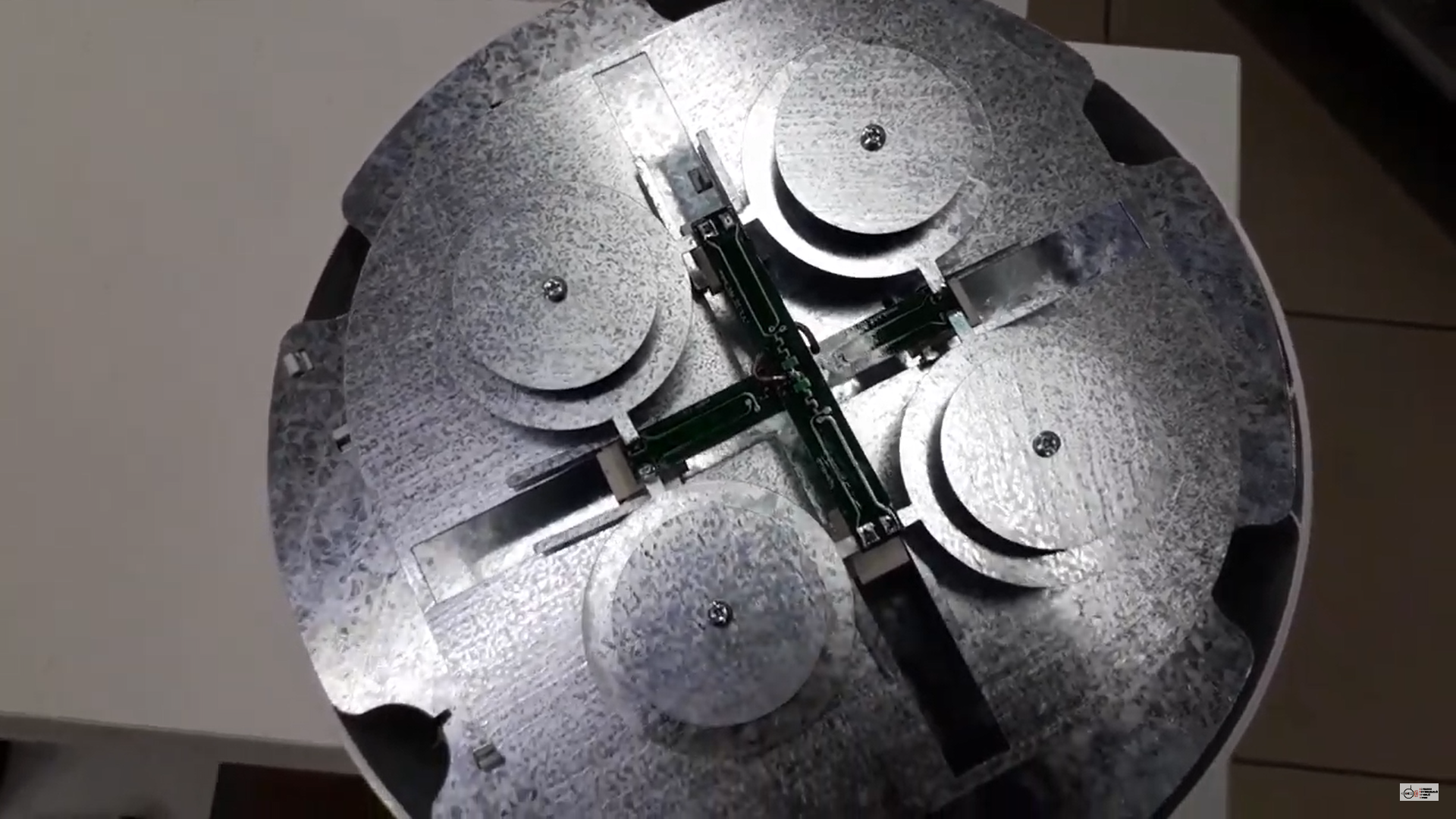

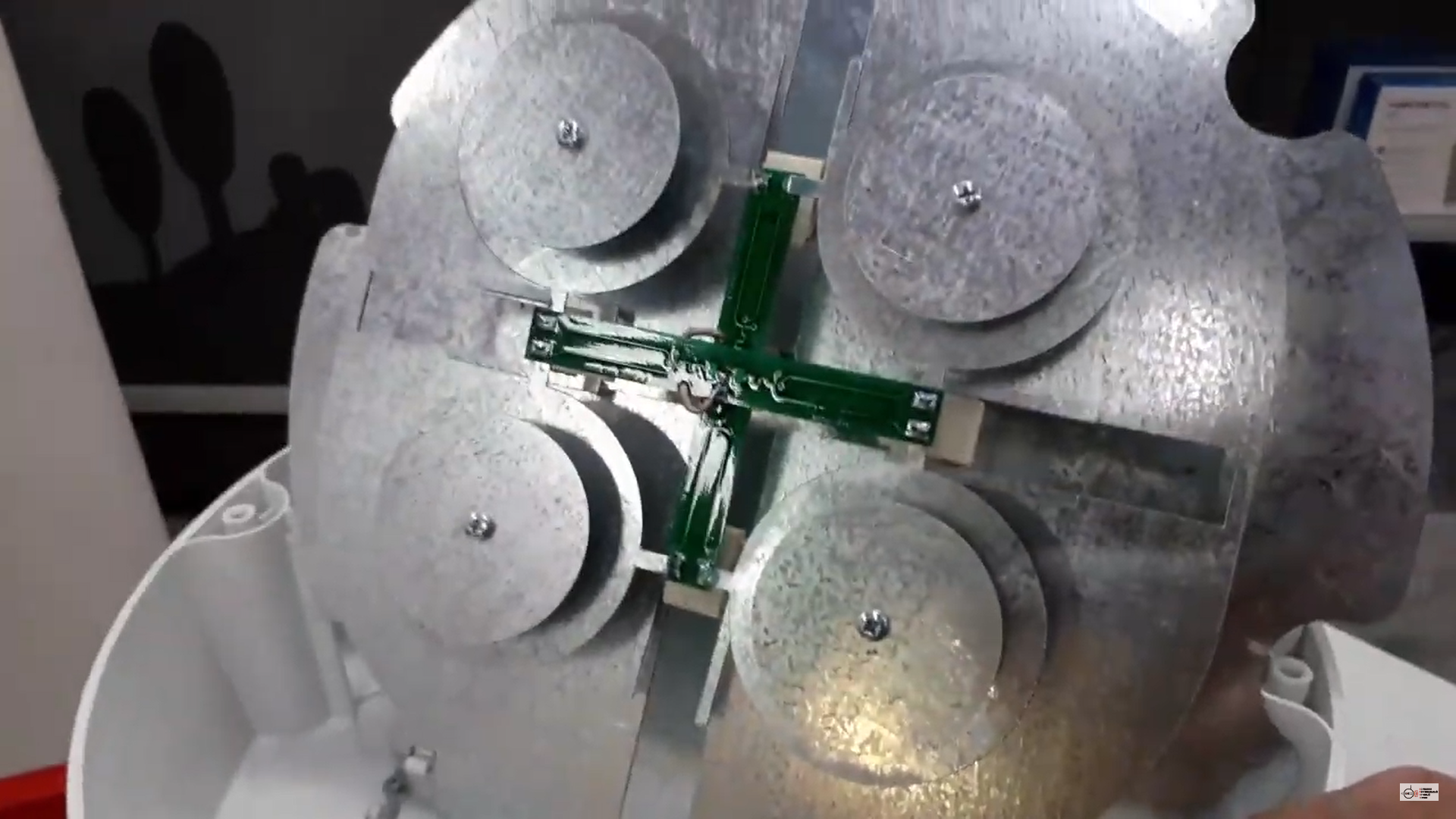

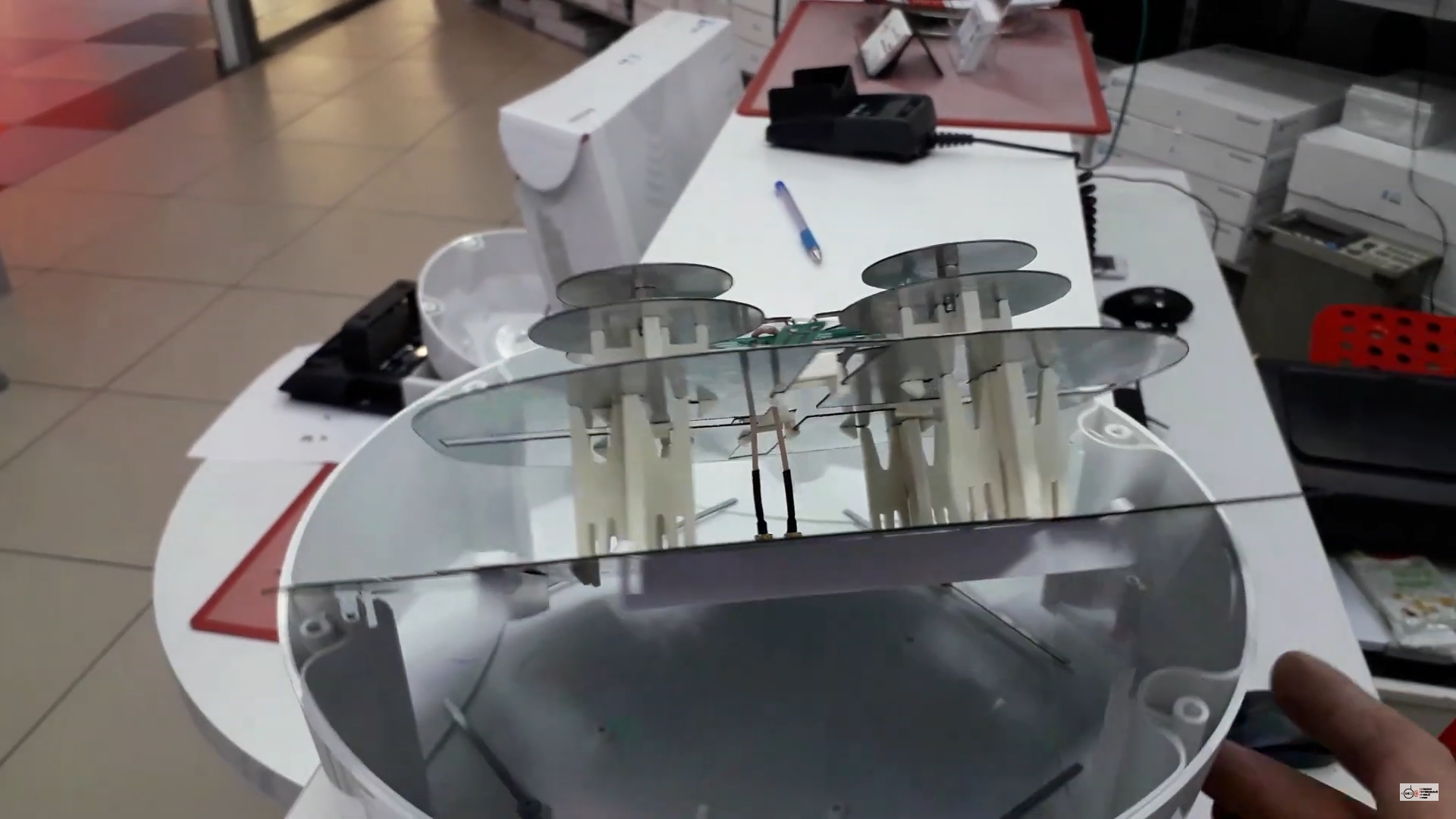

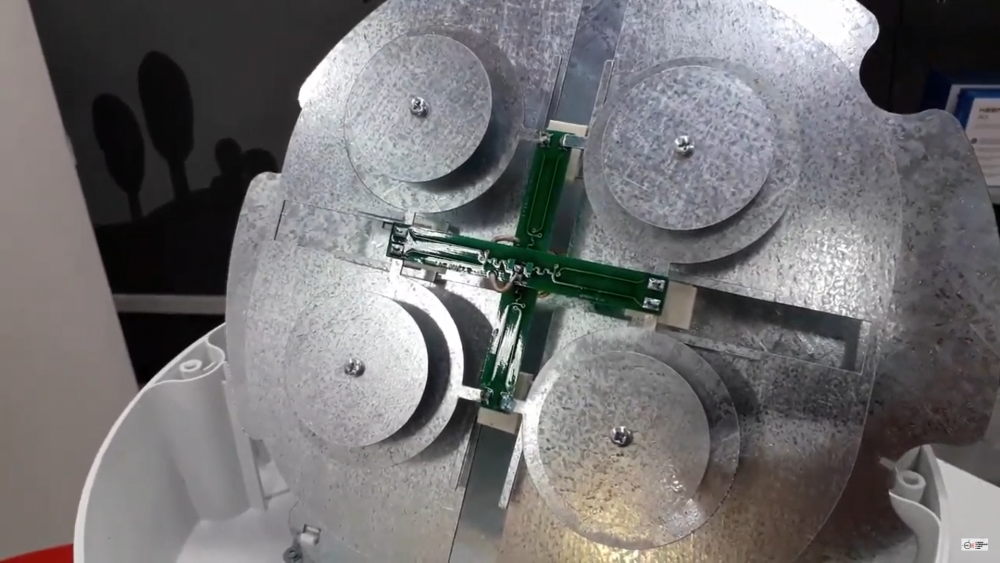

Снимок экрана (17).png

Снимок экрана (18).png

Снимок экрана (19).png

Снимок экрана (20).png

Снимок экрана (21).png

Снимок экрана (22).png

Снимок экрана (11).png

Снимок экрана (12).png

Снимок экрана (13).png

Снимок экрана (14).png

Снимок экрана (15).png

Снимок экрана (16).png

Mona_Unibox_Pro.pdf

2 people like this

Share this post


Link to post
Share on other sites

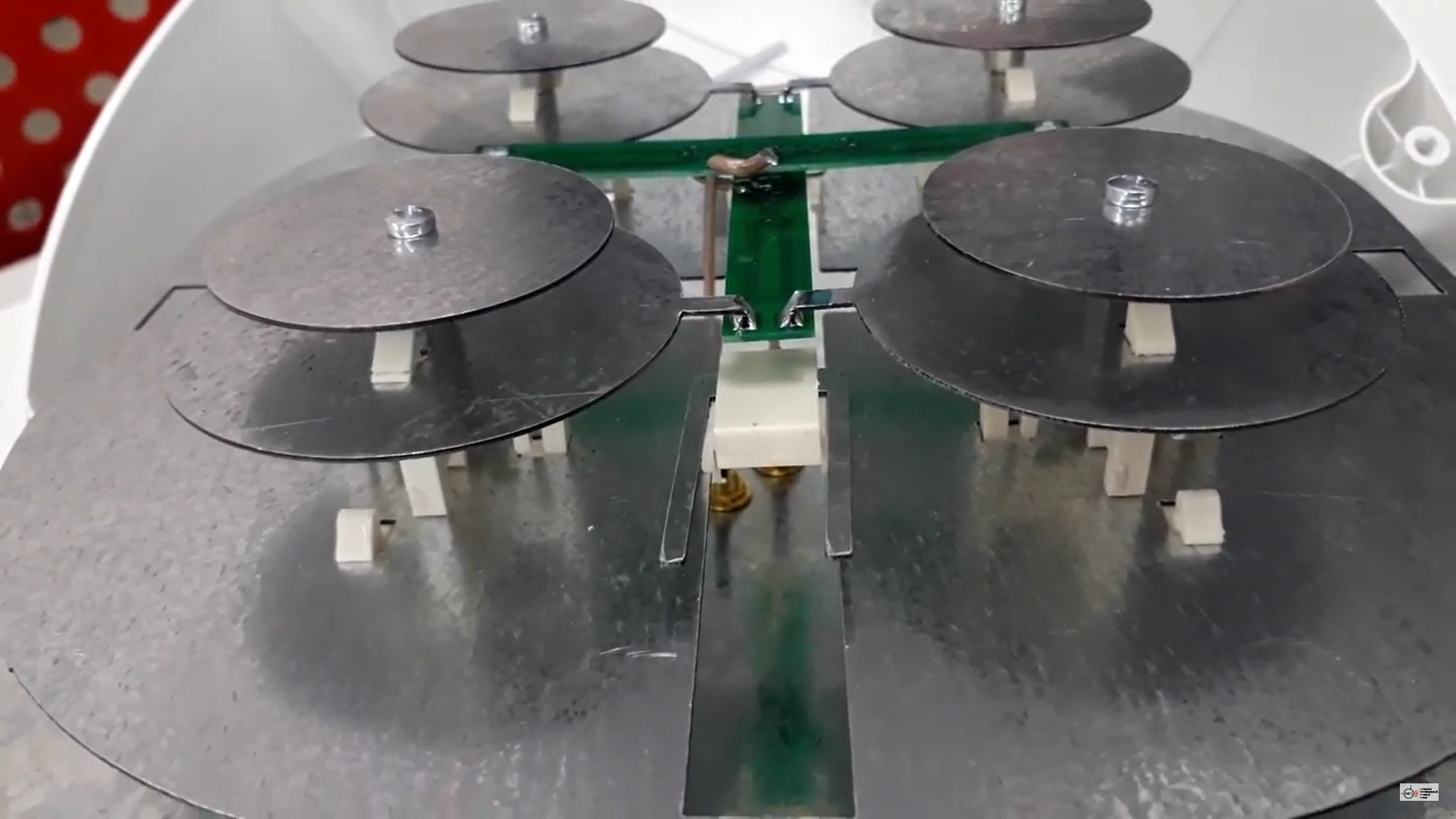

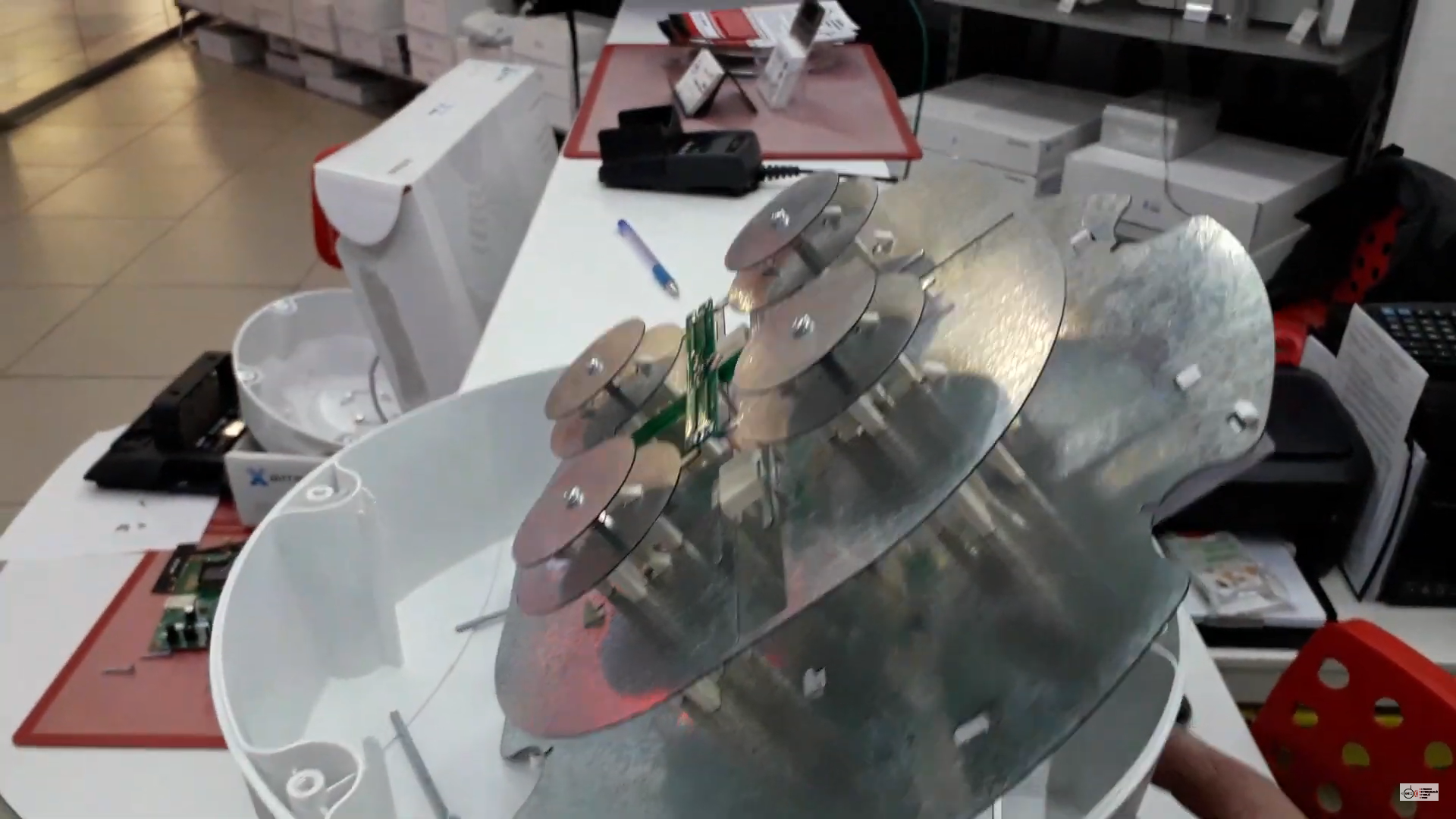

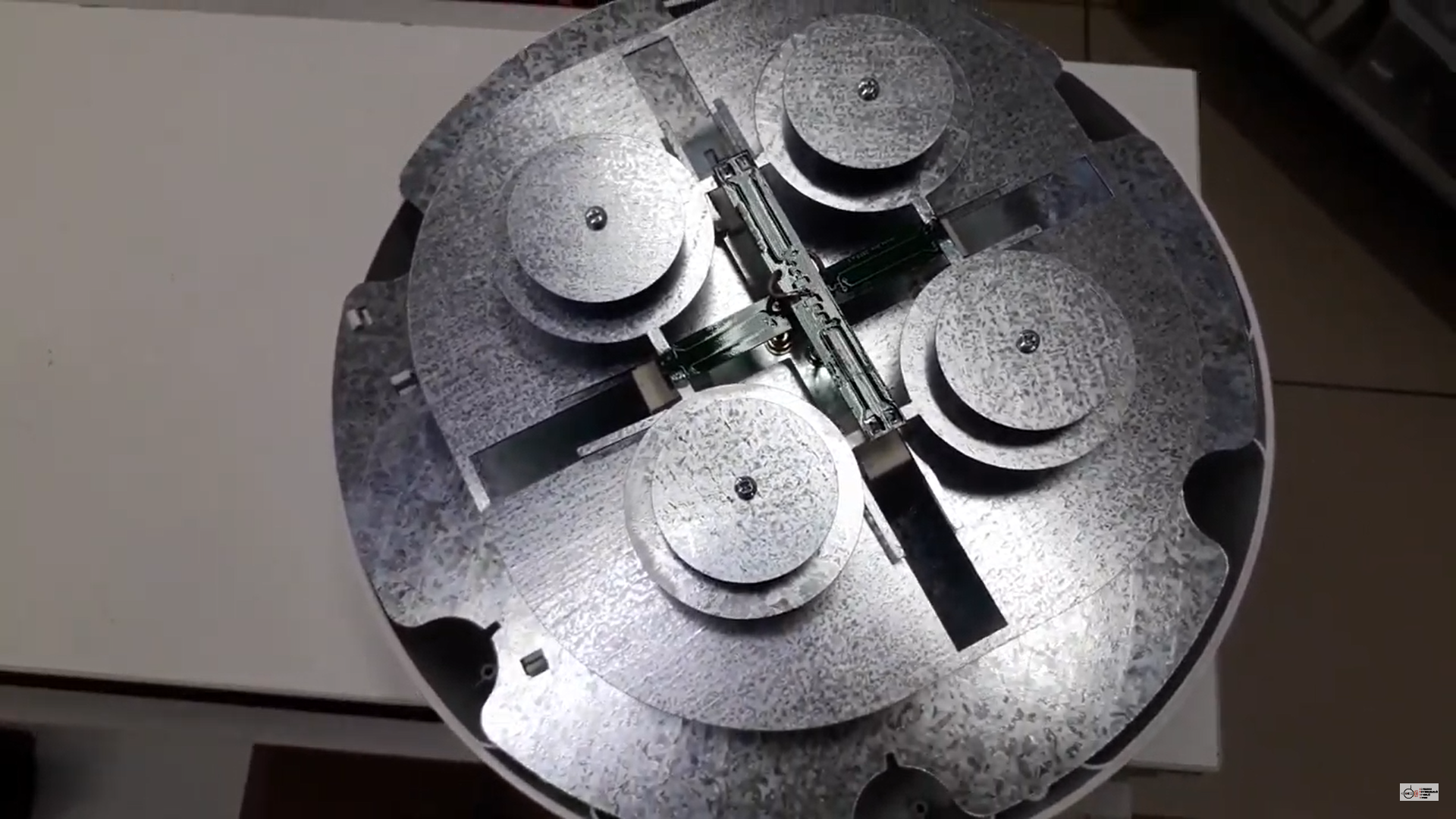

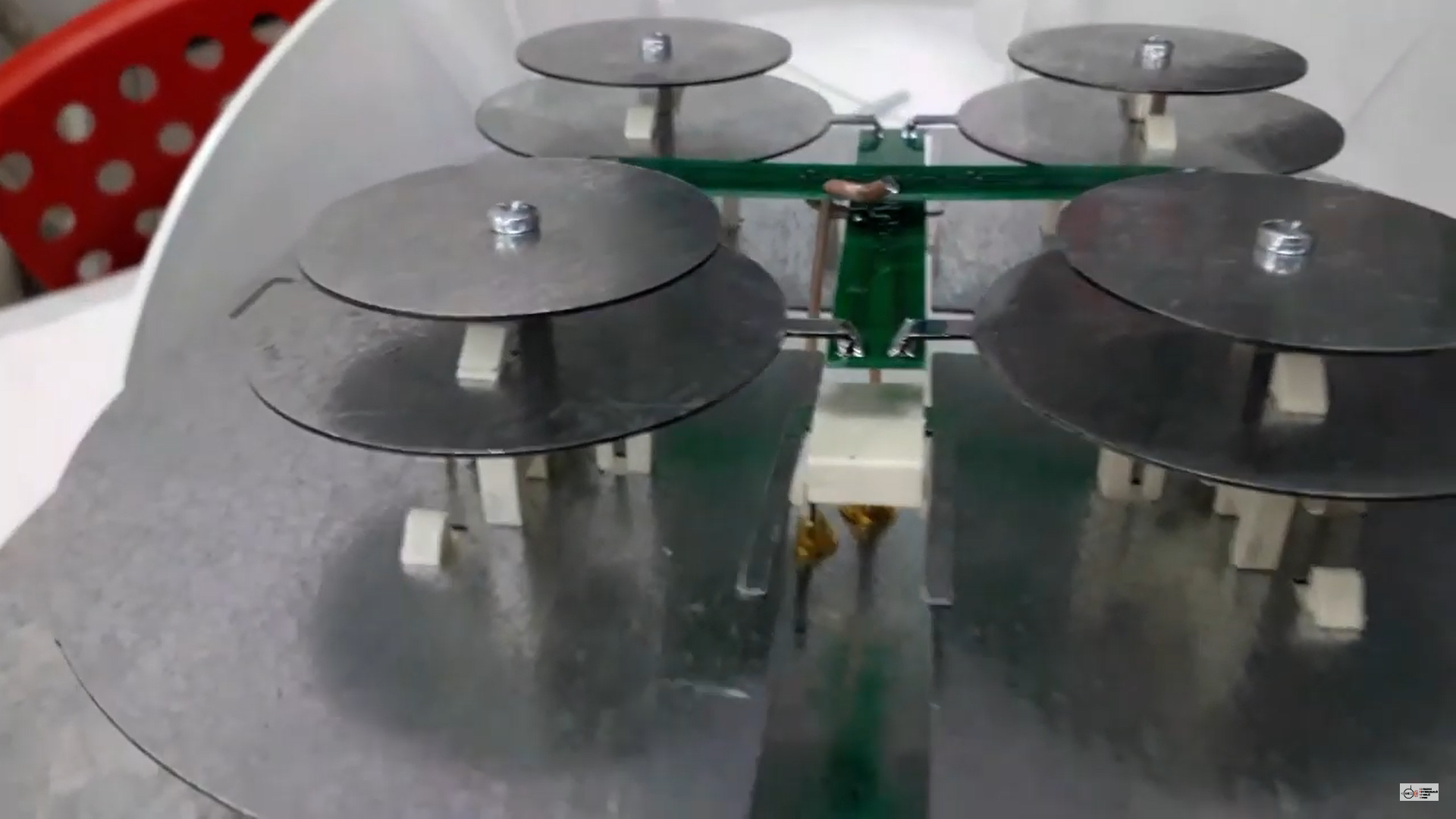

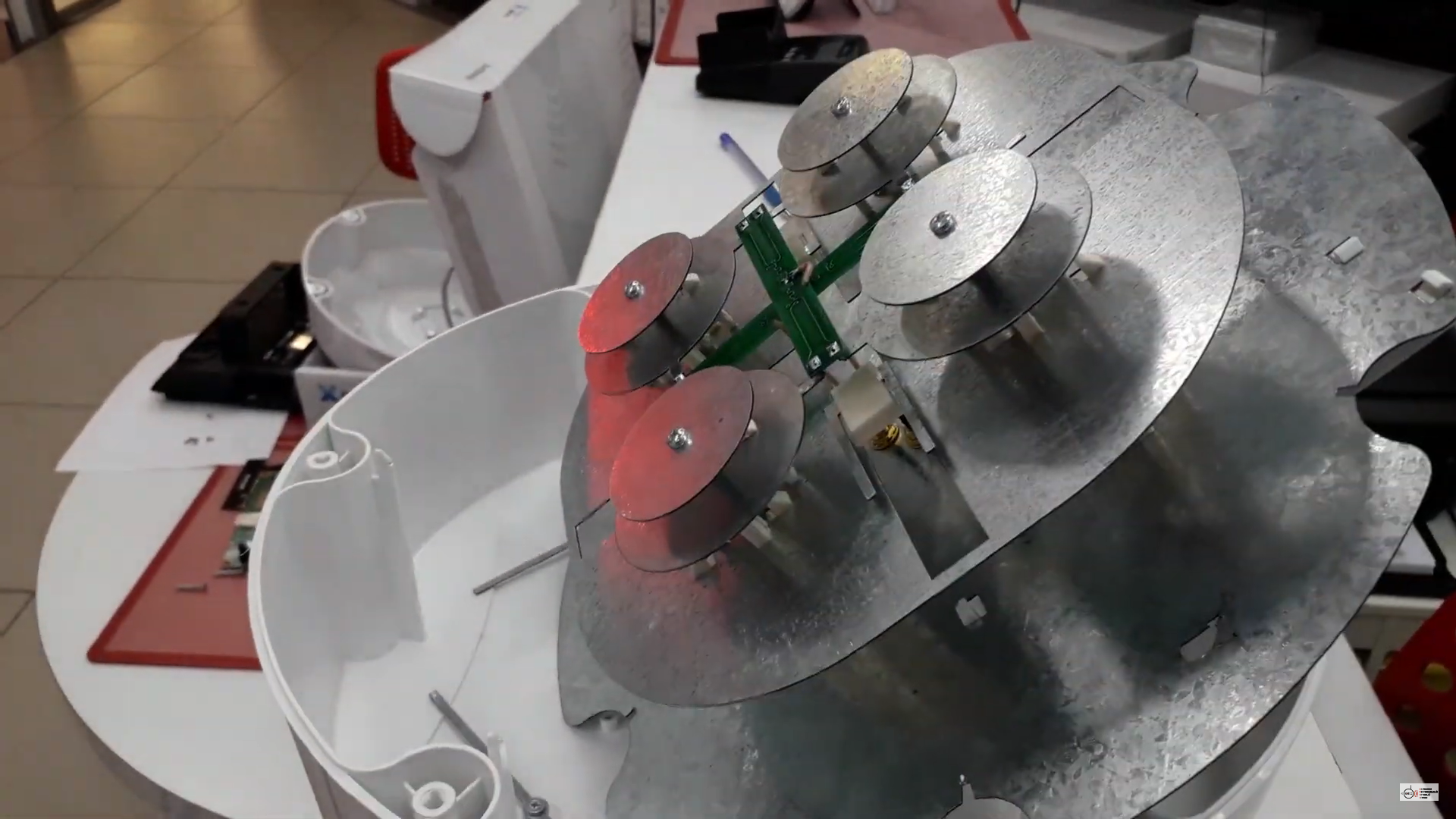

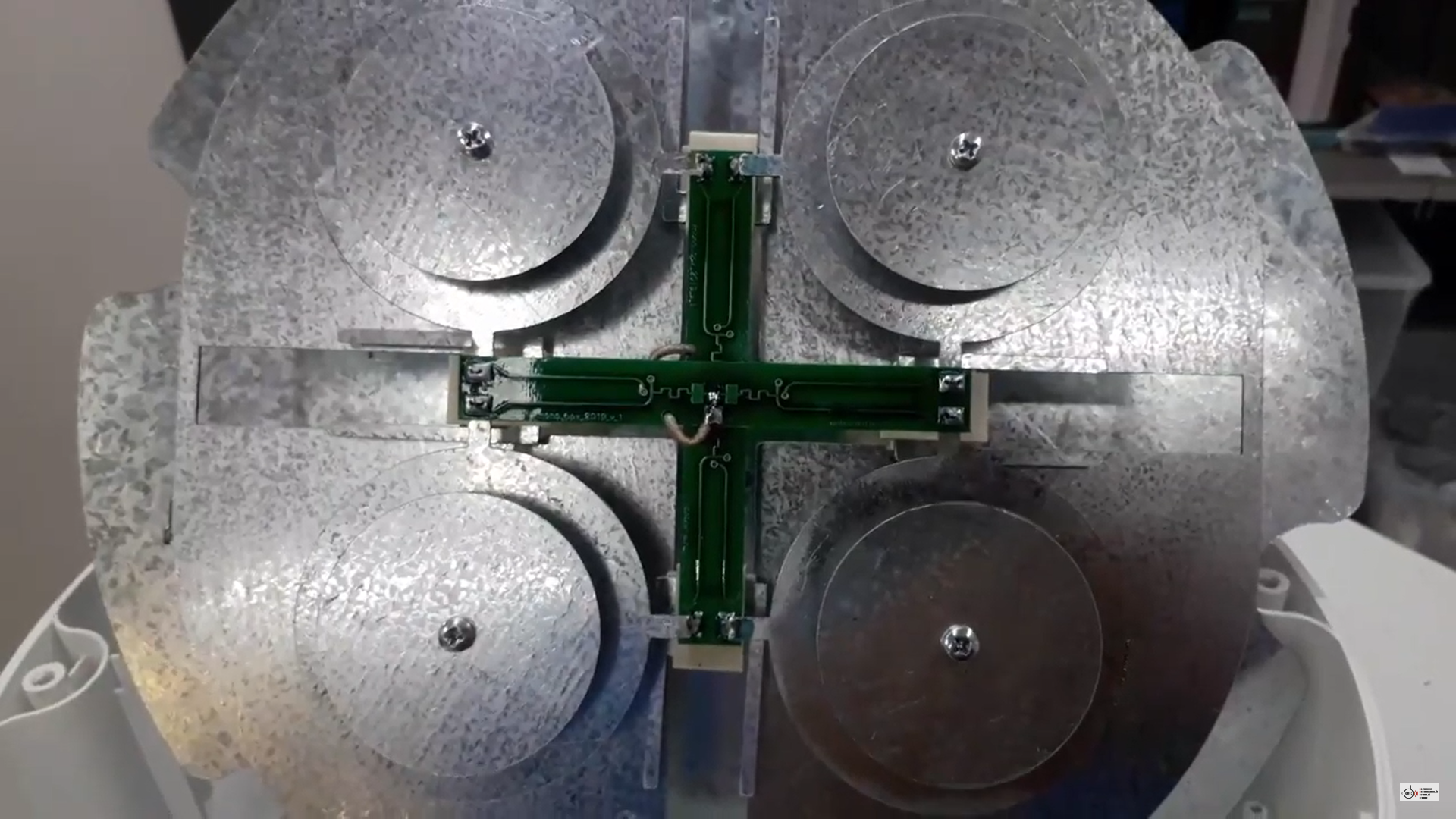

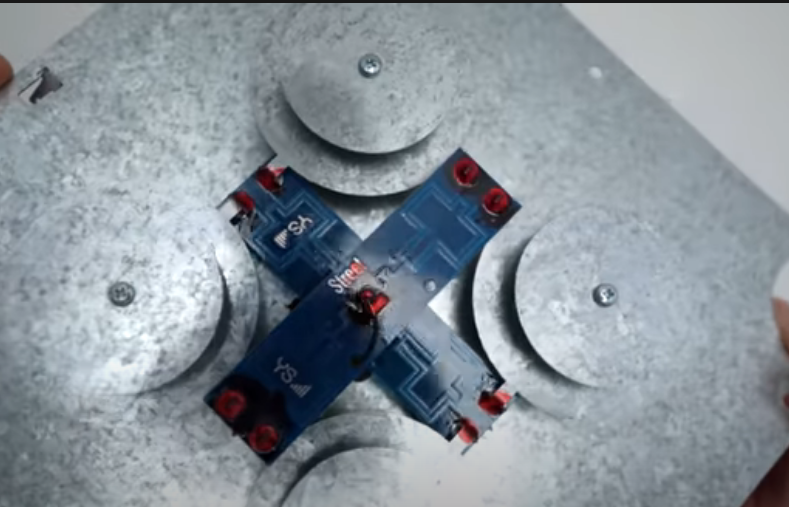

"Irg, very interesting this antenna, do you have something like that or these images are taken from youtube ???

,,,,from here...???



Share this post


Link to post
Share on other sites

Advantages:

Antenna works with all LTE, 3G, 2G

The possibility of an emergency replacement SIM card operator

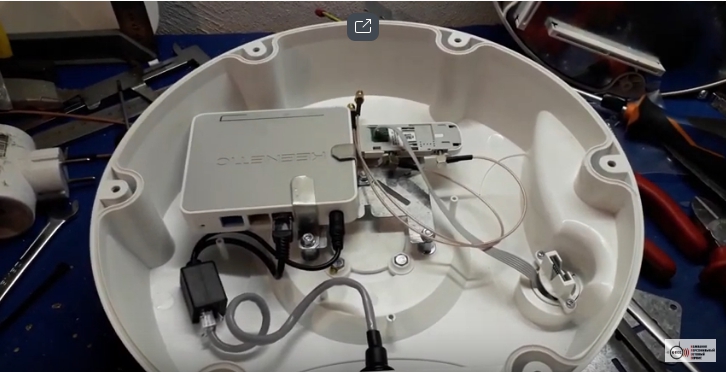

The inner space of the box allows you to accommodate any active equipment (modems, routers)

Low path loss from the antenna to the modem

The antenna is suitable for installation on the facades of buildings

Active emitter antenna covered in a plastic case

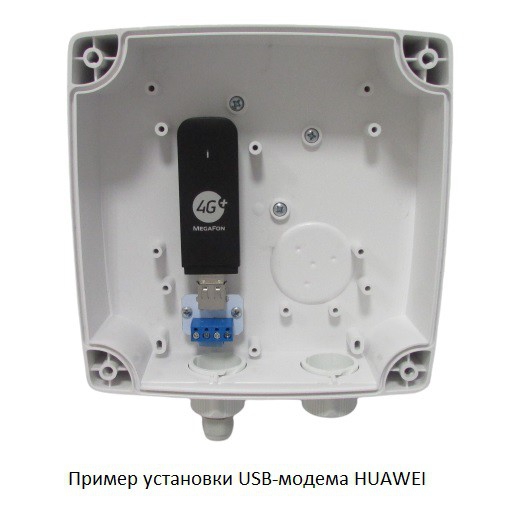

Roomy sealed box provides protection for the modem or connection "modem+router" from moisture according to IP65

Plastic shell of the antenna is protected from UV exposure and has an extended lifespan.

The antenna has a modern design





Share this post


Link to post
Share on other sites

Да, из этого видео

Yes, from this video



Share this post


Link to post
Share on other sites

I show you a Guanella 1:1 balun with high choking impedance for most antennas over voltage baluns and 4:1 current baluns,used to adapt the impedance to the antenna above...





Share this post


Link to post
Share on other sites

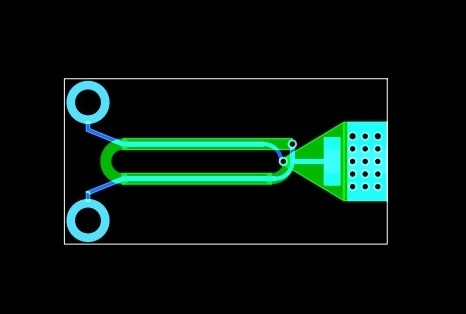

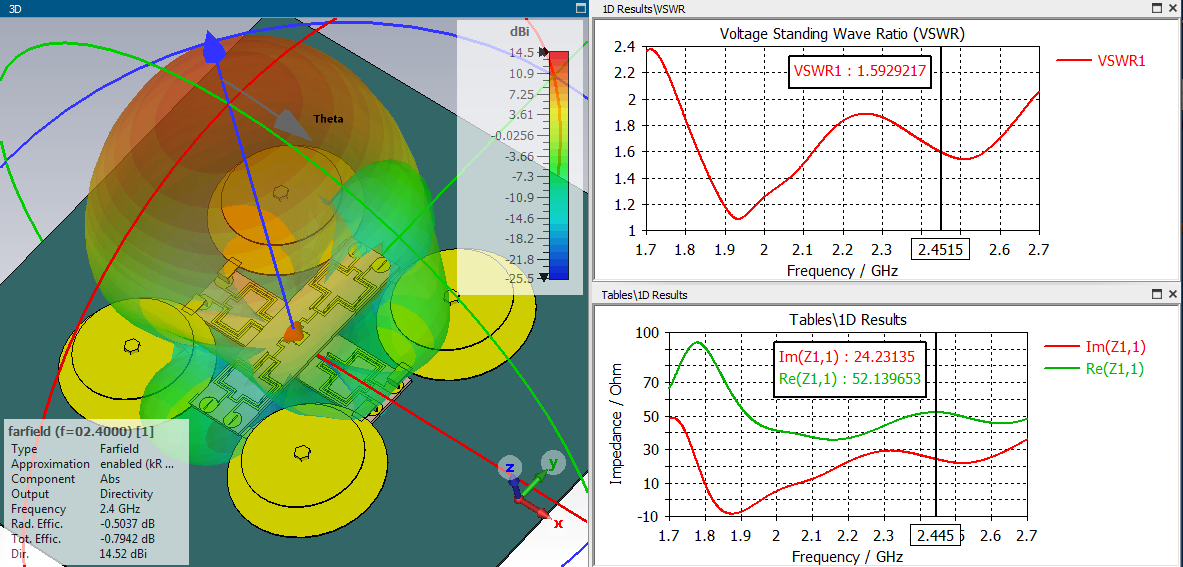

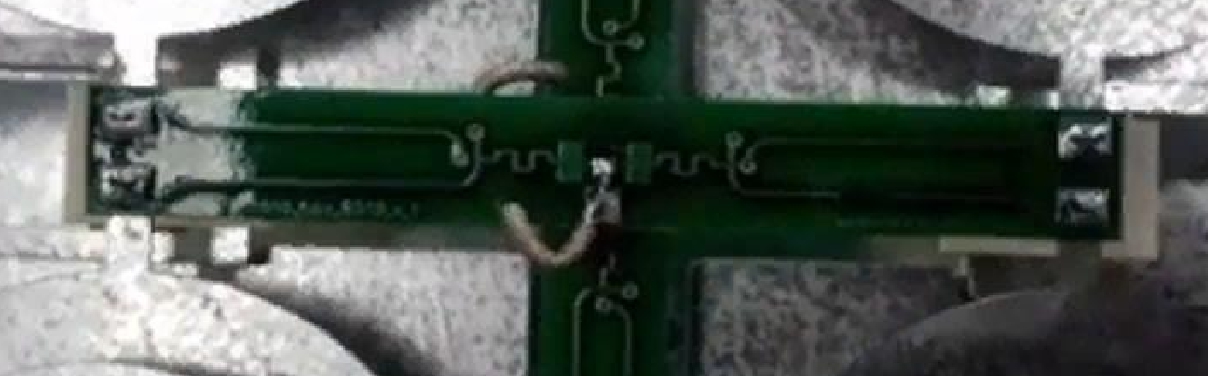

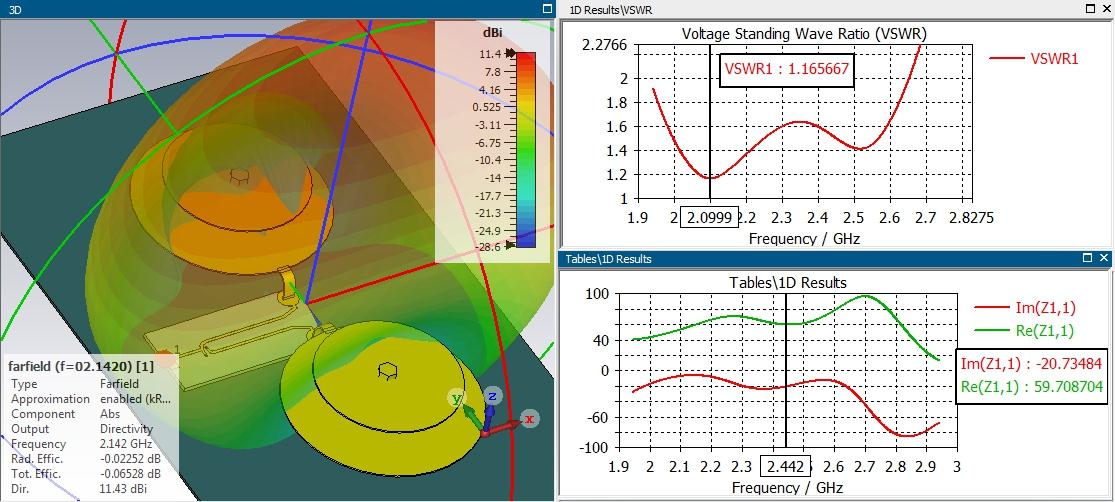

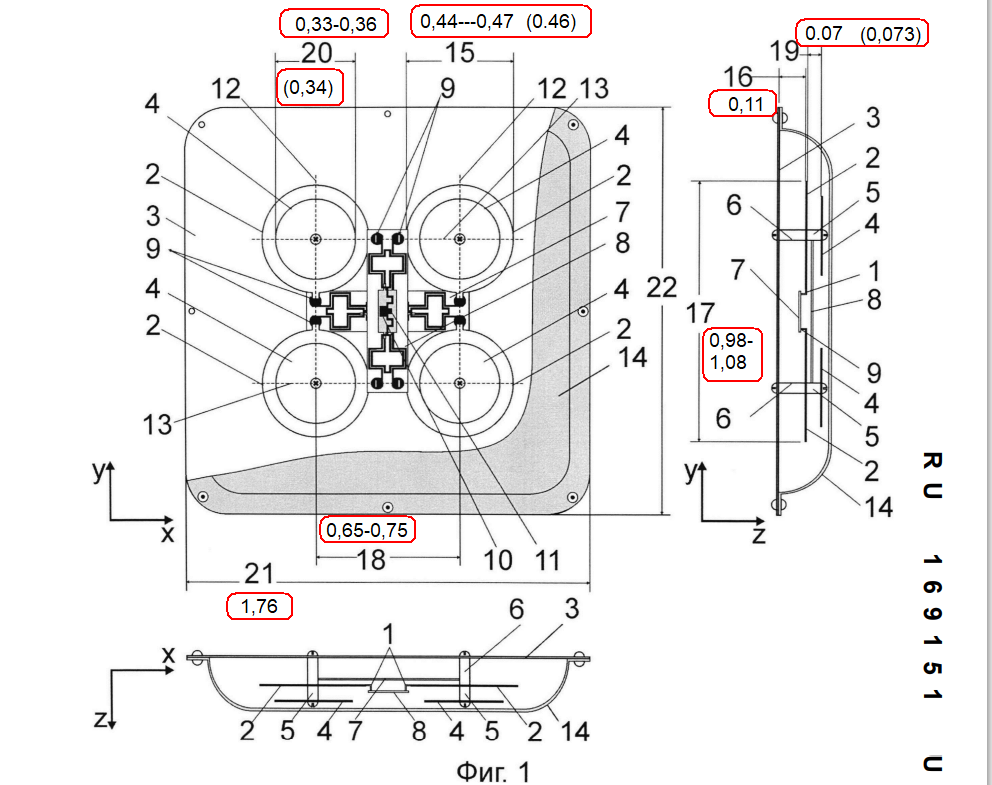

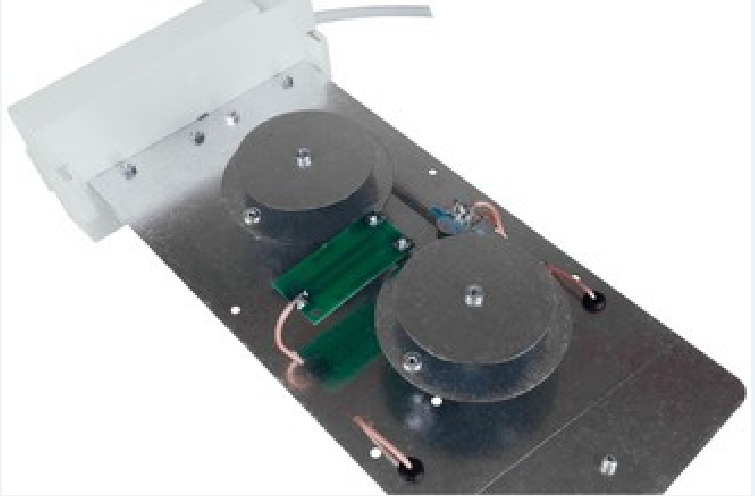

,,,and a simulation with only two patches...

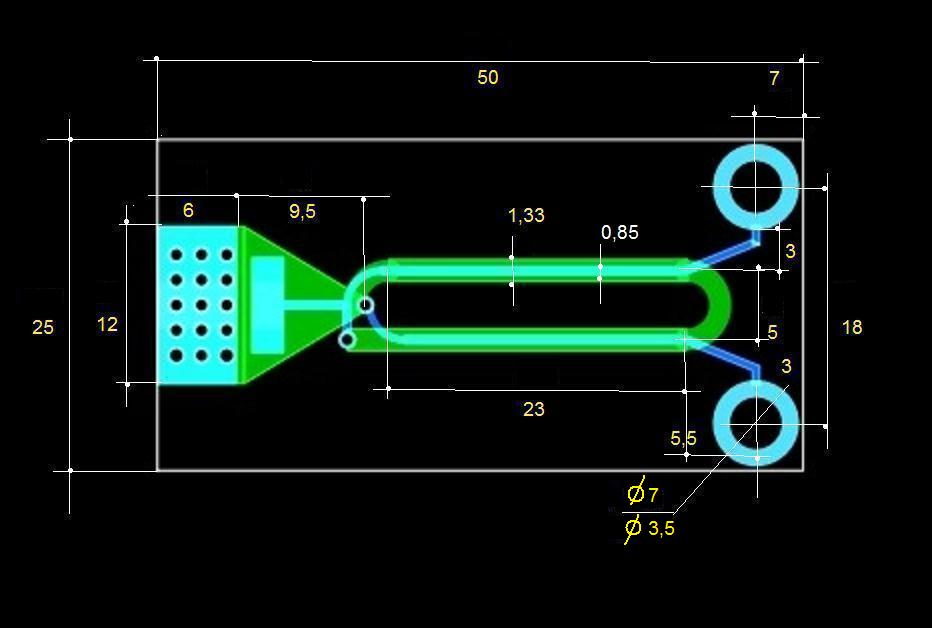

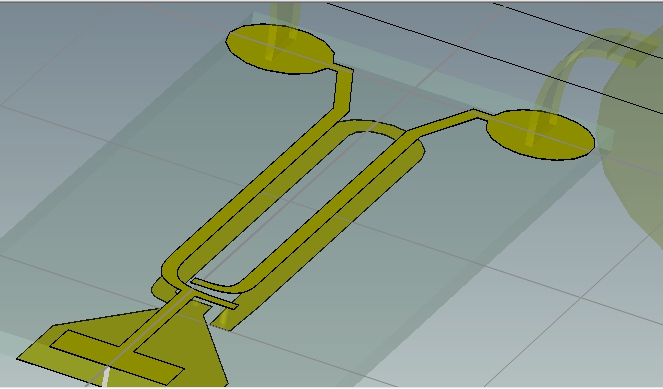

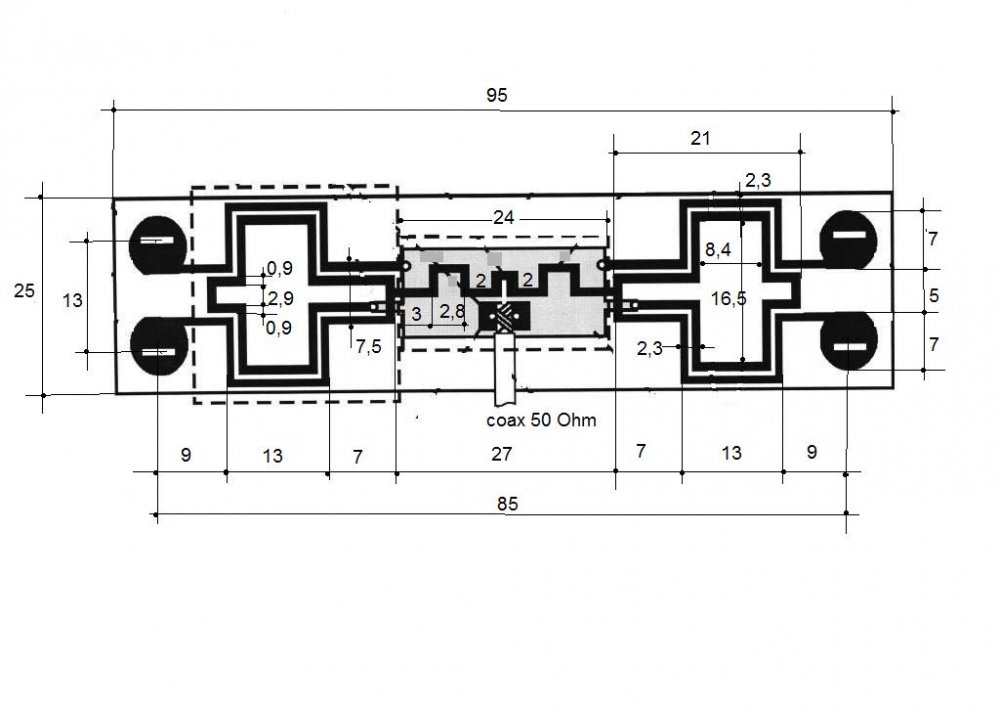

,,, with dimensions of transmission line balun Guanella ...



3 people like this

Share this post


Link to post
Share on other sites

,,, another version of adaptation...





Share this post
