aurel

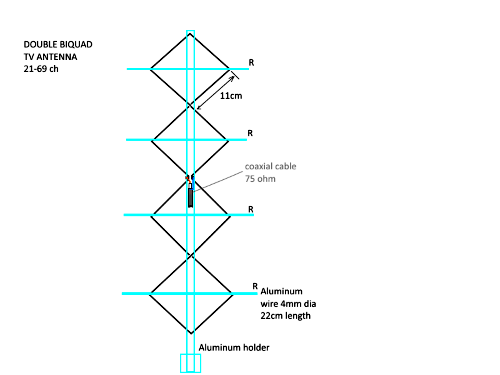

Double Biquad TV antenna

I don't think so", let's see ... !!!

I think this is the best...


Share this post


Link to post
Share on other sites

Hi JoMy

Well in my case not, i build this type of antenna for 2.4ghz few months back

and i can tell you that signal gain is lower than with ordinary double biquad.

So following logic i build this Double biquad for TV reception and work really well even without baloon tranformer.

I don't have time to exeperiment with this one for TV ,i am busy with oter things.

Share this post


Link to post
Share on other sites

Well, but my double-biquad antenna should be about 14-15dBi...!!!

Share this post


Link to post
Share on other sites
On 19/09/2019 at 8:46 AM, Admin said:

Well, but my double-biquad antenna should be about 14-15dBi...!!!

I admire your confidence and hard work. Well done.

Share this post


Link to post
Share on other sites
On 19/09/2019 at 8:46 AM, Admin said:

Well, but my double-biquad antenna should be about 14-15dBi...!!!

I have to try this some day. Thanks Admin.



Share this post


Link to post
Share on other sites

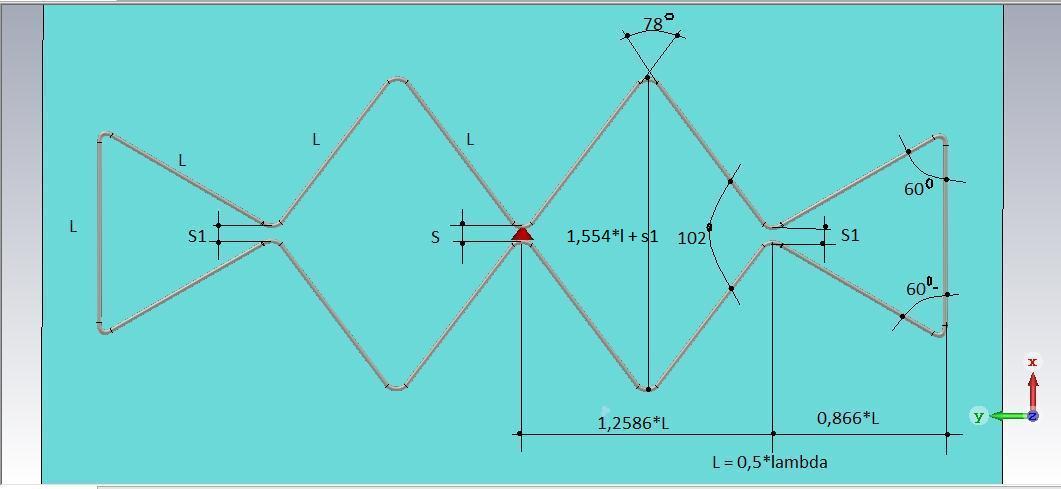

Can you show the gain plot for this antenna and help me with the meaning of S1, s1.  Are they the same or different meanings?  Thanks!

Share this post


Link to post
Share on other sites

S11 is the measurement of the antenna (or any electromagnetic black box) of

ABSORPTION and RADIATION (efficiency)

It shows how "deep" RESONANCE is at a given Frequency and hence BANDWIDTH  (Q factor)

PS: first 1 is the energy out

and the second 1 is the ENERGY in

OUTput / INput  = Efficiency

It should be equal or bigger than -20 db

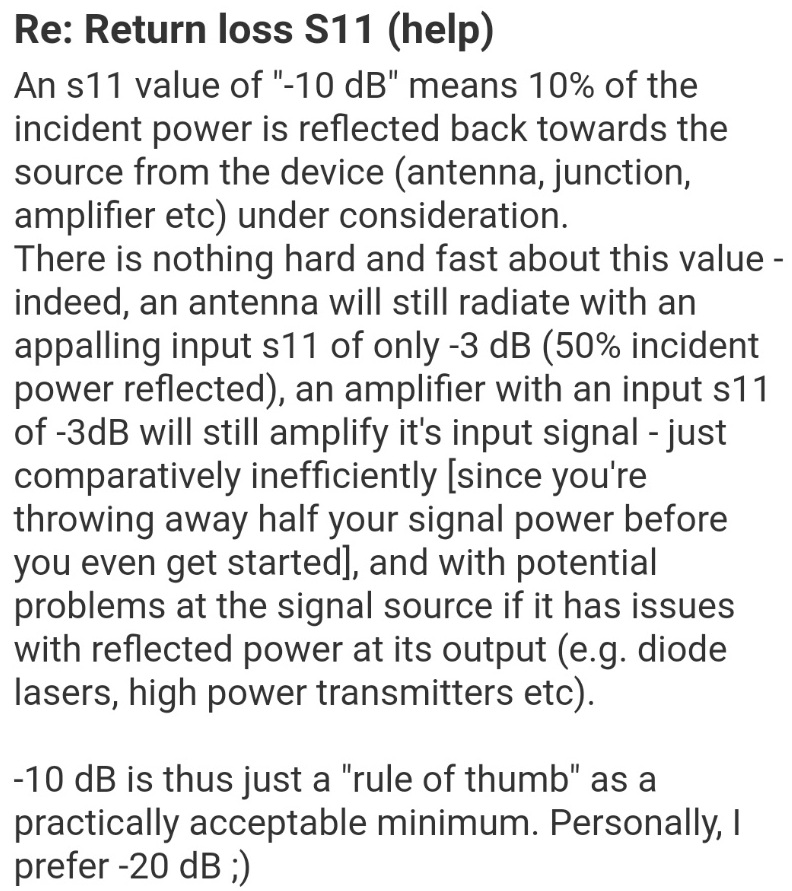

Sin título.jpg

Share this post


Link to post
Share on other sites
