inside
bigger than patchs and close to 4mm or so the screws touch it on the current centers of the patch
-
ABS should be like 2.8 of dielectric constant and 1.5 mm width ...try to keep 5mm to aluminum reflector inside , but it's tricky...not a lot of space
some wifi cards don't like it so it must be high VSWR...channels from 1 to 11 all show up...poor signal though...
-
OK , "dude" ...already built it on a notebook ABS cover...with aluminum foil...CST simulation would be great to fine tunning it...
PD: I'm NOT getting 16dbi and a lot of VSWR
-
-
-
3dbi more with Directors aparently...
2 people like this -

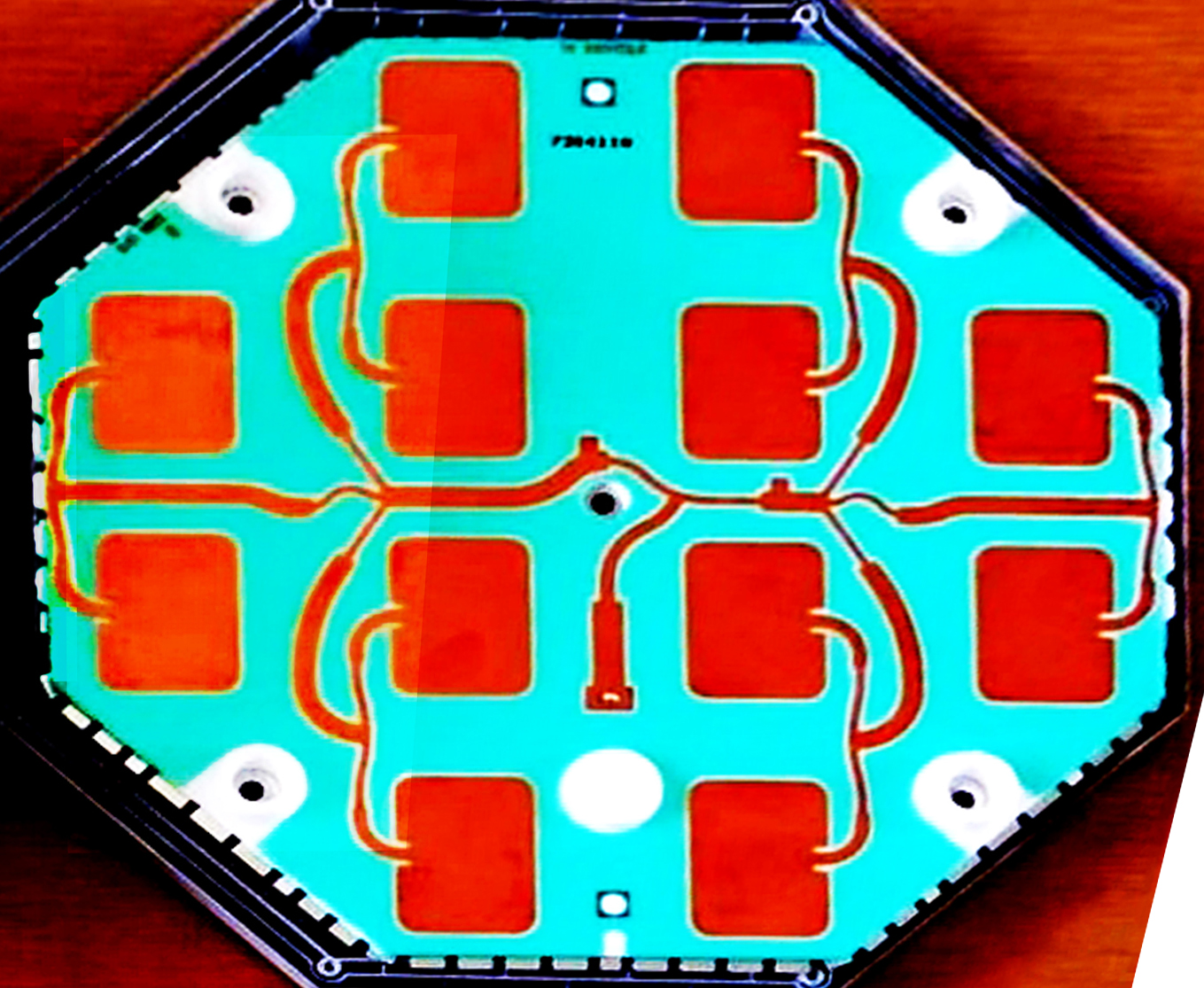

Hi , guys it would be nice if some generous soul simulate this one...
The original is 6 elements over 0.787 ptfe , 2.1 dielectric constant...
(Фольгированные материалы фирмы NELTEC (Франция)
NELTEC — новое название фирмы METCLAD.
Материалы предназначены для использования в качестве подложек в СВЧ-устройствах.
Материалы имеют нормированную диэлектрическую постоянную, низкий уровень диэлектрических потерь и уменшенную толщину слоя меди.
Основные параметры:
Толщина диэлектрика: 0.127, 0.254, 0.508, 0.762, 0.787, 1.270, 1.524, 1.575, 3.175 мм
Диэлектрическая проницаемость (на частоте 10 ГГц): 2.17
in Antennas for mobile communications
Posted
https://www.youtube.com/watch?v=J2DBpXQ6_mA

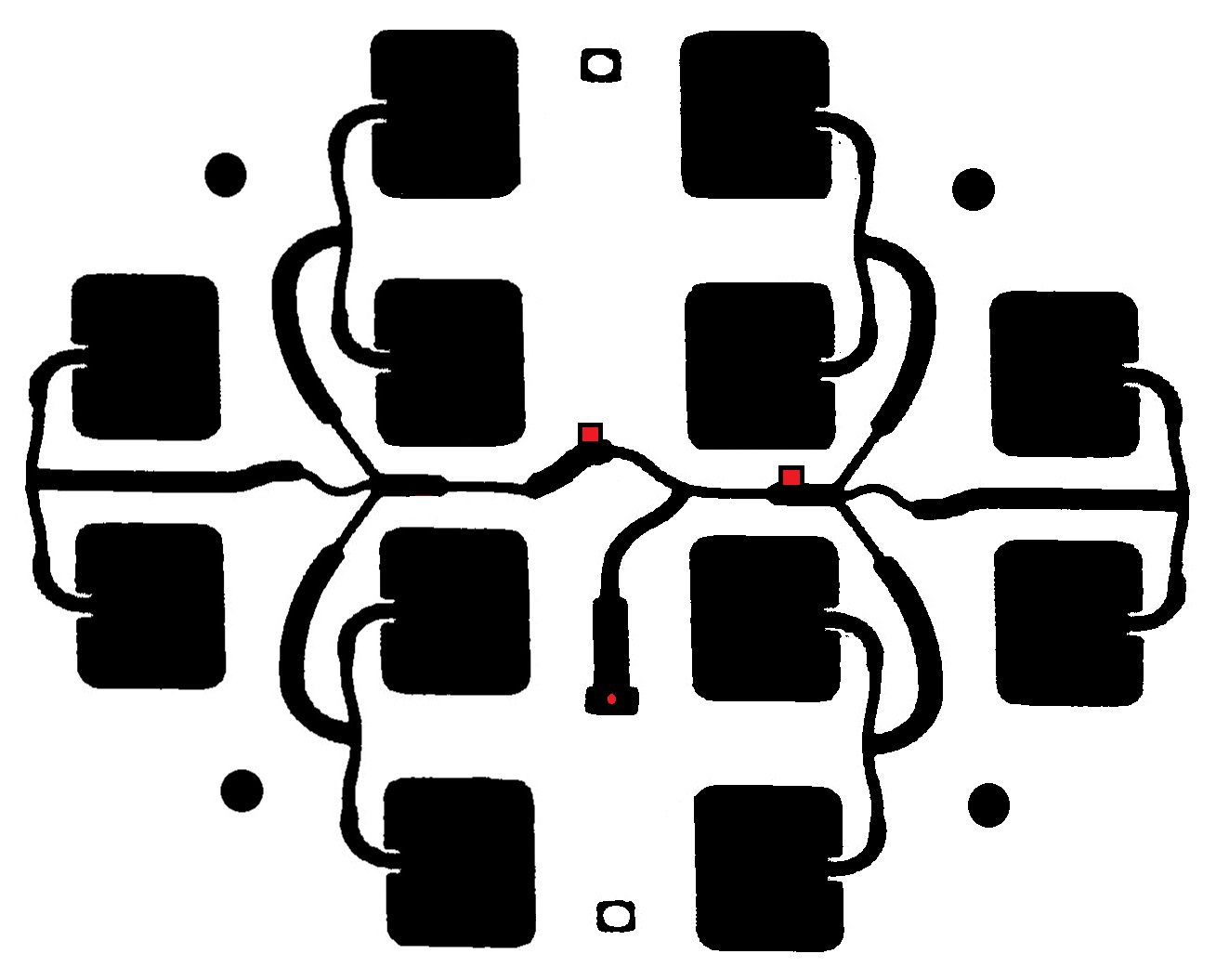

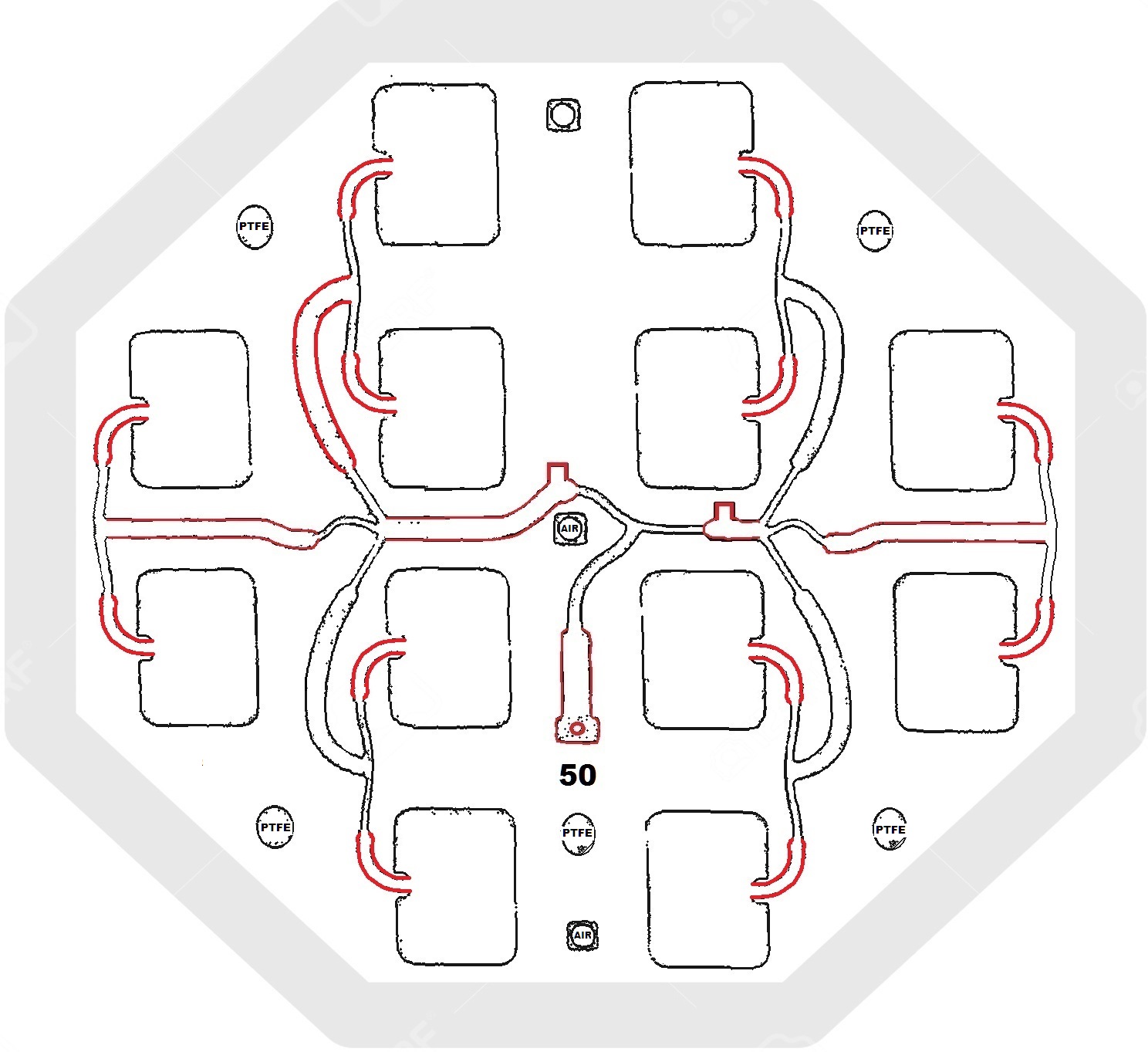

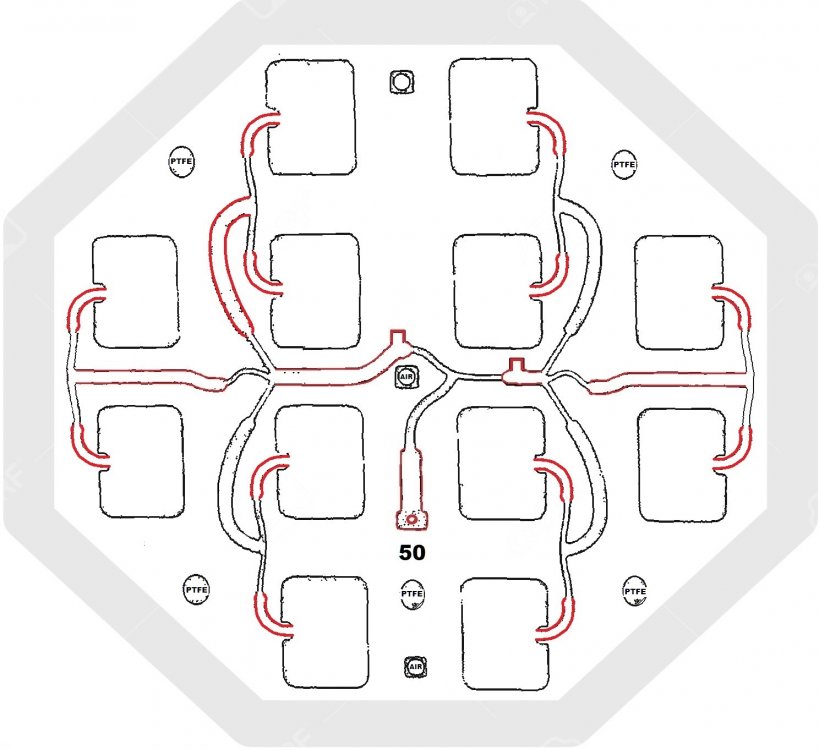

best i could do...NOT to scale!!!
