Raytron 16dbi patch

37 posts in this topic

Raytron 16dbi & 19dbi mod



Hi , guys it would be nice if some generous soul simulate this one...

The original is 6 elements over 0.787 ptfe , 2.1 dielectric constant...


(Фольгированные материалы фирмы NELTEC (Франция)
NELTEC — новое название фирмы METCLAD.
Материалы предназначены для использования в качестве подложек в СВЧ-устройствах.

Материалы имеют нормированную диэлектрическую постоянную, низкий уровень диэлектрических потерь и уменшенную толщину слоя меди.

Основные параметры:

Толщина диэлектрика: 0.127, 0.254, 0.508, 0.762, 0.787, 1.270, 1.524, 1.575, 3.175 мм
Диэлектрическая проницаемость (на частоте 10 ГГц): 2.17




Panel_16dBi.pdf


Edited by clanon

Share this post


Link to post
Share on other sites

Clanon, you're from Argentina and you speak Russian...???
,,, please write in English ... !!!

1 person likes this

Share this post


Link to post
Share on other sites

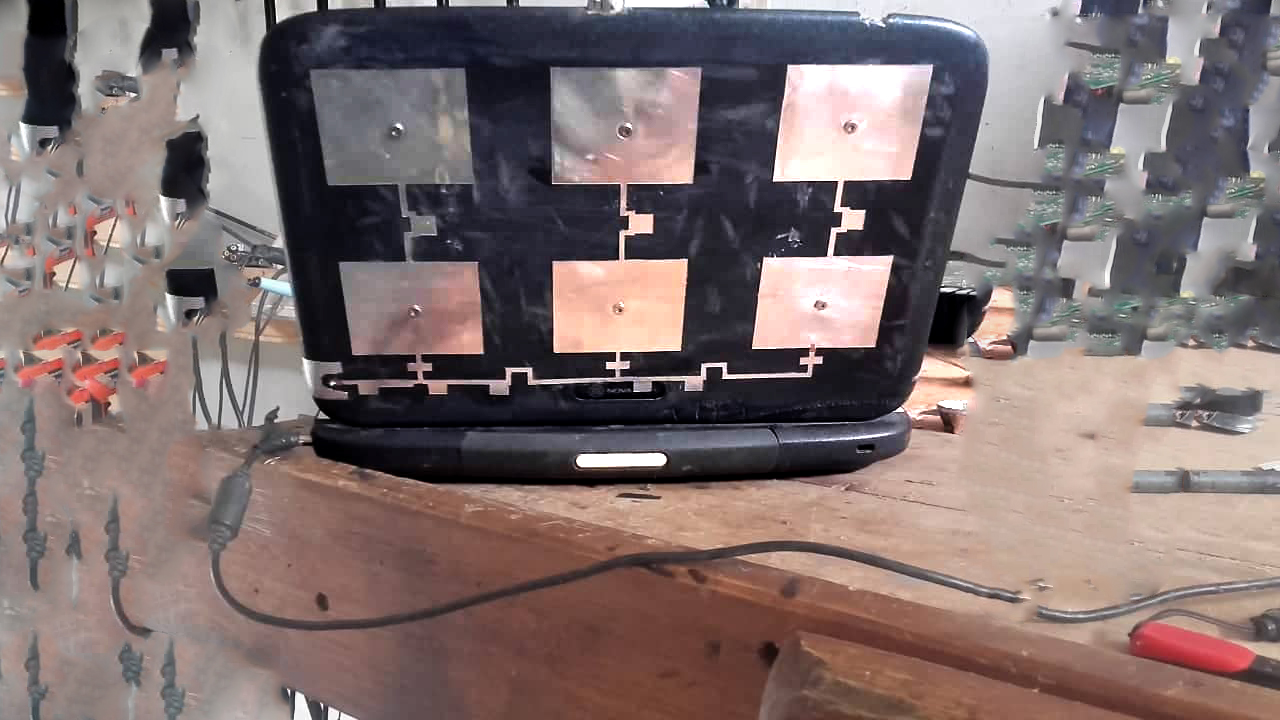

OK , "dude" ...already built it on a notebook ABS cover...with aluminum foil...CST simulation would be great to fine tunning it...

PD: I'm NOT getting 16dbi and a lot of VSWR

Share this post


Link to post
Share on other sites

ABS should be like 2.8 of dielectric constant and 1.5 mm width ...try to keep 5mm to aluminum reflector inside , but it's tricky...not a lot of space

some wifi cards don't like it so it must be high VSWR...channels  from 1 to 11 all show up...poor signal though...


Edited by clanon

Share this post


Link to post
Share on other sites

,,,well, the reflector where is ... ???

1 person likes this

Share this post


Link to post
Share on other sites

inside

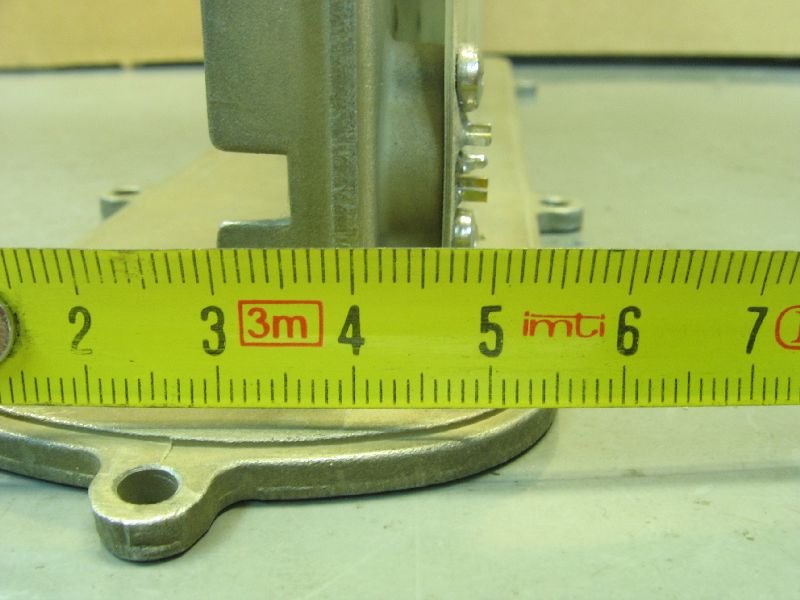

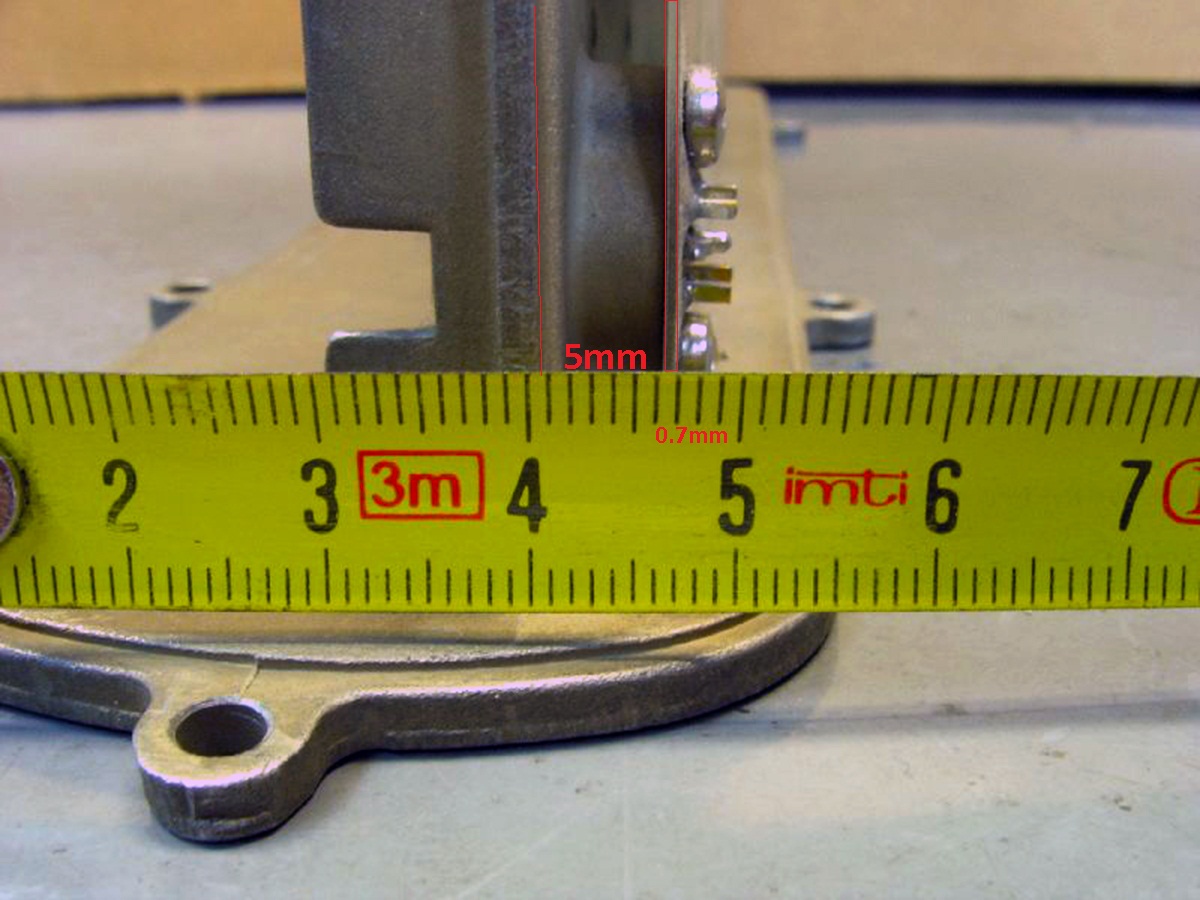

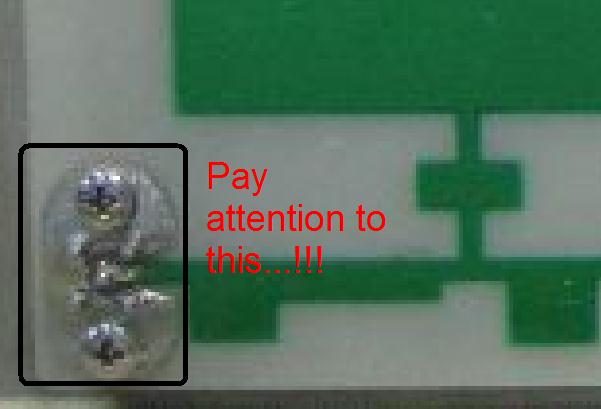

bigger than patchs and close to 4mm or so the screws touch it on the current centers of the patch



Share this post


Link to post
Share on other sites

TRYING my best...

we'll see...

Sin título.jpg

1 person likes this

Share this post


Link to post
Share on other sites

Clanon, you can put the dimensions to it...???





1 person likes this

Share this post


Link to post
Share on other sites

Posted (edited)

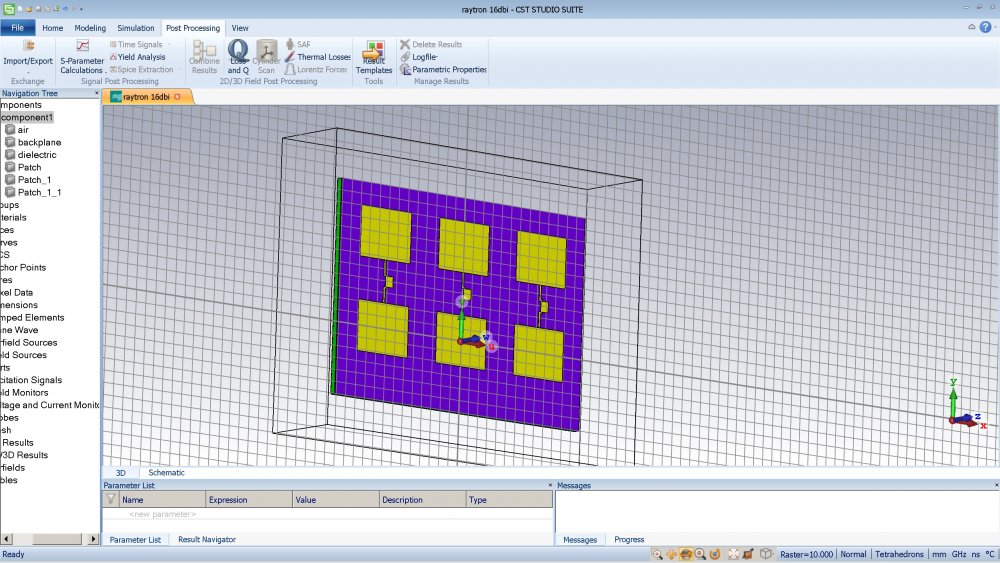

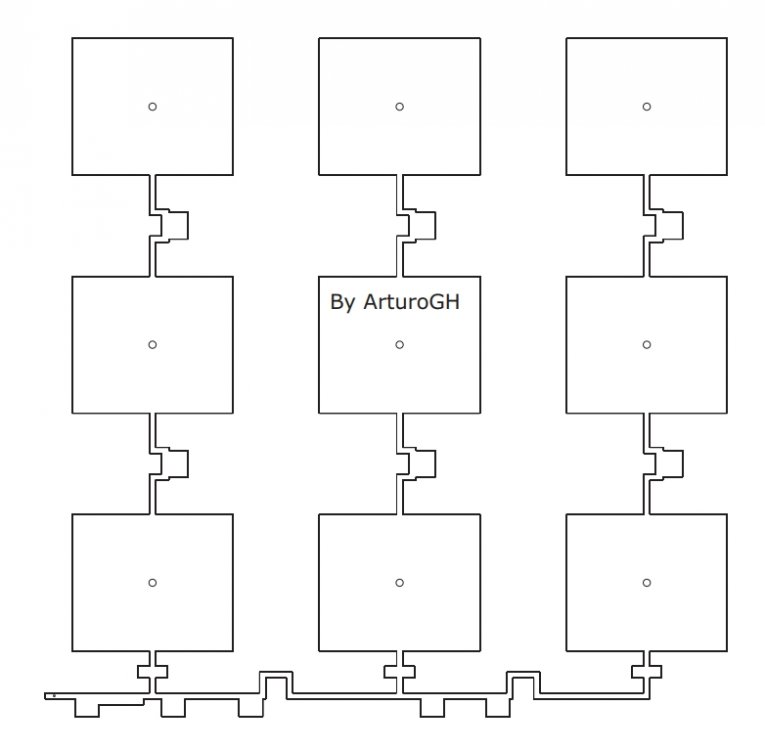

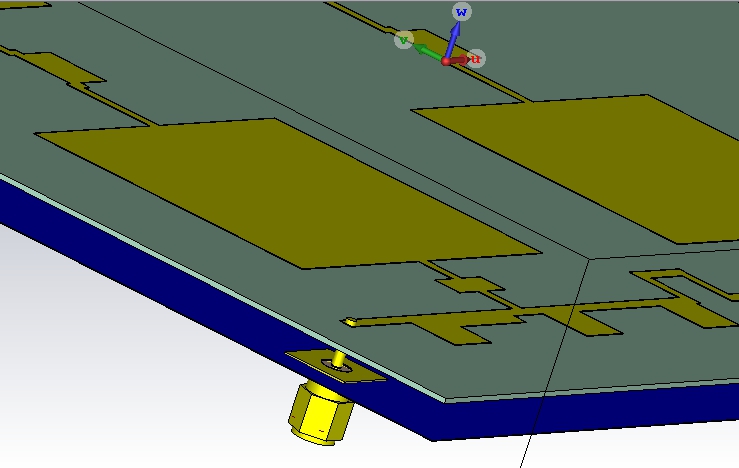

here's the model...not exact just  taken from that picture...

can't make it dance though...

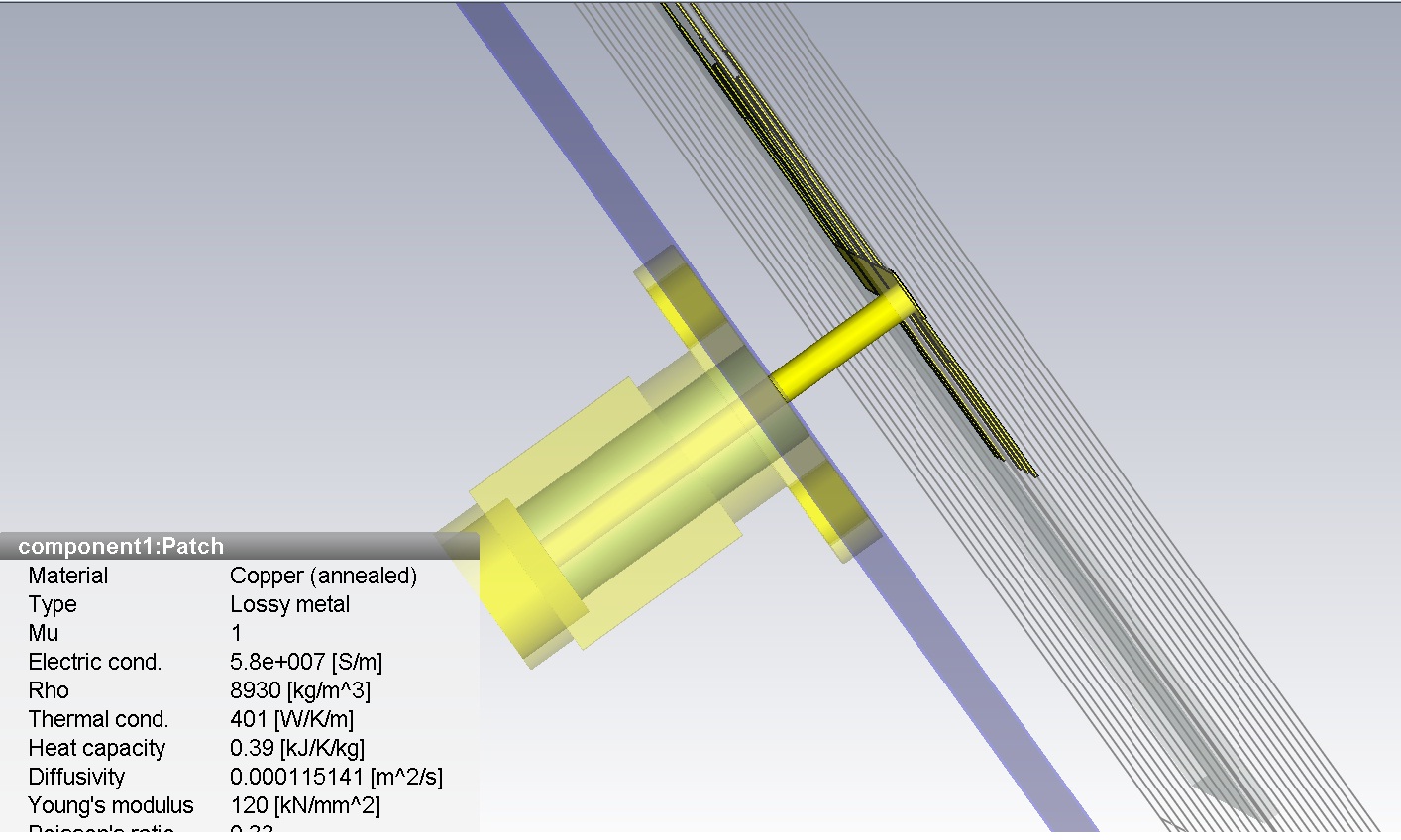

Maybe my settings are wrong for the solver... i tried waveguide and discrete port...TO NO AVAIL



raytron 16dbi.cst

Edited by clanon

Share this post


Link to post
Share on other sites

Posted (edited)


Edited by clanon

Share this post


Link to post
Share on other sites

Posted (edited)

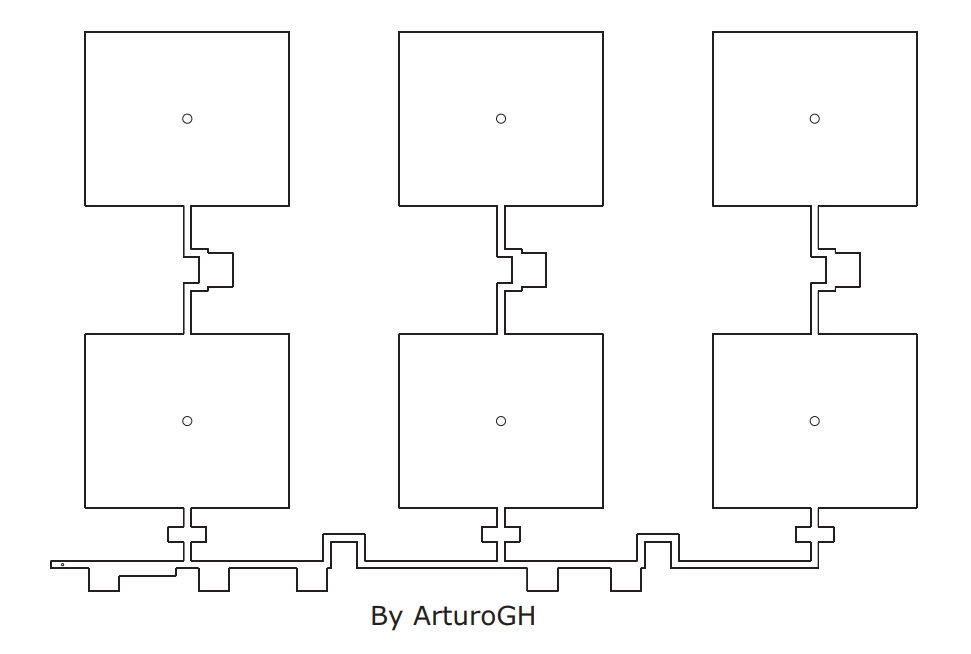

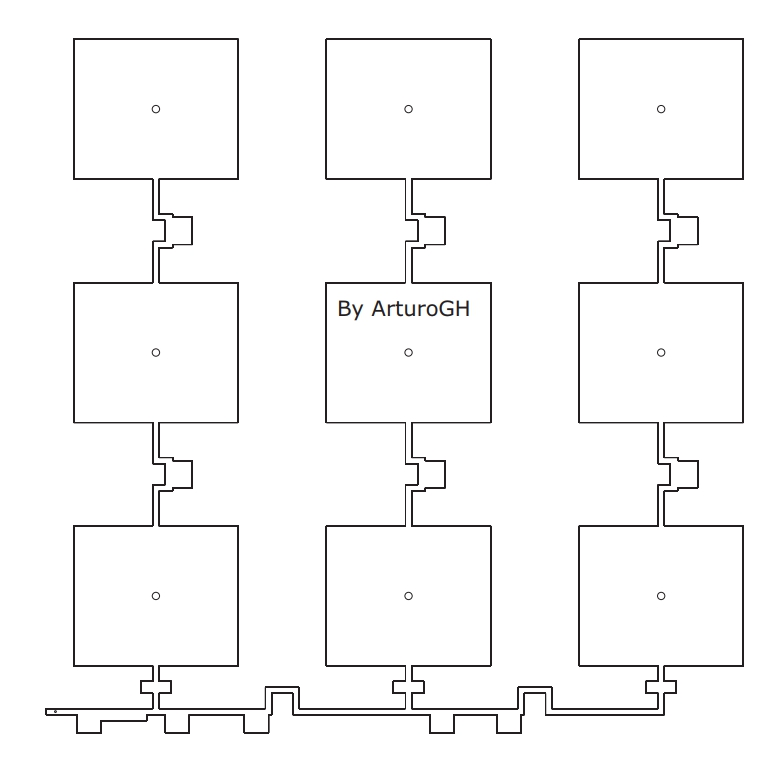

54 by 46 mm each Patch...i think...

Edited by clanon

Share this post


Link to post
Share on other sites

,,,try to import a SMA port from this forum...


1 person likes this

Share this post


Link to post
Share on other sites

and then ...discrete port...or what?



Share this post


Link to post
Share on other sites

some doubt about INTERSECTIONS...how its supposed to go...



Share this post


Link to post
Share on other sites

... something like that ... !!!






Anyway, something is wrong ...






1 person likes this

Share this post


Link to post
Share on other sites

try with teflon ...2.1 dielectric constant...Original material ...close to 0.7...(0.762, 0.787mm)



PD: I was gettin LOTS of APs...but too litle signal... less than -62dbm...and a bunch with more than -



"Foil materials from NELTEC (France)
NELTEC is the new name of the company METCLAD.
The materials are intended to be used as substrates in microwave devices.

The thickness of the dielectric: 0.127, 0.254, 0.508, 0.762, 0.787, 1.270, 1.524, 1.575, 3.175 mm
The dielectric constant (at a frequency of 10 GHz): 2.17 ... 3.48
Copper layer thickness: 5, 9, 12, 18, 35, 70, 105 microns
Sheet size: 305x457, 406x457, 457x610 mm "


Share this post


Link to post
Share on other sites

It SHOULD have one BIG LOBE...in the CENTER (16dbi) and some smaller ones around...IMHO

“Having carefully examined the cable entry point in the photos of the“ original ”, I came to the conclusion that there is not a“ bare ”microstrip, but something like a“ coplanar waveguide. ”Therefore, I provided for such an“ earthen ”polygon at the input





Share this post


Link to post
Share on other sites

..., only in English, please...!!!

1 person likes this

Share this post


Link to post
Share on other sites

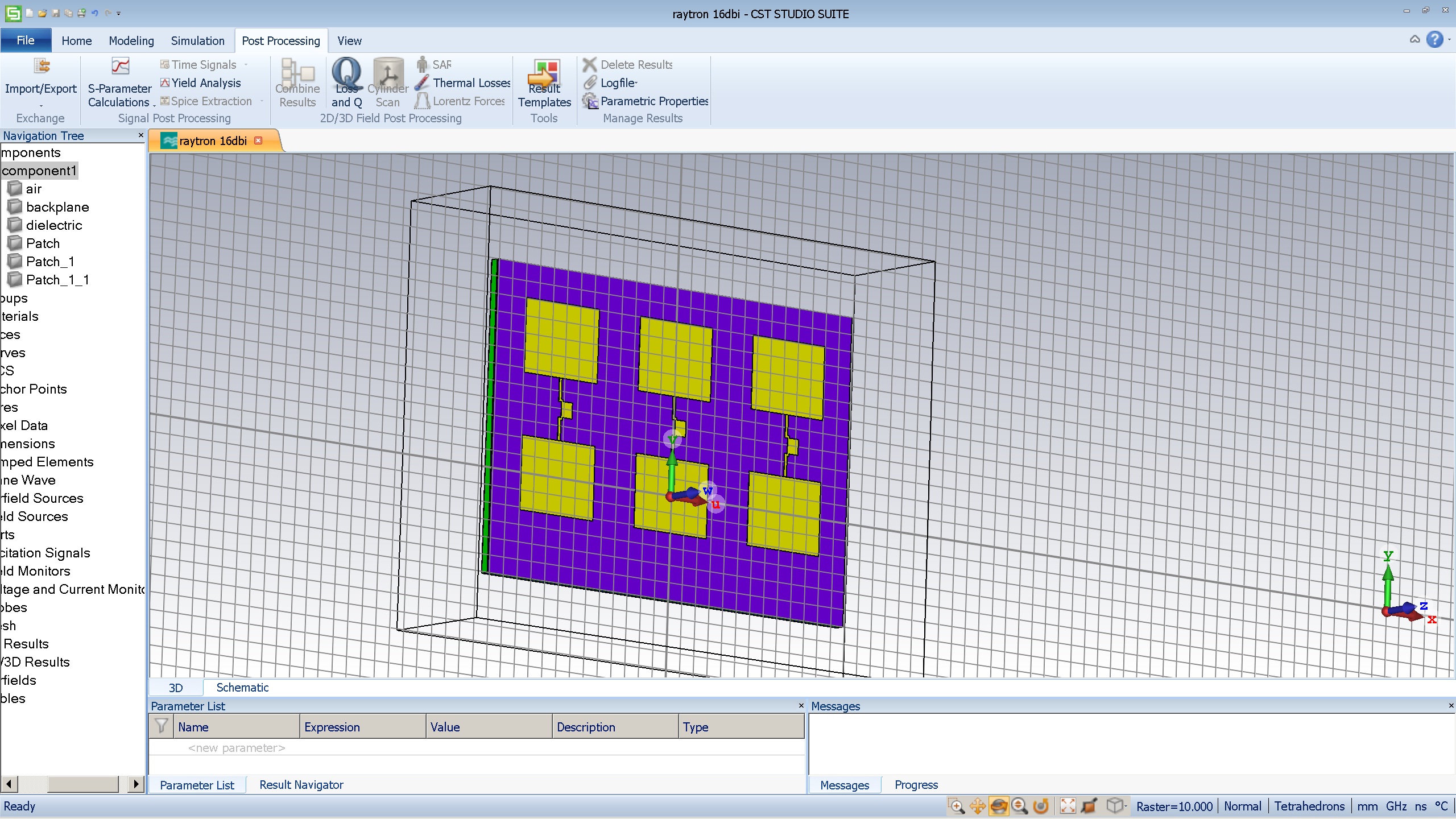

getting there...RE-modeled...

i'm gonna work on the coplanar waveguided thingy...now...

Sin título.jpg

Share this post


Link to post
Share on other sites

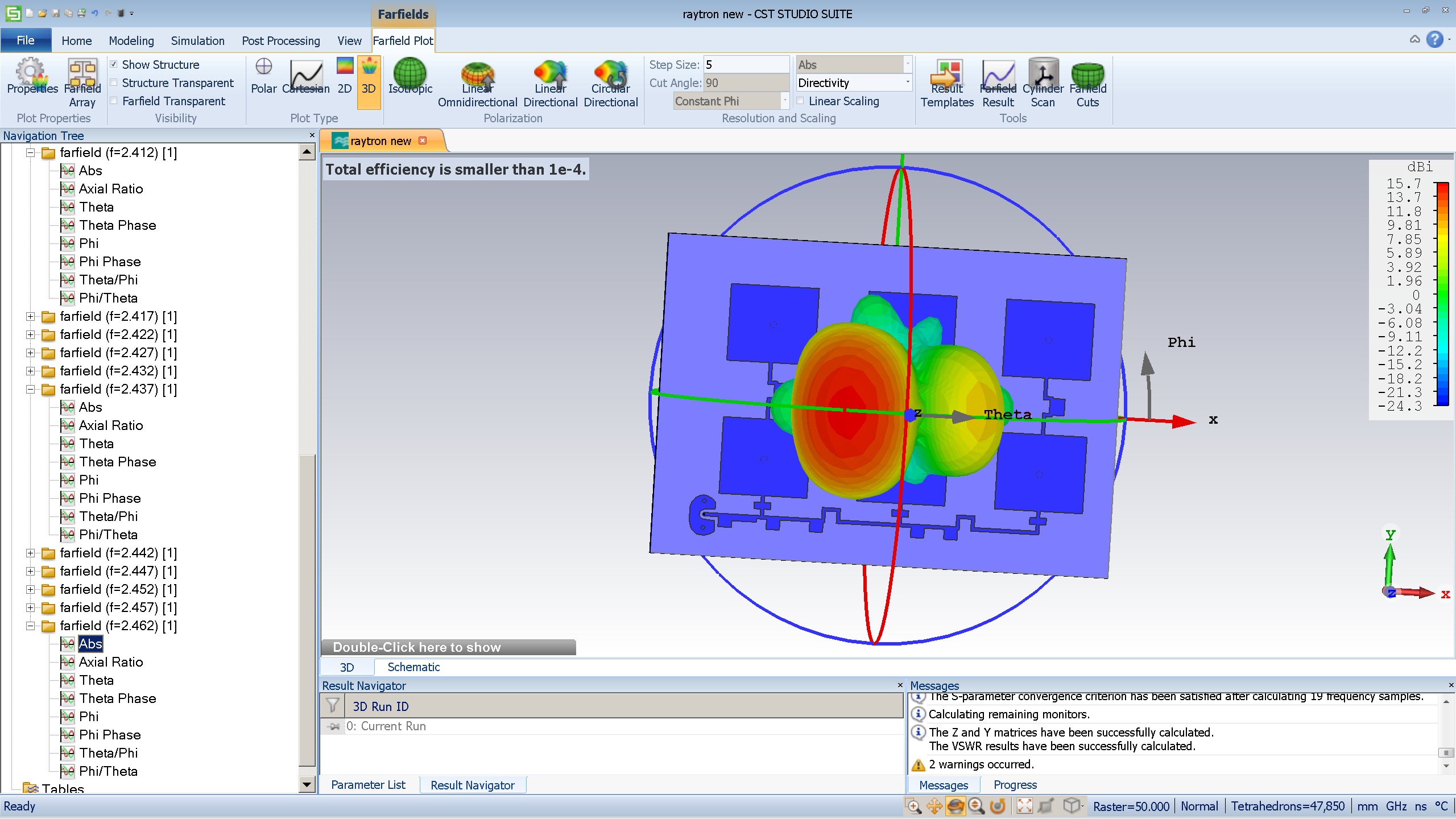

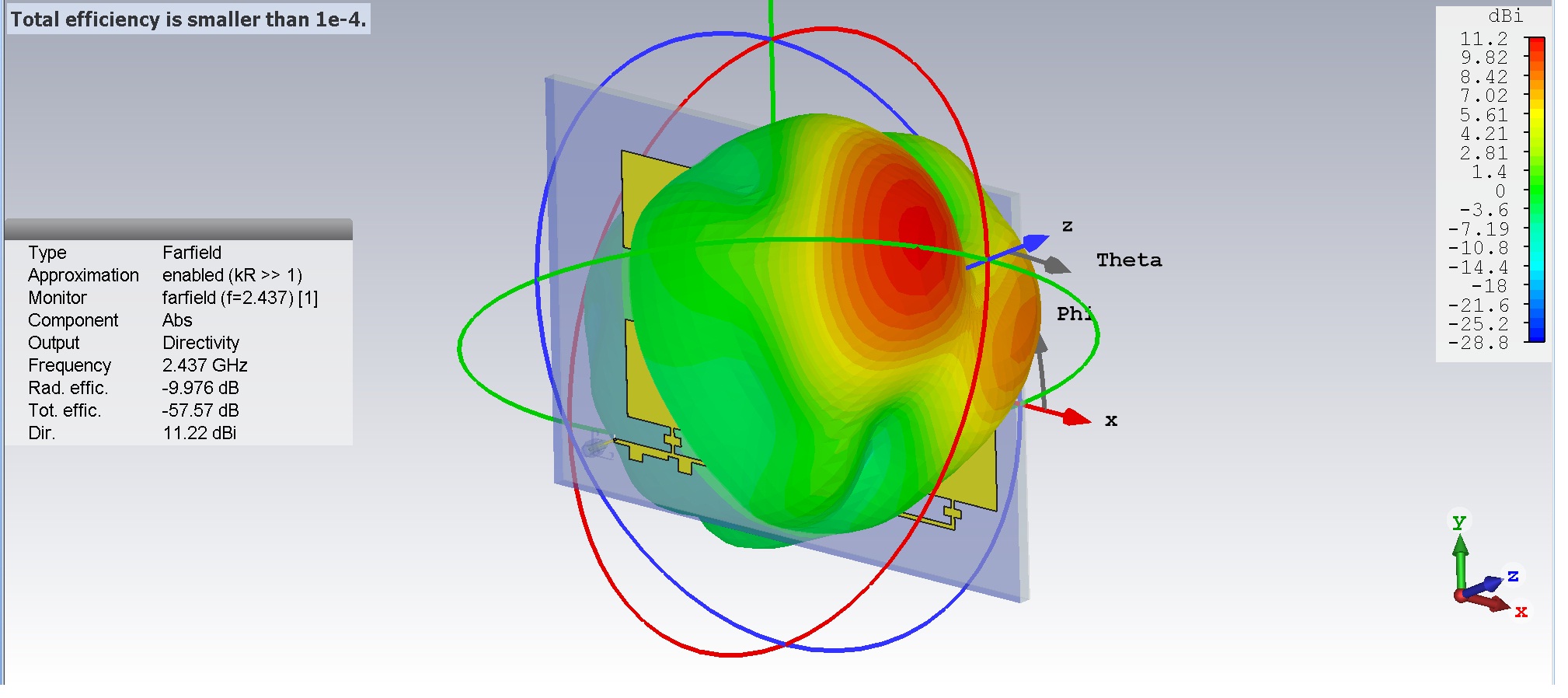

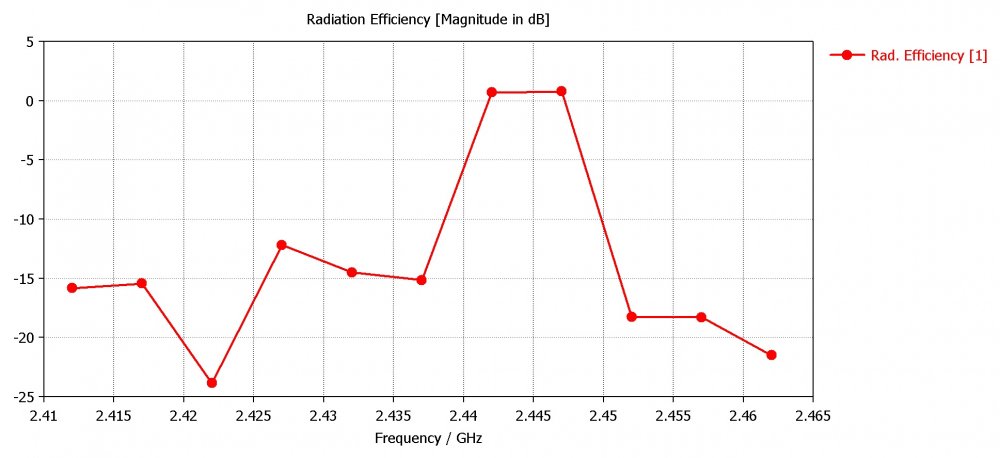

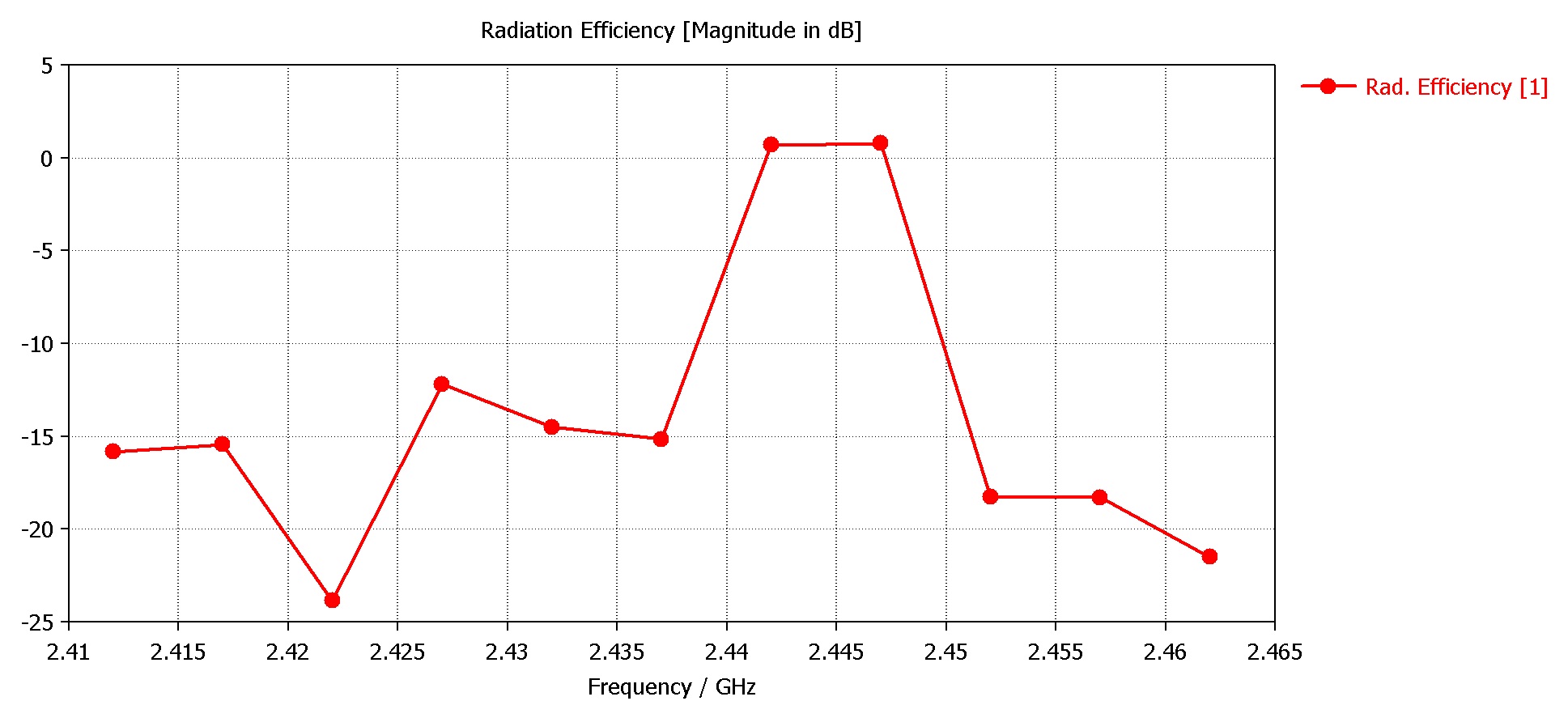

Radiation efficiency seems fine... vswr must be the problem...

Sin título.jpg

Share this post


Link to post
Share on other sites


1 person likes this

Share this post


Link to post
Share on other sites

YUP...it's like they're "Forcing" the wave to make a 90 DEGREES through the FEEDING LINE...IMHO...(it must be important) I'll keep you informed if i have success...to 15 or 16dbis...

Share this post


Link to post
Share on other sites
