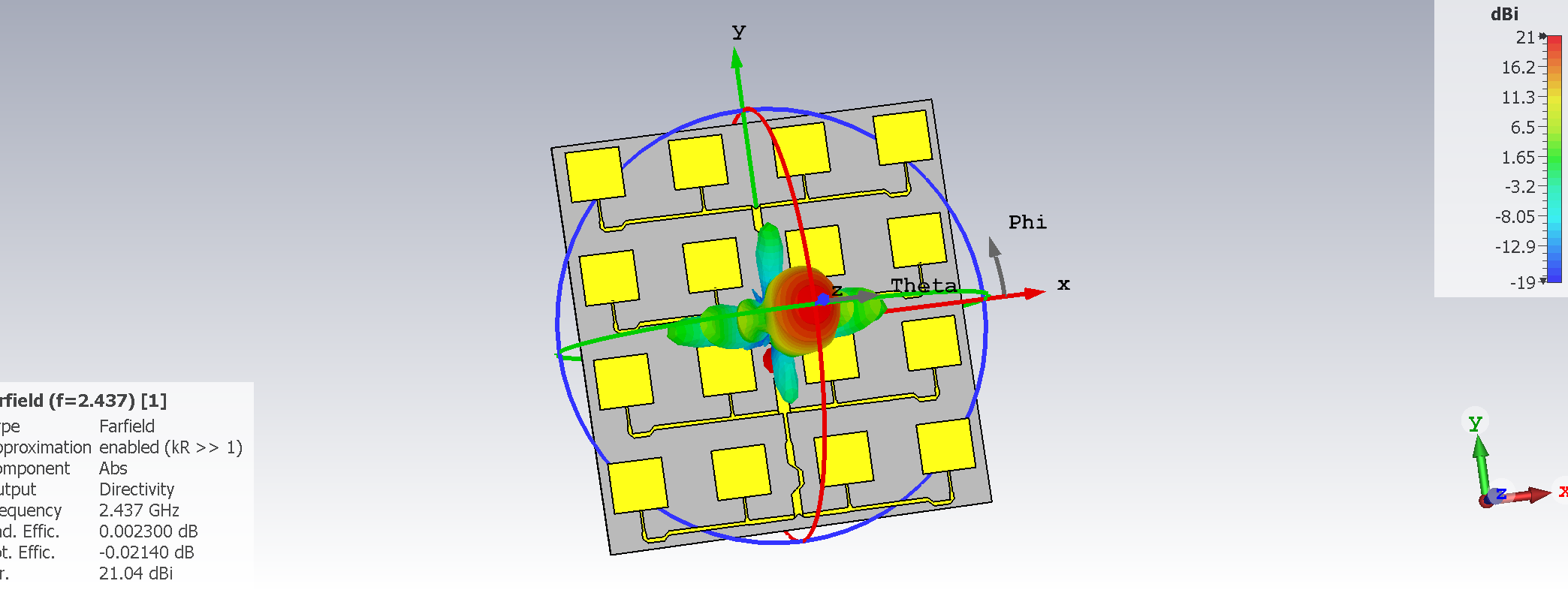

21dbi (or more) 4 by 4 Patch Array

Been beating around the bush for years to find a Good 4x4 patch array...

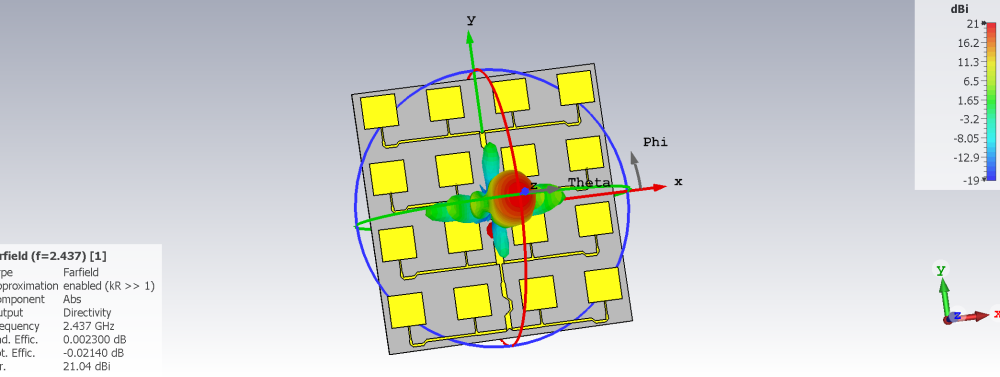

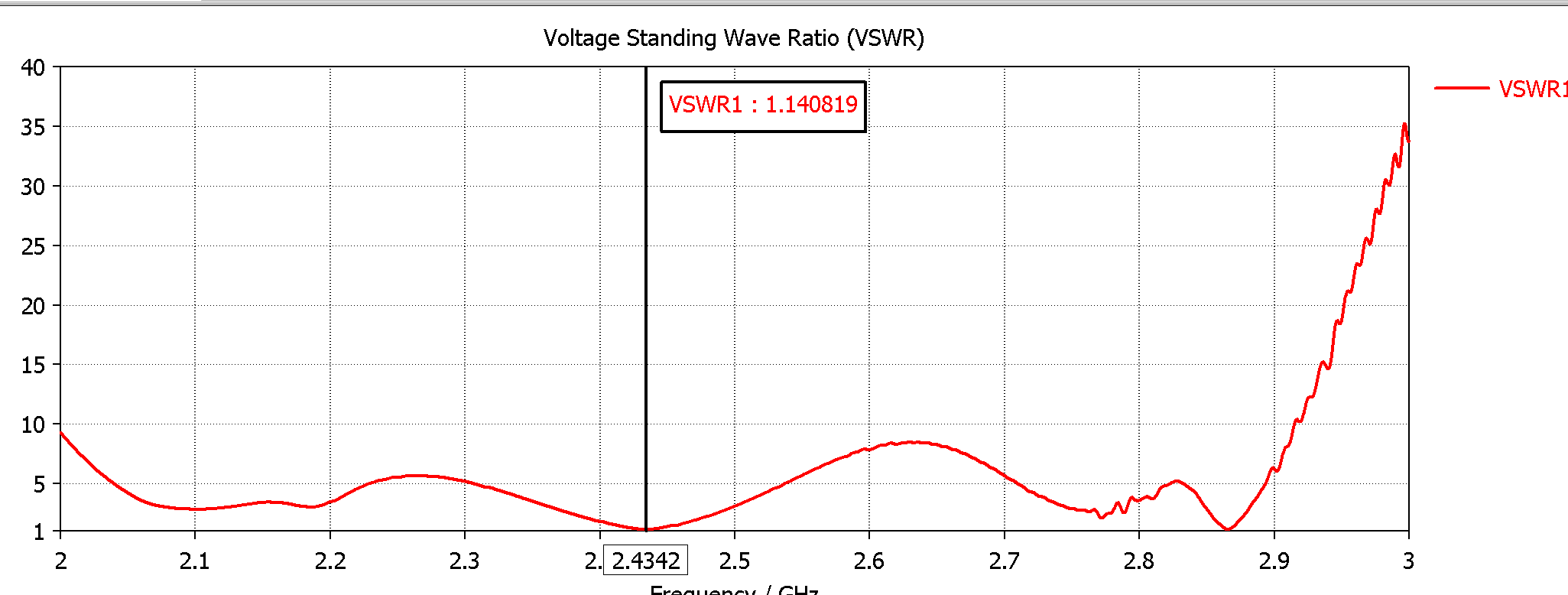

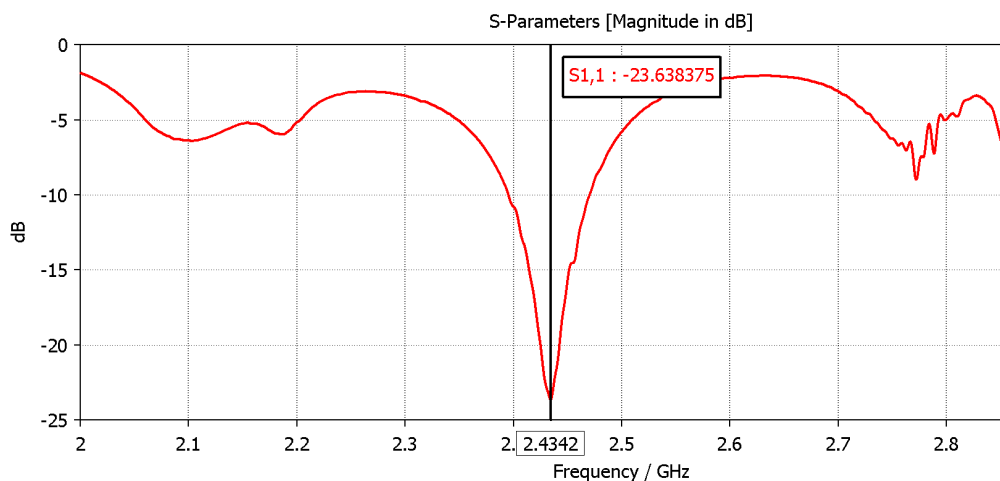

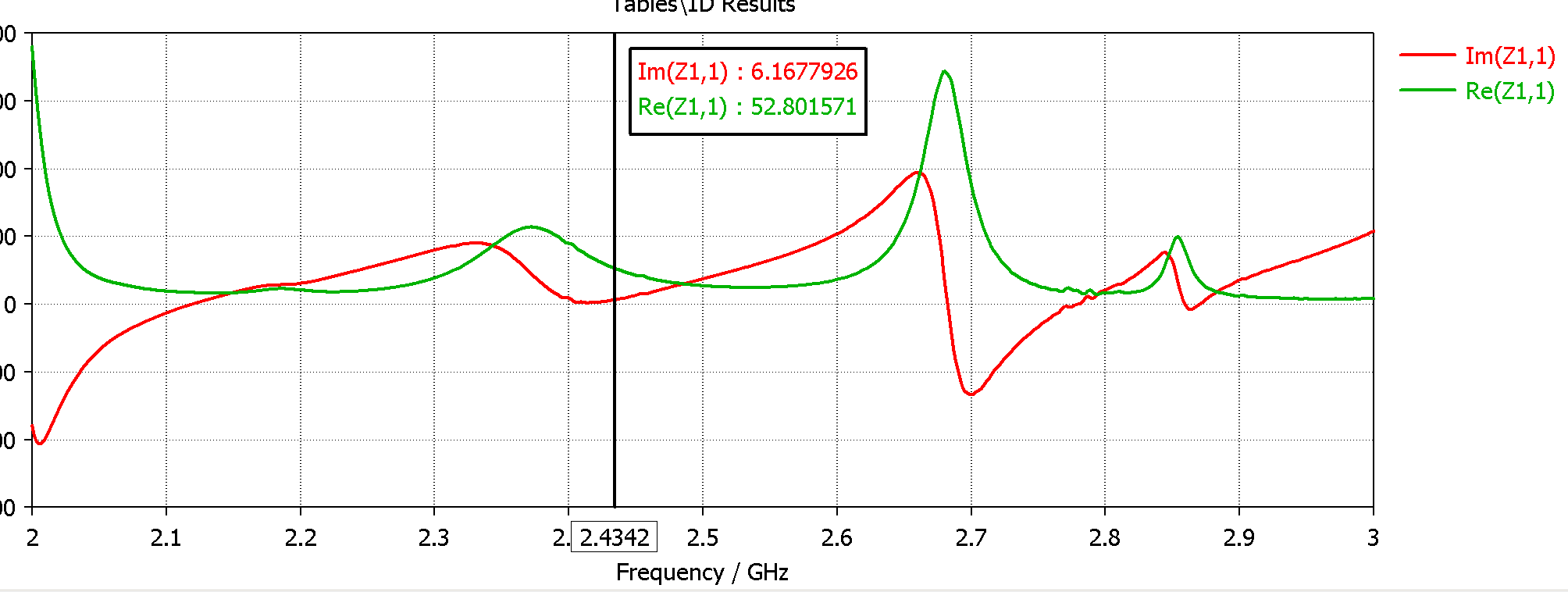

Higher than 21 dbi , good impedance through the whole band,low enough vswr, under -20dbi side lobes...

the original design is for 12,5 ghz and almost none side-lobes Power distribution Ratio 1:5:5:1

Changed it to WiFi ,  distribution ratio 1:1:1:1 (Original design Eliminated Sidelobes at the COST of 1,5-2dbi of gain)

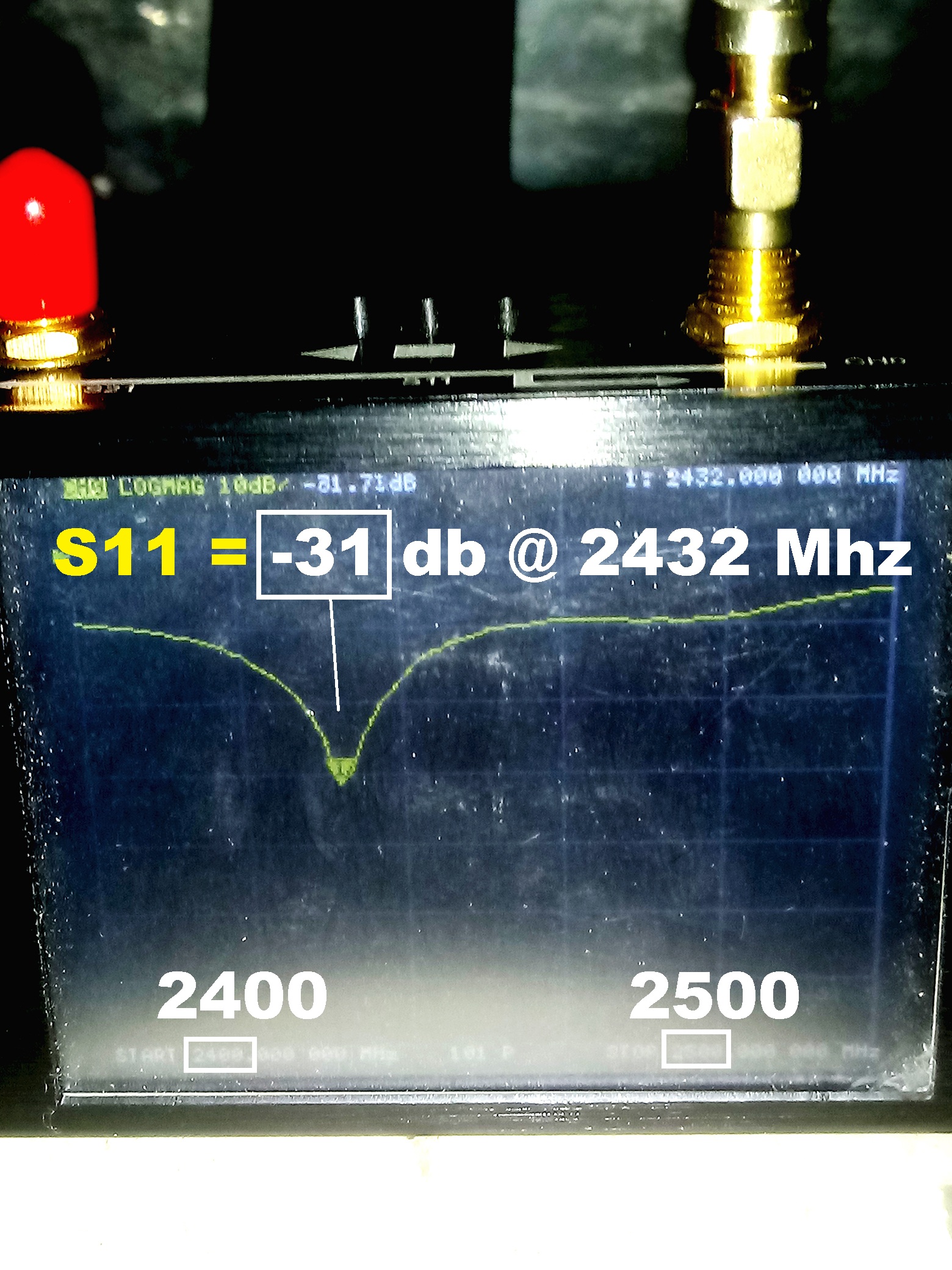

I'm happy (some testing still needed )

REAL dielectric constant of Polystyrene foam is a guess (1.02-1.05)










1 person likes this

Share this post


Link to post
Share on other sites

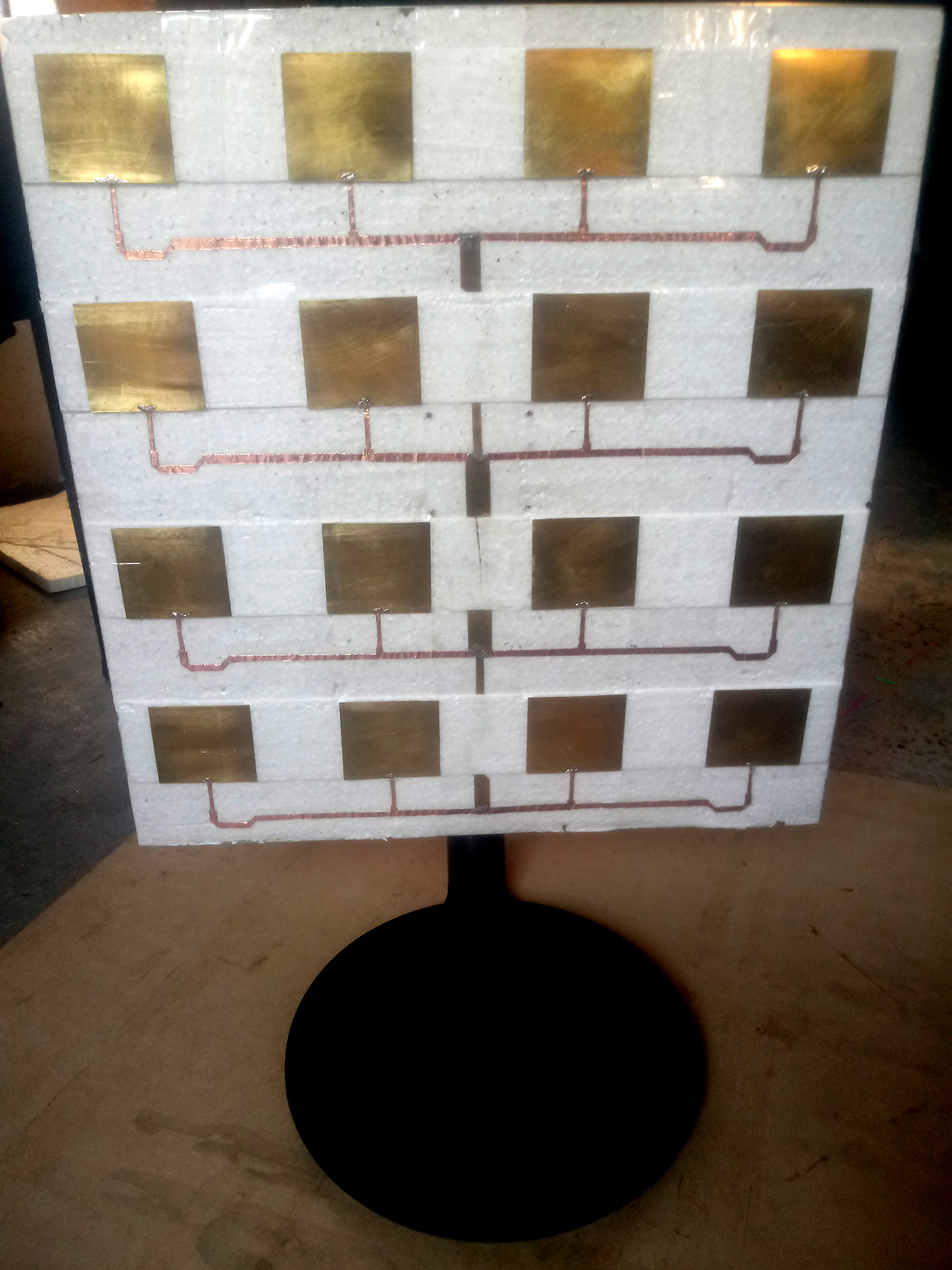

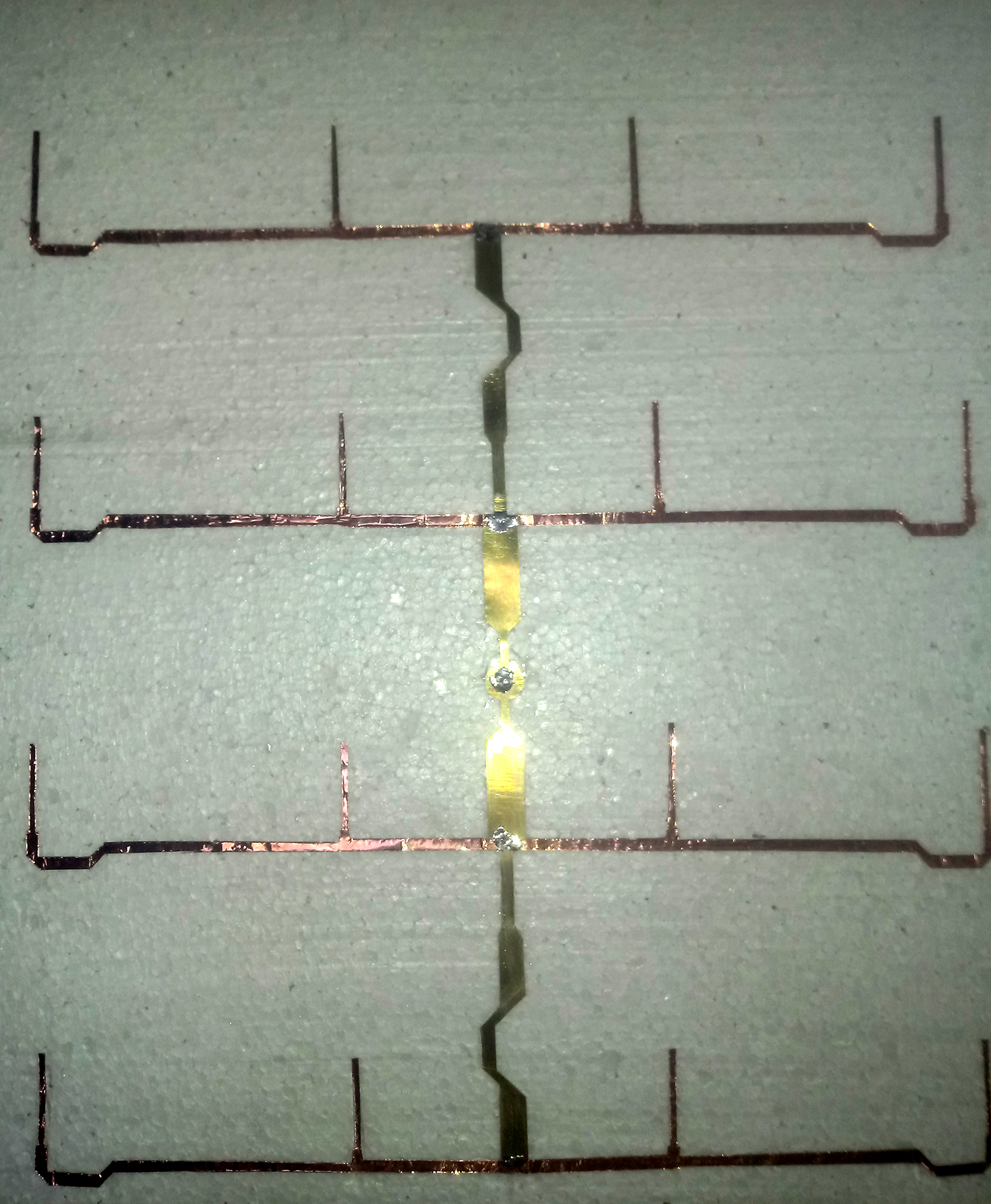

Brass 0.2 mm (patches and Central Feed) , Copper Tape (0.0254 mm) feed branches




1 person likes this

Share this post


Link to post
Share on other sites

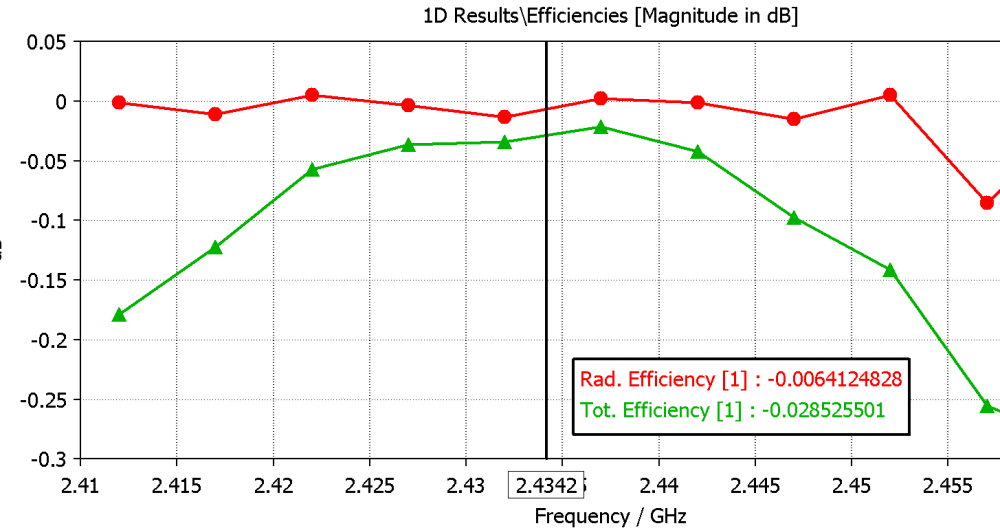

Efficiency of Polystyrene foam ...is unbeatable...

More losses on metal than dielectric...




Share this post


Link to post
Share on other sites

Feed network is at 2 mm from Aluminum Reflector , Patches are at 4 mm from Reflector...

There's a "tendency" these days to believe that Laser cutting-3D printing  and AESTHETICS are a key factor...FALLACY

Energy doesn't care about aesthetics it only Flows were possible , mm or single degrees error don' make much of a difference

BUT dielectric Constant MUST BE KNOWN...to get to the ballpark.

Edited by clanon

Share this post


Link to post
Share on other sites

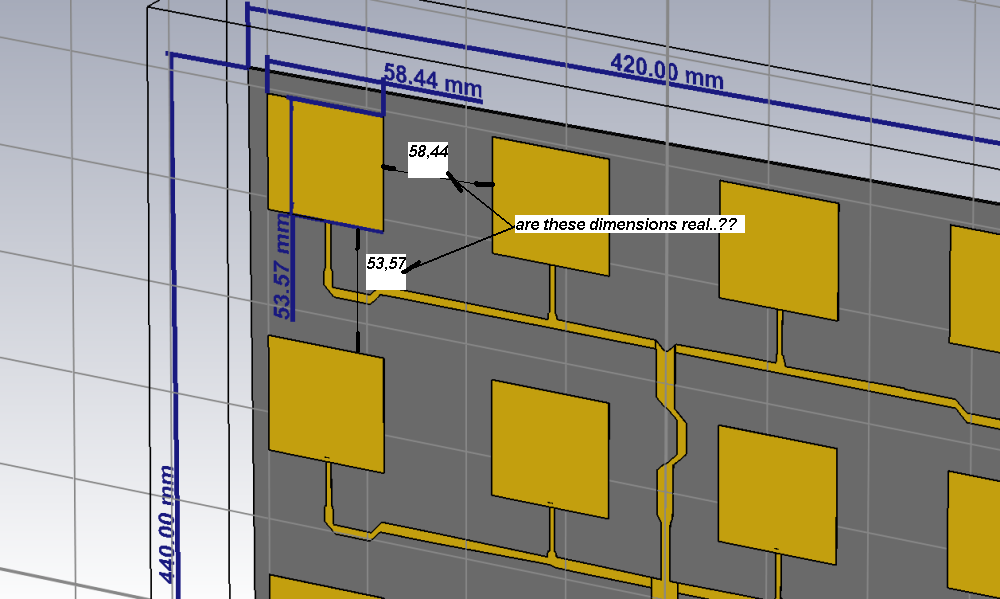

,,, some dimensions, is it possible...??

1 person likes this

Share this post


Link to post
Share on other sites

i have A model (my ssd failed with the original but i had the dimensions on paper) could put the dxf of the feed and patches are ALL the same

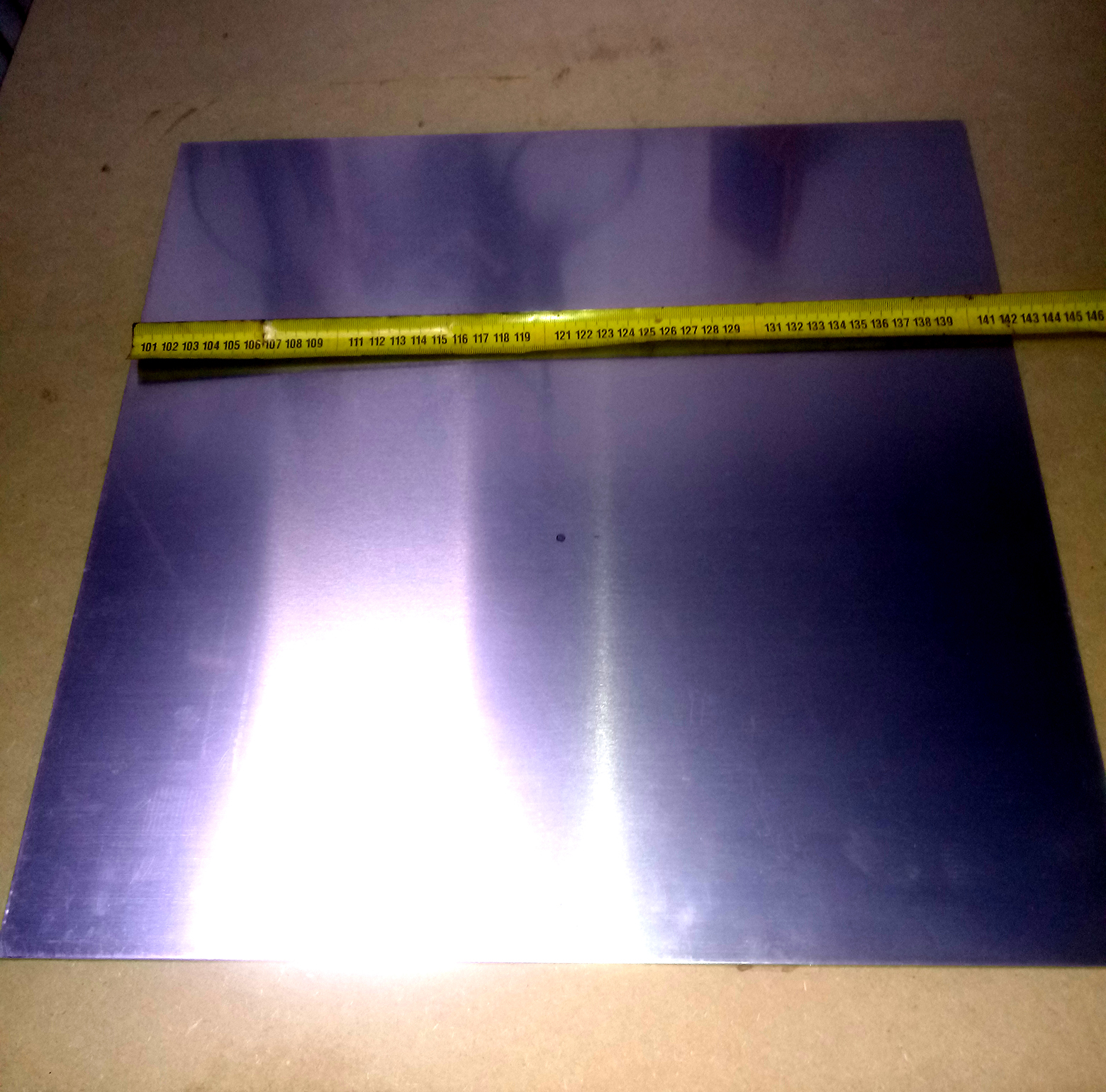

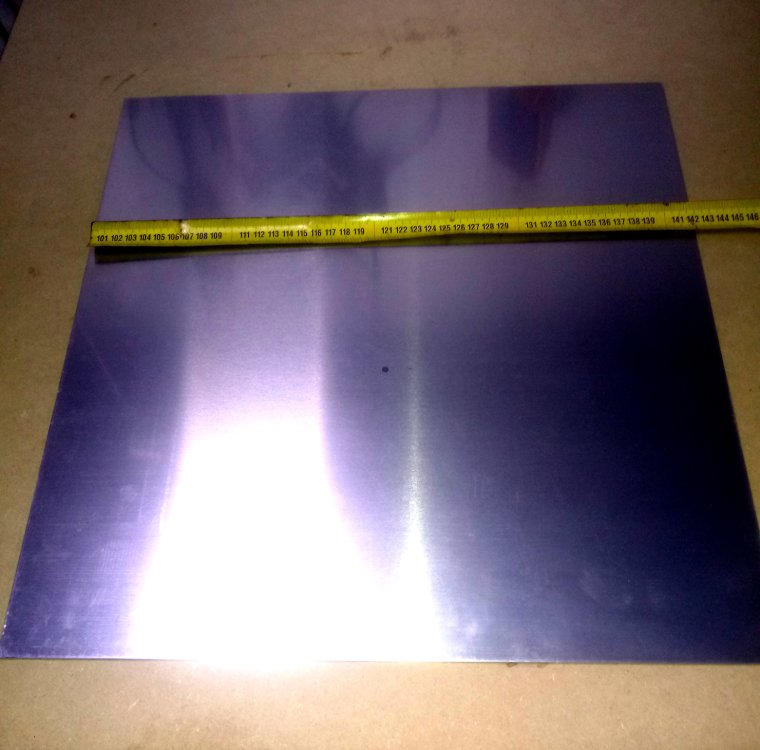

42 by 44 cm reflector

Model should be customized to Dielectric used in each case



branches.dxf

Centerfeedline.dxf

patches.dxf


Edited by clanon

Share this post


Link to post
Share on other sites

Styrofoam (lowest density better)

cut with resistance wire (nichrome) at 2 mm flat




Share this post


Link to post
Share on other sites

,,,but if galvanized sheet and wire supply lines are used....???

1 person likes this

Share this post


Link to post
Share on other sites

it would be interesting...could be Laser cut or stamped...Wires have more REACTIVITY (Imaginary Z) Inductive reactance...impedance curve is always smaller...2mm copper ...maybe...

Copper tape is easy to cut with cutter under print drawing taped on top...perfect

you get more losses in the metal distances should stay the same and sizes...

to keep a good Impedance and low 2 mm or LESS from reflector the Feed network

Patches 4 mm or more from reflector (there is a step of 2 mm)


Edited by clanon
1 person likes this

Share this post


Link to post
Share on other sites

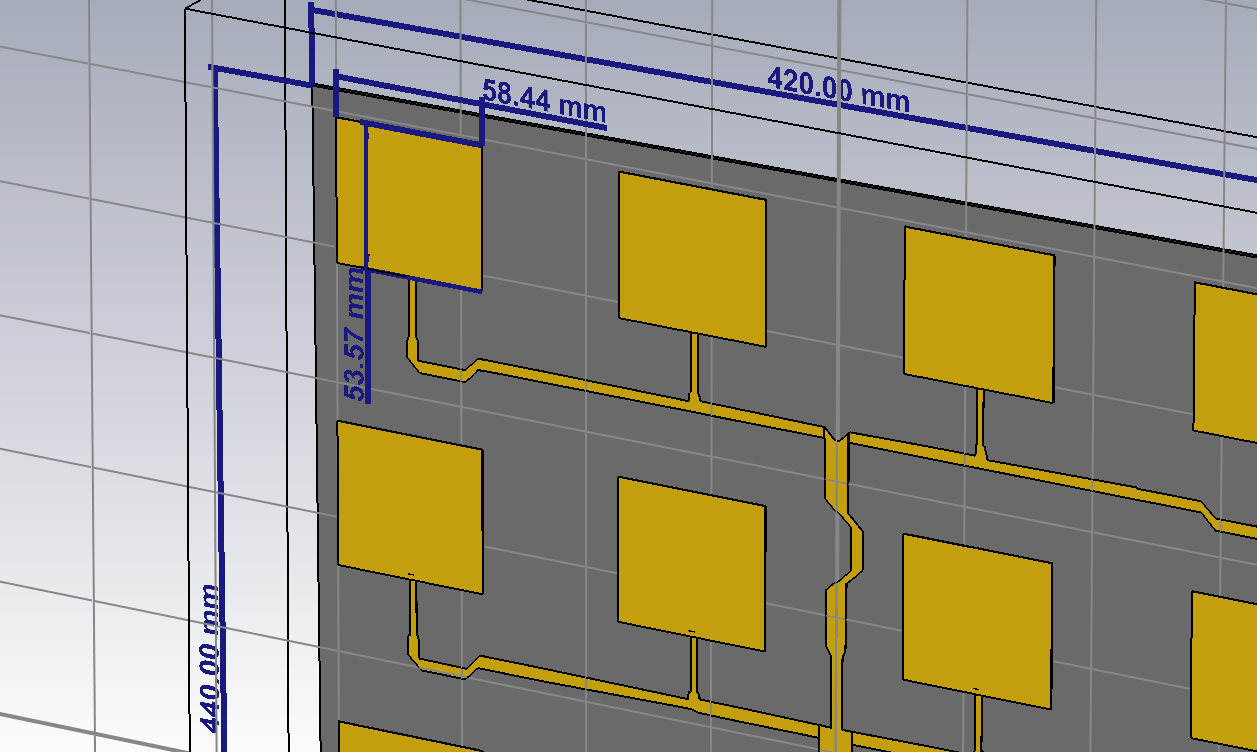

yup...5.84 cm by 5.4 cm...(these are HIGHLY related to the Dielectric Factor , change from 0,4 to 0,5 would change several millimeters these dimensions)

Share this post


Link to post
Share on other sites
On 3/11/2023 at 3:40 PM, Admin said:

,,,but if galvanized sheet and wire supply lines are used....???

I would give it a go ...BUT with circular patches...we'll see...(you had one like that YEARS ago... mimo...remember...

1 person likes this

Share this post


Link to post
Share on other sites
On 3/11/2023 at 2:06 PM, clanon said:

Styrofoam (lowest density better)

cut with resistance wire (nichrome) at 2 mm flat




Hi Guys, What is the loss tangent of this material?

1 person likes this

Share this post


Link to post
Share on other sites

one of the LOWEST in the world 0.0003  at 3000 mhz  , only one better Polypropylene...at higher frequencies...5.8 ghz ideal...




Edited by clanon

Share this post


Link to post
Share on other sites

Very interesting, Thanks for sharing! I was working with Rohacell

Since it has very low relative permittivity and low tangent loss too.

Captura de pantalla 2023-11-24 115734.png

1 person likes this

Share this post


Link to post
Share on other sites

Water absorption should be adressed in PES foam...Changes ALL.

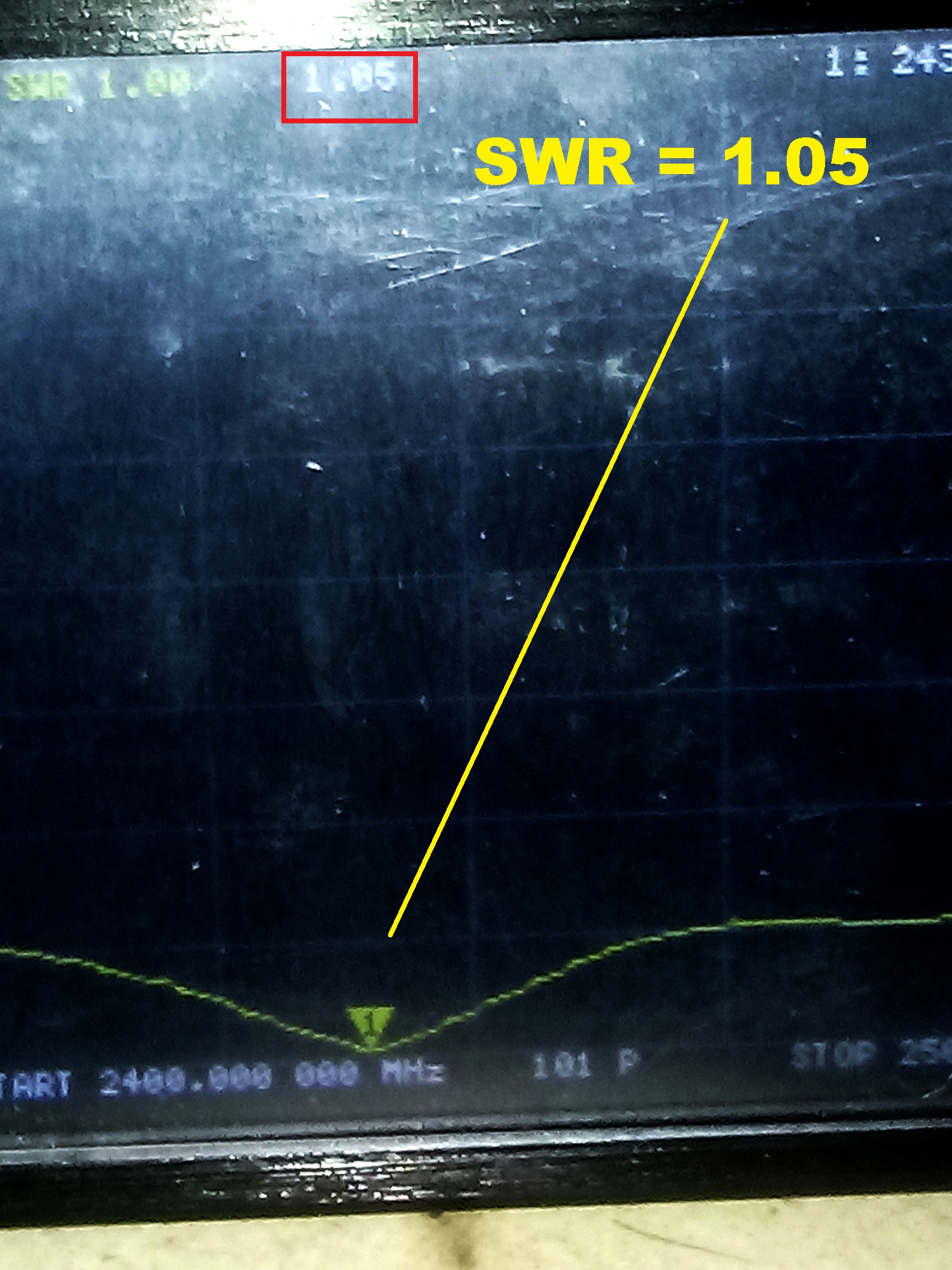

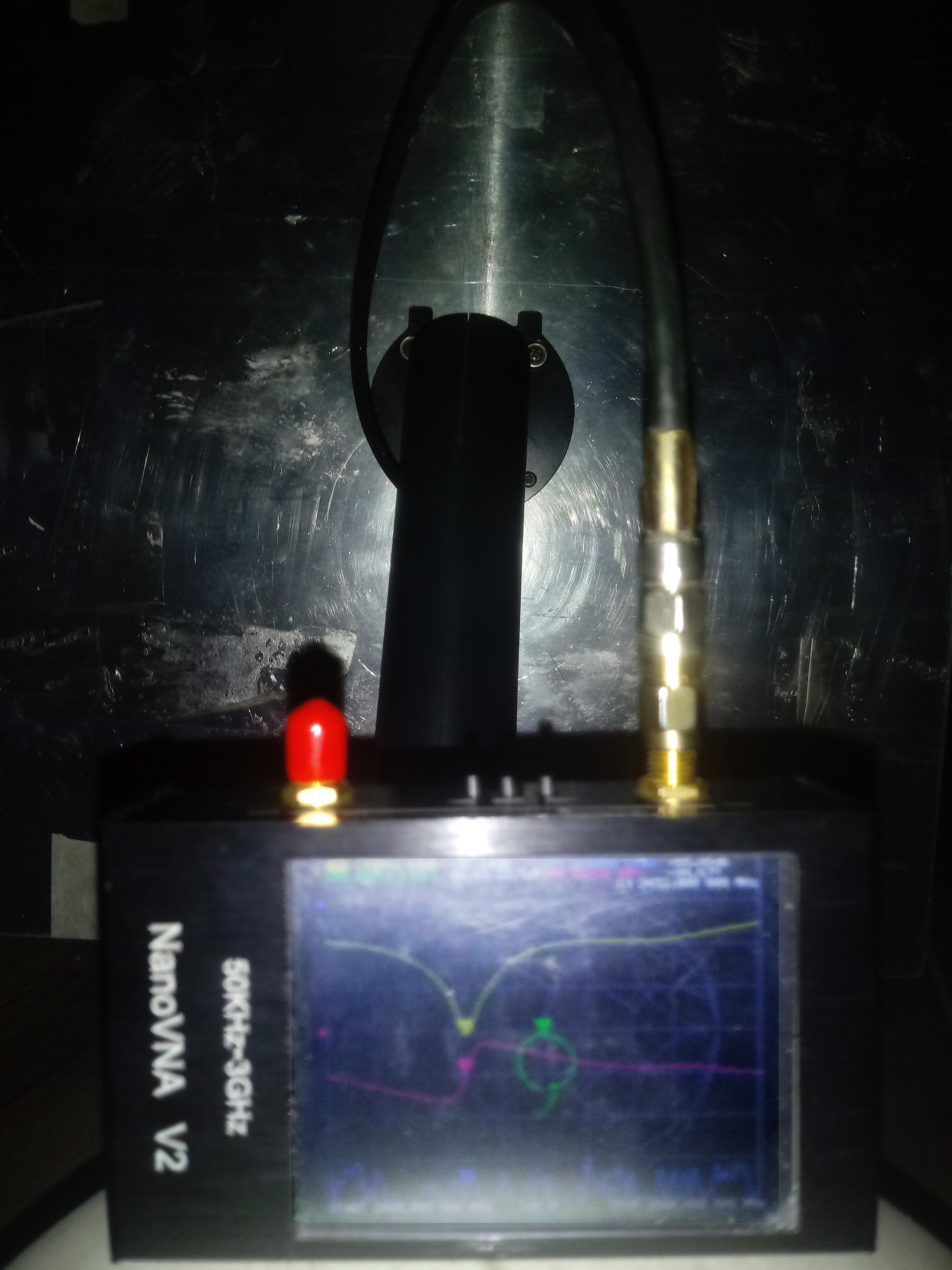

PVC pipe has THIS weirdness...
