Petra-10 MIMO 4x4-Universal

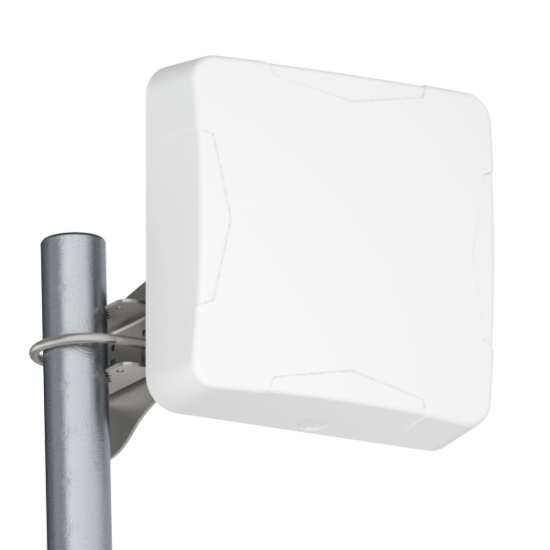

Petra-10 MIMO 4x4-Universal compact panel antenna for 4G / 5G modems and routers that support MIMO 4x4 technology. F=1700-5000MHz, CU=7-12dBi, connectors 4 x N-female, X-pol, decoupling between channels of more than 20dB.

 The PETRA-10 MIMO 4x4 panel antenna is designed for use in a set of equipment for 4G (B1, B3, B7, B38, B40) and 5G (N77, N79, N78) wireless data transmission systems at frequencies of 1700-5000 MHz.

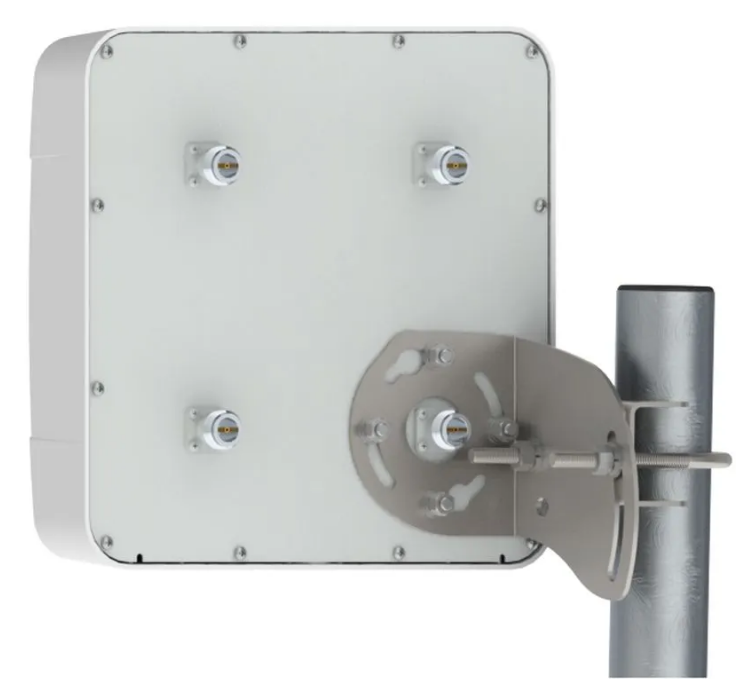

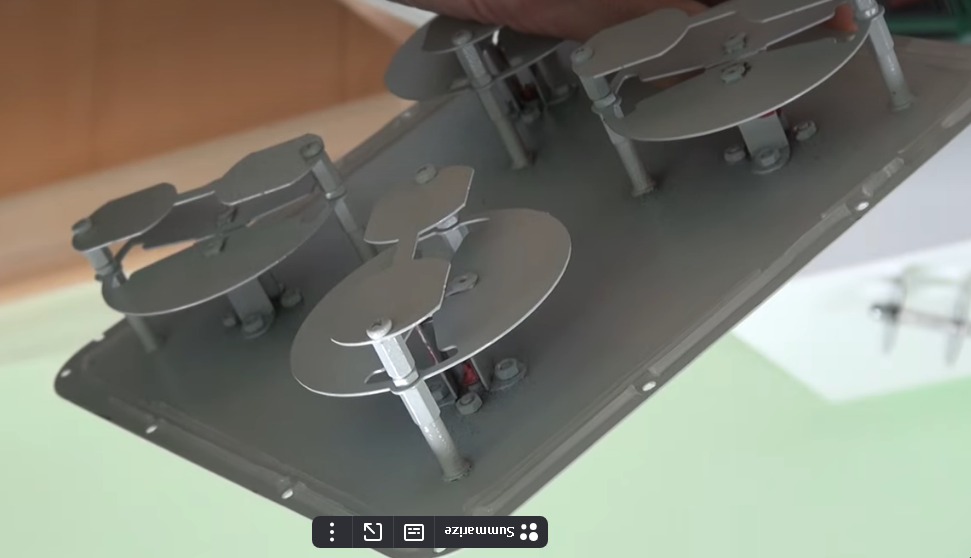

This antenna is compatible with MIMO 4x4 equipment, as it has four connectors for connecting to the equipment. You can also connect two modems with MIMO 2x2 technology to the antenna for redundancy/summation of communication channels.

                 Advantages of the PETRA-10 MIMO 4x4 antenna :

The wide band of the antenna allows you to work in all current and future fastest cellular communication bands

Full support for MIMO 4x4 technology.

Active emitters are reliably protected from precipitation by a housing made of UV-resistant plastic and have an extended service life

The antenna inputs are short-circuited by direct current between the external and internal conductors, which reduces the probability of static electricity accumulation at the modem input and makes the use of a lightning arrester optional (with a small length of the connecting feeder between the modem and the antenna).

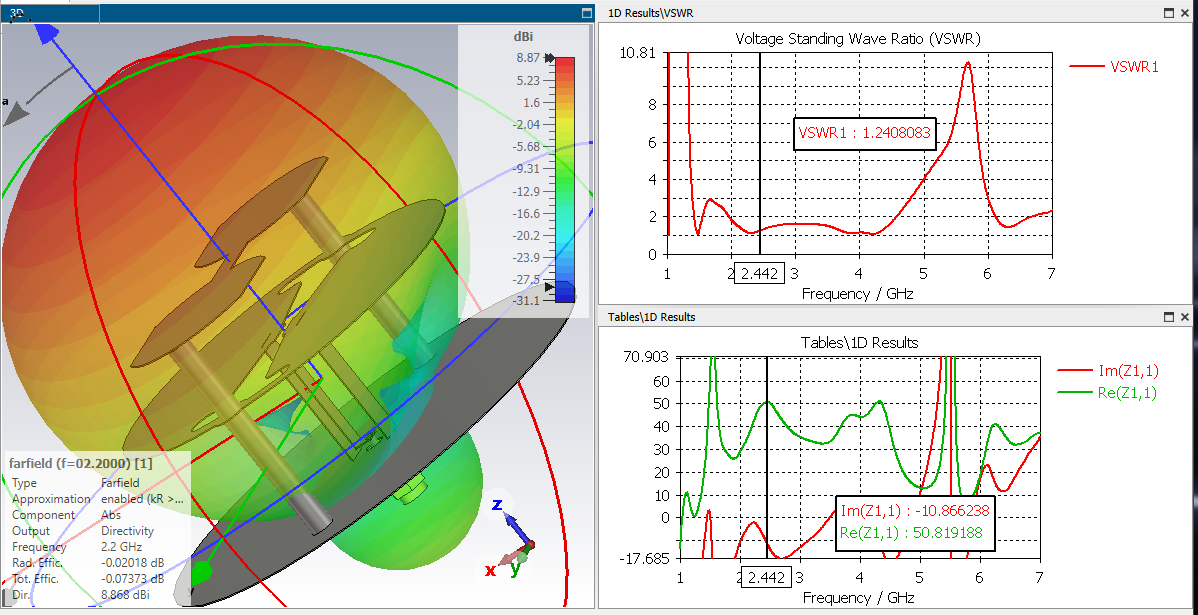

       Electrical characteristics

Operating frequency range, MHz 1700÷5000

Gain factor, dBi 7.0÷11.5

Bottom width in the H-plane, deg 47÷73

Bottom width in the E-plane, deg 46÷72

Side lobe level, max -12 dB

Decoupling between ports in the operating range, not less than 23 dB

Input impedance, Ohms 50

SWR in the operating frequency range at the inputs, max. 1.8

Permissible power, W 10

Slope of polarization of received / emitted waves -45°/+45°(X-pol) or 0° / 90°(V/H)

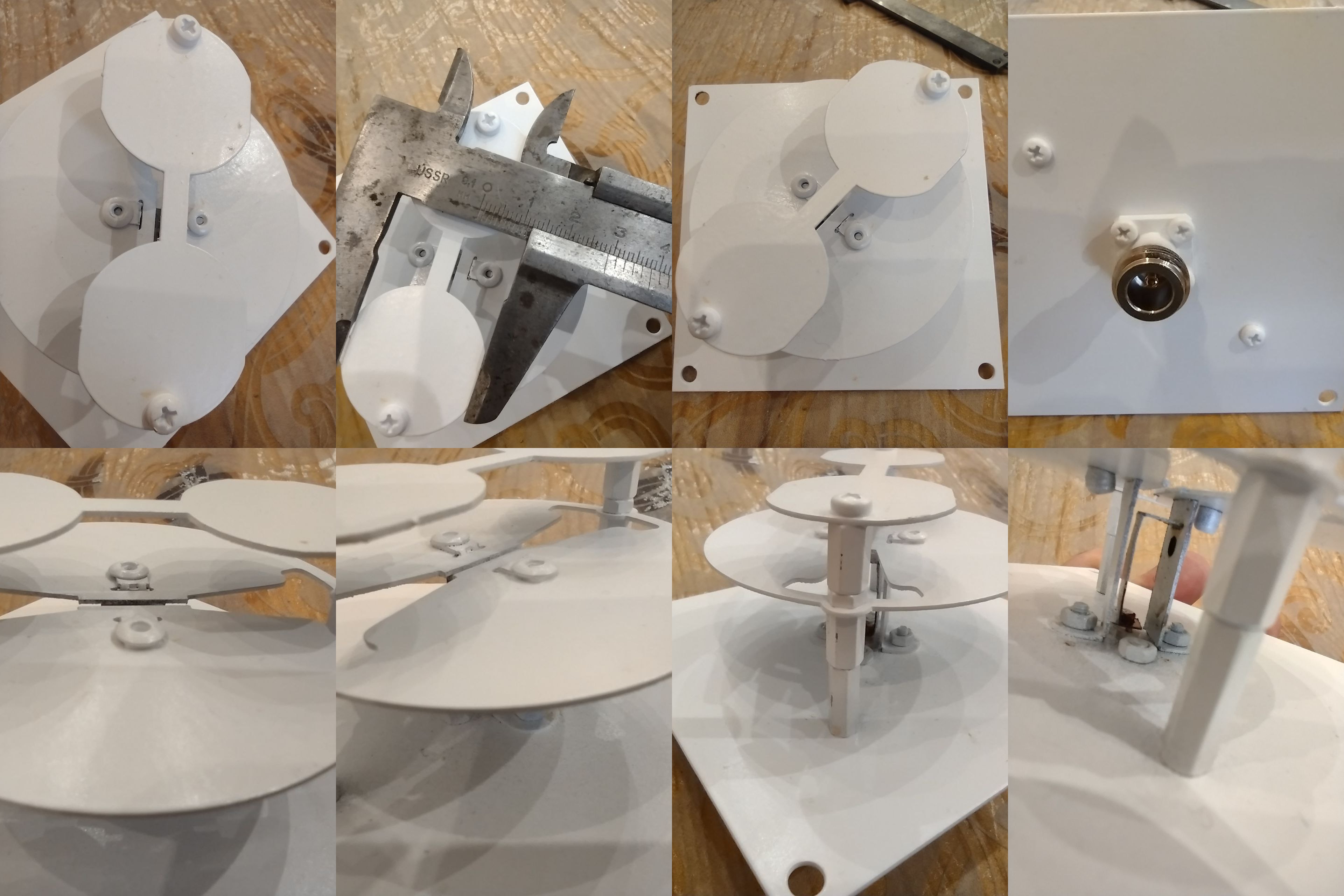

     Mechanical characteristics

Antenna weight, g 1185

Mounting on a pipe with a diameter of, mm 30-52

Operating temperature range -60°C to +80°C

Overall dimensions without mounting, m 0, 2x0, 2x0, 08

Permissible wind speed, m / sec 25

Connectors 4 x N-fe male

Material of the protective cover- Polycarbonate

Antenna and mount material -Steel, Galvanized steel, Brass
