DC13th

Copy Of Antenna Mimo 16dbi - 120° China Product

71 posts in this topic

,,,wow  dude, where did you get that, you got the original?

Share this post


Link to post
Share on other sites
8 hours ago, Admin said:

,,,wow  dude, where did you get that, you got the original?

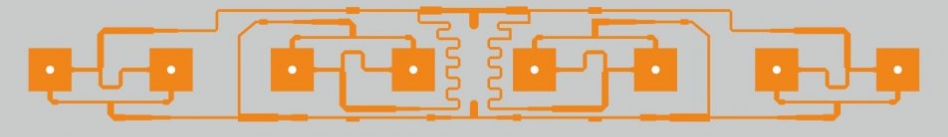

yes i copy it from original antenna

the space between the vibrator to the reflector is 2mm (if it made from the PCB just attach it).

then the distance between the vibrator to the director is 2.5mm (gap)

Share this post


Link to post
Share on other sites

,,, what is the PCB thickness .. ???

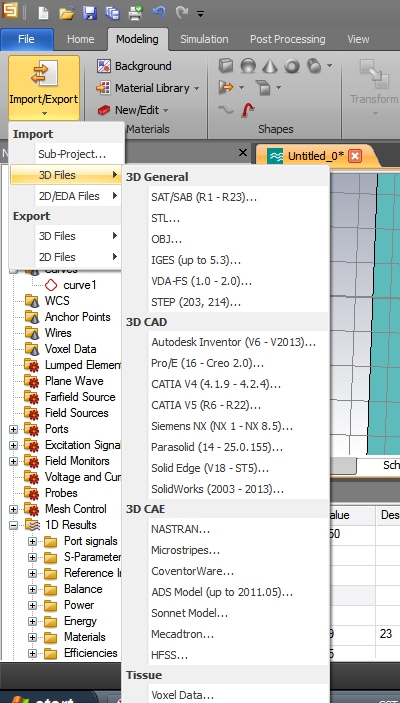

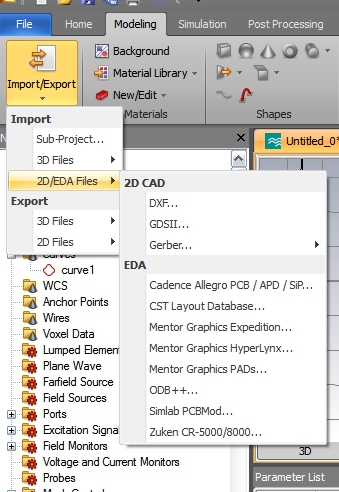

,,, you can give me the antenna in one of these formats, to be able to transform it into cst *







,,,*cdr ,and *dxf don"t work in cst simulator...!!!!

Share this post


Link to post
Share on other sites
1 hour ago, Admin said:

,,, what is the PCB thickness .. ???
,,, you can give me the antenna in one of these formats, to be able to transform it into cst *







,,,*cdr ,and *dxf don"t work in cst simulator...!!!!

PCB thickness is 1,5mm reflector thickness is 2mm

ok try this file

5Ghz 16dbi.stl

Copy 5Ghz 120.dwg

Copy 5Ghz 120.obj

Edited by DC13th

Share this post


Link to post
Share on other sites

okay, thank you..!!!

1 person likes this

Share this post


Link to post
Share on other sites

OK, with format file can you open it



Share this post


Link to post
Share on other sites

size of Director 340,0 x 20,0 mm

and Vibrator is 370,0 x 45,0 mm

(Dimension all of it)

Share this post


Link to post
Share on other sites

,,,, if you have the cst file why do not you do a simulation with the program...!!???

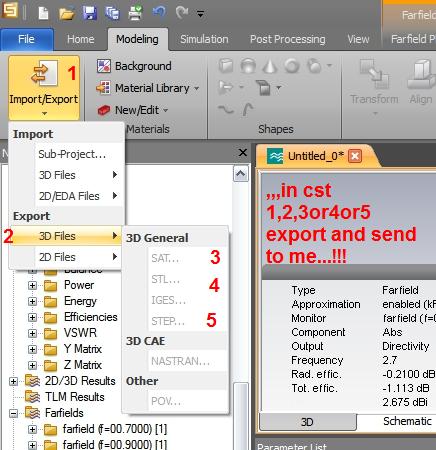

,,,thanks dude,good, but you can extract to me from *cst file, *sat file or *igs file ,only for metallic copper part...???

Share this post


Link to post
Share on other sites
1 hour ago, Admin said:

,,,, if you have the cst file why do not you do a simulation with the program...!!???

,,,thanks dude,good, but you can extract to me from *cst file, *sat file or *igs file ,only for metallic copper part...???

i dont know to use it, its new for me

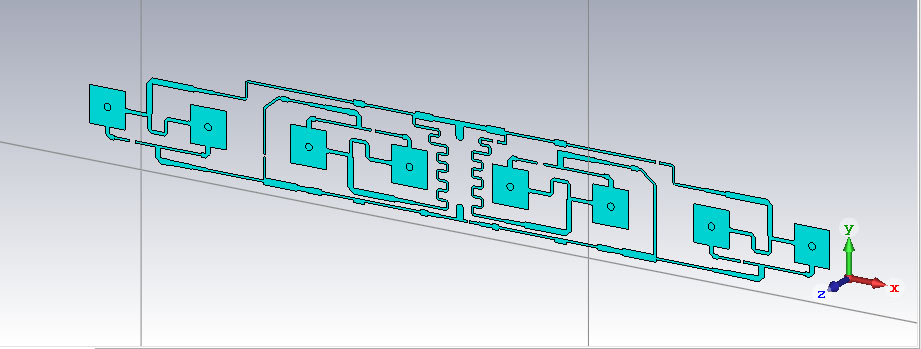

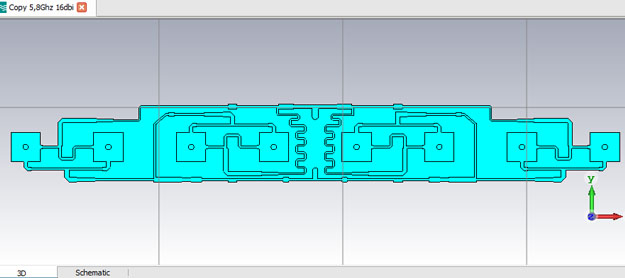

u mean like this


Copy 5,8Ghz 16dbi.cst

Share this post


Link to post
Share on other sites

good, but how did you configure this on cst...??

Share this post


Link to post
Share on other sites

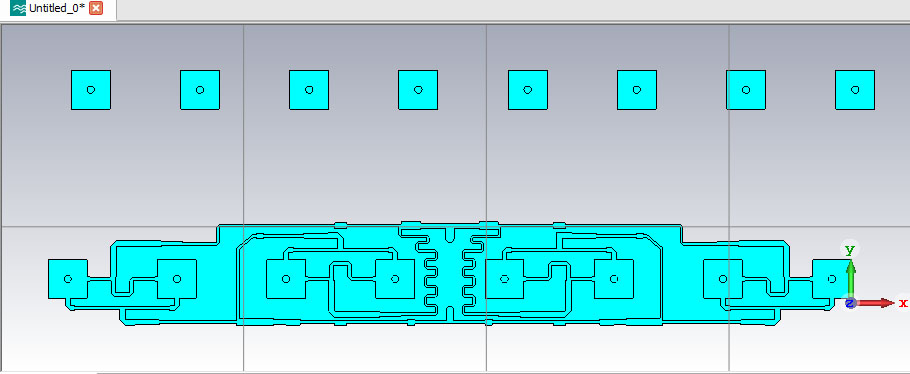

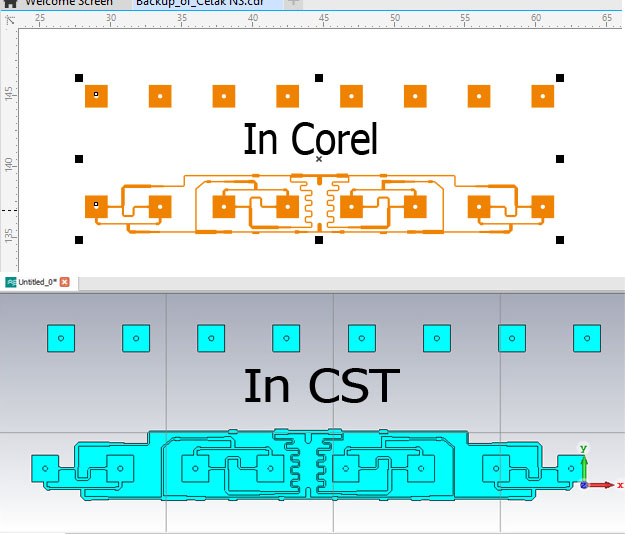

from corel i export to *dxf file format

and i import it to CST

in CST i dot know to remove un use component or select componet




Share this post


Link to post
Share on other sites

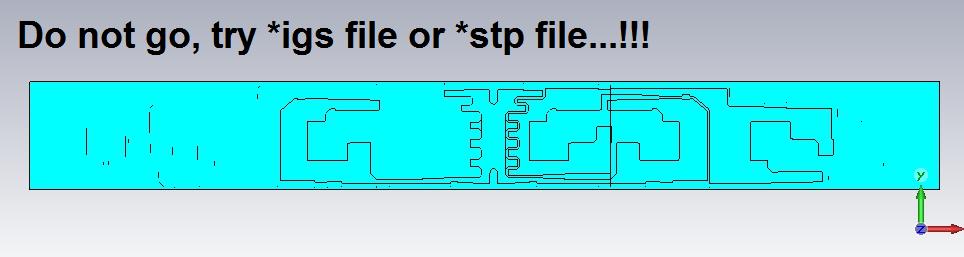

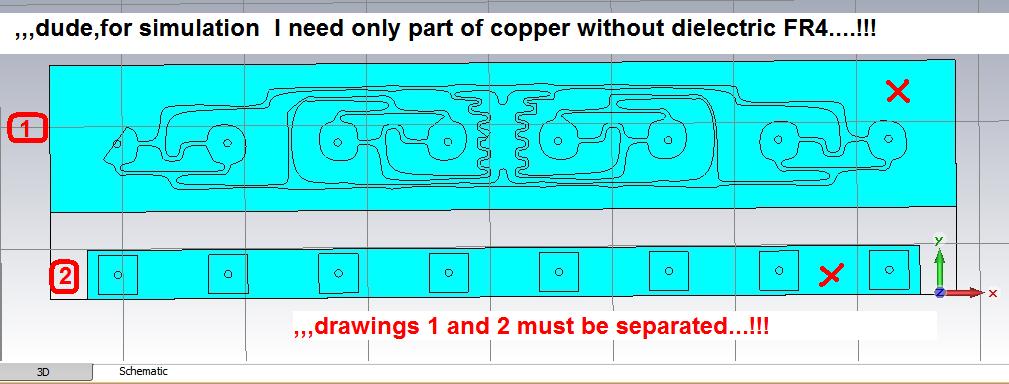

I was almost sure of this, but it can not be in that way...~!!!

,,,only this copper part has to appear...


Share this post


Link to post
Share on other sites

,,, hey buddy, why do not you try to study this post...???



1 person likes this

Share this post


Link to post
Share on other sites
1 hour ago, Admin said:

,,, hey buddy, why do not you try to study this post...???



OK i will

Share this post


Link to post
Share on other sites
