Homemade GSM 900 patch antenna for passive repeater.

[Admin 2814]

The antenna must work both for reception and transmission, so its range is from 890 (880) to 960 MHz, where the 890-915 MHz range provides transmission from the cell phone to the base station, and the 935-960 MHz range provides transmission from the base station to the phone.

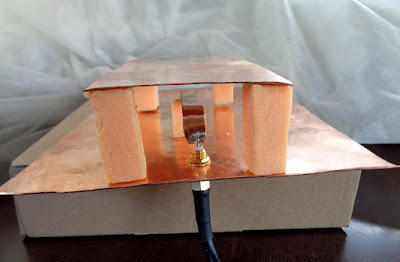

A suspended plate patch antenna is an analogue of a microstrip antenna. Its advantage is its small size and ease of manufacture.

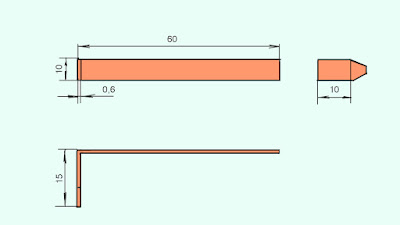

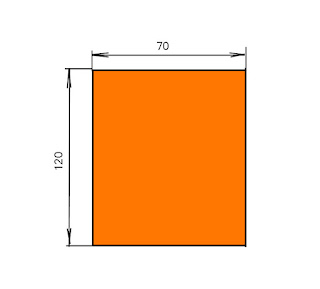

These are two plates and an L-shaped vibrator. The antenna elements can be made of copper, brass, or aluminum.



,,,by...http://dedclub.blogspot.com/2018/06/gsm-900.html

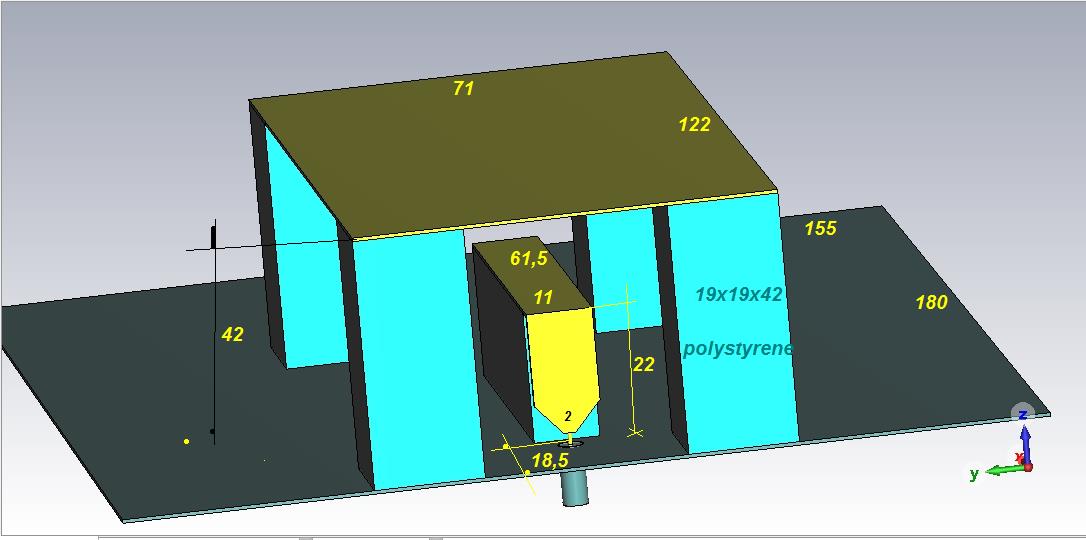

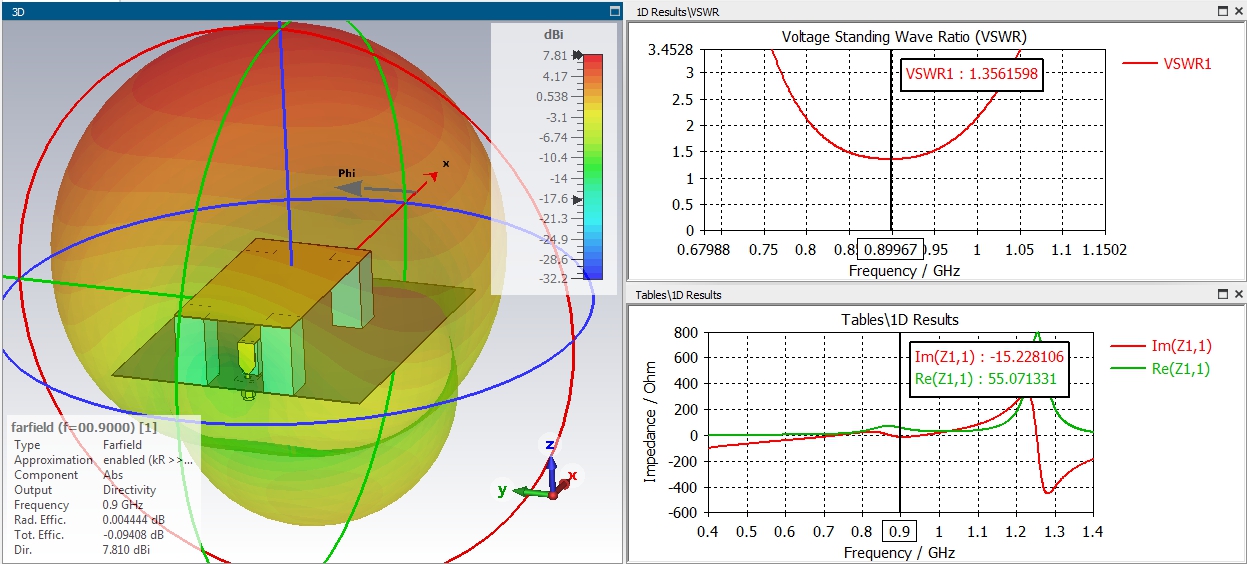

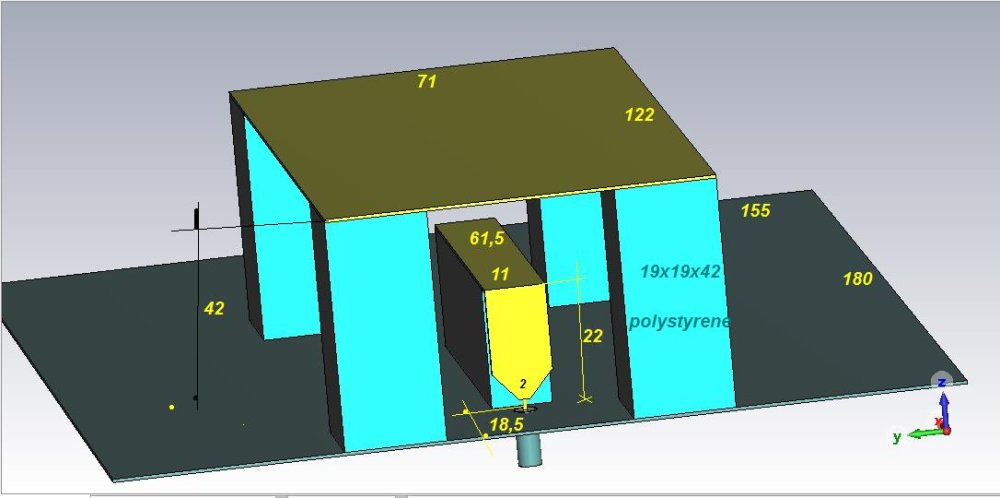

,,,simulation with slightly modified dimensions...!!!

[Hamza 47]

Interesting   want to try. It.    Jomy plz Wich modification are done ?

[Hamza 47]

I want to try  one for 75 ohm  as repeater

[Admin 2814]

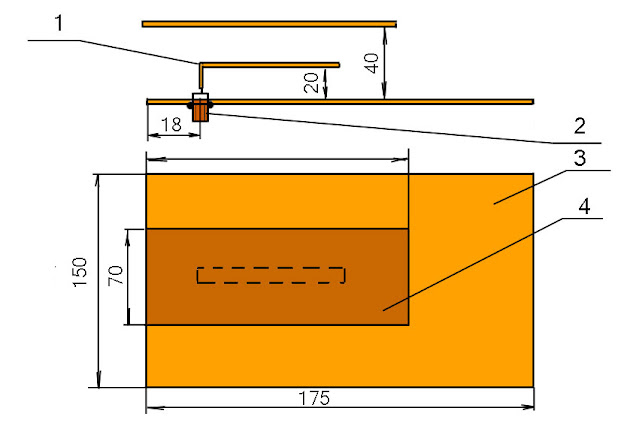

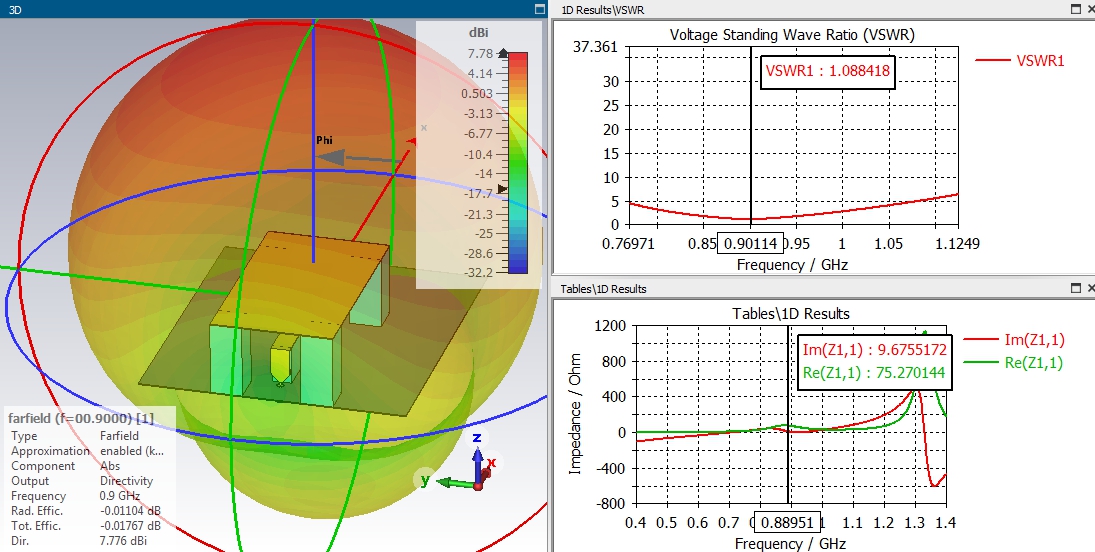

,,,for 75 Ohm impedance...

[Hamza 47]

thanks jomy   health for you  i will use  nylon bolt for support



[Uyek 0]

for the 1800 mr is there?

[Admin 2814]

50 minutes ago, Uyek said:

for the 1800 mr is there?

,,,yes, it is possible, multiply the above dimensions by k=0.5.

[Uyek 0]

thank you i will make it

[Hamza 47]

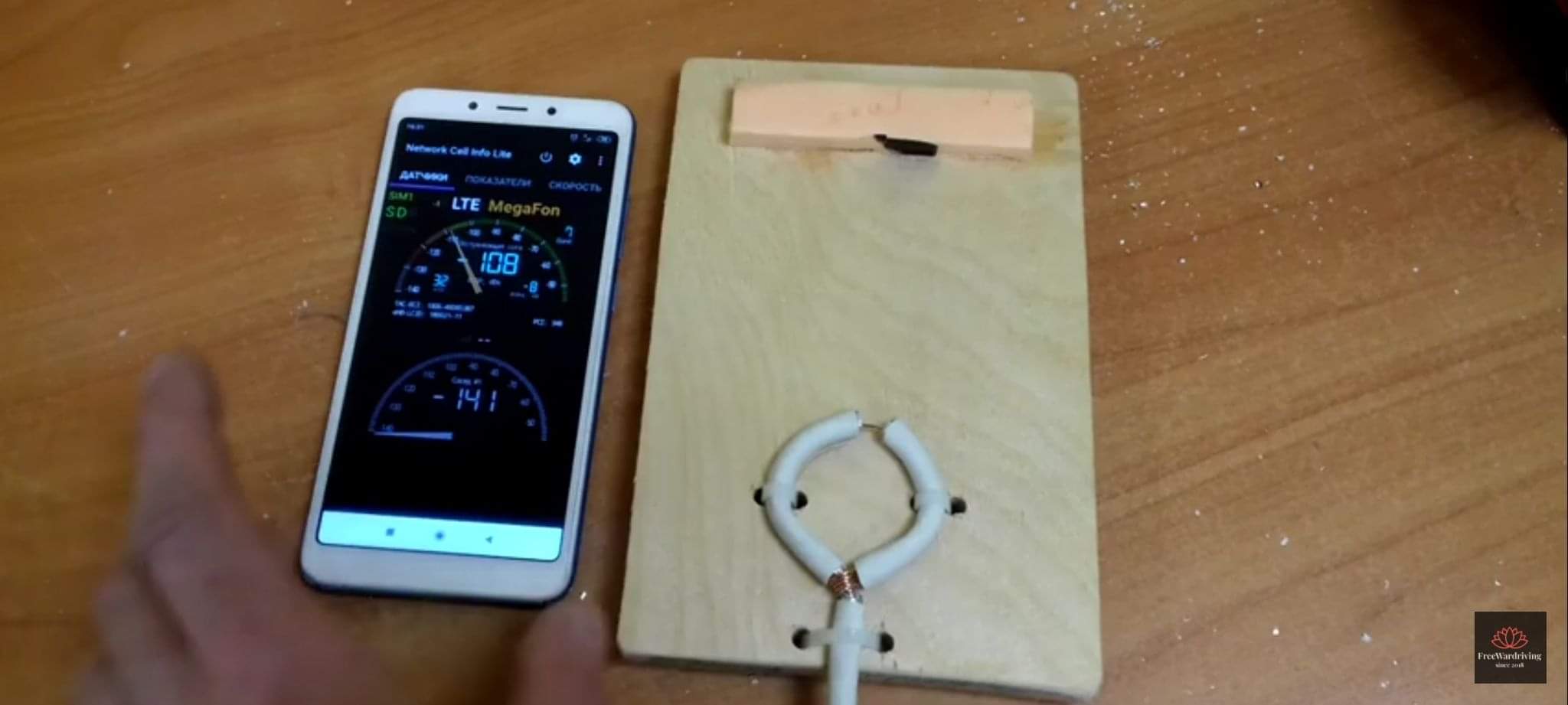

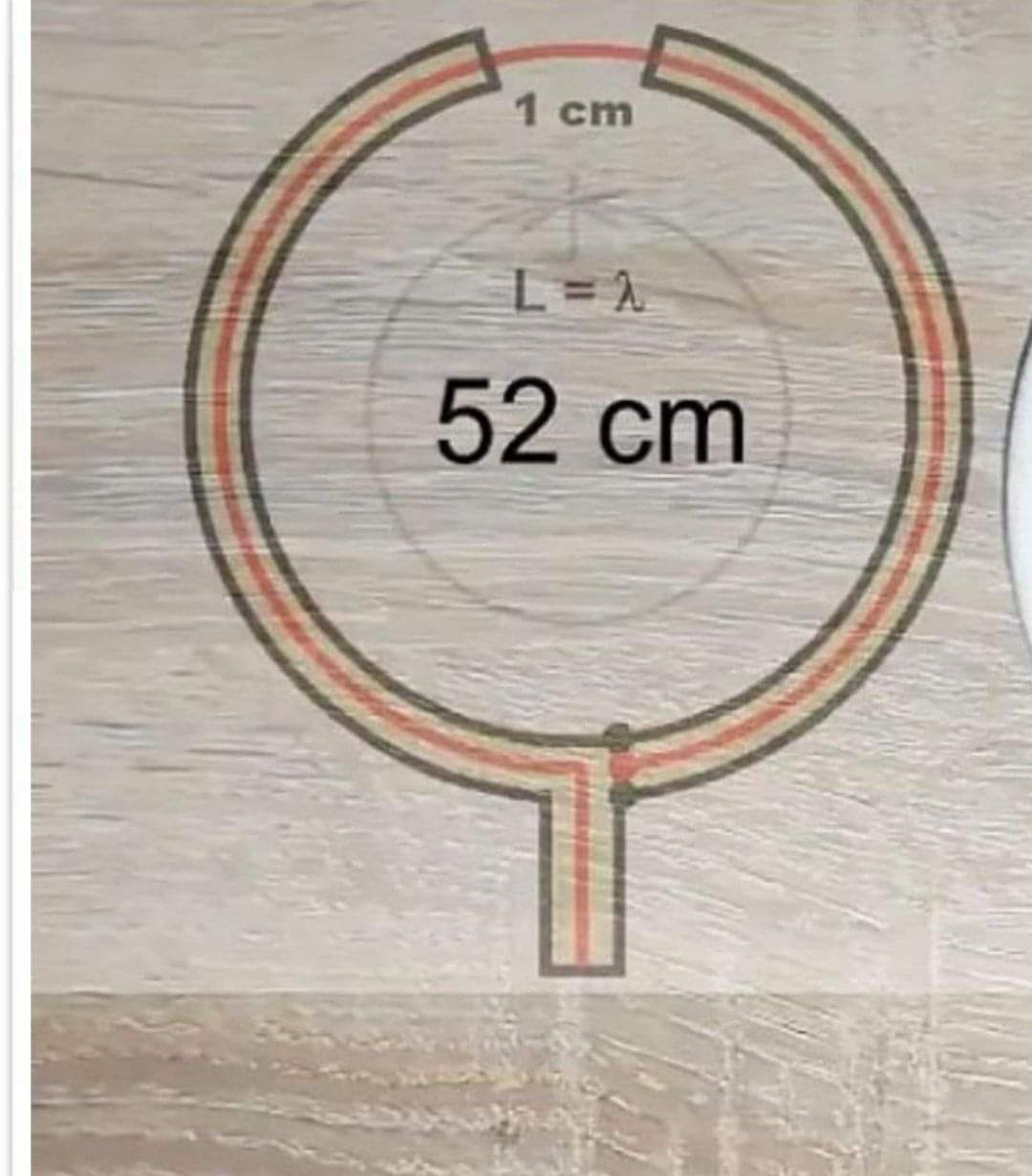

Another repeater conception

[Admin 2814]

,,,,yes, but the shortening factor for the dielectric of the coaxial cable must be taken into account(k=0,6-0,8)...!!!

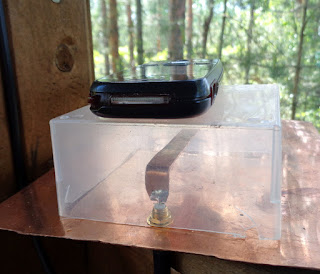

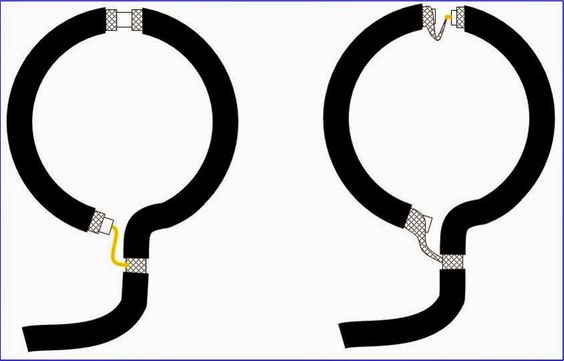

,,,different ways of connecting the repeater antenna...

[Hamza 47]

thank you mister jomy   u are absolutely right  i tried  without dielectic factor  and does not work.!!
