5. 8 GHZ 17 DB HG AAT

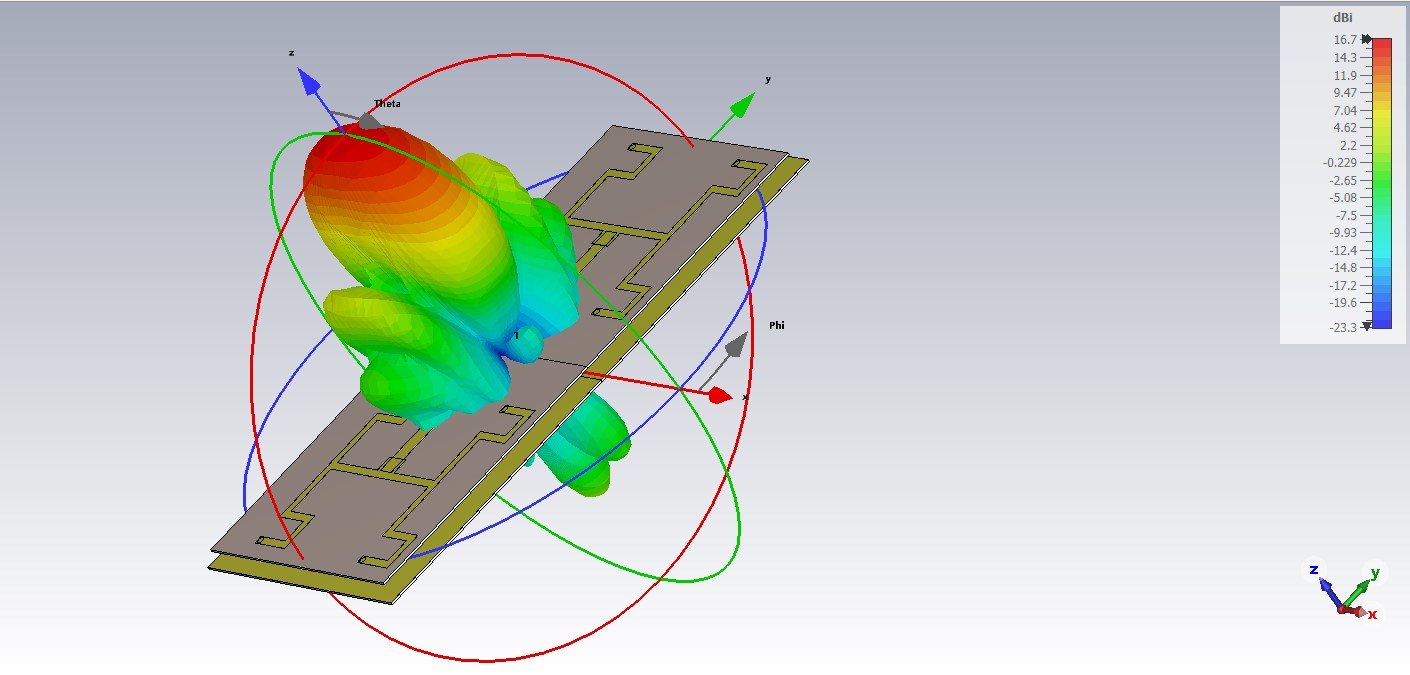

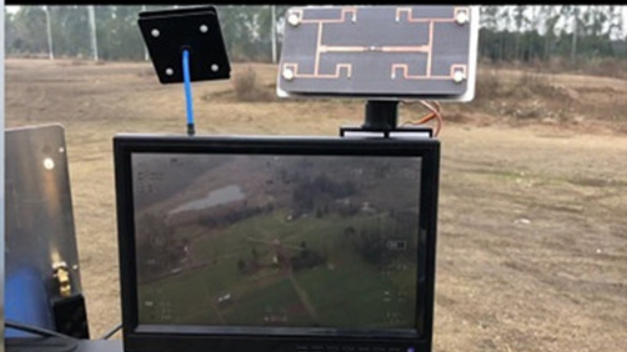

5.8 GHz 17dB High Gain AAT Automatic Antenna Tracker for HD FPV RC Racing Drone

Product Description:
Model: 5.8 GHz 17dB AAT Automatic Antenna Tracker
Frequency Range: 5150-5950mhz
Input impedance: 50Ω
VSWR at surface level: <1.5
Antenna Gain: 17dBi

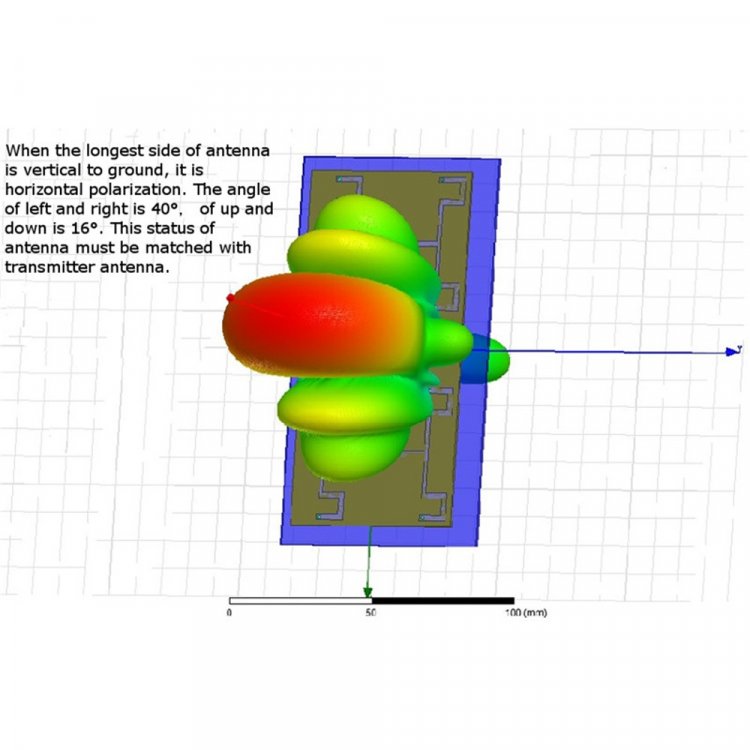

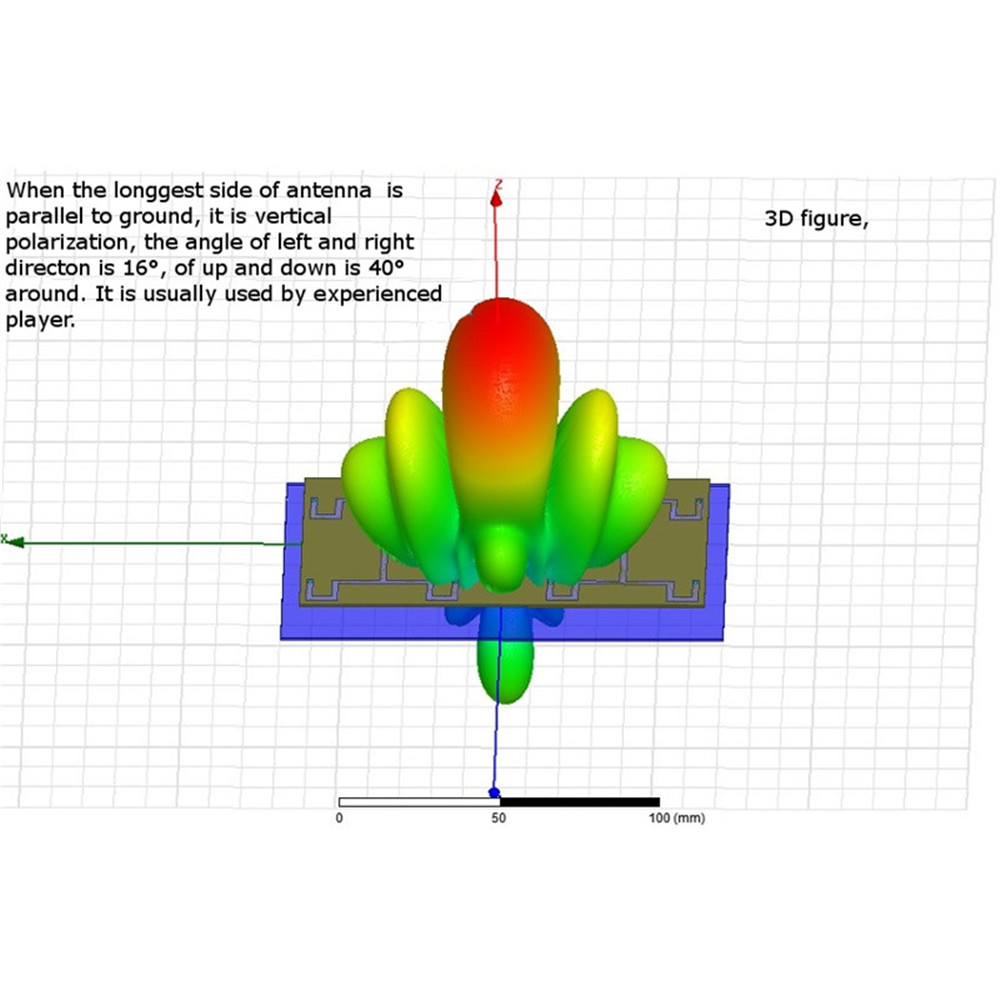

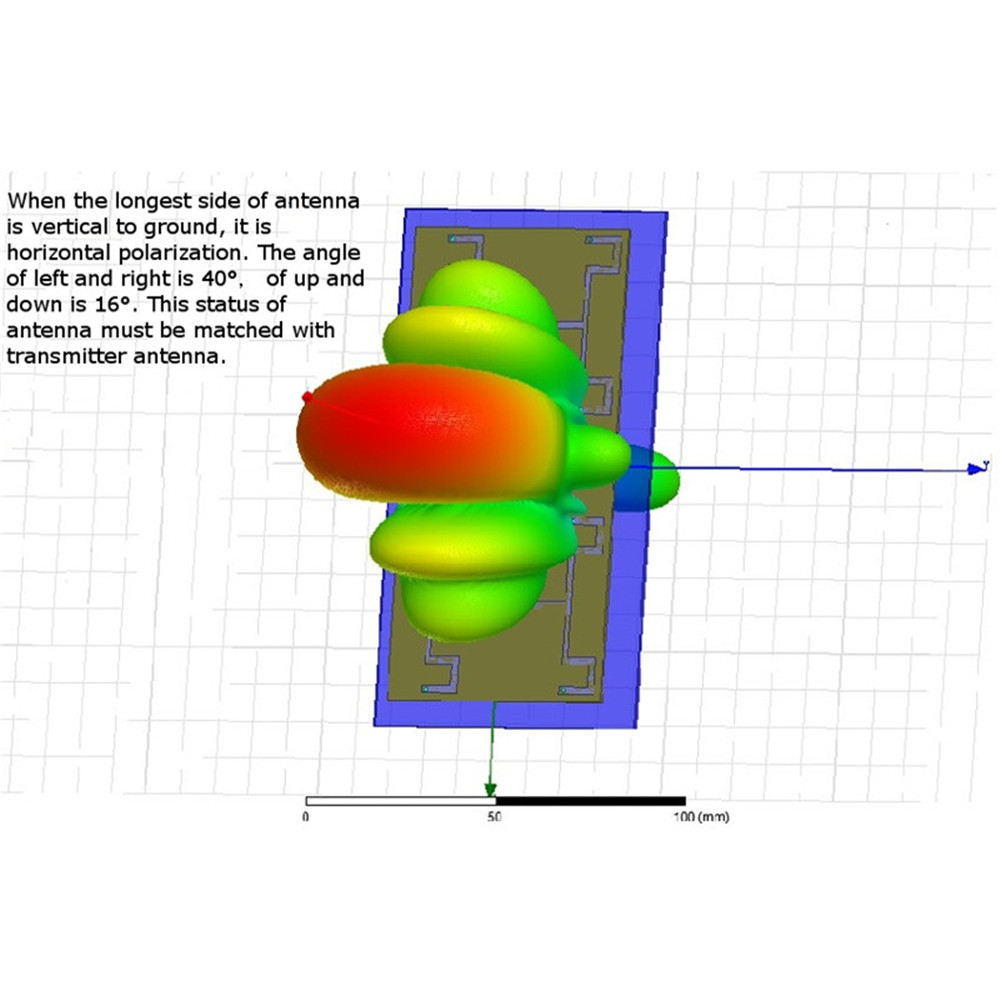

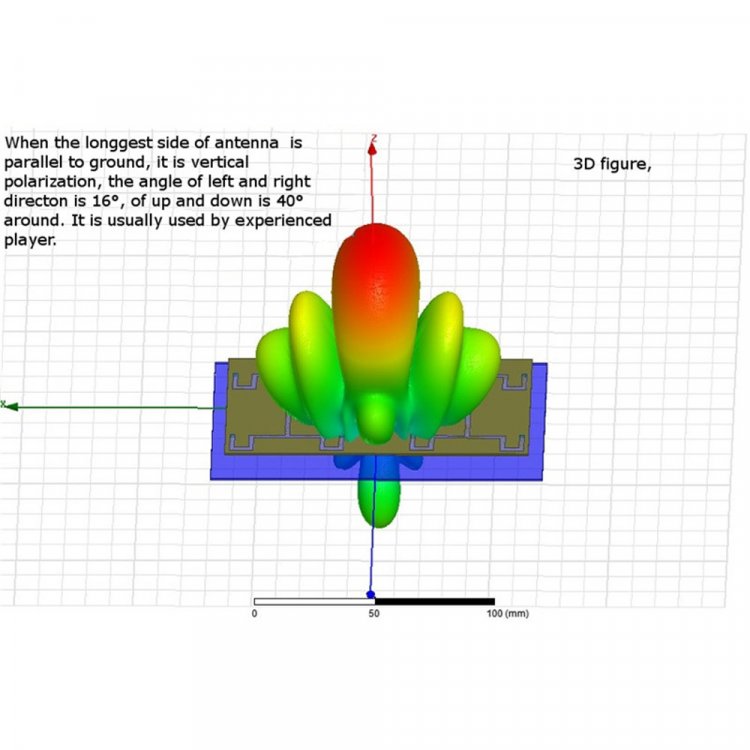

HPBW (3dB): 16 ° H-plane 38 ° E-plane
F/B:> 20 (dB)
Max Power: 50W
Polarization: Vertical polarization
Connector Type: RP-SMA
Static protection: DC ground

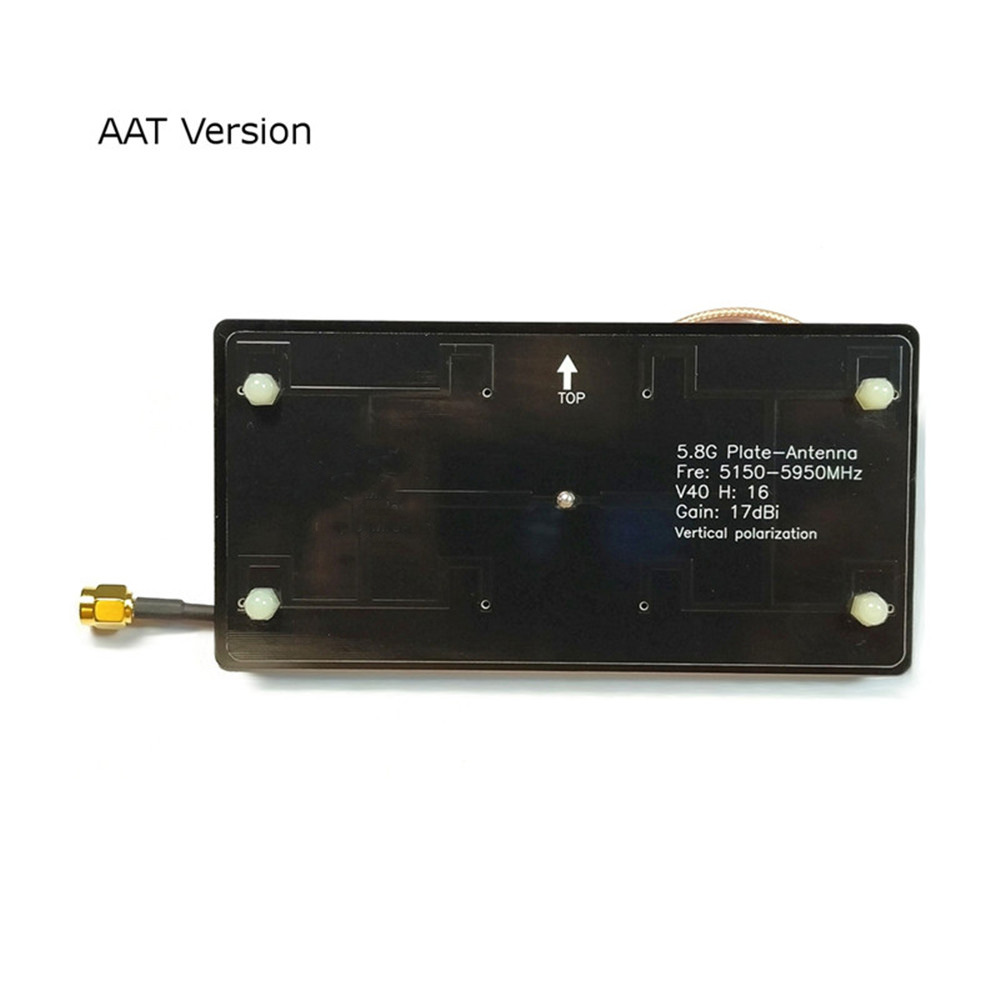

Antenna Length (AAT): 30 cm
Size: 136*68*10 mm
Weight: 57g (Manual)/47g (AAT)

Package included
1x5. 8 GHz 17 dB high gain




2 people like this

Share this post


Link to post
Share on other sites

,,, and Dr. Pepper says....

When the PDF is a scientific article I have perhaps access

Edit: here it is:



wong2004.pdf

2 people like this

Share this post


Link to post
Share on other sites

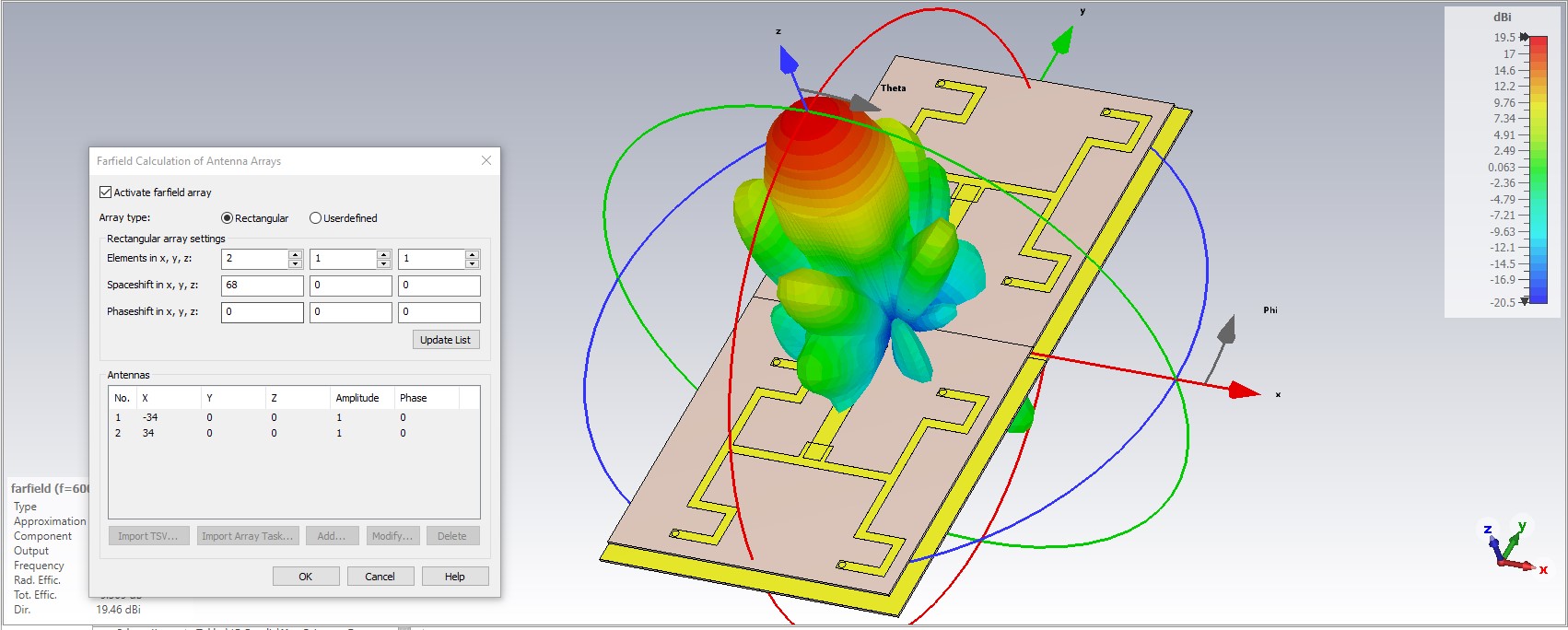

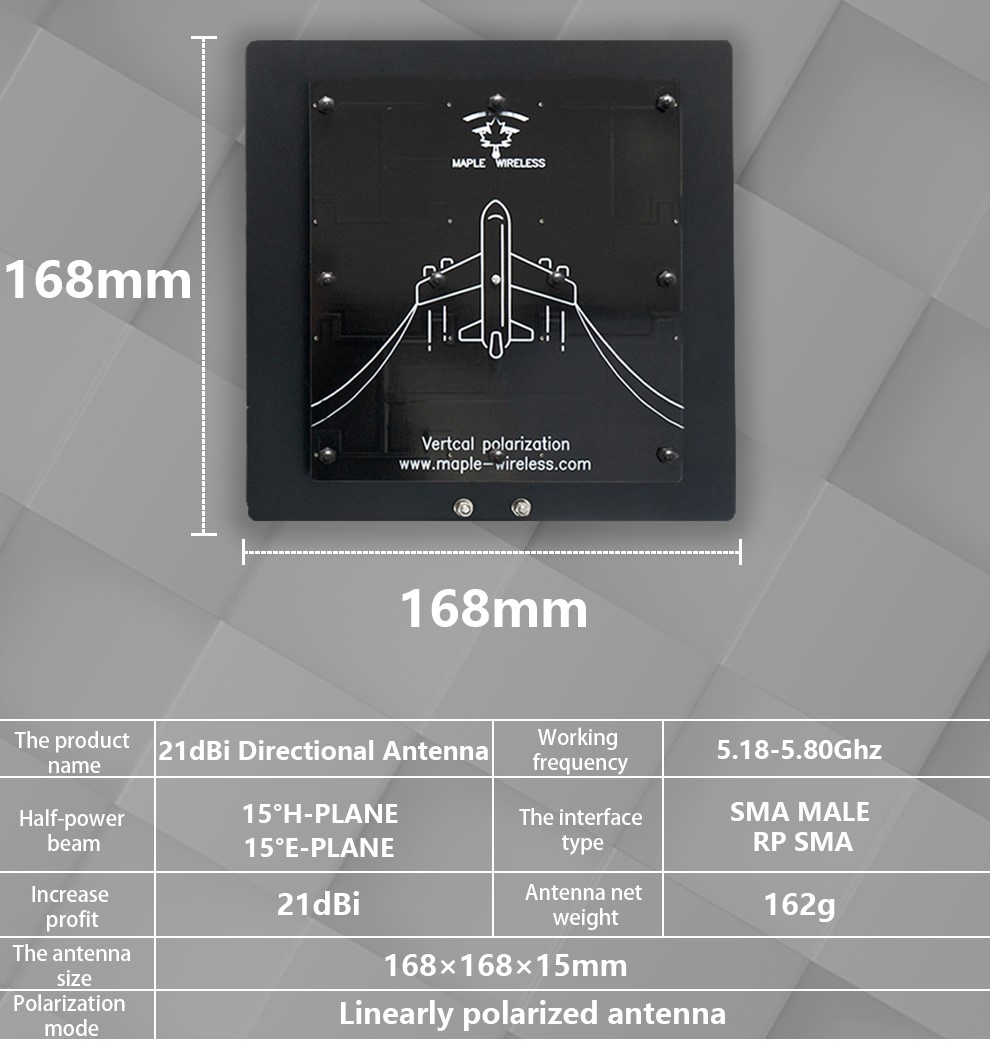

Dimensions; vibrator = 129x129 mm; reflector = 168x168 mm

Share this post


Link to post
Share on other sites

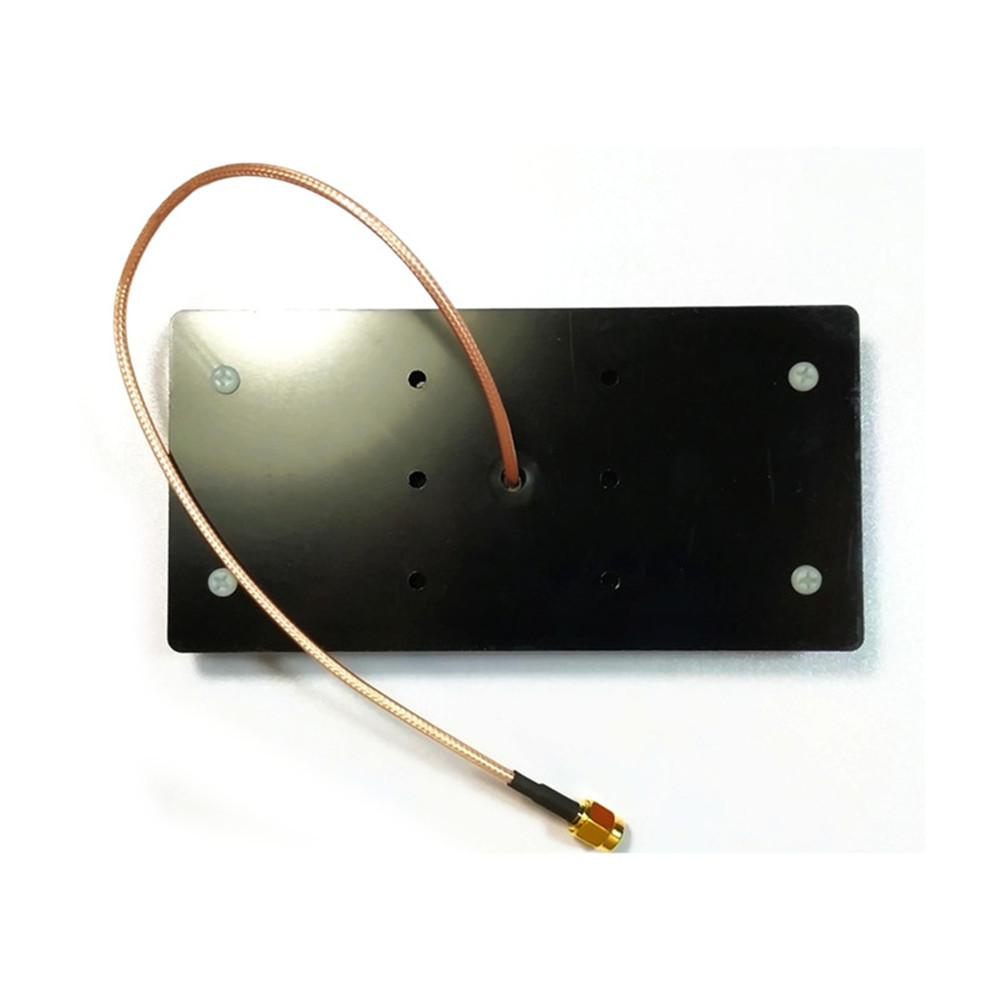

I was always interested in how such antennas are feeding. Is the outer braid of the coax soldered onto the reflector?

Share this post


Link to post
Share on other sites

,, not really, it is welded on the back of the double plated circuit...!!!

1 person likes this

Share this post


Link to post
Share on other sites

Hello, is there a detailed drawing \ of that antenna?

Share this post


Link to post
Share on other sites

can you give to us the all te dimensions of the antenna?



Share this post


Link to post
Share on other sites
29 minutes ago, Aaaa said:

can you give to us the all te dimensions of the antenna?



I don't have the file but in the future I will be able to give you the dimensions.

Share this post


Link to post
Share on other sites
