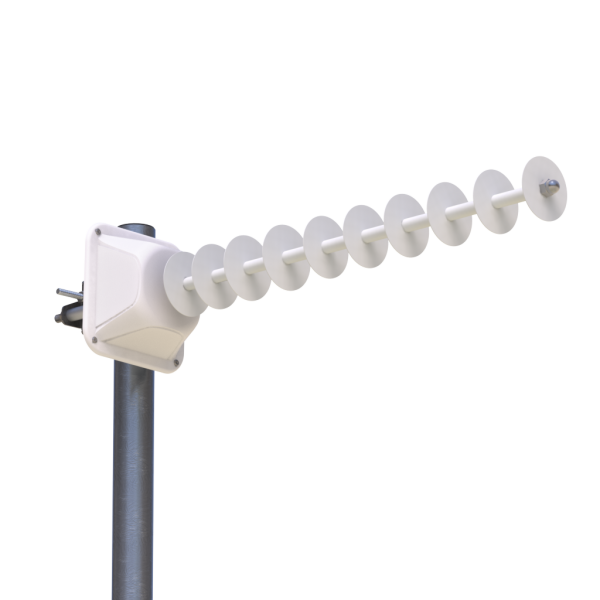

AX-1815YF MIMO 2x2 Directional Antenna LTE-1800

2x2 MIMO directional antenna for the LTE1800 (B3) band. F=1700-1880 MHz. CU=15dBi. F-female connectors (75 ohms). It is recommended for use at a distance of up to 10 km from the operator's BS.

Electrical characteristics

Operating frequency range, MHz 1710-1880

Gain, dBi 15

Bottom width in the N/E plane, deg 35-37/33-35

Forward / backward ratio, dB at least 12

Decoupling between antenna inputs, dB>27

Input impedance, Ohms 75

SWR in the operating frequency range, max. 1,7

Permissible power, W 10

Polarisation vertical+horizontal

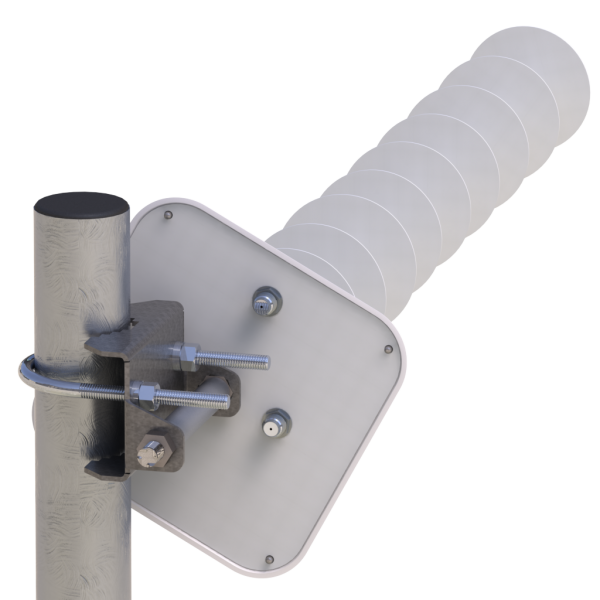

Mechanical characteristics

Weight with mounting, g 720

Mast diameter, mm 30÷52

Overall dimensions, m 0.630x0. 12x0. 12

Permissible wind speed, m / sec 35

Connector 2 x F-female

Number of elements 13

Mounting and antenna material galvanized steel

Protective coating powdered polymer paint

Material of the protective box ABS




2 people like this

Share this post

Link to post
Share on other sites

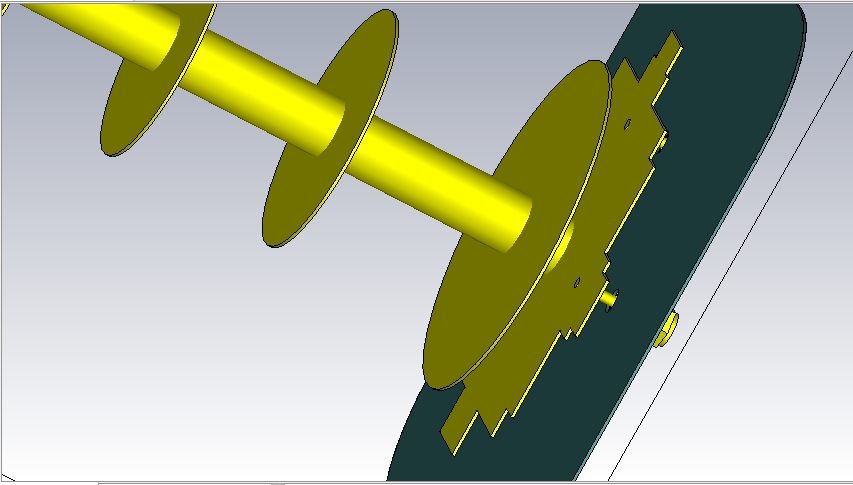

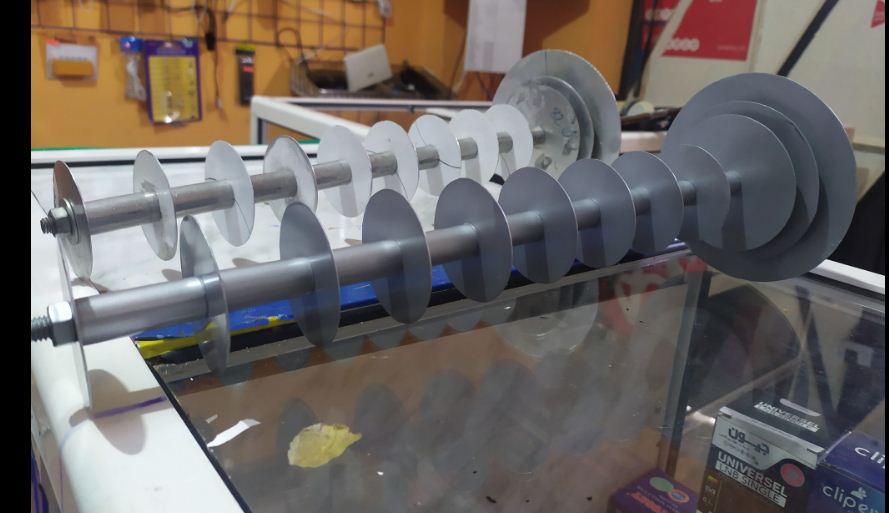

,,, maybe it's something like that ... !!!???
