vova.gumerov

UHF antenna KOVACHEVA

The antenna design developed by the amateur radio operator V. Kovachev was first published in the Bulgarian magazine "Young Designer" No. 8 in 1992. As it turned out, it is also well suited for receiving DVB-T2 digital TV signals. Unfortunately, this antenna is not simple. Making it requires more time and materials than anything we've considered before.

However, according to the author, it has a noticeably higher gain than the three-element Sotnikov antenna (triple square).



https://antenna-dvb-t2.info/antenna_dlya_dvb-t2_8.php




2 people like this

Share this post


Link to post
Share on other sites

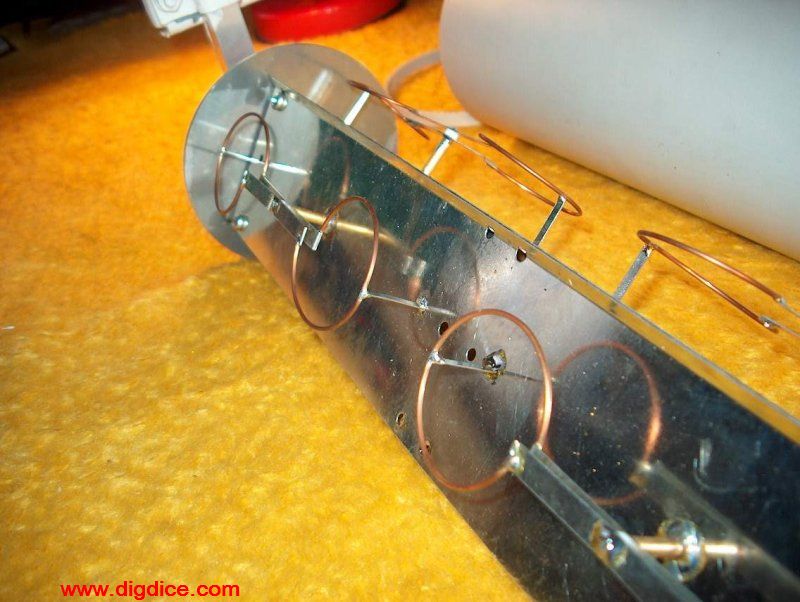

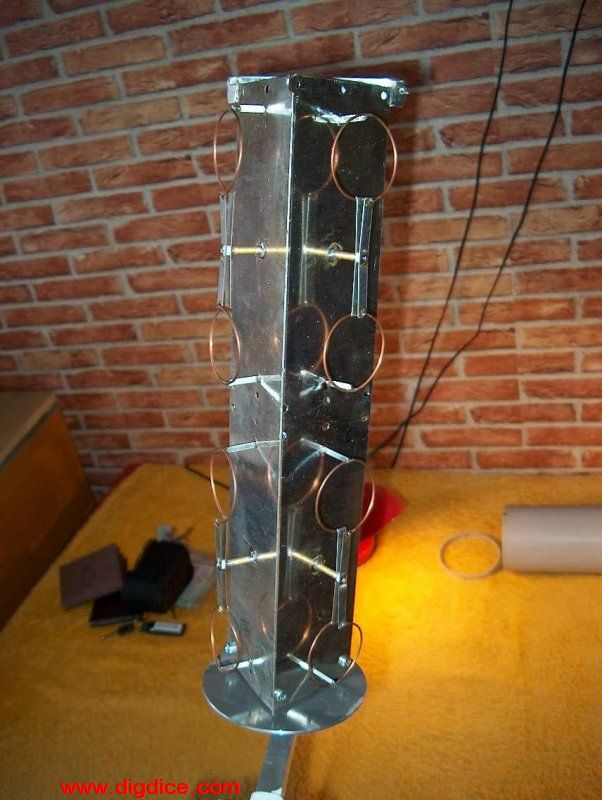

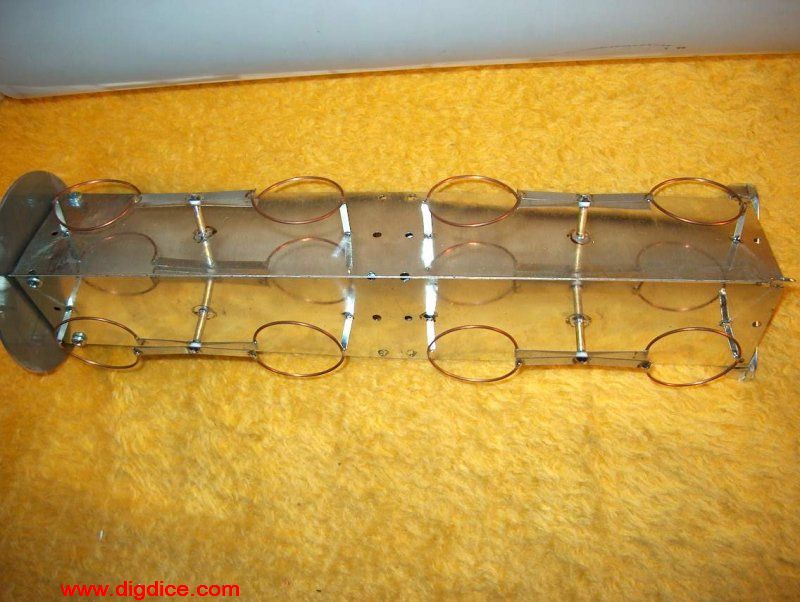

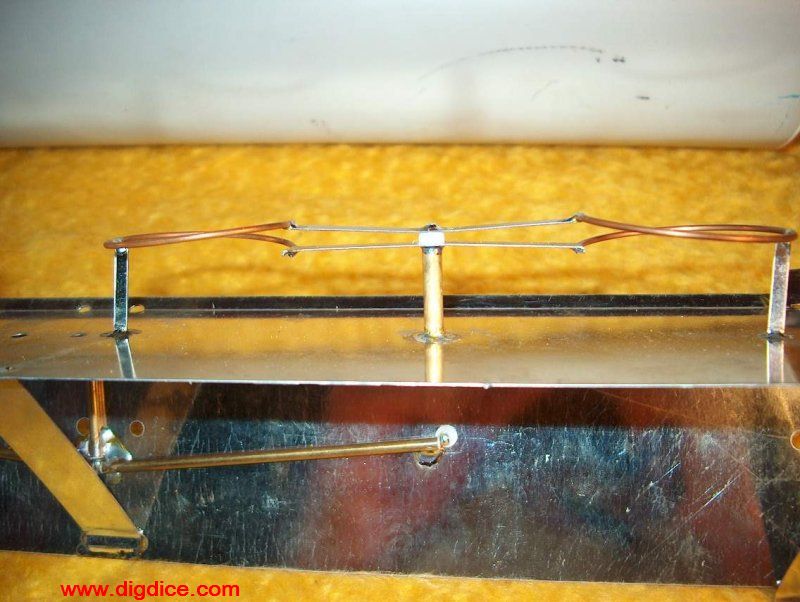

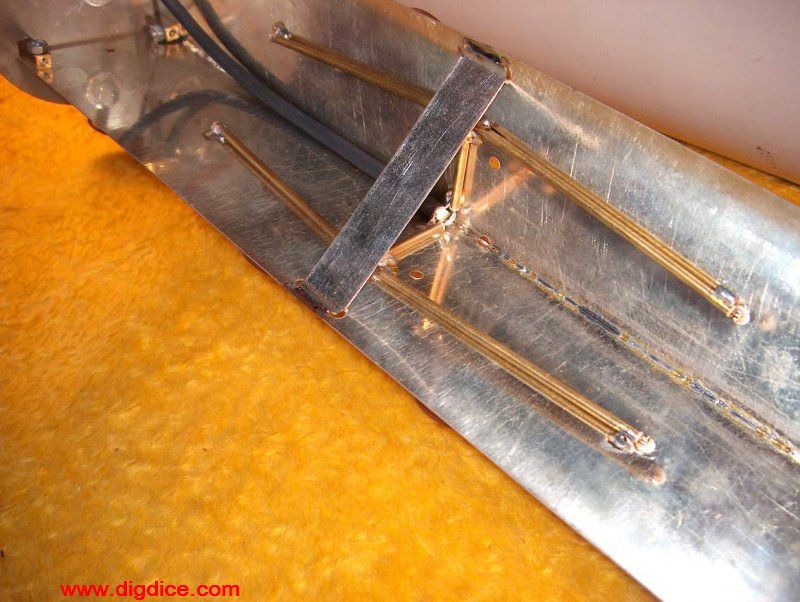

The antenna was made for a friend living in the countryside. The repeater is 38 km away. The signal level is 90-95.

Share this post


Link to post
Share on other sites

,,.it is still possible(2,4 GHz) ...!!!






Share this post


Link to post
Share on other sites

Dear admin. Antenna Kovachev did not pass our simulation! Should opportunity fill this gap? The calculation was at 730 MHz.
