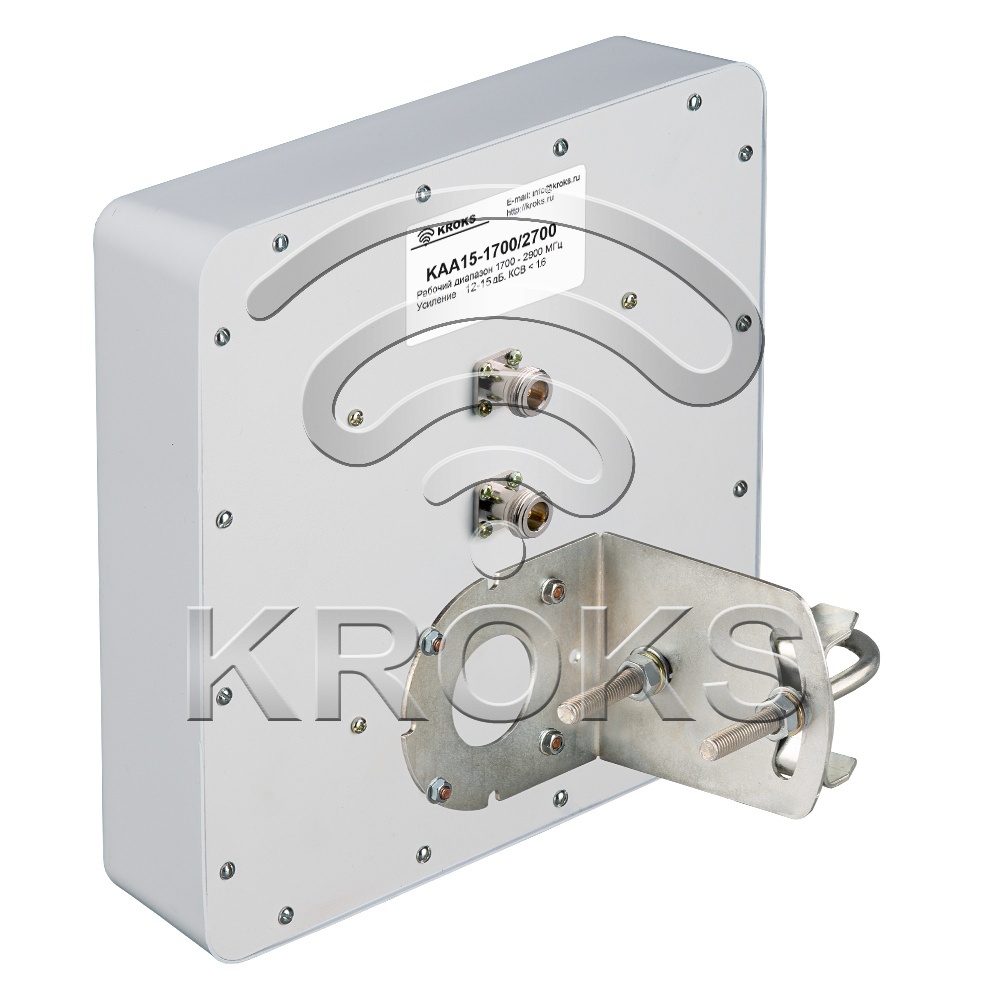

Broadband 3G/4G MIMO antenna KAA15-1700/2700

Broadband MIMO antenna for 2G/3G/4G/WIFI. The gain of 12-15 dB.
Works with all operators in the standards LTE1800, UMTS2100, Wi-Fi 2400, LTE2600.
It is recommended to use complete with 3G/4G modems and routers.

A wide range of operating frequencies of the antenna enables 3G/4G modems to work effectively at the boundaries of the service areas 4G. The modem will automatically switch to the 3G standard, in the absence of a 4G signal, and the antenna will provide a high-quality signal in both bands.



Dimensions (length , width , height ), mm....250 x 250 x 100

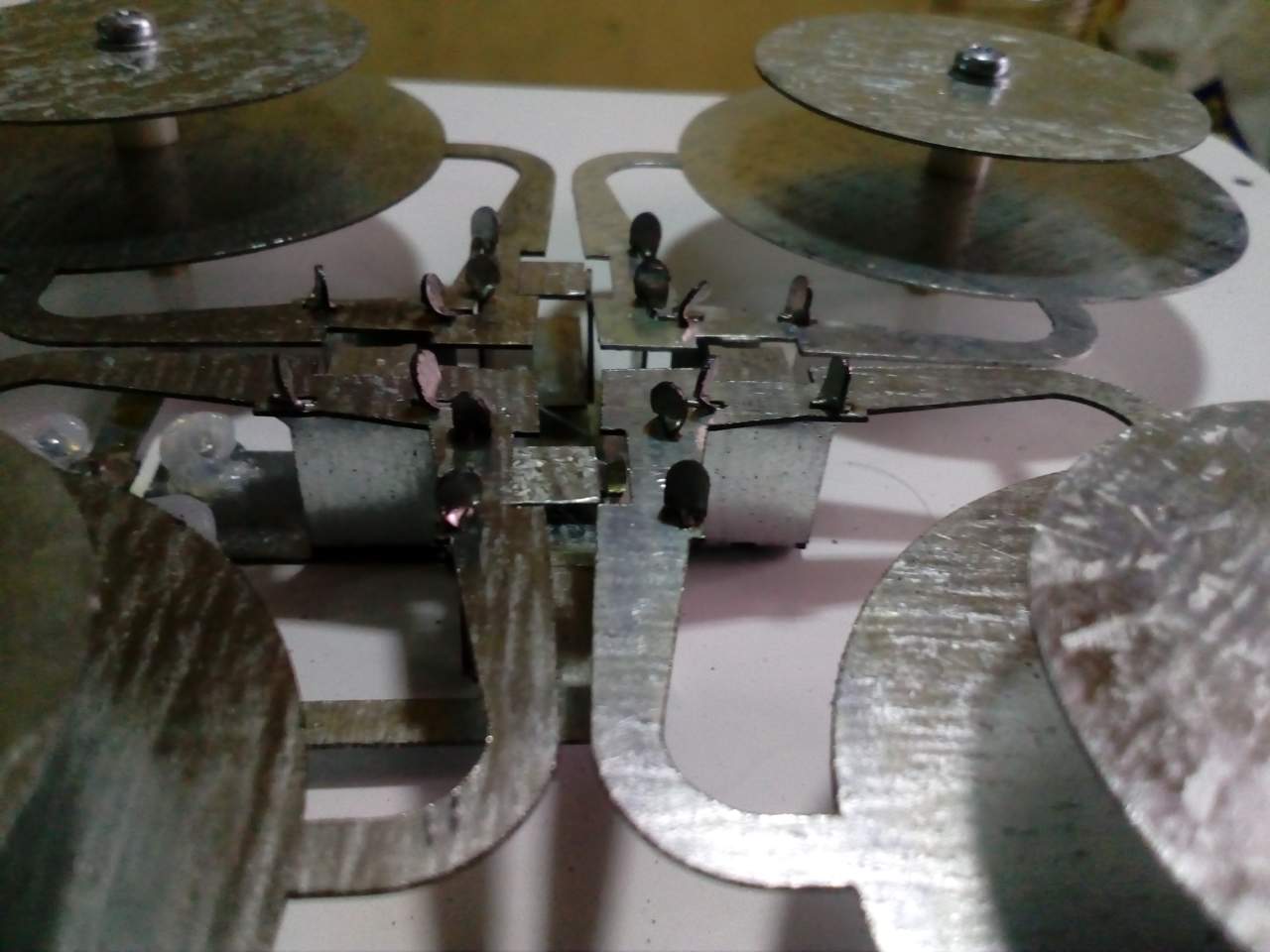

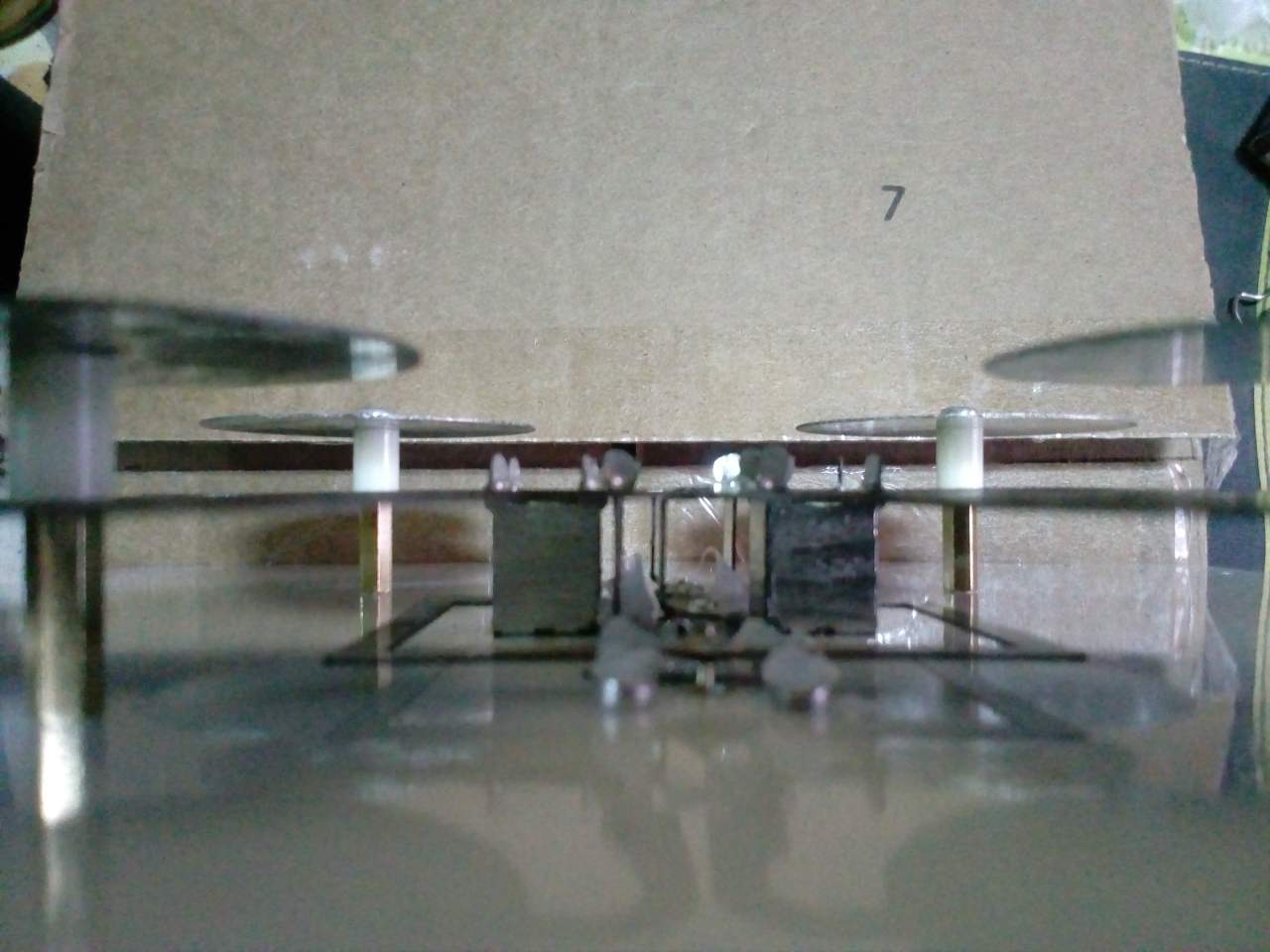

,,,, as it looks inside ...











1 person likes this

Share this post


Link to post
Share on other sites

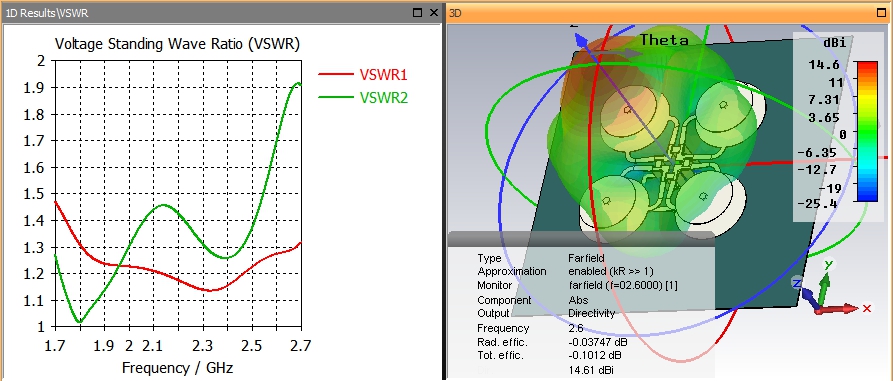

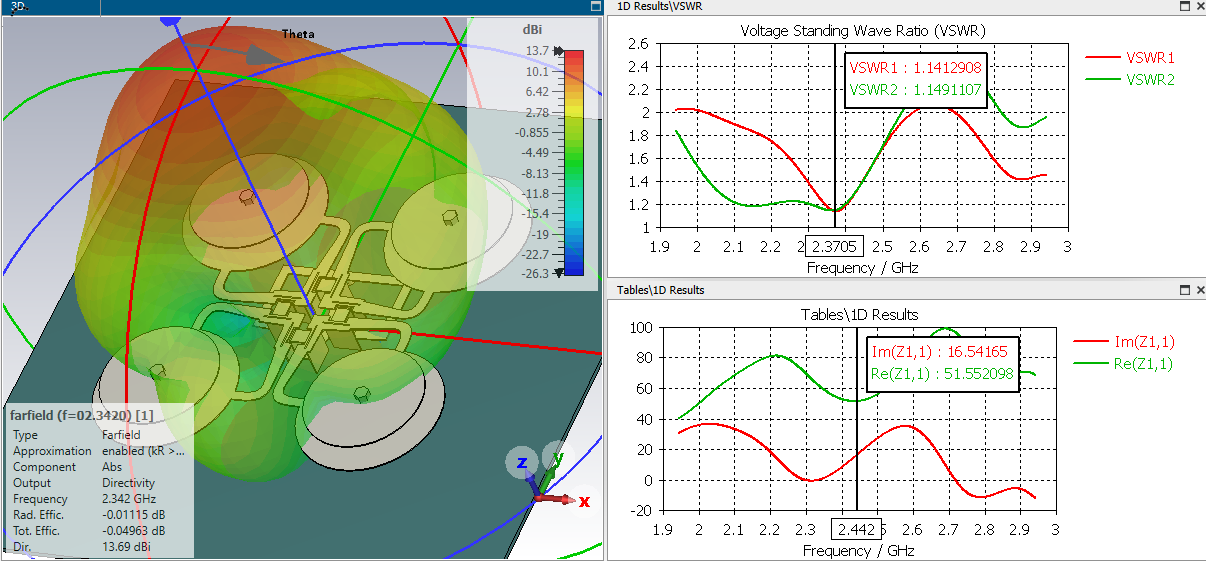

I'm going to try to simulate this MiMo-Kroks antenna...


2 people like this

Share this post


Link to post
Share on other sites

Yes, it's a little complicated for practice execution !!!

Share this post


Link to post
Share on other sites

Yes, it seems like this antenna is still good....


1 person likes this

Share this post


Link to post
Share on other sites

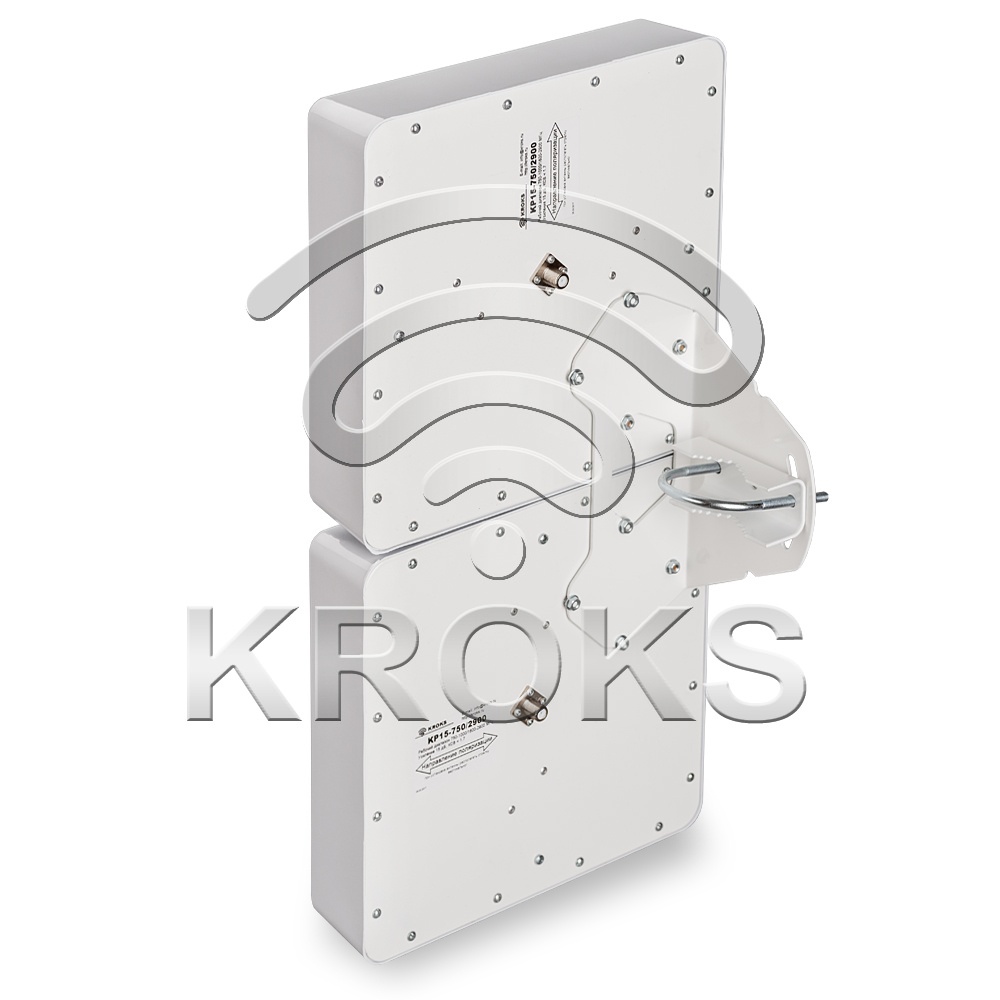

Broadband 2G/3G/WiFi/4G MIMO antenna 15 dB KAA15-750/2900

Supports LTE-A (advanced)
Broadband MIMO antenna LTE800/GSM900/GSM1800/LTE1800/UMTS900/UMTS2100/WiFi/LTE2600.
Gain from 10 dB (LTE800) to 15 dB (LTE2600)









3 people like this

Share this post


Link to post
Share on other sites

"I think this is how the power lines of the two antennas (one with horizontal polarization, the other with vertical polarization) ...


3 people like this

Share this post


Link to post
Share on other sites

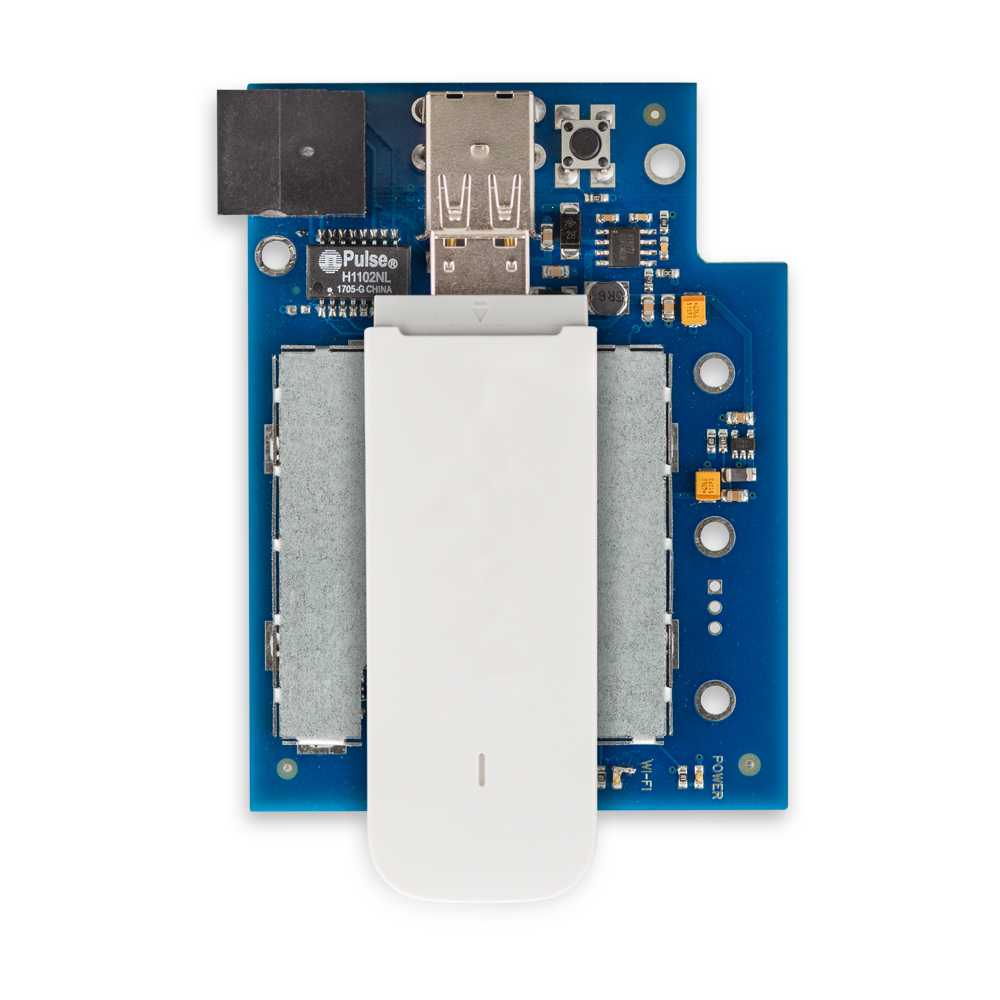

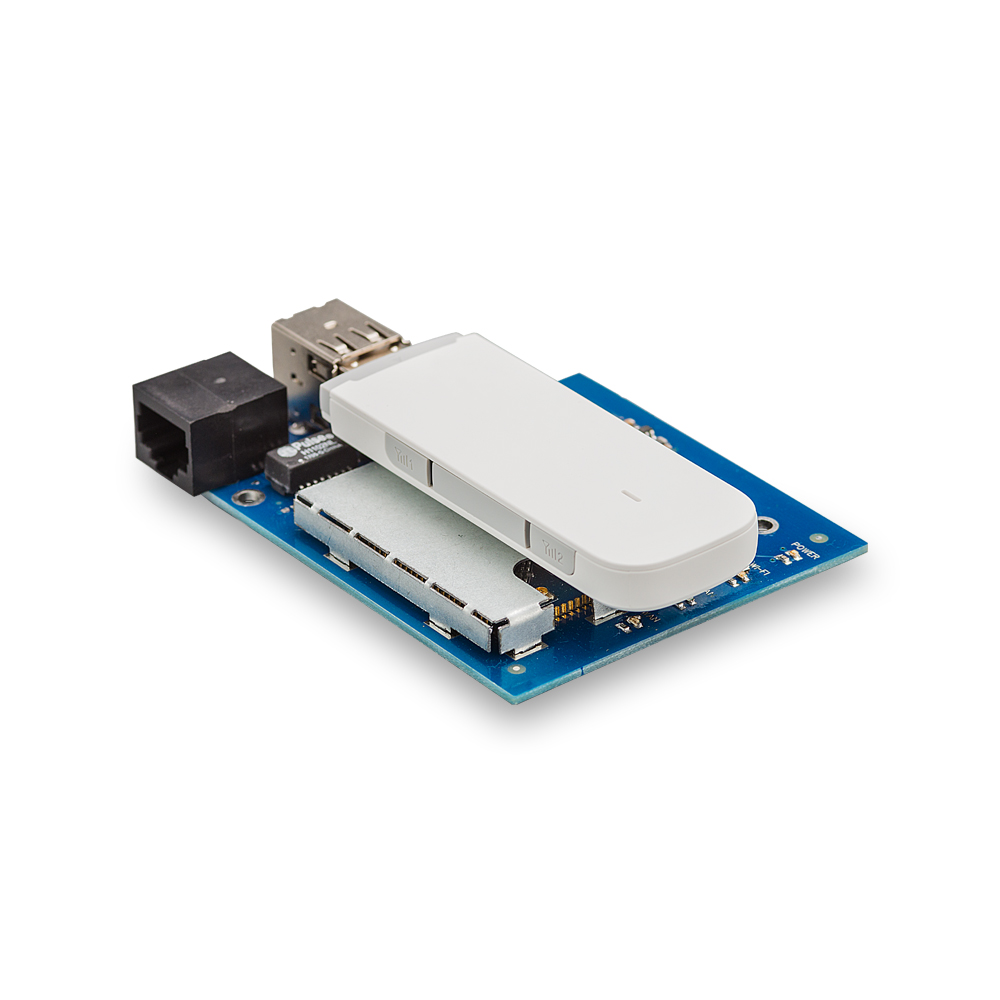

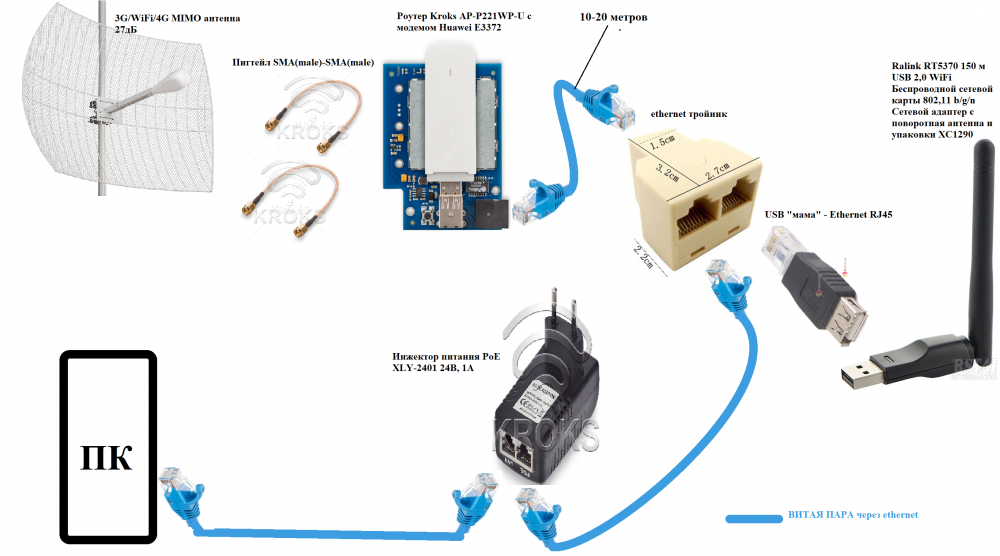

Router Kroks AP-P221WP-U modem Huawei E3372 for installation in thermobox.

The maximum speed of 4G up to 100 Mbps, 3G up to 42 Mbps.

Router 4G Kroks AP-P221WP-U is a turnkey solution for providing online office, cottage or private home. Thanks to PoE, the user receives a quality Internet without signal loss in the cable at a distance up to 100 meters.

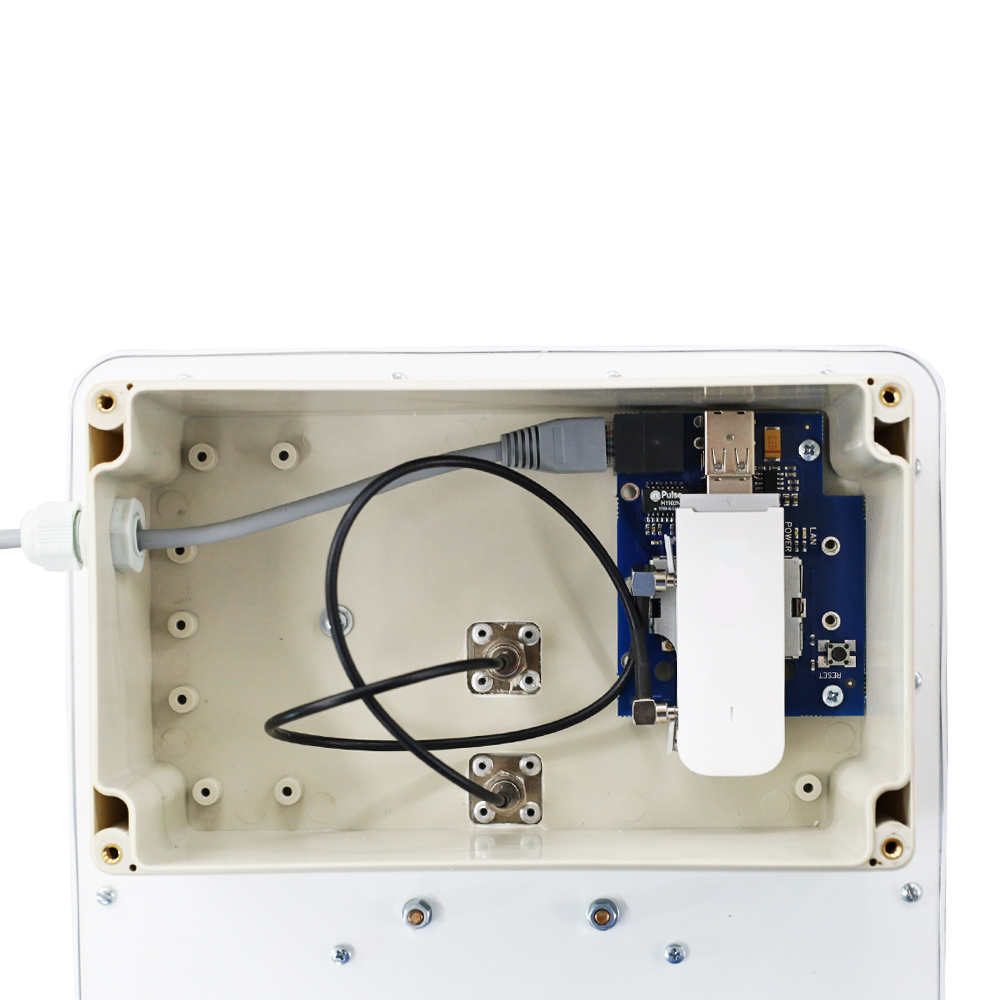

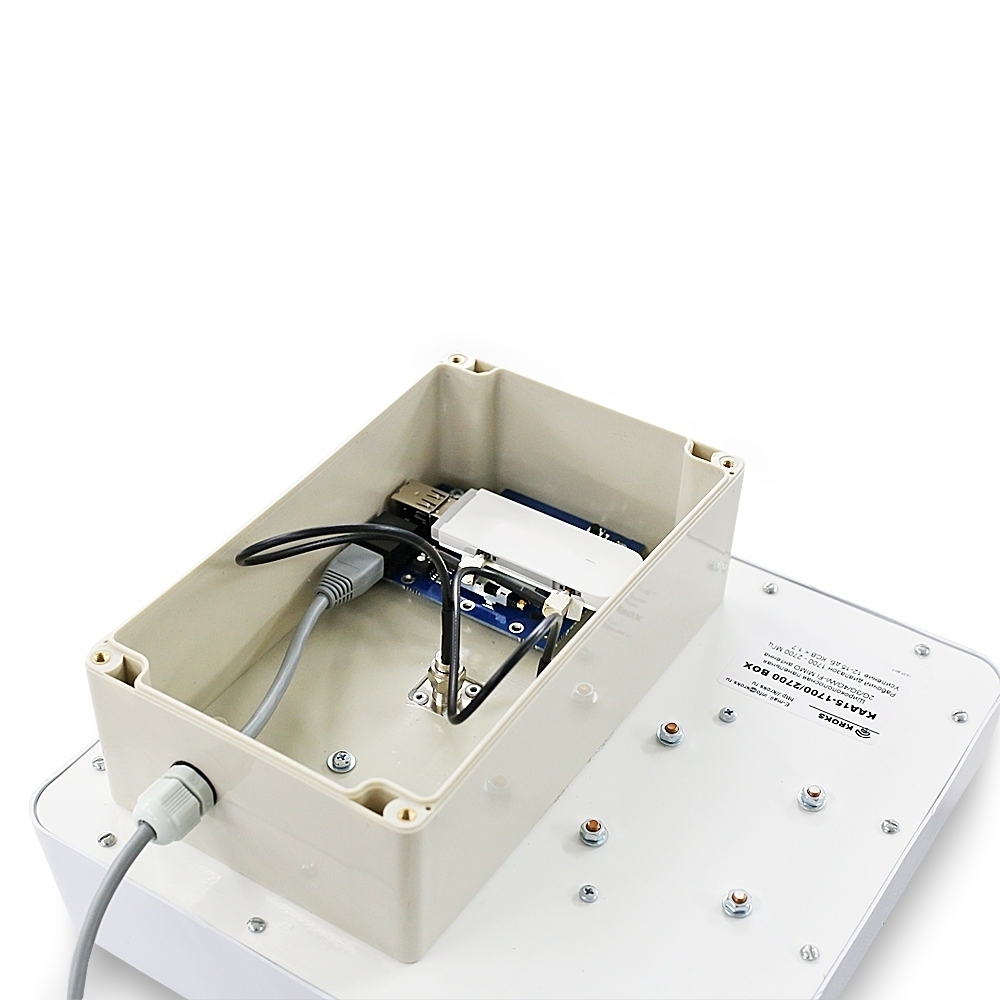

The device is a compact cost for installation in thermobox 3G or 4G antenna. In router installed USB-modem Huawei E3372. So the modem is in the vicinity of the antenna, so the loss of the microwave signal in the cables from antenna to modem minimum.

The router is specially designed for operation in the antenna KAA15-1700/2700 U-BOXand with mesh antennas and thermoboxes.

The router has one LAN port is 100 Mbps.










Share this post


Link to post
Share on other sites
On 5/19/2018 at 8:41 AM, Admin said:

I'm going to try to simulate this MiMo-Kroks antenna...


Hi Admin! Please share the model files if possible Thank you for your help.

Share this post


Link to post
Share on other sites

,,,hi buddy...!!!

,,,this antenna model is very complicated to execute, how do the details help you...???
,,,you have at your disposal a laser cutting machine...???

Share this post


Link to post
Share on other sites
14 minutes ago, Admin said:

,,,hi buddy...!!!

,,,this antenna model is very complicated to execute, how do the details help you...???
,,,you have at your disposal a laser cutting machine...???

will I be able to bend the antenna like origami ?
The local workshop has laser cutting of metal. Realу cheap. I am studying modeling software now.

Share this post


Link to post
Share on other sites

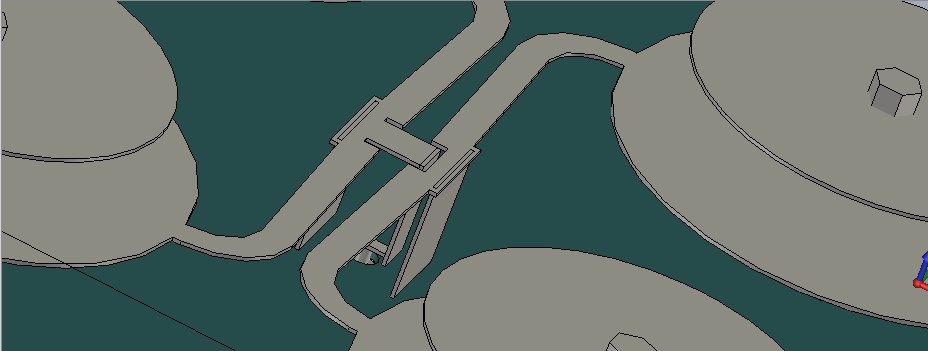

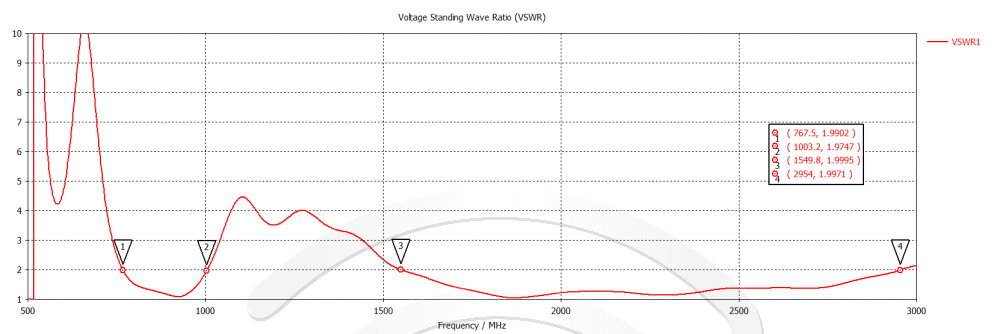

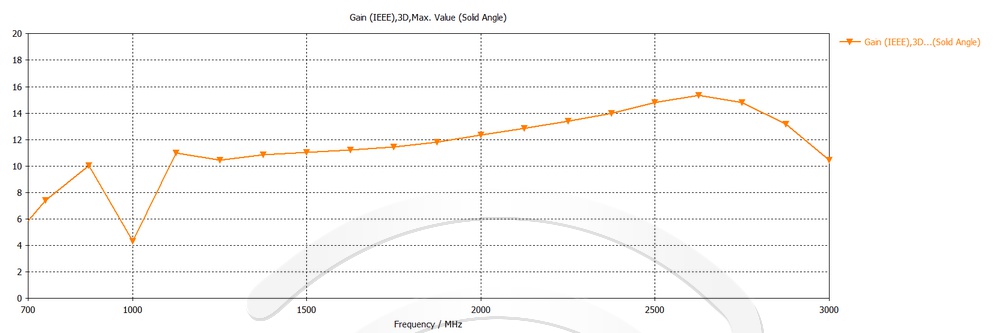

I found the model but it still needs to be worked on...


By the way, you know how to work with CST...???

Share this post


Link to post
Share on other sites
