Admin

Cross Antenna

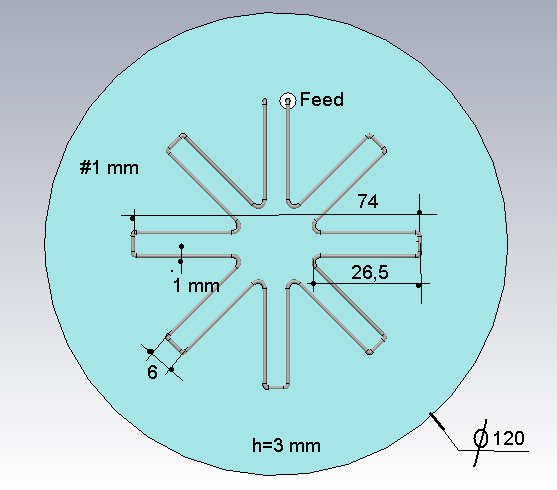

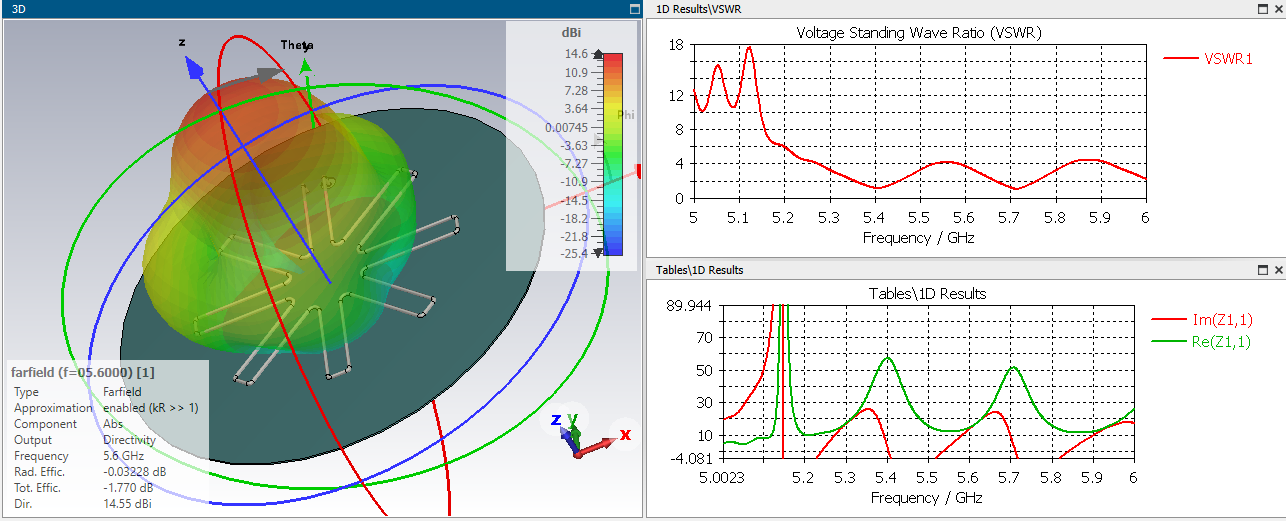

The cross antenna is a medium gain and circular polarization structure made of a conductor or a strip line over the ground plane following a cross contour of four or more branches.The construction repeatability is verry easy as well the facility to obtain 14dBi gain in a small antenna.

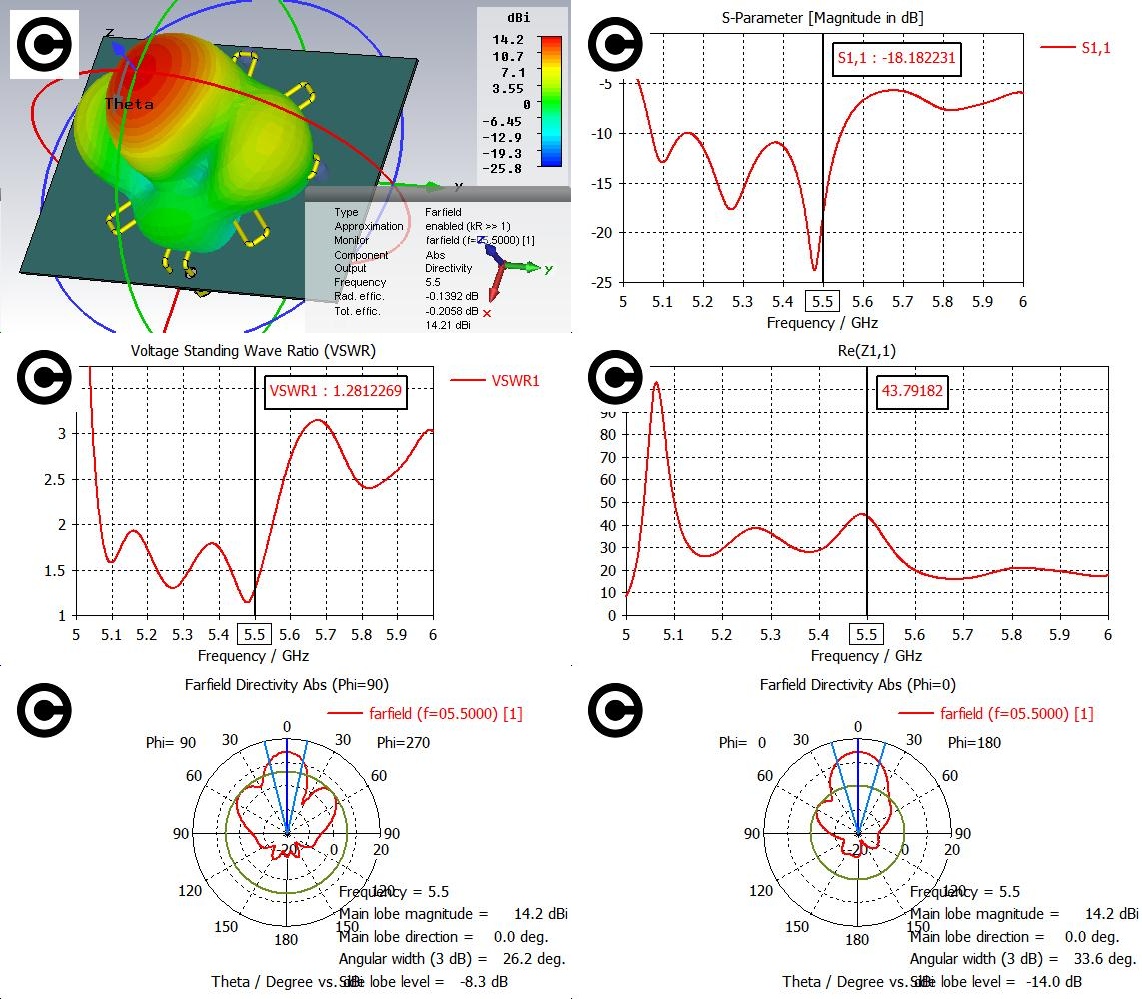

cross 5,5_01-tile.jpg

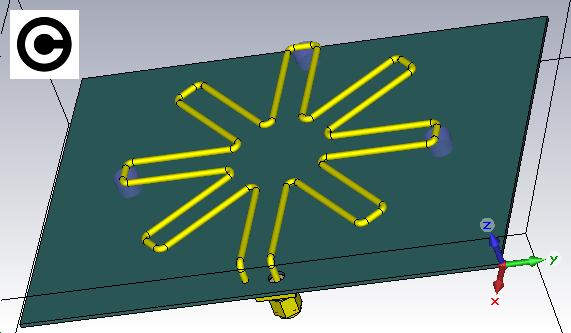

cross 5,5_07.jpg

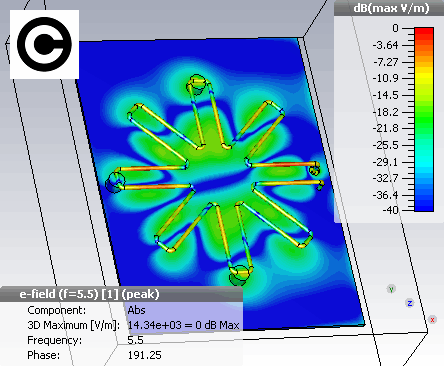

cross 5,5_01.gif

2 people like this

Share this post


Link to post
Share on other sites

Can we use this shape for 2.4ghz?

I first time see such a design !!!

with what dimensions?

Share this post


Link to post
Share on other sites

Yes, it can ... but I can not find the file at this time...!!!

Share this post


Link to post
Share on other sites

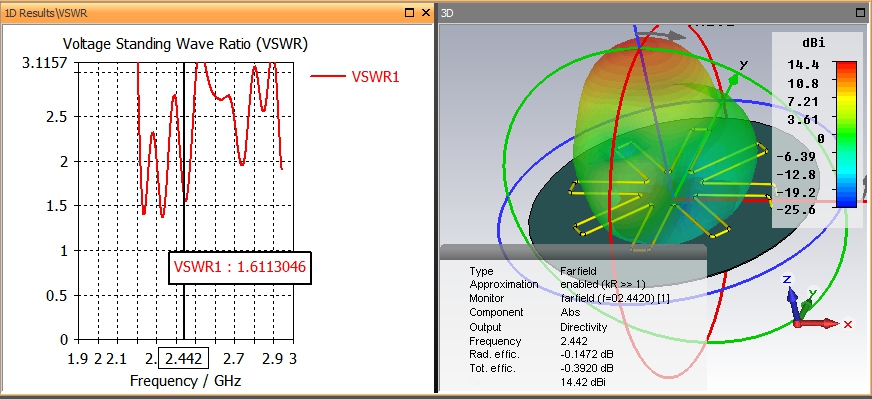

,,,like the 2.4GHz cross-antenna, with a reflector diameter of 240mm...


1 person likes this

Share this post


Link to post
Share on other sites

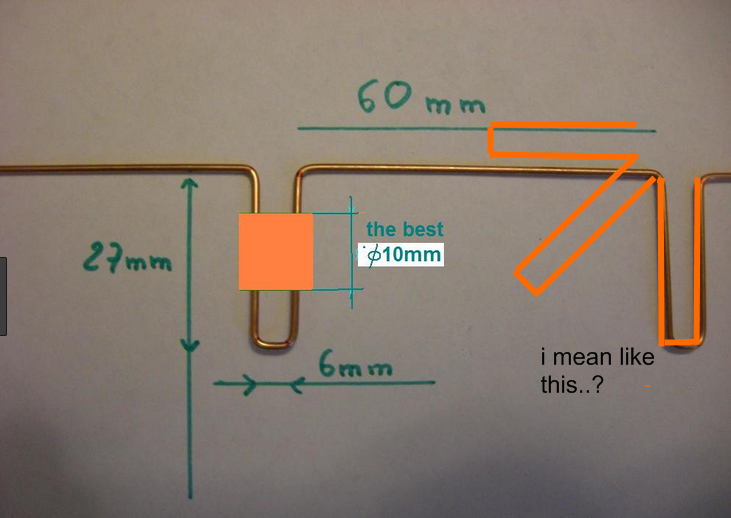

In general ...can we use this dimensions (from colinear antenna) to build this one?

27mm, 6mm, 27mm,

like is on picture?


Share this post


Link to post
Share on other sites

,,, not, under any circumstances ....!!!

Share this post


Link to post
Share on other sites
