clanon

PY2BS patch (adapted to 2.437ghz)

I'd never found a good feed for DEEP DISHES ( i have a 1,26 m , 0.31 m deep dish F/d 0.25  ) THIS IS IT

This brasilian  colleague designed an small patch for 432 MHZ satélite double polarization (i only needed ONE)

What's most important to me are the 180 degrees of illumination at about -6 db of gain...

 -6dB beamwidth of around 180 deg (good for f/D ratios 0.25 (focal plane dishes) to 0.3)

-6dB in beamwidth corresponds  to a -10dB edge illumination (max gain) since there is an additional -4dB spreading loss to the edge at these low f/D ratios.

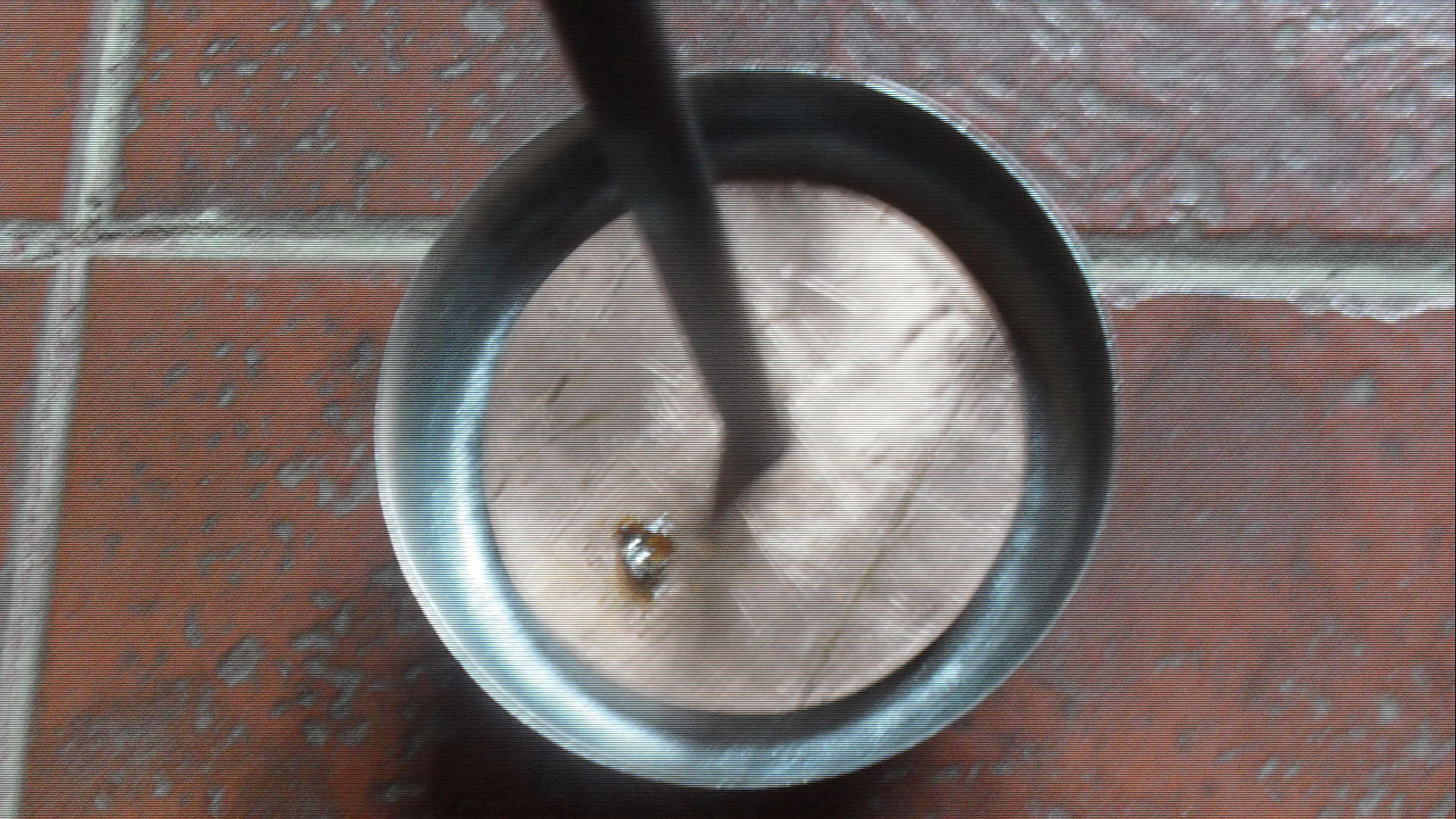

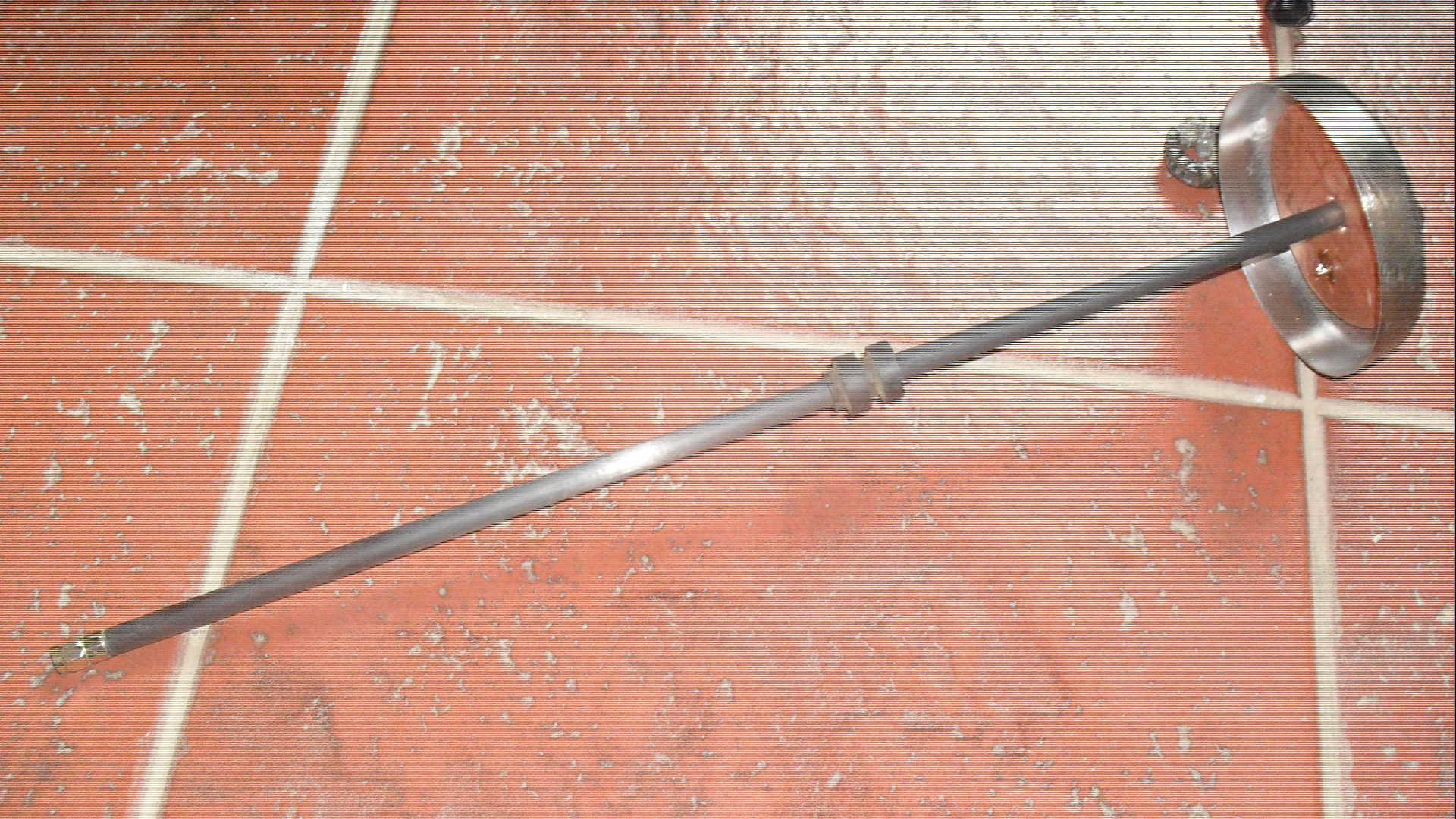

the coax is running inside a graphite tube (all i have at hand from a broken arrow) center of patch and coming back from behind





MINE 2.JPG

Share this post


Link to post
Share on other sites

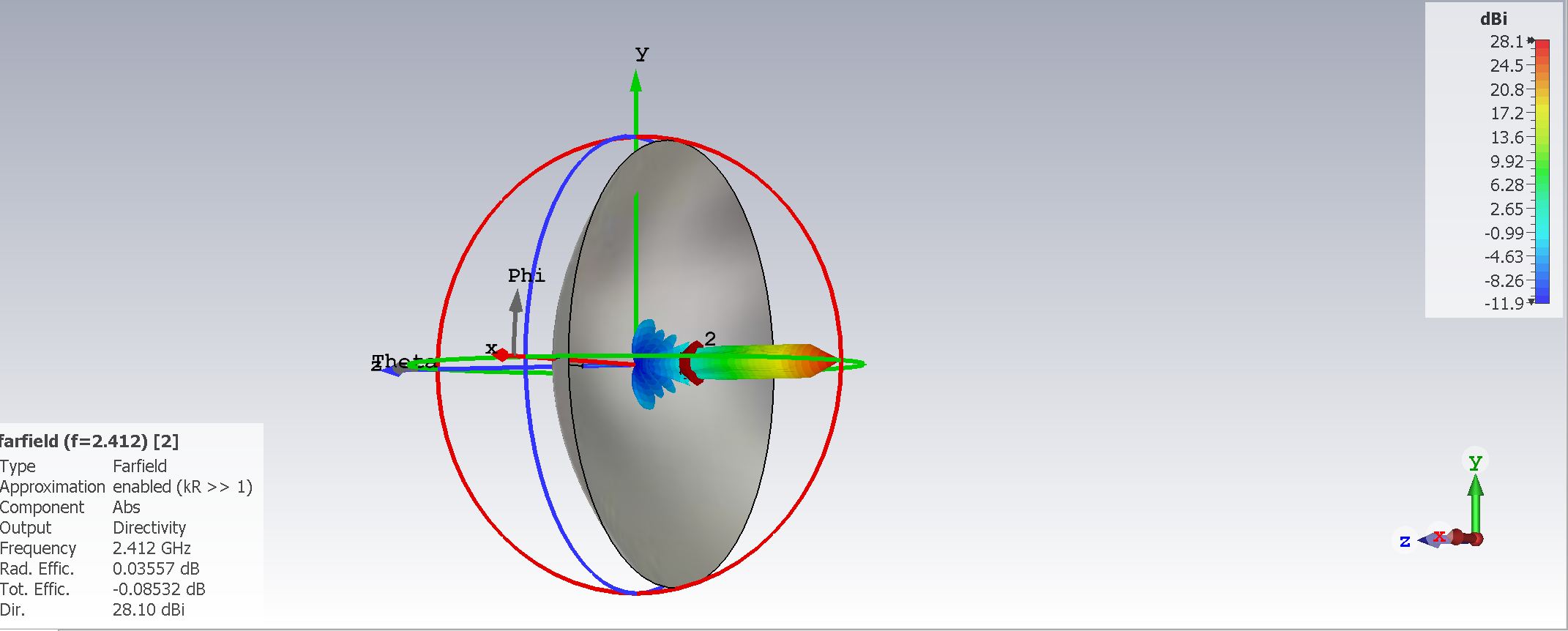

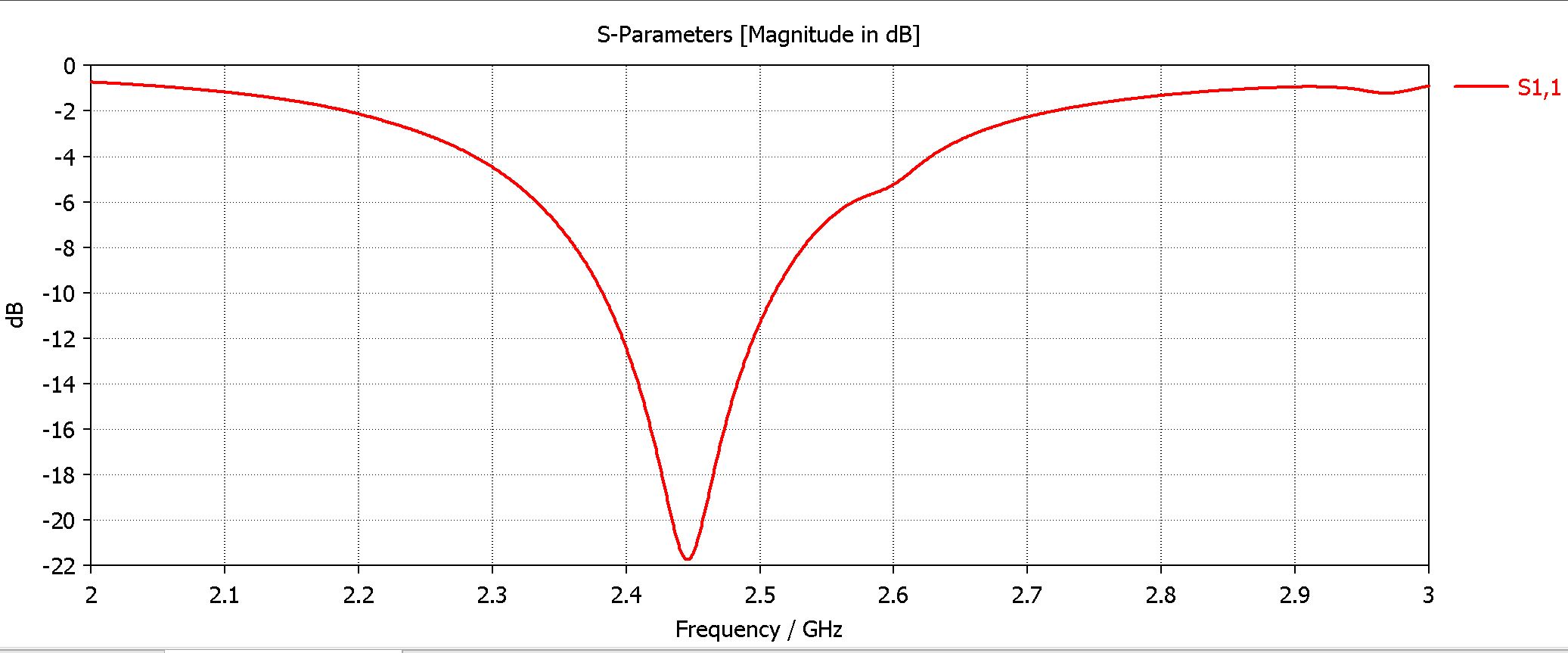

,,, anyway, you can do a simulation ... !!!???

Share this post


Link to post
Share on other sites



,,,yes, very interesting, you can also give dimensions ... !! ???

Share this post


Link to post
Share on other sites

Posted (edited)

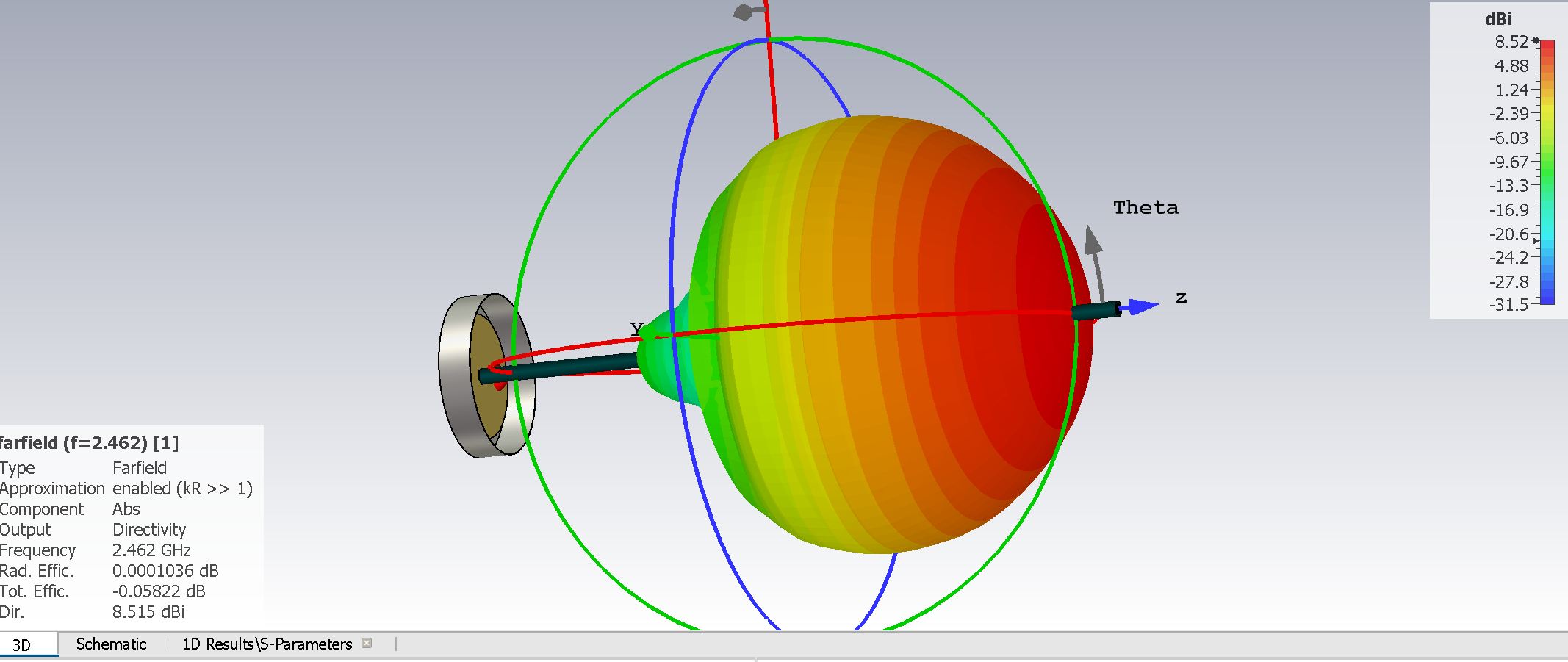

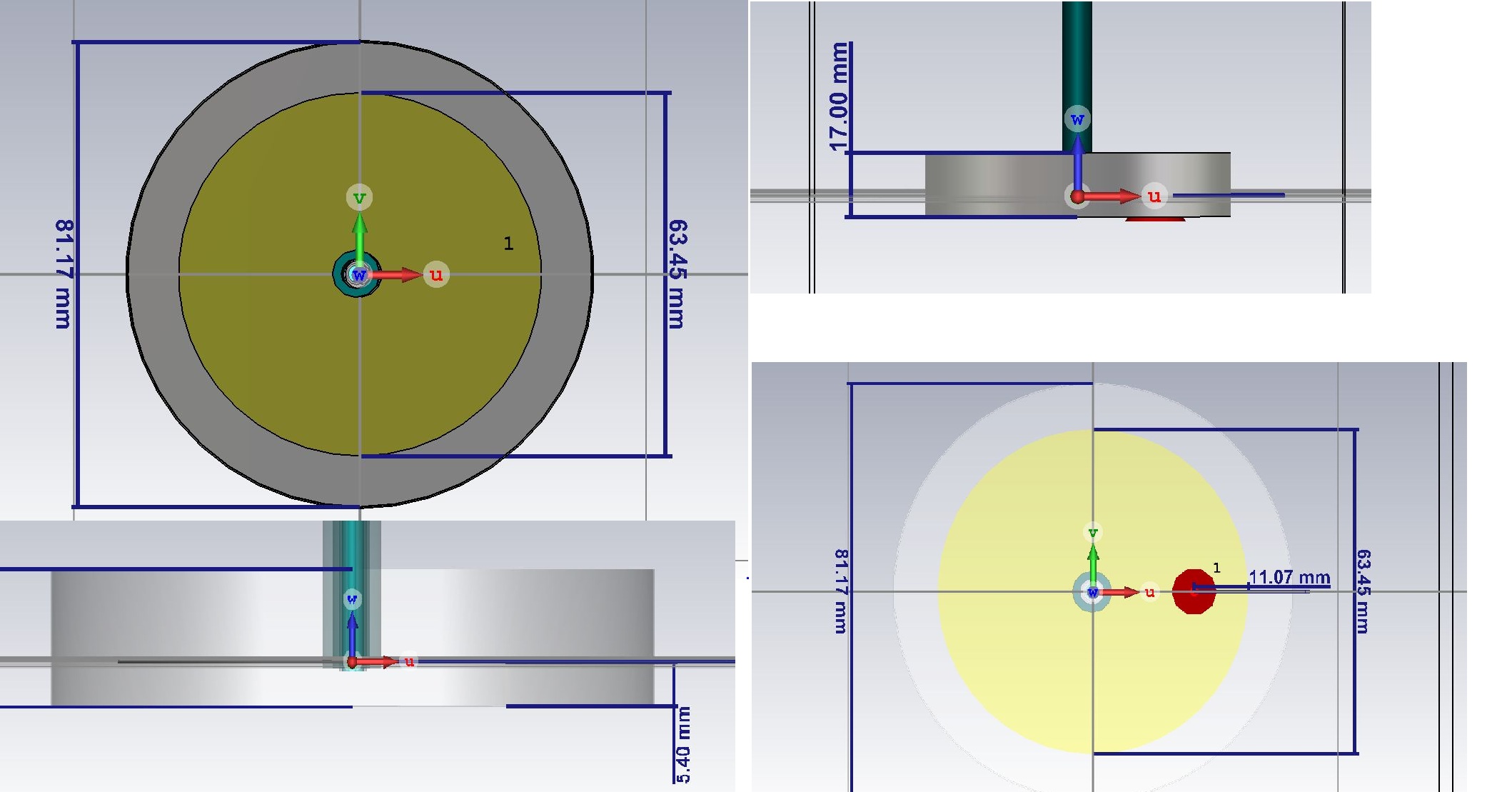

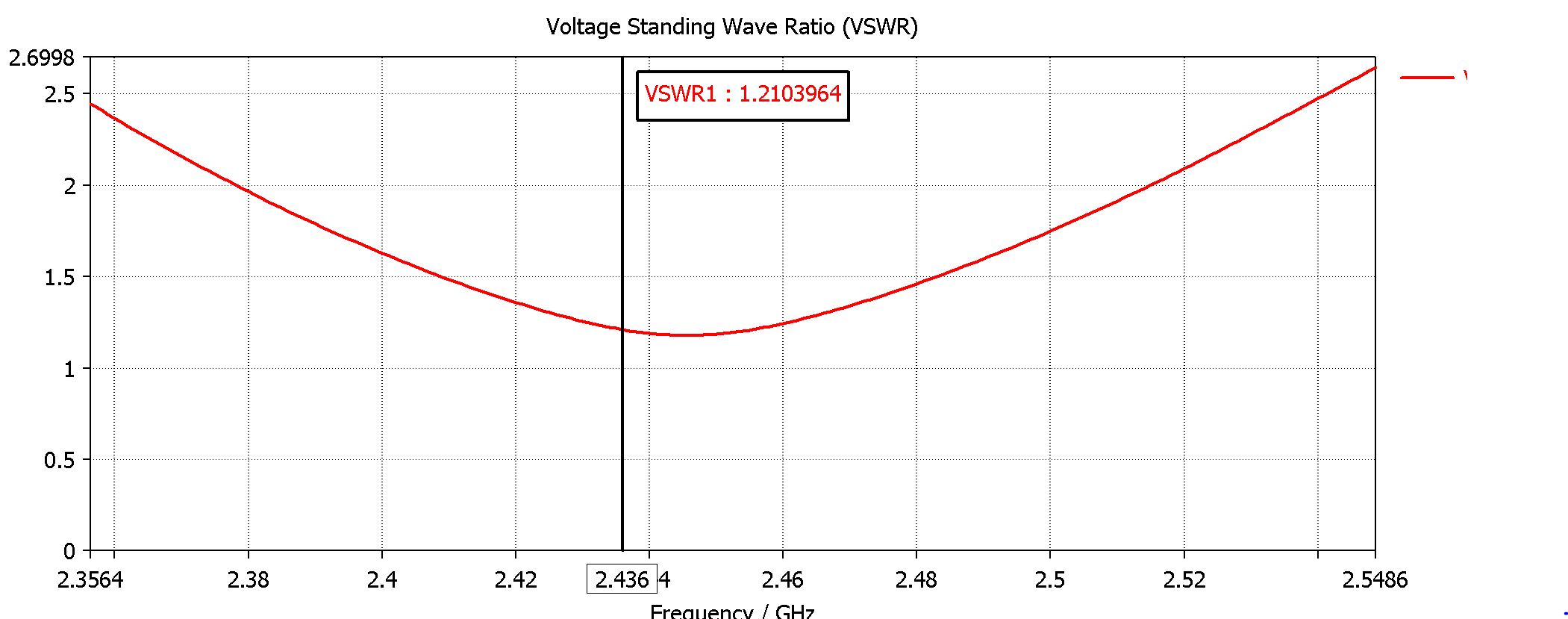

5.4  - 5.5 mm from patch to reflector

17 mm ring

11 - 12 mm from edge to feeding point

ALL this settings for DEEP DISHES ...f_D 0.25 to 0.3

The DISH HIGHLY INFLUENCE the FEEDER




Edited by clanon
1 person likes this

Share this post


Link to post
Share on other sites

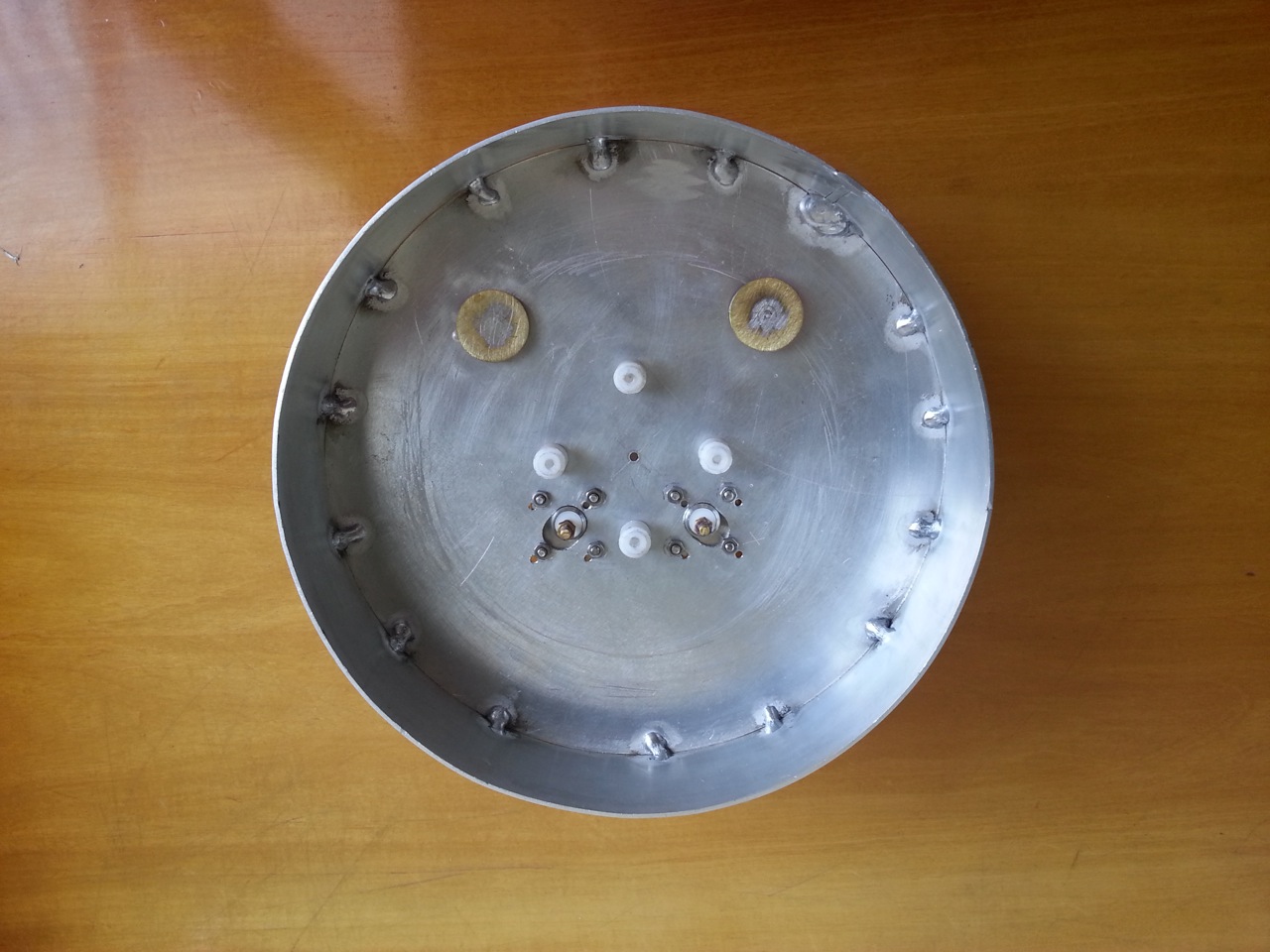

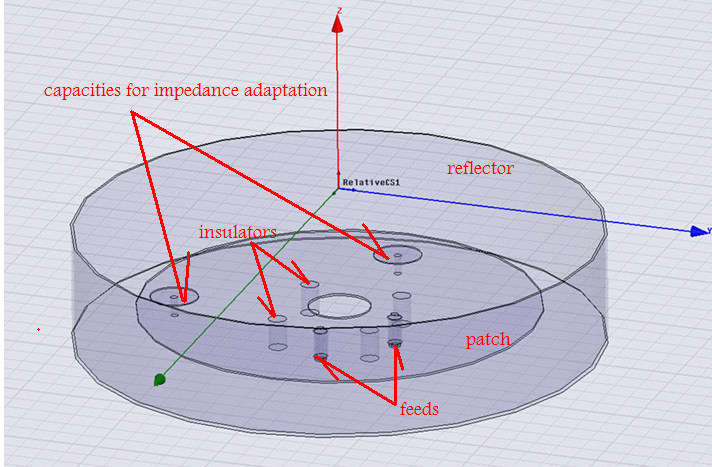

Dual polarized patch over a 0.6 lambda circular reflector. The feed includes a tuning disc for each polarization.
