Tenda O3

CPU Processor  :  Broadcom 300MHz
Antenna Beamwidth  :  Horizontal: 60° Vertical: 30°
Waterproof Level  :  IP64
Remote Web access  :  Support
Schedule Reboot  : Support
Page Timeout : Support
Dyndns  :  noip, dyndns.org
Network Diagnoses  :  Ping, Traceroute, Signal Scan
Dimension  : 270*94.86*67.5mm
Frequency  :  2.4GHz
Maximum wireless speed  :  150Mbps
Maximum Transmit Power  :  800mw(29dbm)
Reception Sensitivity :  MCS0: -88dbm
                                 MCS7: -72dbm

Maximum Concurrent Clients  :  15
Interface  :  1*FE PoE/WAN/LAN port
                  1*FE LAN Port
Grounding Terminal  :  1*RST Button
3G Access
12dbi Directional Antenna

Maximum Power Consumption  :  6W
Lightning-proof  :  4KV
LED  :  PWR,Bridge,LAN,WAN/LAN
Power Supply  :  PoE Injector (12v 1A,Cat5e or Better Ethernet Cable Length > 60 meters)

Operating Mode

AP/Station/Universal Repeater/Repeater/P2MP/WISP/Router
Standard&Protocol
IEEE 802.11n/g/b

Features

Enable/Disable Wireless Radio
SSID Hidden
Wireless Client isolation
Sensitivity Threshold
WMM Capable
APSD Capable
Wireless Access Control
Wireless Client list

Security

64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2

Transmit Power  :  Adjustable power by 1dBm
DHCP Server  :  Clients list
VPN Pass-through  :  PPTP,L2TP

Management Tool

Time&Date Setting
System Log
Firmware update
Backup/Restore Configuration
Username Managerment

Package Content

O3Power Adapter
PoE Injector
Ethernet cable
Quick Installation Guide

Temperature

Operating Temperature:-20℃ ~ 55
Storage Temperature:-40℃ ~ 70℃

Humidity

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing

Default Settings

IP Address: 192.168.2.1
Login Username:admin
Login Password:admin

Certification  :  FCC/CE/RoHS





1 person likes this

Share this post


Link to post
Share on other sites

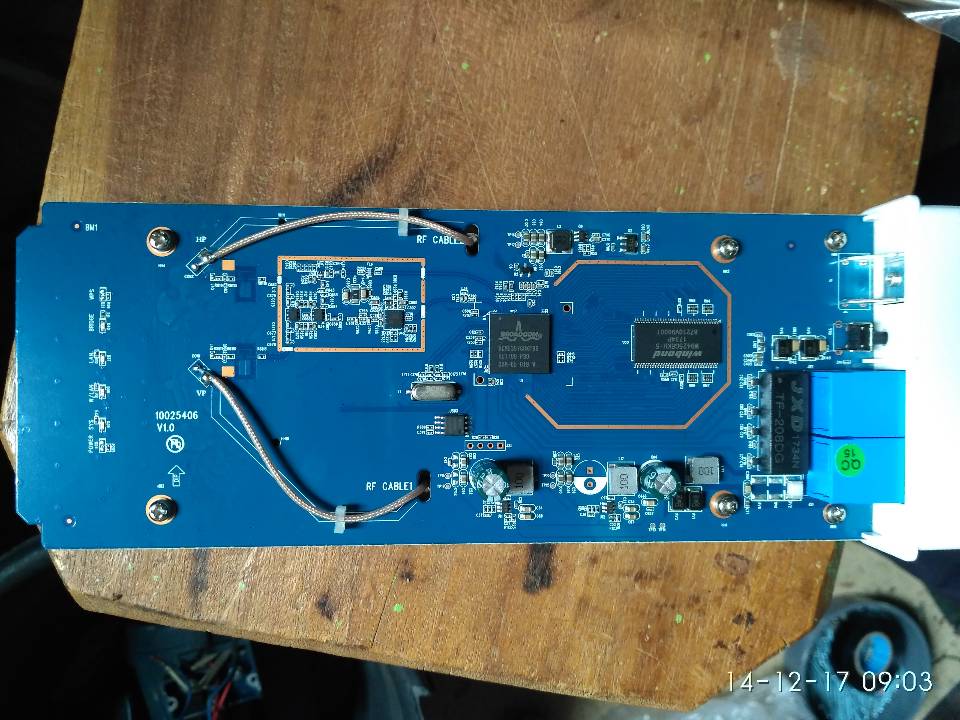

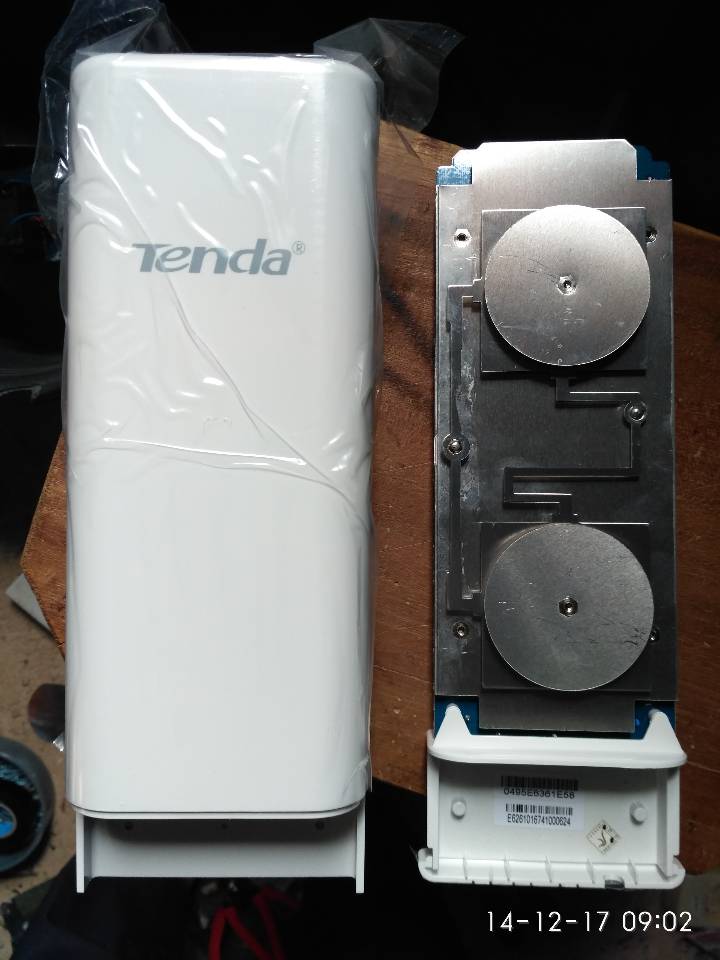

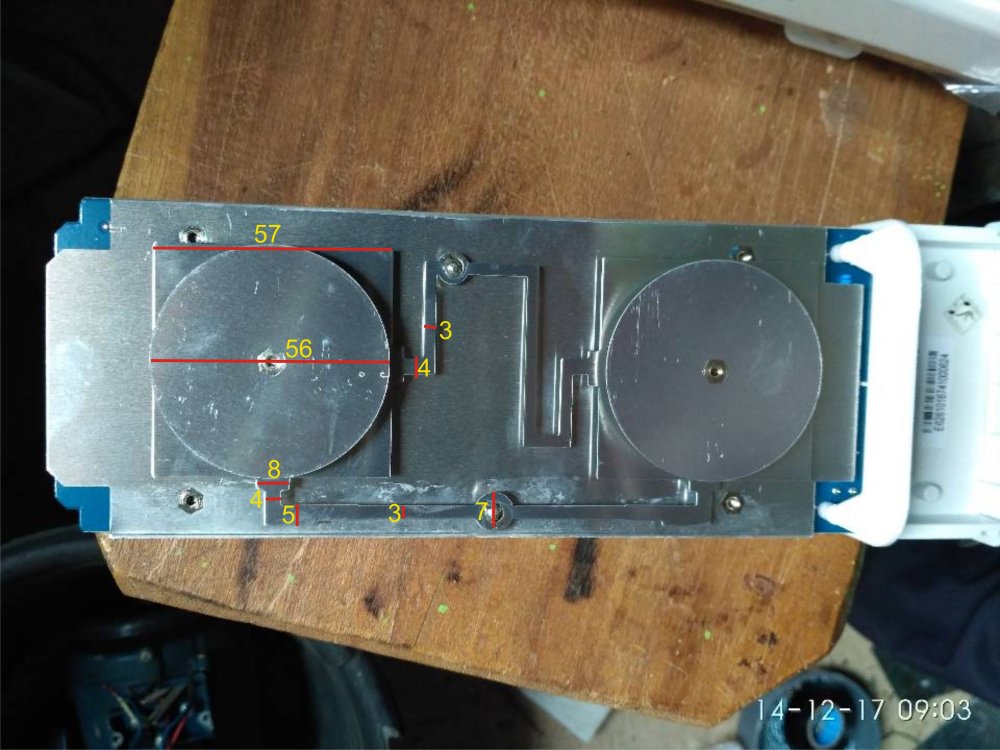

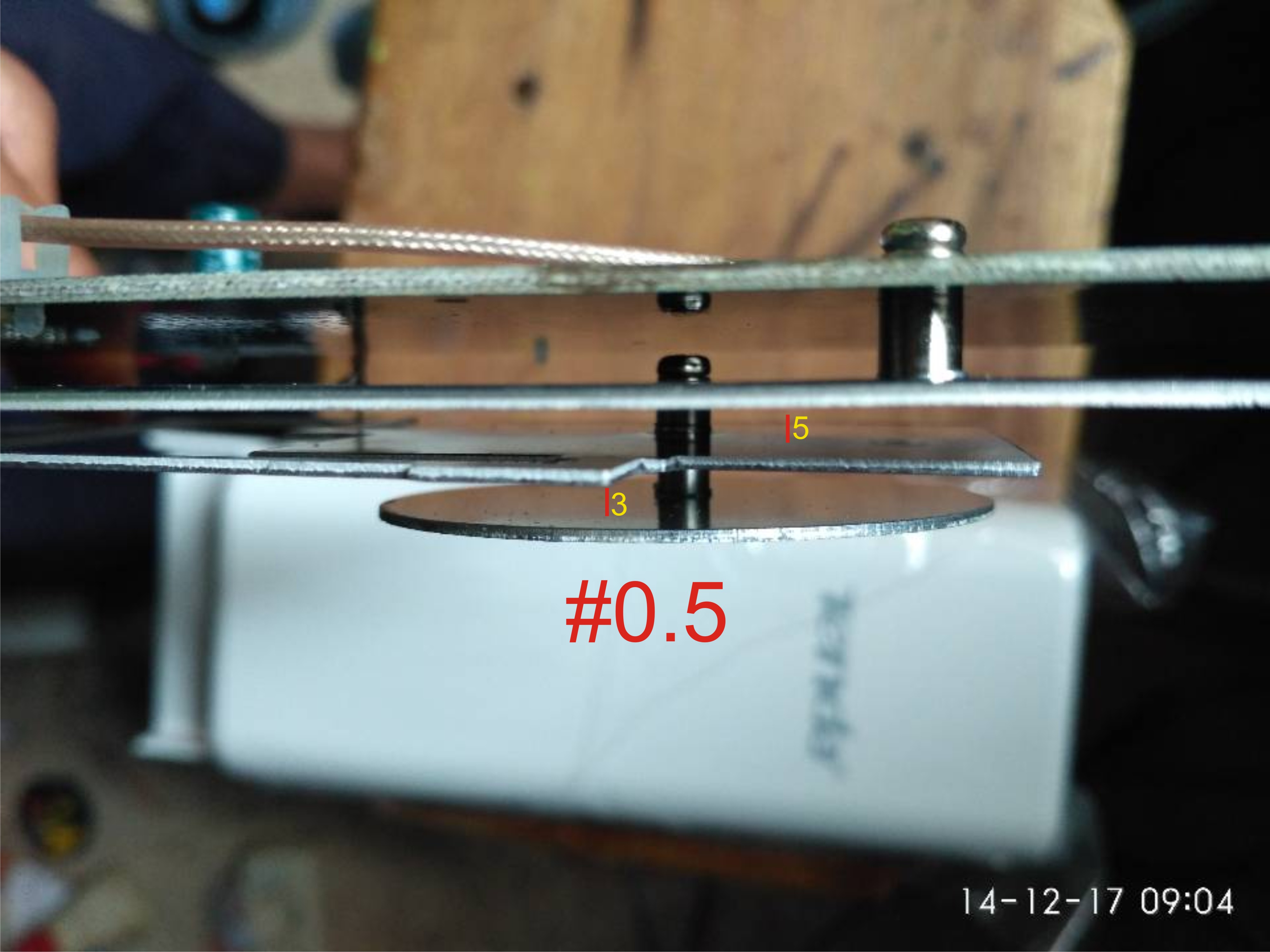

"Thanks Pragata, but some dimensions are needed at the adaptation lines...!!!!

and the distance between the patches...!!!

Share this post


Link to post
Share on other sites

sorry, I forgot to measure it, this device is installed, maybe 2 or 3 days I finish the data.

Share this post


Link to post
Share on other sites

but great, can carry bandwidth of 20 Mbps at a distance of 4 km, with horizontal polarization, signal -65dbi to -70dbi depending on conditions in the field.

Share this post


Link to post
Share on other sites

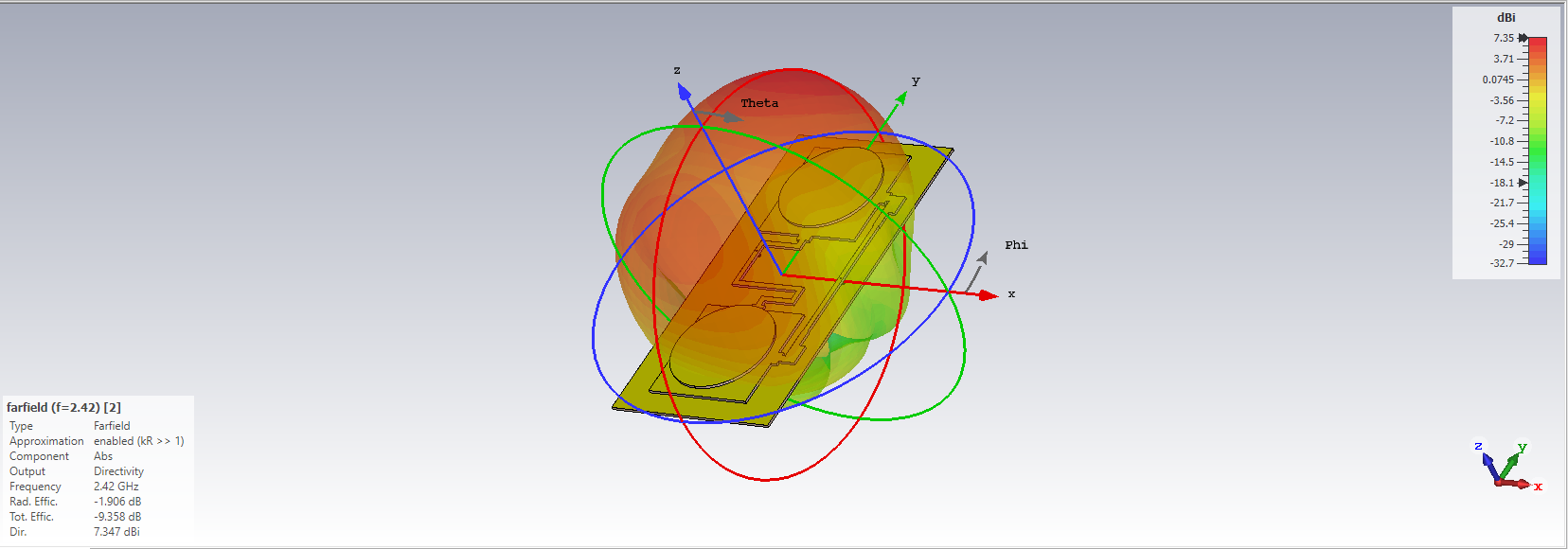

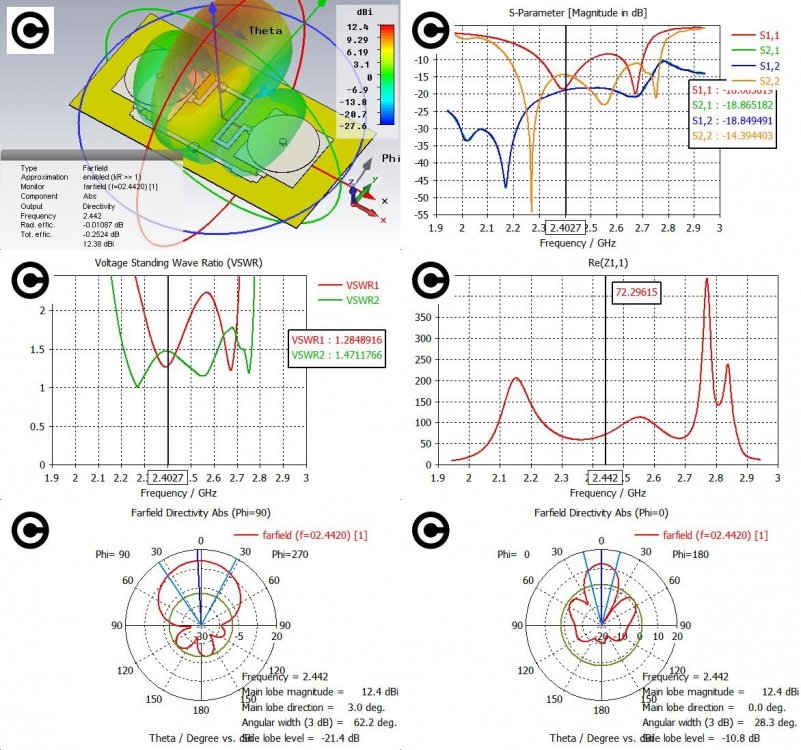

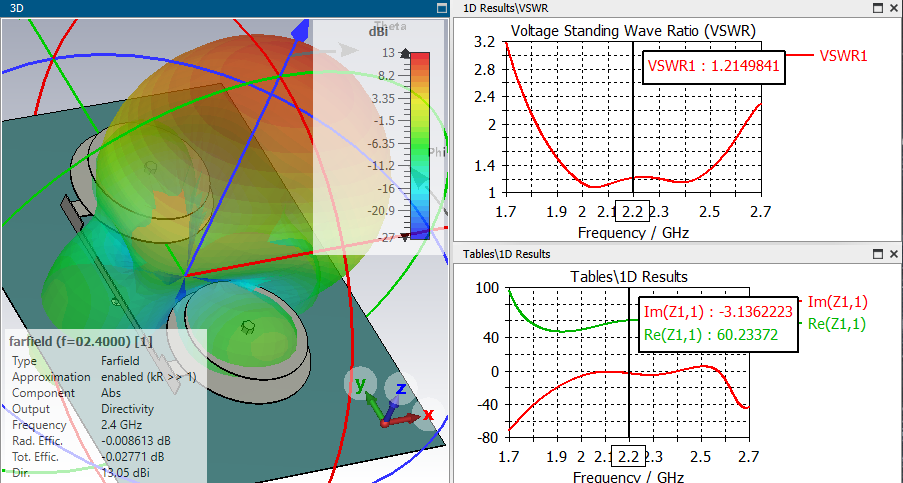

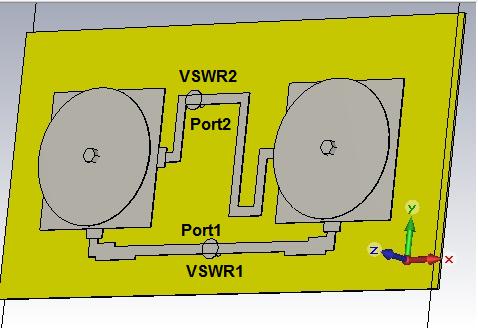

okay and these are the results of my simulation with approximate dimensions...


1 person likes this

Share this post


Link to post
Share on other sites

for nice vertical polarization in the upper chanel, and for nice horizontal polarization in the bottom chanel, is that right?

Share this post


Link to post
Share on other sites

Antenna Beamwidth  :  Horizontal: 60° Vertical: 30°
