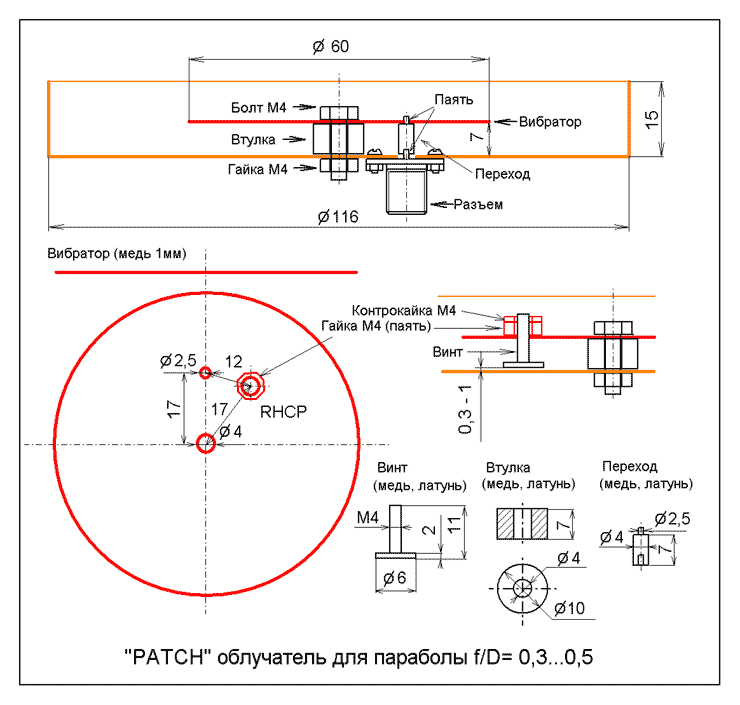

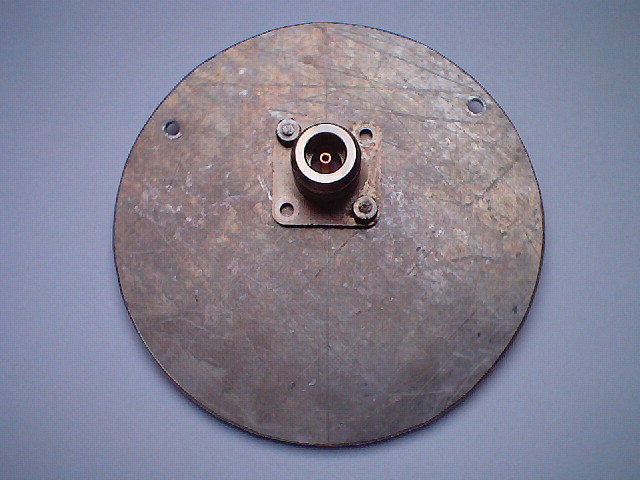

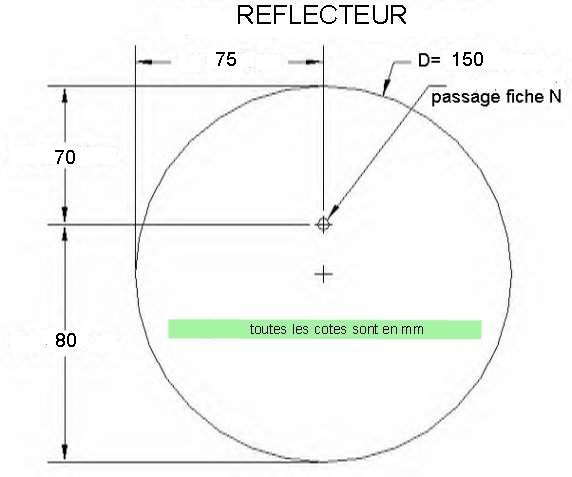

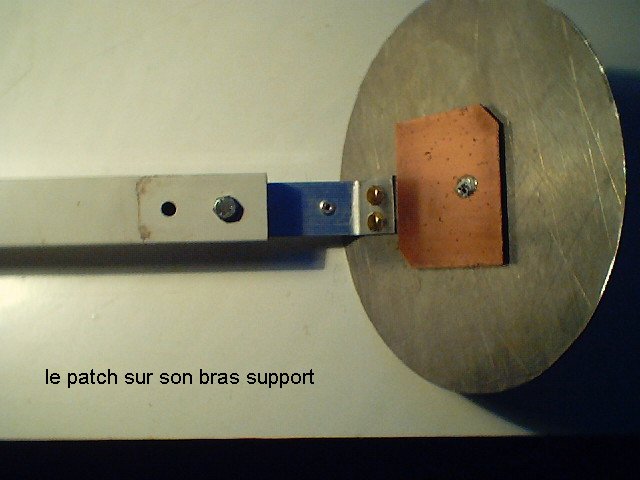

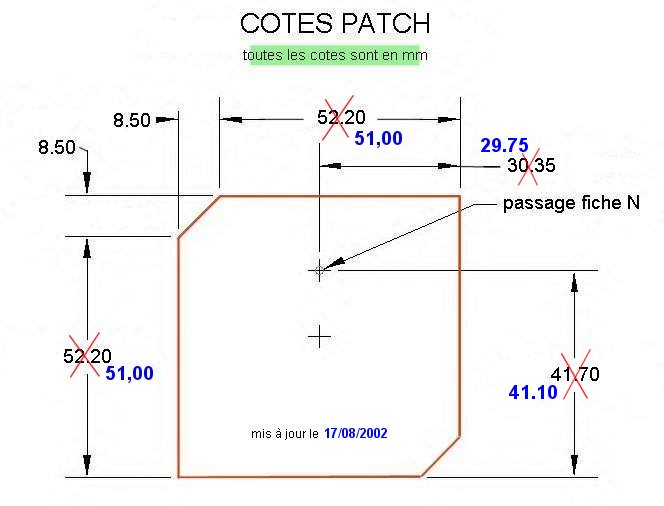

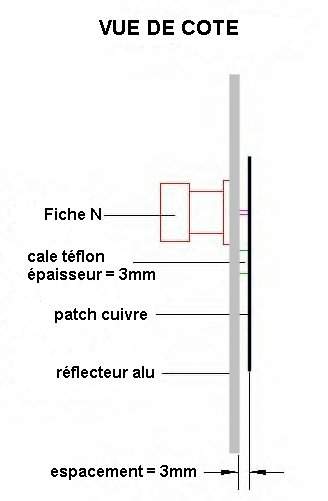

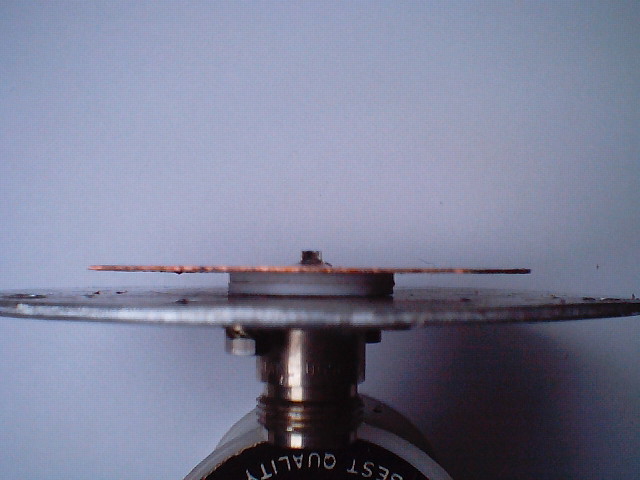

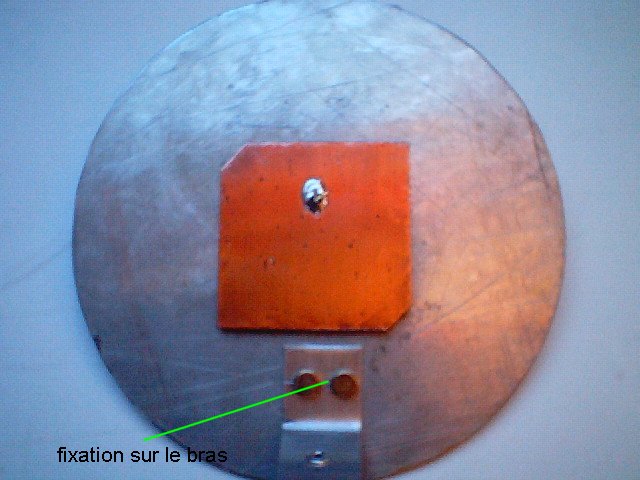

'PATCH' irradiator for an axial-symmetric antenna with a diameter of 67 cm and f/D=0.43 for receiving signals from the satellite AO-40



[Admin 2813]

simpler...


[papagayor 19]

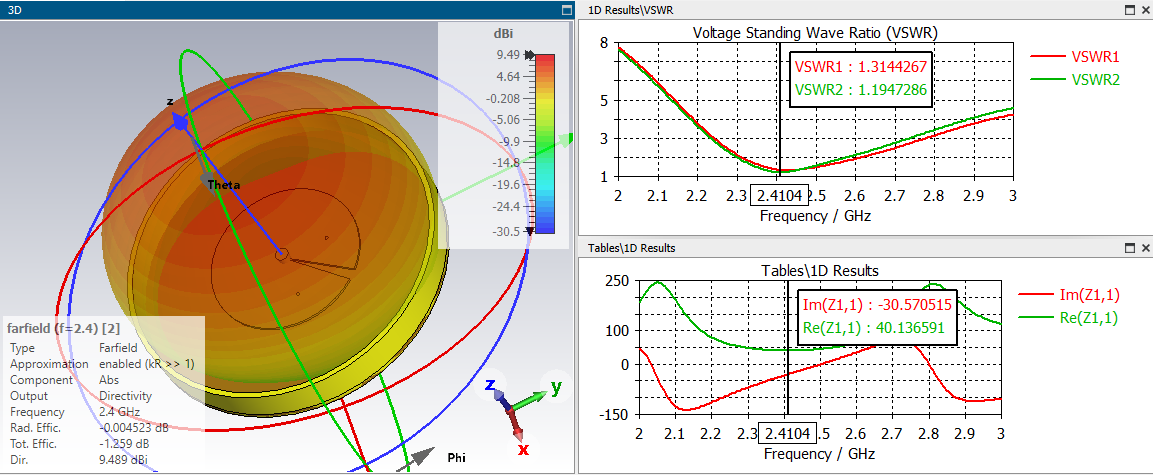

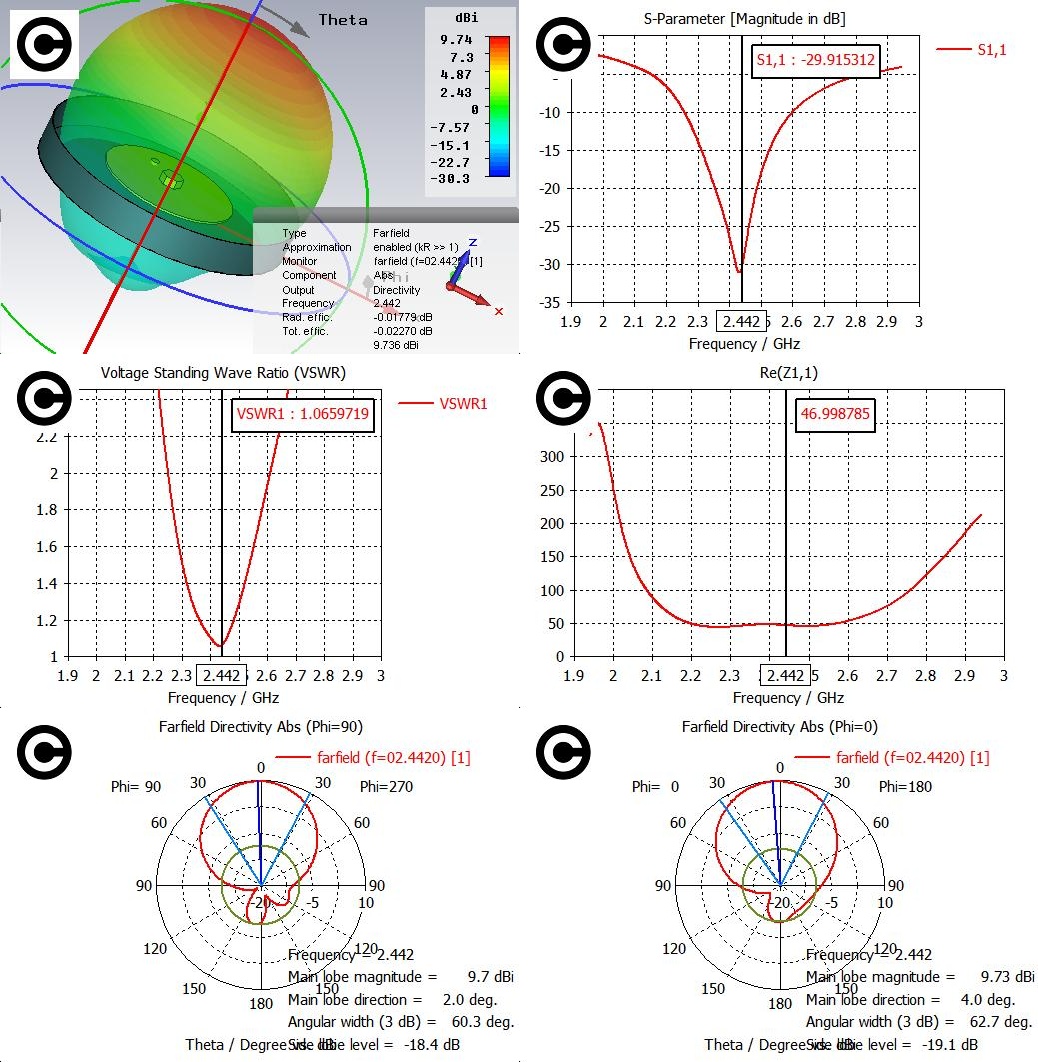

An antenna with dual polarized, dual ports design, unexpected good results!!!

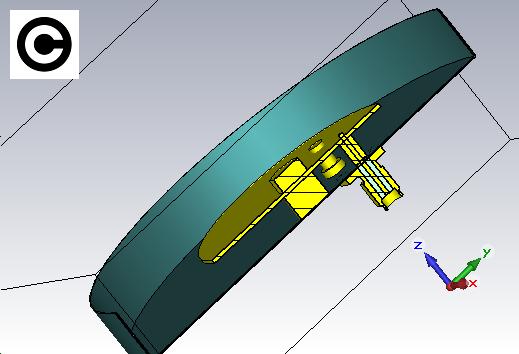

RoundPatch.cst

[clanon 323]

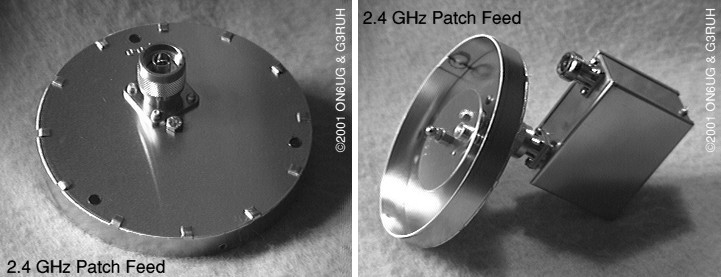

The original "claimed" 11 dbi gain...SMC patch

[papagayor 19]

May the double port cause the lower dbi gain or the whole parts placement, also I did not add a component in this, it's a testing project and someone that knows more than me could modify it

[Admin 2813]

,,,,papagayor....I think your post should be here...

Can you move it there...???

[papagayor 19]

Hi, don't find a way to do this, please tell me and I'll move it

[Admin 2813]

It's pretty simple, you just post there what's here.

[clanon 323]

6 hours ago, papagayor said:

May the double port cause the lower dbi gain or the whole parts placement

Does it have two connectors...?

Reactivity is high and Z should stay closer to 50 ohms... to be ideal...
