biged147

flower pot antenna

I need some help with this antenna see I live in the USA and we don't that size ECPVC pipe or PVC pipe of that size here is the sizes

1/2 inch which is 0.840 or 21.336mm both type pipe

3/4"  od 1.050  26.67mm

1"  1.315 od  33.401



Would the 3/4" pvc pipe is as closed as we can come to in the  USA, is there  any different in the dimensions the one I trying to build is

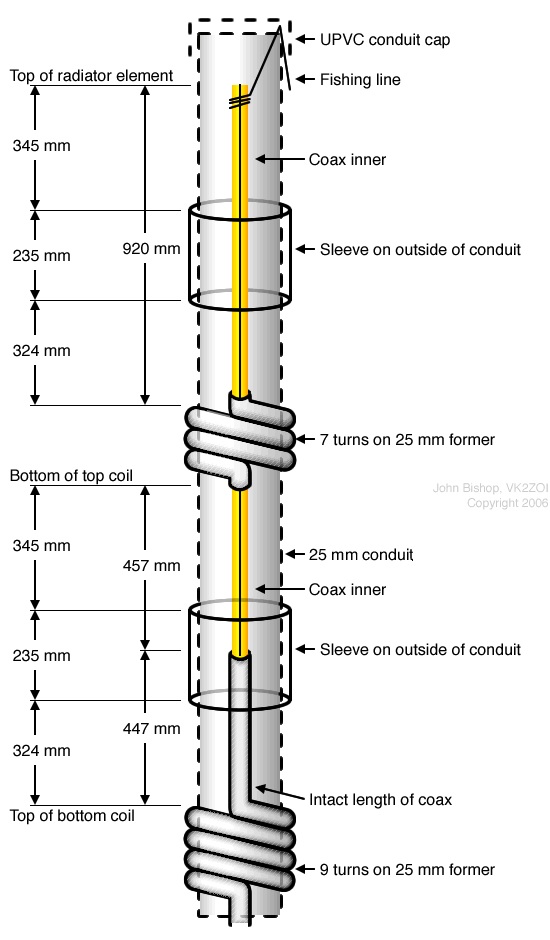

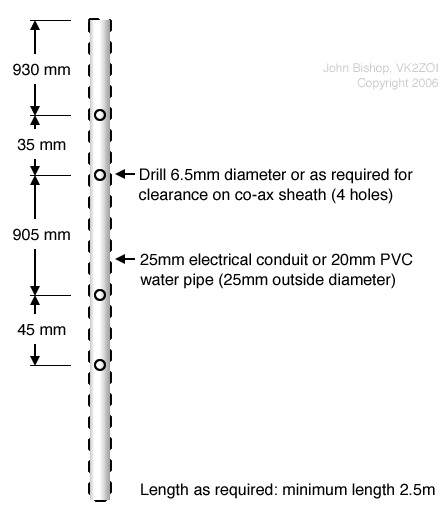

Experimental Dual Band High Gain Flower Pot Antenna



Share this post


Link to post
Share on other sites

it's a 1" OD (2,54mm exterior) conduit for electric cables...PVC...(Really THIN WALL)

any PIPE would DO

The LESS plastic the BETTER

Share this post


Link to post
Share on other sites

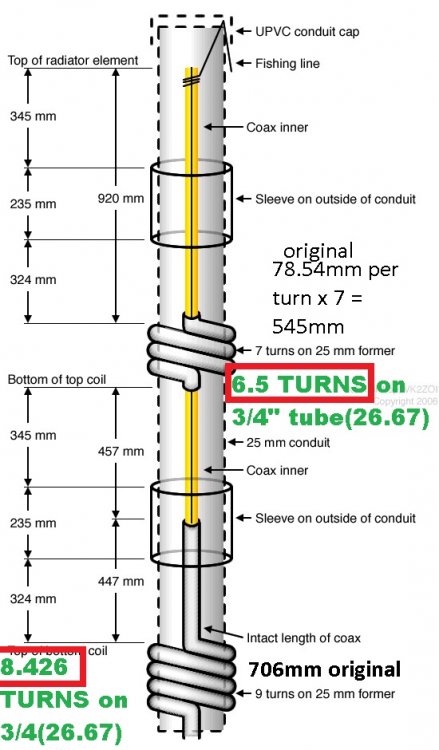

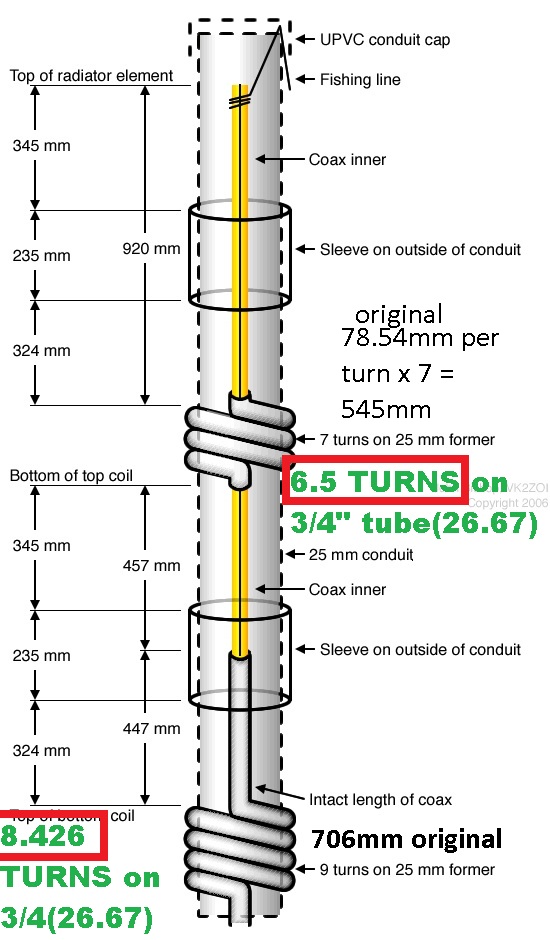

i think on 3/4...check the MATH...

Diameter x Pi = length (perimeter)




Share this post


Link to post
Share on other sites
