Welcome to WIFI Antennas

Register now to gain access to all of our features. Once registered and logged in, you will be able to contribute to this site by submitting your own content or replying to existing content. You'll be able to customize your profile, receive reputation points as a reward for submitting content, while also communicating with other members via your own private inbox, plus much more! This message will be removed once you have signed in.

moa5505

Small project with problems

Hello everyone !

I am kind of new in this forum, this is my first post, but I have been lurking a lot these last few days.

I wanted to describe you a small project of mine and some problems I have been having. Maybe my project could give some ideas to others and/or maybe you could have an idea to solve the problems I currently have.



So I am currently living in a small apartment in a medium density residential area (some small building and individual houses around). When I arrived here I noticed there was a public access wifi (in which you had to enter some identification), since it was working quite well I didn't bother to pay for an internet connection. The first problem was that the signal was quite low (depending on where I was in my apartment I couldn't connect) and I had to enter a password every 2 hours...

I solved this by placing a raspberry pi in a specific corner in my apartment and programming it to check the connection every 10 seconds and automatically send my credentials to connect if no internet was available. This worked very well for a few months, but a few weeks ago the wifi I was using for this went offline... To solve this I bought a better receptor (Alfa AWUS036NH) and a better antenna (TP-link ANT2409A), boosted the transmission to 30dBm (1W) and pointed the antenna to another building. And it worked ! I had internet again !

But I noticed the speed of the connection was much slower than before it's usable, but it's very very slow ...
I can barely watch a 360p video without lag ...



So now that I presented my project I am exposing my problem.

I have a quite good signal (-70dBm), and since my transmission is made with 1W, the router should not have any problem in receiving my packets, but I have a very high rate of TX retries (300%). I tried to move the antenna a bit, but nothing seems to change this. I also tried to block the transmission rate at a lower bitrate (5.5MBit) hoping that it would solve my problem, but again no change ...

Does someone has an idea on why my setup is not working correctly ?

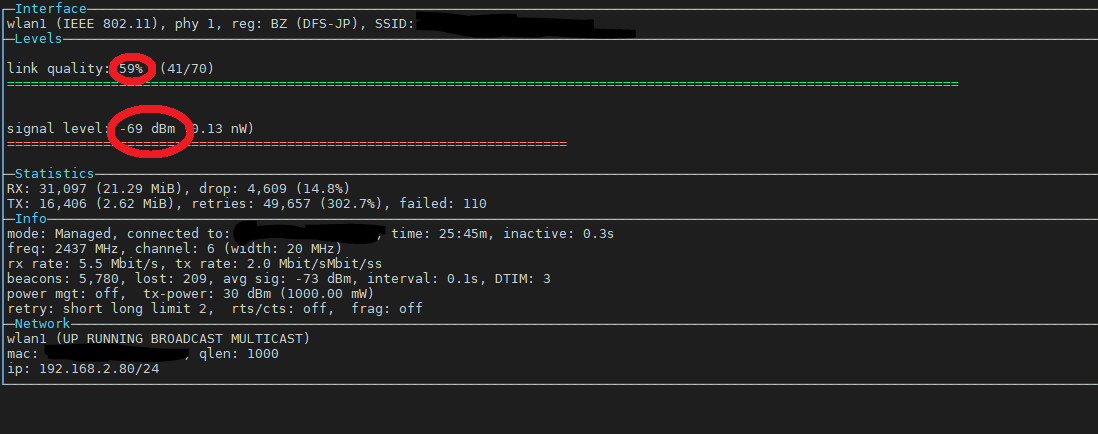

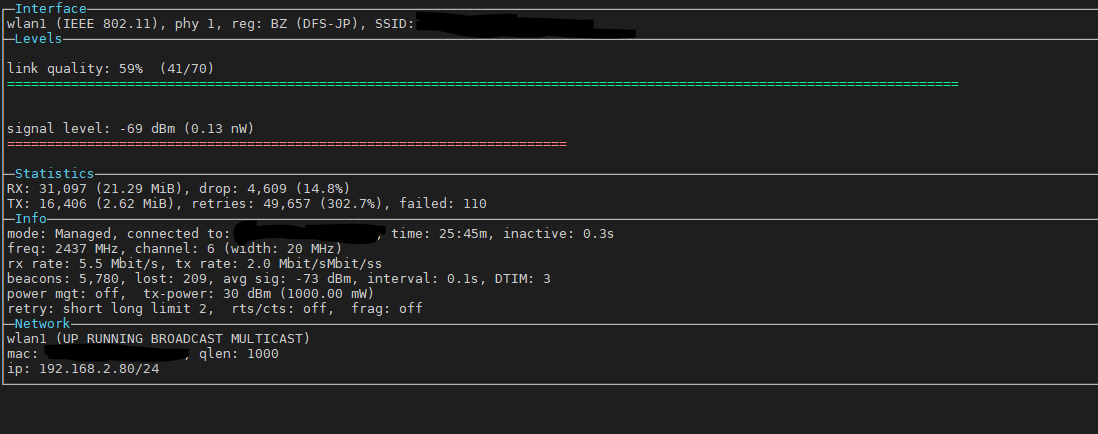

(I attached a screenshot of the main information of the connection)


Share this post


Link to post
Share on other sites

The antenna (TP-link ANT2409A),has only 6 dBi gain in directivity, try a stronger antenna made by you .. !!!

01 (2).jpg


Share this post


Link to post
Share on other sites
3 minutes ago, Admin said:

The antenna (TP-link ANT2409A),has only 6 dBi gain in directivity, try a stronger antenna made by you .. !!!

The specification says it's 9dB, but I don't know about real case usage. Anyway, I'm not convinced that a better antenna would be a solution since I already have a pretty good signal (I don't know about the router though ...). I was thinking this is a problem caused by the distance (packets have to travel to much time and this delay causes the devices to think the packets were lost).

Why do you believe a better antenna could be a solution ?



Share this post


Link to post
Share on other sites

,,, it can be 9 dBi...!!!

,,,but try to rotate the antenna 45 degrees horizontally and change the position in different places...!!!

Share this post


Link to post
Share on other sites
18 minutes ago, Admin said:

,,, it can be 9 dBi...!!!

,,,but try to rotate the antenna 45 degrees horizontally and change the position in different places...!!!

Rotating the antenna kind of works, I get a lesser signal (-74dBm), but a much lower retry rate (120%) and watching a 360p video is now clearly possible. I will keep it like that for the moment.

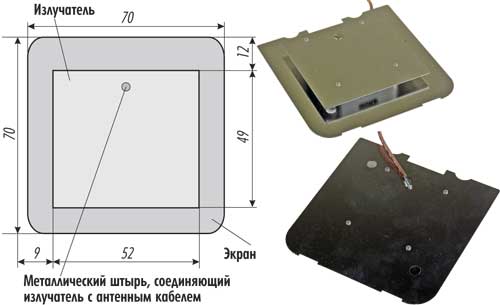

Building an antenna sounds fun, but I don't have any tools at the moment. I will save your schematics though, thanks ! What are the specs of the one on top ? Is it a directional or omnidirectional antenna ?

Share this post


Link to post
Share on other sites

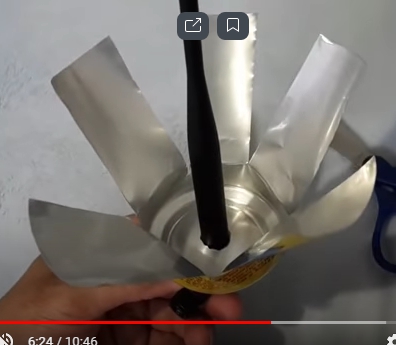

,,, you can try this with ALFA  AWUS036NH....


Share this post


Link to post
Share on other sites

the important thing isn't RSSI but SNR

by rotating the antenna for 45 deg, you RSSI dropped bay 3dB but you SNR increased



you seem to be a victim of CSMA/CD & CSMA/CA

there are maximum 14 (Japan2) channels on 2,45 GHz WIFI and there is someone on the same channel

Get a directional antenna ~18 dBi, with some luck the interfering signal is not in the direct line between you and the AP.



If needed with the 18dBi antenna, you have some space to get rid of the negative effects of the CSMA

by putting a 5~10 m long cable to attenuate the interference to a level where the CSMA won't react (it won't stop the transmitting, package drop)

2 people like this

Share this post


Link to post
Share on other sites

if you don't get closser to -60dbm or even under -60... AND link QUALITY (PACKETS) OVER or CLOSE to 70% you won't have SPEED or stability

If you can  , try a reflector (ANY METAL) behind your antenna and the signal direction...


Edited by clanon

Share this post


Link to post
Share on other sites
8 hours ago, swarg_eu said:

the important thing isn't RSSI but SNR

by rotating the antenna for 45 deg, you RSSI dropped bay 3dB but you SNR increased



you seem to be a victim of CSMA/CD & CSMA/CA

there are maximum 14 (Japan2) channels on 2,45 GHz WIFI and there is someone on the same channel

Get a directional antenna ~18 dBi, with some luck the interfering signal is not in the direct line between you and the AP.



If needed with the 18dBi antenna, you have some space to get rid of the negative effects of the CSMA

by putting a 5~10 m long cable to attenuate the interference to a level where the CSMA won't react (it won't stop the transmitting, package drop)

Nice Thanks for the explanation !

I don't plan on changing my antenna (or buying cables) at the moment, but it could be a option. I'll keep that in mind.

Share this post


Link to post
Share on other sites
5 hours ago, clanon said:

if you don't get closser to -60dbm or even under -60... AND link QUALITY (PACKETS) OVER or CLOSE to 70% you won't have SPEED or stability

If you can  , try a reflector (ANY METAL) behind your antenna and the signal direction...


I will try to put some aluminum behind the antenna to see if it improves something, Thanks !

1 person likes this

Share this post


Link to post
Share on other sites
12 hours ago, moa5505 said:

I will try to put some aluminum behind the antenna to see if it improves something, Thanks !

DISTANCE and AREA/SHAPE (curved  angled) is IMPORTANT ...fiddle with it use a fast and sensible indicator of level quality

Share this post


Link to post
Share on other sites
2 hours ago, clanon said:

DISTANCE and AREA/SHAPE (curved  angled) is IMPORTANT ...fiddle with it use a fast and sensible indicator of level quality

You guys make it seems like some kind of art/witchcraft rather than an exact science :D

Share this post


Link to post
Share on other sites
5 hours ago, moa5505 said:

You guys make it seems like some kind of art/witchcraft rather than an exact science :D

Electromagnetic Fields at HIGH Frecuencies...behave like  witchcraft ...(before simulations was hard to figure it out...and still is

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
